Abstract base class for all database nodes. More...

#include <Inventor/nodes/SoNode.h>

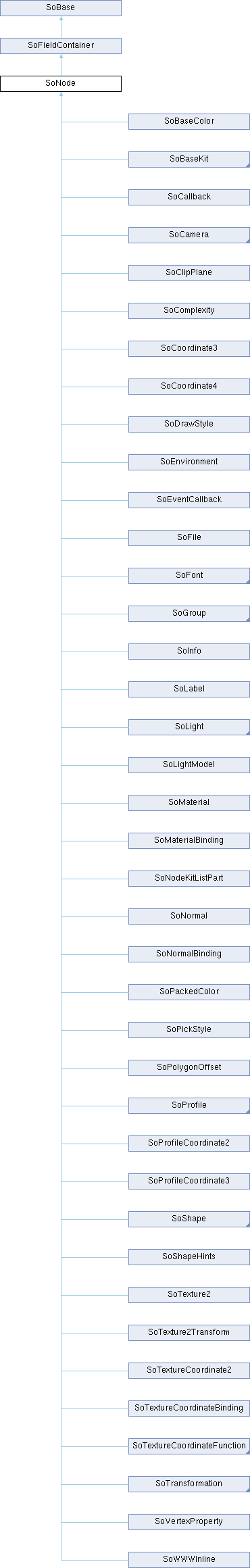

Inheritance diagram for SoNode:

Public Types
enum	Stage { FIRST_INSTANCE , PROTO_INSTANCE , OTHER_INSTANCE }

Public Member Functions
void	setOverride (bool state)
	Turns override flag on or off.

bool	isOverride () const
	Returns the state of the override flag.

SoNode *	copy (bool copyConnections=FALSE) const
	Creates and returns an exact copy of the node.

virtual bool	affectsState () const
	Returns TRUE if a node has an effect on the state during traversal.

virtual void	doAction (SoAction *action)
	This method performs the "typical" operation of a node for any action.

virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing.

virtual void	callback (SoCallbackAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

virtual void	write (SoWriteAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)
	These methods make render traversal faster by implementing different rendering paths corresponding to different action path codes.

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsSetup ()
	These virtual functions are called when a node gains or loses status as "grabber" of events (see HandleEventAction::setGrabber()).

virtual void	grabEventsCleanup ()

virtual void	startNotify ()
	Initiates notification from an instance.

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.

SbNodeIdType	getNodeId () const
	Returns the unique id for a node.

virtual SoChildList *	getChildren () const
	Returns pointer to children, or NULL if none.

virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used for either stage of writing.)

virtual SoNode *	addToCopyDict () const
	Recursively adds this node and all nodes under it to the copy dictionary.

virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.

virtual SoFieldContainer *	copyThroughConnection () const
	Copies an instance that is encountered through a field connection.

Public Member Functions inherited from SoFieldContainer
void	setToDefaults ()
	Sets all fields in this object to their default values.

bool	hasDefaultValues () const
	Returns TRUE if all of the object's fields have their default values.

bool	fieldsAreEqual (const SoFieldContainer *fc) const
	Returns TRUE if this object's fields are exactly equal to `fc's` fields.

void	copyFieldValues (const SoFieldContainer *fc, bool copyConnections=FALSE)
	Copies the contents of `fc's` fields into this object's fields.

bool	set (const char *fieldDataString)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format.

void	get (SbString &fieldDataString)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string.

virtual int	getFields (SoFieldList &list) const
	Appends pointers to all of this object's fields to resultList, and returns the number of fields appended.

virtual SoField *	getField (const SbName &fieldName) const
	Returns a pointer to the field with the given name.

bool	getFieldName (const SoField *field, SbName &fieldName) const
	Returns the name of the given field in the `fieldName` argument.

bool	enableNotify (bool flag)
	Notification at this Field Container is enabled (if flag == TRUE) or disabled (if flag == FALSE).

bool	isNotifyEnabled () const
	Notification is the process of telling interested objects that this object has changed.

bool	set (const char fieldDataString, SoInput dictIn)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format.

void	get (SbString &fieldDataString, SoOutput *dictOut)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string.

virtual void	notify (SoNotList *)
	Propagates modification notification through an instance.

virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Adds a reference to the instance when writing.

virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used only for last stage of writing)

bool	getIsBuiltIn () const
	Returns whether or not instance is considered 'built-in' to the library.

virtual const SoFieldData *	getFieldData () const
	Returns an SoFieldData structure for the node.

virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.

virtual SoFieldContainer *	copyThroughConnection () const
	During a copy operation, this copies an instance that is encountered through a field connection.

void	addManagedSensor (SoSensor *sensor)
	Adds a sensor which is managed by the field container.

Public Member Functions inherited from SoBase
void	ref () const
	Adds and removes a reference to an instance.

void	unref () const

void	unrefNoDelete () const

void	touch ()
	Marks an instance as modified, simulating a change to it.

virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance.

bool	isOfType (SoType type) const
	Returns TRUE if this object is of the type specified in `type` or is derived from that type.

virtual SbName	getName () const
	Returns the name of an instance.

virtual void	setName (const SbName &name)
	Sets the name of an instance.

virtual void	startNotify ()
	Initiates notification from an instance.

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.

void	addAuditor (void *auditor, SoNotRec::Type type)
	Adds/removes an auditor to/from list.

void	removeAuditor (void *auditor, SoNotRec::Type type)

const SoAuditorList &	getAuditors ()
	Returns auditor list– used by SoField and SoEngineOutput to trace forward connections.

int	getRefCount () const
	Returns current reference count.

virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Adds a reference to the instance when writing.

bool	shouldWrite ()
	Returns TRUE if the instance should be written, based on the write-reference info already accumulated.

Static Public Member Functions
static SoType	getClassTypeId ()
	Returns type identifier for the SoNode class.

static SoNode *	getByName (const SbName &name)
	Returns the last node given the specified name.

static int	getByName (const SbName &name, SoNodeList &list)
	Returns the number of nodes with the given name, and adds to `list` pointers to those nodes.

static void	initClass ()
	Initializes base node class.

static void	initClasses ()
	Initialize ALL Inventor node classes.

static SbNodeIdType	getNextNodeId ()
	Returns the next available unique id.

static int	getActionMethodIndex (SoType t)
	Returns the index of this node in the action/method table, given its type.

Static Public Member Functions inherited from SoFieldContainer
static SoType	getClassTypeId ()
	Returns the type of this class.

static void	initClass ()
	Setup type information.

static void	initCopyDict ()
	During a copy operation, copies of nodes and engines are stored in a dictionary, keyed by the original node or engine pointer, so that copies can be re-used.

static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)
	Adds an instance to the dictionary.

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
	If a copy of the given instance is in the dictionary, this returns it.

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, bool copyConnections)
	If a copy of the given instance is not in the dictionary, this returns NULL.

static void	copyDone ()
	Cleans up the dictionary when done.

Static Public Member Functions inherited from SoBase
static SoType	getClassTypeId ()
	Returns type identifier for this class.

static void	initClass ()
	Setup type information.

static void	incrementCurrentWriteCounter ()
	Increments the current write counter at the start of a write operation.

static void	decrementCurrentWriteCounter ()
	Decrements the current write counter after a write operation, in some rare cases.

static void	addName (SoBase , const char )
	Internal methods used to maintain the global name dictionary.

static void	removeName (SoBase , const char )

static SoBase *	getNamedBase (const SbName &, SoType)
	Helper routines used to get stuff out of nameDict.

static int	getNamedBases (const SbName &, SoBaseList &, SoType)

static bool	read (SoInput in, SoBase &base, SoType expectedType)
	Reads one instance of some subclass of SoBase.

static void	setInstancePrefix (const SbString &c)
	This defaults to "+" and is used when naming nodes that are DEF's and USE'd.

Protected Member Functions
	SoNode ()
	Constructor, destructor.

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer ()

	~SoFieldContainer ()

virtual bool	readInstance (SoInput *in, unsigned short flags)
	Reads stuff into instance. Returns FALSE on error.

Protected Member Functions inherited from SoBase
	SoBase ()
	Constructor is protected - this is an abstract class.

virtual	~SoBase ()
	Virtual destructor so that subclasses are deleted properly.

virtual void	destroy ()
	Actually deletes an instance.

bool	hasMultipleWriteRefs () const
	Returns TRUE if the instance has multiple write references.

bool	writeHeader (SoOutput *out, bool isGroup, bool isEngine) const
	Writes a header (name, open brace) or footer (close brace) to file defined by SoOutput.

void	writeFooter (SoOutput *out) const

virtual const char *	getFileFormatName () const
	Unknown nodes and engines write a different name for themselves than their typeId; this virtual method lets them do that (by default the typeId name is returned)

virtual bool	readInstance (SoInput *in, unsigned short flags)=0
	Reads stuff into instance of subclass.

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr ()
	This is used by the field-inheritence mechanism, hidden in the SoSubNode macros.

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter ()
	Returns current write counter.

Protected Attributes
SbNodeIdType	uniqueId
	Unique id for this node.

Protected Attributes inherited from SoFieldContainer
bool	isBuiltIn
	Is the subclass a built-in Inventor subclass or an extender subclass? This is used to determine whether to read/write field type information.

Static Protected Attributes
static SbNodeIdType	nextUniqueId
	Next available unique id.

static int	nextActionMethodIndex
	Next index into the action method table.

Additional Inherited Members
Static Public Attributes inherited from SoBase
static bool	traceRefs
	Turns on/off reference count tracing (for debugging)

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 1 , IS_GROUP = 2 }
	This set of enums is used when reading and writing the base. More...

Detailed Description

This is the abstract base class from which all scene graph node classes are derived.

Action Behavior

: SoSearchAction
If the node pointer, type, or name matches the search criteria, returns a path to the node.

: SoWriteAction
Writes the contents of the node to the current SoOutput.

See Also

: SoPath, SoAction, SoNodeKit

Definition at line 103 of file SoNode.h.

Member Enumeration Documentation

◆ Stage

enum SoNode::Stage

Enumerator
FIRST_INSTANCE	First real instance being constructed.
PROTO_INSTANCE	Prototype instance being constructed.
OTHER_INSTANCE	Subsequent instance being constructed.

Definition at line 174 of file SoNode.h.

Constructor & Destructor Documentation

◆ SoNode()

SoNode::SoNode ( )

protected

◆ ~SoNode()

virtual SoNode::~SoNode ( )

protectedvirtual

Member Function Documentation

◆ addToCopyDict()

virtual SoNode * SoNode::addToCopyDict ( ) const

virtual

Returns the copy of this node.

Reimplemented in SoBaseKit, and SoUnknownNode.

◆ affectsState()

virtual bool SoNode::affectsState ( ) const

virtual

The default method returns TRUE. Node classes (such as SoSeparator) that isolate their effects from the rest of the graph override this method to return FALSE.

Reimplemented in SoInteractionKit, SoNodeKitListPart, SoSceneKit, SoSeparatorKit, SoArray, SoMultipleCopy, SoSeparator, SoShape, and SoSwitch.

◆ callback()

virtual void SoNode::callback ( SoCallbackAction * action )

virtual

Reimplemented in SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoAntiSquish, SoArray, SoBaseColor, SoCallback, SoCamera, SoClipPlane, SoComplexity, SoCoordinate3, SoCoordinate4, SoDrawStyle, SoEnvironment, SoFile, SoFont, SoFontStyle, SoGroup, SoLevelOfDetail, SoLightModel, SoLOD, SoMaterial, SoMaterialBinding, SoMatrixTransform, SoMultipleCopy, SoNormal, SoNormalBinding, SoPackedColor, SoPickStyle, SoPolygonOffset, SoProfile, SoProfileCoordinate2, SoProfileCoordinate3, SoResetTransform, SoRotation, SoRotationXYZ, SoScale, SoSeparator, SoShape, SoShapeHints, SoSurroundScale, SoSwitch, SoTexture2, SoTexture2Transform, SoTextureCoordinate2, SoTextureCoordinateBinding, SoTextureCoordinateDefault, SoTextureCoordinateEnvironment, SoTextureCoordinatePlane, SoTransform, SoTransformSeparator, SoTranslation, SoUnits, SoVertexProperty, and SoWWWInline.

◆ copy()

SoNode * SoNode::copy ( bool copyConnections = FALSE ) const

If the node is a group, it copies the children as well. If copyConnections is TRUE (it is FALSE by default), any connections to (but not from) fields of the node are copied, as well. Note that multiple references to a node under the node to be copied will result in multiple references to the copy of that node.

◆ copyContents()

virtual void SoNode::copyContents	(	const SoFieldContainer *	fromFC,
		bool	copyConnections
	)

virtual

The default implementation copies just field values and the name.

Reimplemented from SoFieldContainer.

Reimplemented in SoRotateCylindricalDragger, SoRotateSphericalDragger, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoInteractionKit, SoNodeKitListPart, SoCallback, SoFile, SoGroup, SoWWWInline, and SoUnknownNode.

◆ copyThroughConnection()

virtual SoFieldContainer * SoNode::copyThroughConnection ( ) const

virtual

Reimplemented from SoFieldContainer.

◆ doAction()

virtual void SoNode::doAction ( SoAction * action )

virtual

The default implementation does nothing.

Reimplemented in SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoAntiSquish, SoArray, SoBaseColor, SoCallback, SoCamera, SoClipPlane, SoComplexity, SoCoordinate3, SoCoordinate4, SoDrawStyle, SoFile, SoFont, SoFontStyle, SoGroup, SoLevelOfDetail, SoLightModel, SoLOD, SoMaterial, SoMaterialBinding, SoMatrixTransform, SoMultipleCopy, SoNormal, SoNormalBinding, SoPackedColor, SoPathSwitch, SoPickStyle, SoPolygonOffset, SoProfile, SoProfileCoordinate2, SoProfileCoordinate3, SoResetTransform, SoRotation, SoRotationXYZ, SoScale, SoSeparator, SoShapeHints, SoSurroundScale, SoSwitch, SoTexture2, SoTexture2Transform, SoTextureCoordinate2, SoTextureCoordinateBinding, SoTextureCoordinateDefault, SoTextureCoordinateEnvironment, SoTextureCoordinatePlane, SoTransform, SoTransformSeparator, SoTranslation, SoUnits, SoVertexProperty, and SoWWWInline.

◆ getActionMethodIndex()

static int SoNode::getActionMethodIndex ( SoType t )

inlinestatic

Definition at line 206 of file SoNode.h.

References SoType::getData().

◆ getBoundingBox()

virtual void SoNode::getBoundingBox ( SoGetBoundingBoxAction * action )

virtual

◆ getByName() [1/2]

static SoNode * SoNode::getByName ( const SbName & name )

static

A node's name can be set using SoBase::setName(). Returns the number of nodes with the given name, and adds to list pointers to those nodes.

◆ getByName() [2/2]

static int SoNode::getByName	(	const SbName &	name,
		SoNodeList &	list
	)

static

A node's name can be set using SoBase::setName().

◆ getChildren()

virtual SoChildList * SoNode::getChildren ( ) const

virtual

Reimplemented in SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoFile, SoGroup, and SoWWWInline.

◆ getClassTypeId()

static SoType SoNode::getClassTypeId ( )

inlinestatic

Definition at line 114 of file SoNode.h.

◆ getFieldDataPtr()

static const SoFieldData ** SoNode::getFieldDataPtr ( )

inlinestaticprotected

Definition at line 224 of file SoNode.h.

◆ getMatrix()

virtual void SoNode::getMatrix ( SoGetMatrixAction * action )

virtual

◆ getNextNodeId()

static SbNodeIdType SoNode::getNextNodeId ( )

inlinestatic

Definition at line 196 of file SoNode.h.

◆ getNodeId()

SbNodeIdType SoNode::getNodeId ( ) const

inline

Definition at line 193 of file SoNode.h.

◆ GLRender()

virtual void SoNode::GLRender ( SoGLRenderAction * action )

virtual

Reimplemented in SoTabPlaneDragger, SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoAntiSquish, SoArray, SoAsciiText, SoBaseColor, SoCallback, SoCamera, SoClipPlane, SoComplexity, SoCone, SoCoordinate3, SoCoordinate4, SoCube, SoCylinder, SoDirectionalLight, SoDrawStyle, SoEnvironment, SoFaceSet, SoFile, SoFont, SoFontStyle, SoGroup, SoIndexedFaceSet, SoIndexedLineSet, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoIndexedTriangleSet, SoIndexedTriangleStripSet, SoLevelOfDetail, SoLightModel, SoLineSet, SoLOD, SoMaterial, SoMaterialBinding, SoMatrixTransform, SoMultipleCopy, SoNormal, SoNormalBinding, SoNurbsCurve, SoNurbsSurface, SoPackedColor, SoPathSwitch, SoPointLight, SoPointSet, SoPolygonOffset, SoProfile, SoProfileCoordinate2, SoProfileCoordinate3, SoQuadMesh, SoResetTransform, SoRotation, SoRotationXYZ, SoScale, SoSeparator, SoShape, SoShapeHints, SoSphere, SoSpotLight, SoSurroundScale, SoSwitch, SoText2, SoText3, SoTexture2, SoTexture2Transform, SoTextureCoordinate2, SoTextureCoordinateBinding, SoTextureCoordinateDefault, SoTextureCoordinateEnvironment, SoTextureCoordinatePlane, SoTransform, SoTransformSeparator, SoTranslation, SoTriangleStripSet, SoUnits, SoVertexProperty, and SoWWWInline.

◆ GLRenderBelowPath()

virtual void SoNode::GLRenderBelowPath ( SoGLRenderAction * action )

virtual

The SoNode methods just call GLRender.

Reimplemented in SoAnnotation, SoLocateHighlight, SoLOD, and SoSeparator.

◆ GLRenderInPath()

virtual void SoNode::GLRenderInPath ( SoGLRenderAction * action )

virtual

Reimplemented in SoAnnotation, SoLocateHighlight, SoLOD, and SoSeparator.

◆ GLRenderOffPath()

virtual void SoNode::GLRenderOffPath ( SoGLRenderAction * action )

virtual

Reimplemented in SoLOD, and SoSeparator.

◆ grabEventsCleanup()

virtual void SoNode::grabEventsCleanup ( )

virtual

Reimplemented in SoDragger.

◆ grabEventsSetup()

virtual void SoNode::grabEventsSetup ( )

virtual

The default methods do nothing.

Reimplemented in SoDragger.

◆ handleEvent()

virtual void SoNode::handleEvent ( SoHandleEventAction * action )

virtual

◆ initClass()

static void SoNode::initClass ( )

static

◆ initClasses()

static void SoNode::initClasses ( )

static

◆ isOverride()

bool SoNode::isOverride ( ) const

inline

Definition at line 111 of file SoNode.h.

◆ notify()

virtual void SoNode::notify ( SoNotList * list )

virtual

Reimplemented from SoFieldContainer.

Reimplemented in SoBlinker, SoIndexedShape, SoSeparator, and SoVertexShape.

◆ pick()

virtual void SoNode::pick ( SoPickAction * action )

virtual

◆ rayPick()

virtual void SoNode::rayPick ( SoRayPickAction * action )

virtual

Reimplemented in SoBaseKit, SoAsciiText, SoCamera, SoCone, SoCube, SoCylinder, SoIndexedNurbsCurve, SoIndexedNurbsSurface, SoLevelOfDetail, SoLOD, SoNurbsCurve, SoNurbsSurface, SoSeparator, SoShape, SoSphere, SoText2, and SoText3.

◆ search()

virtual void SoNode::search ( SoSearchAction * action )

virtual

Reimplemented in SoDirectionalLightManip, SoPointLightManip, SoSpotLightManip, SoTransformManip, SoBaseKit, SoNodeKitListPart, SoArray, SoCallback, SoGroup, SoMultipleCopy, SoPathSwitch, SoSeparator, SoSwitch, SoWWWInline, and SoUnknownNode.

◆ setOverride()

void SoNode::setOverride ( bool state )

◆ startNotify()

virtual void SoNode::startNotify ( )

virtual

Reimplemented from SoBase.

◆ write()

virtual void SoNode::write ( SoWriteAction * action )

virtual

Reimplemented in SoBaseKit, SoBlinker, SoCallback, SoGroup, SoSwitch, and SoUnknownNode.

◆ writeInstance()

virtual void SoNode::writeInstance ( SoOutput * out )

virtual

Reimplemented from SoFieldContainer.

Member Data Documentation

◆ nextActionMethodIndex

int SoNode::nextActionMethodIndex

staticprotected

Definition at line 237 of file SoNode.h.

◆ nextUniqueId

SbNodeIdType SoNode::nextUniqueId

staticprotected

Definition at line 234 of file SoNode.h.

◆ uniqueId

SbNodeIdType SoNode::uniqueId

protected

Definition at line 231 of file SoNode.h.

The documentation for this class was generated from the following file:

C:/jh/mevislab/4.0.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/nodes/SoNode.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Stage

Constructor & Destructor Documentation

◆ SoNode()

◆ ~SoNode()

Member Function Documentation

◆ addToCopyDict()

◆ affectsState()

◆ callback()

◆ copy()

◆ copyContents()

◆ copyThroughConnection()

◆ doAction()

◆ getActionMethodIndex()

◆ getBoundingBox()

◆ getByName() [1/2]

◆ getByName() [2/2]

◆ getChildren()

◆ getClassTypeId()

◆ getFieldDataPtr()

◆ getMatrix()

◆ getNextNodeId()

◆ getNodeId()

◆ GLRender()

◆ GLRenderBelowPath()

◆ GLRenderInPath()

◆ GLRenderOffPath()

◆ grabEventsCleanup()

◆ grabEventsSetup()

◆ handleEvent()

◆ initClass()

◆ initClasses()

◆ isOverride()

◆ notify()

◆ pick()

◆ rayPick()

◆ search()

◆ setOverride()

◆ startNotify()

◆ write()

◆ writeInstance()

Member Data Documentation

◆ nextActionMethodIndex

◆ nextUniqueId

◆ uniqueId
