Renders a scene graph using OpenGL. More...

#include <Inventor/actions/SoGLRenderAction.h>

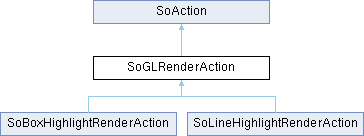

Inheritance diagram for SoGLRenderAction:

Public Types
enum	TransparencyType { SCREEN_DOOR , ADD , DELAYED_ADD , SORTED_OBJECT_ADD , BLEND , DELAYED_BLEND , SORTED_OBJECT_BLEND }
	Various levels of transparency rendering quality. More...

enum	AbortCode { CONTINUE , ABORT , PRUNE , DELAY }
	Possible return codes from a render abort callback. More...

typedef AbortCode	SoGLRenderAbortCB(void *userData)
	Callback functions for render abort should be of this type. More...

Public Types inherited from SoAction
enum	AppliedCode { NODE , PATH , PATH_LIST }
	This enum is used to determine what the action is being applied to. More...

enum	PathCode { NO_PATH , IN_PATH , BELOW_PATH , OFF_PATH }
	This enum may be used during traversal of nodes to indicate where the node is with respect to the path being traversed. More...

Public Member Functions
	SoGLRenderAction (const SbViewportRegion &viewportRegion)
	Constructor. More...

virtual	~SoGLRenderAction ()
	Destructor. More...

void	setViewportRegion (const SbViewportRegion &newRegion)
	Changes viewport region to use for rendering. More...

const SbViewportRegion &	getViewportRegion () const
	Returns viewport region to use for rendering. More...

void	setUpdateArea (const SbVec2f &origin, const SbVec2f &size)

void	getUpdateArea (SbVec2f &origin, SbVec2f &size) const
	Sets/returns the current update area, which is the rectangular area of the viewport region that will actually be rendered into. More...

void	setAbortCallback (SoGLRenderAbortCB funcArg, void userData)
	Sets callback to call during rendering to test for an abort condition. More...

void	setTransparencyType (TransparencyType type)

TransparencyType	getTransparencyType () const
	Sets/returns transparency quality level to use when rendering. More...

void	setSmoothing (bool smooth)

bool	isSmoothing () const
	Sets/returns smoothing flag. More...

void	setNumPasses (int num)

int	getNumPasses () const
	Sets/returns number of rendering passes for multipass rendering. More...

void	setPassUpdate (bool flag)

bool	isPassUpdate () const
	Sets/returns a flag indicating whether intermediate results are displayed after each antialiasing pass for progressive improvement (default is FALSE). More...

void	setPassCallback (SoGLRenderPassCB funcArg, void userData)
	Sets a callback function to invoke between passes when antialiasing. More...

void	setCacheContext (uint32_t context)

uint32_t	getCacheContext () const
	Sets/returns the OpenGL cache context. More...

virtual void	invalidateState ()
	Invalidate the state, forcing it to be recreated at the next apply. More...

int	getCurPass () const
	Returns current rendering pass number. More...

bool	abortNow ()
	Returns TRUE if render action should abort - checks user callback. More...

bool	handleTransparency (bool isTransparent=FALSE)
	Returns TRUE if render action handles processing of a transparent object (if it is to be sorted and rendered later). More...

bool	isDelaying () const
	Returns TRUE if rendering is being delayed because of transparency sorting or delaying. More...

void	addDelayedPath (SoPath *path)
	Adds to the list of paths to render after all other stuff (including delayed/sorted transparent objects) have been rendered. More...

bool	isRenderingDelayedPaths () const
	Returns TRUE if currently rendering delayed paths. More...

int	getCullTestResults ()

void	setCullTestResults (int b)

bool	setAllowDelayedPath (bool flag)
	Sets if delayed paths are allowed while rendering. More...

bool	getAllowDelayedPaths ()
	Returns if delayed paths are currently allowed. More...

Public Member Functions inherited from SoAction
virtual	~SoAction ()
	Destructor. More...

virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance. More...

bool	isOfType (SoType type) const
	Returns TRUE if this instance is of the type specified in `type` or is derived from that type. More...

virtual void	apply (SoNode *node)

virtual void	apply (SoPath *path)

virtual void	apply (const SoPathList &pathList, bool obeysRules=FALSE)
	Initiates an action on the graph defined either by a node, path, or list of paths. More...

AppliedCode	getWhatAppliedTo () const
	Returns code indicating what action is being applied to. More...

SoNode *	getNodeAppliedTo () const
	These returns a pointer to the node, path, or path list the action is being applied to. More...

SoPath *	getPathAppliedTo () const

const SoPathList *	getPathListAppliedTo () const
	A single path list may be split into several, one for each different head node. More...

const SoPathList *	getOriginalPathListAppliedTo () const

bool	isLastPathListAppliedTo () const

PathCode	getPathCode (int &numIndices, const int *&indices)
	Returns path code based on where current node (the node at the end of the current path) lies with respect to the path(s) the action is being applied to. More...

void	traverse (SoNode *node)
	Does traversal of a graph rooted by a node. More...

bool	hasTerminated () const
	Returns TRUE if the traversal has reached a termination condition. More...

const SoPath *	getCurPath ()
	Returns a pointer to the path accumulated during traversal, i.e., the chain of nodes from the root of the traversed graph to the current node being traversed. More...

SoState *	getState () const
	Get the state from the action. More...

PathCode	getCurPathCode () const
	These methods maintain the current path accumulated so far during traversal. More...

void	pushCurPath (int childIndex)

void	popCurPath (PathCode prevPathCode)

virtual SoNode *	getCurPathTail ()
	This is virtual, so that SoCallbackAction can use current node. More...

void	usePathCode (int &numIndices, const int *&indices)
	called by inline getPathCode: More...

void	pushCurPath ()
	Optimized versions of push/pop when we know path codes won't change: More...

void	popPushCurPath (int childIndex)

void	popCurPath ()

const SoLightweightPath &	getCurrentLightweightPath () const
	Returns the current "light" path. More...

void	setCurrentLightweightPath (const SoLightweightPath &path)
	Sets the current "light" path. More...

Static Public Member Functions
static void	initClass ()

Static Public Member Functions inherited from SoAction
static SoType	getClassTypeId ()
	Returns the type identifier for this class. More...

static void	nullAction (SoAction , SoNode )
	Null action method that can be stored in lookup table when desired. More...

static void	initClass ()

static void	initClasses ()
	Initialize ALL Inventor action classes. More...

Protected Member Functions
virtual void	beginTraversal (SoNode *node)
	Initiates action on graph. More...

Protected Member Functions inherited from SoAction
	SoAction ()
	Constructor. More...

virtual const SoEnabledElementsList &	getEnabledElements () const
	Returns the list of enabled elements for a given action subclass. More...

void	setTerminated (bool flag)
	Allows subclass instance to indicate that traversal has reached a termination condition. More...

virtual bool	shouldCompactPathLists () const
	This method is used when applying an action to an SoPathList. More...

Additional Inherited Members
Protected Attributes inherited from SoAction
SoState *	state
	Traversal state. More...

SoActionMethodList *	traversalMethods
	The list of what to do when. More...

Static Protected Attributes inherited from SoAction
static SoEnabledElementsList *	enabledElements
	Holds list of enabled elements for the SoAction class. More...

static SoActionMethodList *	methods
	... and the methods More...

Detailed Description

This class traverses a scene graph and renders it using the OpenGL graphics library. It assumes that a valid window has been created and initialized for proper OpenGL rendering. The SoQtRenderArea class or any of its subclasses may be used to create such a window.

See Also

: SoSeparator, SoQtRenderArea

Definition at line 86 of file SoGLRenderAction.h.

Member Typedef Documentation

◆ SoGLRenderAbortCB

typedef AbortCode SoGLRenderAction::SoGLRenderAbortCB(void *userData)

This typedef is defined within the class, since it needs to refer to the AbortCode enumerated type.

Definition at line 114 of file SoGLRenderAction.h.

Member Enumeration Documentation

◆ AbortCode

enum SoGLRenderAction::AbortCode

Enumerator
CONTINUE	Continue as usual.
ABORT	Stop traversing the rest of the graph.
PRUNE	Do not traverse this node or its children.
DELAY	Delay rendering of this node.

Definition at line 104 of file SoGLRenderAction.h.

◆ TransparencyType

enum SoGLRenderAction::TransparencyType

Enumerator
SCREEN_DOOR	Use GL patterns for screen-door transparency.
ADD	Use additive GL alpha blending.
DELAYED_ADD	Use additive blending, do transp objs last.
SORTED_OBJECT_ADD	Use additive blending, sort objects by bbox.
BLEND	Use GL alpha blending.
DELAYED_BLEND	Use GL alpha blending, do transp objs last.
SORTED_OBJECT_BLEND	Use GL alpha blending, sort objects by bbox.

Definition at line 93 of file SoGLRenderAction.h.

Constructor & Destructor Documentation

◆ SoGLRenderAction()

SoGLRenderAction::SoGLRenderAction ( const SbViewportRegion & viewportRegion )

The parameter defines the viewport region into which rendering will take place.

◆ ~SoGLRenderAction()

virtual SoGLRenderAction::~SoGLRenderAction ( )

virtual

Member Function Documentation

◆ abortNow()

bool SoGLRenderAction::abortNow ( )

inline

Definition at line 205 of file SoGLRenderAction.h.

References SoAction::hasTerminated().

◆ addDelayedPath()

void SoGLRenderAction::addDelayedPath ( SoPath * path )

(Used for annotation nodes.)

◆ beginTraversal()

virtual void SoGLRenderAction::beginTraversal ( SoNode * node )

protectedvirtual

Reimplemented from SoAction.

◆ getAllowDelayedPaths()

bool SoGLRenderAction::getAllowDelayedPaths ( )

inline

Definition at line 242 of file SoGLRenderAction.h.

◆ getCacheContext()

uint32_t SoGLRenderAction::getCacheContext ( ) const

A cache context is just an integer identifying when OpenGL display lists (which are used for render caching) can be shared between render actions.

◆ getCullTestResults()

int SoGLRenderAction::getCullTestResults ( )

inline

Definition at line 234 of file SoGLRenderAction.h.

◆ getCurPass()

int SoGLRenderAction::getCurPass ( ) const

inline

Definition at line 202 of file SoGLRenderAction.h.

◆ getNumPasses()

int SoGLRenderAction::getNumPasses ( ) const

inline

Specifying more than one pass will result in antialiasing of the rendered scene, using OpenGL's accumulation buffer. (Camera nodes typically move their viewpoints a little bit for each pass to achieve the antialiasing.) Each additional pass provides better antialiasing, but requires more rendering time The default is 1 pass.

Definition at line 175 of file SoGLRenderAction.h.

◆ getTransparencyType()

TransparencyType SoGLRenderAction::getTransparencyType ( ) const

inline

The default is SCREEN_DOOR. (Note that SCREEN_DOOR transparency does not work in the case where transparency values are specified for each vertex of a shape. If this is the case, use one of the other transparency types.)

Definition at line 158 of file SoGLRenderAction.h.

◆ getUpdateArea()

void SoGLRenderAction::getUpdateArea	(	SbVec2f &	origin,
		SbVec2f &	size
	)		const

This can be used for partial updates in applications that can manage them. The update area is specified in normalized viewport coordinates, where (0,0) is the lower left corner of the viewport and (1,1) is the upper right corner. The area is specified or returned as an origin and a size.

◆ getViewportRegion()

const SbViewportRegion& SoGLRenderAction::getViewportRegion ( ) const

inline

Definition at line 128 of file SoGLRenderAction.h.

◆ handleTransparency()

bool SoGLRenderAction::handleTransparency ( bool isTransparent = FALSE )

If this returns FALSE, the object should just go ahead and render itself. The optional argument isTransparent ensures that the object being rendered will be taken as transparent, regardless of transparency in the state. If it is false, the state is checked for transparency.

◆ initClass()

static void SoGLRenderAction::initClass ( )

static

◆ invalidateState()

virtual void SoGLRenderAction::invalidateState ( )

virtual

Reimplemented from SoAction.

◆ isDelaying()

bool SoGLRenderAction::isDelaying ( ) const

inline

Definition at line 223 of file SoGLRenderAction.h.

◆ isPassUpdate()

bool SoGLRenderAction::isPassUpdate ( ) const

inline

Definition at line 182 of file SoGLRenderAction.h.

◆ isRenderingDelayedPaths()

bool SoGLRenderAction::isRenderingDelayedPaths ( ) const

inline

Definition at line 231 of file SoGLRenderAction.h.

◆ isSmoothing()

bool SoGLRenderAction::isSmoothing ( ) const

inline

When on, smoothing uses OpenGL's line- and point-smoothing features to provide cheap antialiasing of lines and points. The default is FALSE.

Definition at line 165 of file SoGLRenderAction.h.

◆ setAbortCallback()

void SoGLRenderAction::setAbortCallback	(	SoGLRenderAbortCB *	funcArg,
		void *	userData
	)

inline

It will be called for each node that is traversed. This allows applications to terminate rendering prematurely if some condition occurs. The callback function should return one of the AbortCode codes to indicate whether traversal should continue. Use of the various codes in a callback can allow applications to modify Inventor's default order of rendering objects in a scene graph.

Definition at line 148 of file SoGLRenderAction.h.

◆ setAllowDelayedPath()

bool SoGLRenderAction::setAllowDelayedPath ( bool flag )

Default is true. Returns the previous setting.

◆ setCacheContext()

void SoGLRenderAction::setCacheContext ( uint32_t context )

See also: getCacheContext

◆ setCullTestResults()

void SoGLRenderAction::setCullTestResults ( int b )

inline

Definition at line 235 of file SoGLRenderAction.h.

◆ setNumPasses()

void SoGLRenderAction::setNumPasses ( int num )

inline

See also: getNumPasses

Definition at line 168 of file SoGLRenderAction.h.

◆ setPassCallback()

void SoGLRenderAction::setPassCallback	(	SoGLRenderPassCB *	funcArg,
		void *	userData
	)

inline

Passing NULL (which is the default state) will cause a clear of the color and depth buffers to be performed.

Definition at line 187 of file SoGLRenderAction.h.

◆ setPassUpdate()

void SoGLRenderAction::setPassUpdate ( bool flag )

inline

See also: isPassUpdate

Definition at line 178 of file SoGLRenderAction.h.

◆ setSmoothing()

void SoGLRenderAction::setSmoothing ( bool smooth )

See also: getSmoothing

◆ setTransparencyType()

void SoGLRenderAction::setTransparencyType ( TransparencyType type )

See also: getTransparencyType

◆ setUpdateArea()

void SoGLRenderAction::setUpdateArea	(	const SbVec2f &	origin,
		const SbVec2f &	size
	)

See also: getUpdateArea

◆ setViewportRegion()

void SoGLRenderAction::setViewportRegion ( const SbViewportRegion & newRegion )

The documentation for this class was generated from the following file:

/home/jenkins/workspaces/mevislab/3.7.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/actions/SoGLRenderAction.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ SoGLRenderAbortCB

Member Enumeration Documentation

◆ AbortCode

◆ TransparencyType

Constructor & Destructor Documentation

◆ SoGLRenderAction()

◆ ~SoGLRenderAction()

Member Function Documentation

◆ abortNow()

◆ addDelayedPath()

◆ beginTraversal()

◆ getAllowDelayedPaths()

◆ getCacheContext()

◆ getCullTestResults()

◆ getCurPass()

◆ getNumPasses()

◆ getTransparencyType()

◆ getUpdateArea()

◆ getViewportRegion()

◆ handleTransparency()

◆ initClass()

◆ invalidateState()

◆ isDelaying()

◆ isPassUpdate()

◆ isRenderingDelayedPaths()

◆ isSmoothing()

◆ setAbortCallback()

◆ setAllowDelayedPath()

◆ setCacheContext()

◆ setCullTestResults()

◆ setNumPasses()

◆ setPassCallback()

◆ setPassUpdate()

◆ setSmoothing()

◆ setTransparencyType()

◆ setUpdateArea()

◆ setViewportRegion()
