Abstract base class for all actions. More...

#include <Inventor/actions/SoAction.h>

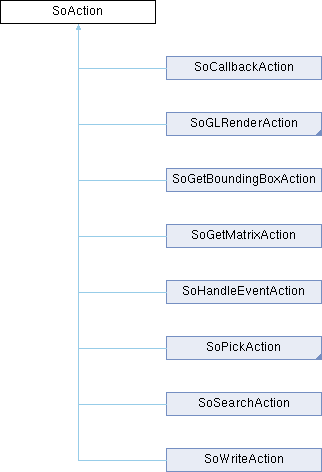

Inheritance diagram for SoAction:

Public Types
enum	AppliedCode { NODE , PATH , PATH_LIST }
	This enum is used to determine what the action is being applied to. More...

enum	PathCode { NO_PATH , IN_PATH , BELOW_PATH , OFF_PATH }
	This enum may be used during traversal of nodes to indicate where the node is with respect to the path being traversed. More...

Public Member Functions
virtual	~SoAction ()
	Destructor. More...

virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance. More...

bool	isOfType (SoType type) const
	Returns TRUE if this instance is of the type specified in `type` or is derived from that type. More...

virtual void	apply (SoNode *node)

virtual void	apply (SoPath *path)

virtual void	apply (const SoPathList &pathList, bool obeysRules=FALSE)
	Initiates an action on the graph defined either by a node, path, or list of paths. More...

virtual void	invalidateState ()
	Invalidates the current traversal state in the action, forcing it to be recreated when the action is next applied. More...

AppliedCode	getWhatAppliedTo () const
	Returns code indicating what action is being applied to. More...

SoNode *	getNodeAppliedTo () const
	These returns a pointer to the node, path, or path list the action is being applied to. More...

SoPath *	getPathAppliedTo () const

const SoPathList *	getPathListAppliedTo () const
	A single path list may be split into several, one for each different head node. More...

const SoPathList *	getOriginalPathListAppliedTo () const

bool	isLastPathListAppliedTo () const

PathCode	getPathCode (int &numIndices, const int *&indices)
	Returns path code based on where current node (the node at the end of the current path) lies with respect to the path(s) the action is being applied to. More...

void	traverse (SoNode *node)
	Does traversal of a graph rooted by a node. More...

bool	hasTerminated () const
	Returns TRUE if the traversal has reached a termination condition. More...

const SoPath *	getCurPath ()
	Returns a pointer to the path accumulated during traversal, i.e., the chain of nodes from the root of the traversed graph to the current node being traversed. More...

SoState *	getState () const
	Get the state from the action. More...

PathCode	getCurPathCode () const
	These methods maintain the current path accumulated so far during traversal. More...

void	pushCurPath (int childIndex)

void	popCurPath (PathCode prevPathCode)

virtual SoNode *	getCurPathTail ()
	This is virtual, so that SoCallbackAction can use current node. More...

void	usePathCode (int &numIndices, const int *&indices)
	called by inline getPathCode: More...

void	pushCurPath ()
	Optimized versions of push/pop when we know path codes won't change: More...

void	popPushCurPath (int childIndex)

void	popCurPath ()

const SoLightweightPath &	getCurrentLightweightPath () const
	Returns the current "light" path. More...

void	setCurrentLightweightPath (const SoLightweightPath &path)
	Sets the current "light" path. More...

Static Public Member Functions
static SoType	getClassTypeId ()
	Returns the type identifier for this class. More...

static void	nullAction (SoAction , SoNode )
	Null action method that can be stored in lookup table when desired. More...

static void	initClass ()

static void	initClasses ()
	Initialize ALL Inventor action classes. More...

Protected Member Functions
	SoAction ()
	Constructor. More...

virtual const SoEnabledElementsList &	getEnabledElements () const
	Returns the list of enabled elements for a given action subclass. More...

virtual void	beginTraversal (SoNode *node)
	Begins traversal of an action at the given node. More...

void	setTerminated (bool flag)
	Allows subclass instance to indicate that traversal has reached a termination condition. More...

virtual bool	shouldCompactPathLists () const
	This method is used when applying an action to an SoPathList. More...

Protected Attributes
SoState *	state
	Traversal state. More...

SoActionMethodList *	traversalMethods
	The list of what to do when. More...

Static Protected Attributes
static SoEnabledElementsList *	enabledElements
	Holds list of enabled elements for the SoAction class. More...

static SoActionMethodList *	methods
	... and the methods More...

Friends
class	SoDB

Detailed Description

SoAction is the abstract base class for all actions. Classes derived from SoAction define operations to be applied at each node encountered during traversal of a scene graph. The function that gets called to implement the action for a particular node type is determined by a lookup table in the global database.

See Also

: SoNode, SoPath, SoPathList, SoCallbackAction, SoGLRenderAction, SoGetBoundingBoxAction, SoGetMatrixAction, SoHandleEventAction, SoPickAction, SoRayPickAction, SoSearchAction, SoWriteAction

Definition at line 179 of file SoAction.h.

Member Enumeration Documentation

◆ AppliedCode

enum SoAction::AppliedCode

Enumerator
NODE	Applied to graph rooted by a node.
PATH	Applied to graph defined by a path.
PATH_LIST	Applied to graphs defined by list of paths.

Definition at line 235 of file SoAction.h.

◆ PathCode

enum SoAction::PathCode

Enumerator
NO_PATH	Not traversing a path.
IN_PATH	In middle of path chain (not tail node)
BELOW_PATH	Tail node of path or below tail node.
OFF_PATH	None of the above (Probably to the left)

Definition at line 243 of file SoAction.h.

Constructor & Destructor Documentation

◆ ~SoAction()

virtual SoAction::~SoAction ( )

virtual

◆ SoAction()

SoAction::SoAction ( )

protected

Member Function Documentation

◆ apply() [1/3]

virtual void SoAction::apply	(	const SoPathList &	pathList,
		bool	obeysRules = `FALSE`
	)

virtual

TRUE can be passed for the obeysRules flag if the given path list has the following 4 properties:

- All paths have the same head node
- Paths are sorted in traversal order
- If one path ends at node A, no other path
    continues through A
- No two paths are the same

These rules will be obeyed by path lists returned by picking and by searches for non-group nodes.

Reimplemented in SoLineHighlightRenderAction, and SoBoxHighlightRenderAction.

◆ apply() [2/3]

virtual void SoAction::apply ( SoNode * node )

virtual

See also: apply(const SoPathList &pathList,bool obeysRules)

Reimplemented in SoLineHighlightRenderAction, and SoBoxHighlightRenderAction.

◆ apply() [3/3]

virtual void SoAction::apply ( SoPath * path )

virtual

See also: apply(const SoPathList &pathList,bool obeysRules)

Reimplemented in SoLineHighlightRenderAction, and SoBoxHighlightRenderAction.

◆ beginTraversal()

virtual void SoAction::beginTraversal ( SoNode * node )

protectedvirtual

The default method just calls traverse(node). This is virtual to allow subclasses to do extra work before or after traversing the node.

Reimplemented in SoWriteAction, SoSearchAction, SoRayPickAction, SoPickAction, SoHandleEventAction, SoGLRenderAction, SoGetMatrixAction, SoGetBoundingBoxAction, and SoCallbackAction.

◆ getClassTypeId()

static SoType SoAction::getClassTypeId ( )

inlinestatic

Definition at line 187 of file SoAction.h.

◆ getCurPath()

const SoPath* SoAction::getCurPath ( )

◆ getCurPathCode()

PathCode SoAction::getCurPathCode ( ) const

inline

The action needs to know whether this path is a subset of the path being applied to; it saves this info in the onPath variable. Before a node is pushed onto the current path, call getOnPath() to determine the current setting. The value of this flag should be passed in to popCurPath() so the onPath variable can be restored.

Definition at line 310 of file SoAction.h.

◆ getCurPathTail()

virtual SoNode* SoAction::getCurPathTail ( )

virtual

Reimplemented in SoCallbackAction.

◆ getCurrentLightweightPath()

const SoLightweightPath& SoAction::getCurrentLightweightPath ( ) const

inline

MeVis extension which was needed for some rendering scenarios where the intermediate path needs to be stored and restored.

Definition at line 332 of file SoAction.h.

◆ getEnabledElements()

virtual const SoEnabledElementsList& SoAction::getEnabledElements ( ) const

protectedvirtual

◆ getNodeAppliedTo()

SoNode* SoAction::getNodeAppliedTo ( ) const

inline

Each returns NULL if the action is not being applied to the appropriate class.

Definition at line 256 of file SoAction.h.

◆ getOriginalPathListAppliedTo()

const SoPathList* SoAction::getOriginalPathListAppliedTo ( ) const

inline

Definition at line 264 of file SoAction.h.

◆ getPathAppliedTo()

SoPath* SoAction::getPathAppliedTo ( ) const

inline

Definition at line 257 of file SoAction.h.

◆ getPathCode()

PathCode SoAction::getPathCode	(	int &	numIndices,
		const int *&	indices
	)

inline

If this returns IN_PATH, indices is set to point to an array of indices corresponding to the children that continue the paths and numIndices is set to the number of such children.

Definition at line 275 of file SoAction.h.

◆ getPathListAppliedTo()

const SoPathList* SoAction::getPathListAppliedTo ( ) const

inline

These methods allow subclasses to determine the current path list, the original path list, and whether the current list is the last one from the original

Definition at line 262 of file SoAction.h.

◆ getState()

SoState* SoAction::getState ( ) const

inline

Definition at line 295 of file SoAction.h.

Referenced by SoBundle::SoBundle().

◆ getTypeId()

virtual SoType SoAction::getTypeId ( ) const

pure virtual

◆ getWhatAppliedTo()

AppliedCode SoAction::getWhatAppliedTo ( ) const

inline

Definition at line 251 of file SoAction.h.

◆ hasTerminated()

bool SoAction::hasTerminated ( ) const

inline

Definition at line 287 of file SoAction.h.

Referenced by SoGLRenderAction::abortNow(), SoSearchAction::isFound(), and SoHandleEventAction::isHandled().

◆ initClass()

static void SoAction::initClass ( )

static

◆ initClasses()

static void SoAction::initClasses ( )

static

◆ invalidateState()

virtual void SoAction::invalidateState ( )

virtual

This is typically unnecessary in most applications.

Reimplemented in SoGLRenderAction.

◆ isLastPathListAppliedTo()

bool SoAction::isLastPathListAppliedTo ( ) const

inline

Definition at line 266 of file SoAction.h.

◆ isOfType()

bool SoAction::isOfType ( SoType type ) const

Otherwise, it returns FALSE. For example,

actionPtr->isOfType(SoGetMatrixAction::getClassTypeId())

SoAction::getClassTypeId

static SoType getClassTypeId()

Returns the type identifier for this class.

Definition: SoAction.h:187

returns TRUE if actionPtr is an instance of SoGetMatrixAction or one of its subclasses.

◆ nullAction()

static void SoAction::nullAction	(	SoAction *	,
		SoNode *
	)

static

◆ popCurPath() [1/2]

void SoAction::popCurPath ( )

inline

Definition at line 327 of file SoAction.h.

◆ popCurPath() [2/2]

void SoAction::popCurPath ( PathCode prevPathCode )

◆ popPushCurPath()

void SoAction::popPushCurPath ( int childIndex )

inline

Definition at line 325 of file SoAction.h.

◆ pushCurPath() [1/2]

void SoAction::pushCurPath ( )

inline

Definition at line 323 of file SoAction.h.

◆ pushCurPath() [2/2]

void SoAction::pushCurPath ( int childIndex )

◆ setCurrentLightweightPath()

void SoAction::setCurrentLightweightPath ( const SoLightweightPath & path )

inline

MeVis extension which was needed for some rendering scenarios where the intermediate path needs to be stored and restored.

Definition at line 337 of file SoAction.h.

◆ setTerminated()

void SoAction::setTerminated ( bool flag )

inlineprotected

Definition at line 353 of file SoAction.h.

Referenced by SoSearchAction::setFound(), and SoHandleEventAction::setHandled().

◆ shouldCompactPathLists()

virtual bool SoAction::shouldCompactPathLists ( ) const

protectedvirtual

It returns TRUE if the action should create a compact version of the path list before applying itself to it. The default method returns TRUE, since the compact version is more efficient. Some actions may choose to return FALSE; for example, the SoWriteAction applies itself to each path separately, so it doesn't need the extra overhead of compacting the list.

Reimplemented in SoWriteAction.

◆ traverse()

void SoAction::traverse ( SoNode * node )

◆ usePathCode()

void SoAction::usePathCode	(	int &	numIndices,
		const int *&	indices
	)

Friends And Related Function Documentation

◆ SoDB

friend class SoDB

friend

Definition at line 434 of file SoAction.h.

Member Data Documentation

◆ enabledElements

SoEnabledElementsList* SoAction::enabledElements

staticprotected

Definition at line 373 of file SoAction.h.

◆ methods

SoActionMethodList* SoAction::methods

staticprotected

Definition at line 376 of file SoAction.h.

◆ state

SoState* SoAction::state

protected

Definition at line 366 of file SoAction.h.

◆ traversalMethods

SoActionMethodList* SoAction::traversalMethods

protected

Subclasses set this pointer to their per-class instance in their constructors.

Definition at line 370 of file SoAction.h.

The documentation for this class was generated from the following file:

/home/jenkins/workspaces/mevislab/3.7.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/actions/SoAction.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ AppliedCode

◆ PathCode

Constructor & Destructor Documentation

◆ ~SoAction()

◆ SoAction()

Member Function Documentation

◆ apply() [1/3]

◆ apply() [2/3]

◆ apply() [3/3]

◆ beginTraversal()

◆ getClassTypeId()

◆ getCurPath()

◆ getCurPathCode()

◆ getCurPathTail()

◆ getCurrentLightweightPath()

◆ getEnabledElements()

◆ getNodeAppliedTo()

◆ getOriginalPathListAppliedTo()

◆ getPathAppliedTo()

◆ getPathCode()

◆ getPathListAppliedTo()

◆ getState()

◆ getTypeId()

◆ getWhatAppliedTo()

◆ hasTerminated()

◆ initClass()

◆ initClasses()

◆ invalidateState()

◆ isLastPathListAppliedTo()

◆ isOfType()

◆ nullAction()

◆ popCurPath() [1/2]

◆ popCurPath() [2/2]

◆ popPushCurPath()

◆ pushCurPath() [1/2]

◆ pushCurPath() [2/2]

◆ setCurrentLightweightPath()

◆ setTerminated()

◆ shouldCompactPathLists()

◆ traverse()

◆ usePathCode()

Friends And Related Function Documentation

◆ SoDB

Member Data Documentation

◆ enabledElements

◆ methods

◆ state

◆ traversalMethods
