Object you can translate or scale within a plane by dragging with the mouse. More...

#include <Inventor/draggers/SoTabPlaneDragger.h>

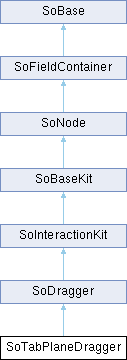

Inheritance diagram for SoTabPlaneDragger:

Public Member Functions
	SoTabPlaneDragger ()
	Constructor. More...

void	adjustScaleTabSize ()
	Cause the scale tab sizes to be re-adjusted so that they remain a near constant screen space size. More...

Public Member Functions inherited from SoDragger
void	addStartCallback (SoDraggerCB f, void userData=NULL)
	Start callbacks are made after the mouse button 1 goes down and the dragger determines that it has been picked. More...

void	removeStartCallback (SoDraggerCB f, void userData=NULL)

void	addMotionCallback (SoDraggerCB f, void userData=NULL)
	Motion callbacks are called after each movement of the mouse during dragging. More...

void	removeMotionCallback (SoDraggerCB f, void userData=NULL)
	Motion callbacks are called after each movement of the mouse during dragging. More...

void	addFinishCallback (SoDraggerCB f, void userData=NULL)
	Finish callbacks are made after dragging ends and the dragger has stopped grabbing events. More...

void	removeFinishCallback (SoDraggerCB f, void userData=NULL)
	Finish callbacks are made after dragging ends and the dragger has stopped grabbing events. More...

void	addValueChangedCallback (SoDraggerCB f, void userData=NULL)
	Value-changed callbacks are made after a dragger changes any of its fields. More...

void	removeValueChangedCallback (SoDraggerCB f, void userData=NULL)

void	setMinGesture (int pixels)
	Set and get the number of pixels of movement required to initiate a constraint gesture. More...

int	getMinGesture () const
	Set and get the number of pixels of movement required to initiate a constraint gesture. More...

bool	enableValueChangedCallbacks (bool newVal)
	You can temporarily disable a dragger's valueChangedCallbacks. More...

const SbMatrix &	getMotionMatrix ()
	Get the motion matrix. More...

void	addOtherEventCallback (SoDraggerCB f, void userData=NULL)
	In addition to the public callback functions, these callback functions can also be used by subclasses to find out when things have happened. More...

void	removeOtherEventCallback (SoDraggerCB f, void userData=NULL)

void	registerChildDragger (SoDragger *child)
	Compound draggers should call this for each child dragger so that user callbacks (valueChanged, start, motion, finish, other event) registered with the parent dragger will be invoked based on the child dragger. More...

void	unregisterChildDragger (SoDragger *child)

void	registerChildDraggerMovingIndependently (SoDragger *child)
	These two routines tie the child to the parent, but WITHOUT the transferMotion callback. More...

void	unregisterChildDraggerMovingIndependently (SoDragger *child)

SbMatrix	getLocalToWorldMatrix ()
	Get the matrix which converts from one dragger space to another. More...

SbMatrix	getWorldToLocalMatrix ()

SbVec3f	getLocalStartingPoint ()
	Returns the starting point in local coordinates. More...

SbVec3f	getWorldStartingPoint ()
	Returns the starting point in world coordinates. More...

void	getPartToLocalMatrix (const SbName &partName, SbMatrix &partToLocalMatrix, SbMatrix &localToPartMatrix)
	Get the matrix which converts from the space of one part into local space. More...

void	transformMatrixLocalToWorld (const SbMatrix &fromMatrix, SbMatrix &toMatrix)
	Transforms a given matrix from one space into another space. More...

void	transformMatrixWorldToLocal (const SbMatrix &fromMatrix, SbMatrix &toMatrix)

void	transformMatrixToLocalSpace (const SbMatrix &fromMatrix, SbMatrix &toMatrix, const SbName &fromSpacePartName)

void	setMotionMatrix (const SbMatrix &newMatrix)
	Set the motion matrix. More...

void	valueChanged ()
	Invokes the valueChangedCallbacks. More...

const SbMatrix &	getStartMotionMatrix ()
	Used to calculate motion relative to the dragger's position at the beginning of the dragging. More...

virtual void	saveStartParameters ()
	By default, saves the motionMatrix as the startMotionMatrix. More...

const SoPath *	getPickPath () const
	Information that's good to have during a valueChanged callback. More...

const SoEvent *	getEvent () const

SoPath *	createPathToThis ()
	Creates a new path leading to this dragger, if the last path given by setTempPathToThis() is still valid. More...

const SoPath *	getSurrogatePartPickedOwner () const
	Surrogate Pick Information. More...

const SbName &	getSurrogatePartPickedName () const
	Name: Name of the surrogate part within the owners list. More...

const SoPath *	getSurrogatePartPickedPath () const
	SurrogatePath: The owner's surrogate path for this name. More...

void	setStartingPoint (const SoPickedPoint *newPoint)
	Set the point where the drag begins. More...

void	setStartingPoint (const SbVec3f &newPoint)
	The SbVec3f version would usually be a point saved from the end of another gesture. More...

const SbViewVolume &	getViewVolume ()
	Information about the window an event occurred in. More...

void	setViewVolume (const SbViewVolume &vol)

const SbViewportRegion &	getViewportRegion ()

void	setViewportRegion (const SbViewportRegion &reg)

SoHandleEventAction *	getHandleEventAction () const
	Get the most recent handleEventAction. More...

void	setHandleEventAction (SoHandleEventAction *newAction)

void	setTempPathToThis (const SoPath *somethingClose)
	A path leading to 'this. More...

virtual void	grabEventsSetup ()
	Called when the dragger gains or loses status as "grabber" of events. More...

virtual void	grabEventsCleanup ()

void	workFieldsIntoTransform (SbMatrix &mtx)
	Changes only that part of the matrix for which this dragger has fields. More...

void	setFrontOnProjector (ProjectorFrontSetting newVal)

ProjectorFrontSetting	getFrontOnProjector () const

Public Member Functions inherited from SoInteractionKit
virtual bool	setPartAsPath (const SbName &partName, SoPath *surrogatePath)
	Sets any public part in the interaction kit as a "surrogate" path instead. More...

virtual bool	affectsState () const
	Override the default behavior of SoNode. More...

virtual bool	setPartAsDefault (const SbName &partName, SoNode *newNode, bool onlyIfAlready=TRUE)
	Sets the part, then sets the field for that part to default using partField.setDefault(TRUE). More...

virtual bool	setPartAsDefault (const SbName &partName, const SbName &newNodeName, bool onlyIfAlready=TRUE)

bool	isPathSurrogateInMySubgraph (const SoPath *pathToCheck)
	Is the 'inPath' valid as a surrogate path anywhere in this node's subgraph? Examines the surrogate paths of all InteractionKits from this node down. More...

bool	isPathSurrogateInMySubgraph (const SoPath pathToCheck, SoPath &pathToOwner, SbName &surrogateNameInOwner, SoPath *&surrogatePathInOwner, bool fillArgs=TRUE)

Public Member Functions inherited from SoBaseKit
virtual const SoNodekitCatalog *	getNodekitCatalog () const
	Returns the SoNodekitCatalog for this instance of SoBaseKit. More...

	SoBaseKit ()
	Constructor. More...

virtual SoNode *	getPart (const SbName &partName, bool makeIfNeeded)
	Searches the nodekit catalog (and those of all nested nodekits) for the part named `partName`. More...

SbString	getPartString (const SoBase *part)
	Given a node or a path to a node, checks if the part exists in the nodekit, in a nested nodekit, or an element of a list part. More...

virtual SoNodeKitPath *	createPathToPart (const SbName &partName, bool makeIfNeeded, const SoPath *pathToExtend=NULL)
	Returns a path that begins at this nodekit and ends at `partName`. More...

virtual bool	setPart (const SbName &partName, SoNode *from)
	Inserts the given node (not a copy) as the new part specified by `partName`. More...

bool	set (char *nameValuePairListString)
	SETTING FIELDS OF PARTS. More...

bool	set (char partNameString, char parameterString)

virtual void	doAction (SoAction *action)
	This method performs the "typical" operation of a node for any action. More...

virtual void	callback (SoCallbackAction *action)
	These functions implement all actions for nodekits. More...

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

virtual void	write (SoWriteAction *action)

virtual SoChildList *	getChildren () const
	Returns pointer to children. More...

void	printDiagram ()

void	printSubDiagram (const SbName &rootName, int level)

void	printTable ()

virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Overrides the default method to use countMyFields() instead of the regular SoFieldData writing mechanism. More...

bool	forceChildDrivenWriteRefs (SoOutput *out)
	This returns TRUE if the nodekit intends to write out. More...

Public Member Functions inherited from SoNode
void	setOverride (bool state)
	Turns override flag on or off. More...

bool	isOverride () const
	Returns the state of the override flag. More...

SoNode *	copy (bool copyConnections=FALSE) const
	Creates and returns an exact copy of the node. More...

virtual void	pick (SoPickAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)
	These methods make render traversal faster by implementing different rendering paths corresponding to different action path codes. More...

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	startNotify ()
	Initiates notification from an instance. More...

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance. More...

SbNodeIdType	getNodeId () const
	Returns the unique id for a node. More...

virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used for either stage of writing.) More...

virtual SoFieldContainer *	copyThroughConnection () const
	Copies an instance that is encountered through a field connection. More...

Public Member Functions inherited from SoFieldContainer
void	setToDefaults ()
	Sets all fields in this object to their default values. More...

bool	hasDefaultValues () const
	Returns TRUE if all of the object's fields have their default values. More...

bool	fieldsAreEqual (const SoFieldContainer *fc) const
	Returns TRUE if this object's fields are exactly equal to `fc's` fields. More...

void	copyFieldValues (const SoFieldContainer *fc, bool copyConnections=FALSE)
	Copies the contents of `fc's` fields into this object's fields. More...

bool	set (const char *fieldDataString)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format. More...

void	get (SbString &fieldDataString)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string. More...

virtual int	getFields (SoFieldList &list) const
	Appends pointers to all of this object's fields to resultList, and returns the number of fields appended. More...

virtual SoField *	getField (const SbName &fieldName) const
	Returns a pointer to the field with the given name. More...

bool	getFieldName (const SoField *field, SbName &fieldName) const
	Returns the name of the given field in the `fieldName` argument. More...

bool	enableNotify (bool flag)
	Notification at this Field Container is enabled (if flag == TRUE) or disabled (if flag == FALSE). More...

bool	isNotifyEnabled () const
	Notification is the process of telling interested objects that this object has changed. More...

bool	set (const char fieldDataString, SoInput dictIn)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format. More...

void	get (SbString &fieldDataString, SoOutput *dictOut)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string. More...

bool	getIsBuiltIn () const
	Returns whether or not instance is considered 'built-in' to the library. More...

virtual const SoFieldData *	getFieldData () const
	Returns an SoFieldData structure for the node. More...

void	addManagedSensor (SoSensor *sensor)
	Adds a sensor which is managed by the field container. More...

Public Member Functions inherited from SoBase
void	ref () const
	Adds and removes a reference to an instance. More...

void	unref () const

void	unrefNoDelete () const

void	touch ()
	Marks an instance as modified, simulating a change to it. More...

virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance. More...

bool	isOfType (SoType type) const
	Returns TRUE if this object is of the type specified in `type` or is derived from that type. More...

virtual SbName	getName () const
	Returns the name of an instance. More...

virtual void	setName (const SbName &name)
	Sets the name of an instance. More...

void	addAuditor (void *auditor, SoNotRec::Type type)
	Adds/removes an auditor to/from list. More...

void	removeAuditor (void *auditor, SoNotRec::Type type)

const SoAuditorList &	getAuditors ()
	Returns auditor list– used by SoField and SoEngineOutput to trace forward connections. More...

int	getRefCount () const
	Returns current reference count. More...

bool	shouldWrite ()
	Returns TRUE if the instance should be written, based on the write-reference info already accumulated. More...

Static Public Member Functions
static void	initClass ()
	initialize the class More...

Static Public Member Functions inherited from SoDragger
static void	setMinScale (float newMinScale)
	The smallest scale that any dragger will write. More...

static float	getMinScale ()
	Get min scale. More...

static void	workValuesIntoTransform (SbMatrix &mtx, const SbVec3f translationPtr, const SbRotation rotationPtr, const SbVec3f scaleFactorPtr, const SbRotation scaleOrientationPtr, const SbVec3f *centerPtr)
	Same as above, but values are given explicitly as pointers. More...

static void	getTransformFast (SbMatrix &mtx, SbVec3f &translation, SbRotation &rotation, SbVec3f &scaleFactor, SbRotation &scaleOrientation, const SbVec3f &center)
	Faster versions of getTransform() and factor() that take advantage of the case where there is no scaleOrientation. More...

static void	getTransformFast (SbMatrix &mtx, SbVec3f &translation, SbRotation &rotation, SbVec3f &scaleFactor, SbRotation &scaleOrientation)

static SbMatrix	appendTranslation (const SbMatrix &mtx, const SbVec3f &translation, const SbMatrix *conversion=NULL)
	Appends the given motion to the end of 'mtx'. More...

static SbMatrix	appendScale (const SbMatrix &mtx, const SbVec3f &scale, const SbVec3f &scaleCenter, const SbMatrix *conversion=NULL)

static SbMatrix	appendRotation (const SbMatrix &mtx, const SbRotation &rot, const SbVec3f &rotCenter, const SbMatrix *conversion=NULL)

static void	initClass ()

static void	initClasses ()
	Initialize ALL Inventor detail classes. More...

Static Public Member Functions inherited from SoInteractionKit
static void	setSwitchValue (SoNode *n, int newVal)

static void	initClass ()
	initialize the class More...

Static Public Member Functions inherited from SoBaseKit
static const SoNodekitCatalog *	getClassNodekitCatalog ()
	Returns the SoNodekitCatalog for the class SoBaseKit. More...

static bool	isSearchingChildren ()
	Sets and queries if nodekit children are searched during SoSearchAction traversal. More...

static void	setSearchingChildren (bool newVal)
	Sets and queries if nodekit children are searched during SoSearchAction traversal. More...

static void	initClass ()

static SoNode *	typeCheck (const SbName &partName, const SoType &partType, SoNode *node)

Static Public Member Functions inherited from SoNode
static SoType	getClassTypeId ()
	Returns type identifier for the SoNode class. More...

static SoNode *	getByName (const SbName &name)
	Returns the last node given the specified name. More...

static int	getByName (const SbName &name, SoNodeList &list)
	Returns the number of nodes with the given name, and adds to `list` pointers to those nodes. More...

static void	initClass ()
	Initializes base node class. More...

static void	initClasses ()
	Initialize ALL Inventor node classes. More...

static SbNodeIdType	getNextNodeId ()
	Returns the next available unique id. More...

static int	getActionMethodIndex (SoType t)
	Returns the index of this node in the action/method table, given its type. More...

Static Public Member Functions inherited from SoFieldContainer
static SoType	getClassTypeId ()
	Returns the type of this class. More...

static void	initClass ()
	Setup type information. More...

static void	initCopyDict ()
	During a copy operation, copies of nodes and engines are stored in a dictionary, keyed by the original node or engine pointer, so that copies can be re-used. More...

static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)
	Adds an instance to the dictionary. More...

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
	If a copy of the given instance is in the dictionary, this returns it. More...

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, bool copyConnections)
	If a copy of the given instance is not in the dictionary, this returns NULL. More...

static void	copyDone ()
	Cleans up the dictionary when done. More...

Static Public Member Functions inherited from SoBase
static SoType	getClassTypeId ()
	Returns type identifier for this class. More...

static void	initClass ()
	Setup type information. More...

static void	incrementCurrentWriteCounter ()
	Increments the current write counter at the start of a write operation. More...

static void	decrementCurrentWriteCounter ()
	Decrements the current write counter after a write operation, in some rare cases. More...

static void	addName (SoBase , const char )
	Internal methods used to maintain the global name dictionary. More...

static void	removeName (SoBase , const char )

static SoBase *	getNamedBase (const SbName &, SoType)
	Helper routines used to get stuff out of nameDict. More...

static int	getNamedBases (const SbName &, SoBaseList &, SoType)

static bool	read (SoInput in, SoBase &base, SoType expectedType)
	Reads one instance of some subclass of SoBase. More...

static void	setInstancePrefix (const SbString &c)
	This defaults to "+" and is used when naming nodes that are DEF's and USE'd. More...

Public Attributes
SoSFVec3f	translation

SoSFVec3f	scaleFactor

Public Attributes inherited from SoDragger
SoSFBool	enable
	This field is a boolean that enables / disables interaction. More...

SoSFBool	isActive
	This field is a boolean that is TRUE when the mouse is down and we are dragging, FALSE otherwise. More...

Public Attributes inherited from SoInteractionKit
SoSFEnum	renderCaching
	Set render caching mode. Default is `AUTO`. More...

SoSFEnum	boundingBoxCaching
	Set bounding box caching mode. More...

SoSFEnum	renderCulling
	Set render culling mode. More...

SoSFEnum	pickCulling
	Set pick caching mode. Default is `AUTO`. More...

Protected Types
enum	State { INACTIVE , TRANSLATING , EDGE_SCALING , CORNER_SCALING , UNIFORM_SCALING }

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 1 , IS_GROUP = 2 }
	This set of enums is used when reading and writing the base. More...

Protected Member Functions
virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing. More...

void	dragStart ()

void	drag ()

void	dragFinish ()

void	translateStart ()

void	translateDrag ()

void	edgeScaleStart ()

void	edgeScaleDrag ()

void	cornerScaleStart ()

void	cornerScaleDrag ()

void	scaleUniformStart ()

void	scaleUniformDrag ()

void	reallyAdjustScaleTabSize (SoGLRenderAction *action)

void	getXYScreenLengths (SbVec2f &lengths, const SbMatrix &localToScreen, const SbVec2s &winSize)

virtual bool	setUpConnections (bool onOff, bool doItAlways=FALSE)
	detach/attach any sensors, callbacks, and/or field connections. More...

virtual void	setDefaultOnNonWritingFields ()
	Called by the SoBaseKit::write() method. More...

virtual	~SoTabPlaneDragger ()

Protected Member Functions inherited from SoDragger
	SoDragger ()
	Constructor. More...

SbVec2f	getNormalizedLocaterPosition ()
	Get the last known position of the locator (mouse). More...

SbVec2s	getLocaterPosition ()

SbVec2s	getStartLocaterPosition () const
	Get the position of the locater when dragging started. More...

void	setStartLocaterPosition (SbVec2s p)
	The start locater position is automatically set when button 1 goes down over the dragger. More...

bool	isAdequateConstraintMotion ()
	Has the locater moved far enough from where it started to choose a constraint gesture. More...

virtual bool	shouldGrabBasedOnSurrogate (const SoPath pickPath, const SoPath surrogatePath)
	Given a pickPath and a surrogatePath, decides whether it should grab based on the surrogate. More...

void	setCameraInfo (SoAction *action)
	The dragger looks in this action to get information about the camera and the viewport. More...

virtual void	handleEvent (SoHandleEventAction *ha)
	This is called during traversal by a HandleEventAction. More...

virtual bool	mouseButtonPressed (const SoEvent *ev)
	This is called during handleEvent. More...

virtual bool	mouseButtonReleased (const SoEvent *ev)
	This is called during handleEvent. More...

void	transferMotion (SoDragger *child)
	This should be called by every child dragger of a compound dragger as a result of compoundDragger->registerChildDragger( childDragger ); Called on the compoundDragger when childDragger's value changes. More...

void	setIgnoreInBbox (bool newVal)
	Set/get whether the dragger should be ignored during bounding box calculations. More...

bool	isIgnoreInBbox ()

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)
	Implements getBoundingBox action. More...

void	setActiveChildDragger (SoDragger *newChildDragger)
	Called by the above child callbacks. More...

SoDragger *	getActiveChildDragger () const

virtual	~SoDragger ()

Protected Member Functions inherited from SoInteractionKit
	SoInteractionKit ()

	~SoInteractionKit ()

virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given instance into this instance This copies the surrogatePartPathList and the surrogatePartNameList. More...

virtual SoNode *	getAnyPart (const SbName &partName, bool makeIfNeeded, bool leafCheck=FALSE, bool publicCheck=FALSE)
	These are overloaded to set the surrogate path to NULL after completing their work. More...

virtual SoNodeKitPath *	createPathToAnyPart (const SbName &partName, bool makeIfNeeded, bool leafCheck=FALSE, bool publicCheck=FALSE, const SoPath *pathToExtend=NULL)

virtual bool	setAnyPart (const SbName &partName, SoNode *from, bool anyPart=TRUE)

virtual bool	setAnyPartAsPath (const SbName &partName, SoPath *surrogatePath, bool leafCheck=FALSE, bool publicCheck=FALSE)
	This allows you to set any part in the nodekit as a surrogate path. More...

virtual bool	readInstance (SoInput *in, unsigned short flags)
	Reads in from file. More...

virtual bool	setAnyPartAsDefault (const SbName &partName, SoNode *newNode, bool anyPart=TRUE, bool onlyIfAlready=TRUE)
	Protected versions of these methods that allow you to set non-leaf and/or private parts. More...

virtual bool	setAnyPartAsDefault (const SbName &partName, const SbName &newNodeName, bool anyPart=TRUE, bool onlyIfAlready=TRUE)

bool	setAnySurrogatePath (const SbName &inName, SoPath *inPath, bool leafCheck=FALSE, bool publicCheck=FALSE)

void	connectSeparatorFields (SoSeparator *dest, bool onOff)

Protected Member Functions inherited from SoBaseKit
	SO_KIT_CATALOG_ENTRY_HEADER (callbackList)
	Define fields for the new parts of the kit... More...

virtual SoNode *	addToCopyDict () const
	Redefines this to add this node and all part nodes to the dictionary. More...

SoGroup *	getContainerNode (const SbName &listName, bool makeIfNeeded=TRUE)
	Returns the containerNode within the SoNodeKitListPart given by listName. More...

void	createNodekitPartsList ()
	called during construction to create parts list More...

virtual void	createDefaultParts ()
	called during construction to create any parts that are created by default (such as the cube in the SoCubeKit) More...

const SoNodekitParts *	getNodekitPartsList () const
	Return the node's partsList. More...

void	catalogError ()
	Prints an Error when there's trouble building a catalog. More...

void	countMyFields (SoOutput *out)
	This is called during addWriteReference() to write the fields. More...

virtual	~SoBaseKit ()

Protected Member Functions inherited from SoNode
	SoNode ()
	Constructor, destructor. More...

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer ()

	~SoFieldContainer ()

Protected Member Functions inherited from SoBase
	SoBase ()
	Constructor is protected - this is an abstract class. More...

virtual	~SoBase ()
	Virtual destructor so that subclasses are deleted properly. More...

virtual void	destroy ()
	Actually deletes an instance. More...

bool	hasMultipleWriteRefs () const
	Returns TRUE if the instance has multiple write references. More...

bool	writeHeader (SoOutput *out, bool isGroup, bool isEngine) const
	Writes a header (name, open brace) or footer (close brace) to file defined by SoOutput. More...

void	writeFooter (SoOutput *out) const

virtual const char *	getFileFormatName () const
	Unknown nodes and engines write a different name for themselves than their typeId; this virtual method lets them do that (by default the typeId name is returned) More...

Static Protected Member Functions
static void	startCB (void , SoDragger )

static void	motionCB (void , SoDragger )

static void	finishCB (void , SoDragger )

static void	metaKeyChangeCB (void , SoDragger )

static void	fieldSensorCB (void , SoSensor )

static void	valueChangedCB (void , SoDragger )

Static Protected Member Functions inherited from SoDragger
static void	childTransferMotionAndValueChangedCB (void , SoDragger )
	Stubs used by compound draggers to get user callbacks from the child dragger. More...

static void	childValueChangedCB (void , SoDragger )

static void	childStartCB (void , SoDragger )

static void	childMotionCB (void , SoDragger )

static void	childFinishCB (void , SoDragger )

static void	childOtherEventCB (void , SoDragger )

Static Protected Member Functions inherited from SoInteractionKit
static void	readDefaultParts (const char *fileName, const char defaultBuffer[], int defBufSize)
	read from buffer More...

static void	fieldSensorCB (void , SoSensor )

Static Protected Member Functions inherited from SoBaseKit
static const SoNodekitCatalog **	getClassNodekitCatalogPtr ()
	...end of contents of SO_KIT_HEADER More...

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr ()
	This is used by the field-inheritence mechanism, hidden in the SoSubNode macros. More...

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter ()
	Returns current write counter. More...

Protected Attributes
SbLineProjector *	lineProj

SbPlaneProjector *	planeProj

SoFieldSensor *	translFieldSensor

SoFieldSensor *	scaleFieldSensor

SbVec3f	worldRestartPt

int	currentScalePatch

bool	shftDown

State	currentState

State	restartState

int	translateDir

SbVec3f	scaleCenter

bool	needScaleTabAdjustment

Protected Attributes inherited from SoInteractionKit
SoFieldSensor *	fieldSensor
	This sensor will watch the topSeparator part. More...

SoSeparator *	oldTopSep

Protected Attributes inherited from SoBaseKit
SoChildList *	children

SoNodekitParts *	nodekitPartsList
	parts list. More...

bool	connectionsSetUp

Protected Attributes inherited from SoNode
SbNodeIdType	uniqueId
	Unique id for this node. More...

Protected Attributes inherited from SoFieldContainer
bool	isBuiltIn
	Is the subclass a built-in Inventor subclass or an extender subclass? This is used to determine whether to read/write field type information. More...

Additional Inherited Members
Public Types inherited from SoDragger
enum	ProjectorFrontSetting { FRONT , BACK , USE_PICK }
	These control behavior of the rotational parts. More...

Public Types inherited from SoInteractionKit
enum	CacheEnabled { OFF , ON , AUTO }
	Possible values for caching. More...

Public Types inherited from SoNode
enum	Stage { FIRST_INSTANCE , PROTO_INSTANCE , OTHER_INSTANCE }

Static Public Attributes inherited from SoBase
static bool	traceRefs
	Turns on/off reference count tracing (for debugging) More...

Static Protected Attributes inherited from SoNode
static SbNodeIdType	nextUniqueId
	Next available unique id. More...

static int	nextActionMethodIndex
	Next index into the action method table. More...

Detailed Description

SoTabPlaneDragger is a dragger which allows the user to interactively translate and scale in a plane. It looks like a square white outline with smaller green squares (or tabs) set in the corners and along the center of each edge. Dragging a corner tab scales the dragger in 2D by scaling about the opposite corner. Dragging an edge tab performs 1D scaling about the opposite edge. The rest of the dragger is invisible but pickable; selecting it initiates translation within the plane.

The dragger tries to keep the small tabs a constant size in screen space. Every time a drag begins or ends, the size is recalculated based on the viewing and modeling matrix.

When dragging the translator part, press the <Shift> key and you can constrain motion to either the local x axis or the y axis . The direction is determined by your initial mouse gesture after pressing the key. Releasing the key removes the constraint.

When the translator part drags, the dragger updates its translation field. The various scaling parts cause changes to both the scaleFactor and translation field, since scaling about a point other than the center adds translation to the center of the dragger. If you set the field, the dragger will move accordingly. You can also connect fields of other nodes or engines from this one to make them follow the dragger's motion.

You can not change the shape used to draw the tabs. This part is kept privately and may not be changed; the coordinates for the tabs are edited during adjustScaleTabSize().

The SoTabPlaneDragger class does contain three other parts you can change: tabPlaneTranslator, tabPlaneScaleTabMaterial and tabPlaneScaleTabHints.

Each of these is set by default from a resource described in the Dragger Resources section of the online reference page for this class. You can change the parts in any instance of this dragger using setPart().

You can make your program use different default resources for the parts by copying the file /usr/share/data/draggerDefaults/tabPlaneDragger.iv into your own directory, editing the file, and then setting the environment variable SO_DRAGGER_DIR to be a path to that directory.

File Format/Default

: TabPlaneDragger {

renderCaching AUTO

boundingBoxCaching AUTO

renderCulling AUTO

pickCulling AUTO

isActive FALSE

translation 0 0 0

scaleFactor 1 1 1

}

FALSE
#define FALSE
Definition: SbBasic.h:79

SoDragger::isActive
SoSFBool isActive
This field is a boolean that is TRUE when the mouse is down and we are dragging, FALSE otherwise.
Definition: SoDragger.h:238

SoInteractionKit::renderCaching
SoSFEnum renderCaching
Set render caching mode. Default is AUTO.
Definition: SoInteractionKit.h:151

SoInteractionKit::AUTO
@ AUTO
Decide based on some heuristic.
Definition: SoInteractionKit.h:144

SoInteractionKit::boundingBoxCaching
SoSFEnum boundingBoxCaching
Set bounding box caching mode.
Definition: SoInteractionKit.h:156

SoInteractionKit::renderCulling
SoSFEnum renderCulling
Set render culling mode.
Definition: SoInteractionKit.h:161

SoInteractionKit::pickCulling
SoSFEnum pickCulling
Set pick caching mode. Default is AUTO.
Definition: SoInteractionKit.h:164

SoTabPlaneDragger::translation
SoSFVec3f translation
Definition: SoTabPlaneDragger.h:201

SoTabPlaneDragger::scaleFactor
SoSFVec3f scaleFactor
Definition: SoTabPlaneDragger.h:202

See Also

Definition at line 172 of file SoTabPlaneDragger.h.

Member Enumeration Documentation

◆ State

enum SoTabPlaneDragger::State

protected

Enumerator
INACTIVE
TRANSLATING
EDGE_SCALING
CORNER_SCALING
UNIFORM_SCALING

Definition at line 250 of file SoTabPlaneDragger.h.

Constructor & Destructor Documentation

◆ SoTabPlaneDragger()

SoTabPlaneDragger::SoTabPlaneDragger ( )

◆ ~SoTabPlaneDragger()

virtual SoTabPlaneDragger::~SoTabPlaneDragger ( )

protectedvirtual

Member Function Documentation

◆ adjustScaleTabSize()

void SoTabPlaneDragger::adjustScaleTabSize ( )

This happens automatically upon dragger finish. Call this to adjust the scale tab sizes at other times, for instance after the camera has changed in a viewer finish callback.

◆ cornerScaleDrag()

void SoTabPlaneDragger::cornerScaleDrag ( )

protected

◆ cornerScaleStart()

void SoTabPlaneDragger::cornerScaleStart ( )

protected

◆ drag()

void SoTabPlaneDragger::drag ( )

protected

◆ dragFinish()

void SoTabPlaneDragger::dragFinish ( )

protected

◆ dragStart()

void SoTabPlaneDragger::dragStart ( )

protected

◆ edgeScaleDrag()

void SoTabPlaneDragger::edgeScaleDrag ( )

protected

◆ edgeScaleStart()

void SoTabPlaneDragger::edgeScaleStart ( )

protected

◆ fieldSensorCB()

static void SoTabPlaneDragger::fieldSensorCB	(	void *	,
		SoSensor *
	)

staticprotected

◆ finishCB()

static void SoTabPlaneDragger::finishCB	(	void *	,
		SoDragger *
	)

staticprotected

◆ getXYScreenLengths()

void SoTabPlaneDragger::getXYScreenLengths	(	SbVec2f &	lengths,
		const SbMatrix &	localToScreen,
		const SbVec2s &	winSize
	)

protected

◆ GLRender()

virtual void SoTabPlaneDragger::GLRender ( SoGLRenderAction * action )

protectedvirtual

Reimplemented from SoBaseKit.

◆ initClass()

static void SoTabPlaneDragger::initClass ( )

static

◆ metaKeyChangeCB()

static void SoTabPlaneDragger::metaKeyChangeCB	(	void *	,
		SoDragger *
	)

staticprotected

◆ motionCB()

static void SoTabPlaneDragger::motionCB	(	void *	,
		SoDragger *
	)

staticprotected

◆ reallyAdjustScaleTabSize()

void SoTabPlaneDragger::reallyAdjustScaleTabSize ( SoGLRenderAction * action )

protected

◆ scaleUniformDrag()

void SoTabPlaneDragger::scaleUniformDrag ( )

protected

◆ scaleUniformStart()

void SoTabPlaneDragger::scaleUniformStart ( )

protected

◆ setDefaultOnNonWritingFields()

virtual void SoTabPlaneDragger::setDefaultOnNonWritingFields ( )

protectedvirtual

Draggers don't want to write out fields if they have default vals.

sets isActive to default if default and not connected.

Looks for fields named: 'rotation' with value SbRotation::identity() 'translation' with value (0,0,0) 'center' with value (0,0,0) 'scaleFactor' with value (1,1,1) and sets them to default if they are not connected from a field. (most draggers are missing at least some of these, but thats okay)

Then calls the method for SoInteractionKit.

NOTE: Parts which are set to default may still wind up writing to file if, for example, they lie on a path.

Reimplemented from SoDragger.

◆ setUpConnections()

virtual bool SoTabPlaneDragger::setUpConnections	(	bool	onOff,
		bool	doItAlways = `FALSE`
	)

protectedvirtual

Called by: start/end of SoBaseKit::readInstance and on new copy by: start/end of SoBaseKit::copy. Classes that redefine must call setUpConnections(TRUE,TRUE) at end of constructor. Returns the state of the node when this was called.

Reimplemented from SoInteractionKit.

◆ startCB()

static void SoTabPlaneDragger::startCB	(	void *	,
		SoDragger *
	)

staticprotected

◆ translateDrag()

void SoTabPlaneDragger::translateDrag ( )

protected

◆ translateStart()

void SoTabPlaneDragger::translateStart ( )

protected

◆ valueChangedCB()

static void SoTabPlaneDragger::valueChangedCB	(	void *	,
		SoDragger *
	)

staticprotected

Member Data Documentation

◆ currentScalePatch

int SoTabPlaneDragger::currentScalePatch

protected

Definition at line 248 of file SoTabPlaneDragger.h.

◆ currentState

State SoTabPlaneDragger::currentState

protected

Definition at line 255 of file SoTabPlaneDragger.h.

◆ lineProj

SbLineProjector* SoTabPlaneDragger::lineProj

protected

Definition at line 221 of file SoTabPlaneDragger.h.

◆ needScaleTabAdjustment

bool SoTabPlaneDragger::needScaleTabAdjustment

protected

Definition at line 261 of file SoTabPlaneDragger.h.

◆ planeProj

SbPlaneProjector* SoTabPlaneDragger::planeProj

protected

Definition at line 222 of file SoTabPlaneDragger.h.

◆ restartState

State SoTabPlaneDragger::restartState

protected

Definition at line 256 of file SoTabPlaneDragger.h.

◆ scaleCenter

SbVec3f SoTabPlaneDragger::scaleCenter

protected

Definition at line 259 of file SoTabPlaneDragger.h.

◆ scaleFactor

SoSFVec3f SoTabPlaneDragger::scaleFactor

Definition at line 202 of file SoTabPlaneDragger.h.

◆ scaleFieldSensor

SoFieldSensor* SoTabPlaneDragger::scaleFieldSensor

protected

Definition at line 225 of file SoTabPlaneDragger.h.

◆ shftDown

bool SoTabPlaneDragger::shftDown

protected

Definition at line 253 of file SoTabPlaneDragger.h.

◆ translateDir

int SoTabPlaneDragger::translateDir

protected

Definition at line 257 of file SoTabPlaneDragger.h.

◆ translation

SoSFVec3f SoTabPlaneDragger::translation

Definition at line 201 of file SoTabPlaneDragger.h.

◆ translFieldSensor

SoFieldSensor* SoTabPlaneDragger::translFieldSensor

protected

Definition at line 224 of file SoTabPlaneDragger.h.

◆ worldRestartPt

SbVec3f SoTabPlaneDragger::worldRestartPt

protected

Definition at line 247 of file SoTabPlaneDragger.h.

The documentation for this class was generated from the following file:

/home/jenkins/workspaces/mevislab/3.7.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/draggers/SoTabPlaneDragger.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ SoTabPlaneDragger()

◆ ~SoTabPlaneDragger()

Member Function Documentation

◆ adjustScaleTabSize()

◆ cornerScaleDrag()

◆ cornerScaleStart()

◆ drag()

◆ dragFinish()

◆ dragStart()

◆ edgeScaleDrag()

◆ edgeScaleStart()

◆ fieldSensorCB()

◆ finishCB()

◆ getXYScreenLengths()

◆ GLRender()

◆ initClass()

◆ metaKeyChangeCB()

◆ motionCB()

◆ reallyAdjustScaleTabSize()

◆ scaleUniformDrag()

◆ scaleUniformStart()

◆ setDefaultOnNonWritingFields()

◆ setUpConnections()

◆ startCB()

◆ translateDrag()

◆ translateStart()

◆ valueChangedCB()

Member Data Documentation

◆ currentScalePatch

◆ currentState

◆ lineProj

◆ needScaleTabAdjustment

◆ planeProj

◆ restartState

◆ scaleCenter

◆ scaleFactor

◆ scaleFieldSensor

◆ shftDown

◆ translateDir

◆ translation

◆ translFieldSensor

◆ worldRestartPt
