SoSensor Class Reference

Abstract base class for Inventor sensors. More...

#include <Inventor/sensors/SoSensor.h>

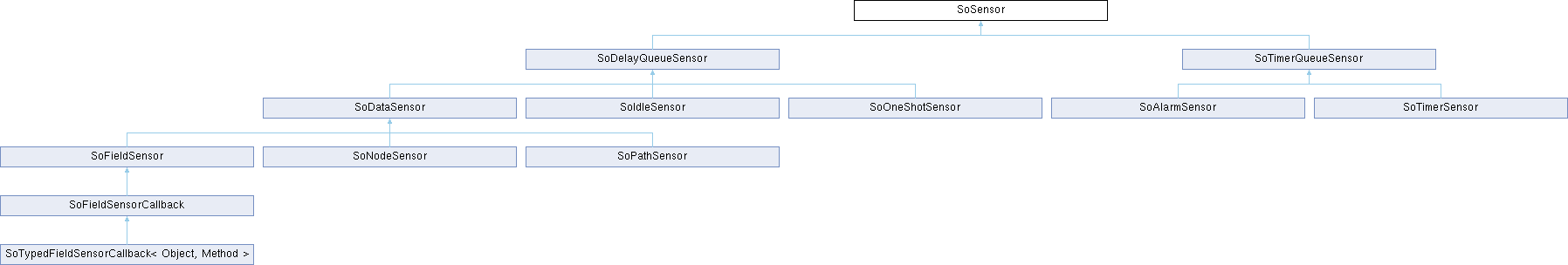

Inheritance diagram for SoSensor:

Public Member Functions
	SoSensor ()
	Constructors. The second form takes callback function and data.
	SoSensor (SoSensorCB *f, void *d)
virtual	~SoSensor ()
	Virtual destructor so that subclasses are deleted properly.
void	setFunction (SoSensorCB *f)
	Sets the callback function that is called when the sensor is triggered.
void	setData (void *d)
	Sets the callback data passed to the callback function.
SoSensorCB *	getFunction () const
	Returns the callback function that will be called when the sensor is triggered.
void *	getData () const
	Returns the user-supplied pointer that will be passed to the callback function.
virtual void	schedule ()=0
	Schedules the sensor for triggering at the appropriate time.
virtual void	unschedule ()=0
	Unschedules sensor to keep it from being triggered.
virtual bool	isScheduled () const =0
	Returns whether the sensor is scheduled.
virtual void	trigger ()
	Triggers the sensor, calling its callback function.
virtual bool	isBefore (const SoSensor *s) const =0
	This returns TRUE if this sensor should precede sensor s in whichever queue this sensor would be in.
void	setNextInQueue (SoSensor *next)
	Sets/returns the next sensor in whichever queue the sensor is in.
SoSensor *	getNextInQueue () const

Static Public Member Functions
static void	initClass ()
	Initialize static members, etc.

Protected Attributes
SoSensorCB *	func
	Callback function.
void *	funcData
	Data to pass to callback.

Detailed Description

Sensors detect changes either to time or to Inventor objects in a scene graph, and call a user-defined callback function. Sensors are scheduled when the thing they are attached to changes, and sometime after they are scheduled they are triggered, calling the user's callback function.

See Also

SoAlarmSensor, SoDataSensor, SoFieldSensor, SoIdleSensor, SoNodeSensor, SoPathSensor, SoSensorManager

Definition at line 108 of file SoSensor.h.

Constructor & Destructor Documentation

SoSensor() [1/2]

SoSensor::SoSensor ( )

inline

Definition at line 113 of file SoSensor.h.

References func, and funcData.

Referenced by getNextInQueue(), isBefore(), and setNextInQueue().

SoSensor() [2/2]

SoSensor::SoSensor ( SoSensorCB * f, void * d )

inline

Definition at line 114 of file SoSensor.h.

References func, and funcData.

~SoSensor()

virtual SoSensor::~SoSensor ( )

virtual

Member Function Documentation

getData()

void * SoSensor::getData ( ) const

inline

Definition at line 131 of file SoSensor.h.

References funcData.

getFunction()

SoSensorCB * SoSensor::getFunction ( ) const

inline

Definition at line 128 of file SoSensor.h.

References func.

getNextInQueue()

SoSensor * SoSensor::getNextInQueue ( ) const

inline

Definition at line 155 of file SoSensor.h.

References SoSensor().

initClass()

static void SoSensor::initClass ( )

static

isBefore()

virtual bool SoSensor::isBefore ( const SoSensor * s ) const

pure virtual

References SoSensor().

isScheduled()

virtual bool SoSensor::isScheduled ( ) const

pure virtual

Implemented in SoDelayQueueSensor, and SoTimerQueueSensor.

References SoINTERNAL.

schedule()

virtual void SoSensor::schedule ( )

pure virtual

Implemented in SoAlarmSensor, SoDelayQueueSensor, SoTimerQueueSensor, and SoTimerSensor.

setData()

void SoSensor::setData ( void * d )

inline

Definition at line 125 of file SoSensor.h.

References funcData.

setFunction()

void SoSensor::setFunction ( SoSensorCB * f )

inline

The function must take two arguments em user-supplied callback data (of type void *) and a pointer to the sensor that is triggering the function (of type SoSensor *).

Definition at line 123 of file SoSensor.h.

References func.

setNextInQueue()

void SoSensor::setNextInQueue ( SoSensor * next )

inline

Definition at line 154 of file SoSensor.h.

References SoSensor().

trigger()

virtual void SoSensor::trigger ( )

virtual

Reimplemented in SoDataSensor, SoDelayQueueSensor, SoFieldSensor, and SoTimerQueueSensor.

unschedule()

virtual void SoSensor::unschedule ( )

pure virtual

Implemented in SoDataSensor, SoDelayQueueSensor, SoTimerQueueSensor, and SoTimerSensor.

Member Data Documentation

func

SoSensorCB* SoSensor::func

protected

Definition at line 158 of file SoSensor.h.

Referenced by getFunction(), setFunction(), SoAlarmSensor::SoAlarmSensor(), SoDataSensor::SoDataSensor(), SoDelayQueueSensor::SoDelayQueueSensor(), SoFieldSensor::SoFieldSensor(), SoIdleSensor::SoIdleSensor(), SoNodeSensor::SoNodeSensor(), SoOneShotSensor::SoOneShotSensor(), SoPathSensor::SoPathSensor(), SoSensor(), SoSensor(), SoTimerQueueSensor::SoTimerQueueSensor(), and SoTimerSensor::SoTimerSensor().

funcData

void* SoSensor::funcData

protected

Definition at line 159 of file SoSensor.h.

Referenced by getData(), setData(), SoSensor(), and SoSensor().

---

The documentation for this class was generated from the following file:

• C:/jh/mevislab/4.1.3_0/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/sensors/SoSensor.h
