Abstract base class for sensors attached to parts of a scene. More...

#include <Inventor/sensors/SoDataSensor.h>

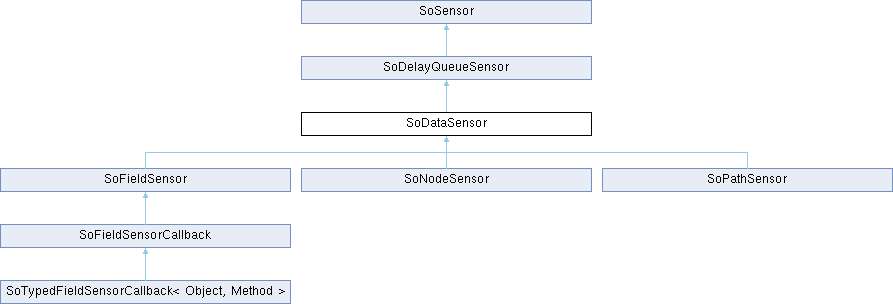

Inheritance diagram for SoDataSensor:

Public Member Functions
	SoDataSensor ()
	Constructors. The second form takes standard callback function and data. More...

	SoDataSensor (SoSensorCB func, void data)

virtual	~SoDataSensor ()
	Destructor. More...

void	setDeleteCallback (SoSensorCB f, void data=NULL)
	Sets a callback that will be called when the object the sensor is sensing is deleted. More...

SoNode *	getTriggerNode () const
	If this is a priority 0 data sensor, returns the node/field that was modified that caused this sensor to trigger. More...

SoField *	getTriggerField () const
	Like getTriggerNode(), but returns the field that started notification (NULL if the sensor isn't priority 0 or if notification didn't start at a field). More...

SoPath *	getTriggerPath () const
	Returns the path from the node to which this sensor is attached down to the child node that changed. More...

void	setTriggerPathFlag (bool flag)

bool	getTriggerPathFlag () const

virtual void	unschedule ()
	Override unschedule() to reset trigNode and trigPath. More...

virtual void	trigger ()
	Override trigger to reset trigNode and trigPath, if necessary. More...

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance. More...

virtual void	dyingReference ()=0
	This is called when the base (path, field, node, whatever) is deleted. More...

Public Member Functions inherited from SoDelayQueueSensor
	SoDelayQueueSensor ()
	Constructors. The second form takes standard callback function and data. More...

	SoDelayQueueSensor (SoSensorCB func, void data)

virtual	~SoDelayQueueSensor ()
	Destructor. More...

void	setPriority (uint32_t pri)
	Sets the priority of the sensor. More...

uint32_t	getPriority () const
	Gets the priority of the sensor. More...

virtual void	schedule ()
	If this sensor's priority is non-zero, adds this sensor to the list of delay queue sensors ready to be triggered. More...

virtual bool	isScheduled () const
	Returns TRUE if this sensor has been scheduled and is waiting in the delay queue to be triggered. More...

virtual bool	isIdleOnly () const
	This method is overridden by IdleSensors to tell sensor manager that they should only be processed when there really is idle time (and not when the delay queue timeout expires). More...

void	setCounter (uint32_t c)
	Set/inquire counter when sensor was last triggered. More...

uint32_t	getCounter () const

Public Member Functions inherited from SoSensor
	SoSensor ()
	Constructors. The second form takes callback function and data. More...

	SoSensor (SoSensorCB f, void d)

virtual	~SoSensor ()
	Virtual destructor so that subclasses are deleted properly. More...

void	setFunction (SoSensorCB *f)
	Sets the callback function that is called when the sensor is triggered. More...

void	setData (void *d)
	Sets the callback data passed to the callback function. More...

SoSensorCB *	getFunction () const
	Returns the callback function that will be called when the sensor is triggered. More...

void *	getData () const
	Returns the user-supplied pointer that will be passed to the callback function. More...

void	setNextInQueue (SoSensor *next)
	Sets/returns the next sensor in whichever queue the sensor is in. More...

SoSensor *	getNextInQueue () const

Protected Member Functions
void	invokeDeleteCallback ()
	Invokes the delete callback. More...

Additional Inherited Members
Static Public Member Functions inherited from SoDelayQueueSensor
static uint32_t	getDefaultPriority ()
	Returns the default delay queue sensor priority, which is 100. More...

Static Public Member Functions inherited from SoSensor
static void	initClass ()
	Initialize static members, etc. More...

Protected Attributes inherited from SoDelayQueueSensor
bool	scheduled
	Whether sensor is scheduled. More...

Protected Attributes inherited from SoSensor
SoSensorCB *	func
	Callback function. More...

void *	funcData
	Data to pass to callback. More...

Detailed Description

Data sensors detect changes to scene graph objects (paths, nodes, or fields) and trigger their callback function when the object changes.

Data sensors provide a delete callback that is called just before the object the data sensor is attached to is deleted; note that the callback should not attempt to modify the object in any way, or core dumps may result.

Priority zero data sensors also provide methods that can be called in the callback function to determine exactly which node, field, or path caused the sensor to be triggered.

See Also

: SoNodeSensor, SoPathSensor, SoFieldSensor, SoDelayQueueSensor

Definition at line 93 of file SoDataSensor.h.

Constructor & Destructor Documentation

◆ SoDataSensor() [1/2]

SoDataSensor::SoDataSensor ( )

◆ SoDataSensor() [2/2]

SoDataSensor::SoDataSensor	(	SoSensorCB *	func,
		void *	data
	)

◆ ~SoDataSensor()

virtual SoDataSensor::~SoDataSensor ( )

virtual

Member Function Documentation

◆ dyingReference()

virtual void SoDataSensor::dyingReference ( )

pure virtual

All subclasses must implement this to do the right thing.

◆ getTriggerField()

SoField* SoDataSensor::getTriggerField ( ) const

◆ getTriggerNode()

SoNode* SoDataSensor::getTriggerNode ( ) const

Returns NULL if the sensor was not triggered because a node/field changed (for example, if schedule() is called on the sensor) or if this sensor is not a priority 0 sensor. Note that because one change to the scene graph may cause multiple nodes or fields to be modified (because of field-to-field connections), the node or field returned may not be the only one that changed.

◆ getTriggerPath()

SoPath* SoDataSensor::getTriggerPath ( ) const

setTriggerPathFlag(TRUE) must be called before the sensor is scheduled, or this will return NULL. It will also return NULL if the sensor is not immediate or if the notification doesn't go through a node

◆ getTriggerPathFlag()

bool SoDataSensor::getTriggerPathFlag ( ) const

inline

See also: getTriggerNode()

Definition at line 134 of file SoDataSensor.h.

◆ invokeDeleteCallback()

void SoDataSensor::invokeDeleteCallback ( )

protected

◆ notify()

virtual void SoDataSensor::notify ( SoNotList * list )

virtual

By default, this schedules the sensor to be triggered and saves some information from the notification list for use by the callback function. Called by SoBase.

Reimplemented in SoPathSensor.

◆ setDeleteCallback()

void SoDataSensor::setDeleteCallback	(	SoSensorCB *	f,
		void *	data = `NULL`
	)

inline

Definition at line 105 of file SoDataSensor.h.

◆ setTriggerPathFlag()

void SoDataSensor::setTriggerPathFlag ( bool flag )

inline

See also: getTriggerNode()

Definition at line 132 of file SoDataSensor.h.

◆ trigger()

virtual void SoDataSensor::trigger ( )

virtual

Reimplemented from SoDelayQueueSensor.

Reimplemented in SoFieldSensor.

◆ unschedule()

virtual void SoDataSensor::unschedule ( )

virtual

Reimplemented from SoDelayQueueSensor.

The documentation for this class was generated from the following file:

/home/jenkins/workspaces/mevislab/4.1.1_0/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/sensors/SoDataSensor.h
