Manages a list of selected objects. More...

#include <Inventor/nodes/SoSelection.h>

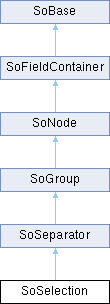

Inheritance diagram for SoSelection:

Public Types
enum	Policy { SINGLE , TOGGLE , SHIFT }
	Default selection policy is SoSelection::SHIFT. More...

Public Types inherited from SoSeparator
enum	CacheEnabled { OFF , ON , AUTO }
	Possible values for caching. More...

Public Types inherited from SoNode
enum	Stage { FIRST_INSTANCE , PROTO_INSTANCE , OTHER_INSTANCE }

Public Member Functions
	SoSelection ()
	Creates a selection node with the default settings.

	SoSelection (int nChildren)
	Constructor that specifies the approximate number of children.

Public Member Functions inherited from SoSeparator
	SoSeparator ()
	Creates a separator node with default settings.

	SoSeparator (int nChildren)
	Constructor that takes approximate number of children.

virtual bool	affectsState () const
	Overrides default method on SoNode.

virtual void	doAction (SoAction *action)
	Implement actions.

virtual void	callback (SoCallbackAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing.

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)
	These methods make render traversal faster by implementing different rendering paths corresponding to different action path codes.

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.

Public Member Functions inherited from SoGroup
	SoGroup ()
	Creates an empty group node.

	SoGroup (int nChildren)
	Constructor that takes approximate number of children.

void	addChild (SoNode *child)
	Adds a child as last one in group.

void	insertChild (SoNode *child, int newChildIndex)
	Adds a child so that it becomes the one with the given index.

SoNode *	getChild (int index) const
	Returns pointer to child node with the given index.

int	findChild (const SoNode *child) const
	Finds index of given child within group. Returns -1 if not found.

int	getNumChildren () const
	Returns number of children.

void	removeChild (int index)
	Removes child with given index from group.

void	removeChild (SoNode *child)
	Removes first instance of given child from group.

void	removeAllChildren ()
	Removes all children from group.

void	replaceChild (int index, SoNode *newChild)
	Replaces child with given index with new child.

void	replaceChild (SoNode oldChild, SoNode newChild)
	Replaces first instance of given child with new child.

virtual void	doAction (SoAction *action)
	Implement actions.

virtual void	callback (SoCallbackAction *action)

virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing.

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

virtual void	pick (SoPickAction *action)

virtual void	search (SoSearchAction *action)

virtual void	write (SoWriteAction *action)

virtual SoChildList *	getChildren () const
	Returns pointer to children.

Public Member Functions inherited from SoNode
void	setOverride (bool state)
	Turns override flag on or off.

bool	isOverride () const
	Returns the state of the override flag.

SoNode *	copy (bool copyConnections=FALSE) const
	Creates and returns an exact copy of the node.

virtual bool	affectsState () const
	Returns TRUE if a node has an effect on the state during traversal.

virtual void	doAction (SoAction *action)
	This method performs the "typical" operation of a node for any action.

virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing.

virtual void	callback (SoCallbackAction *action)

virtual void	getBoundingBox (SoGetBoundingBoxAction *action)

virtual void	getMatrix (SoGetMatrixAction *action)

virtual void	handleEvent (SoHandleEventAction *action)

virtual void	pick (SoPickAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual void	search (SoSearchAction *action)

virtual void	write (SoWriteAction *action)

virtual void	GLRenderBelowPath (SoGLRenderAction *action)
	These methods make render traversal faster by implementing different rendering paths corresponding to different action path codes.

virtual void	GLRenderInPath (SoGLRenderAction *action)

virtual void	GLRenderOffPath (SoGLRenderAction *action)

virtual void	grabEventsSetup ()
	These virtual functions are called when a node gains or loses status as "grabber" of events (see HandleEventAction::setGrabber()).

virtual void	grabEventsCleanup ()

virtual void	startNotify ()
	Initiates notification from an instance.

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.

SbNodeIdType	getNodeId () const
	Returns the unique id for a node.

virtual SoChildList *	getChildren () const
	Returns pointer to children, or NULL if none.

virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used for either stage of writing.)

virtual SoNode *	addToCopyDict () const
	Recursively adds this node and all nodes under it to the copy dictionary.

virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.

virtual SoFieldContainer *	copyThroughConnection () const
	Copies an instance that is encountered through a field connection.

Public Member Functions inherited from SoFieldContainer
void	setToDefaults ()
	Sets all fields in this object to their default values.

bool	hasDefaultValues () const
	Returns TRUE if all of the object's fields have their default values.

bool	fieldsAreEqual (const SoFieldContainer *fc) const
	Returns TRUE if this object's fields are exactly equal to `fc's` fields.

void	copyFieldValues (const SoFieldContainer *fc, bool copyConnections=FALSE)
	Copies the contents of `fc's` fields into this object's fields.

bool	set (const char *fieldDataString)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format.

void	get (SbString &fieldDataString)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string.

virtual int	getFields (SoFieldList &list) const
	Appends pointers to all of this object's fields to resultList, and returns the number of fields appended.

virtual SoField *	getField (const SbName &fieldName) const
	Returns a pointer to the field with the given name.

bool	getFieldName (const SoField *field, SbName &fieldName) const
	Returns the name of the given field in the `fieldName` argument.

bool	enableNotify (bool flag)
	Notification at this Field Container is enabled (if flag == TRUE) or disabled (if flag == FALSE).

bool	isNotifyEnabled () const
	Notification is the process of telling interested objects that this object has changed.

bool	set (const char fieldDataString, SoInput dictIn)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format.

void	get (SbString &fieldDataString, SoOutput *dictOut)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string.

virtual void	notify (SoNotList *)
	Propagates modification notification through an instance.

virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Adds a reference to the instance when writing.

virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used only for last stage of writing)

bool	getIsBuiltIn () const
	Returns whether or not instance is considered 'built-in' to the library.

virtual const SoFieldData *	getFieldData () const
	Returns an SoFieldData structure for the node.

virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.

virtual SoFieldContainer *	copyThroughConnection () const
	During a copy operation, this copies an instance that is encountered through a field connection.

void	addManagedSensor (SoSensor *sensor)
	Adds a sensor which is managed by the field container.

Public Member Functions inherited from SoBase
void	ref () const
	Adds and removes a reference to an instance.

void	unref () const

void	unrefNoDelete () const

void	touch ()
	Marks an instance as modified, simulating a change to it.

virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance.

bool	isOfType (SoType type) const
	Returns TRUE if this object is of the type specified in `type` or is derived from that type.

virtual SbName	getName () const
	Returns the name of an instance.

virtual void	setName (const SbName &name)
	Sets the name of an instance.

virtual void	startNotify ()
	Initiates notification from an instance.

virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.

void	addAuditor (void *auditor, SoNotRec::Type type)
	Adds/removes an auditor to/from list.

void	removeAuditor (void *auditor, SoNotRec::Type type)

const SoAuditorList &	getAuditors ()
	Returns auditor list– used by SoField and SoEngineOutput to trace forward connections.

int	getRefCount () const
	Returns current reference count.

virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Adds a reference to the instance when writing.

bool	shouldWrite ()
	Returns TRUE if the instance should be written, based on the write-reference info already accumulated.

Fields
SoSFEnum	policy
	Selection policy that is followed in response to user interaction.

SoSFBool	selectOnlyOnClick
	If on, only perform selection on a single click, and not after the mouse has been dragged from the initial mouse down position.

SoPathList	selectionList
	List of paths of selected objects.

SoCallbackList *	selCBList
	Selection callback lists.

SoCallbackList *	deselCBList

SoCallbackList *	startCBList

SoCallbackList *	finishCBList

SoSelectionPickCB *	pickCBFunc
	Pick filter is a single callback function, not a list.

void *	pickCBData

bool	callPickCBOnlyIfSelectable

SoCallbackList *	changeCBList
	Change callbacks.

SoPath *	mouseDownPickPath
	Mouse down picked path.

bool	pickMatching

bool	abortSelection

SbVec2s	mouseDownPosition

void	select (const SoPath *path)
	Select the passed path by adding it to the selection list.

void	select (SoNode *node)
	Select the passed node by creating a path to it, and adding the path to the selection list by calling select(path).

void	deselect (const SoPath *path)
	Deselect the passed path by removing it from the selection list.

void	deselect (int which)
	Deselect a path by removing it from the selection list.

void	deselect (SoNode *node)
	Deselect the passed node by creating a path to it, and removing the node from the selection list by calling deselect(path).

void	toggle (const SoPath *path)
	Toggle the selection status of the passed path em if the path is in the selection list, it is removed; if not in the list, it is added.

void	toggle (SoNode *node)
	Toggle the selection status of the passed node by creating a path to it, then calling toggle(path).

bool	isSelected (const SoPath *path) const
	returns TRUE if the path is selected

bool	isSelected (SoNode *node) const
	This convenience version of deselect will search for the first instance of the passed node under this selection node, and return whether that path is selected.

void	deselectAll ()
	Deselect all paths in the selection list, that is, clear the list.

int	getNumSelected () const
	Return the number of paths in the selection list.

const SoPathList *	getList () const
	Return the list of selected paths.

SoPath *	getPath (int index) const
	Return the `ith` path in the selection list.

SoPath *	operator[] (int i) const
	[] indexes into the selection list

void	addSelectionCallback (SoSelectionPathCB f, void userData=NULL)
	The selection callbacks are invoked every time an object is selected, whether it be from user interaction or from method call.

void	removeSelectionCallback (SoSelectionPathCB f, void userData=NULL)
	Remove selection callback.

void	addDeselectionCallback (SoSelectionPathCB f, void userData=NULL)
	The deselection callbacks are invoked every time an object is deselected, whether it be from user interaction or from method call.

void	removeDeselectionCallback (SoSelectionPathCB f, void userData=NULL)
	Remove deselection callback.

void	addStartCallback (SoSelectionClassCB f, void userData=NULL)
	The start callbacks are invoked when the user has initiated an interactive change to the selection list (by picking objects).

void	removeStartCallback (SoSelectionClassCB f, void userData=NULL)
	Remove the start callback.

void	addFinishCallback (SoSelectionClassCB f, void userData=NULL)
	The finish callbacks are invoked when the user has finished interactively changing the selection list (by picking objects).

void	removeFinishCallback (SoSelectionClassCB f, void userData=NULL)
	Remove finish callback.

void	setPickFilterCallback (SoSelectionPickCB f, void userData=NULL, bool callOnlyIfSelectable=TRUE)
	The pick filter callback is invoked when a pick has occurred and the selection node is about to change the selection list.

void	setPickMatching (bool pickTwice)
	SoSelection will pick once on mouse down and once on mouse up, and make sure the picks match before changing the selection list.

bool	isPickMatching () const
	Returns if pick matching is on.

bool	getPickMatching () const
	Returns if pick matching is on.

void	addChangeCallback (SoSelectionClassCB f, void userData=NULL)
	Selection notify callbacks - invoked whenever the selection changes.

void	removeChangeCallback (SoSelectionClassCB f, void userData=NULL)

static void	initClass ()
	Internal:

void	invokeSelectionPolicy (SoPath *path, bool shiftDown)
	Selection policies (shiftSelection is a combination of these) invokeSelectionPolicy() is called from handleEvent() - for a customized selection policy, either derive a class and write a new handleEvent() method, or use an SoEventCallback node placed such that it receives events before the selection node.

void	performSingleSelection (SoPath *path)

void	performToggleSelection (SoPath *path)

SoPath *	copyFromThis (const SoPath *path) const
	This copies the path so the copy is rooted by 'this'.

SoPath *	getPickedPath (const SoPickedPoint *pickedPoint)
	Get path from picked point, calls callbacks.

void	addPath (SoPath *path)
	addPath() assumes the path is rooted by 'this'

void	removePath (int which)

int	findPath (const SoPath *path) const
	This locates path in the selection list.

virtual void	handleEvent (SoHandleEventAction *action)
	Traversal routine for SoHandleEventAction - this will call action->setHandled() if the event is handled.

	~SoSelection ()
	Destructor removes everything from the list.

Additional Inherited Members
Static Public Member Functions inherited from SoSeparator
static void	setNumRenderCaches (int howMany)
	By default, each separator node maintains 2 render caches.

static int	getNumRenderCaches ()
	Returns the current number of render caches.

static void	initClass ()

Static Public Member Functions inherited from SoGroup
static void	initClass ()

Static Public Member Functions inherited from SoNode
static SoType	getClassTypeId ()
	Returns type identifier for the SoNode class.

static SoNode *	getByName (const SbName &name)
	Returns the last node given the specified name.

static int	getByName (const SbName &name, SoNodeList &list)
	Returns the number of nodes with the given name, and adds to `list` pointers to those nodes.

static void	initClass ()
	Initializes base node class.

static void	initClasses ()
	Initialize ALL Inventor node classes.

static SbNodeIdType	getNextNodeId ()
	Returns the next available unique id.

static int	getActionMethodIndex (SoType t)
	Returns the index of this node in the action/method table, given its type.

Static Public Member Functions inherited from SoFieldContainer
static SoType	getClassTypeId ()
	Returns the type of this class.

static void	initClass ()
	Setup type information.

static void	initCopyDict ()
	During a copy operation, copies of nodes and engines are stored in a dictionary, keyed by the original node or engine pointer, so that copies can be re-used.

static void	addCopy (const SoFieldContainer orig, const SoFieldContainer copy)
	Adds an instance to the dictionary.

static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
	If a copy of the given instance is in the dictionary, this returns it.

static SoFieldContainer *	findCopy (const SoFieldContainer *orig, bool copyConnections)
	If a copy of the given instance is not in the dictionary, this returns NULL.

static void	copyDone ()
	Cleans up the dictionary when done.

Static Public Member Functions inherited from SoBase
static SoType	getClassTypeId ()
	Returns type identifier for this class.

static void	initClass ()
	Setup type information.

static void	incrementCurrentWriteCounter ()
	Increments the current write counter at the start of a write operation.

static void	decrementCurrentWriteCounter ()
	Decrements the current write counter after a write operation, in some rare cases.

static void	addName (SoBase , const char )
	Internal methods used to maintain the global name dictionary.

static void	removeName (SoBase , const char )

static SoBase *	getNamedBase (const SbName &, SoType)
	Helper routines used to get stuff out of nameDict.

static int	getNamedBases (const SbName &, SoBaseList &, SoType)

static bool	read (SoInput in, SoBase &base, SoType expectedType)
	Reads one instance of some subclass of SoBase.

static void	setInstancePrefix (const SbString &c)
	This defaults to "+" and is used when naming nodes that are DEF's and USE'd.

Public Attributes inherited from SoSeparator
SoSFEnum	renderCaching
	Whether to cache during rendering traversal.

SoSFEnum	boundingBoxCaching
	Whether to cache during bounding box traversal.

SoSFEnum	renderCulling
	Whether to cull during rendering traversal.

SoSFEnum	pickCulling
	Whether to cull during picking traversal.

Static Public Attributes inherited from SoBase
static bool	traceRefs
	Turns on/off reference count tracing (for debugging)

Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 1 , IS_GROUP = 2 }
	This set of enums is used when reading and writing the base. More...

Protected Member Functions inherited from SoSeparator
virtual bool	cullTest (SoGLRenderAction *action, int &cullResults)
	Returns TRUE if this separator can be culled because it is outside the cull volume.

virtual bool	readInstance (SoInput *in, unsigned short flags)
	Reads stuff into instance of SoGroup. Returns FALSE on error.

virtual	~SoSeparator ()

Protected Member Functions inherited from SoGroup
virtual bool	readInstance (SoInput *in, unsigned short flags)
	Reads stuff into instance of SoGroup. Returns FALSE on error.

virtual bool	readChildren (SoInput *in)
	Reads just the children into instance of SoGroup. Returns FALSE on error.

virtual	~SoGroup ()

virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.

Protected Member Functions inherited from SoNode
	SoNode ()
	Constructor, destructor.

virtual	~SoNode ()

Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer ()

	~SoFieldContainer ()

virtual bool	readInstance (SoInput *in, unsigned short flags)
	Reads stuff into instance. Returns FALSE on error.

Protected Member Functions inherited from SoBase
	SoBase ()
	Constructor is protected - this is an abstract class.

virtual	~SoBase ()
	Virtual destructor so that subclasses are deleted properly.

virtual void	destroy ()
	Actually deletes an instance.

bool	hasMultipleWriteRefs () const
	Returns TRUE if the instance has multiple write references.

bool	writeHeader (SoOutput *out, bool isGroup, bool isEngine) const
	Writes a header (name, open brace) or footer (close brace) to file defined by SoOutput.

void	writeFooter (SoOutput *out) const

virtual const char *	getFileFormatName () const
	Unknown nodes and engines write a different name for themselves than their typeId; this virtual method lets them do that (by default the typeId name is returned)

virtual bool	readInstance (SoInput *in, unsigned short flags)=0
	Reads stuff into instance of subclass.

Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr ()
	This is used by the field-inheritence mechanism, hidden in the SoSubNode macros.

Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter ()
	Returns current write counter.

Protected Attributes inherited from SoGroup
SoChildList *	children

Protected Attributes inherited from SoNode
SbNodeIdType	uniqueId
	Unique id for this node.

Protected Attributes inherited from SoFieldContainer
bool	isBuiltIn
	Is the subclass a built-in Inventor subclass or an extender subclass? This is used to determine whether to read/write field type information.

Static Protected Attributes inherited from SoNode
static SbNodeIdType	nextUniqueId
	Next available unique id.

static int	nextActionMethodIndex
	Next index into the action method table.

Detailed Description

SoSelection defines a node which can be inserted into a scene graph and will generate and manage a selection list from picks on any node in the subgraph below it. Nodes are selected based on a current selection policy. Callback functions report back to the application when a path has been selected or deselected. The selection list can also be managed programmatically.

When handling events, SoSelection makes sure that the mouse release event was over the same object as the mouse press event before changing the list of selected objects. This allows users to mouse down on an object, change their mind and move the cursor off the object, then release the mouse button without altering the selection.

The selection can be highlighted automatically through the SoQtRenderArea, or the application can provide custom highlights. Please see the chapter "Creating a Selection Highlight Style" in the Inventor Toolmaker.

File Format/Default

: Selection {

renderCaching AUTO

boundingBoxCaching AUTO

renderCulling AUTO

pickCulling AUTO

policy SHIFT

}

SoSelection::policy
SoSFEnum policy
Selection policy that is followed in response to user interaction.
Definition SoSelection.h:166

SoSelection::SHIFT
@ SHIFT
when shift key is down, selection policy is TOGGLE.
Definition SoSelection.h:157

SoSeparator::boundingBoxCaching
SoSFEnum boundingBoxCaching
Whether to cache during bounding box traversal.
Definition SoSeparator.h:138

SoSeparator::AUTO
@ AUTO
Decide based on some heuristic.
Definition SoSeparator.h:128

SoSeparator::renderCaching
SoSFEnum renderCaching
Whether to cache during rendering traversal.
Definition SoSeparator.h:135

SoSeparator::renderCulling
SoSFEnum renderCulling
Whether to cull during rendering traversal.
Definition SoSeparator.h:141

SoSeparator::pickCulling
SoSFEnum pickCulling
Whether to cull during picking traversal.
Definition SoSeparator.h:144

See Also

: SoEventCallback, SoQtRenderArea, SoBoxHighlightRenderAction, SoLineHighlightRenderAction

Definition at line 126 of file SoSelection.h.

Member Enumeration Documentation

◆ Policy

enum SoSelection::Policy

Selection policy

Enumerator

SINGLE

left mouse pick on object clears selection, then selects object.

left mouse pick on nothing clears selection. only one object may be selected at a time.

TOGGLE

left mouse pick on object toggles its selection status.

left mouse pick on nothing does nothing. multiple objects may be selected.

SHIFT

when shift key is down, selection policy is TOGGLE.

when shift key is up, selection policy is SINGLE. multiple objects may be selected.

Definition at line 143 of file SoSelection.h.

Constructor & Destructor Documentation

◆ SoSelection() [1/2]

SoSelection::SoSelection ( )

◆ SoSelection() [2/2]

SoSelection::SoSelection ( int nChildren )

◆ ~SoSelection()

SoSelection::~SoSelection ( )

protected

Member Function Documentation

◆ addChangeCallback()

void SoSelection::addChangeCallback	(	SoSelectionClassCB *	f,
		void *	userData = `NULL`
	)

Used by the render area to redraw for selection highlighting.

◆ addDeselectionCallback()

void SoSelection::addDeselectionCallback	(	SoSelectionPathCB *	f,
		void *	userData = `NULL`
	)

This is invoked after the object has been removed from the selection list.

◆ addFinishCallback()

void SoSelection::addFinishCallback	(	SoSelectionClassCB *	f,
		void *	userData = `NULL`
	)

This was preceded by an invocation of each start callback, and invocations of the select and/or deselect callbacks. The finish callbacks are not called when the selection list is changed programmatically.

◆ addPath()

void SoSelection::addPath ( SoPath * path )

protected

◆ addSelectionCallback()

void SoSelection::addSelectionCallback	(	SoSelectionPathCB *	f,
		void *	userData = `NULL`
	)

The callbacks are invoked after the object has been added to the selection list.

◆ addStartCallback()

void SoSelection::addStartCallback	(	SoSelectionClassCB *	f,
		void *	userData = `NULL`
	)

This will be followed by invocations of the select and/or deselect callbacks, finally followed by each finish callback. A start callback can be used, for instance, to save the current selection for later restoration (e.g. undo/redo). The start callbacks are not called when the selection list is changed programmatically.

◆ copyFromThis()

SoPath * SoSelection::copyFromThis ( const SoPath * path ) const

protected

Returns NULL if 'this' not found in the passed path.

◆ deselect() [1/3]

void SoSelection::deselect ( const SoPath * path )

◆ deselect() [2/3]

void SoSelection::deselect ( int which )

The argument which specifies which path in the list to be removed.

◆ deselect() [3/3]

void SoSelection::deselect ( SoNode * node )

If there is more than one instance of node beneath the selection node, the created path will be the first instance found.

◆ deselectAll()

void SoSelection::deselectAll ( )

◆ findPath()

int SoSelection::findPath ( const SoPath * path ) const

protected

The head of this path does not necessarily have to be 'this'.

◆ getList()

const SoPathList * SoSelection::getList ( ) const

inline

Definition at line 227 of file SoSelection.h.

◆ getNumSelected()

int SoSelection::getNumSelected ( ) const

inline

Definition at line 225 of file SoSelection.h.

◆ getPath()

SoPath * SoSelection::getPath ( int index ) const

◆ getPickedPath()

SoPath * SoSelection::getPickedPath ( const SoPickedPoint * pickedPoint )

protected

◆ getPickMatching()

bool SoSelection::getPickMatching ( ) const

inline

Definition at line 337 of file SoSelection.h.

◆ handleEvent()

virtual void SoSelection::handleEvent ( SoHandleEventAction * action )

protectedvirtual

Reimplemented from SoSeparator.

◆ initClass()

static void SoSelection::initClass ( )

static

◆ invokeSelectionPolicy()

void SoSelection::invokeSelectionPolicy	(	SoPath *	path,
		bool	shiftDown
	)

protected

◆ isPickMatching()

bool SoSelection::isPickMatching ( ) const

inline

Definition at line 335 of file SoSelection.h.

◆ isSelected() [1/2]

bool SoSelection::isSelected ( const SoPath * path ) const

◆ isSelected() [2/2]

bool SoSelection::isSelected ( SoNode * node ) const

◆ operator[]()

SoPath * SoSelection::operator[] ( int i ) const

inline

Definition at line 232 of file SoSelection.h.

◆ performSingleSelection()

void SoSelection::performSingleSelection ( SoPath * path )

protected

◆ performToggleSelection()

void SoSelection::performToggleSelection ( SoPath * path )

protected

◆ removeChangeCallback()

void SoSelection::removeChangeCallback	(	SoSelectionClassCB *	f,
		void *	userData = `NULL`
	)

◆ removeDeselectionCallback()

void SoSelection::removeDeselectionCallback	(	SoSelectionPathCB *	f,
		void *	userData = `NULL`
	)

◆ removeFinishCallback()

void SoSelection::removeFinishCallback	(	SoSelectionClassCB *	f,
		void *	userData = `NULL`
	)

◆ removePath()

void SoSelection::removePath ( int which )

protected

◆ removeSelectionCallback()

void SoSelection::removeSelectionCallback	(	SoSelectionPathCB *	f,
		void *	userData = `NULL`
	)

◆ removeStartCallback()

void SoSelection::removeStartCallback	(	SoSelectionClassCB *	f,
		void *	userData = `NULL`
	)

◆ select() [1/2]

void SoSelection::select ( const SoPath * path )

The selection node must lie in the path. The path is copied and truncated such that the selection node is the head of the path. If the selection node does not lie in the path, the selection list remains unchanged. This method ignores the current selection policy.

◆ select() [2/2]

void SoSelection::select ( SoNode * node )

If there is more than one instance of node beneath the selection node, the created path will be the first instance found.

◆ setPickFilterCallback()

void SoSelection::setPickFilterCallback	(	SoSelectionPickCB *	f,
		void *	userData = `NULL`,
		bool	callOnlyIfSelectable = `TRUE`
	)

The callback function returns the path that the selection node should use when selecting and deselecting. If no pick callback is registered (the default), the selection node will use the path returned by SoPickedPoint::getPath() on the picked point associated with the event being processed. The returned path should not be ref'd - selection will ref() and unref() it. (See SoPath::unrefNoDelete().)

Note that a picked object may or may not be a child of the selection node. A selection node will only select paths that pass through it. Possible return values from the callback:

[a] NULL em selection behaves as if nothing was picked (i.e. for SINGLE and SHIFT policies, this clears the selection list). Handle event action traversal halts.

[b] Path em this path will be selected/deselected according to the selection policy (it must lie under the selection node). Handle event action traversal halts.

[c] Path containing only the selection node em apply the selection policy as if nothing was picked. Handle event action traversal continues.

[d] Path not passing through the selection node em selection ignores this pick event and no change is made to the selection list. Handle event action traversal continues.

A simple way to tell selection to ignore the pick is to return an SoPath with no nodes in it. (i.e. return new SoPath;) Selection will always ref the path returned by the callback, make a copy of the path, then unref the path.

The callOnlyIfSelectable argument, when set to TRUE, means the pick callback function will only be invoked on picks which pass through the selection node. When FALSE, all picks will be passed to the callback whether they pass through the selection or not.

◆ setPickMatching()

void SoSelection::setPickMatching ( bool pickTwice )

inline

This allows the user to pick down on an object, change their mind and drag off the object, release the mouse button and not affect the selection. Pass TRUE to enable this behavior. Pass FALSE to disable this, meaning whatever is picked on a mouse release is added to/removed from the selection list. Default is pick-matching on.

Definition at line 333 of file SoSelection.h.

◆ toggle() [1/2]

void SoSelection::toggle ( const SoPath * path )

◆ toggle() [2/2]

void SoSelection::toggle ( SoNode * node )

If there is more than one instance of node beneath the selection node, the created path will be the first instance found.

Member Data Documentation

◆ abortSelection

bool SoSelection::abortSelection

protected

Definition at line 370 of file SoSelection.h.

◆ callPickCBOnlyIfSelectable

bool SoSelection::callPickCBOnlyIfSelectable

protected

Definition at line 361 of file SoSelection.h.

◆ changeCBList

SoCallbackList* SoSelection::changeCBList

protected

Definition at line 364 of file SoSelection.h.

◆ deselCBList

SoCallbackList* SoSelection::deselCBList

protected

Definition at line 354 of file SoSelection.h.

◆ finishCBList

SoCallbackList* SoSelection::finishCBList

protected

Definition at line 356 of file SoSelection.h.

◆ mouseDownPickPath

SoPath* SoSelection::mouseDownPickPath

protected

Definition at line 367 of file SoSelection.h.

◆ mouseDownPosition

SbVec2s SoSelection::mouseDownPosition

protected

Definition at line 372 of file SoSelection.h.

◆ pickCBData

void* SoSelection::pickCBData

protected

Definition at line 360 of file SoSelection.h.

◆ pickCBFunc

SoSelectionPickCB* SoSelection::pickCBFunc

protected

Definition at line 359 of file SoSelection.h.

◆ pickMatching

bool SoSelection::pickMatching

protected

Definition at line 368 of file SoSelection.h.

◆ policy

SoSFEnum SoSelection::policy

This can be set to SoSelection::SINGLE, SoSelection::TOGGLE, or SoSelection::SHIFT.

Definition at line 166 of file SoSelection.h.

◆ selCBList

SoCallbackList* SoSelection::selCBList

protected

Definition at line 353 of file SoSelection.h.

◆ selectionList

SoPathList SoSelection::selectionList

protected

Definition at line 350 of file SoSelection.h.

◆ selectOnlyOnClick

SoSFBool SoSelection::selectOnlyOnClick

This serves a similar purpose as pickMatching, but mixes better with other interactions.

Definition at line 171 of file SoSelection.h.

◆ startCBList

SoCallbackList* SoSelection::startCBList

protected

Definition at line 355 of file SoSelection.h.

The documentation for this class was generated from the following file:

C:/jh/mevislab/4.0.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/nodes/SoSelection.h

Public Types

Public Member Functions

Fields

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Policy

Selection policy

Constructor & Destructor Documentation

◆ SoSelection() [1/2]

◆ SoSelection() [2/2]

◆ ~SoSelection()

Member Function Documentation

◆ addChangeCallback()

◆ addDeselectionCallback()

◆ addFinishCallback()

◆ addPath()

◆ addSelectionCallback()

◆ addStartCallback()

◆ copyFromThis()

◆ deselect() [1/3]

◆ deselect() [2/3]

◆ deselect() [3/3]

◆ deselectAll()

◆ findPath()

◆ getList()

◆ getNumSelected()

◆ getPath()

◆ getPickedPath()

◆ getPickMatching()

◆ handleEvent()

◆ initClass()

◆ invokeSelectionPolicy()

◆ isPickMatching()

◆ isSelected() [1/2]

◆ isSelected() [2/2]

◆ operator[]()

◆ performSingleSelection()

◆ performToggleSelection()

◆ removeChangeCallback()

◆ removeDeselectionCallback()

◆ removeFinishCallback()

◆ removePath()

◆ removeSelectionCallback()

◆ removeStartCallback()

◆ select() [1/2]

◆ select() [2/2]

◆ setPickFilterCallback()

◆ setPickMatching()

◆ toggle() [1/2]

◆ toggle() [2/2]

Member Data Documentation

◆ abortSelection

◆ callPickCBOnlyIfSelectable

◆ changeCBList

◆ deselCBList

◆ finishCBList

◆ mouseDownPickPath

◆ mouseDownPosition

◆ pickCBData

◆ pickCBFunc

◆ pickMatching

◆ policy

◆ selCBList

◆ selectionList

◆ selectOnlyOnClick

◆ startCBList
