SoTransformerManip Class Reference

Transform node with 3D interface for changing scaling, rotation, and translation. More...

#include <Inventor/manips/SoTransformerManip.h>

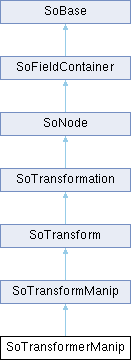

Inheritance diagram for SoTransformerManip:

Public Member Functions
	SoTransformerManip ()
	Constructor.
void	unsquishKnobs ()
	Tells the dragger inside this manip to unsquish its rotation and scale knobs during the next traversal.
bool	isLocateHighlighting ()
	Controls whether or not the dragger inside this manip will perform locate highlighting is used.
void	setLocateHighlighting (bool onOff)
	Controls whether or not the dragger inside this manip will perform locate highlighting is used.
Public Member Functions inherited from SoTransformManip
	SoTransformManip ()
	Constructor.
SoDragger *	getDragger ()
	Returns a pointer to the dragger being used by this manipulator.
bool	replaceNode (SoPath *p)
	Replaces the tail of the path with this manipulator.
bool	replaceManip (SoPath *p, SoTransform *newOne) const
	Replaces the tail of the path, which must be this manipulator, with the given SoTransform node.
virtual void	doAction (SoAction *action)
	These functions implement all actions for nodekits.
virtual void	callback (SoCallbackAction *action)
virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing.
virtual void	getBoundingBox (SoGetBoundingBoxAction *action)
virtual void	getMatrix (SoGetMatrixAction *action)
virtual void	handleEvent (SoHandleEventAction *action)
virtual void	pick (SoPickAction *action)
virtual void	search (SoSearchAction *action)
virtual SoChildList *	getChildren () const
	Returns pointer to children, or NULL if none.
Public Member Functions inherited from SoTransform
	SoTransform ()
	Creates a transformation node with default settings.
void	pointAt (const SbVec3f &fromPoint, const SbVec3f &toPoint)
	Sets the node to translate the origin to the fromPoint and rotate the negative z-axis (0,0,-1) to lie on the vector from fromPoint to toPoint .
void	getScaleSpaceMatrix (SbMatrix &mat, SbMatrix &inv) const
	These return composite matrices that transform from object space to each of the spaces after the scale, rotation, or translation.
void	getRotationSpaceMatrix (SbMatrix &mat, SbMatrix &inv) const
	These return composite matrices that transform from object space to each of the spaces after the scale, rotation, or translation.
void	getTranslationSpaceMatrix (SbMatrix &mat, SbMatrix &inv) const
	These return composite matrices that transform from object space to each of the spaces after the scale, rotation, or translation.
void	multLeft (const SbMatrix &mat)
	These are convenience functions that combine the effects of a matrix transformation into the current transformation stored in this node.
void	multRight (const SbMatrix &mat)
	These are convenience functions that combine the effects of a matrix transformation into the current transformation stored in this node.
void	combineLeft (SoTransformation *nodeOnLeft)
	These are convenience functions that combine the effects of another transformation node into the current transformation stored in this node.
void	combineRight (SoTransformation *nodeOnRight)
	These are convenience functions that combine the effects of another transformation node into the current transformation stored in this node.
void	setMatrix (const SbMatrix &mat)
	Sets the fields in the node to implement the transformation represented by the given matrix.
void	recenter (const SbVec3f &newCenter)
	Changes the center of the transformation to the given point without affecting the overall effect of the transformation.
Public Member Functions inherited from SoNode
void	setOverride (bool state)
	Turns override flag on or off.
bool	isOverride () const
	Returns the state of the override flag.
SoNode *	copy (bool copyConnections=FALSE) const
	Creates and returns an exact copy of the node.
virtual bool	affectsState () const
	Returns TRUE if a node has an effect on the state during traversal.
virtual void	doAction (SoAction *action)
	This method performs the "typical" operation of a node for any action.
virtual void	GLRender (SoGLRenderAction *action)
	These virtual functions implement all of the actions for nodes, Most of the default implementations do nothing.
virtual void	callback (SoCallbackAction *action)
virtual void	getBoundingBox (SoGetBoundingBoxAction *action)
virtual void	getMatrix (SoGetMatrixAction *action)
virtual void	handleEvent (SoHandleEventAction *action)
virtual void	pick (SoPickAction *action)
virtual void	rayPick (SoRayPickAction *action)
virtual void	search (SoSearchAction *action)
virtual void	write (SoWriteAction *action)
virtual void	GLRenderBelowPath (SoGLRenderAction *action)
	These methods make render traversal faster by implementing different rendering paths corresponding to different action path codes.
virtual void	GLRenderInPath (SoGLRenderAction *action)
virtual void	GLRenderOffPath (SoGLRenderAction *action)
virtual void	grabEventsSetup ()
	These virtual functions are called when a node gains or loses status as "grabber" of events (see HandleEventAction::setGrabber()).
virtual void	grabEventsCleanup ()
virtual void	startNotify ()
	Initiates notification from an instance.
virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.
SbNodeIdType	getNodeId () const
	Returns the unique id for a node.
virtual SoChildList *	getChildren () const
	Returns pointer to children, or NULL if none.
virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used for either stage of writing.)
virtual SoNode *	addToCopyDict () const
	Recursively adds this node and all nodes under it to the copy dictionary.
virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.
virtual SoFieldContainer *	copyThroughConnection () const
	Copies an instance that is encountered through a field connection.
Public Member Functions inherited from SoFieldContainer
void	setToDefaults ()
	Sets all fields in this object to their default values.
bool	hasDefaultValues () const
	Returns TRUE if all of the object's fields have their default values.
bool	fieldsAreEqual (const SoFieldContainer *fc) const
	Returns TRUE if this object's fields are exactly equal to fc's fields.
void	copyFieldValues (const SoFieldContainer *fc, bool copyConnections=FALSE)
	Copies the contents of fc's fields into this object's fields.
bool	set (const char *fieldDataString)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format.
void	get (SbString &fieldDataString)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string.
virtual int	getFields (SoFieldList &list) const
	Appends pointers to all of this object's fields to resultList, and returns the number of fields appended.
virtual SoField *	getField (const SbName &fieldName) const
	Returns a pointer to the field with the given name.
bool	getFieldName (const SoField *field, SbName &fieldName) const
	Returns the name of the given field in the fieldName argument.
bool	enableNotify (bool flag)
	Notification at this Field Container is enabled (if flag == TRUE) or disabled (if flag == FALSE).
bool	isNotifyEnabled () const
	Notification is the process of telling interested objects that this object has changed.
bool	set (const char *fieldDataString, SoInput *dictIn)
	Sets one or more fields in this object to the values specified in the given string, which should be a string in the Inventor file format.
void	get (SbString &fieldDataString, SoOutput *dictOut)
	Returns the values of the fields of this object in the Inventor ASCII file format in the given string.
virtual void	notify (SoNotList *)
	Propagates modification notification through an instance.
virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Adds a reference to the instance when writing.
virtual void	writeInstance (SoOutput *out)
	Writes instance to SoOutput. (Used only for last stage of writing)
bool	getIsBuiltIn () const
	Returns whether or not instance is considered 'built-in' to the library.
virtual const SoFieldData *	getFieldData () const
	Returns an SoFieldData structure for the node.
virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Copies the contents of the given node into this instance.
virtual SoFieldContainer *	copyThroughConnection () const
	During a copy operation, this copies an instance that is encountered through a field connection.
void	addManagedSensor (SoSensor *sensor)
	Adds a sensor which is managed by the field container.
Public Member Functions inherited from SoBase
void	ref () const
	Adds and removes a reference to an instance.
void	unref () const
void	unrefNoDelete () const
void	touch ()
	Marks an instance as modified, simulating a change to it.
virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance.
bool	isOfType (SoType type) const
	Returns TRUE if this object is of the type specified in type or is derived from that type.
virtual SbName	getName () const
	Returns the name of an instance.
virtual void	setName (const SbName &name)
	Sets the name of an instance.
virtual void	startNotify ()
	Initiates notification from an instance.
virtual void	notify (SoNotList *list)
	Propagates modification notification through an instance.
void	addAuditor (void *auditor, SoNotRec::Type type)
	Adds/removes an auditor to/from list.
void	removeAuditor (void *auditor, SoNotRec::Type type)
const SoAuditorList &	getAuditors ()
	Returns auditor list– used by SoField and SoEngineOutput to trace forward connections.
int	getRefCount () const
	Returns current reference count.
virtual void	addWriteReference (SoOutput *out, bool isFromField=FALSE)
	Adds a reference to the instance when writing.
bool	shouldWrite ()
	Returns TRUE if the instance should be written, based on the write-reference info already accumulated.

Static Public Member Functions
static void	initClass ()
	initialize the class
Static Public Member Functions inherited from SoTransformManip
static void	initClass ()
	initialize the class
Static Public Member Functions inherited from SoTransform
static void	initClass ()
Static Public Member Functions inherited from SoTransformation
static void	initClass ()
Static Public Member Functions inherited from SoNode
static SoType	getClassTypeId ()
	Returns type identifier for the SoNode class.
static SoNode *	getByName (const SbName &name)
	Returns the last node given the specified name.
static int	getByName (const SbName &name, SoNodeList &list)
	Returns the number of nodes with the given name, and adds to list pointers to those nodes.
static void	initClass ()
	Initializes base node class.
static void	initClasses ()
	Initialize ALL Inventor node classes.
static SbNodeIdType	getNextNodeId ()
	Returns the next available unique id.
static int	getActionMethodIndex (SoType t)
	Returns the index of this node in the action/method table, given its type.
Static Public Member Functions inherited from SoFieldContainer
static SoType	getClassTypeId ()
	Returns the type of this class.
static void	initClass ()
	Setup type information.
static void	initCopyDict ()
	During a copy operation, copies of nodes and engines are stored in a dictionary, keyed by the original node or engine pointer, so that copies can be re-used.
static void	addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)
	Adds an instance to the dictionary.
static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
	If a copy of the given instance is in the dictionary, this returns it.
static SoFieldContainer *	findCopy (const SoFieldContainer *orig, bool copyConnections)
	If a copy of the given instance is not in the dictionary, this returns NULL.
static void	copyDone ()
	Cleans up the dictionary when done.
Static Public Member Functions inherited from SoBase
static SoType	getClassTypeId ()
	Returns type identifier for this class.
static void	initClass ()
	Setup type information.
static void	incrementCurrentWriteCounter ()
	Increments the current write counter at the start of a write operation.
static void	decrementCurrentWriteCounter ()
	Decrements the current write counter after a write operation, in some rare cases.
static void	addName (SoBase *, const char *)
	Internal methods used to maintain the global name dictionary.
static void	removeName (SoBase *, const char *)
static SoBase *	getNamedBase (const SbName &, SoType)
	Helper routines used to get stuff out of nameDict.
static int	getNamedBases (const SbName &, SoBaseList &, SoType)
static bool	read (SoInput *in, SoBase *&base, SoType expectedType)
	Reads one instance of some subclass of SoBase.
static void	setInstancePrefix (const SbString &c)
	This defaults to "+" and is used when naming nodes that are DEF's and USE'd.

Protected Member Functions
virtual	~SoTransformerManip ()
Protected Member Functions inherited from SoTransformManip
virtual void	copyContents (const SoFieldContainer *fromFC, bool copyConnections)
	Redefines this to also copy the dragger.
virtual void	setDragger (SoDragger *newDragger)
virtual	~SoTransformManip ()
Protected Member Functions inherited from SoTransform
virtual	~SoTransform ()
Protected Member Functions inherited from SoTransformation
	SoTransformation ()
	Constructor - protected since this is abstract.
virtual	~SoTransformation ()
Protected Member Functions inherited from SoNode
	SoNode ()
	Constructor, destructor.
virtual	~SoNode ()
Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer ()
	~SoFieldContainer ()
virtual bool	readInstance (SoInput *in, unsigned short flags)
	Reads stuff into instance. Returns FALSE on error.
Protected Member Functions inherited from SoBase
	SoBase ()
	Constructor is protected - this is an abstract class.
virtual	~SoBase ()
	Virtual destructor so that subclasses are deleted properly.
virtual void	destroy ()
	Actually deletes an instance.
bool	hasMultipleWriteRefs () const
	Returns TRUE if the instance has multiple write references.
bool	writeHeader (SoOutput *out, bool isGroup, bool isEngine) const
	Writes a header (name, open brace) or footer (close brace) to file defined by SoOutput.
void	writeFooter (SoOutput *out) const
virtual const char *	getFileFormatName () const
	Unknown nodes and engines write a different name for themselves than their typeId; this virtual method lets them do that (by default the typeId name is returned)
virtual bool	readInstance (SoInput *in, unsigned short flags)=0
	Reads stuff into instance of subclass.

Additional Inherited Members
Public Types inherited from SoNode
enum	Stage { FIRST_INSTANCE , PROTO_INSTANCE , OTHER_INSTANCE }
Public Attributes inherited from SoTransform
SoSFVec3f	translation
	Translation vector.
SoSFRotation	rotation
	Rotation specification.
SoSFVec3f	scaleFactor
	Scale factors.
SoSFRotation	scaleOrientation
	Rotational orientation for scale.
SoSFVec3f	center
	Origin for scale and rotation.
Static Public Attributes inherited from SoBase
static bool	traceRefs
	Turns on/off reference count tracing (for debugging)
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 1 , IS_GROUP = 2 }
	This set of enums is used when reading and writing the base. More...
Static Protected Member Functions inherited from SoTransformManip
static void	transferFieldValues (const SoTransform *from, SoTransform *to)
static void	valueChangedCB (void *, SoDragger *)
static void	fieldSensorCB (void *, SoSensor *)
Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr ()
	This is used by the field-inheritence mechanism, hidden in the SoSubNode macros.
Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter ()
	Returns current write counter.
Protected Attributes inherited from SoTransformManip
SoFieldSensor *	rotateFieldSensor
SoFieldSensor *	translFieldSensor
SoFieldSensor *	scaleFieldSensor
SoFieldSensor *	centerFieldSensor
SoFieldSensor *	scaleOrientFieldSensor
SoChildList *	children
Protected Attributes inherited from SoNode
SbNodeIdType	uniqueId
	Unique id for this node.
Protected Attributes inherited from SoFieldContainer
bool	isBuiltIn
	Is the subclass a built-in Inventor subclass or an extender subclass? This is used to determine whether to read/write field type information.
Static Protected Attributes inherited from SoNode
static SbNodeIdType	nextUniqueId
	Next available unique id.
static int	nextActionMethodIndex
	Next index into the action method table.

Detailed Description

This is a new manipulator with some improvements over the older inventor manips. It has the following features: [1] full interface for rotate, translate, and scale, [2] better feedback, [3] locate highlighting.

SoTransformerManip is derived from SoTransform (by way of SoTransformManip). When its fields change, nodes following it in the scene graph rotate, scale, and/or translate.

As a subclass of SoTransformManip, this manipulator also has a 3D interface to edit some of its fields. In this case, the interface edits the scaleFactor , rotation and translation fields.

A manipulator differs from a dragger. When you move a dragger, no other nodes are affected. When you move an SoTransformManip, other nodes move along with it. (See the reference page for SoTransformManip).

The interface for an SoTransformerManip is exactly the same as that of the SoTransformerDragger.
To find out more about the interface, see the reference page for SoTransformerDragger. To find out how the manipulator uses a dragger to provide its interface, see the reference page for SoTransformManip.

On screen, this manipulator will surround the objects influenced by its motion. This is because it turns on the surroundScale part of the dragger (See the reference page for SoSurroundScale)

File Format/Default

TransformerManip {
  translation 0 0 0
  rotation 0 0 1 0
  scaleFactor 1 1 1
  scaleOrientation 0 0 1 0
  center 0 0 0
}

See Also

SoTransformerDragger, SoTransform, SoCenterballManip, SoHandleBoxManip, SoJackManip, SoTabBoxManip, SoTrackballManip, SoTransformBoxManip, SoTransformManip

Definition at line 118 of file SoTransformerManip.h.

Constructor & Destructor Documentation

SoTransformerManip()

SoTransformerManip::SoTransformerManip

(

)

~SoTransformerManip()

virtual SoTransformerManip::~SoTransformerManip ( )

protectedvirtual

Member Function Documentation

initClass()

static void SoTransformerManip::initClass ( )

static

isLocateHighlighting()

bool SoTransformerManip::isLocateHighlighting

(

)

Default is TRUE.

setLocateHighlighting()

void SoTransformerManip::setLocateHighlighting

(

bool

onOff

)

Default is TRUE.

unsquishKnobs()

void SoTransformerManip::unsquishKnobs

(

)

Ordinarily, the knobs are only unsquished upon readin from file and when the mouse button is released at the end of a drag. If you want this to happen more often, then you should call this method.

---

The documentation for this class was generated from the following file:

• C:/jh/mevislab/4.0.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/manips/SoTransformerManip.h
