Cylinder projector. More...

#include <Inventor/projectors/SbCylinderProjector.h>

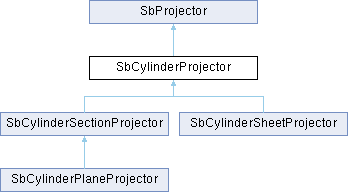

Inheritance diagram for SbCylinderProjector:

Public Member Functions
	~SbCylinderProjector ()
	Destructor.

virtual SbVec3f	project (const SbVec2f &point)=0
	Apply the projector using the given point, returning the point in three dimensions that it projects to.

SbVec3f	projectAndGetRotation (const SbVec2f &point, SbRotation &rot)
	Apply the projector using the given point, returning the point in three dimensions that it projects to.

virtual SbRotation	getRotation (const SbVec3f &point1, const SbVec3f &point2)=0
	Get a rotation given two points on this cylinder projector.

void	setCylinder (const SbCylinder &cyl)
	Set and get the cylinder on which to project points.

const SbCylinder &	getCylinder () const
	Set and get the cylinder on which to project points.

void	setOrientToEye (bool orientToEye)
	Set and get whether the projector should always be oriented towards the eye.

bool	isOrientToEye () const
	Set and get whether the projector should always be oriented towards the eye.

void	setFront (bool isFront)
	Set and get whether the projector should intersect the half of the cylinder that faces the eye.

bool	isFront () const
	Set and get whether the projector should intersect the half of the cylinder that faces the eye.

bool	isPointInFront (const SbVec3f &point) const
	Set and get whether the projector should intersect the half of the cylinder that faces the eye.

virtual void	setWorkingSpace (const SbMatrix &space)
	Set the transform space to work in.

Public Member Functions inherited from SbProjector
virtual SbVec3f	project (const SbVec2f &point)=0
	Apply the projector using the given point, returning the point in three dimensions that it projects to.

virtual void	setViewVolume (const SbViewVolume &vol)
	Set the view volume to use for the projection.

const SbViewVolume &	getViewVolume () const
	Get the view volume to use for the projection.

virtual void	setWorkingSpace (const SbMatrix &space)
	Set the transform space to work in.

const SbMatrix &	getWorkingSpace () const
	Get the transform space to work in.

virtual SbProjector *	copy () const =0
	Creates and returns an exact copy of the projector.

Protected Member Functions
	SbCylinderProjector (bool orientToEye)
	Constructors The default cylinder to is centered about the Y axis and has a radius of 1.0.

	SbCylinderProjector (const SbCylinder &cyl, bool orientToEye)

Protected Member Functions inherited from SbProjector
	SbProjector ()
	Default constructor.

virtual	~SbProjector ()

SbLine	getWorkingLine (const SbVec2f &point) const
	Given this mouse point, return the line it projects to in working space.

Protected Attributes
bool	intersectFront
	Are intersections done on the front half ( if not, they're done on th e back half) of the cylinder?

SbCylinder	cylinder
	Cylinder for this projector.

bool	orientToEye
	TRUE if always oriented to eye.

bool	needSetup
	Set TRUE whenever cylinder, work space or orientation changes.

SbVec3f	lastPoint
	Cached last point on this projector.

Protected Attributes inherited from SbProjector
SbViewVolume	viewVol

SbMatrix	worldToWorking

SbMatrix	workingToWorld

Detailed Description

SbCylinderProjector is an abstract base class for projectors that use a cylinder in their projection. The getRotation() method

for an SbCylinderProjector will always return a rotation that is about the axis of the cylinder. Cylinder projectors are typically used to write interactive 3D manipulators and viewers.

See Also

: SbCylinderPlaneProjector, SbCylinderSectionProjector, SbCylinderSheetProjector, SbLineProjector, SbPlaneProjector, SbSpherePlaneProjector, SbSphereProjector, SbSphereSectionProjector, SbSphereSheetProjector

Definition at line 86 of file SbCylinderProjector.h.

Constructor & Destructor Documentation

◆ ~SbCylinderProjector()

SbCylinderProjector::~SbCylinderProjector ( )

inline

Definition at line 91 of file SbCylinderProjector.h.

◆ SbCylinderProjector() [1/2]

SbCylinderProjector::SbCylinderProjector ( bool orientToEye )

protected

◆ SbCylinderProjector() [2/2]

SbCylinderProjector::SbCylinderProjector	(	const SbCylinder &	cyl,
		bool	orientToEye
	)

protected

Member Function Documentation

◆ getCylinder()

const SbCylinder & SbCylinderProjector::getCylinder ( ) const

inline

The default cylinder is aligned with the Y axis and has radius 1.0.

Definition at line 118 of file SbCylinderProjector.h.

◆ getRotation()

virtual SbRotation SbCylinderProjector::getRotation	(	const SbVec3f &	point1,
		const SbVec3f &	point2
	)

pure virtual

The rotation will be about the axis of the cylinder.

Implemented in SbCylinderPlaneProjector, SbCylinderSectionProjector, and SbCylinderSheetProjector.

◆ isFront()

bool SbCylinderProjector::isFront ( ) const

inline

Definition at line 133 of file SbCylinderProjector.h.

◆ isOrientToEye()

bool SbCylinderProjector::isOrientToEye ( ) const

inline

Set to FALSE if the tolerance should be evaluated in working space.

Definition at line 125 of file SbCylinderProjector.h.

◆ isPointInFront()

bool SbCylinderProjector::isPointInFront ( const SbVec3f & point ) const

◆ project()

virtual SbVec3f SbCylinderProjector::project ( const SbVec2f & point )

pure virtual

The point should be normalized from 0-1, with (0,0) at the lower-left.

Implements SbProjector.

Implemented in SbCylinderPlaneProjector, SbCylinderSectionProjector, and SbCylinderSheetProjector.

◆ projectAndGetRotation()

SbVec3f SbCylinderProjector::projectAndGetRotation	(	const SbVec2f &	point,
		SbRotation &	rot
	)

This also returns in rot a rotation about the axis of the cylinder from the last projected point to this one. The passed point should be normalized (i.e. lie in the range [0.0,1.0]), with (0,0) at the lower-left.

◆ setCylinder()

void SbCylinderProjector::setCylinder ( const SbCylinder & cyl )

The default cylinder is aligned with the Y axis and has radius 1.0.

◆ setFront()

void SbCylinderProjector::setFront ( bool isFront )

Set to FALSE if the projector should intersect with the rear half.

◆ setOrientToEye()

void SbCylinderProjector::setOrientToEye ( bool orientToEye )

Set to FALSE if the tolerance should be evaluated in working space.

◆ setWorkingSpace()

virtual void SbCylinderProjector::setWorkingSpace ( const SbMatrix & space )

virtual

Reimplemented from SbProjector.

Member Data Documentation

◆ cylinder

SbCylinder SbCylinderProjector::cylinder

protected

Definition at line 154 of file SbCylinderProjector.h.

◆ intersectFront

bool SbCylinderProjector::intersectFront

protected

Definition at line 152 of file SbCylinderProjector.h.

◆ lastPoint

SbVec3f SbCylinderProjector::lastPoint

protected

Subclasses must set this in their project and getRotation methods.

Definition at line 161 of file SbCylinderProjector.h.

◆ needSetup

bool SbCylinderProjector::needSetup

protected

Definition at line 156 of file SbCylinderProjector.h.

◆ orientToEye

bool SbCylinderProjector::orientToEye

protected

Definition at line 155 of file SbCylinderProjector.h.

The documentation for this class was generated from the following file:

C:/jh/mevislab/4.0.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/projectors/SbCylinderProjector.h
