ml::FieldAddOnBase Class Reference

Abstract base class for field interfaces to be added to other ML module classes. More...

#include <mlFieldAddOnBase.h>

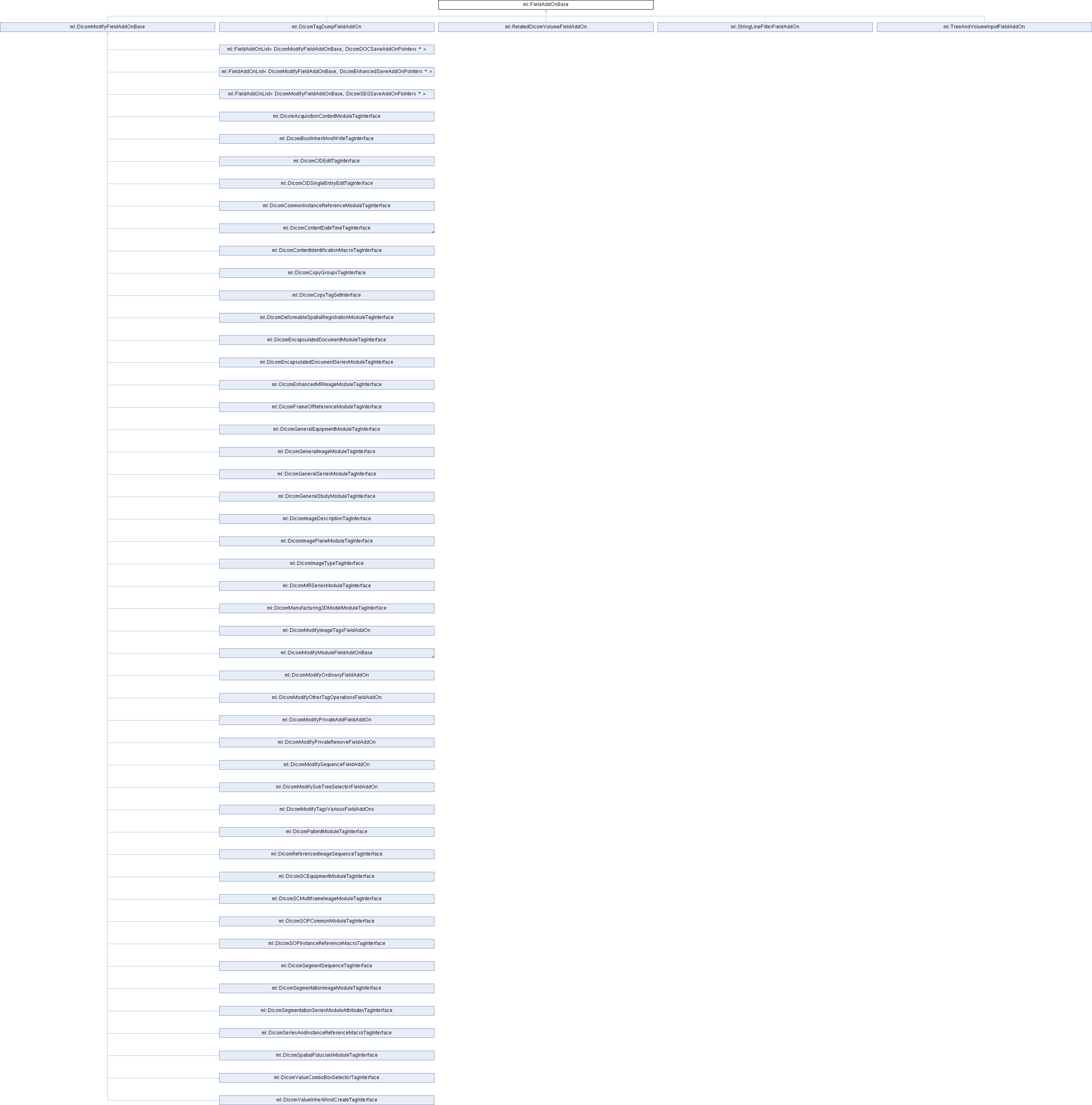

Inheritance diagram for ml::FieldAddOnBase:

Public Types
enum	FieldChangeState { NoChange = 0 , StatusOnlyChange , RecalculationRequired }
	Describes the type of a field changes detected in handleFieldChanges(Field *field). More...

Public Member Functions
	FieldAddOnBase (FieldContainer &fieldContainerRef)
	Constructor, setting the reference of the FieldContainer managing the fields.
virtual	~FieldAddOnBase ()
	Destructor.
FieldContainer &	getFieldContainer ()
	Returns the referenced container.
const FieldContainer &	getFieldContainer () const
	Returns the referenced container.
std::vector< Field * > &	getFields ()
	Return modification access to the list of managed fields, use at own risk!
const std::vector< Field * > &	getFields () const
	Return constant access to the list of managed fields!
virtual void	addFields ()=0
	Add fields to field container of module.
virtual void	handleFieldActivationChanges ()
	Handle class changes according to Module::activateAttachments.
virtual FieldChangeState	handleFieldChanges (Field *field)
	Handle field notifications according to Module::handleNotification functionality.
virtual FieldChangeState	getMergedFieldChangeState (FieldChangeState state1, FieldChangeState state2) const
	Returns a FieldChangeState which best represents a merge of the two given states.
virtual bool	hasField (Field *field) const
	Returns true if the passed fieldPtr is in _fieldPointers, otherwise false.

Protected Member Functions
void	_addFieldPointer (Field *field)
	Helper routine to add a Field pointer to _fieldPointers, empty pointers and pointers added more than once will be handled fatally.

Detailed Description

Abstract base class for field interfaces to be added to other ML module classes.

Definition at line 22 of file mlFieldAddOnBase.h.

Member Enumeration Documentation

FieldChangeState

enum ml::FieldAddOnBase::FieldChangeState

Describes the type of a field changes detected in handleFieldChanges(Field *field).

Enumerator
NoChange	No change took place.
StatusOnlyChange	Display-only or status fields have been changed which do not require recalculations for example of image outputs.
RecalculationRequired	A field was changes which requires recalculations or (image) output updates.

Definition at line 26 of file mlFieldAddOnBase.h.

Constructor & Destructor Documentation

FieldAddOnBase()

ml::FieldAddOnBase::FieldAddOnBase ( FieldContainer & fieldContainerRef )

inline

Constructor, setting the reference of the FieldContainer managing the fields.

Definition at line 35 of file mlFieldAddOnBase.h.

~FieldAddOnBase()

virtual ml::FieldAddOnBase::~FieldAddOnBase ( )

inlinevirtual

Destructor.

Definition at line 40 of file mlFieldAddOnBase.h.

Member Function Documentation

_addFieldPointer()

void ml::FieldAddOnBase::_addFieldPointer ( Field * field )

protected

Helper routine to add a Field pointer to _fieldPointers, empty pointers and pointers added more than once will be handled fatally.

addFields()

virtual void ml::FieldAddOnBase::addFields ( )

pure virtual

Add fields to field container of module.

All derived versions must add their fields to getFieldContainer() and with _addFieldPointer().

Implemented in ml::StringLineFilterFieldAddOn, ml::DicomModifyFieldAddOnBase, ml::DicomModifyImageTagsFieldAddOn, ml::DicomModifyOrdinaryFieldAddOn, ml::DicomModifyOtherTagOperationsFieldAddOn, ml::DicomModifyPrivateAddFieldAddOn, ml::DicomModifyPrivateRemoveFieldAddOn, ml::DicomModifySequenceFieldAddOn, ml::DicomModifySubTreeSelectorFieldAddOn, ml::DicomModifyTagsVariousFieldAddOns, ml::TreeAndVolumeInputFieldAddOn, ml::DicomAcquisitionContextModuleTagInterface, ml::DicomBoolInheritAndWriteTagInterface, ml::DicomCIDEditTagInterface, ml::DicomCIDSingleEntryEditTagInterface, ml::DicomCommonInstanceReferenceModuleTagInterface, ml::DicomContentDateTimeTagInterface, ml::DicomContentIdentificationMacroTagInterface, ml::DicomCopyGroupsTagInterface, ml::DicomCopyTagSetInterface, ml::DicomDeformableSpatialRegistrationModuleTagInterface, ml::DicomEncapsulatedDocumentModuleTagInterface, ml::DicomEncapsulatedDocumentSeriesModuleTagInterface, ml::DicomEnhancedMRImageModuleTagInterface, ml::DicomFrameOfReferenceModuleTagInterface, ml::DicomGeneralEquipmentModuleTagInterface, ml::DicomGeneralImageModuleTagInterface, ml::DicomGeneralSeriesModuleTagInterface, ml::DicomGeneralStudyModuleTagInterface, ml::DicomImageDescriptionTagInterface, ml::DicomImagePlaneModuleTagInterface, ml::DicomImageTypeTagInterface, ml::DicomManufacturing3DModelModuleTagInterface, ml::DicomMRSeriesModuleTagInterface, ml::DicomPatientModuleTagInterface, ml::DicomPresentationStateIdentificationTagInterface, ml::DicomReferencedImageSequenceTagInterface, ml::DicomSCEquipmentModuleTagInterface, ml::DicomSCMultiframeImageModuleTagInterface, ml::DicomSegmentationImageModuleTagInterface, ml::DicomSegmentationSeriesModuleAttributesTagInterface, ml::DicomSegmentSequenceTagInterface, ml::DicomSeriesAndInstanceReferenceMacroTagInterface, ml::DicomSOPCommonModuleTagInterface, ml::DicomSOPInstanceReferenceMacroTagInterface, ml::DicomSpatialFiducialsModuleTagInterface, ml::DicomValueComboBoxSelectorTagInterface, ml::DicomValueInheritAndCreateTagInterface, ml::DicomTagDumpFieldAddOn, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomDOCSaveAddOnPointers * >, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomEnhancedSaveAddOnPointers * >, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomSEGSaveAddOnPointers * >, ml::RelatedDicomVolumeFieldAddOn, ml::DicomModifyApprovalModuleFieldAddOn, ml::DicomModifyCalculatedDoseReferenceRecordModuleFieldAddOn, ml::DicomModifyCineModuleFieldAddOn, ml::DicomModifyClinicalTrialSeriesModuleFieldAddOn, ml::DicomModifyClinicalTrialStudyModuleFieldAddOn, ml::DicomModifyClinicalTrialSubjectModuleFieldAddOn, ml::DicomModifyContrastBolusModuleFieldAddOn, ml::DicomModifyDeviceModuleFieldAddOn, ml::DicomModifyFrameOfReferenceModuleFieldAddOn, ml::DicomModifyGeneralEquipmentModuleFieldAddOn, ml::DicomModifyGeneralImageModuleFieldAddOn, ml::DicomModifyGeneralStudyModuleFieldAddOn, ml::DicomModifyImagePixelModuleFieldAddOn, ml::DicomModifyImagePlaneModuleFieldAddOn, ml::DicomModifyMeasuredDoseReferenceRecordModuleFieldAddOn, ml::DicomModifyModalityLUTModuleFieldAddOn, ml::DicomModifyMultiFrameModuleFieldAddOn, ml::DicomModifyMultiFrameOverlayModuleFieldAddOn, ml::DicomModifyOverlayPlaneModuleFieldAddOn, ml::DicomModifyPatientModuleFieldAddOn, ml::DicomModifyPatientStudyModuleFieldAddOn, ml::DicomModifyROIContourModuleFieldAddOn, ml::DicomModifyRTBeamsModuleFieldAddOn, ml::DicomModifyRTBrachyApplicationSetupsModuleFieldAddOn, ml::DicomModifyRTDoseModuleFieldAddOn, ml::DicomModifyRTDoseROIModuleFieldAddOn, ml::DicomModifyRTDVHModuleFieldAddOn, ml::DicomModifyRTFractionSchemeModuleFieldAddOn, ml::DicomModifyRTGeneralPlanModuleFieldAddOn, ml::DicomModifyRTGeneralTreatmentRecordModuleFieldAddOn, ml::DicomModifyRTImageModuleFieldAddOn, ml::DicomModifyRTIonBeamsModuleFieldAddOn, ml::DicomModifyRTIonBeamsSessionRecordModuleFieldAddOn, ml::DicomModifyRTIonToleranceTablesModuleFieldAddOn, ml::DicomModifyRTPatientSetupModuleFieldAddOn, ml::DicomModifyRTPrescriptionModuleFieldAddOn, ml::DicomModifyRTROIObservationsModuleFieldAddOn, ml::DicomModifyRTSeriesModuleFieldAddOn, ml::DicomModifyRTToleranceTablesModuleFieldAddOn, ml::DicomModifyRTTreatmentMachineRecordModuleFieldAddOn, ml::DicomModifyRTTreatmentSummaryRecordModuleFieldAddOn, ml::DicomModifySOPCommonModuleFieldAddOn, ml::DicomModifyStructureSetModuleFieldAddOn, ml::DicomModifyVOILUTModuleFieldAddOn, and ml::DicomModifyModuleFieldAddOnBase.

getFieldContainer() [1/2]

FieldContainer & ml::FieldAddOnBase::getFieldContainer ( )

inline

Returns the referenced container.

Definition at line 43 of file mlFieldAddOnBase.h.

getFieldContainer() [2/2]

const FieldContainer & ml::FieldAddOnBase::getFieldContainer ( ) const

inline

Returns the referenced container.

Definition at line 46 of file mlFieldAddOnBase.h.

getFields() [1/2]

std::vector< Field * > & ml::FieldAddOnBase::getFields ( )

inline

Return modification access to the list of managed fields, use at own risk!

Definition at line 49 of file mlFieldAddOnBase.h.

getFields() [2/2]

const std::vector< Field * > & ml::FieldAddOnBase::getFields ( ) const

inline

Return constant access to the list of managed fields!

Definition at line 52 of file mlFieldAddOnBase.h.

getMergedFieldChangeState()

virtual FieldChangeState ml::FieldAddOnBase::getMergedFieldChangeState ( FieldChangeState state1, FieldChangeState state2 ) const

inlinevirtual

Returns a FieldChangeState which best represents a merge of the two given states.

Definition at line 71 of file mlFieldAddOnBase.h.

References mlrange_cast().

handleFieldActivationChanges()

virtual void ml::FieldAddOnBase::handleFieldActivationChanges ( )

inlinevirtual

Handle class changes according to Module::activateAttachments.

Reimplemented in ml::StringLineFilterFieldAddOn, ml::DicomModifyFieldAddOnBase, ml::DicomModifyOrdinaryFieldAddOn, ml::DicomModifyOtherTagOperationsFieldAddOn, ml::DicomModifyPrivateAddFieldAddOn, ml::DicomModifyPrivateRemoveFieldAddOn, ml::DicomModifySequenceFieldAddOn, ml::DicomModifySubTreeSelectorFieldAddOn, ml::DicomModifyTagsVariousFieldAddOns, ml::TreeAndVolumeInputFieldAddOn, ml::DicomAcquisitionContextModuleTagInterface, ml::DicomCIDEditTagInterface, ml::DicomCIDSingleEntryEditTagInterface, ml::DicomEnhancedMRImageModuleTagInterface, ml::DicomImageDescriptionTagInterface, ml::DicomImageTypeTagInterface, ml::DicomManufacturing3DModelModuleTagInterface, ml::DicomSegmentationImageModuleTagInterface, ml::DicomSegmentSequenceTagInterface, ml::DicomSOPCommonModuleTagInterface, ml::DicomValueComboBoxSelectorTagInterface, ml::DicomTagDumpFieldAddOn, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomDOCSaveAddOnPointers * >, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomEnhancedSaveAddOnPointers * >, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomSEGSaveAddOnPointers * >, and ml::RelatedDicomVolumeFieldAddOn.

Definition at line 59 of file mlFieldAddOnBase.h.

handleFieldChanges()

virtual FieldChangeState ml::FieldAddOnBase::handleFieldChanges ( Field * field )

inlinevirtual

Handle field notifications according to Module::handleNotification functionality.

The default functionality return

Parameters

field

The field whose was changed.

Returns

RecalculationRequired if the field is found in _fieldPointer, otherwise NoChange.

Reimplemented in ml::StringLineFilterFieldAddOn, ml::DicomModifyFieldAddOnBase, ml::DicomModifyOrdinaryFieldAddOn, ml::DicomModifyOtherTagOperationsFieldAddOn, ml::DicomModifyPrivateAddFieldAddOn, ml::DicomModifyPrivateRemoveFieldAddOn, ml::DicomModifySequenceFieldAddOn, ml::DicomModifySubTreeSelectorFieldAddOn, ml::DicomModifyTagsVariousFieldAddOns, ml::TreeAndVolumeInputFieldAddOn, ml::DicomAcquisitionContextModuleTagInterface, ml::DicomBoolInheritAndWriteTagInterface, ml::DicomCIDEditTagInterface, ml::DicomCIDSingleEntryEditTagInterface, ml::DicomCommonInstanceReferenceModuleTagInterface, ml::DicomCopyGroupsTagInterface, ml::DicomCopyTagSetInterface, ml::DicomEncapsulatedDocumentSeriesModuleTagInterface, ml::DicomEnhancedMRImageModuleTagInterface, ml::DicomGeneralEquipmentModuleTagInterface, ml::DicomGeneralSeriesModuleTagInterface, ml::DicomGeneralStudyModuleTagInterface, ml::DicomImageDescriptionTagInterface, ml::DicomImageTypeTagInterface, ml::DicomManufacturing3DModelModuleTagInterface, ml::DicomPatientModuleTagInterface, ml::DicomPresentationStateIdentificationTagInterface, ml::DicomReferencedImageSequenceTagInterface, ml::DicomSegmentationImageModuleTagInterface, ml::DicomSegmentSequenceTagInterface, ml::DicomSeriesAndInstanceReferenceMacroTagInterface, ml::DicomSOPCommonModuleTagInterface, ml::DicomValueComboBoxSelectorTagInterface, ml::DicomValueInheritAndCreateTagInterface, ml::DicomTagDumpFieldAddOn, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomDOCSaveAddOnPointers * >, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomEnhancedSaveAddOnPointers * >, ml::FieldAddOnList< DicomModifyFieldAddOnBase, DicomSEGSaveAddOnPointers * >, ml::RelatedDicomVolumeFieldAddOn, and ml::DicomModifyModuleFieldAddOnBase.

Definition at line 65 of file mlFieldAddOnBase.h.

References mlrange_cast().

hasField()

virtual bool ml::FieldAddOnBase::hasField ( Field * field ) const

virtual

Returns true if the passed fieldPtr is in _fieldPointers, otherwise false.

---

The documentation for this class was generated from the following file:

• FMEstable/ReleaseMeVis/Projects/MLReleaseTools/Sources/mlFieldAddOnBase.h
