DicomModifyFieldAddOnBase class managing fields to select DCMTree sequence or MeVis SMF subtrees which then can be modified by appended DicomModify instances. More...

#include <mlDicomModifySubTreeSelectorFieldAddOn.h>

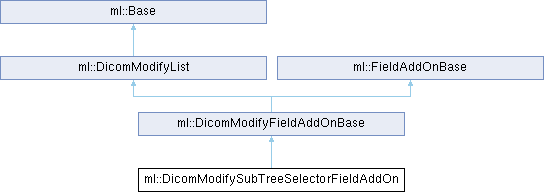

Inheritance diagram for ml::DicomModifySubTreeSelectorFieldAddOn:

Public Types
enum	SubTreeSelectionModes { DoNotModify = 0 , ModifyZTU_SMF_FrameSlices , ModifyZTU_SMF_Frames , ModifySequenceWithId }
	Available modes for subtree selection. More...

enum	{ NumSubTreeSelectionModes = DicomModifySubTreeSelectorFieldAddOn::ModifySequenceWithId+1 }
	Defines the number of available modification modes. More...

Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Public Types inherited from ml::FieldAddOnBase
enum	FieldChangeState { NoChange = 0 , StatusOnlyChange , RecalculationRequired }
	Describes the type of a field changes detected in handleFieldChanges(Field *field). More...

Public Member Functions
	DicomModifySubTreeSelectorFieldAddOn (FieldContainer &fieldContainerRef)
	See DicomModifyFieldAddOnBase::DicomModifyFieldAddOnBase(fieldContainerRef, numInstances) for details.

void	addFields () override
	Add fields to field container of module.

void	handleFieldActivationChanges () override
	Handle class changes according to Module::activateAttachments.

FieldAddOnBase::FieldChangeState	handleFieldChanges (Field *field) override
	Handle field changes and field validation.

std::string	applyModifications (DCMTree::TreePtr dcmTree, const FieldContainer *treeInfos) override
	Apply all DicomModify from getModifierList to dcmTree as well as all connected ones.

Public Member Functions inherited from ml::DicomModifyFieldAddOnBase
	DicomModifyFieldAddOnBase (FieldContainer &fieldContainerRef, size_t numInstances=1, bool createInputModifyTagsPluginBaseConnectorField=false, bool createOutputModifyTagsPluginBaseConnectorField=false)
	Constructor, setting the reference of the FieldContainer managing the fields, the number of field instances to create and optionally input and output fields to create modification pipelines.

	~DicomModifyFieldAddOnBase () override
	Destructor resetting connector fields if they exist.

size_t	getNumInstances () const
	Returns the number of instances to be created by derived fields.

virtual void	inheritValues (DCMTree::Const_TreePtr)
	Can be used to implement the copy of tag values from the given dcmTree to the fields.

virtual std::string	checkConsistency () const
	Checks for invalid parameters; return textual description on error, or empty string on success.

BaseField *	getOutputModifierListFld () const
	Provide access to output base field if it was created.

BaseField *	getInputModifierListFld () const
	Provide access to input base connector field if it was created.

Public Member Functions inherited from ml::DicomModifyList
	DicomModifyList ()
	Constructor creating an empty list of tag modifiers and setting the optional input plugin with a concatenated DicomModifyList.

	~DicomModifyList () override
	Destructor also destroying all of its stored Modifiers.

void	addModifier (DicomModifyBase *modifier, bool atEnd=true)
	Add an object derived from DicomModifyBase which then will be owned (and on destruction deleted) by this.

void	clear ()
	Makes modifier array empty and deletes all of them.

std::vector< DicomModifyBase * > &	getModifierList ()
	Get direct access to internal list to allow callers direct manipulations which, however, must obey the restriction that ownership belongs to *this, i.e.

const std::vector< DicomModifyBase * > &	getModifierList () const
	Same as getModifierList() only for constant access.

void	setInputPlugin (DicomModifyList *inputPlugin=nullptr)
	Sets an optional plugin to be called by applyModififcations or resets it to nullptr; the input is called after the objects in _modfiers list.

DicomModifyList *	getInputPlugin () const
	Returns the optional plugin to be called by applyModififcations.

Public Member Functions inherited from ml::Base
	Base ()
	Constructor.

virtual	~Base ()
	Destructor.

virtual Base *	deepCopy () const
	Set addStateToTree version number that can be accessed via getAddStateVersion()

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Check if this object's type is equal to or derived from one of the types given in the argument.

virtual bool	isRefCountedBase () const
	Returns if the instance is derived from RefCountedBase.

virtual std::string	detailString () const
	Return a string describing this object.

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class.

virtual std::string	persistentState () const
	Returns a string describing the object's internal state.

virtual void	setPersistentState (const std::string &state)
	Restores the object's internal state from a string that had been previously generated using `persistentState()`.

virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node.

virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node.

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Write the objects state to the data stream object.

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Read the objects state from the data stream object.

Public Member Functions inherited from ml::FieldAddOnBase
	FieldAddOnBase (FieldContainer &fieldContainerRef)
	Constructor, setting the reference of the FieldContainer managing the fields.

virtual	~FieldAddOnBase ()
	Destructor.

FieldContainer &	getFieldContainer ()
	Returns the referenced container.

const FieldContainer &	getFieldContainer () const
	Returns the referenced container.

std::vector< Field * > &	getFields ()
	Return modification access to the list of managed fields, use at own risk!

const std::vector< Field * > &	getFields () const
	Return constant access to the list of managed fields!

virtual FieldChangeState	getMergedFieldChangeState (FieldChangeState state1, FieldChangeState state2) const
	Returns a FieldChangeState which best represents a merge of the two given states.

virtual bool	hasField (Field *field) const
	Returns true if the passed fieldPtr is in _fieldPointers, otherwise false.

Protected Member Functions
std::vector< DCMTree::TreePtr >	_determineSubTreesToModify (DCMTree::TreePtr parentTree, DICOMTagTools::ZTUVector &ztuIndexes) const
	Returns the array of subtrees of parentTree which are described by the fields; the corresponding index positions are returned in ztuIndexes.

std::string	_applyPreModifications (DCMTree::TreePtr dcmTree, const FieldContainer *treeInfos)
	Apply all plugins from _preInputModifierListFld to dcmTree.

Protected Member Functions inherited from ml::FieldAddOnBase
void	_addFieldPointer (Field *field)
	Helper routine to add a Field pointer to _fieldPointers, empty pointers and pointers added more than once will be handled fatally.

Additional Inherited Members
Static Public Member Functions inherited from ml::DicomModifyFieldAddOnBase
static bool	isIn (const std::string &str, const char const values, size_t numValues)
	Static helper function which checks whether str is part of the given list of values which has numValues entries.

Detailed Description

DicomModifyFieldAddOnBase class managing fields to select DCMTree sequence or MeVis SMF subtrees which then can be modified by appended DicomModify instances.

Definition at line 30 of file mlDicomModifySubTreeSelectorFieldAddOn.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Defines the number of available modification modes.

Enumerator
NumSubTreeSelectionModes

Definition at line 44 of file mlDicomModifySubTreeSelectorFieldAddOn.h.

◆ SubTreeSelectionModes

enum ml::DicomModifySubTreeSelectorFieldAddOn::SubTreeSelectionModes

Available modes for subtree selection.

Enumerator
DoNotModify	No modification is performed at all.
ModifyZTU_SMF_FrameSlices	In the MeVis Structured multi-frame sequence the positions described in Z, T, and U frames are modified.
ModifyZTU_SMF_Frames	The frames of the MeVis Structured multi-frame sequence which are described in _ztuFramesFld are modified.
ModifySequenceWithId	The entries described in sequenceEntries of the sequence tag with ID subTreeSelectorTagId are modified.

Definition at line 35 of file mlDicomModifySubTreeSelectorFieldAddOn.h.

Constructor & Destructor Documentation

◆ DicomModifySubTreeSelectorFieldAddOn()

ml::DicomModifySubTreeSelectorFieldAddOn::DicomModifySubTreeSelectorFieldAddOn ( FieldContainer & fieldContainerRef )

inline

See DicomModifyFieldAddOnBase::DicomModifyFieldAddOnBase(fieldContainerRef, numInstances) for details.

Definition at line 47 of file mlDicomModifySubTreeSelectorFieldAddOn.h.

Member Function Documentation

◆ _applyPreModifications()

std::string ml::DicomModifySubTreeSelectorFieldAddOn::_applyPreModifications	(	DCMTree::TreePtr	dcmTree,
		const FieldContainer *	treeInfos )

protected

Apply all plugins from _preInputModifierListFld to dcmTree.

Parameters

dcmTree	The DICOM tree to be modified.
treeInfos	A FieldContainer which - if not nullptr - can contain additional user defined information fields about dcmTree.

Returns: An empty string on success, otherwise a cumulative descriptive string of all problems.

◆ _determineSubTreesToModify()

std::vector< DCMTree::TreePtr > ml::DicomModifySubTreeSelectorFieldAddOn::_determineSubTreesToModify	(	DCMTree::TreePtr	parentTree,
		DICOMTagTools::ZTUVector &	ztuIndexes ) const

protected

Returns the array of subtrees of parentTree which are described by the fields; the corresponding index positions are returned in ztuIndexes.

◆ addFields()

void ml::DicomModifySubTreeSelectorFieldAddOn::addFields ( )

overridevirtual

Add fields to field container of module.

Reimplemented from ml::DicomModifyFieldAddOnBase.

◆ applyModifications()

std::string ml::DicomModifySubTreeSelectorFieldAddOn::applyModifications	(	DCMTree::TreePtr	dcmTree,
		const FieldContainer *	treeInfos )

overridevirtual

Apply all DicomModify from getModifierList to dcmTree as well as all connected ones.

Parameters

dcmTree	The DICOM tree to be modified.
treeInfos	A FieldContainer which - if not nullptr - can contain additional user defined information fields about dcmTree.

Returns: An empty string on success, otherwise a cumulative descriptive string of all problems.

Reimplemented from ml::DicomModifyFieldAddOnBase.

◆ handleFieldActivationChanges()

void ml::DicomModifySubTreeSelectorFieldAddOn::handleFieldActivationChanges ( )

overridevirtual

Handle class changes according to Module::activateAttachments.

Reimplemented from ml::DicomModifyFieldAddOnBase.

◆ handleFieldChanges()

FieldAddOnBase::FieldChangeState ml::DicomModifySubTreeSelectorFieldAddOn::handleFieldChanges ( Field * field )

overridevirtual

Handle field changes and field validation.

Reimplemented from ml::DicomModifyFieldAddOnBase.

The documentation for this class was generated from the following file:

FMEstable/ReleaseMeVis/Projects/DICOM/MLDicomModify/Sources/mlDicomModifySubTreeSelectorFieldAddOn.h
