#include <mlDicomModifyRTIonBeamsModuleFieldAddOn.h>

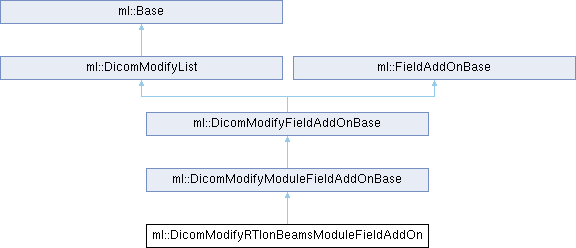

Inheritance diagram for ml::DicomModifyRTIonBeamsModuleFieldAddOn:

Public Member Functions
	DicomModifyRTIonBeamsModuleFieldAddOn (FieldContainer &fieldContainer, bool createInputModifyTagsPluginBaseConnectorField=false, bool createOutputModifyTagsPluginBaseConnectorField=false)

void	addFields () override
	Add fields to field container of the FieldAddOn.

virtual std::string	applyModifications (DCMTree::TreePtr dcmTree, const FieldContainer *treeInfos=NULL) override
	Applies first the changes to the dcmTree as described in DicomModifyList::applyModifications() and then calls applyModifications() on all connected input DicomModifyList objects.

void	inheritValues (DCMTree::Const_TreePtr dcmTree) override
	Can be used to implement the copy of tag values from the given dcmTree to the fields.

std::string	checkConsistency () const override
	Checks for invalid parameters; return textual description on error, or empty string on success.

Public Member Functions inherited from ml::DicomModifyModuleFieldAddOnBase
	DicomModifyModuleFieldAddOnBase (FieldContainer &fieldContainer, const std::string &dicomModuleName, bool createInputModifyTagsPluginBaseConnectorField=false, bool createOutputModifyTagsPluginBaseConnectorField=false)

void	setInputDicomTreeField (BaseField *field)

virtual FieldAddOnBase::FieldChangeState	handleFieldChanges (Field *field) override
	Handle field notifications according to Module::handleNotification with a return of field change state.

Public Member Functions inherited from ml::DicomModifyFieldAddOnBase
	DicomModifyFieldAddOnBase (FieldContainer &fieldContainerRef, size_t numInstances=1, bool createInputModifyTagsPluginBaseConnectorField=false, bool createOutputModifyTagsPluginBaseConnectorField=false)
	Constructor, setting the reference of the FieldContainer managing the fields, the number of field instances to create and optionally input and output fields to create modification pipelines.

	~DicomModifyFieldAddOnBase () override
	Destructor resetting connector fields if they exist.

size_t	getNumInstances () const
	Returns the number of instances to be created by derived fields.

void	handleFieldActivationChanges () override
	Handle class changes according to Module::activateAttachments.

BaseField *	getOutputModifierListFld () const
	Provide access to output base field if it was created.

BaseField *	getInputModifierListFld () const
	Provide access to input base connector field if it was created.

Public Member Functions inherited from ml::DicomModifyList
	DicomModifyList ()
	Constructor creating an empty list of tag modifiers and setting the optional input plugin with a concatenated DicomModifyList.

	~DicomModifyList () override
	Destructor also destroying all of its stored Modifiers.

void	addModifier (DicomModifyBase *modifier, bool atEnd=true)
	Add an object derived from DicomModifyBase which then will be owned (and on destruction deleted) by this.

void	clear ()
	Makes modifier array empty and deletes all of them.

std::vector< DicomModifyBase * > &	getModifierList ()
	Get direct access to internal list to allow callers direct manipulations which, however, must obey the restriction that ownership belongs to *this, i.e.

const std::vector< DicomModifyBase * > &	getModifierList () const
	Same as getModifierList() only for constant access.

void	setInputPlugin (DicomModifyList *inputPlugin=nullptr)
	Sets an optional plugin to be called by applyModififcations or resets it to nullptr; the input is called after the objects in _modfiers list.

DicomModifyList *	getInputPlugin () const
	Returns the optional plugin to be called by applyModififcations.

Public Member Functions inherited from ml::Base
	Base ()
	Constructor.

virtual	~Base ()
	Destructor.

virtual Base *	deepCopy () const
	Set addStateToTree version number that can be accessed via getAddStateVersion()

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Check if this object's type is equal to or derived from one of the types given in the argument.

virtual bool	isRefCountedBase () const
	Returns if the instance is derived from RefCountedBase.

virtual std::string	detailString () const
	Return a string describing this object.

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class.

virtual std::string	persistentState () const
	Returns a string describing the object's internal state.

virtual void	setPersistentState (const std::string &state)
	Restores the object's internal state from a string that had been previously generated using `persistentState()`.

virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node.

virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node.

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Write the objects state to the data stream object.

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Read the objects state from the data stream object.

Public Member Functions inherited from ml::FieldAddOnBase
	FieldAddOnBase (FieldContainer &fieldContainerRef)
	Constructor, setting the reference of the FieldContainer managing the fields.

virtual	~FieldAddOnBase ()
	Destructor.

FieldContainer &	getFieldContainer ()
	Returns the referenced container.

const FieldContainer &	getFieldContainer () const
	Returns the referenced container.

std::vector< Field * > &	getFields ()
	Return modification access to the list of managed fields, use at own risk!

const std::vector< Field * > &	getFields () const
	Return constant access to the list of managed fields!

virtual FieldChangeState	getMergedFieldChangeState (FieldChangeState state1, FieldChangeState state2) const
	Returns a FieldChangeState which best represents a merge of the two given states.

virtual bool	hasField (Field *field) const
	Returns true if the passed fieldPtr is in _fieldPointers, otherwise false.

Additional Inherited Members
Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Public Types inherited from ml::FieldAddOnBase
enum	FieldChangeState { NoChange = 0 , StatusOnlyChange , RecalculationRequired }
	Describes the type of a field changes detected in handleFieldChanges(Field *field). More...

Static Public Member Functions inherited from ml::DicomModifyFieldAddOnBase
static bool	isIn (const std::string &str, const char const values, size_t numValues)
	Static helper function which checks whether str is part of the given list of values which has numValues entries.

Protected Member Functions inherited from ml::DicomModifyModuleFieldAddOnBase
void	_addFieldPointer (Field *field)

Protected Member Functions inherited from ml::FieldAddOnBase
void	_addFieldPointer (Field *field)
	Helper routine to add a Field pointer to _fieldPointers, empty pointers and pointers added more than once will be handled fatally.

Protected Attributes inherited from ml::DicomModifyModuleFieldAddOnBase
DCMTree::Const_TreePtr	_inputDicomTree

Detailed Description

Definition at line 30 of file mlDicomModifyRTIonBeamsModuleFieldAddOn.h.

Constructor & Destructor Documentation

◆ DicomModifyRTIonBeamsModuleFieldAddOn()

ml::DicomModifyRTIonBeamsModuleFieldAddOn::DicomModifyRTIonBeamsModuleFieldAddOn	(	FieldContainer &	fieldContainer,
		bool	createInputModifyTagsPluginBaseConnectorField = false,
		bool	createOutputModifyTagsPluginBaseConnectorField = false )

Member Function Documentation

◆ addFields()

void ml::DicomModifyRTIonBeamsModuleFieldAddOn::addFields ( )

overridevirtual

Add fields to field container of the FieldAddOn.

Reimplemented from ml::DicomModifyModuleFieldAddOnBase.

◆ applyModifications()

virtual std::string ml::DicomModifyRTIonBeamsModuleFieldAddOn::applyModifications	(	DCMTree::TreePtr	dcmTree,
		const FieldContainer *	treeInfos = NULL )

overridevirtual

Applies first the changes to the dcmTree as described in DicomModifyList::applyModifications() and then calls applyModifications() on all connected input DicomModifyList objects.

Parameters

dcmTree	The DICOM tree to be modified.
treeInfos	A FieldContainer which - if not nullptr - can contain additional user defined information fields about dcmTree and the changes to perform.

Returns: An empty string on success, otherwise a cumulative descriptive string of all problems.

Reimplemented from ml::DicomModifyFieldAddOnBase.

◆ checkConsistency()

std::string ml::DicomModifyRTIonBeamsModuleFieldAddOn::checkConsistency ( ) const

overridevirtual

Checks for invalid parameters; return textual description on error, or empty string on success.

Reimplemented from ml::DicomModifyFieldAddOnBase.

◆ inheritValues()

void ml::DicomModifyRTIonBeamsModuleFieldAddOn::inheritValues ( DCMTree::Const_TreePtr )

overridevirtual

Can be used to implement the copy of tag values from the given dcmTree to the fields.

Reimplemented from ml::DicomModifyFieldAddOnBase.

The documentation for this class was generated from the following file:

FMEwork/ReleaseMeVis/Sources/Shared/MLDicomModifyFieldAddOns/FieldAddOns/mlDicomModifyRTIonBeamsModuleFieldAddOn.h
