Base class for performing modifications on the CSOs of a CSOList. More...

#include <CSOModificator.h>

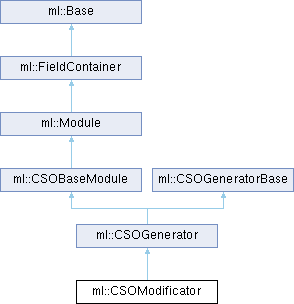

Inheritance diagram for ml::CSOModificator:

Public Member Functions
	CSOModificator (const std::string &type="CSOModificator", int numInImages=0, int numOutImages=0)
	Standard constructor. More...

Public Member Functions inherited from ml::CSOGenerator
	CSOGenerator (std::string type="CSOGenerator", int numInImg=0, int numOutImg=0)
	Constructor. More...

std::string	getType () const
	Returns the type of the CSOGenerator. More...

Public Member Functions inherited from ml::CSOBaseModule
	CSOBaseModule (const std::string &type="CSOBaseModule", int numInImages=0, int numOutImages=0)
	Standard constructor. More...

Public Member Functions inherited from ml::Module
MLMetaProfilePtr &	getMetaProfile () const
	Returns the metaprofile for the base operator. More...

const char *	getTypeNameFast () const
	Macro to declare methods for the ML runtime type system (see mlRuntimeSubClass.h). More...

	Module (int numInputImages, int numOutputImages)
	Constructor: Initializes `numInputImages` input images and `numOutputImages` output images of the module. More...

	~Module () override
	Destructor: Destroys this module. More...

InputConnectorField *	getInputImageField (MLint i) const
	Returns the field representing input image `i`. `i` must be a valid index. More...

OutputConnectorField *	getOutputImageField (MLint i=0) const
	Returns the field representing output image `i`. `i` must be a valid index. More...

MLint	getNumInputImages () const
	Returns the number of input images of this module. More...

MLint	getNumOutputImages () const
	Returns the number of output images of this module. More...

PagedImage *	getOutputImage (MLint outputIndex=0) const
	Returns the output image `outputIndex`. The index needs to be in the range [0, getNumOutputImages()-1]. More...

InputConnectorField *	addInputImage (const char *name=nullptr)
	Adds a new input image with `name` to the module. More...

OutputConnectorField *	addOutputImage (const char *name=nullptr)
	Adds a new output image with `name` to the module. More...

PagedImage *	getInputImage (MLint inputIndex, bool getReal=false) const
	Returns the output image of the module connected to input `inputIndex`. More...

PagedImage *	getUpdatedInputImage (MLint inputIndex, bool getReal=false) const
	Convenience method for a safe access to the input image at index `inputIndex`. More...

MLErrorCode	processAllPages (int outputIndex=-1, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
	Processes all pages of a module for easy implementation of page-based image processing of complete images. More...

MLErrorCode	processAllPages (ProcessAllPagesHandler &handler, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
	Processes input images with a ProcessAllPagesHandler `handler` on a temporary output image (which allocates no data). More...

MLErrorCode	processMissingPages (int outputIndex=0, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
	Processes all missing pages on the given output image. More...

void	clearOutputImage (MLint i=0)
	Clears cached output image pages of output image `i`. More...

MLint	getOutputImageInplace (MLint outputIndex=0) const
	Returns the optimization flag: returns the index of input image whose input tile is used also as output page for output `outputIndex` in calculateOutputSubImage() (instead of allocating its own memory). More...

MLint	getBypass (MLint outputIndex=0) const
	Returns the currently bypass index or -1 if bypassing if disabled (default). More...

THREAD_SUPPORT	getThreadSupport () const
	Returns the multithreading mode supported by this module, default is NO_THREAD_SUPPORT. More...

bool	areRecursiveHandleNotificationsPermitted () const
	Returns whether recursive entries in handleNotification are permitted. More...

MLint	getHandleNotificationEntryCounter () const
	A counter returning the current number of (recursive re-)entries in handleNotification. More...

PERMITTED_TYPES	getVoxelDataTypeSupport () const
	Returns the current state of supported voxel datatypes. More...

bool	isSupportedVoxelDataType (MLDataType dt) const
	Checks whether a given data type is supported on the module as configured with setVoxelDataTypeSupport. More...

virtual INPUT_HANDLE	handleInput (int, INPUT_STATE) const
	This method may be reimplemented to enable support for invalid input images on the module. More...

INPUT_STATE	getInputState (MLint index)
	Returns the current state of the input connection. More...

INPUT_STATE	getUpdatedInputState (MLint index)
	Returns the updated state of the input image by calling updateImageProperties(index) and returning getInputState(index) afterwards. More...

bool	isInputImageField (Field *field) const
	Returns whether the given field is an input image field. More...

void	touchOutputImageFields () const
	Touches all output image fields to indicate that the images have changed. More...

virtual void	beginSaveFields ()
	Called before all fields data contents of this modules are saved. More...

virtual void	endSaveFields ()
	Called after saving all field contents of this module. More...

Public Member Functions inherited from ml::FieldContainer
	FieldContainer ()
	Constructor. More...

	~FieldContainer () override
	Destructor: Deletes all added fields. More...

std::string	whoAmI (bool withInstanceName=true) const
	Returns the type and the instance name of format 'ClassTypeName(instanceName)' if the instance name is not empty and `withInstanceName` is `true`. More...

Field *	addField (const char name, const char type, const char *value)
	Adds a new field with name `name`, type `type`, and value `value` (encoded as string) to the container. More...

Field *	addField (Field *field)
	Adds a `field`, the ownership of the field is passed to the FieldContainer. More...

BoolField *	addBool (const char *name)
	Creates a BoolField with `name` and adds it to the container. Default value is `false`. More...

BoolField *	addBool (const char *name, bool value)
	Creates a BoolField with `name` and adds it to the container. More...

IntField *	addInt (const char *name)
	Creates an IntField with `name` and adds it to the container. Default value is 0. More...

IntField *	addInt (const char *name, MLint value)
	Creates an IntField with `name` and adds it to the container. More...

EnumField *	addEnum (const char name, const char const *enumerationItemNames, MLint numEnumerationItems)
	Creates an EnumField field with `name` and adds it to the container. More...

EnumField *	addEnum (const char *name, const std::vector< std::string > &enumerationItemNames)
	Creates an EnumField field with `name` and adds it to the container. More...

template<typename EnumType >
TypedEnumField< EnumType > *	addEnum (const char *name, const EnumValues< EnumType > &values, EnumType initialValue)
	Creates a TypedEnumField field with `name` and adds it to the container. More...

FloatField *	addFloat (const char *name)
	Creates a FloatField with `name` and adds it to the container. Default value is 0.f. More...

FloatField *	addFloat (const char *name, float value)
	Creates a FloatField with `name` and adds it to the container. More...

ProgressField *	addProgress (const char *name)
	Creates a float ProgressField with `name` and adds it to the container. Default value is 0.f. More...

ProgressField *	addProgress (const char *name, float value)
	Creates a float ProgressField with `name` and adds it to the container. More...

DoubleField *	addDouble (const char *name)
	Creates a DoubleField with `name` and adds it to the container. Default value is 0. More...

DoubleField *	addDouble (const char *name, double value)
	Creates a DoubleField with `name` and adds it to the container. More...

StringField *	addString (const char *name)
	Creates a StringField with `name` and adds it to the container. Default value is empty string. More...

StringField *	addString (const char *name, const std::string &value)
	Creates a StringField with `name` and adds it to the container. More...

NotifyField *	addNotify (const char *name)
	Creates a NotifyField field with `name` and adds it to the container. More...

TriggerField *	addTrigger (const char *name)
	Creates a TriggerField field with `name` and adds it to the container. More...

BaseField *	addBase (const char *name)
	Creates a Base field with `name` and adds it to the container. Default value is NULL. More...

BaseField *	addBase (const char name, Base value)
	Creates a Base field with `name` and adds it to the container. More...

BaseField *	addBase (const char *name, const RefCountedBasePtr &value)
	Creates a Base field with `name` and adds it to the container. Sets the value from intrusive pointer. More...

template<typename T >
BaseField *	addBaseWithAllowedType (const char name, T value=nullptr)
	As above, but also sets the allowed type of the field. More...

template<typename T >
BaseField *	addBaseWithAllowedType (const char *name, const ::boost::intrusive_ptr< T > &value)
	As above, but also sets the allowed type of the field. More...

template<typename T >
TypedBaseField< T > *	addTypedBase (const char *name)
	Creates a TypedBaseField with `name` and adds it to the container. Default value is NULL. More...

template<typename T >
TypedBaseField< T > *	addTypedBase (const char name, T value)
	Creates a TypedBaseField with `name` and adds it to the container. More...

template<typename T >
TypedBaseField< T > *	addTypedBase (const char *name, const ::boost::intrusive_ptr< T > &value)
	Creates a TypedBaseField with `name` and adds it to the container. Sets the value from intrusive pointer. More...

SoNodeField *	addSoNode (const char *name)
	Creates a SoNodeField with `name` and adds it to the container. Default value is NULL. More...

SoNodeField *	addSoNode (const char name, SoNode value)
	Creates a SoNodeField with `name` and adds it to the container. More...

PointerField *	addPointer (const char *name)
	Creates a PointerField with `name` and adds it to the container. More...

Vector2Field *	addVector2 (const char *name)
	Creates a Vector2Field with `name` and adds it to the container. More...

Vector2Field *	addVector2 (const char *name, const Vector2 &value)
	Creates a Vector2Field with `name` and adds it to the container. More...

Vector2Field *	addVector2 (const char *name, double x, double y)
	Creates a Vector2Field with `name` and adds it to the container. More...

Vector3Field *	addVector3 (const char *name)
	Creates a Vector3Field with `name` and adds it to the container. More...

Vector3Field *	addVector3 (const char *name, const Vector3 &value)
	Creates a Vector3Field with `name` and adds it to the container. More...

Vector3Field *	addVector3 (const char *name, double x, double y, double z)
	Creates a Vector3Field with `name` and adds it to the container. More...

Vector4Field *	addVector4 (const char *name)
	Creates a Vector4Field with `name` and adds it to the container. More...

Vector4Field *	addVector4 (const char *name, const Vector4 &value)
	Creates a Vector4Field with `name` and adds it to the container. More...

Vector4Field *	addVector4 (const char *name, double x, double y, double z, double w)
	Creates a Vector4Field with `name` and adds it to the container. More...

Vector5Field *	addVector5 (const char *name)
	Creates a Vector5Field with `name` and adds it to the container. More...

Vector5Field *	addVector5 (const char *name, const Vector5 &value)
	Creates a Vector5Field with `name` and adds it to the container. More...

Vector6Field *	addVector6 (const char *name)
	Creates a Vector6Field with `name` and adds it to the container. More...

Vector6Field *	addVector6 (const char *name, const Vector6 &value)
	Creates a Vector6Field with `name` and adds it to the container. More...

Vector10Field *	addVector10 (const char *name)
	Creates a Vector10Field with `name` and adds it to the container. More...

Vector10Field *	addVector10 (const char *name, const Vector10 &value)
	Creates a Vector10Field with `name` and adds it to the container. More...

ImageVectorField *	addImageVector (const char *name)
	Creates a ImageVectorField with `name` and adds it to the container. More...

ImageVectorField *	addImageVector (const char *name, const ImageVector &value)
	Creates a ImageVectorField with `name` and adds it to the container. More...

ImageVectorField *	addImageVector (const char *name, MLint x, MLint y, MLint z, MLint c, MLint t, MLint u)
	Creates a ImageVectorField with `name` and adds it to the container. More...

SubImageBoxField *	addSubImageBox (const char *name)
	Creates a SubImageBoxField with `name` and adds it to the container. More...

SubImageBoxField *	addSubImageBox (const char *name, const SubImageBox &value)
	Creates a SubImageBoxField with `name` and adds it to the container. More...

SubImageBoxdField *	addSubImageBoxd (const char *name)
	Creates a SubImageBoxd field with `name` and adds it to the container. More...

SubImageBoxdField *	addSubImageBoxd (const char *name, const SubImageBoxd &value)
	Creates a SubImageBoxd field with `name` and adds it to the container. More...

ColorField *	addColor (const char *name)
	Creates a ColorField with `name` and adds it to the container. More...

ColorField *	addColor (const char *name, float r, float g, float b)
	Creates a ColorField with `name` and adds it to the container. More...

ColorField *	addColor (const char *name, const Vector3 &value)
	Creates a ColorField with `name` and adds it to the container. More...

PlaneField *	addPlane (const char *name)
	Creates a PlaneField with `name` and adds it to the container. More...

PlaneField *	addPlane (const char *name, double f0, double f1, double f2, double f3)
	Creates a PlaneField with `name` and adds it to the container. More...

PlaneField *	addPlane (const char *name, const Plane &value)
	Creates a PlaneField with `name` and adds it to the container. More...

RotationField *	addRotation (const char *name)
	Creates a RotationField with `name` and adds it to the container. More...

RotationField *	addRotation (const char *name, const Rotation &value)
	Creates a RotationField with `name` and adds it to the container. More...

Matrix2Field *	addMatrix2 (const char *name)
	Creates a Matrix2Field with `name` and adds it to the container. More...

Matrix2Field *	addMatrix2 (const char *name, const Matrix2 &value)
	Creates a Matrix2Field with `name` and adds it to the container. More...

Matrix3Field *	addMatrix3 (const char *name)
	Creates a Matrix3Field with `name` and adds it to the container. More...

Matrix3Field *	addMatrix3 (const char *name, const Matrix3 &value)
	Creates a Matrix3Field with `name` and adds it to the container. More...

Matrix4Field *	addMatrix4 (const char *name)
	Creates a Matrix4Field with `name` and adds it to the container. More...

Matrix4Field *	addMatrix4 (const char *name, const Matrix4 &value)
	Creates a Matrix4Field with `name` and adds it to the container. More...

Matrix5Field *	addMatrix5 (const char *name)
	Creates a Matrix5Field with `name` and adds it to the container. More...

Matrix5Field *	addMatrix5 (const char *name, const Matrix5 &value)
	Creates a Matrix5Field with `name` and adds it to the container. More...

Matrix6Field *	addMatrix6 (const char *name)
	Creates a Matrix6Field with `name` and adds it to the container. More...

Matrix6Field *	addMatrix6 (const char *name, const Matrix6 &value)
	Creates a Matrix6Field with `name` and adds it to the container. More...

MatrixField *	addMatrix (const char *name)
	Creates a MatrixField with `name` and adds it to the container. More...

MatrixField *	addMatrix (const char *name, const Matrix4 &value)
	Creates a MatrixField with `name` and adds it to the container. More...

MLDataTypeField *	addMLDataType (const char *name)
	Creates a MTDataTypeField with `name` and adds it to the container. More...

MLDataTypeField *	addMLDataType (const char *name, MLDataType value)
	Creates a MTDataTypeField with `name` and adds it to the container. More...

UniversalTypeField *	addUniversalType (const char *name)
	Creates an UniversalTypeField field with `name` and adds it to the container. More...

IntListField *	addIntList (const char *name)
	Creates an IntListField field with `name` and empty list value and adds it to the container. More...

IntListField *	addIntList (const char *name, const std::vector< MLint > &value)
	Creates an IntListField field with `name` and given list value and adds it to the container. More...

DoubleListField *	addDoubleList (const char *name)
	Creates an DoubleListField field with `name` and empty list value and adds it to the container. More...

DoubleListField *	addDoubleList (const char *name, const std::vector< double > &value)
	Creates an DoubleListField field with `name` and given list value and adds it to the container. More...

Vector2ListField *	addVector2List (const char *name)
	Creates an Vector2ListField field with `name` and empty list value and adds it to the container. More...

Vector2ListField *	addVector2List (const char *name, const std::vector< Vector2 > &value)
	Creates an Vector2ListField field with `name` and given list value and adds it to the container. More...

Vector3ListField *	addVector3List (const char *name)
	Creates an Vector3ListField field with `name` and empty list value and adds it to the container. More...

Vector3ListField *	addVector3List (const char *name, const std::vector< Vector3 > &value)
	Creates an Vector3ListField field with `name` and given list value and adds it to the container. More...

Vector4ListField *	addVector4List (const char *name)
	Creates an Vector4ListField field with `name` and empty list value and adds it to the container. More...

Vector4ListField *	addVector4List (const char *name, const std::vector< Vector4 > &value)
	Creates an Vector4ListField field with `name` and given list value and adds it to the container. More...

size_t	getNumFields () const
	Returns the number of added fields. More...

bool	hasField (const std::string &name) const
	Returns `true` if the field with name `name` exists; otherwise, `false` is returned. More...

Field *	getField (const std::string &name) const
	Returns the pointer to the field with name `name`. More...

Field *	getField (MLint index) const
	Returns pointer of field at `index` if it exists. If not, -1 is returned. More...

MLint	getFieldIndex (Field *field) const
	Returns index of `field` if it exists. If not, -1 is returned. More...

void	setFieldStringValue (const std::string &name, const std::string &value)
	Sets the `value` of the field with `name` if it exists. More...

std::string	getFieldStringValue (const std::string &name) const
	Returns the string value of the field with `name` if it is found. More...

virtual void	deactivateAttachments ()
	Disables notification handling, i.e., all fields of this module will not send notifications to attached sensors and fields anymore if their values are set or changed. More...

Public Member Functions inherited from ml::Base
	Base ()
	Constructor. More...

virtual	~Base ()
	Destructor. More...

virtual Base *	deepCopy () const
	Creates a deep copy of the given object. More...

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Checks whether this object's type is equal to or derived from one of the types given in the argument. More...

virtual bool	isRefCountedBase () const
	Returns whether the instance is derived from RefCountedBase. More...

virtual std::string	detailString () const
	Returns a string describing this object. More...

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class. More...

virtual std::string	persistentState () const
	Returns a string describing the object's internal state. More...

virtual void	setPersistentState (const std::string &state)
	Restores the object's internal state from a string that had been previously generated using persistentState(). More...

virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node. More...

virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node. More...

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Writes the objects state to the data stream object. More...

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Reads the objects state from the data stream object. More...

Public Member Functions inherited from ml::CSOGeneratorBase
	CSOGeneratorBase ()
	Default constructor. More...

virtual	~CSOGeneratorBase ()=default

CSO *	generatorAddCSO (CSOList *csoList, bool useUndoRedo=true)
	Adds a new CSO to the CSOList. More...

CSO *	generatorAddCSONoEvent (CSOList *csoList, bool useUndoRedo=true, bool sendEvent=false)
	See generatorAddCSO, but no group scope event is emitted. (So this method is faster!) More...

CSOGroup *	generatorGetParentGroup (CSOList *csoList, bool useUndoRedo=false, bool generate=false)
	Returns the parent group according to current group settings. More...

void	generatorEmptyGroupOnDemand (CSOList *csoList)
	Empties a group on demand of the given CSOList with the set label. More...

Protected Member Functions
	~CSOModificator () override
	Standard destructor. More...

void	activateAttachments () override
	Initialize module after loading. More...

void	handleNotification (Field *field) override
	Called when input changes. More...

virtual void	resetParsedIds ()
	Resets parameteres of the modificator. More...

virtual void	process ()
	Sets up the CSOList, applies the modificator to the CSOList and notifies other modules that processing has finished. More...

virtual void	clearOutput ()
	Clears all outputs (used by auto clear mode) More...

virtual std::vector< CSO * >	getCSOsToBeProcessed (const std::vector< CSO * > &csosFromIdList)
	may be overwritten to filter out CSOs that are processed by this modificator, by default returns the input parameter which holds the CSOs that are in the inputList and that are included by the idList filter field More...

virtual bool	shouldUseUndoRedo () const
	Whether undo/Redo should be used. More...

virtual bool	canProcessInput ()
	returns whether the current input can be processed, i.e. More...

virtual void	_setupCSOList ()
	Sets the _outCSOList correctly. More...

virtual void	_applyModificator ()
	Applies the modification to the CSOs of the attached list. More...

virtual void	_applyModificatorOnCSOs (const std::vector< CSO * > &csosToBeProcessed)
	may be overwritten by subclasses if, for example, CSOs should be processed in parallel More...

virtual void	_applyModificatorOn (CSO &outputCSO)
	may be overwritten by subclasses if CSOs are processed one by one More...

virtual void	_updateCSOType (CSO &outputCSO)
	Updates the CSO's type. Most modules change the type to the modificators name, but not all do it. More...

virtual void	_notifyObservers (bool didSomething)
	Notifies other modules that processing has finished. More...

virtual bool	shouldTriggerInputChanged (Field *field) const
	returns whether a field notification triggers auto update. More...

virtual bool	shouldTriggerParameterApplied (Field *field) const
	This method exists only for legacy reasons and shoult not be overwritten when writing new CSOModificators! More...

bool	_isChangeSettingField (Field *field) const

virtual void	_onInputChanged ()
	helper functions called by handleNotification, may be overwritten in very special cases More...

virtual void	_onParameterApplied ()

virtual void	_onCSOIdListChanged ()

virtual void	_onWorkDirectlyOnInputChanged ()

virtual void	_onApply ()

bool	_isInIdList (CSO *cso)
	Checks if the given CSO is in the list of IDs given by _csoIdListFld. More...

void	_parseCSOIds (std::set< unsigned int > &ids)
	Parse the CSO id field into the given vector of ids. More...

std::vector< CSO * >	_getModifyCSOsFromIdList ()

void	_storeCurrentStateInUndoManager (std::vector< CSO * > csosToBeProcessed)

void	_applyChangedSettings (CSO &cso) const
	Changes the settings of the given CSO (only if _changeSettingsForModifiedCSOsFld is true). More...

	ML_ABSTRACT_MODULE_CLASS_HEADER (CSOModificator)

Protected Member Functions inherited from ml::CSOGenerator
CSO *	_addCSO (CSOList *csoList, bool useUndoRedo=true)
	Adds a new CSO to the CSOList. More...

CSO *	_addCSONoEvent (CSOList *csoList, bool useUndoRedo=true)
	See _addCSO, but without group event. (This method is faster!). More...

CSOGroup *	_getParentGroup (CSOList *csoList, bool useUndoRedo=false, bool generate=false)
	Returns the parent group according to current group settings. More...

void	_emptyGroupOnDemand (CSOList *csoList)
	Empties a group on demand of the given CSOList with the set label. More...

int	getModuleCreatorId () const override
	Returns the module's creator id. More...

std::string	getModuleType () const override
	Returns the module's type string. More...

bool	getShouldEmptyBeforeGeneration () const override
	Returns whether the module should empty a group before generating CSOs into it. More...

int	getAddCSOToGroupMode () const override
	Returns the group generation mode. More...

std::string	getAddCSOToGroupLabel () const override
	Returns the label string of a target group. More...

int	getAddCSOToGroupId () const override
	Returns the id of a target group. More...

int	getDefaultPathPointStyle () const override
	Returns the set default path point style for a new CSO. More...

float	getDefaultPathPointWidth () const override
	Returns the set default path point width for a new CSO. More...

Vector3	getDefaultPathPointColor () const override
	Returns the set default path point color for a new CSO. More...

float	getDefaultPathPointAlpha () const override
	Returns the set default path point alpha for a new CSO. More...

int	getDefaultSeedPointStyle () const override
	Returns the set default seed point style for a new CSO. More...

float	getDefaultSeedPointSize () const override
	Returns the set default seed point size for a new CSO. More...

Vector3	getDefaultSeedPointColor () const override
	Returns the set default seed point color for a new CSO. More...

float	getDefaultSeedPointAlpha () const override
	Returns the set default seed point alpha for a new CSO. More...

int	getDefaultVoxelWriteMode () const override
	Returns the set default voxel write mode for a new CSO. More...

float	getDefaultVoxelWriteValue () const override
	Returns the set default voxel write value for a new CSO. More...

	~CSOGenerator () override
	Destructor. More...

Protected Member Functions inherited from ml::CSOBaseModule
	~CSOBaseModule () override
	Standard destructor. More...

virtual bool	_useLegacyAutoApplyMode () const
	Controls whether update behaviour on parameter field changes should depend on the autoApply field (legacy mode, don't use it when adding your new subclasses) or if it should depend on the updateMode (recommended) More...

void	_setIsProcessingFlag (bool newProcessingState)
	Sets the isProcessing field if the processing state has changed. More...

	ML_MODULE_CLASS_HEADER (CSOBaseModule)

Protected Member Functions inherited from ml::Module
void	handleNotificationInternal (Field *field, FieldSensor::Strength strength) override
	Called from FieldContainer whenever a field changes. More...

virtual CalculateOutputImageHandler *	createCalculateOutputImageHandler (PagedImage *outputImage)
	Creates the CalculateOutputImageHandler for the given output image `outputImage`. More...

virtual void	calculateOutputImageProperties ([[maybe_unused]] int outputIndex, [[maybe_unused]] PagedImage *outputImage)
	Set properties of output image `outputImage` with output index `outputIndex`. More...

virtual SubImageBox	calculateInputSubImageBox (int, const SubImageBox &outputSubImageBox, int)
	Called by the Host to determine which input image region (tile) of input `inputIndex` is required to calculate a certain output image region (page) of output `outputIndex`. More...

virtual void	calculateOutputSubImage (SubImage outputSubImage, int outputIndex, SubImage inputSubImages)
	Calculates page `outputSubImage` of output image with index `outputIndex` given the input image tiles in array `inputSubImages`. More...

virtual void	provideCustomPage (int, const SubImageBox &, MLMemoryBlockHandle &)
	This method allows a Module to provide its own pages to the Host for the `outputIndex` output image. More...

void	handleNotificationOff ()
	Decreases lock counter for handleNotification calls. More...

void	handleNotificationOn ()
	Increases lock counter for handleNotification calls. More...

bool	isHandleNotificationOn ()
	Returns `true` if handleNotification calls are permitted; otherwise, it returns `false`. More...

void	setOutputImageInplace (MLint outputIndex=0, MLint inputIndex=0)
	Sets the optimization flag: if calculating a page in calculateOutputSubImage(), the output image page of output `outputIndex` shall use the same memory as the input page of input `inputIndex`. More...

void	unsetOutputImageInplace (MLint outputIndex=0)
	Clears the optimization flag: output page of output at `outputIndex` and input tile shall use different memory buffers in calculateOutputSubImage(). More...

void	setBypass (MLint outputIndex=0, MLint inputIndex=0)
	Sets the input image whose pages can also be used instead of output pages for the output image at `outputIndex` to avoid recalculations. More...

void	setClampPagesToImageExtent (bool flag=true)
	Enables/disables page clamping on all output images. More...

void	setThreadSupport (THREAD_SUPPORT supportMode)
	Passes any THREAD_SUPPORT `supportMode` to decide whether and what type of multithreading is supported by this module. More...

void	permitRecursiveHandleNotifications (bool enable)
	If this flag is set to `enable` =true, recursive entries in handleNotification are permitted. More...

void	setVoxelDataTypeSupport (PERMITTED_TYPES permTypes)
	Specifies which types this module supports. More...

Static Protected Member Functions
static void	_csoListNotifyObserverCB (void *userData, int notificationFlag)
	Can be called from anywhere from the network. More...

Protected Attributes
BaseField *	_inputCSOListFld
	The input CSOList. More...

BaseField *	_outputCSOListFld
	The filtered output CSOList. More...

StringField *	_csoIdListFld
	The list of ids of the CSOs to be transformed; if this list is empty, all CSOs are transformed. More...

BoolField *	_workDirectlyOnInputListFld
	Shall the module work directly on the input CSOList? Otherwise, it would work on a copy which is returned by the output field. More...

BoolField *	_useUndoRedoFld
	Shall undo/redo be used? The value is ignored if workDirectlyOnInputList is disabled. More...

BoolField *	_listenToFinishingNotificationsFld
	Shall the module listen to finishing events? More...

BoolField *	_listenToSelectionNotificationsFld
	Shall the module listen to selection change notifications? More...

BoolField *	_changeSettingsForModifiedCSOsFld
	Shall the module's user settings be used for modified CSOs? More...

CSOListPtr	_inCSOList
	A pointer to the input CSOList. More...

CSOListPtr	_outCSOList
	A pointer to the output CSOList. More...

bool	_isInNotificationCB
	Locking variable for removing/adding a notification observer. More...

bool	_isNotifyingMyself
	Is this module notifying itself? Locking variable to avoid infinite loops. More...

std::set< unsigned int >	_parsedIDs
	The IDs of the CSOs that should be processed according to the _csoIdListFld. More...

bool	_parsedIDsValid
	Flag that indicates if _parsedIDs is valid. More...

bool	_outCSOListChanged
	Flag that indicates that _outCSOList has been changed and thus that _outputCSOListFld has to be updated. More...

bool	_isOutputCSOListOwner
	Flag that indicates whether this module is the owner of the output CSO list. More...

bool	_isWorkingDirectlyOnInputCSOList
	Flag that indicates whether this module should work on its input CSO list directly. More...

Protected Attributes inherited from ml::CSOGenerator
BoolField *	_emptyGroupBeforeGenerationFld
	If checked and a group name is provided, the group is emptied before a new generation. More...

TypedEnumField< CSOAddToGroupModes > *	_addCSOToGroupMode
	Defines if the CSOs are added to a group and how the group is identified. More...

StringField *	_addCSOToGroupWithLabelFld
	This label defines the group the generator should add its created CSOs to. More...

IntField *	_addCSOToGroupWithIdFld
	This id defines the group the generator should add its created CSOs to. More...

IntField *	_idFld
	The id of this processor. More...

TypedEnumField< CSOPathPointsStyle > *	_pathPointStyleFld
	The path point's line style (none, solid, dashed, dotted). Default is 'solid'. More...

FloatField *	_pathPointWidthFld
	The path point's line width. Default is 1. More...

ColorField *	_pathPointColorFld
	The path point's color. Default is yellow. More...

FloatField *	_pathPointAlphaFld
	The path point's alpha value. Default is 1. More...

TypedEnumField< CSOSeedPointStyle > *	_seedPointStyleFld
	The marker's mode (none, rect, circle). Default is 'rect'. More...

FloatField *	_seedPointSizeFld
	The marker's size. Default is 3. More...

ColorField *	_seedPointColorFld
	The marker's color. Default is green. More...

FloatField *	_seedPointAlphaFld
	The marker's alpha value. Default is 1. More...

TypedEnumField< CSOVoxelWriteModes > *	_voxelWriteModeFld
	The CSO's voxel write mode (module, const, const plus id, id). Default is 'module'. More...

FloatField *	_voxelWriteValueFld
	The CSO's voxel write value. Default is 1024. More...

Protected Attributes inherited from ml::CSOBaseModule
TypedEnumField< CSOUpdateModes > *	_updateModeFld
	Enumeration field for update modes. More...

BoolField *	_autoApplyFld
	Shall changes lead to an apply? Field value is only considered when useLegacyAutoApplyMode is enabled. More...

NotifyField *	_applyFld
	Applies changes. More...

BoolField *	_isProcessingFld
	Field reflects whether the module is currently processing. More...

NotifyField *	_doneFld
	Notifies the application or other modules that the processing has ended. More...

std::string	_type
	The processor type as a string. More...

Additional Inherited Members
Public Types inherited from ml::Module
enum	PERMITTED_TYPES { ONLY_SCALAR_TYPES , ONLY_DEFAULT_TYPES , ALL_REGISTERED_TYPES }
	See documentation of setVoxelDataTypeSupport. More...

enum	INPUT_STATE { DISCONNECTED = 0 , CONNECTED_BUT_INVALID = 1 , CONNECTED_AND_VALID = 2 , CONNECTED_BUT_NEEDS_UPDATE = 3 }
	See documentation of handleInput. More...

enum	INPUT_HANDLE { INVALIDATE = 0 , ALLOW_INVALID_INPUT = 2 }
	See documentation of handleInput. More...

Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Static Public Member Functions inherited from ml::Module
static MLErrorCode	getTile (PagedImage image, SubImageBox loc, MLDataType datatype, void data, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
	For documentation see Host::getTile() function with same signature. More...

static MLErrorCode	getTile (PagedImage image, SubImage &subimg, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
	For documentation see Host::getTile() function with same signature and Module passed as reference. More...

static MLErrorCode	updateImageProperties (PagedImage *image)
	For documentation see Host::updateImageProperties() function with same signature. More...

static void	freeTile (void *data)
	For documentation see Host::freeTile(). More...

static void	updateProgress (const char info1, const char info2)
	For documentation see Host::updateProgress(). More...

static bool	shouldTerminate ()
	For documentation see Host::shouldTerminate(). More...

static Field *	getPressedNotifyField ()
	For documentation see Host::getPressedNotifyField(). More...

static void	adaptPageExtent (ImageVector &pageExtent, MLDataType imageType, const ImageVector &newImgExtent, const ImageVector &oldImgExtent, const ImageVector &pageUnit=ImageVector(0), const ImageVector &minPageExtent=ImageVector(0), const ImageVector &maxPageExtent=ImageVector(0))
	Adapt page size. More...

static std::string	getVoxelValueAsString (PagedImage image, const ImageVector &position, MLErrorCode errorCode=nullptr, const std::string &errorResult="")
	Returns the voxel value at position `position` of the image `image`. More...

static size_t	getNumModules ()
	Returns the number of instantiated modules. More...

static Module *	getModule (size_t index)
	Returns a pointer to instantiated module `index`. More...

static MLint	findModuleIndex (Module &module)
	Returns the index of Module `module`. If not found, -1 is returned. More...

static void	destroyModule ()
	Destroys static allocated tables to avoid memory leaks. More...

Protected Types inherited from ml::Module
enum	THREAD_SUPPORT { NO_THREAD_SUPPORT = PagedImage::NO_THREAD_SUPPORT , MULTITHREADED = PagedImage::MULTITHREADED , IO_THREAD = PagedImage::IO_THREAD }
	Enumerator deciding whether and which type of multithreading is supported by this module. More...

Detailed Description

Base class for performing modifications on the CSOs of a CSOList.

Definition at line 28 of file CSOModificator.h.

Constructor & Destructor Documentation

◆ CSOModificator()

ml::CSOModificator::CSOModificator	(	const std::string &	type = `"CSOModificator"`,
		int	numInImages = `0`,
		int	numOutImages = `0`
	)

Standard constructor.

◆ ~CSOModificator()

ml::CSOModificator::~CSOModificator ( )

overrideprotected

Standard destructor.

Member Function Documentation

◆ _applyChangedSettings()

void ml::CSOModificator::_applyChangedSettings ( CSO & cso ) const

protected

Changes the settings of the given CSO (only if _changeSettingsForModifiedCSOsFld is true).

◆ _applyModificator()

virtual void ml::CSOModificator::_applyModificator ( )

protectedvirtual

Applies the modification to the CSOs of the attached list.

by default it calls _applyModificatorOn() for each cso that should be procesed.

May be overwritten if it's not suitable to overwrite the applyModificatorOn(CSO&) method, e.g. when sets of CSOs are processed in batches Use _outCSOList to access the CSO list that should be modified here.

◆ _applyModificatorOn()

virtual void ml::CSOModificator::_applyModificatorOn ( CSO & outputCSO )

protectedvirtual

may be overwritten by subclasses if CSOs are processed one by one

Parameters

outputCSO the CSO from the _outCSOList on which the modification is to be applied

◆ _applyModificatorOnCSOs()

virtual void ml::CSOModificator::_applyModificatorOnCSOs ( const std::vector< CSO * > & csosToBeProcessed )

protectedvirtual

may be overwritten by subclasses if, for example, CSOs should be processed in parallel

Parameters

csosToBeProcessed all CSOs from the _outCSOList on which the modification is to be applied

◆ _csoListNotifyObserverCB()

static void ml::CSOModificator::_csoListNotifyObserverCB	(	void *	userData,
		int	notificationFlag
	)

staticprotected

Can be called from anywhere from the network.

◆ _getModifyCSOsFromIdList()

std::vector<CSO *> ml::CSOModificator::_getModifyCSOsFromIdList ( )

protected

◆ _isChangeSettingField()

bool ml::CSOModificator::_isChangeSettingField ( Field * field ) const

protected

◆ _isInIdList()

bool ml::CSOModificator::_isInIdList ( CSO * cso )

protected

Checks if the given CSO is in the list of IDs given by _csoIdListFld.

If _csoIdListFld is empty this function always returns true.

◆ _notifyObservers()

virtual void ml::CSOModificator::_notifyObservers ( bool didSomething )

protectedvirtual

Notifies other modules that processing has finished.

◆ _onApply()

virtual void ml::CSOModificator::_onApply ( )

protectedvirtual

◆ _onCSOIdListChanged()

virtual void ml::CSOModificator::_onCSOIdListChanged ( )

protectedvirtual

◆ _onInputChanged()

virtual void ml::CSOModificator::_onInputChanged ( )

protectedvirtual

helper functions called by handleNotification, may be overwritten in very special cases

◆ _onParameterApplied()

virtual void ml::CSOModificator::_onParameterApplied ( )

protectedvirtual

◆ _onWorkDirectlyOnInputChanged()

virtual void ml::CSOModificator::_onWorkDirectlyOnInputChanged ( )

protectedvirtual

◆ _parseCSOIds()

void ml::CSOModificator::_parseCSOIds ( std::set< unsigned int > & ids )

protected

Parse the CSO id field into the given vector of ids.

◆ _setupCSOList()

virtual void ml::CSOModificator::_setupCSOList ( )

protectedvirtual

Sets the _outCSOList correctly.

◆ _storeCurrentStateInUndoManager()

void ml::CSOModificator::_storeCurrentStateInUndoManager ( std::vector< CSO * > csosToBeProcessed )

protected

◆ _updateCSOType()

virtual void ml::CSOModificator::_updateCSOType ( CSO & outputCSO )

protectedvirtual

Updates the CSO's type. Most modules change the type to the modificators name, but not all do it.

◆ activateAttachments()

void ml::CSOModificator::activateAttachments ( )

overrideprotectedvirtual

Initialize module after loading.

Reimplemented from ml::CSOBaseModule.

◆ canProcessInput()

virtual bool ml::CSOModificator::canProcessInput ( )

protectedvirtual

returns whether the current input can be processed, i.e.

there's a non-empty list attached. Subclasses may add additional conditions. (See CSOMerge as an example).

◆ clearOutput()

virtual void ml::CSOModificator::clearOutput ( )

protectedvirtual

Clears all outputs (used by auto clear mode)

◆ getCSOsToBeProcessed()

virtual std::vector<CSO*> ml::CSOModificator::getCSOsToBeProcessed ( const std::vector< CSO * > & csosFromIdList )

protectedvirtual

may be overwritten to filter out CSOs that are processed by this modificator, by default returns the input parameter which holds the CSOs that are in the inputList and that are included by the idList filter field

◆ handleNotification()

void ml::CSOModificator::handleNotification ( Field * field )

overrideprotectedvirtual

Called when input changes.

Reimplemented from ml::CSOBaseModule.

◆ ML_ABSTRACT_MODULE_CLASS_HEADER()

ml::CSOModificator::ML_ABSTRACT_MODULE_CLASS_HEADER ( CSOModificator )

protected

◆ process()

virtual void ml::CSOModificator::process ( )

protectedvirtual

Sets up the CSOList, applies the modificator to the CSOList and notifies other modules that processing has finished.

Call this function in handle notification when the modificator should be applied to the CSOList. A derived module does not have to override this function.

◆ resetParsedIds()

virtual void ml::CSOModificator::resetParsedIds ( )

protectedvirtual

Resets parameteres of the modificator.

◆ shouldTriggerInputChanged()

virtual bool ml::CSOModificator::shouldTriggerInputChanged ( Field * field ) const

protectedvirtual

returns whether a field notification triggers auto update.

Overwrite this method if your subclass adds it's own input fields. These may be input connector fields or input parameter fields. Note that the result may not only depend on the passed field but also on the modules state. E.g. the creation parameters defined in CSOGeneratorBase are ignored in modificators when changeSettingsForModifiedCSOs is disabled.

legacy note: modules that support different update mechanisms for input parameter fields and input connector fields (currently these are a lot of modules) should not add their input parameter fields to this method but to the shouldTriggerParameterApplied method

◆ shouldTriggerParameterApplied()

virtual bool ml::CSOModificator::shouldTriggerParameterApplied ( Field * field ) const

protectedvirtual

This method exists only for legacy reasons and shoult not be overwritten when writing new CSOModificators!

returns whether a field notification triggers the legacy auto apply. This method is only overwritten by classes that use the autoApplyLegacyMode The classes with legacy mode enabled have to add their parameter input fields to this method.

◆ shouldUseUndoRedo()

virtual bool ml::CSOModificator::shouldUseUndoRedo ( ) const

protectedvirtual

Whether undo/Redo should be used.

Member Data Documentation

◆ _changeSettingsForModifiedCSOsFld

BoolField* ml::CSOModificator::_changeSettingsForModifiedCSOsFld

protected

Shall the module's user settings be used for modified CSOs?

Definition at line 158 of file CSOModificator.h.

◆ _csoIdListFld

StringField* ml::CSOModificator::_csoIdListFld

protected

The list of ids of the CSOs to be transformed; if this list is empty, all CSOs are transformed.

Definition at line 143 of file CSOModificator.h.

◆ _inCSOList

CSOListPtr ml::CSOModificator::_inCSOList

protected

A pointer to the input CSOList.

Definition at line 163 of file CSOModificator.h.

◆ _inputCSOListFld

BaseField* ml::CSOModificator::_inputCSOListFld

protected

The input CSOList.

Definition at line 137 of file CSOModificator.h.

◆ _isInNotificationCB

bool ml::CSOModificator::_isInNotificationCB

protected

Locking variable for removing/adding a notification observer.

Definition at line 167 of file CSOModificator.h.

◆ _isNotifyingMyself

bool ml::CSOModificator::_isNotifyingMyself

protected

Is this module notifying itself? Locking variable to avoid infinite loops.

Definition at line 169 of file CSOModificator.h.

◆ _isOutputCSOListOwner

bool ml::CSOModificator::_isOutputCSOListOwner

protected

Flag that indicates whether this module is the owner of the output CSO list.

Definition at line 182 of file CSOModificator.h.

◆ _isWorkingDirectlyOnInputCSOList

bool ml::CSOModificator::_isWorkingDirectlyOnInputCSOList

protected

Flag that indicates whether this module should work on its input CSO list directly.

Definition at line 184 of file CSOModificator.h.

◆ _listenToFinishingNotificationsFld

BoolField* ml::CSOModificator::_listenToFinishingNotificationsFld

protected

Shall the module listen to finishing events?

Definition at line 153 of file CSOModificator.h.

◆ _listenToSelectionNotificationsFld

BoolField* ml::CSOModificator::_listenToSelectionNotificationsFld

protected

Shall the module listen to selection change notifications?

Definition at line 155 of file CSOModificator.h.

◆ _outCSOList

CSOListPtr ml::CSOModificator::_outCSOList

protected

A pointer to the output CSOList.

Definition at line 165 of file CSOModificator.h.

◆ _outCSOListChanged

bool ml::CSOModificator::_outCSOListChanged

protected

Flag that indicates that _outCSOList has been changed and thus that _outputCSOListFld has to be updated.

Because new might assign the same memory block (i.e. the same pointer value) it is not enough to compare _outCSOList with _outputCSOListFld->getBaseValue() (see _notifyObservers()).

Definition at line 179 of file CSOModificator.h.

◆ _outputCSOListFld

BaseField* ml::CSOModificator::_outputCSOListFld

protected

The filtered output CSOList.

Definition at line 139 of file CSOModificator.h.

◆ _parsedIDs

std::set<unsigned int> ml::CSOModificator::_parsedIDs

protected

The IDs of the CSOs that should be processed according to the _csoIdListFld.

Definition at line 172 of file CSOModificator.h.

◆ _parsedIDsValid

bool ml::CSOModificator::_parsedIDsValid

protected

Flag that indicates if _parsedIDs is valid.

Definition at line 174 of file CSOModificator.h.

◆ _useUndoRedoFld

BoolField* ml::CSOModificator::_useUndoRedoFld

protected

Shall undo/redo be used? The value is ignored if workDirectlyOnInputList is disabled.

Definition at line 150 of file CSOModificator.h.

◆ _workDirectlyOnInputListFld

BoolField* ml::CSOModificator::_workDirectlyOnInputListFld

protected

Shall the module work directly on the input CSOList? Otherwise, it would work on a copy which is returned by the output field.

Definition at line 147 of file CSOModificator.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/ML/MLCSO/CSOBase/CSOModuleBase/CSOModificator.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CSOModificator()

◆ ~CSOModificator()

Member Function Documentation

◆ _applyChangedSettings()

◆ _applyModificator()

◆ _applyModificatorOn()

◆ _applyModificatorOnCSOs()

◆ _csoListNotifyObserverCB()

◆ _getModifyCSOsFromIdList()

◆ _isChangeSettingField()

◆ _isInIdList()

◆ _notifyObservers()

◆ _onApply()

◆ _onCSOIdListChanged()

◆ _onInputChanged()

◆ _onParameterApplied()

◆ _onWorkDirectlyOnInputChanged()

◆ _parseCSOIds()

◆ _setupCSOList()

◆ _storeCurrentStateInUndoManager()

◆ _updateCSOType()

◆ activateAttachments()

◆ canProcessInput()

◆ clearOutput()

◆ getCSOsToBeProcessed()

◆ handleNotification()

◆ ML_ABSTRACT_MODULE_CLASS_HEADER()

◆ process()

◆ resetParsedIds()

◆ shouldTriggerInputChanged()

◆ shouldTriggerParameterApplied()

◆ shouldUseUndoRedo()

Member Data Documentation

◆ _changeSettingsForModifiedCSOsFld

◆ _csoIdListFld

◆ _inCSOList

◆ _inputCSOListFld

◆ _isInNotificationCB

◆ _isNotifyingMyself

◆ _isOutputCSOListOwner

◆ _isWorkingDirectlyOnInputCSOList

◆ _listenToFinishingNotificationsFld

◆ _listenToSelectionNotificationsFld

◆ _outCSOList

◆ _outCSOListChanged

◆ _outputCSOListFld

◆ _parsedIDs

◆ _parsedIDsValid

◆ _useUndoRedoFld

◆ _workDirectlyOnInputListFld
