Field to encapsulate an enumerated value. More...

#include <mlFields.h>

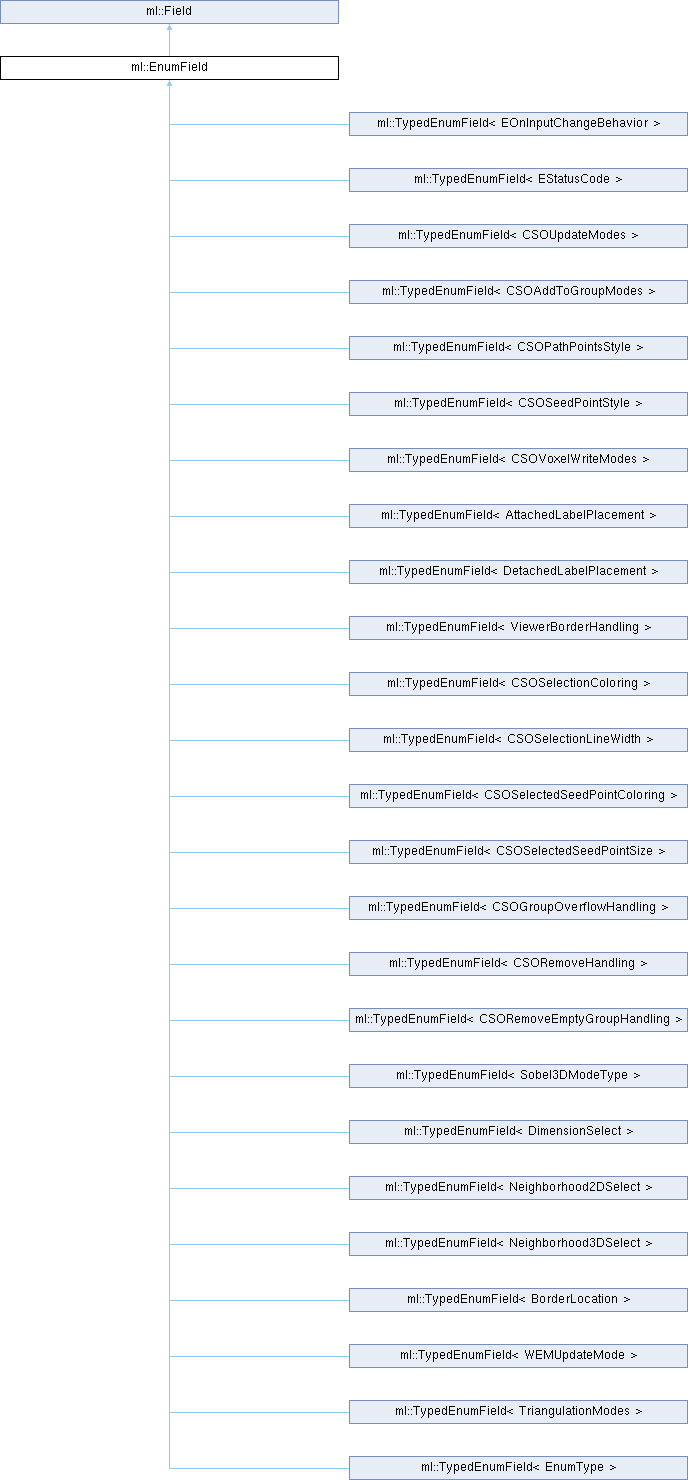

Inheritance diagram for ml::EnumField:

Classes
struct	EnumEntry
	Defines the entry for one enum value. More...

Public Member Functions
	EnumField (const std::string &name, const std::string enumerationItemNames[], size_t numEnumerationItems)
	Implements the runtime type system interface for this class. More...

	EnumField (const std::string &name, const char const enumerationItemNames, size_t numEnumerationItems)
	Constructor, creates a field with a `name` to manage an enum value. More...

	EnumField (const std::string &name, const std::vector< std::string > &enumerationItemNames)
	Constructor, creates a field with a `name` to manage an enum value. More...

	~EnumField () override=default
	Destroys this field and releases internally allocated memory. More...

void	setStringValue (const std::string &value) override
	Sets value of the field to the enum item with given name `value`. More...

void	setStringValueDefaulted (const std::string &value)
	If `value` equals one of the enum item names, set the field to this item; otherwise, set it to the first item of the enum. More...

void	setEnumValue (int enumValue)
	Sets field value to `enumValue`. More...

void	updateEnumValue (int enumValue)
	Sets field value to `enumValue`, but only touches the field if the new value is different from the old value. More...

std::string	getStringValue () const override
	Returns the value of the field as string value. More...

int	getEnumValue () const
	Returns the current enum value as integer. More...

const EnumEntry &	getEnumEntryAtIndex (size_t index) const
	Returns the enum entry at given `index`, which allows to enumerate all existing enum entries. More...

size_t	getNumEnumerationItems () const
	Returns the number of registered enum values defined in constructor. More...

void	setValue (int enumValue)
	Same as setEnumValue(). More...

void	updateValue (int enumValue)
	Same as updateEnumValue(). More...

int	getValue () const
	Same as getEnumValue(). More...

Public Member Functions inherited from ml::Field
	Field (const std::string &name=std::string())
	Constructor: Creates a field with `name`. More...

virtual	~Field ()
	Destructor: Destroys a field and removes all connection to fields and sensors. More...

FieldContainer *	getFieldContainer () const
	Returns the field container of the field (which may be NULL). More...

const std::string &	getName () const
	Returns the name of field. More...

void	setName (const std::string &name)
	Sets the `name` of field. Should be called only once after or while construction. More...

std::string	getFullName () const
	Returns 'fieldContainerType(instanceName).fieldName' if field container is available, otherwise only the field name is returned. More...

bool	isOutputOnly () const
	Returns whether this field is marked as a pure output field. More...

void	setOutputOnly (bool outputOnly=true)
	Marks this field as a pure output field that is only changed by its module. More...

virtual MLint	isValidValue ()
	Returns true (=1) if the field's value is valid; otherwise, false (=0) is returned. More...

void	copyCStringValue (char *valueBuffer, MLint bufferSize)
	Copies the value of the field (as character string) into the specified buffer `valueBuffer`. More...

MLint	getCStringValueSize ()
	Returns the length of the character string of the string value of the field. More...

void	attachFieldSensor (FieldSensor *sensor)
	Attaches a field sensor `sensor` of this class instance in both directions. More...

void	detachFieldSensor (FieldSensor *sensor)
	Detaches the field sensor `sensor` of this class instance in both directions. More...

void	detachFieldSensors ()
	Detaches all field sensors of this class instance in both directions. More...

void	attachField (OutputConnectorField *targetField)
	This calls attachField(targetField, false). More...

void	attachField (BaseField *targetField)

void	attachField (SoNodeField *targetField)

void	attachField (NotifyField *targetField)

void	attachField (Field *targetField, bool propagateValueOnConnect)
	Connects this class instance with the target field `targetField`. More...

void	detachField (Field *targetField)
	Disconnects connections between the target field `targetField` and this instance. More...

void	detachSourceFields ()
	Disconnects all source fields of this instance in both directions. More...

void	detachDestinationFields ()
	Disconnects all target fields of this instance in both directions. More...

void	detachAllFields ()
	Disconnects all source and target fields of this instance in both directions. More...

size_t	getNumDestinationFields ()
	Returns the number of destination fields that could receive notifications or value sets. More...

Field *	getDestinationField (size_t index)
	Returns the destination field at `index`. Returns NULL if `index` is out of range. More...

size_t	getNumSourceFields ()
	Returns the number of source fields that could send notifications or value sets. More...

Field *	getSourceField (size_t index)
	Returns the source field at `index`. Returns NULL if `index` is out of range. More...

virtual void	touch (FieldSensor::Strength strength=FieldSensor::CHANGED)
	Notifies all connected fields and field sensors. More...

void	enableNotifications (bool flag)
	Enables or disables notification of attached fields and field sensors when the field value is set or notified (by notifyAttachments() or set*Value() -methods), depending on the parameter `flag`. More...

bool	areNotificationsEnabled ()
	Returns whether the notification mechanism for this field (e.g., when field values are set) is enabled (see enableNotifications(bool) ). More...

Protected Member Functions
void	_initialize (const std::string &name="", size_t numEnums=0)
	Initializes this field. More...

void	_setEnumerationNames (const std::string enumNames[])
	Sets the enumeration item names. More...

void	_setEnumerationNames (const char const enumNames)
	Sets the enumeration item names. More...

void	_setEnumerationNames (const std::vector< std::string > &enumNames)
	Sets the enumeration item names. More...

void	_setEnumerationNames (const std::vector< EnumField::EnumEntry > &enumValues, int initialValue)
	Sets the enumeration item names. More...

	EnumField ()=default
	Protected constructor to allow derived classes. More...

Protected Member Functions inherited from ml::Field
void	attachSourceField (Field *field)
	Inserts a field as source `field` in this instance, i.e., from now on *this might receive values and/or notifications from that field. More...

void	detachSourceField (Field *field)
	Removes a source `field` from this instance. If not found, then this call does nothing. More...

void	detachFieldInternal (Field *field)
	Only removes the given field from the destination list. More...

virtual void	setValueFromField (const Field &field)
	Sets the value of this field from the given `field`. More...

Protected Attributes
int	_value {}
	The field value; we use an integer to be compatible with normal enum types. More...

bool	_linearEntries {}
	Stores whether enum entry values start at 0 and increase by 1. More...

std::vector< EnumEntry >	_entries
	Stores the possible enum values and names. More...

Protected Attributes inherited from ml::Field
std::string	_name
	The name of this field. More...

std::vector< FieldSensor * >	_sensors
	List of field sensors. More...

std::vector< Field * >	_destinationFields
	List of (target) fields that shall be set to the value of this field or that shall be notified only if this field is changed or notified. More...

std::vector< Field * >	_sourceFields
	List of (source) fields that will notify this field or that will copy their value to this field. More...

FieldContainer *	_fieldContainer
	The owning field container. More...

Flags	_flags

Additional Inherited Members
Static Public Member Functions inherited from ml::Field
static void	enableNotificationsGlobally (bool flag)
	Enables or disables globally the notification mechanism for all fields and field sensors when field values are set or notified (by notifyAttachments() or set*Value() methods), depending on the parameter `flag`. More...

static bool	areNotificationsEnabledGlobally ()
	Returns whether the notification mechanism for all fields (e.g., when field values are set) is enabled (see enableNotificationsGlobally(bool) ) Usually it is false (=0) within all calls of Module::calc* methods to avoid that field changes within these methods recursively start the calculation process of the ML. More...

static MLint &	enableNotificationsCounterState ()
	Provides read/write access to the current counter state (see enableNotificationsGlobally(bool) ). More...

Static Protected Attributes inherited from ml::Field
static MLint	_enableNotifications
	Flag that disables the notification process of field (-sensors) globally. More...

Detailed Description

Field to encapsulate an enumerated value.

Definition at line 172 of file mlFields.h.

Constructor & Destructor Documentation

◆ EnumField() [1/4]

ml::EnumField::EnumField	(	const std::string &	name,
		const std::string	enumerationItemNames[],
		size_t	numEnumerationItems
	)

Implements the runtime type system interface for this class.

Constructor, creates a field with a name to manage an enum value. The value range for the enum value is [0, numEnumerationItems-1]. The value names are defined by enumerationItemNames. The maximum number of enum entries is ML_INT32_MAX, minimum is 1; exceeding that will lead to fatal errors, even on 64-bit systems. Note that enumerationItemNames must contain at least numEnumerationItems string values.

◆ EnumField() [2/4]

ml::EnumField::EnumField	(	const std::string &	name,
		const char const	enumerationItemNames,
		size_t	numEnumerationItems
	)

Constructor, creates a field with a name to manage an enum value.

The value range for the enum value is [0, numEnumerationItems-1]. The value names are defined by enumerationItemNames. The maximum number of enum entries is ML_INT32_MAX, minimum is 1; exceeding that will lead to fatal errors, even on 64-bit systems. Note that enumerationItemNames must contain at least numEnumerationItems string values.

◆ EnumField() [3/4]

ml::EnumField::EnumField	(	const std::string &	name,
		const std::vector< std::string > &	enumerationItemNames
	)

Constructor, creates a field with a name to manage an enum value.

The field creates the value buffer internally. The value range for the enum value is [0, enumerationItemNames.size-1]. The value names are defined by enumerationItemNames. The maximum number of enum entries is ML_INT32_MAX, minimum is 1; exceeding that will lead to fatal errors, even on 64-bit systems. The default enum value is 0.

◆ ~EnumField()

ml::EnumField::~EnumField ( )

overridedefault

Destroys this field and releases internally allocated memory.

◆ EnumField() [4/4]

ml::EnumField::EnumField ( )

protecteddefault

Protected constructor to allow derived classes.

Member Function Documentation

◆ _initialize()

void ml::EnumField::_initialize	(	const std::string &	name = `""`,
		size_t	numEnums = `0`
	)

protected

Initializes this field.

◆ _setEnumerationNames() [1/4]

void ml::EnumField::_setEnumerationNames ( const char *const * enumNames )

protected

Sets the enumeration item names.

◆ _setEnumerationNames() [2/4]

void ml::EnumField::_setEnumerationNames ( const std::string enumNames[] )

protected

Sets the enumeration item names.

◆ _setEnumerationNames() [3/4]

void ml::EnumField::_setEnumerationNames	(	const std::vector< EnumField::EnumEntry > &	enumValues,
		int	initialValue
	)

protected

Sets the enumeration item names.

◆ _setEnumerationNames() [4/4]

void ml::EnumField::_setEnumerationNames ( const std::vector< std::string > & enumNames )

protected

Sets the enumeration item names.

◆ getEnumEntryAtIndex()

const EnumEntry& ml::EnumField::getEnumEntryAtIndex ( size_t index ) const

Returns the enum entry at given index, which allows to enumerate all existing enum entries.

Allowed indices are [0 - getNumEnumerationItems()-1]. No bounds check is performed!

◆ getEnumValue()

int ml::EnumField::getEnumValue ( ) const

Returns the current enum value as integer.

◆ getNumEnumerationItems()

size_t ml::EnumField::getNumEnumerationItems ( ) const

Returns the number of registered enum values defined in constructor.

◆ getStringValue()

std::string ml::EnumField::getStringValue ( ) const

overridevirtual

Returns the value of the field as string value.

setStringValue must be able to interpret this returned string correctly. On invalid enumValues, the first string item is returned.

Implements ml::Field.

◆ getValue()

int ml::EnumField::getValue ( ) const

inline

Same as getEnumValue().

Definition at line 259 of file mlFields.h.

◆ setEnumValue()

void ml::EnumField::setEnumValue ( int enumValue )

Sets field value to enumValue.

◆ setStringValue()

void ml::EnumField::setStringValue ( const std::string & value )

overridevirtual

Sets value of the field to the enum item with given name value.

If the value enum item is not found, the call is ignored. The comparison is performed in a case-sensitive manner.

Implements ml::Field.

◆ setStringValueDefaulted()

void ml::EnumField::setStringValueDefaulted ( const std::string & value )

If value equals one of the enum item names, set the field to this item; otherwise, set it to the first item of the enum.

◆ setValue()

void ml::EnumField::setValue ( int enumValue )

inline

Same as setEnumValue().

Definition at line 253 of file mlFields.h.

◆ updateEnumValue()

void ml::EnumField::updateEnumValue ( int enumValue )

Sets field value to enumValue, but only touches the field if the new value is different from the old value.

◆ updateValue()

void ml::EnumField::updateValue ( int enumValue )

inline

Same as updateEnumValue().

Definition at line 256 of file mlFields.h.

Member Data Documentation

◆ _entries

std::vector<EnumEntry> ml::EnumField::_entries

protected

Stores the possible enum values and names.

Definition at line 282 of file mlFields.h.

◆ _linearEntries

bool ml::EnumField::_linearEntries {}

protected

Stores whether enum entry values start at 0 and increase by 1.

Definition at line 279 of file mlFields.h.

◆ _value

int ml::EnumField::_value {}

protected

The field value; we use an integer to be compatible with normal enum types.

Definition at line 276 of file mlFields.h.

The documentation for this class was generated from the following file:

MeVis/Foundation/Sources/ML/include/mlFields.h

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EnumField() [1/4]

◆ EnumField() [2/4]

◆ EnumField() [3/4]

◆ ~EnumField()

◆ EnumField() [4/4]

Member Function Documentation

◆ _initialize()

◆ _setEnumerationNames() [1/4]

◆ _setEnumerationNames() [2/4]

◆ _setEnumerationNames() [3/4]

◆ _setEnumerationNames() [4/4]

◆ getEnumEntryAtIndex()

◆ getEnumValue()

◆ getNumEnumerationItems()

◆ getStringValue()

◆ getValue()

◆ setEnumValue()

◆ setStringValue()

◆ setStringValueDefaulted()

◆ setValue()

◆ updateEnumValue()

◆ updateValue()

Member Data Documentation

◆ _entries

◆ _linearEntries

◆ _value
