SoView2DExtension Base class for all View2DExtensions used for drawing and event handling on the View2D. More...

#include <SoView2DExtension.h>

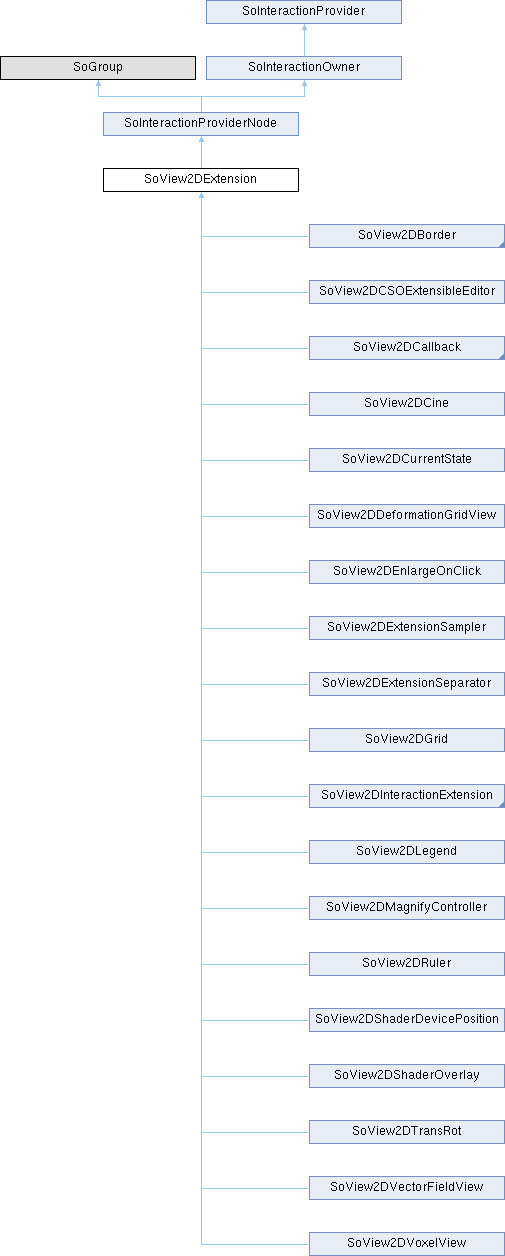

Inheritance diagram for SoView2DExtension:

Public Member Functions
	SoView2DExtension ()
	Constructor. More...

void	init ()
	setup internal state More...

virtual void	updateValues ()
	Update fields to local variables, may be reimplemented if you want to update additional local vars. More...

virtual void	draw (View2DSliceList slicelist, View2DSlice slice, int sliceZ)
	Called by the SoView2D for each slice that is rendered. More...

virtual bool	evalEvent (SoView2D view2d, View2DSliceList slicelist, View2DEvent *ec, View2DEventPhase phase)
	Called by the SoView2D for each event that happens on the viewer. More...

virtual void	startDrawing (View2DSliceList *)

virtual void	endDrawing (View2DSliceList *)

virtual void	overwriteDrawingSettings (SoView2DDrawingSettings &)

View2DEvent *	getEvent ()
	get the current event (when inside of evalEvent) More...

float	getSelectDist ()
	Set the distance tolerance on hit checking in pixels. More...

bool	isPointInsideDeviceRect (float pointX, float pointY, float centerX, float centerY, float hitRectangleSize=0.0)
	returns whether the given point is inside a rectangle around the given center. More...

void	drawMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small rectangle with given half side length and a line width. More...

void	drawDashedMiniRect (float xp, float yp, float ext, float lineWidth)

void	drawFilledMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled rectangle with given half side length. More...

void	drawMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small triangle with given center point, half height and line width. More...

void	drawFilledMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled triangle with given center point and half height. More...

void	drawMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small circle with given center point and radius. More...

void	drawFilledMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled circle with given center point and radius. More...

void	drawFixedSizeMiniCircleAt (float xp, float yp)
	Draws a fixed size small circle at the given position. More...

void	drawVoxelBorder (View2DSlice *slice, float vx, float vy, float vz)
	surround the given voxel with a border More...

int	getX ()
	get the x device position of current event, only returns valid result when called inside of evalEvent() More...

int	getY ()
	get the y device position of current event, only returns valid result when called inside of evalEvent() More...

virtual bool	isDrawingOn ()
	check if drawing is on More...

virtual bool	isEditingOn ()
	check if editing is on More...

virtual bool	isFixZOn ()
	check if z should stay fixed More...

virtual bool	isClipToSlice ()
	check if the image is clipped to slice More...

virtual void	fieldChanged (SoSensor *sensor)
	handle if any field has changed More...

bool	isCreateNewMode ()
	check if extension is in createNewMode More...

void	setCreateNewMode (bool flag)
	set this extension to create new objects More...

bool	isCreateNewModeRequest ()
	check if extension has a request for createNewMode More...

void	setCreateNewModeRequest (bool flag)
	set that extension want to become createNewMode More...

virtual bool	isActive ()
	returns if the extension is active (derive this method in child) (in createNewMode or with a selected object)(called by SoView2D) More...

virtual void	deleteSelectedObject ()
	deletes the currently active object (derive this method in child) (called by SoView2D) More...

virtual void	getStatusString (SbString &status)
	get the current status of this extension More...

virtual bool	evaluateEvent (SoView2D view2d, View2DEvent ec)

virtual bool	ignoreEvent (View2DEvent *ec)
	Return true if ec has been handled before and if ignoreHandledEvents is True. More...

bool	wantsMouseOverUpdates () const
	public access to _wantsMouseOverUpdateEvents More...

virtual void	consumeEvent (View2DEvent *ec, bool handled=TRUE)
	Set handled-flag of ec to true (= consumed) if handled is True and setEventHandled is True. More...

int	getSelectedModifierMask ()
	Get compare and ignore mask for the currently selected button/modifier combination, usable with SoPointingAction. More...

int	getSelectedIgnoreMask ()

SoPointingAction::Trigger	getPointingActionTriggerFromFields ()
	Get the trigger that matches the button/modifier field state. More...

virtual bool	implementsManagedInteractionAndClassicEventHandling () const
	return true if this node is a hybrid module providing managed interaction and classic event handling - in this case SoView2D::useManagedInteraction decides which one to use More...

Public Member Functions inherited from SoInteractionProviderNode
	SoInteractionProviderNode ()
	Default constructor. More...

	~SoInteractionProviderNode () override
	Destructor. More...

std::string	getID () const override
	Returns the id string for identifying the provider (and its actions) - this is usually the name of the scene node. More...

void	objRef () override
	Memory management by reference counting; must be implemented in derived classes. More...

void	objUnref () override

Public Member Functions inherited from SoInteractionOwner
	SoInteractionOwner ()
	Default constructor. More...

	~SoInteractionOwner () override
	The destructor will destroy all interactions created with this object as owner. More...

std::list< SoInteraction * >	getInteractions (SoState *state) override
	Returns the list of all interactions of this provider. More...

void	pointerPosition (SoState *state, const SoPointerPosition &pos) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	pointerLeftWindow (SoState *state) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	addListener (SoInteractionOwnerListenerInterface *listener)
	Add a listener object that is notified of changes in the interaction list. More...

void	removeListener (SoInteractionOwnerListenerInterface *listener)
	Remove a listener object that was notified of changes in the interaction list. More...

Public Member Functions inherited from SoInteractionProvider
	SoInteractionProvider ()
	Default constructor. More...

virtual	~SoInteractionProvider ()

template<class T >
std::list< T * >	getInteractionsOfType (SoState *state)
	Returns list of interactions of a specific type: More...

virtual std::list< SoCommandAction * >	getCommandActions (SoState *state)

virtual std::list< SoPointingAction * >	getPointingActions (SoState *state)

virtual std::list< SoOffsetAction * >	getOffsetActions (SoState *state)

Static Public Member Functions
static void	initClass ()
	Initializes this class. More...

static float	snapToPixelCenter (float coordinateComponent)
	Snaps the coordinate component to the pixel center. More...

static void	fieldChangedCB (void data, SoSensor sensor)
	inventor callbacks if any field has changed, calls fieldChanged More...

static bool	isImageParallel (SoSFMLImage image, View2DSliceList dsl)
	Return true if `image` is parallel to the image of the slice list up to slice thickness. More...


static void	enableLineStippling (const SoSFEnum &lineStyleField)
	Set/reset stippling pattern. More...

static void	disableLineStippling (const SoSFEnum &lineStyleField)

Static Public Member Functions inherited from SoInteractionProviderNode
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoInteractionProvider
static void	registerInteractionProviderNode (SoType type, GetProviderFunc func)
	Register a function to obtain a SoInteractionProvider from a SoNode. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)
	Get a SoInteractionProvider from a SoNode if registered, else NULL. More...

Public Attributes
SoSFColor	color
	color that should be used for drawing More...

SoSFBool	drawingOn
	flag if the extension should draw, needs to be checked inside of the draw() method More...

SoSFBool	editingOn
	flag if the extension should edit objects on mouse events, needs to be checked inside of the evalEvent() method More...

SoSFBool	maskValid
	flag if the event mask is valid. More...

SoSFFloat	selectionTolerance
	the selection tolerance in pixels More...

SoSFBool	wantsAllEvents
	flag if ALL events should be passed to evalEvent(), if disabled, events are only passed to evalEvent when the mouse mask gets valid More...

SoSFBool	wantsKeyEvents
	flag if keyboard events should be passed to evalEvent() More...

SoSFBool	wantsMouseWheelEvents
	flag if MouseWheel events should be passed to evalEvent() More...

SoSFBool	setEventHandled
	Set event handled if it is indeed handled by this extension. More...

SoSFBool	ignoreHandledEvents
	Ignore events, that have been handled by previous extensions. More...

SoSFEnum	button1
	mouse mask for button1 More...

SoSFEnum	button2
	mouse mask for button2 More...

SoSFEnum	button3
	mouse mask for button3 More...

SoSFEnum	shift
	shift modifier for mouse mask More...

SoSFEnum	control
	shift control for mouse mask More...

SoSFEnum	alt
	shift alt for mouse mask More...

SoSFBool	needsValidVoxel
	sets if a valid voxel must be hit to get evalEvent() calls More...

SoSFBool	renderOnSlab
	defines if the extension should be rendered on all slab slices More...

SoSFBool	createNewMode
	flag if extension is in createNewMode More...

SoSFTrigger	createNewModeRequest

SoSFBool	clipToSlice
	Flag to clip drawing to slice. More...

SoSFEnum	cursorShape
	Set cursor shape if the mouse mask fits and mouseEvents are effectively sent to evalEvent for editing. More...

SoSFBool	fixZOn
	DEPRECATED flag that indicates that the extension should fix the z value, only used in SoView2DRectangle. More...

Public Attributes inherited from SoInteractionProviderNode
SoSFString	instanceName
	Defines interface field to store the instance name. More...

SoSFString	interactionProviderID
	This field overrides the instanceName as providerID if specified. More...

Protected Member Functions
virtual void	editingOnChanged (SoField *)
	called when editingOn field is touched: More...

virtual void	buttonMaskChanged (SoField *)
	called when one of the button/modifier fields is touched: More...

virtual void	createNewModeRequestTriggered (SoField *)
	called when createNewModeRequest field ist touched: More...

	~SoView2DExtension () override
	destructor More...


void	GLRender (SoGLRenderAction *action) override
	Inventor actions. More...

void	callback (SoCallbackAction *action) override

void	handleEvent (SoHandleEventAction *action) override

void	getMatrix (SoGetMatrixAction *action) override

void	getBoundingBox (SoGetBoundingBoxAction *action) override

void	pick (SoPickAction *action) override

void	doAction (SoAction *action) override

Protected Member Functions inherited from SoInteractionOwner
virtual void	pointerPosition (const SoPointerPosition &)
	Override this if you always need to be informed of the current mouse cursor position. More...

virtual void	pointerLeftWindow ()
	This is called when the mouse cursor leaves the window. More...

bool	hasInteractions () const
	Returns whether there are any actions defined by this owner. More...

template<class T >
bool	hasInteractionsOfType () const
	Same as above, but asking for a specific type of interaction. More...

void	addPointingAction (SoPointingAction *)

void	addCommandAction (SoCommandAction *)

void	addOffsetAction (SoOffsetAction *)

Protected Attributes
SoNodeSensor *	_nodeSensor
	node sensor that is used to notice field changes More...

float	_rgbColor [4]
	Color of the object, update on each field change by _nodeSensor. More...

bool	_wantsMouseOverUpdateEvents
	set this flag to receive mouse over events while the extension is active More...

enum	Sign { ZERO , NEGATIVE , POSITIVE }
	defines the sign of a number, with zero as an extra value More...

static void	getAxisOrientation (int axis, SbMatrix &matrix, char &negativeResult, char &positiveResult)
	Geometry helpers. More...

static float	pointToLineDistance (SbVec3f point, SbVec3f line1, SbVec3f line2)
	calculate 3D point to line distance More...

static float	pointToLineDistance (SbVec2f point, SbVec2f line1, SbVec2f line2)
	calculate 2D point to line distance More...

static Sign	edgeIntersectWithPlane (const SbVec3f &v1, const SbVec3f &v2, const SbPlane &plane, SbVec3f &intersect)
	intersect given edge from `v1` to `v2` with given plane, returns sign and `intersect` point More...

Additional Inherited Members
Public Types inherited from SoInteractionProvider
typedef SoInteractionProvider (	GetProviderFunc) (SoNode *)

Detailed Description

SoView2DExtension Base class for all View2DExtensions used for drawing and event handling on the View2D.

Definition at line 227 of file SoView2DExtension.h.

Member Enumeration Documentation

◆ Sign

enum SoView2DExtension::Sign

defines the sign of a number, with zero as an extra value

Enumerator
ZERO
NEGATIVE
POSITIVE

Definition at line 427 of file SoView2DExtension.h.

Constructor & Destructor Documentation

◆ SoView2DExtension()

SoView2DExtension::SoView2DExtension ( )

Constructor.

◆ ~SoView2DExtension()

SoView2DExtension::~SoView2DExtension ( )

overrideprotected

destructor

Member Function Documentation

◆ buttonMaskChanged()

virtual void SoView2DExtension::buttonMaskChanged ( SoField * )

inlineprotectedvirtual

called when one of the button/modifier fields is touched:

Reimplemented in SoView2DInteractionExtension, and SoView2DCSOExtensibleEditor.

Definition at line 483 of file SoView2DExtension.h.

◆ callback()

void SoView2DExtension::callback ( SoCallbackAction * action )

overrideprotected

◆ consumeEvent()

virtual void SoView2DExtension::consumeEvent	(	View2DEvent *	ec,
		bool	handled = `TRUE`
	)

virtual

Set handled-flag of ec to true (= consumed) if handled is True and setEventHandled is True.

◆ createNewModeRequestTriggered()

virtual void SoView2DExtension::createNewModeRequestTriggered ( SoField * )

inlineprotectedvirtual

called when createNewModeRequest field ist touched:

Definition at line 486 of file SoView2DExtension.h.

◆ deleteSelectedObject()

virtual void SoView2DExtension::deleteSelectedObject ( )

virtual

deletes the currently active object (derive this method in child) (called by SoView2D)

◆ disableLineStippling()

static void SoView2DExtension::disableLineStippling ( const SoSFEnum & lineStyleField )

static

◆ doAction()

void SoView2DExtension::doAction ( SoAction * action )

overrideprotected

◆ draw()

virtual void SoView2DExtension::draw	(	View2DSliceList *	slicelist,
		View2DSlice *	slice,
		int	sliceZ
	)

virtual

Called by the SoView2D for each slice that is rendered.

Implement this method if you want your SoView2DExtension to point on the slices. The sliceZ is the slice that is rendered onto, the slicelist and slice object are passed to access image geometry and render state

Reimplemented in SoView2DGrid, SoView2DCurrentState, SoView2DAutoCenter, SoView2DCSOExtensibleEditor, SoView2DCSOEditor, SoView2DRigidRegistrationEditorBase, SoView2DMagnifyController, SoView2DCallback, SoView2DShaderOverlay, SoView2DShaderDevicePosition, SoView2DExtensionSampler, SoView2DVoxelView, SoView2DVectorFieldView, SoView2DSlider, SoView2DRuler, SoView2DRectangle, SoView2DPosition, SoView2DPlane, SoView2DOverlayDecoration, SoView2DOverlay, SoView2DLegend, SoView2DLabel, SoView2DExtensionSeparator, SoView2DDeformationGridView, SoView2DButton, SoView2DBorderHighlight, SoView2DBorder, and SoView2DAnnotation.

◆ drawDashedMiniRect()

void SoView2DExtension::drawDashedMiniRect	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth
	)

Draws a small rectangle with given half side length and a line width. The outline is drawn dashed if the size and line width allow that.

◆ drawFilledMiniCircle()

void SoView2DExtension::drawFilledMiniCircle	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth = `1.f`
	)

Draws a small filled circle with given center point and radius.

◆ drawFilledMiniRect()

void SoView2DExtension::drawFilledMiniRect	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth = `1.f`
	)

Draws a small filled rectangle with given half side length.

◆ drawFilledMiniTriangle()

void SoView2DExtension::drawFilledMiniTriangle	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth = `1.f`
	)

Draws a small filled triangle with given center point and half height.

◆ drawFixedSizeMiniCircleAt()

void SoView2DExtension::drawFixedSizeMiniCircleAt	(	float	xp,
		float	yp
	)

Draws a fixed size small circle at the given position.

◆ drawMiniCircle()

void SoView2DExtension::drawMiniCircle	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth = `1.f`
	)

Draws a small circle with given center point and radius.

◆ drawMiniRect()

void SoView2DExtension::drawMiniRect	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth = `1.f`
	)

Draws a small rectangle with given half side length and a line width.

◆ drawMiniTriangle()

void SoView2DExtension::drawMiniTriangle	(	float	xp,
		float	yp,
		float	ext,
		float	lineWidth = `1.f`
	)

Draws a small triangle with given center point, half height and line width.

◆ drawVoxelBorder()

void SoView2DExtension::drawVoxelBorder	(	View2DSlice *	slice,
		float	vx,
		float	vy,
		float	vz
	)

surround the given voxel with a border

◆ edgeIntersectWithPlane()

static Sign SoView2DExtension::edgeIntersectWithPlane	(	const SbVec3f &	v1,
		const SbVec3f &	v2,
		const SbPlane &	plane,
		SbVec3f &	intersect
	)

static

intersect given edge from v1 to v2 with given plane, returns sign and intersect point

◆ editingOnChanged()

virtual void SoView2DExtension::editingOnChanged ( SoField * )

inlineprotectedvirtual

called when editingOn field is touched:

Reimplemented in SoView2DInteractionExtension, SoView2DVoxelValue, SoView2DSliceZoom, SoView2DSlicer, SoView2DLegend, SoView2DAnnotation, and SoView2DCSOExtensibleEditor.

Definition at line 480 of file SoView2DExtension.h.

◆ enableLineStippling()

static void SoView2DExtension::enableLineStippling ( const SoSFEnum & lineStyleField )

static

Set/reset stippling pattern.

◆ endDrawing()

virtual void SoView2DExtension::endDrawing ( View2DSliceList * )

inlinevirtual

this method is called after the slicelist is called and allows some cleanup of precalculated data

Reimplemented in SoView2DExtensionSampler, SoView2DOverlay, and SoView2DExtensionSeparator.

Definition at line 328 of file SoView2DExtension.h.

◆ evalEvent()

virtual bool SoView2DExtension::evalEvent	(	SoView2D *	view2d,
		View2DSliceList *	slicelist,
		View2DEvent *	ec,
		View2DEventPhase	phase
	)

virtual

Called by the SoView2D for each event that happens on the viewer.

Implement this method if you want to handle events. If this method is called depends on the fields wantsAllEvents, wantsKeyEvents, wantsMouseWheelEvents and the mouse mask given by button1, button2, button3, shift, control, alt. When using the mouse mask (when wantsAllEvents is set to false), the View2DEventPhase indicates in which phase of the mouse mask you are in.

Reimplemented in SoView2DGrid, SoView2DCallback, SoView2DVoxelValue, SoView2DTransRot, SoView2DSlider, SoView2DSliceZoom, SoView2DSlicer, SoView2DSlicePan, SoView2DRectangle, SoView2DPosition, SoView2DPlane, SoView2DOverlay, SoView2DLegend, SoView2DEnlargeOnClick, SoView2DAutoCenter, SoView2DAnnotation, SoView2DCSOExtensibleEditor, SoView2DCSOEditor, SoView2DTouchControl, SoView2DMagnifyController, and SoView2DButton.

◆ evaluateEvent()

virtual bool SoView2DExtension::evaluateEvent	(	SoView2D *	view2d,
		View2DEvent *	ec
	)

virtual

To be called by the application which creates events and which wants to apply them to the extension

Reimplemented in SoView2DExtensionSampler, and SoView2DExtensionSeparator.

◆ fieldChanged()

virtual void SoView2DExtension::fieldChanged ( SoSensor * sensor )

virtual

handle if any field has changed

◆ fieldChangedCB()

static void SoView2DExtension::fieldChangedCB	(	void *	data,
		SoSensor *	sensor
	)

static

inventor callbacks if any field has changed, calls fieldChanged

◆ getAxisOrientation()

static void SoView2DExtension::getAxisOrientation	(	int	axis,
		SbMatrix &	matrix,
		char &	negativeResult,
		char &	positiveResult
	)

static

Geometry helpers.

returns the orientation letter for the negative and positive direction of the given axis axis = 0 - X axis = 1 - Y axis = 2 - Z

◆ getBoundingBox()

void SoView2DExtension::getBoundingBox ( SoGetBoundingBoxAction * action )

overrideprotected

◆ getEvent()

View2DEvent* SoView2DExtension::getEvent ( )

get the current event (when inside of evalEvent)

◆ getMatrix()

void SoView2DExtension::getMatrix ( SoGetMatrixAction * action )

overrideprotected

◆ getPointingActionTriggerFromFields()

SoPointingAction::Trigger SoView2DExtension::getPointingActionTriggerFromFields ( )

Get the trigger that matches the button/modifier field state.

◆ getSelectDist()

float SoView2DExtension::getSelectDist ( )

Set the distance tolerance on hit checking in pixels.

◆ getSelectedIgnoreMask()

int SoView2DExtension::getSelectedIgnoreMask ( )

◆ getSelectedModifierMask()

int SoView2DExtension::getSelectedModifierMask ( )

Get compare and ignore mask for the currently selected button/modifier combination, usable with SoPointingAction.

◆ getStatusString()

virtual void SoView2DExtension::getStatusString ( SbString & status )

virtual

get the current status of this extension

◆ getX()

int SoView2DExtension::getX ( )

get the x device position of current event, only returns valid result when called inside of evalEvent()

◆ getY()

int SoView2DExtension::getY ( )

get the y device position of current event, only returns valid result when called inside of evalEvent()

◆ GLRender()

void SoView2DExtension::GLRender ( SoGLRenderAction * action )

overrideprotected

Inventor actions.

◆ handleEvent()

void SoView2DExtension::handleEvent ( SoHandleEventAction * action )

overrideprotected

◆ ignoreEvent()

virtual bool SoView2DExtension::ignoreEvent ( View2DEvent * ec )

virtual

Return true if ec has been handled before and if ignoreHandledEvents is True.

Reimplemented in SoView2DSlider, SoView2DRectangle, SoView2DPosition, and SoView2DButton.

◆ implementsManagedInteractionAndClassicEventHandling()

virtual bool SoView2DExtension::implementsManagedInteractionAndClassicEventHandling ( ) const

inlinevirtual

return true if this node is a hybrid module providing managed interaction and classic event handling - in this case SoView2D::useManagedInteraction decides which one to use

Reimplemented in SoView2DInteractionExtension, SoView2DSlider, SoView2DRigidRegistrationEditorBase, SoView2DLegend, SoView2DLabel, SoView2DButton, and SoView2DAnnotation.

Definition at line 466 of file SoView2DExtension.h.

◆ init()

void SoView2DExtension::init ( )

setup internal state

◆ initClass()

static void SoView2DExtension::initClass ( )

static

Initializes this class.

◆ isActive()

virtual bool SoView2DExtension::isActive ( )

virtual

returns if the extension is active (derive this method in child) (in createNewMode or with a selected object)(called by SoView2D)

◆ isClipToSlice()

virtual bool SoView2DExtension::isClipToSlice ( )

inlinevirtual

check if the image is clipped to slice

Definition at line 382 of file SoView2DExtension.h.

◆ isCreateNewMode()

bool SoView2DExtension::isCreateNewMode ( )

check if extension is in createNewMode

◆ isCreateNewModeRequest()

bool SoView2DExtension::isCreateNewModeRequest ( )

check if extension has a request for createNewMode

◆ isDrawingOn()

virtual bool SoView2DExtension::isDrawingOn ( )

inlinevirtual

check if drawing is on

Definition at line 376 of file SoView2DExtension.h.

◆ isEditingOn()

virtual bool SoView2DExtension::isEditingOn ( )

inlinevirtual

check if editing is on

Definition at line 378 of file SoView2DExtension.h.

Referenced by SoView2DInteractionExtension::shouldPointingActionBeEnabled().

◆ isFixZOn()

virtual bool SoView2DExtension::isFixZOn ( )

inlinevirtual

check if z should stay fixed

Definition at line 380 of file SoView2DExtension.h.

◆ isImageParallel()

static bool SoView2DExtension::isImageParallel	(	SoSFMLImage *	image,
		View2DSliceList *	dsl
	)

static

Return true if image is parallel to the image of the slice list up to slice thickness.

◆ isPointInsideDeviceRect()

bool SoView2DExtension::isPointInsideDeviceRect	(	float	pointX,
		float	pointY,
		float	centerX,
		float	centerY,
		float	hitRectangleSize = `0.0`
	)

returns whether the given point is inside a rectangle around the given center.

the rectangle's size is defined by getSelectDist if not overwritten by a non-zero hitRectangleSize.

◆ overwriteDrawingSettings()

virtual void SoView2DExtension::overwriteDrawingSettings ( SoView2DDrawingSettings & )

inlinevirtual

this method is called before any drawing and allows overwriting drawing settings

Reimplemented in SoView2DShaderOverlay.

Definition at line 331 of file SoView2DExtension.h.

◆ pick()

void SoView2DExtension::pick ( SoPickAction * action )

overrideprotected

◆ pointToLineDistance() [1/2]

static float SoView2DExtension::pointToLineDistance	(	SbVec2f	point,
		SbVec2f	line1,
		SbVec2f	line2
	)

static

calculate 2D point to line distance

◆ pointToLineDistance() [2/2]

static float SoView2DExtension::pointToLineDistance	(	SbVec3f	point,
		SbVec3f	line1,
		SbVec3f	line2
	)

static

calculate 3D point to line distance

◆ setCreateNewMode()

void SoView2DExtension::setCreateNewMode ( bool flag )

set this extension to create new objects

◆ setCreateNewModeRequest()

void SoView2DExtension::setCreateNewModeRequest ( bool flag )

set that extension want to become createNewMode

◆ snapToPixelCenter()

static float SoView2DExtension::snapToPixelCenter ( float coordinateComponent )

inlinestatic

Snaps the coordinate component to the pixel center.

Definition at line 340 of file SoView2DExtension.h.

◆ startDrawing()

virtual void SoView2DExtension::startDrawing ( View2DSliceList * )

inlinevirtual

this method is called before the slicelist is called and allows some precalculation needed for all drawn slices

Reimplemented in SoView2DExtensionSampler, SoView2DSliceZoom, SoView2DOverlay, SoView2DAutoCenter, SoView2DCSOExtensibleEditor, and SoView2DExtensionSeparator.

Definition at line 325 of file SoView2DExtension.h.

◆ updateValues()

virtual void SoView2DExtension::updateValues ( )

virtual

Update fields to local variables, may be reimplemented if you want to update additional local vars.

Reimplemented in SoView2DSlicer, SoView2DBorderHighlight, and SoView2DBorder.

◆ wantsMouseOverUpdates()

bool SoView2DExtension::wantsMouseOverUpdates ( ) const

inline

public access to _wantsMouseOverUpdateEvents

Definition at line 450 of file SoView2DExtension.h.

Member Data Documentation

◆ _nodeSensor

SoNodeSensor* SoView2DExtension::_nodeSensor

protected

node sensor that is used to notice field changes

Definition at line 489 of file SoView2DExtension.h.

◆ _rgbColor

float SoView2DExtension::_rgbColor[4]

protected

Color of the object, update on each field change by _nodeSensor.

Definition at line 492 of file SoView2DExtension.h.

◆ _wantsMouseOverUpdateEvents

bool SoView2DExtension::_wantsMouseOverUpdateEvents

protected

set this flag to receive mouse over events while the extension is active

Definition at line 495 of file SoView2DExtension.h.

◆ alt

SoSFEnum SoView2DExtension::alt

shift alt for mouse mask

Definition at line 270 of file SoView2DExtension.h.

◆ button1

SoSFEnum SoView2DExtension::button1

mouse mask for button1

Definition at line 260 of file SoView2DExtension.h.

◆ button2

SoSFEnum SoView2DExtension::button2

mouse mask for button2

Definition at line 262 of file SoView2DExtension.h.

◆ button3

SoSFEnum SoView2DExtension::button3

mouse mask for button3

Definition at line 264 of file SoView2DExtension.h.

◆ clipToSlice

SoSFBool SoView2DExtension::clipToSlice

Flag to clip drawing to slice.

Definition at line 283 of file SoView2DExtension.h.

◆ color

SoSFColor SoView2DExtension::color

color that should be used for drawing

Definition at line 233 of file SoView2DExtension.h.

◆ control

SoSFEnum SoView2DExtension::control

shift control for mouse mask

Definition at line 268 of file SoView2DExtension.h.

◆ createNewMode

SoSFBool SoView2DExtension::createNewMode

flag if extension is in createNewMode

Definition at line 279 of file SoView2DExtension.h.

◆ createNewModeRequest

SoSFTrigger SoView2DExtension::createNewModeRequest

Definition at line 280 of file SoView2DExtension.h.

◆ cursorShape

SoSFEnum SoView2DExtension::cursorShape

Set cursor shape if the mouse mask fits and mouseEvents are effectively sent to evalEvent for editing.

Definition at line 287 of file SoView2DExtension.h.

◆ drawingOn

SoSFBool SoView2DExtension::drawingOn

flag if the extension should draw, needs to be checked inside of the draw() method

Definition at line 235 of file SoView2DExtension.h.

◆ editingOn

SoSFBool SoView2DExtension::editingOn

flag if the extension should edit objects on mouse events, needs to be checked inside of the evalEvent() method

Definition at line 237 of file SoView2DExtension.h.

◆ fixZOn

SoSFBool SoView2DExtension::fixZOn

DEPRECATED flag that indicates that the extension should fix the z value, only used in SoView2DRectangle.

Definition at line 292 of file SoView2DExtension.h.

◆ ignoreHandledEvents

SoSFBool SoView2DExtension::ignoreHandledEvents

Ignore events, that have been handled by previous extensions.

Definition at line 256 of file SoView2DExtension.h.

◆ maskValid

SoSFBool SoView2DExtension::maskValid

flag if the event mask is valid.

Definition at line 240 of file SoView2DExtension.h.

◆ needsValidVoxel

SoSFBool SoView2DExtension::needsValidVoxel

sets if a valid voxel must be hit to get evalEvent() calls

Definition at line 273 of file SoView2DExtension.h.

◆ renderOnSlab

SoSFBool SoView2DExtension::renderOnSlab

defines if the extension should be rendered on all slab slices

Definition at line 276 of file SoView2DExtension.h.

◆ selectionTolerance

SoSFFloat SoView2DExtension::selectionTolerance

the selection tolerance in pixels

Definition at line 243 of file SoView2DExtension.h.

◆ setEventHandled

SoSFBool SoView2DExtension::setEventHandled

Set event handled if it is indeed handled by this extension.

Definition at line 254 of file SoView2DExtension.h.

◆ shift

SoSFEnum SoView2DExtension::shift

shift modifier for mouse mask

Definition at line 266 of file SoView2DExtension.h.

◆ wantsAllEvents

SoSFBool SoView2DExtension::wantsAllEvents

flag if ALL events should be passed to evalEvent(), if disabled, events are only passed to evalEvent when the mouse mask gets valid

Definition at line 247 of file SoView2DExtension.h.

◆ wantsKeyEvents

SoSFBool SoView2DExtension::wantsKeyEvents

flag if keyboard events should be passed to evalEvent()

Definition at line 249 of file SoView2DExtension.h.

◆ wantsMouseWheelEvents

SoSFBool SoView2DExtension::wantsMouseWheelEvents

flag if MouseWheel events should be passed to evalEvent()

Definition at line 251 of file SoView2DExtension.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoView2D/SoView2DExtension.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Sign

Constructor & Destructor Documentation

◆ SoView2DExtension()

◆ ~SoView2DExtension()

Member Function Documentation

◆ buttonMaskChanged()

◆ callback()

◆ consumeEvent()

◆ createNewModeRequestTriggered()

◆ deleteSelectedObject()

◆ disableLineStippling()

◆ doAction()

◆ draw()

◆ drawDashedMiniRect()

◆ drawFilledMiniCircle()

◆ drawFilledMiniRect()

◆ drawFilledMiniTriangle()

◆ drawFixedSizeMiniCircleAt()

◆ drawMiniCircle()

◆ drawMiniRect()

◆ drawMiniTriangle()

◆ drawVoxelBorder()

◆ edgeIntersectWithPlane()

◆ editingOnChanged()

◆ enableLineStippling()

◆ endDrawing()

◆ evalEvent()

◆ evaluateEvent()

◆ fieldChanged()

◆ fieldChangedCB()

◆ getAxisOrientation()

◆ getBoundingBox()

◆ getEvent()

◆ getMatrix()

◆ getPointingActionTriggerFromFields()

◆ getSelectDist()

◆ getSelectedIgnoreMask()

◆ getSelectedModifierMask()

◆ getStatusString()

◆ getX()

◆ getY()

◆ GLRender()

◆ handleEvent()

◆ ignoreEvent()

◆ implementsManagedInteractionAndClassicEventHandling()

◆ init()

◆ initClass()

◆ isActive()

◆ isClipToSlice()

◆ isCreateNewMode()

◆ isCreateNewModeRequest()

◆ isDrawingOn()

◆ isEditingOn()

◆ isFixZOn()

◆ isImageParallel()

◆ isPointInsideDeviceRect()

◆ overwriteDrawingSettings()

◆ pick()

◆ pointToLineDistance() [1/2]

◆ pointToLineDistance() [2/2]

◆ setCreateNewMode()

◆ setCreateNewModeRequest()

◆ snapToPixelCenter()

◆ startDrawing()

◆ updateValues()

◆ wantsMouseOverUpdates()

Member Data Documentation

◆ _nodeSensor

◆ _rgbColor

◆ _wantsMouseOverUpdateEvents

◆ alt

◆ button1
