Annotation extension for the SoView2D. More...

#include <SoView2DAnnotation.h>

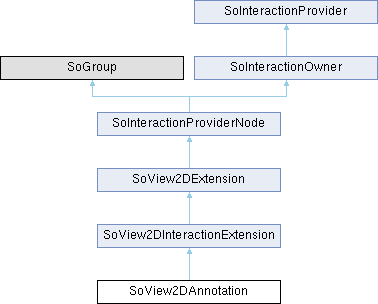

Inheritance diagram for SoView2DAnnotation:

Classes
struct	Margins
	Stores top/bottom/left/right margins. More...

Public Types
enum	AlignPosition { TOP_LEFT , TOP_RIGHT , BOTTOM_LEFT , BOTTOM_RIGHT , BOTTOM_CENTER , CENTER_CENTER }
	Mode for alignment of text boxes on viewer. More...

Public Types inherited from SoView2DExtension
enum	Sign { ZERO , NEGATIVE , POSITIVE }
	defines the sign of a number, with zero as an extra value More...

Public Types inherited from SoInteractionProvider
typedef SoInteractionProvider (	GetProviderFunc) (SoNode *)

Public Member Functions
	SoView2DAnnotation ()
	Constructor. More...

	~SoView2DAnnotation () override

void	draw (View2DSliceList dsl, View2DSlice dslice, int slice) override
	draw annotations on slice More...

bool	evalEvent (SoView2D view2d, View2DSliceList slicelist, View2DEvent *ec, View2DEventPhase phase) override
	handle keyboard events More...

void	toggleAnnotation ()
	toggle displayed information More...

void	toggleTechnicalInfo ()

void	parseString (View2DSliceList list, View2DSlice slice, const SbString &string, SbString &resultString, int limitToChars=-1)
	parses the given string and substitutes and More...

void	drawAnnotation (const char *string, const PixelBoundingBox &pixelBoundingBox, int fontsize, AlignPosition pos, bool shouldDrawBox, int &outBoxWidth, int &outBoxHeight)
	draws an AnnotationBox at the given position More...

float	decimalFloor (float number, SbString &result, int &divider)
	returns the closest decimal floor and copies a printable string into the buffer More...

void	drawVerticalRuler (View2DSliceList dsl, View2DSlice dslice, bool drawText, int marginRight, const PixelBoundingBox &pixelBoundingBox)
	draws an annotated ruler More...

void	drawHorizontalRuler (View2DSliceList dsl, View2DSlice dslice, bool drawText, int marginBottom, const PixelBoundingBox &pixelBoundingBox)

virtual bool	drawVerticalRulerTextBelow () const
	override this to draw the unit text below the vertical ruler instead of to the left of it. More...

void	drawOrientation (const char string, float posX, float posY, float fontSize, View2DFont font, float relOffX, float relOffY, float *orWeights)
	Draw orientation letters. More...

virtual Margins	calculateTextMargins (int width, int height)
	calculates the margin of the text annotations (to be reimplemented by a derived class) More...

virtual Margins	calculateCenterTextMargins (int width, int height)
	margins for center text (horizontally) can be different More...

virtual int	calculateOrientationModelSize (int width, int height)
	calculates the size of the orientation model More...

virtual int	calculateOrientationModelOffset (int viewSize, const SoSFFloat &relativeOffset, const SoSFInt32 &minOffsetPixels, const SoSFInt32 &maxOffsetPixels)
	calculates an offset for the orientation model position More...

SbMatrix	calculateOrientationModelRotationMatrix (View2DSlice *slice)
	calculates the rotation matrix for the orientation model More...

virtual void	drawOrientationCube (const SbMatrix &rotationMatrix, int posX, int posY, int modelSize)
	draws the annotation model for the given rotation matrix at the given position and size using the built in model More...

virtual void	drawAndStoreCubePolygon (char letter, const SbMatrix &rotationMatrix, int posX, int posY, int modelSize, int pass, const SbVec3f &pos0, const SbVec3f &pos1, const SbVec3f &pos2, const SbVec3f &pos3)
	Draws an orientation cube polygon (a side of the cube) and stores the projected polygon in an internal structure for a later hit test. More...

virtual void	drawOrientationModelUsingInventor (SoAction *action, const SbMatrix &rotationMatrix, int posX, int posY, int modelSize)
	draws the annotation model for the given rotation matrix at the given position and size using the inOrientationModel scene More...

virtual void	drawOrientationCubeLetter (char letter, int modelSize, bool shadowPass)
	draw the given letters. More...

virtual bool	implementsManagedInteraction () const
	also implements managed interactions More...

bool	implementsManagedInteractionAndClassicEventHandling () const override
	this node is a hybrid module providing managed interaction and classic event handling More...


bool	isSensitiveAt (const SoPointerPosition &pos) override
	interface forwarded from SoPointingAction: More...

void	startPressAt (const SoPointerPosition &pos) override

void	dragMoveTo (const SoPointerPosition &pos) override

SoPointingAction *	endPress (int clickCount) override

Public Member Functions inherited from SoView2DInteractionExtension
	SoView2DInteractionExtension (const std::string &actionID, bool positionSensitive=true)

	SoView2DInteractionExtension ()
	Constructor. More...

bool	implementsManagedInteractionAndClassicEventHandling () const override
	this node is a hybrid module providing managed interaction and classic event handling More...

Public Member Functions inherited from SoView2DExtension
	SoView2DExtension ()
	Constructor. More...

void	init ()
	setup internal state More...

virtual void	updateValues ()
	Update fields to local variables, may be reimplemented if you want to update additional local vars. More...

virtual void	startDrawing (View2DSliceList *)

virtual void	endDrawing (View2DSliceList *)

virtual void	overwriteDrawingSettings (SoView2DDrawingSettings &)

View2DEvent *	getEvent ()
	get the current event (when inside of evalEvent) More...

float	getSelectDist ()
	Set the distance tolerance on hit checking in pixels. More...

bool	isPointInsideDeviceRect (float pointX, float pointY, float centerX, float centerY, float hitRectangleSize=0.0)
	returns whether the given point is inside a rectangle around the given center. More...

void	drawMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small rectangle with given half side length and a line width. More...

void	drawDashedMiniRect (float xp, float yp, float ext, float lineWidth)

void	drawFilledMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled rectangle with given half side length. More...

void	drawMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small triangle with given center point, half height and line width. More...

void	drawFilledMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled triangle with given center point and half height. More...

void	drawMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small circle with given center point and radius. More...

void	drawFilledMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled circle with given center point and radius. More...

void	drawFixedSizeMiniCircleAt (float xp, float yp)
	Draws a fixed size small circle at the given position. More...

void	drawVoxelBorder (View2DSlice *slice, float vx, float vy, float vz)
	surround the given voxel with a border More...

int	getX ()
	get the x device position of current event, only returns valid result when called inside of evalEvent() More...

int	getY ()
	get the y device position of current event, only returns valid result when called inside of evalEvent() More...

virtual bool	isDrawingOn ()
	check if drawing is on More...

virtual bool	isEditingOn ()
	check if editing is on More...

virtual bool	isFixZOn ()
	check if z should stay fixed More...

virtual bool	isClipToSlice ()
	check if the image is clipped to slice More...

virtual void	fieldChanged (SoSensor *sensor)
	handle if any field has changed More...

bool	isCreateNewMode ()
	check if extension is in createNewMode More...

void	setCreateNewMode (bool flag)
	set this extension to create new objects More...

bool	isCreateNewModeRequest ()
	check if extension has a request for createNewMode More...

void	setCreateNewModeRequest (bool flag)
	set that extension want to become createNewMode More...

virtual bool	isActive ()
	returns if the extension is active (derive this method in child) (in createNewMode or with a selected object)(called by SoView2D) More...

virtual void	deleteSelectedObject ()
	deletes the currently active object (derive this method in child) (called by SoView2D) More...

virtual void	getStatusString (SbString &status)
	get the current status of this extension More...

virtual bool	evaluateEvent (SoView2D view2d, View2DEvent ec)

virtual bool	ignoreEvent (View2DEvent *ec)
	Return true if ec has been handled before and if ignoreHandledEvents is True. More...

bool	wantsMouseOverUpdates () const
	public access to _wantsMouseOverUpdateEvents More...

virtual void	consumeEvent (View2DEvent *ec, bool handled=TRUE)
	Set handled-flag of ec to true (= consumed) if handled is True and setEventHandled is True. More...

int	getSelectedModifierMask ()
	Get compare and ignore mask for the currently selected button/modifier combination, usable with SoPointingAction. More...

int	getSelectedIgnoreMask ()

SoPointingAction::Trigger	getPointingActionTriggerFromFields ()
	Get the trigger that matches the button/modifier field state. More...

Public Member Functions inherited from SoInteractionProviderNode
	SoInteractionProviderNode ()
	Default constructor. More...

	~SoInteractionProviderNode () override
	Destructor. More...

std::string	getID () const override
	Returns the id string for identifying the provider (and its actions) - this is usually the name of the scene node. More...

void	objRef () override
	Memory management by reference counting; must be implemented in derived classes. More...

void	objUnref () override

Public Member Functions inherited from SoInteractionOwner
	SoInteractionOwner ()
	Default constructor. More...

	~SoInteractionOwner () override
	The destructor will destroy all interactions created with this object as owner. More...

std::list< SoInteraction * >	getInteractions (SoState *state) override
	Returns the list of all interactions of this provider. More...

void	pointerPosition (SoState *state, const SoPointerPosition &pos) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	pointerLeftWindow (SoState *state) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	addListener (SoInteractionOwnerListenerInterface *listener)
	Add a listener object that is notified of changes in the interaction list. More...

void	removeListener (SoInteractionOwnerListenerInterface *listener)
	Remove a listener object that was notified of changes in the interaction list. More...

Public Member Functions inherited from SoInteractionProvider
	SoInteractionProvider ()
	Default constructor. More...

virtual	~SoInteractionProvider ()

template<class T >
std::list< T * >	getInteractionsOfType (SoState *state)
	Returns list of interactions of a specific type: More...

virtual std::list< SoCommandAction * >	getCommandActions (SoState *state)

virtual std::list< SoPointingAction * >	getPointingActions (SoState *state)

virtual std::list< SoOffsetAction * >	getOffsetActions (SoState *state)

Static Public Member Functions
static void	initClass ()
	inventor runtime type system More...

static void	getExtOrientation (int axis, SbMatrix &matrix, float orWeights, char negOrientation, char *posOrientation)
	Return extended orientation letters (up to three letters for oblique views) and weights. More...

static SbVec2f	getTargetSizeInScene (SoNode *scene, int width, int height)
	Get the minimum view port size of all SoView2Ds in the given scene, provided the scene would be displayed in a viewer with size windowX * windowY. More...

Static Public Member Functions inherited from SoView2DInteractionExtension
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoView2DExtension
static void	initClass ()
	Initializes this class. More...

static float	snapToPixelCenter (float coordinateComponent)
	Snaps the coordinate component to the pixel center. More...

static void	fieldChangedCB (void data, SoSensor sensor)
	inventor callbacks if any field has changed, calls fieldChanged More...

static bool	isImageParallel (SoSFMLImage image, View2DSliceList dsl)
	Return true if `image` is parallel to the image of the slice list up to slice thickness. More...

static void	enableLineStippling (const SoSFEnum &lineStyleField)
	Set/reset stippling pattern. More...

static void	disableLineStippling (const SoSFEnum &lineStyleField)

static void	getAxisOrientation (int axis, SbMatrix &matrix, char &negativeResult, char &positiveResult)
	Geometry helpers. More...

static float	pointToLineDistance (SbVec3f point, SbVec3f line1, SbVec3f line2)
	calculate 3D point to line distance More...

static float	pointToLineDistance (SbVec2f point, SbVec2f line1, SbVec2f line2)
	calculate 2D point to line distance More...

static Sign	edgeIntersectWithPlane (const SbVec3f &v1, const SbVec3f &v2, const SbPlane &plane, SbVec3f &intersect)
	intersect given edge from `v1` to `v2` with given plane, returns sign and `intersect` point More...

Static Public Member Functions inherited from SoInteractionProviderNode
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoInteractionProvider
static void	registerInteractionProviderNode (SoType type, GetProviderFunc func)
	Register a function to obtain a SoInteractionProvider from a SoNode. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)
	Get a SoInteractionProvider from a SoNode if registered, else NULL. More...

Public Attributes

SoSFString	annotationUserTopLeft
	Fields. More...

SoSFString	annotationUserTopRight

SoSFString	annotationUserBottomLeft

SoSFString	annotationUserBottomRight

SoSFString	annotationUserBottomCenter

SoSFString	annotationCTTopLeft

SoSFString	annotationCTTopRight

SoSFString	annotationCTBottomLeft

SoSFString	annotationCTBottomRight

SoSFString	annotationCTBottomCenter

SoSFString	annotationMRTopLeft

SoSFString	annotationMRTopRight

SoSFString	annotationMRBottomLeft

SoSFString	annotationMRBottomRight

SoSFString	annotationMRBottomCenter

SoSFString	shortTopLeft

SoSFString	shortTopRight

SoSFString	shortBottomLeft

SoSFString	shortBottomRight

SoSFString	shortBottomCenter

SoSFInt32	minDetailFontSize

SoSFInt32	maxDetailFontSize

SoSFInt32	minShortFontSize

SoSFInt32	maxShortFontSize

SoSFInt32	userDetailFontSize

SoSFInt32	userShortFontSize

SoSFInt32	rulerFontSize

SoSFEnum	annotationMode

SoSFEnum	showAnnotation

SoSFEnum	annotationFontSize

SoSFBool	textShadow

SoSFColor	textShadowColor

SoSFBool	rulerShadow

SoSFString	fontWidthDummyString

SoSFInt32	targetWidth

SoSFInt32	targetHeight

SoSFInt32	marginTop

SoSFInt32	marginLeft

SoSFInt32	marginBottom

SoSFInt32	marginRight

SoSFInt32	abreviateChars

SoSFInt32	abreviateShortChars

SoSFEnum	showOrientation

SoSFBool	drawNegativeOrientation

SoSFBool	drawPositiveOrientation

SoSFColor	orientationColor

SoSFBool	verticalRuler

SoSFBool	horizontalRuler

SoSFInt32	verticalRulerMarginRight

SoSFInt32	horizontalRulerMarginBottom

SoSFBool	orientationModel

SoSFEnum	orientationModelPosition

SoSFFloat	orientationModelRelativeSize

SoSFInt32	orientationModelMinSize

SoSFInt32	orientationModelMaxSize

SoSFFloat	orientationModelRelativeVerticalOffset

SoSFInt32	orientationModelMinVerticalOffset

SoSFInt32	orientationModelMaxVerticalOffset

SoSFFloat	orientationModelRelativeHorizontalOffset

SoSFInt32	orientationModelMinHorizontalOffset

SoSFInt32	orientationModelMaxHorizontalOffset

SoSFColor	orientationModelColor

SoSFBool	showTechnicalInfo

SoSFString	input00

SoSFString	input01

SoSFString	input02

SoSFString	input03

SoSFString	input04

SoSFString	input05

SoSFString	input06

SoSFString	input07

SoSFString	input08

SoSFString	input09

SoSFDouble	numInput00

SoSFDouble	numInput01

SoSFDouble	numInput02

SoSFDouble	numInput03

SoSFDouble	numInput04

SoSFDouble	numInput05

SoSFDouble	numInput06

SoSFDouble	numInput07

SoSFDouble	numInput08

SoSFDouble	numInput09

SoSFBool	drawBackgroundBox

SoSFColor	backgroundColor

SoSFFloat	backgroundOpacity

SoSFColor	backgroundEdgeColor

SoSFFloat	backgroundEdgeOpacity

SoSFNode	inOrientationModel

SoSFBool	isMouseOverCube

SoSFString	hitOrientationLetter

SoSFBool	orientationAndScaleFromCamera
	field that enables getting the orientation matrix from the Inventor scene instead of the input image More...

Public Attributes inherited from SoView2DInteractionExtension
SoSFTrigger	singleClicked
	this is triggered when the user clicks without moving the mouse (this only is supported when using Managed Interaction) More...

SoSFTrigger	doubleClicked
	the same for the second click in a row More...

Public Attributes inherited from SoView2DExtension
SoSFColor	color
	color that should be used for drawing More...

SoSFBool	drawingOn
	flag if the extension should draw, needs to be checked inside of the draw() method More...

SoSFBool	editingOn
	flag if the extension should edit objects on mouse events, needs to be checked inside of the evalEvent() method More...

SoSFBool	maskValid
	flag if the event mask is valid. More...

SoSFFloat	selectionTolerance
	the selection tolerance in pixels More...

SoSFBool	wantsAllEvents
	flag if ALL events should be passed to evalEvent(), if disabled, events are only passed to evalEvent when the mouse mask gets valid More...

SoSFBool	wantsKeyEvents
	flag if keyboard events should be passed to evalEvent() More...

SoSFBool	wantsMouseWheelEvents
	flag if MouseWheel events should be passed to evalEvent() More...

SoSFBool	setEventHandled
	Set event handled if it is indeed handled by this extension. More...

SoSFBool	ignoreHandledEvents
	Ignore events, that have been handled by previous extensions. More...

SoSFEnum	button1
	mouse mask for button1 More...

SoSFEnum	button2
	mouse mask for button2 More...

SoSFEnum	button3
	mouse mask for button3 More...

SoSFEnum	shift
	shift modifier for mouse mask More...

SoSFEnum	control
	shift control for mouse mask More...

SoSFEnum	alt
	shift alt for mouse mask More...

SoSFBool	needsValidVoxel
	sets if a valid voxel must be hit to get evalEvent() calls More...

SoSFBool	renderOnSlab
	defines if the extension should be rendered on all slab slices More...

SoSFBool	createNewMode
	flag if extension is in createNewMode More...

SoSFTrigger	createNewModeRequest

SoSFBool	clipToSlice
	Flag to clip drawing to slice. More...

SoSFEnum	cursorShape
	Set cursor shape if the mouse mask fits and mouseEvents are effectively sent to evalEvent for editing. More...

SoSFBool	fixZOn
	DEPRECATED flag that indicates that the extension should fix the z value, only used in SoView2DRectangle. More...

Public Attributes inherited from SoInteractionProviderNode
SoSFString	instanceName
	Defines interface field to store the instance name. More...

SoSFString	interactionProviderID
	This field overrides the instanceName as providerID if specified. More...

Protected Member Functions
virtual SbString	restrict (const SbString &value, int maxLength) const
	restrict string to maximum length, appending "..." if string was truncated More...

virtual SbString	asString (int value) const
	return numeric value formatted as string derived classes might e.g. More...

virtual SbString	asString (double value, int precision) const

virtual SbString	getDicomTagValueAsString (DCMTree::Const_TagPtr tagPtr, unsigned int index, unsigned int precision) const
	get the value of a dicom tag for display purposes; derived classes might e.g. More...

void	editingOnChanged (SoField *field) override
	called when editingOn field is touched: More...

virtual void	clearViewerCache (SoField *field)
	called when any field is changed that affects cached changes More...

Protected Member Functions inherited from SoView2DInteractionExtension
	~SoView2DInteractionExtension () override
	destructor More...

bool	isValidLocation (const SoPointerPosition &pos)
	return true if the position is inside the image or needsValidVoxel is not set More...

virtual bool	shouldPointingActionBeEnabled ()

void	editingOnChanged (SoField *field) override
	called when editingOn field is touched: More...

void	buttonMaskChanged (SoField *field) override
	called when one of the button/modifier fields is touched: More...

virtual int	getCurrentCursor (SoViewerProxy *viewerProxy)
	interface forwarded from SoPointingAction: More...

virtual void	setHighlightAt (const SoPointerPosition &)

virtual void	unsetHighlight ()

virtual int	getNumInteractionModes () const

virtual void	setInteractionMode (int)

Protected Member Functions inherited from SoView2DExtension
virtual void	createNewModeRequestTriggered (SoField *)
	called when createNewModeRequest field ist touched: More...

	~SoView2DExtension () override
	destructor More...

void	GLRender (SoGLRenderAction *action) override
	Inventor actions. More...

void	callback (SoCallbackAction *action) override

void	handleEvent (SoHandleEventAction *action) override

void	getMatrix (SoGetMatrixAction *action) override

void	getBoundingBox (SoGetBoundingBoxAction *action) override

void	pick (SoPickAction *action) override

void	doAction (SoAction *action) override

Protected Member Functions inherited from SoInteractionOwner
virtual void	pointerPosition (const SoPointerPosition &)
	Override this if you always need to be informed of the current mouse cursor position. More...

virtual void	pointerLeftWindow ()
	This is called when the mouse cursor leaves the window. More...

bool	hasInteractions () const
	Returns whether there are any actions defined by this owner. More...

template<class T >
bool	hasInteractionsOfType () const
	Same as above, but asking for a specific type of interaction. More...

void	addPointingAction (SoPointingAction *)

void	addCommandAction (SoCommandAction *)

void	addOffsetAction (SoOffsetAction *)

Additional Inherited Members
Protected Attributes inherited from SoView2DInteractionExtension
SoPointingAction *	_pointingAction

Protected Attributes inherited from SoView2DExtension
SoNodeSensor *	_nodeSensor
	node sensor that is used to notice field changes More...

float	_rgbColor [4]
	Color of the object, update on each field change by _nodeSensor. More...

bool	_wantsMouseOverUpdateEvents
	set this flag to receive mouse over events while the extension is active More...

Detailed Description

Annotation extension for the SoView2D.

For a detailed description of the module and its fields, see the MeVisLab HTML documentation

Definition at line 108 of file SoView2DAnnotation.h.

Member Enumeration Documentation

◆ AlignPosition

enum SoView2DAnnotation::AlignPosition

Mode for alignment of text boxes on viewer.

Enumerator
TOP_LEFT
TOP_RIGHT
BOTTOM_LEFT
BOTTOM_RIGHT
BOTTOM_CENTER
CENTER_CENTER

Definition at line 115 of file SoView2DAnnotation.h.

Constructor & Destructor Documentation

◆ SoView2DAnnotation()

SoView2DAnnotation::SoView2DAnnotation ( )

Constructor.

◆ ~SoView2DAnnotation()

SoView2DAnnotation::~SoView2DAnnotation ( )

override

Member Function Documentation

◆ asString() [1/2]

virtual SbString SoView2DAnnotation::asString	(	double	value,
		int	precision
	)		const

protectedvirtual

◆ asString() [2/2]

virtual SbString SoView2DAnnotation::asString ( int value ) const

protectedvirtual

return numeric value formatted as string derived classes might e.g.

override the formatting

◆ calculateCenterTextMargins()

virtual Margins SoView2DAnnotation::calculateCenterTextMargins	(	int	width,
		int	height
	)

virtual

margins for center text (horizontally) can be different

◆ calculateOrientationModelOffset()

virtual int SoView2DAnnotation::calculateOrientationModelOffset	(	int	viewSize,
		const SoSFFloat &	relativeOffset,
		const SoSFInt32 &	minOffsetPixels,
		const SoSFInt32 &	maxOffsetPixels
	)

virtual

calculates an offset for the orientation model position

◆ calculateOrientationModelRotationMatrix()

SbMatrix SoView2DAnnotation::calculateOrientationModelRotationMatrix ( View2DSlice * slice )

calculates the rotation matrix for the orientation model

◆ calculateOrientationModelSize()

virtual int SoView2DAnnotation::calculateOrientationModelSize	(	int	width,
		int	height
	)

virtual

calculates the size of the orientation model

◆ calculateTextMargins()

virtual Margins SoView2DAnnotation::calculateTextMargins	(	int	width,
		int	height
	)

virtual

calculates the margin of the text annotations (to be reimplemented by a derived class)

◆ clearViewerCache()

virtual void SoView2DAnnotation::clearViewerCache ( SoField * field )

inlineprotectedvirtual

called when any field is changed that affects cached changes

Definition at line 385 of file SoView2DAnnotation.h.

◆ decimalFloor()

float SoView2DAnnotation::decimalFloor	(	float	number,
		SbString &	result,
		int &	divider
	)

returns the closest decimal floor and copies a printable string into the buffer

◆ dragMoveTo()

void SoView2DAnnotation::dragMoveTo ( const SoPointerPosition & pos )

overridevirtual

Reimplemented from SoView2DInteractionExtension.

◆ draw()

void SoView2DAnnotation::draw	(	View2DSliceList *	dsl,
		View2DSlice *	dslice,
		int	slice
	)

overridevirtual

draw annotations on slice

Reimplemented from SoView2DExtension.

◆ drawAndStoreCubePolygon()

virtual void SoView2DAnnotation::drawAndStoreCubePolygon	(	char	letter,
		const SbMatrix &	rotationMatrix,
		int	posX,
		int	posY,
		int	modelSize,
		int	pass,
		const SbVec3f &	pos0,
		const SbVec3f &	pos1,
		const SbVec3f &	pos2,
		const SbVec3f &	pos3
	)

virtual

Draws an orientation cube polygon (a side of the cube) and stores the projected polygon in an internal structure for a later hit test.

◆ drawAnnotation()

void SoView2DAnnotation::drawAnnotation	(	const char *	string,
		const PixelBoundingBox &	pixelBoundingBox,
		int	fontsize,
		AlignPosition	pos,
		bool	shouldDrawBox,
		int &	outBoxWidth,
		int &	outBoxHeight
	)

draws an AnnotationBox at the given position

◆ drawHorizontalRuler()

void SoView2DAnnotation::drawHorizontalRuler	(	View2DSliceList *	dsl,
		View2DSlice *	dslice,
		bool	drawText,
		int	marginBottom,
		const PixelBoundingBox &	pixelBoundingBox
	)

◆ drawOrientation()

void SoView2DAnnotation::drawOrientation	(	const char *	string,
		float	posX,
		float	posY,
		float	fontSize,
		View2DFont *	font,
		float	relOffX,
		float	relOffY,
		float *	orWeights
	)

Draw orientation letters.

◆ drawOrientationCube()

virtual void SoView2DAnnotation::drawOrientationCube	(	const SbMatrix &	rotationMatrix,
		int	posX,
		int	posY,
		int	modelSize
	)

virtual

draws the annotation model for the given rotation matrix at the given position and size using the built in model

◆ drawOrientationCubeLetter()

virtual void SoView2DAnnotation::drawOrientationCubeLetter	(	char	letter,
		int	modelSize,
		bool	shadowPass
	)

virtual

draw the given letters.

The letter should be drawn at [0.,0.] and may draw from [-0.5,-0.5] to [0.5, 0.5] to fill the side of the model. (Rotation and translation are done in the outer code).

◆ drawOrientationModelUsingInventor()

virtual void SoView2DAnnotation::drawOrientationModelUsingInventor	(	SoAction *	action,
		const SbMatrix &	rotationMatrix,
		int	posX,
		int	posY,
		int	modelSize
	)

virtual

draws the annotation model for the given rotation matrix at the given position and size using the inOrientationModel scene

◆ drawVerticalRuler()

void SoView2DAnnotation::drawVerticalRuler	(	View2DSliceList *	dsl,
		View2DSlice *	dslice,
		bool	drawText,
		int	marginRight,
		const PixelBoundingBox &	pixelBoundingBox
	)

draws an annotated ruler

◆ drawVerticalRulerTextBelow()

virtual bool SoView2DAnnotation::drawVerticalRulerTextBelow ( ) const

inlinevirtual

override this to draw the unit text below the vertical ruler instead of to the left of it.

Definition at line 278 of file SoView2DAnnotation.h.

◆ editingOnChanged()

void SoView2DAnnotation::editingOnChanged ( SoField * field )

overrideprotectedvirtual

called when editingOn field is touched:

Reimplemented from SoView2DExtension.

◆ endPress()

SoPointingAction* SoView2DAnnotation::endPress ( int clickCount )

overridevirtual

Reimplemented from SoView2DInteractionExtension.

◆ evalEvent()

bool SoView2DAnnotation::evalEvent	(	SoView2D *	view2d,
		View2DSliceList *	slicelist,
		View2DEvent *	ec,
		View2DEventPhase	phase
	)

overridevirtual

handle keyboard events

Reimplemented from SoView2DExtension.

◆ getDicomTagValueAsString()

virtual SbString SoView2DAnnotation::getDicomTagValueAsString	(	DCMTree::Const_TagPtr	tagPtr,
		unsigned int	index,
		unsigned int	precision
	)		const

protectedvirtual

get the value of a dicom tag for display purposes; derived classes might e.g.

override the formatting

◆ getExtOrientation()

static void SoView2DAnnotation::getExtOrientation	(	int	axis,
		SbMatrix &	matrix,
		float *	orWeights,
		char *	negOrientation,
		char *	posOrientation
	)

static

Return extended orientation letters (up to three letters for oblique views) and weights.

◆ getTargetSizeInScene()

static SbVec2f SoView2DAnnotation::getTargetSizeInScene	(	SoNode *	scene,
		int	width,
		int	height
	)

static

Get the minimum view port size of all SoView2Ds in the given scene, provided the scene would be displayed in a viewer with size windowX * windowY.

◆ implementsManagedInteraction()

virtual bool SoView2DAnnotation::implementsManagedInteraction ( ) const

inlinevirtual

also implements managed interactions

Definition at line 353 of file SoView2DAnnotation.h.

◆ implementsManagedInteractionAndClassicEventHandling()

bool SoView2DAnnotation::implementsManagedInteractionAndClassicEventHandling ( ) const

inlineoverridevirtual

this node is a hybrid module providing managed interaction and classic event handling

SoView2D::useManagedInteraction decides which one to use

Reimplemented from SoView2DExtension.

Definition at line 357 of file SoView2DAnnotation.h.

◆ initClass()

static void SoView2DAnnotation::initClass ( )

static

inventor runtime type system

◆ isSensitiveAt()

bool SoView2DAnnotation::isSensitiveAt ( const SoPointerPosition & pos )

overridevirtual

interface forwarded from SoPointingAction:

Reimplemented from SoView2DInteractionExtension.

◆ parseString()

void SoView2DAnnotation::parseString	(	View2DSliceList *	list,
		View2DSlice *	slice,
		const SbString &	string,
		SbString &	resultString,
		int	limitToChars = `-1`
	)

parses the given string and substitutes and

◆ restrict()

virtual SbString SoView2DAnnotation::restrict	(	const SbString &	value,
		int	maxLength
	)		const

protectedvirtual

restrict string to maximum length, appending "..." if string was truncated

◆ startPressAt()

void SoView2DAnnotation::startPressAt ( const SoPointerPosition & pos )

overridevirtual

Reimplemented from SoView2DInteractionExtension.

◆ toggleAnnotation()

void SoView2DAnnotation::toggleAnnotation ( )

toggle displayed information

◆ toggleTechnicalInfo()

void SoView2DAnnotation::toggleTechnicalInfo ( )

Member Data Documentation

◆ abreviateChars

SoSFInt32 SoView2DAnnotation::abreviateChars

Definition at line 175 of file SoView2DAnnotation.h.

◆ abreviateShortChars

SoSFInt32 SoView2DAnnotation::abreviateShortChars

Definition at line 176 of file SoView2DAnnotation.h.

◆ annotationCTBottomCenter

SoSFString SoView2DAnnotation::annotationCTBottomCenter

Definition at line 136 of file SoView2DAnnotation.h.

◆ annotationCTBottomLeft

SoSFString SoView2DAnnotation::annotationCTBottomLeft

Definition at line 134 of file SoView2DAnnotation.h.

◆ annotationCTBottomRight

SoSFString SoView2DAnnotation::annotationCTBottomRight

Definition at line 135 of file SoView2DAnnotation.h.

◆ annotationCTTopLeft

SoSFString SoView2DAnnotation::annotationCTTopLeft

Definition at line 132 of file SoView2DAnnotation.h.

◆ annotationCTTopRight

SoSFString SoView2DAnnotation::annotationCTTopRight

Definition at line 133 of file SoView2DAnnotation.h.

◆ annotationFontSize

SoSFEnum SoView2DAnnotation::annotationFontSize

Definition at line 161 of file SoView2DAnnotation.h.

◆ annotationMode

SoSFEnum SoView2DAnnotation::annotationMode

Definition at line 159 of file SoView2DAnnotation.h.

◆ annotationMRBottomCenter

SoSFString SoView2DAnnotation::annotationMRBottomCenter

Definition at line 142 of file SoView2DAnnotation.h.

◆ annotationMRBottomLeft

SoSFString SoView2DAnnotation::annotationMRBottomLeft

Definition at line 140 of file SoView2DAnnotation.h.

◆ annotationMRBottomRight

SoSFString SoView2DAnnotation::annotationMRBottomRight

Definition at line 141 of file SoView2DAnnotation.h.

◆ annotationMRTopLeft

SoSFString SoView2DAnnotation::annotationMRTopLeft

Definition at line 138 of file SoView2DAnnotation.h.

◆ annotationMRTopRight

SoSFString SoView2DAnnotation::annotationMRTopRight

Definition at line 139 of file SoView2DAnnotation.h.

◆ annotationUserBottomCenter

SoSFString SoView2DAnnotation::annotationUserBottomCenter

Definition at line 130 of file SoView2DAnnotation.h.

◆ annotationUserBottomLeft

SoSFString SoView2DAnnotation::annotationUserBottomLeft

Definition at line 128 of file SoView2DAnnotation.h.

◆ annotationUserBottomRight

SoSFString SoView2DAnnotation::annotationUserBottomRight

Definition at line 129 of file SoView2DAnnotation.h.

◆ annotationUserTopLeft

SoSFString SoView2DAnnotation::annotationUserTopLeft

Fields.

Definition at line 126 of file SoView2DAnnotation.h.

◆ annotationUserTopRight

SoSFString SoView2DAnnotation::annotationUserTopRight

Definition at line 127 of file SoView2DAnnotation.h.

◆ backgroundColor

SoSFColor SoView2DAnnotation::backgroundColor

Definition at line 228 of file SoView2DAnnotation.h.

◆ backgroundEdgeColor

SoSFColor SoView2DAnnotation::backgroundEdgeColor

Definition at line 230 of file SoView2DAnnotation.h.

◆ backgroundEdgeOpacity

SoSFFloat SoView2DAnnotation::backgroundEdgeOpacity

Definition at line 231 of file SoView2DAnnotation.h.

◆ backgroundOpacity

SoSFFloat SoView2DAnnotation::backgroundOpacity

Definition at line 229 of file SoView2DAnnotation.h.

◆ drawBackgroundBox

SoSFBool SoView2DAnnotation::drawBackgroundBox

Definition at line 227 of file SoView2DAnnotation.h.

◆ drawNegativeOrientation

SoSFBool SoView2DAnnotation::drawNegativeOrientation

Definition at line 179 of file SoView2DAnnotation.h.

◆ drawPositiveOrientation

SoSFBool SoView2DAnnotation::drawPositiveOrientation

Definition at line 180 of file SoView2DAnnotation.h.

◆ fontWidthDummyString

SoSFString SoView2DAnnotation::fontWidthDummyString

Definition at line 166 of file SoView2DAnnotation.h.

◆ hitOrientationLetter

SoSFString SoView2DAnnotation::hitOrientationLetter

Definition at line 236 of file SoView2DAnnotation.h.

◆ horizontalRuler

SoSFBool SoView2DAnnotation::horizontalRuler

Definition at line 184 of file SoView2DAnnotation.h.

◆ horizontalRulerMarginBottom

SoSFInt32 SoView2DAnnotation::horizontalRulerMarginBottom

Definition at line 186 of file SoView2DAnnotation.h.

◆ inOrientationModel

SoSFNode SoView2DAnnotation::inOrientationModel

Definition at line 233 of file SoView2DAnnotation.h.

◆ input00

SoSFString SoView2DAnnotation::input00

Definition at line 204 of file SoView2DAnnotation.h.

◆ input01

SoSFString SoView2DAnnotation::input01

Definition at line 205 of file SoView2DAnnotation.h.

◆ input02

SoSFString SoView2DAnnotation::input02

Definition at line 206 of file SoView2DAnnotation.h.

◆ input03

SoSFString SoView2DAnnotation::input03

Definition at line 207 of file SoView2DAnnotation.h.

◆ input04

SoSFString SoView2DAnnotation::input04

Definition at line 208 of file SoView2DAnnotation.h.

◆ input05

SoSFString SoView2DAnnotation::input05

Definition at line 209 of file SoView2DAnnotation.h.

◆ input06

SoSFString SoView2DAnnotation::input06

Definition at line 210 of file SoView2DAnnotation.h.

◆ input07

SoSFString SoView2DAnnotation::input07

Definition at line 211 of file SoView2DAnnotation.h.

◆ input08

SoSFString SoView2DAnnotation::input08

Definition at line 212 of file SoView2DAnnotation.h.

◆ input09

SoSFString SoView2DAnnotation::input09

Definition at line 213 of file SoView2DAnnotation.h.

◆ isMouseOverCube

SoSFBool SoView2DAnnotation::isMouseOverCube

Definition at line 235 of file SoView2DAnnotation.h.

◆ marginBottom

SoSFInt32 SoView2DAnnotation::marginBottom

Definition at line 172 of file SoView2DAnnotation.h.

◆ marginLeft

SoSFInt32 SoView2DAnnotation::marginLeft

Definition at line 171 of file SoView2DAnnotation.h.

◆ marginRight

SoSFInt32 SoView2DAnnotation::marginRight

Definition at line 173 of file SoView2DAnnotation.h.

◆ marginTop

SoSFInt32 SoView2DAnnotation::marginTop

Definition at line 170 of file SoView2DAnnotation.h.

◆ maxDetailFontSize

SoSFInt32 SoView2DAnnotation::maxDetailFontSize

Definition at line 151 of file SoView2DAnnotation.h.

◆ maxShortFontSize

SoSFInt32 SoView2DAnnotation::maxShortFontSize

Definition at line 153 of file SoView2DAnnotation.h.

◆ minDetailFontSize

SoSFInt32 SoView2DAnnotation::minDetailFontSize

Definition at line 150 of file SoView2DAnnotation.h.

◆ minShortFontSize

SoSFInt32 SoView2DAnnotation::minShortFontSize

Definition at line 152 of file SoView2DAnnotation.h.

◆ numInput00

SoSFDouble SoView2DAnnotation::numInput00

Definition at line 215 of file SoView2DAnnotation.h.

◆ numInput01

SoSFDouble SoView2DAnnotation::numInput01

Definition at line 216 of file SoView2DAnnotation.h.

◆ numInput02

SoSFDouble SoView2DAnnotation::numInput02

Definition at line 217 of file SoView2DAnnotation.h.

◆ numInput03

SoSFDouble SoView2DAnnotation::numInput03

Definition at line 218 of file SoView2DAnnotation.h.

◆ numInput04

SoSFDouble SoView2DAnnotation::numInput04

Definition at line 219 of file SoView2DAnnotation.h.

◆ numInput05

SoSFDouble SoView2DAnnotation::numInput05

Definition at line 220 of file SoView2DAnnotation.h.

◆ numInput06

SoSFDouble SoView2DAnnotation::numInput06

Definition at line 221 of file SoView2DAnnotation.h.

◆ numInput07

SoSFDouble SoView2DAnnotation::numInput07

Definition at line 222 of file SoView2DAnnotation.h.

◆ numInput08

SoSFDouble SoView2DAnnotation::numInput08

Definition at line 223 of file SoView2DAnnotation.h.

◆ numInput09

SoSFDouble SoView2DAnnotation::numInput09

Definition at line 224 of file SoView2DAnnotation.h.

◆ orientationAndScaleFromCamera

SoSFBool SoView2DAnnotation::orientationAndScaleFromCamera

field that enables getting the orientation matrix from the Inventor scene instead of the input image

Definition at line 240 of file SoView2DAnnotation.h.

◆ orientationColor

SoSFColor SoView2DAnnotation::orientationColor

Definition at line 181 of file SoView2DAnnotation.h.

◆ orientationModel

SoSFBool SoView2DAnnotation::orientationModel

Definition at line 188 of file SoView2DAnnotation.h.

◆ orientationModelColor

SoSFColor SoView2DAnnotation::orientationModelColor

Definition at line 200 of file SoView2DAnnotation.h.

◆ orientationModelMaxHorizontalOffset

SoSFInt32 SoView2DAnnotation::orientationModelMaxHorizontalOffset

Definition at line 198 of file SoView2DAnnotation.h.

◆ orientationModelMaxSize

SoSFInt32 SoView2DAnnotation::orientationModelMaxSize

Definition at line 192 of file SoView2DAnnotation.h.

◆ orientationModelMaxVerticalOffset

SoSFInt32 SoView2DAnnotation::orientationModelMaxVerticalOffset

Definition at line 195 of file SoView2DAnnotation.h.

◆ orientationModelMinHorizontalOffset

SoSFInt32 SoView2DAnnotation::orientationModelMinHorizontalOffset

Definition at line 197 of file SoView2DAnnotation.h.

◆ orientationModelMinSize

SoSFInt32 SoView2DAnnotation::orientationModelMinSize

Definition at line 191 of file SoView2DAnnotation.h.

◆ orientationModelMinVerticalOffset

SoSFInt32 SoView2DAnnotation::orientationModelMinVerticalOffset

Definition at line 194 of file SoView2DAnnotation.h.

◆ orientationModelPosition

SoSFEnum SoView2DAnnotation::orientationModelPosition

Definition at line 189 of file SoView2DAnnotation.h.

◆ orientationModelRelativeHorizontalOffset

SoSFFloat SoView2DAnnotation::orientationModelRelativeHorizontalOffset

Definition at line 196 of file SoView2DAnnotation.h.

◆ orientationModelRelativeSize

SoSFFloat SoView2DAnnotation::orientationModelRelativeSize

Definition at line 190 of file SoView2DAnnotation.h.

◆ orientationModelRelativeVerticalOffset

SoSFFloat SoView2DAnnotation::orientationModelRelativeVerticalOffset

Definition at line 193 of file SoView2DAnnotation.h.

◆ rulerFontSize

SoSFInt32 SoView2DAnnotation::rulerFontSize

Definition at line 157 of file SoView2DAnnotation.h.

◆ rulerShadow

SoSFBool SoView2DAnnotation::rulerShadow

Definition at line 164 of file SoView2DAnnotation.h.

◆ shortBottomCenter

SoSFString SoView2DAnnotation::shortBottomCenter

Definition at line 148 of file SoView2DAnnotation.h.

◆ shortBottomLeft

SoSFString SoView2DAnnotation::shortBottomLeft

Definition at line 146 of file SoView2DAnnotation.h.

◆ shortBottomRight

SoSFString SoView2DAnnotation::shortBottomRight

Definition at line 147 of file SoView2DAnnotation.h.

◆ shortTopLeft

SoSFString SoView2DAnnotation::shortTopLeft

Definition at line 144 of file SoView2DAnnotation.h.

◆ shortTopRight

SoSFString SoView2DAnnotation::shortTopRight

Definition at line 145 of file SoView2DAnnotation.h.

◆ showAnnotation

SoSFEnum SoView2DAnnotation::showAnnotation

Definition at line 160 of file SoView2DAnnotation.h.

◆ showOrientation

SoSFEnum SoView2DAnnotation::showOrientation

Definition at line 178 of file SoView2DAnnotation.h.

◆ showTechnicalInfo

SoSFBool SoView2DAnnotation::showTechnicalInfo

Definition at line 202 of file SoView2DAnnotation.h.

◆ targetHeight

SoSFInt32 SoView2DAnnotation::targetHeight

Definition at line 168 of file SoView2DAnnotation.h.

◆ targetWidth

SoSFInt32 SoView2DAnnotation::targetWidth

Definition at line 167 of file SoView2DAnnotation.h.

◆ textShadow

SoSFBool SoView2DAnnotation::textShadow

Definition at line 162 of file SoView2DAnnotation.h.

◆ textShadowColor

SoSFColor SoView2DAnnotation::textShadowColor

Definition at line 163 of file SoView2DAnnotation.h.

◆ userDetailFontSize

SoSFInt32 SoView2DAnnotation::userDetailFontSize

Definition at line 154 of file SoView2DAnnotation.h.

◆ userShortFontSize

SoSFInt32 SoView2DAnnotation::userShortFontSize

Definition at line 155 of file SoView2DAnnotation.h.

◆ verticalRuler

SoSFBool SoView2DAnnotation::verticalRuler

Definition at line 183 of file SoView2DAnnotation.h.

◆ verticalRulerMarginRight

SoSFInt32 SoView2DAnnotation::verticalRulerMarginRight

Definition at line 185 of file SoView2DAnnotation.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoView2D/extensions/SoView2DAnnotation.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ AlignPosition

Constructor & Destructor Documentation

◆ SoView2DAnnotation()

◆ ~SoView2DAnnotation()

Member Function Documentation

◆ asString() [1/2]

◆ asString() [2/2]

◆ calculateCenterTextMargins()

◆ calculateOrientationModelOffset()

◆ calculateOrientationModelRotationMatrix()

◆ calculateOrientationModelSize()

◆ calculateTextMargins()

◆ clearViewerCache()

◆ decimalFloor()

◆ dragMoveTo()

◆ draw()

◆ drawAndStoreCubePolygon()

◆ drawAnnotation()

◆ drawHorizontalRuler()

◆ drawOrientation()

◆ drawOrientationCube()

◆ drawOrientationCubeLetter()

◆ drawOrientationModelUsingInventor()

◆ drawVerticalRuler()

◆ drawVerticalRulerTextBelow()

◆ editingOnChanged()

◆ endPress()

◆ evalEvent()

◆ getDicomTagValueAsString()

◆ getExtOrientation()

◆ getTargetSizeInScene()

◆ implementsManagedInteraction()

◆ implementsManagedInteractionAndClassicEventHandling()

◆ initClass()

◆ isSensitiveAt()

◆ parseString()

◆ restrict()

◆ startPressAt()

◆ toggleAnnotation()

◆ toggleTechnicalInfo()

Member Data Documentation

◆ abreviateChars

◆ abreviateShortChars

◆ annotationCTBottomCenter

◆ annotationCTBottomLeft

◆ annotationCTBottomRight

◆ annotationCTTopLeft

◆ annotationCTTopRight

◆ annotationFontSize

◆ annotationMode

◆ annotationMRBottomCenter

◆ annotationMRBottomLeft

◆ annotationMRBottomRight

◆ annotationMRTopLeft

◆ annotationMRTopRight

◆ annotationUserBottomCenter

◆ annotationUserBottomLeft

◆ annotationUserBottomRight

◆ annotationUserTopLeft

◆ annotationUserTopRight

◆ backgroundColor

◆ backgroundEdgeColor

◆ backgroundEdgeOpacity

◆ backgroundOpacity

◆ drawBackgroundBox

◆ drawNegativeOrientation

◆ drawPositiveOrientation

◆ fontWidthDummyString

◆ hitOrientationLetter

◆ horizontalRuler

◆ horizontalRulerMarginBottom
