SoCommandAction is the base class for instantaneous actions. More...

#include <SoCommandAction.h>

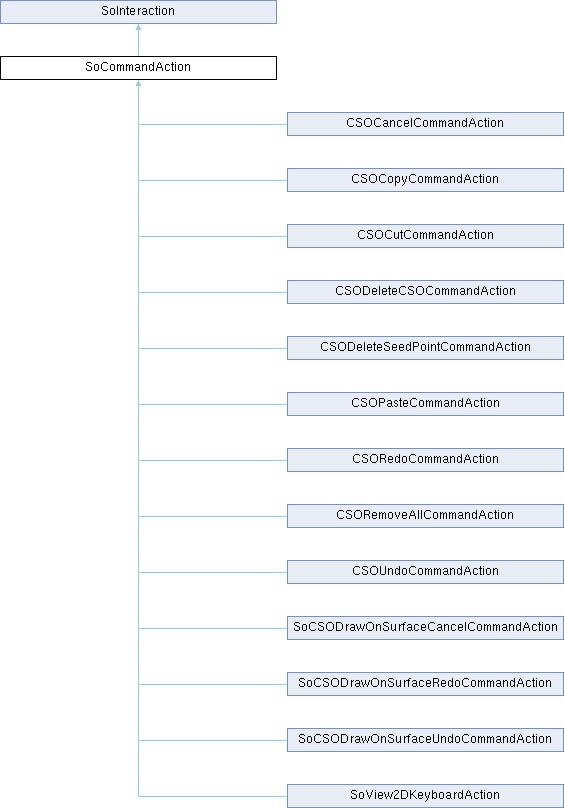

Inheritance diagram for SoCommandAction:

Public Types
enum	{ TypeId = TypeCommandAction }

typedef ManagedKeyboardShortcut	Shortcut
	Class Shortcut encapsulates the combination of modifier keys and another key that activates a command. More...

typedef std::list< Shortcut >	ShortcutList
	A list of shortcuts. More...

typedef ManagedKeyboardShortcut	Trigger
	Also define Trigger as synonym for Shortcut, since that name is used by the other interactions. More...

typedef std::list< Shortcut >	TriggerList
	Defines TriggerList as synonym for ShortcutList. More...

Public Types inherited from SoInteraction
enum	{ NoModifier = ManagedActionTrigger::NoModifier , ShiftModifier = ManagedActionTrigger::ShiftModifier , ControlModifier = ManagedActionTrigger::ControlModifier , AltModifier = ManagedActionTrigger::AltModifier , AllModifiersMask = ManagedActionTrigger::AllModifiersMask , ShiftMask = ShiftModifier , CtrlMask = ControlModifier , AltMask = AltModifier }
	Constants to use where keyboard modifiers must be specified. More...

enum	InteractionType { TypePointingAction , TypeCommandAction , TypeOffsetAction }
	Enum identifying subtypes of this class. More...

Public Member Functions
	SoCommandAction (SoInteractionOwner *owner, std::string id)
	Standard constructor. More...

bool	setShortcut (const std::string &shortcut)
	Sets the (only) default key shortcut (as string describing the shortcut, see ManagedKeyboardShortcut::fromString). More...

void	setShortcut (const Shortcut &shortcut)
	Sets the (only) default key shortcut. More...

void	addShortcut (const Shortcut &shortcut)
	Adds another default key shortcut. More...

void	clearShortcuts ()
	Clears all currently set shortcuts. More...

ShortcutList	getShortcuts () const
	Returns the default key shortcuts. More...

TriggerList	getTriggers () const
	Alternative name for getShortcuts() More...

virtual bool	isShortcut (int modifiers, SoKeyboardEvent::Key keyCode) const
	Checks whether the given key with the given modifiers is a shortcut for this action; see SoInteraction for possible modifiers. More...

virtual void	execute ()=0
	Executes the action. Must be overridden by user. More...

Public Member Functions inherited from SoInteraction
	SoInteraction (InteractionType type, SoInteractionOwner *owner, const std::string &id, bool registerWithOwner=true)
	Standard constructor. More...

virtual	~SoInteraction ()
	Virtual destructor. More...

SoInteractionOwner *	getOwner () const
	Returns the interaction provider of this entry. More...

virtual bool	isEnabled () const
	Returns the enabled status of this interaction - if this returns `false`, the action is not selectable (but if a mouse action has already been started, it will not be aborted if this returns `false`). More...

virtual void	setEnabled (bool enabled)
	Sets the enabled status of this interaction. More...

std::string	getID () const
	Returns the ID of this interaction. More...

void	setID (const std::string &id)
	Sets the ID of this interaction. More...

std::string	getFullID () const
	Returns the ID string consisting of the ID of the provider and this action's ID, separated by '. More...

InteractionType	getInteractionType () const
	Returns type of interaction object. More...

template<class T >
bool	isOfType () const
	Convenience method for checking type. More...

int	getMenuPriority () const

void	setMenuPriority (int priority)
	Sets the priority value for ordered display in menus/tool boxes. More...

virtual std::string	getUserName () const
	Returns user-visible name of this item for direct display (e.g., in tool box or menu). More...

virtual void	setUserName (const std::string &name)
	Sets the user name of this interaction entry. More...

virtual std::string	getIconFile () const
	Returns the filename of an icon (e.g., for use in a tool box or in menu). More...

virtual void	setIconFile (const std::string &file)
	Sets the filename of an icon used for this interaction entry. More...

virtual std::string	getDescription () const
	Returns the description for user help. More...

virtual void	setDescription (const std::string &descr)
	Sets the description for user help. More...

virtual void	ref ()

virtual void	unref ()

int	getStateVersion () const

void	touch ()
	Increments the version number of attribute state to mark attribute changes. More...

Detailed Description

SoCommandAction is the base class for instantaneous actions.

You need to override execute() in derived classes!

Some special action IDs should be reserved for special purposes (or rather for standard edit commands): undo, redo, cut, copy, paste, and selectAll; - if you implement these, implement the expected behavior!

Note: If you want to implement commands that act on a specific cursor location, you need to override the methods SoInteractionProvider::pointerPosition and SoInteractionProvider::pointerLeftWindow in your node and store the required information in member variables.; You should always disable a SoCommandAction if it currently cannot be applied, so that other command actions that use the same keyboard shortcut can be applied instead.

Definition at line 44 of file SoCommandAction.h.

Member Typedef Documentation

◆ Shortcut

typedef ManagedKeyboardShortcut SoCommandAction::Shortcut

Class Shortcut encapsulates the combination of modifier keys and another key that activates a command.

Definition at line 53 of file SoCommandAction.h.

◆ ShortcutList

typedef std::list<Shortcut> SoCommandAction::ShortcutList

A list of shortcuts.

Definition at line 56 of file SoCommandAction.h.

◆ Trigger

typedef ManagedKeyboardShortcut SoCommandAction::Trigger

Also define Trigger as synonym for Shortcut, since that name is used by the other interactions.

Definition at line 59 of file SoCommandAction.h.

◆ TriggerList

typedef std::list<Shortcut> SoCommandAction::TriggerList

Defines TriggerList as synonym for ShortcutList.

Definition at line 62 of file SoCommandAction.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
TypeId

Definition at line 49 of file SoCommandAction.h.

Constructor & Destructor Documentation

◆ SoCommandAction()

SoCommandAction::SoCommandAction	(	SoInteractionOwner *	owner,
		std::string	id
	)

Standard constructor.

Parameters

owner	The SoInteractionOwner to which the action is added. Ownership is automatically transferred, you do not need to free this object.
id	The name of this interaction, it should hint at its purpose

Member Function Documentation

◆ addShortcut()

void SoCommandAction::addShortcut ( const Shortcut & shortcut )

Adds another default key shortcut.

◆ clearShortcuts()

void SoCommandAction::clearShortcuts ( )

inline

Clears all currently set shortcuts.

Definition at line 81 of file SoCommandAction.h.

◆ execute()

virtual void SoCommandAction::execute ( )

pure virtual

Executes the action. Must be overridden by user.

Implemented in SoView2DKeyboardAction, CSORemoveAllCommandAction, CSOCancelCommandAction, CSORedoCommandAction, CSOUndoCommandAction, CSODeleteCSOCommandAction, CSODeleteSeedPointCommandAction, CSOPasteCommandAction, CSOCutCommandAction, CSOCopyCommandAction, SoCSODrawOnSurfaceRedoCommandAction, SoCSODrawOnSurfaceUndoCommandAction, and SoCSODrawOnSurfaceCancelCommandAction.

◆ getShortcuts()

ShortcutList SoCommandAction::getShortcuts ( ) const

inline

Returns the default key shortcuts.

Definition at line 84 of file SoCommandAction.h.

◆ getTriggers()

TriggerList SoCommandAction::getTriggers ( ) const

inline

Alternative name for getShortcuts()

Definition at line 87 of file SoCommandAction.h.

◆ isShortcut()

virtual bool SoCommandAction::isShortcut	(	int	modifiers,
		SoKeyboardEvent::Key	keyCode
	)		const

virtual

Checks whether the given key with the given modifiers is a shortcut for this action; see SoInteraction for possible modifiers.

Overrides from the interaction controller are ignored by this method.

◆ setShortcut() [1/2]

void SoCommandAction::setShortcut ( const Shortcut & shortcut )

Sets the (only) default key shortcut.

◆ setShortcut() [2/2]

bool SoCommandAction::setShortcut ( const std::string & shortcut )

Sets the (only) default key shortcut (as string describing the shortcut, see ManagedKeyboardShortcut::fromString).

Referenced by SoCSODrawOnSurfaceCancelCommandAction::SoCSODrawOnSurfaceCancelCommandAction(), SoCSODrawOnSurfaceRedoCommandAction::SoCSODrawOnSurfaceRedoCommandAction(), and SoCSODrawOnSurfaceUndoCommandAction::SoCSODrawOnSurfaceUndoCommandAction().

The documentation for this class was generated from the following file:

MeVis/Foundation/Sources/SoManagedInteraction/SoCommandAction.h
