SoInteraction Class Reference

SoInteraction is the base class for SoCommandAction, SoPointingAction, and SoOffsetAction. More...

#include <SoInteraction.h>

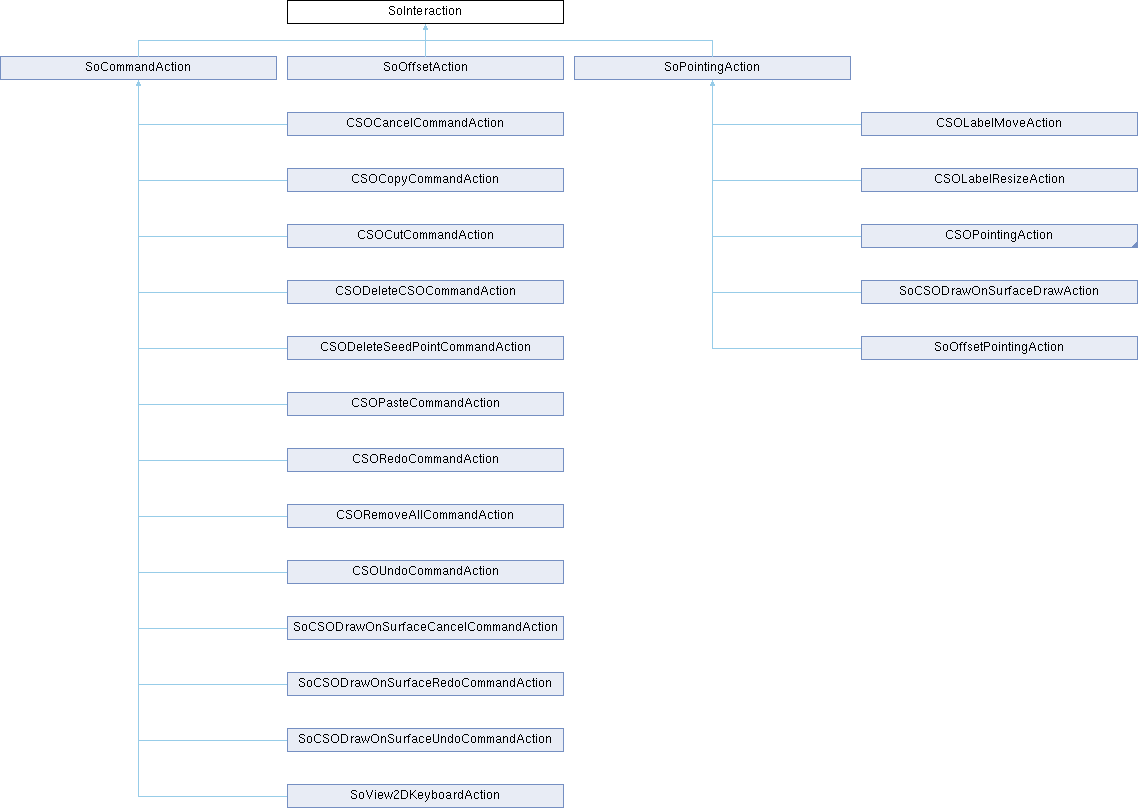

Inheritance diagram for SoInteraction:

Public Types
enum	{   NoModifier = ManagedActionTrigger::NoModifier , ShiftModifier = ManagedActionTrigger::ShiftModifier , ControlModifier = ManagedActionTrigger::ControlModifier , AltModifier = ManagedActionTrigger::AltModifier ,   AllModifiersMask = ManagedActionTrigger::AllModifiersMask , ShiftMask = ShiftModifier , CtrlMask = ControlModifier , AltMask = AltModifier }
	Constants to use where keyboard modifiers must be specified. More...
enum	InteractionType { TypePointingAction , TypeCommandAction , TypeOffsetAction }
	Enum identifying subtypes of this class. More...

Public Member Functions
	SoInteraction (InteractionType type, SoInteractionOwner *owner, const std::string &id, bool registerWithOwner=true)
	Standard constructor. More...
virtual	~SoInteraction ()
	Virtual destructor. More...
SoInteractionOwner *	getOwner () const
	Returns the interaction provider of this entry. More...
virtual bool	isEnabled () const
	Returns the enabled status of this interaction - if this returns false, the action is not selectable (but if a mouse action has already been started, it will not be aborted if this returns false). More...
virtual void	setEnabled (bool enabled)
	Sets the enabled status of this interaction. More...
std::string	getID () const
	Returns the ID of this interaction. More...
void	setID (const std::string &id)
	Sets the ID of this interaction. More...
std::string	getFullID () const
	Returns the ID string consisting of the ID of the provider and this action's ID, separated by '. More...
InteractionType	getInteractionType () const
	Returns type of interaction object. More...
template<class T >
bool	isOfType () const
	Convenience method for checking type. More...
Additional information about this interaction
Returns the priority value for ordered display in menus/tool boxes - lower values come first in the menu.
int	getMenuPriority () const
void	setMenuPriority (int priority)
	Sets the priority value for ordered display in menus/tool boxes. More...
virtual std::string	getUserName () const
	Returns user-visible name of this item for direct display (e.g., in tool box or menu). More...
virtual void	setUserName (const std::string &name)
	Sets the user name of this interaction entry. More...
virtual std::string	getIconFile () const
	Returns the filename of an icon (e.g., for use in a tool box or in menu). More...
virtual void	setIconFile (const std::string &file)
	Sets the filename of an icon used for this interaction entry. More...
virtual std::string	getDescription () const
	Returns the description for user help. More...
virtual void	setDescription (const std::string &descr)
	Sets the description for user help. More...
Memory management by reference counting.
virtual void	ref ()
virtual void	unref ()
Change management
Returns Version number of current attribute state, should change with every attribute change. This might be used by controllers that build a menu of all interactions and tells them when to recreate this menu.
int	getStateVersion () const
void	touch ()
	Increments the version number of attribute state to mark attribute changes. More...

Detailed Description

SoInteraction is the base class for SoCommandAction, SoPointingAction, and SoOffsetAction.

The important method of this class is setEnabled(), which can be used to disable and enable an interaction. Also, getOwner() is notable because it is the object that an interaction has to communicate with.

The other properties of this class are useful for the integration of the offered interactions in menus, tool bars, etc.

Definition at line 35 of file SoInteraction.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Constants to use where keyboard modifiers must be specified.

Modifiers usually can be combined with the bit-wise-or operator (|).

Enumerator
NoModifier
ShiftModifier
ControlModifier
AltModifier
AllModifiersMask
ShiftMask
CtrlMask
AltMask

Definition at line 40 of file SoInteraction.h.

InteractionType

enum SoInteraction::InteractionType

Enum identifying subtypes of this class.

Enumerator
TypePointingAction
TypeCommandAction
TypeOffsetAction

Definition at line 53 of file SoInteraction.h.

Constructor & Destructor Documentation

SoInteraction()

SoInteraction::SoInteraction	(	InteractionType	type,
		SoInteractionOwner *	owner,
		const std::string &	id,
		bool	registerWithOwner = true
	)

Standard constructor.

Besides the type of the interaction, this requires the owner of the interaction and an ID which will be used to discover and override this interaction. The interaction will automatically be added to the owner object.

~SoInteraction()

virtual SoInteraction::~SoInteraction ( )

virtual

Virtual destructor.

You should not usually destroy the interaction yourself, but in some cases this can be used to dynamically remove interactions, where simply disabling the interaction is not adequate.

Member Function Documentation

getDescription()

virtual std::string SoInteraction::getDescription ( ) const

inlinevirtual

Returns the description for user help.

Definition at line 112 of file SoInteraction.h.

getFullID()

std::string SoInteraction::getFullID

(

)

const

Returns the ID string consisting of the ID of the provider and this action's ID, separated by '.

'.

getIconFile()

virtual std::string SoInteraction::getIconFile ( ) const

inlinevirtual

Returns the filename of an icon (e.g., for use in a tool box or in menu).

Definition at line 107 of file SoInteraction.h.

getID()

std::string SoInteraction::getID ( ) const

inline

Returns the ID of this interaction.

The ID identifies the interaction to the controller - only letters, digits and underscore should be used.

Definition at line 84 of file SoInteraction.h.

getInteractionType()

InteractionType SoInteraction::getInteractionType ( ) const

inline

Returns type of interaction object.

Definition at line 118 of file SoInteraction.h.

getMenuPriority()

int SoInteraction::getMenuPriority ( ) const

inline

Definition at line 96 of file SoInteraction.h.

getOwner()

SoInteractionOwner* SoInteraction::getOwner ( ) const

inline

Returns the interaction provider of this entry.

Definition at line 72 of file SoInteraction.h.

Referenced by SoCSODrawOnSurfaceDrawAction::dragMoveTo(), SoCSODrawOnSurfaceDrawAction::endPress(), SoCSODrawOnSurfaceCancelCommandAction::execute(), SoCSODrawOnSurfaceUndoCommandAction::execute(), SoCSODrawOnSurfaceRedoCommandAction::execute(), SoCSODrawOnSurfaceDrawAction::getCurrentCursor(), SoCSODrawOnSurfaceDrawAction::isSensitiveAt(), and SoCSODrawOnSurfaceDrawAction::startPressAt().

getStateVersion()

int SoInteraction::getStateVersion ( ) const

inline

Definition at line 136 of file SoInteraction.h.

getUserName()

virtual std::string SoInteraction::getUserName ( ) const

inlinevirtual

Returns user-visible name of this item for direct display (e.g., in tool box or menu).

Definition at line 102 of file SoInteraction.h.

isEnabled()

virtual bool SoInteraction::isEnabled ( ) const

inlinevirtual

Returns the enabled status of this interaction - if this returns false, the action is not selectable (but if a mouse action has already been started, it will not be aborted if this returns false).

Reimplemented in SoOffsetPointingAction.

Definition at line 77 of file SoInteraction.h.

isOfType()

template<class T >

bool SoInteraction::isOfType ( ) const

inline

Convenience method for checking type.

Definition at line 122 of file SoInteraction.h.

ref()

virtual void SoInteraction::ref ( )

virtual

setDescription()

virtual void SoInteraction::setDescription ( const std::string &  descr )

inlinevirtual

Sets the description for user help.

Definition at line 114 of file SoInteraction.h.

setEnabled()

virtual void SoInteraction::setEnabled ( bool  enabled )

inlinevirtual

Sets the enabled status of this interaction.

Reimplemented in SoOffsetPointingAction.

Definition at line 79 of file SoInteraction.h.

Referenced by SoCSODrawOnSurfaceCancelCommandAction::SoCSODrawOnSurfaceCancelCommandAction(), SoCSODrawOnSurfaceRedoCommandAction::SoCSODrawOnSurfaceRedoCommandAction(), and SoCSODrawOnSurfaceUndoCommandAction::SoCSODrawOnSurfaceUndoCommandAction().

setIconFile()

virtual void SoInteraction::setIconFile ( const std::string &  file )

inlinevirtual

Sets the filename of an icon used for this interaction entry.

Definition at line 109 of file SoInteraction.h.

setID()

void SoInteraction::setID ( const std::string &  id )

inline

Sets the ID of this interaction.

Definition at line 86 of file SoInteraction.h.

setMenuPriority()

void SoInteraction::setMenuPriority ( int  priority )

inline

Sets the priority value for ordered display in menus/tool boxes.

Definition at line 98 of file SoInteraction.h.

setUserName()

virtual void SoInteraction::setUserName ( const std::string &  name )

inlinevirtual

Sets the user name of this interaction entry.

Definition at line 104 of file SoInteraction.h.

touch()

void SoInteraction::touch

(

)

Increments the version number of attribute state to mark attribute changes.

unref()

virtual void SoInteraction::unref ( )

virtual

---

The documentation for this class was generated from the following file:

• MeVis/Foundation/Sources/SoManagedInteraction/SoInteraction.h
