SoView2DLegend allows to draw legends on SoView2D. More...

#include <SoView2DLegend.h>

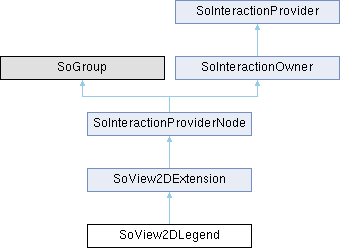

Inheritance diagram for SoView2DLegend:

Public Types
enum	LegendAlignPosition { LEGEND_TOP , LEGEND_BOTTOM , LEGEND_LEFT , LEGEND_RIGHT }
	enumeration for alignment More...

enum	LegendFormat { TEXT_LINE , LINE_TEXT }
	text/line format.. draw a line or the text first? More...

Public Types inherited from SoView2DExtension
enum	Sign { ZERO , NEGATIVE , POSITIVE }
	defines the sign of a number, with zero as an extra value More...

Public Types inherited from SoInteractionProvider
typedef SoInteractionProvider (	GetProviderFunc) (SoNode *)

Public Member Functions
	SoView2DLegend ()

void	toggleLegend ()

Public Member Functions inherited from SoView2DExtension
	SoView2DExtension ()
	Constructor. More...

void	init ()
	setup internal state More...

virtual void	updateValues ()
	Update fields to local variables, may be reimplemented if you want to update additional local vars. More...

virtual void	startDrawing (View2DSliceList *)

virtual void	endDrawing (View2DSliceList *)

virtual void	overwriteDrawingSettings (SoView2DDrawingSettings &)

View2DEvent *	getEvent ()
	get the current event (when inside of evalEvent) More...

float	getSelectDist ()
	Set the distance tolerance on hit checking in pixels. More...

bool	isPointInsideDeviceRect (float pointX, float pointY, float centerX, float centerY, float hitRectangleSize=0.0)
	returns whether the given point is inside a rectangle around the given center. More...

void	drawMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small rectangle with given half side length and a line width. More...

void	drawDashedMiniRect (float xp, float yp, float ext, float lineWidth)

void	drawFilledMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled rectangle with given half side length. More...

void	drawMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small triangle with given center point, half height and line width. More...

void	drawFilledMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled triangle with given center point and half height. More...

void	drawMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small circle with given center point and radius. More...

void	drawFilledMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled circle with given center point and radius. More...

void	drawFixedSizeMiniCircleAt (float xp, float yp)
	Draws a fixed size small circle at the given position. More...

void	drawVoxelBorder (View2DSlice *slice, float vx, float vy, float vz)
	surround the given voxel with a border More...

int	getX ()
	get the x device position of current event, only returns valid result when called inside of evalEvent() More...

int	getY ()
	get the y device position of current event, only returns valid result when called inside of evalEvent() More...

virtual bool	isDrawingOn ()
	check if drawing is on More...

virtual bool	isEditingOn ()
	check if editing is on More...

virtual bool	isFixZOn ()
	check if z should stay fixed More...

virtual bool	isClipToSlice ()
	check if the image is clipped to slice More...

virtual void	fieldChanged (SoSensor *sensor)
	handle if any field has changed More...

bool	isCreateNewMode ()
	check if extension is in createNewMode More...

void	setCreateNewMode (bool flag)
	set this extension to create new objects More...

bool	isCreateNewModeRequest ()
	check if extension has a request for createNewMode More...

void	setCreateNewModeRequest (bool flag)
	set that extension want to become createNewMode More...

virtual bool	isActive ()
	returns if the extension is active (derive this method in child) (in createNewMode or with a selected object)(called by SoView2D) More...

virtual void	deleteSelectedObject ()
	deletes the currently active object (derive this method in child) (called by SoView2D) More...

virtual void	getStatusString (SbString &status)
	get the current status of this extension More...

virtual bool	evaluateEvent (SoView2D view2d, View2DEvent ec)

virtual bool	ignoreEvent (View2DEvent *ec)
	Return true if ec has been handled before and if ignoreHandledEvents is True. More...

bool	wantsMouseOverUpdates () const
	public access to _wantsMouseOverUpdateEvents More...

virtual void	consumeEvent (View2DEvent *ec, bool handled=TRUE)
	Set handled-flag of ec to true (= consumed) if handled is True and setEventHandled is True. More...

int	getSelectedModifierMask ()
	Get compare and ignore mask for the currently selected button/modifier combination, usable with SoPointingAction. More...

int	getSelectedIgnoreMask ()

SoPointingAction::Trigger	getPointingActionTriggerFromFields ()
	Get the trigger that matches the button/modifier field state. More...

Public Member Functions inherited from SoInteractionProviderNode
	SoInteractionProviderNode ()
	Default constructor. More...

	~SoInteractionProviderNode () override
	Destructor. More...

std::string	getID () const override
	Returns the id string for identifying the provider (and its actions) - this is usually the name of the scene node. More...

void	objRef () override
	Memory management by reference counting; must be implemented in derived classes. More...

void	objUnref () override

Public Member Functions inherited from SoInteractionOwner
	SoInteractionOwner ()
	Default constructor. More...

	~SoInteractionOwner () override
	The destructor will destroy all interactions created with this object as owner. More...

std::list< SoInteraction * >	getInteractions (SoState *state) override
	Returns the list of all interactions of this provider. More...

void	pointerPosition (SoState *state, const SoPointerPosition &pos) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	pointerLeftWindow (SoState *state) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	addListener (SoInteractionOwnerListenerInterface *listener)
	Add a listener object that is notified of changes in the interaction list. More...

void	removeListener (SoInteractionOwnerListenerInterface *listener)
	Remove a listener object that was notified of changes in the interaction list. More...

Public Member Functions inherited from SoInteractionProvider
	SoInteractionProvider ()
	Default constructor. More...

virtual	~SoInteractionProvider ()

template<class T >
std::list< T * >	getInteractionsOfType (SoState *state)
	Returns list of interactions of a specific type: More...

virtual std::list< SoCommandAction * >	getCommandActions (SoState *state)

virtual std::list< SoPointingAction * >	getPointingActions (SoState *state)

virtual std::list< SoOffsetAction * >	getOffsetActions (SoState *state)

Static Public Member Functions
static void	initClass ()

Static Public Member Functions inherited from SoView2DExtension
static void	initClass ()
	Initializes this class. More...

static float	snapToPixelCenter (float coordinateComponent)
	Snaps the coordinate component to the pixel center. More...

static void	fieldChangedCB (void data, SoSensor sensor)
	inventor callbacks if any field has changed, calls fieldChanged More...

static bool	isImageParallel (SoSFMLImage image, View2DSliceList dsl)
	Return true if `image` is parallel to the image of the slice list up to slice thickness. More...

static void	enableLineStippling (const SoSFEnum &lineStyleField)
	Set/reset stippling pattern. More...

static void	disableLineStippling (const SoSFEnum &lineStyleField)

static void	getAxisOrientation (int axis, SbMatrix &matrix, char &negativeResult, char &positiveResult)
	Geometry helpers. More...

static float	pointToLineDistance (SbVec3f point, SbVec3f line1, SbVec3f line2)
	calculate 3D point to line distance More...

static float	pointToLineDistance (SbVec2f point, SbVec2f line1, SbVec2f line2)
	calculate 2D point to line distance More...

static Sign	edgeIntersectWithPlane (const SbVec3f &v1, const SbVec3f &v2, const SbPlane &plane, SbVec3f &intersect)
	intersect given edge from `v1` to `v2` with given plane, returns sign and `intersect` point More...

Static Public Member Functions inherited from SoInteractionProviderNode
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoInteractionProvider
static void	registerInteractionProviderNode (SoType type, GetProviderFunc func)
	Register a function to obtain a SoInteractionProvider from a SoNode. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)
	Get a SoInteractionProvider from a SoNode if registered, else NULL. More...

Public Attributes
SoSFString	legendString
	the string to be parsed the format for one entry (item) is: $(item rr gg bb line_width line_stipple "text") 0 <= rr,gg,bb <= 255 0 <= line_width <= 16 0 <= line_stipple <= 65535 "text" should NOT contain closing brackets ')' all numbers can be either octal, decimal or hexadecimal More...

SoSFFloat	margin
	the margin of the legend relative to the nearest border More...

SoSFBool	showLegend
	show legend? More...

SoSFEnum	legendFontSize
	set the font size (or set it to 'automatic') More...

SoSFEnum	legendAlignment
	set the alignment More...

SoSFEnum	legendFormat
	text <-> line More...

SoSFBool	textShadow
	text shadow? More...

SoSFBool	drawTheBox
	draw the box? More...

SoSFColor	boxColor
	the color of the box More...

Public Attributes inherited from SoView2DExtension
SoSFColor	color
	color that should be used for drawing More...

SoSFBool	drawingOn
	flag if the extension should draw, needs to be checked inside of the draw() method More...

SoSFBool	editingOn
	flag if the extension should edit objects on mouse events, needs to be checked inside of the evalEvent() method More...

SoSFBool	maskValid
	flag if the event mask is valid. More...

SoSFFloat	selectionTolerance
	the selection tolerance in pixels More...

SoSFBool	wantsAllEvents
	flag if ALL events should be passed to evalEvent(), if disabled, events are only passed to evalEvent when the mouse mask gets valid More...

SoSFBool	wantsKeyEvents
	flag if keyboard events should be passed to evalEvent() More...

SoSFBool	wantsMouseWheelEvents
	flag if MouseWheel events should be passed to evalEvent() More...

SoSFBool	setEventHandled
	Set event handled if it is indeed handled by this extension. More...

SoSFBool	ignoreHandledEvents
	Ignore events, that have been handled by previous extensions. More...

SoSFEnum	button1
	mouse mask for button1 More...

SoSFEnum	button2
	mouse mask for button2 More...

SoSFEnum	button3
	mouse mask for button3 More...

SoSFEnum	shift
	shift modifier for mouse mask More...

SoSFEnum	control
	shift control for mouse mask More...

SoSFEnum	alt
	shift alt for mouse mask More...

SoSFBool	needsValidVoxel
	sets if a valid voxel must be hit to get evalEvent() calls More...

SoSFBool	renderOnSlab
	defines if the extension should be rendered on all slab slices More...

SoSFBool	createNewMode
	flag if extension is in createNewMode More...

SoSFTrigger	createNewModeRequest

SoSFBool	clipToSlice
	Flag to clip drawing to slice. More...

SoSFEnum	cursorShape
	Set cursor shape if the mouse mask fits and mouseEvents are effectively sent to evalEvent for editing. More...

SoSFBool	fixZOn
	DEPRECATED flag that indicates that the extension should fix the z value, only used in SoView2DRectangle. More...

Public Attributes inherited from SoInteractionProviderNode
SoSFString	instanceName
	Defines interface field to store the instance name. More...

SoSFString	interactionProviderID
	This field overrides the instanceName as providerID if specified. More...

Protected Member Functions
void	draw (View2DSliceList dsl, View2DSlice dslice, int slice) override
	inherited draw method.. parses the string and draws the legend More...

bool	evalEvent (SoView2D view2d, View2DSliceList slicelist, View2DEvent *ec, View2DEventPhase phase) override
	Called by the SoView2D for each event that happens on the viewer. More...

virtual bool	implementsManagedInteraction () const
	also implements managed interactions More...

bool	implementsManagedInteractionAndClassicEventHandling () const override
	this node is a hybrid module providing managed interaction and classic event handling More...

void	editingOnChanged (SoField *field) override
	called when editingOn field is touched: More...

Protected Member Functions inherited from SoView2DExtension
virtual void	buttonMaskChanged (SoField *)
	called when one of the button/modifier fields is touched: More...

virtual void	createNewModeRequestTriggered (SoField *)
	called when createNewModeRequest field ist touched: More...

	~SoView2DExtension () override
	destructor More...

void	GLRender (SoGLRenderAction *action) override
	Inventor actions. More...

void	callback (SoCallbackAction *action) override

void	handleEvent (SoHandleEventAction *action) override

void	getMatrix (SoGetMatrixAction *action) override

void	getBoundingBox (SoGetBoundingBoxAction *action) override

void	pick (SoPickAction *action) override

void	doAction (SoAction *action) override

Protected Member Functions inherited from SoInteractionOwner
virtual void	pointerPosition (const SoPointerPosition &)
	Override this if you always need to be informed of the current mouse cursor position. More...

virtual void	pointerLeftWindow ()
	This is called when the mouse cursor leaves the window. More...

bool	hasInteractions () const
	Returns whether there are any actions defined by this owner. More...

template<class T >
bool	hasInteractionsOfType () const
	Same as above, but asking for a specific type of interaction. More...

void	addPointingAction (SoPointingAction *)

void	addCommandAction (SoCommandAction *)

void	addOffsetAction (SoOffsetAction *)

Additional Inherited Members
Protected Attributes inherited from SoView2DExtension
SoNodeSensor *	_nodeSensor
	node sensor that is used to notice field changes More...

float	_rgbColor [4]
	Color of the object, update on each field change by _nodeSensor. More...

bool	_wantsMouseOverUpdateEvents
	set this flag to receive mouse over events while the extension is active More...

Detailed Description

SoView2DLegend allows to draw legends on SoView2D.

Definition at line 72 of file SoView2DLegend.h.

Member Enumeration Documentation

◆ LegendAlignPosition

enum SoView2DLegend::LegendAlignPosition

enumeration for alignment

Enumerator
LEGEND_TOP
LEGEND_BOTTOM
LEGEND_LEFT
LEGEND_RIGHT

Definition at line 78 of file SoView2DLegend.h.

◆ LegendFormat

enum SoView2DLegend::LegendFormat

text/line format.. draw a line or the text first?

Enumerator
TEXT_LINE
LINE_TEXT

Definition at line 86 of file SoView2DLegend.h.

Constructor & Destructor Documentation

◆ SoView2DLegend()

SoView2DLegend::SoView2DLegend ( )

Member Function Documentation

◆ draw()

void SoView2DLegend::draw	(	View2DSliceList *	dsl,
		View2DSlice *	dslice,
		int	slice
	)

overrideprotectedvirtual

inherited draw method.. parses the string and draws the legend

Reimplemented from SoView2DExtension.

◆ editingOnChanged()

void SoView2DLegend::editingOnChanged ( SoField * field )

overrideprotectedvirtual

called when editingOn field is touched:

Reimplemented from SoView2DExtension.

◆ evalEvent()

bool SoView2DLegend::evalEvent	(	SoView2D *	view2d,
		View2DSliceList *	slicelist,
		View2DEvent *	ec,
		View2DEventPhase	phase
	)

overrideprotectedvirtual

Called by the SoView2D for each event that happens on the viewer.

Implement this method if you want to handle events. If this method is called depends on the fields wantsAllEvents, wantsKeyEvents, wantsMouseWheelEvents and the mouse mask given by button1, button2, button3, shift, control, alt. When using the mouse mask (when wantsAllEvents is set to false), the View2DEventPhase indicates in which phase of the mouse mask you are in.

Reimplemented from SoView2DExtension.

◆ implementsManagedInteraction()

virtual bool SoView2DLegend::implementsManagedInteraction ( ) const

inlineprotectedvirtual

also implements managed interactions

Definition at line 134 of file SoView2DLegend.h.

◆ implementsManagedInteractionAndClassicEventHandling()

bool SoView2DLegend::implementsManagedInteractionAndClassicEventHandling ( ) const

inlineoverrideprotectedvirtual

this node is a hybrid module providing managed interaction and classic event handling

SoView2D::useManagedInteraction decides which one to use

Reimplemented from SoView2DExtension.

Definition at line 138 of file SoView2DLegend.h.

◆ initClass()

static void SoView2DLegend::initClass ( )

static

◆ toggleLegend()

void SoView2DLegend::toggleLegend ( )

Member Data Documentation

◆ boxColor

SoSFColor SoView2DLegend::boxColor

the color of the box

Definition at line 116 of file SoView2DLegend.h.

◆ drawTheBox

SoSFBool SoView2DLegend::drawTheBox

draw the box?

Definition at line 114 of file SoView2DLegend.h.

◆ legendAlignment

SoSFEnum SoView2DLegend::legendAlignment

set the alignment

Definition at line 108 of file SoView2DLegend.h.

◆ legendFontSize

SoSFEnum SoView2DLegend::legendFontSize

set the font size (or set it to 'automatic')

Definition at line 106 of file SoView2DLegend.h.

◆ legendFormat

SoSFEnum SoView2DLegend::legendFormat

text <-> line

Definition at line 110 of file SoView2DLegend.h.

◆ legendString

SoSFString SoView2DLegend::legendString

the string to be parsed the format for one entry (item) is: $(item rr gg bb line_width line_stipple "text") 0 <= rr,gg,bb <= 255 0 <= line_width <= 16 0 <= line_stipple <= 65535 "text" should NOT contain closing brackets ')' all numbers can be either octal, decimal or hexadecimal

Definition at line 99 of file SoView2DLegend.h.

◆ margin

SoSFFloat SoView2DLegend::margin

the margin of the legend relative to the nearest border

Definition at line 102 of file SoView2DLegend.h.

◆ showLegend

SoSFBool SoView2DLegend::showLegend

show legend?

Definition at line 104 of file SoView2DLegend.h.

◆ textShadow

SoSFBool SoView2DLegend::textShadow

text shadow?

Definition at line 112 of file SoView2DLegend.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoView2D/extensions/SoView2DLegend.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LegendAlignPosition

◆ LegendFormat

Constructor & Destructor Documentation

◆ SoView2DLegend()

Member Function Documentation

◆ draw()

◆ editingOnChanged()

◆ evalEvent()

◆ implementsManagedInteraction()

◆ implementsManagedInteractionAndClassicEventHandling()

◆ initClass()

◆ toggleLegend()

Member Data Documentation

◆ boxColor

◆ drawTheBox

◆ legendAlignment

◆ legendFontSize

◆ legendFormat

◆ legendString

◆ margin

◆ showLegend

◆ textShadow
