SoView2DExtension for detailed voxel viewing. More...

#include <SoView2DVoxelView.h>

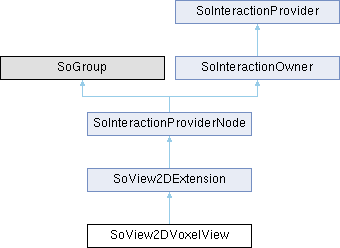

Inheritance diagram for SoView2DVoxelView:

Public Member Functions
	SoView2DVoxelView (void)
	Creates a detail viewer for voxels. More...

void	draw (View2DSliceList dsl, View2DSlice dslice, int slice) override
	Virtual method called by the `SoView2D` node. More...

Public Member Functions inherited from SoView2DExtension
	SoView2DExtension ()
	Constructor. More...

void	init ()
	setup internal state More...

virtual void	updateValues ()
	Update fields to local variables, may be reimplemented if you want to update additional local vars. More...

virtual bool	evalEvent (SoView2D view2d, View2DSliceList slicelist, View2DEvent *ec, View2DEventPhase phase)
	Called by the SoView2D for each event that happens on the viewer. More...

virtual void	startDrawing (View2DSliceList *)

virtual void	endDrawing (View2DSliceList *)

virtual void	overwriteDrawingSettings (SoView2DDrawingSettings &)

View2DEvent *	getEvent ()
	get the current event (when inside of evalEvent) More...

float	getSelectDist ()
	Set the distance tolerance on hit checking in pixels. More...

bool	isPointInsideDeviceRect (float pointX, float pointY, float centerX, float centerY, float hitRectangleSize=0.0)
	returns whether the given point is inside a rectangle around the given center. More...

void	drawMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small rectangle with given half side length and a line width. More...

void	drawDashedMiniRect (float xp, float yp, float ext, float lineWidth)

void	drawFilledMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled rectangle with given half side length. More...

void	drawMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small triangle with given center point, half height and line width. More...

void	drawFilledMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled triangle with given center point and half height. More...

void	drawMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small circle with given center point and radius. More...

void	drawFilledMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled circle with given center point and radius. More...

void	drawFixedSizeMiniCircleAt (float xp, float yp)
	Draws a fixed size small circle at the given position. More...

void	drawVoxelBorder (View2DSlice *slice, float vx, float vy, float vz)
	surround the given voxel with a border More...

int	getX ()
	get the x device position of current event, only returns valid result when called inside of evalEvent() More...

int	getY ()
	get the y device position of current event, only returns valid result when called inside of evalEvent() More...

virtual bool	isDrawingOn ()
	check if drawing is on More...

virtual bool	isEditingOn ()
	check if editing is on More...

virtual bool	isFixZOn ()
	check if z should stay fixed More...

virtual bool	isClipToSlice ()
	check if the image is clipped to slice More...

virtual void	fieldChanged (SoSensor *sensor)
	handle if any field has changed More...

bool	isCreateNewMode ()
	check if extension is in createNewMode More...

void	setCreateNewMode (bool flag)
	set this extension to create new objects More...

bool	isCreateNewModeRequest ()
	check if extension has a request for createNewMode More...

void	setCreateNewModeRequest (bool flag)
	set that extension want to become createNewMode More...

virtual bool	isActive ()
	returns if the extension is active (derive this method in child) (in createNewMode or with a selected object)(called by SoView2D) More...

virtual void	deleteSelectedObject ()
	deletes the currently active object (derive this method in child) (called by SoView2D) More...

virtual void	getStatusString (SbString &status)
	get the current status of this extension More...

virtual bool	evaluateEvent (SoView2D view2d, View2DEvent ec)

virtual bool	ignoreEvent (View2DEvent *ec)
	Return true if ec has been handled before and if ignoreHandledEvents is True. More...

bool	wantsMouseOverUpdates () const
	public access to _wantsMouseOverUpdateEvents More...

virtual void	consumeEvent (View2DEvent *ec, bool handled=TRUE)
	Set handled-flag of ec to true (= consumed) if handled is True and setEventHandled is True. More...

int	getSelectedModifierMask ()
	Get compare and ignore mask for the currently selected button/modifier combination, usable with SoPointingAction. More...

int	getSelectedIgnoreMask ()

SoPointingAction::Trigger	getPointingActionTriggerFromFields ()
	Get the trigger that matches the button/modifier field state. More...

virtual bool	implementsManagedInteractionAndClassicEventHandling () const
	return true if this node is a hybrid module providing managed interaction and classic event handling - in this case SoView2D::useManagedInteraction decides which one to use More...

Public Member Functions inherited from SoInteractionProviderNode
	SoInteractionProviderNode ()
	Default constructor. More...

	~SoInteractionProviderNode () override
	Destructor. More...

std::string	getID () const override
	Returns the id string for identifying the provider (and its actions) - this is usually the name of the scene node. More...

void	objRef () override
	Memory management by reference counting; must be implemented in derived classes. More...

void	objUnref () override

Public Member Functions inherited from SoInteractionOwner
	SoInteractionOwner ()
	Default constructor. More...

	~SoInteractionOwner () override
	The destructor will destroy all interactions created with this object as owner. More...

std::list< SoInteraction * >	getInteractions (SoState *state) override
	Returns the list of all interactions of this provider. More...

void	pointerPosition (SoState *state, const SoPointerPosition &pos) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	pointerLeftWindow (SoState *state) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	addListener (SoInteractionOwnerListenerInterface *listener)
	Add a listener object that is notified of changes in the interaction list. More...

void	removeListener (SoInteractionOwnerListenerInterface *listener)
	Remove a listener object that was notified of changes in the interaction list. More...

Public Member Functions inherited from SoInteractionProvider
	SoInteractionProvider ()
	Default constructor. More...

virtual	~SoInteractionProvider ()

template<class T >
std::list< T * >	getInteractionsOfType (SoState *state)
	Returns list of interactions of a specific type: More...

virtual std::list< SoCommandAction * >	getCommandActions (SoState *state)

virtual std::list< SoPointingAction * >	getPointingActions (SoState *state)

virtual std::list< SoOffsetAction * >	getOffsetActions (SoState *state)

Static Public Member Functions
static void	initClass (void)
	Initialization function of this class. More...

Static Public Member Functions inherited from SoView2DExtension
static void	initClass ()
	Initializes this class. More...

static float	snapToPixelCenter (float coordinateComponent)
	Snaps the coordinate component to the pixel center. More...

static void	fieldChangedCB (void data, SoSensor sensor)
	inventor callbacks if any field has changed, calls fieldChanged More...

static bool	isImageParallel (SoSFMLImage image, View2DSliceList dsl)
	Return true if `image` is parallel to the image of the slice list up to slice thickness. More...

static void	enableLineStippling (const SoSFEnum &lineStyleField)
	Set/reset stippling pattern. More...

static void	disableLineStippling (const SoSFEnum &lineStyleField)

static void	getAxisOrientation (int axis, SbMatrix &matrix, char &negativeResult, char &positiveResult)
	Geometry helpers. More...

static float	pointToLineDistance (SbVec3f point, SbVec3f line1, SbVec3f line2)
	calculate 3D point to line distance More...

static float	pointToLineDistance (SbVec2f point, SbVec2f line1, SbVec2f line2)
	calculate 2D point to line distance More...

static Sign	edgeIntersectWithPlane (const SbVec3f &v1, const SbVec3f &v2, const SbPlane &plane, SbVec3f &intersect)
	intersect given edge from `v1` to `v2` with given plane, returns sign and `intersect` point More...

Static Public Member Functions inherited from SoInteractionProviderNode
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoInteractionProvider
static void	registerInteractionProviderNode (SoType type, GetProviderFunc func)
	Register a function to obtain a SoInteractionProvider from a SoNode. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)
	Get a SoInteractionProvider from a SoNode if registered, else NULL. More...

Public Attributes
Parameter fields.
If enabled the voxel value is drawn in the center of each voxel; default is TRUE.
SoSFBool	drawVoxelValues

SoSFString	defaultFitString
	String which should fit into a voxel to be shown, that means if it does not fit no voxel values are shown to avoid unreadable text overlays on inappropriate zoom values; default is "123". More...

SoSFBool	drawCenterDots
	If enabled a pixel is drawn in the center of each voxel; default is false. More...

SoSFBool	drawCornerDots
	If enabled dots are drawn in all corners of each voxel; default is false. More...

SoSFBool	useCommas
	If enabled then all spaces in multicomponent voxel values are replaced by commas for better readability; default is TRUE. More...

SoSFBool	outLineVoxels
	If enabled then on voxel the border pixels are drawn; default is FALSE. More...

SoSFBool	useLut
	If enabled a connected look up table will be used to draw everything in the "looked up" values of the voxel value; if disabled a connected LUT will be ignored. More...

SoSFFloat	defaultAlpha
	Transparency from [0,1] used if no LUT is used; default is 0.5 (half transparent). More...

SoSFFloat	fontSize
	Size of font for voxel value; default is 10, minimum is 6, maximum is 250. More...

SoSFInt32	numCoordinateComponents
	The number of coordinate components to be shown; default is 0. More...

SoSFInt32	numRowComponents
	The number of coordinate components to be shown in one row; 0 means automatic row size, which uses root of component numbers in case of matrices; default is 0. More...

SoSFInt32	numPrecisionDigits
	The maximum number of digits after "." in floating point numbers; default is 1. More...

SoSFMLBase	inputLut
	Optional node input for an optional lookup table node which controls color mapping of drawn stuff. More...

Public Attributes inherited from SoView2DExtension
SoSFColor	color
	color that should be used for drawing More...

SoSFBool	drawingOn
	flag if the extension should draw, needs to be checked inside of the draw() method More...

SoSFBool	editingOn
	flag if the extension should edit objects on mouse events, needs to be checked inside of the evalEvent() method More...

SoSFBool	maskValid
	flag if the event mask is valid. More...

SoSFFloat	selectionTolerance
	the selection tolerance in pixels More...

SoSFBool	wantsAllEvents
	flag if ALL events should be passed to evalEvent(), if disabled, events are only passed to evalEvent when the mouse mask gets valid More...

SoSFBool	wantsKeyEvents
	flag if keyboard events should be passed to evalEvent() More...

SoSFBool	wantsMouseWheelEvents
	flag if MouseWheel events should be passed to evalEvent() More...

SoSFBool	setEventHandled
	Set event handled if it is indeed handled by this extension. More...

SoSFBool	ignoreHandledEvents
	Ignore events, that have been handled by previous extensions. More...

SoSFEnum	button1
	mouse mask for button1 More...

SoSFEnum	button2
	mouse mask for button2 More...

SoSFEnum	button3
	mouse mask for button3 More...

SoSFEnum	shift
	shift modifier for mouse mask More...

SoSFEnum	control
	shift control for mouse mask More...

SoSFEnum	alt
	shift alt for mouse mask More...

SoSFBool	needsValidVoxel
	sets if a valid voxel must be hit to get evalEvent() calls More...

SoSFBool	renderOnSlab
	defines if the extension should be rendered on all slab slices More...

SoSFBool	createNewMode
	flag if extension is in createNewMode More...

SoSFTrigger	createNewModeRequest

SoSFBool	clipToSlice
	Flag to clip drawing to slice. More...

SoSFEnum	cursorShape
	Set cursor shape if the mouse mask fits and mouseEvents are effectively sent to evalEvent for editing. More...

SoSFBool	fixZOn
	DEPRECATED flag that indicates that the extension should fix the z value, only used in SoView2DRectangle. More...

Public Attributes inherited from SoInteractionProviderNode
SoSFString	instanceName
	Defines interface field to store the instance name. More...

SoSFString	interactionProviderID
	This field overrides the instanceName as providerID if specified. More...

Protected Member Functions
virtual void	_drawCellInformation (View2DSliceList , View2DSlice , int, bool, int, const MLTypeInfos &, MLDataType, MLTypeData *, int, GLfloat[4], float, float, View2DFont &, float)
	User defined function to draw additional stuff in derived classes. More...

void	_getGLColor (double dblVoxVal, GLfloat rgba[4])
	Set correct color value in `rgba` dependent on the current settings and the voxel value `dblVoxVal`. More...

float	_drawVoxelValue (bool drawTexts, int numRowComps, MLDataType dType, MLTypeData *vBuf1, int numDTComponents, GLfloat rgba[4], float xPos, float yPos, View2DFont &font, float fSize)
	If `drawTexts` is true, the default string fits into a voxel then draw the voxel value from voxel data buffer `vBuf1` (if non NULL) of type `dType` with `numDTComponents` components with the color `rgba` at the vertical device position (xPos, yPos). More...

float	_drawStringVoxelValue (bool drawTexts, MLDataType dType, MLTypeData *vBuf1, int numDTComponents, GLfloat rgba[4], float xPos, float yPos, View2DFont &font, float fSize)
	Still incomplete and unused. More...

void	_drawCoordinateComponents (bool drawTexts, int numComps, XVImageSize &pos, GLfloat rgba[4], float xPos, float yPos, View2DFont &font, float fSize)
	If `drawTexts` is true then draw `numComps` coordinate components of position `pos` with the color `rgba` at the vertical device position (xPos, yPos). More...

void	_updateLutData (SoSFMLImage &inImg, View2DLutPrecision precision)
	Update the look up table according to the image data. More...

Protected Member Functions inherited from SoView2DExtension
virtual void	editingOnChanged (SoField *)
	called when editingOn field is touched: More...

virtual void	buttonMaskChanged (SoField *)
	called when one of the button/modifier fields is touched: More...

virtual void	createNewModeRequestTriggered (SoField *)
	called when createNewModeRequest field ist touched: More...

	~SoView2DExtension () override
	destructor More...

void	GLRender (SoGLRenderAction *action) override
	Inventor actions. More...

void	callback (SoCallbackAction *action) override

void	handleEvent (SoHandleEventAction *action) override

void	getMatrix (SoGetMatrixAction *action) override

void	getBoundingBox (SoGetBoundingBoxAction *action) override

void	pick (SoPickAction *action) override

void	doAction (SoAction *action) override

Protected Member Functions inherited from SoInteractionOwner
virtual void	pointerPosition (const SoPointerPosition &)
	Override this if you always need to be informed of the current mouse cursor position. More...

virtual void	pointerLeftWindow ()
	This is called when the mouse cursor leaves the window. More...

bool	hasInteractions () const
	Returns whether there are any actions defined by this owner. More...

template<class T >
bool	hasInteractionsOfType () const
	Same as above, but asking for a specific type of interaction. More...

void	addPointingAction (SoPointingAction *)

void	addCommandAction (SoCommandAction *)

void	addOffsetAction (SoOffsetAction *)

Protected Attributes
ml::LUTData< MLfloat >	_lutData
	Data table for voxel value look up. More...

Protected Attributes inherited from SoView2DExtension
SoNodeSensor *	_nodeSensor
	node sensor that is used to notice field changes More...

float	_rgbColor [4]
	Color of the object, update on each field change by _nodeSensor. More...

bool	_wantsMouseOverUpdateEvents
	set this flag to receive mouse over events while the extension is active More...

Additional Inherited Members
Public Types inherited from SoView2DExtension
enum	Sign { ZERO , NEGATIVE , POSITIVE }
	defines the sign of a number, with zero as an extra value More...

Public Types inherited from SoInteractionProvider
typedef SoInteractionProvider (	GetProviderFunc) (SoNode *)

Detailed Description

SoView2DExtension for detailed voxel viewing.

Definition at line 33 of file SoView2DVoxelView.h.

Constructor & Destructor Documentation

◆ SoView2DVoxelView()

SoView2DVoxelView::SoView2DVoxelView ( void )

Creates a detail viewer for voxels.

Member Function Documentation

◆ _drawCellInformation()

virtual void SoView2DVoxelView::_drawCellInformation	(	View2DSliceList *	,
		View2DSlice *	,
		int	,
		bool	,
		int	,
		const MLTypeInfos &	,
		MLDataType	,
		MLTypeData *	,
		int	,
		GLfloat	[4],
		float	,
		float	,
		View2DFont &	,
		float
	)

inlineprotectedvirtual

User defined function to draw additional stuff in derived classes.

Parameters

dsl	pointer to View2DSliceList passed to the internally overloaded View2DExtension::draw() method.
dSlice	pointer to View2DSlice passed to the internally overloaded View2DExtension::draw() method.
slice	slice number passed to the internally overloaded View2DExtension::draw() method.
drawTexts	is true if text shall be drawn because it seems to fit into the default string width.
numRowComps	The number of coordinate components to be shown in one row; 0 means automatic row size, which uses root of component numbers in case of matrices.
dType	is the data type id of the voxel.
v1Buf	Pointer to the voxel data.
numDTComps	Number of components of the voxel.
font	Font to be used for text drawing.
fSize	Size of font to be used for text drawing.

Definition at line 130 of file SoView2DVoxelView.h.

◆ _drawCoordinateComponents()

void SoView2DVoxelView::_drawCoordinateComponents	(	bool	drawTexts,
		int	numComps,
		XVImageSize &	pos,
		GLfloat	rgba[4],
		float	xPos,
		float	yPos,
		View2DFont &	font,
		float	fSize
	)

protected

If drawTexts is true then draw numComps coordinate components of position pos with the color rgba at the vertical device position (xPos, yPos).

numComps must be a value from [0,...,6]. Font and font size are given by font and fSize.

◆ _drawStringVoxelValue()

float SoView2DVoxelView::_drawStringVoxelValue	(	bool	drawTexts,
		MLDataType	dType,
		MLTypeData *	vBuf1,
		int	numDTComponents,
		GLfloat	rgba[4],
		float	xPos,
		float	yPos,
		View2DFont &	font,
		float	fSize
	)

protected

Still incomplete and unused.

If drawTexts is true, the default string fits into a voxel then draw the voxel value from voxel data buffer vBuf1 (if non NULL) of type dType with numDTComponents components with the color rgba at the vertical device position (xPos, yPos) as string. Font and font size are given by font and fSize. The return value is the optimal position for drawings of the coordinate position.

◆ _drawVoxelValue()

float SoView2DVoxelView::_drawVoxelValue	(	bool	drawTexts,
		int	numRowComps,
		MLDataType	dType,
		MLTypeData *	vBuf1,
		int	numDTComponents,
		GLfloat	rgba[4],
		float	xPos,
		float	yPos,
		View2DFont &	font,
		float	fSize
	)

protected

If drawTexts is true, the default string fits into a voxel then draw the voxel value from voxel data buffer vBuf1 (if non NULL) of type dType with numDTComponents components with the color rgba at the vertical device position (xPos, yPos).

Font and font size are given by font and fSize. The return value is the optimal position for drawings of the coordinate position.

◆ _getGLColor()

void SoView2DVoxelView::_getGLColor	(	double	dblVoxVal,
		GLfloat	rgba[4]
	)

protected

Set correct color value in rgba dependent on the current settings and the voxel value dblVoxVal.

◆ _updateLutData()

void SoView2DVoxelView::_updateLutData	(	SoSFMLImage &	inImg,
		View2DLutPrecision	precision
	)

protected

Update the look up table according to the image data.

On available LUT true is returned and shift and scale can be used to transform voxel values to non clamped LutData indices. If no LUT is available then false is returned and shift and scale are left unchanged.

◆ draw()

void SoView2DVoxelView::draw	(	View2DSliceList *	dsl,
		View2DSlice *	dslice,
		int	slice
	)

overridevirtual

Virtual method called by the SoView2D node.

It is called for each slices drawn in each viewer. dsl is the View2DSliceList, the list containing all information of all slices handled by the viewer. dslice is the slice currently drawn and slice the the number of the currently drawn slice.

Reimplemented from SoView2DExtension.

◆ initClass()

static void SoView2DVoxelView::initClass ( void )

static

Initialization function of this class.

It implements the registration of this class in the runtime type system of open Inventor and other user stuff e.g. activation of other Inventor classes (events, actions, elements) needed in this class.

Member Data Documentation

◆ _lutData

ml::LUTData<MLfloat> SoView2DVoxelView::_lutData

protected

Data table for voxel value look up.

Definition at line 146 of file SoView2DVoxelView.h.

◆ defaultAlpha

SoSFFloat SoView2DVoxelView::defaultAlpha

Transparency from [0,1] used if no LUT is used; default is 0.5 (half transparent).

Definition at line 87 of file SoView2DVoxelView.h.

◆ defaultFitString

SoSFString SoView2DVoxelView::defaultFitString

String which should fit into a voxel to be shown, that means if it does not fit no voxel values are shown to avoid unreadable text overlays on inappropriate zoom values; default is "123".

Definition at line 66 of file SoView2DVoxelView.h.

◆ drawCenterDots

SoSFBool SoView2DVoxelView::drawCenterDots

If enabled a pixel is drawn in the center of each voxel; default is false.

Definition at line 69 of file SoView2DVoxelView.h.

◆ drawCornerDots

SoSFBool SoView2DVoxelView::drawCornerDots

If enabled dots are drawn in all corners of each voxel; default is false.

Definition at line 72 of file SoView2DVoxelView.h.

◆ drawVoxelValues

SoSFBool SoView2DVoxelView::drawVoxelValues

Definition at line 61 of file SoView2DVoxelView.h.

◆ fontSize

SoSFFloat SoView2DVoxelView::fontSize

Size of font for voxel value; default is 10, minimum is 6, maximum is 250.

Definition at line 90 of file SoView2DVoxelView.h.

◆ inputLut

SoSFMLBase SoView2DVoxelView::inputLut

Optional node input for an optional lookup table node which controls color mapping of drawn stuff.

Its usage is enabled by useLut.

Definition at line 107 of file SoView2DVoxelView.h.

◆ numCoordinateComponents

SoSFInt32 SoView2DVoxelView::numCoordinateComponents

The number of coordinate components to be shown; default is 0.

Definition at line 93 of file SoView2DVoxelView.h.

◆ numPrecisionDigits

SoSFInt32 SoView2DVoxelView::numPrecisionDigits

The maximum number of digits after "." in floating point numbers; default is 1.

Values smaller 0 are considered the maximum sensible digit number for the floating point types; values larger than the maximum sensible number will lead to at most the maximum sensible number of digits.

Definition at line 103 of file SoView2DVoxelView.h.

◆ numRowComponents

SoSFInt32 SoView2DVoxelView::numRowComponents

The number of coordinate components to be shown in one row; 0 means automatic row size, which uses root of component numbers in case of matrices; default is 0.

Definition at line 97 of file SoView2DVoxelView.h.

◆ outLineVoxels

SoSFBool SoView2DVoxelView::outLineVoxels

If enabled then on voxel the border pixels are drawn; default is FALSE.

Definition at line 79 of file SoView2DVoxelView.h.

◆ useCommas

SoSFBool SoView2DVoxelView::useCommas

If enabled then all spaces in multicomponent voxel values are replaced by commas for better readability; default is TRUE.

Definition at line 76 of file SoView2DVoxelView.h.

◆ useLut

SoSFBool SoView2DVoxelView::useLut

If enabled a connected look up table will be used to draw everything in the "looked up" values of the voxel value; if disabled a connected LUT will be ignored.

be ignored; default is TRUE.

Definition at line 84 of file SoView2DVoxelView.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoView2D/extensions/SoView2DVoxelView.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoView2DVoxelView()

Member Function Documentation

◆ _drawCellInformation()

◆ _drawCoordinateComponents()

◆ _drawStringVoxelValue()

◆ _drawVoxelValue()

◆ _getGLColor()

◆ _updateLutData()

◆ draw()

◆ initClass()

Member Data Documentation

◆ _lutData

◆ defaultAlpha

◆ defaultFitString

◆ drawCenterDots

◆ drawCornerDots

◆ drawVoxelValues

◆ fontSize

◆ inputLut

◆ numCoordinateComponents

◆ numPrecisionDigits

◆ numRowComponents

◆ outLineVoxels

◆ useCommas

◆ useLut
