Draws an overlay image on the SoView2D. More...

#include <SoView2DOverlay.h>

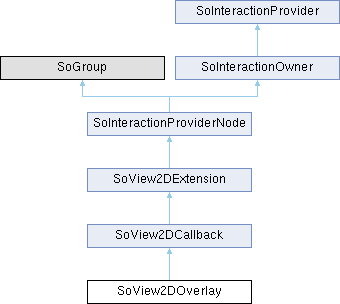

Inheritance diagram for SoView2DOverlay:

Public Member Functions
	SoView2DOverlay ()
	Constructor. More...

void	startDrawing (View2DSliceList *slicelist) override
	reimplemented from SoView2DExtension More...

void	endDrawing (View2DSliceList *slicelist) override
	reimplemented from SoView2DExtension More...

void	draw (View2DSliceList dsl, View2DSlice dslice, int slice) override
	reimplemented from SoView2DExtension More...

bool	evalEvent (SoView2D view2d, View2DSliceList slicelist, View2DEvent *ec, View2DEventPhase phase) override
	reimplemented from SoView2DExtension More...

void	GLRender (SoGLRenderAction *action) override
	reimplemented from SoNode, stores the LUT for later rendering More...

Public Member Functions inherited from SoView2DCallback
	SoView2DCallback ()

void	setEvalEventCB (SoView2DEvalEventCB eval, void usrData)
	set a callback for evalEvent, clears previous callback More...

void	setDrawCB (SoView2DDrawCB draw, void usrData)
	set a callback for draw, clears previous callback More...

void	draw (View2DSliceList dsl, View2DSlice dslice, int slice) override
	reimplemented from SoView2DExtension More...

bool	evalEvent (SoView2D view2d, View2DSliceList slicelist, View2DEvent *ec, View2DEventPhase phase) override
	reimplemented from SoView2DExtension More...

Public Member Functions inherited from SoView2DExtension
	SoView2DExtension ()
	Constructor. More...

void	init ()
	setup internal state More...

virtual void	updateValues ()
	Update fields to local variables, may be reimplemented if you want to update additional local vars. More...

virtual void	overwriteDrawingSettings (SoView2DDrawingSettings &)

View2DEvent *	getEvent ()
	get the current event (when inside of evalEvent) More...

float	getSelectDist ()
	Set the distance tolerance on hit checking in pixels. More...

bool	isPointInsideDeviceRect (float pointX, float pointY, float centerX, float centerY, float hitRectangleSize=0.0)
	returns whether the given point is inside a rectangle around the given center. More...

void	drawMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small rectangle with given half side length and a line width. More...

void	drawDashedMiniRect (float xp, float yp, float ext, float lineWidth)

void	drawFilledMiniRect (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled rectangle with given half side length. More...

void	drawMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small triangle with given center point, half height and line width. More...

void	drawFilledMiniTriangle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled triangle with given center point and half height. More...

void	drawMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small circle with given center point and radius. More...

void	drawFilledMiniCircle (float xp, float yp, float ext, float lineWidth=1.f)
	Draws a small filled circle with given center point and radius. More...

void	drawFixedSizeMiniCircleAt (float xp, float yp)
	Draws a fixed size small circle at the given position. More...

void	drawVoxelBorder (View2DSlice *slice, float vx, float vy, float vz)
	surround the given voxel with a border More...

int	getX ()
	get the x device position of current event, only returns valid result when called inside of evalEvent() More...

int	getY ()
	get the y device position of current event, only returns valid result when called inside of evalEvent() More...

virtual bool	isDrawingOn ()
	check if drawing is on More...

virtual bool	isEditingOn ()
	check if editing is on More...

virtual bool	isFixZOn ()
	check if z should stay fixed More...

virtual bool	isClipToSlice ()
	check if the image is clipped to slice More...

virtual void	fieldChanged (SoSensor *sensor)
	handle if any field has changed More...

bool	isCreateNewMode ()
	check if extension is in createNewMode More...

void	setCreateNewMode (bool flag)
	set this extension to create new objects More...

bool	isCreateNewModeRequest ()
	check if extension has a request for createNewMode More...

void	setCreateNewModeRequest (bool flag)
	set that extension want to become createNewMode More...

virtual bool	isActive ()
	returns if the extension is active (derive this method in child) (in createNewMode or with a selected object)(called by SoView2D) More...

virtual void	deleteSelectedObject ()
	deletes the currently active object (derive this method in child) (called by SoView2D) More...

virtual void	getStatusString (SbString &status)
	get the current status of this extension More...

virtual bool	evaluateEvent (SoView2D view2d, View2DEvent ec)

virtual bool	ignoreEvent (View2DEvent *ec)
	Return true if ec has been handled before and if ignoreHandledEvents is True. More...

bool	wantsMouseOverUpdates () const
	public access to _wantsMouseOverUpdateEvents More...

virtual void	consumeEvent (View2DEvent *ec, bool handled=TRUE)
	Set handled-flag of ec to true (= consumed) if handled is True and setEventHandled is True. More...

int	getSelectedModifierMask ()
	Get compare and ignore mask for the currently selected button/modifier combination, usable with SoPointingAction. More...

int	getSelectedIgnoreMask ()

SoPointingAction::Trigger	getPointingActionTriggerFromFields ()
	Get the trigger that matches the button/modifier field state. More...

virtual bool	implementsManagedInteractionAndClassicEventHandling () const
	return true if this node is a hybrid module providing managed interaction and classic event handling - in this case SoView2D::useManagedInteraction decides which one to use More...

Public Member Functions inherited from SoInteractionProviderNode
	SoInteractionProviderNode ()
	Default constructor. More...

	~SoInteractionProviderNode () override
	Destructor. More...

std::string	getID () const override
	Returns the id string for identifying the provider (and its actions) - this is usually the name of the scene node. More...

void	objRef () override
	Memory management by reference counting; must be implemented in derived classes. More...

void	objUnref () override

Public Member Functions inherited from SoInteractionOwner
	SoInteractionOwner ()
	Default constructor. More...

	~SoInteractionOwner () override
	The destructor will destroy all interactions created with this object as owner. More...

std::list< SoInteraction * >	getInteractions (SoState *state) override
	Returns the list of all interactions of this provider. More...

void	pointerPosition (SoState *state, const SoPointerPosition &pos) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	pointerLeftWindow (SoState *state) override
	Same as below, with additional SoState argument. Be defaults simply calls the below version. More...

void	addListener (SoInteractionOwnerListenerInterface *listener)
	Add a listener object that is notified of changes in the interaction list. More...

void	removeListener (SoInteractionOwnerListenerInterface *listener)
	Remove a listener object that was notified of changes in the interaction list. More...

Public Member Functions inherited from SoInteractionProvider
	SoInteractionProvider ()
	Default constructor. More...

virtual	~SoInteractionProvider ()

template<class T >
std::list< T * >	getInteractionsOfType (SoState *state)
	Returns list of interactions of a specific type: More...

virtual std::list< SoCommandAction * >	getCommandActions (SoState *state)

virtual std::list< SoPointingAction * >	getPointingActions (SoState *state)

virtual std::list< SoOffsetAction * >	getOffsetActions (SoState *state)

Static Public Member Functions
static void	initClass ()
	inventor runtime type system More...

Static Public Member Functions inherited from SoView2DCallback
static void	initClass ()

Static Public Member Functions inherited from SoView2DExtension
static void	initClass ()
	Initializes this class. More...

static float	snapToPixelCenter (float coordinateComponent)
	Snaps the coordinate component to the pixel center. More...

static void	fieldChangedCB (void data, SoSensor sensor)
	inventor callbacks if any field has changed, calls fieldChanged More...

static bool	isImageParallel (SoSFMLImage image, View2DSliceList dsl)
	Return true if `image` is parallel to the image of the slice list up to slice thickness. More...

static void	enableLineStippling (const SoSFEnum &lineStyleField)
	Set/reset stippling pattern. More...

static void	disableLineStippling (const SoSFEnum &lineStyleField)

static void	getAxisOrientation (int axis, SbMatrix &matrix, char &negativeResult, char &positiveResult)
	Geometry helpers. More...

static float	pointToLineDistance (SbVec3f point, SbVec3f line1, SbVec3f line2)
	calculate 3D point to line distance More...

static float	pointToLineDistance (SbVec2f point, SbVec2f line1, SbVec2f line2)
	calculate 2D point to line distance More...

static Sign	edgeIntersectWithPlane (const SbVec3f &v1, const SbVec3f &v2, const SbPlane &plane, SbVec3f &intersect)
	intersect given edge from `v1` to `v2` with given plane, returns sign and `intersect` point More...

Static Public Member Functions inherited from SoInteractionProviderNode
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoInteractionProvider
static void	registerInteractionProviderNode (SoType type, GetProviderFunc func)
	Register a function to obtain a SoInteractionProvider from a SoNode. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)
	Get a SoInteractionProvider from a SoNode if registered, else NULL. More...

Public Attributes

SoSFMLImage	image
	Fields. More...

SoSFBool	cacheTextures
	flag if textures should be cached More...

SoSFEnum	blendMode
	select the blend mode of the overlay More...

SoSFBool	inheritFilterMode
	inherit filter mode More...

SoSFEnum	filterMode
	filter mode for rendering More...

SoSFFloat	alphaFactor
	set the alpha factor for drawing More...

SoSFColor	baseColor
	set the base color which is multiplied with the overlay More...

SoSFBool	overwriteCurrentTimePoint
	Should the current time point be overwritten? More...

SoSFInt32	timePoint
	select the timepoint of the input image to render More...

SoSFInt32	maxTimePoint
	maximum timepoint value available (maximum of timePoint field) More...

SoSFEnum	lutPrecision
	defines the precision of the LUT More...

SoSFBool	useWorldCoords
	if this flag is on, the overlay can also render correct subimage overlays if the image is parallel to the image rendered on SoView2D More...

SoSFBool	applyLut
	if this flag is enabled, the overlay uses the lut that is present in the scene graph, default is true More...

SoSFBool	isCheckerTiling
	If enabled, draws a checkerboard tile each. More...

SoSFInt32	checkerTileSize
	The size of the checkerboard tiles. More...

SoSFBool	areCheckerTilesInverted
	Invert the checkerboard with this flag. More...

SoSFString	overlayName
	Sets the name of the overlay for usage in a SoView2DShaderOverlay. More...

Public Attributes inherited from SoView2DExtension
SoSFColor	color
	color that should be used for drawing More...

SoSFBool	drawingOn
	flag if the extension should draw, needs to be checked inside of the draw() method More...

SoSFBool	editingOn
	flag if the extension should edit objects on mouse events, needs to be checked inside of the evalEvent() method More...

SoSFBool	maskValid
	flag if the event mask is valid. More...

SoSFFloat	selectionTolerance
	the selection tolerance in pixels More...

SoSFBool	wantsAllEvents
	flag if ALL events should be passed to evalEvent(), if disabled, events are only passed to evalEvent when the mouse mask gets valid More...

SoSFBool	wantsKeyEvents
	flag if keyboard events should be passed to evalEvent() More...

SoSFBool	wantsMouseWheelEvents
	flag if MouseWheel events should be passed to evalEvent() More...

SoSFBool	setEventHandled
	Set event handled if it is indeed handled by this extension. More...

SoSFBool	ignoreHandledEvents
	Ignore events, that have been handled by previous extensions. More...

SoSFEnum	button1
	mouse mask for button1 More...

SoSFEnum	button2
	mouse mask for button2 More...

SoSFEnum	button3
	mouse mask for button3 More...

SoSFEnum	shift
	shift modifier for mouse mask More...

SoSFEnum	control
	shift control for mouse mask More...

SoSFEnum	alt
	shift alt for mouse mask More...

SoSFBool	needsValidVoxel
	sets if a valid voxel must be hit to get evalEvent() calls More...

SoSFBool	renderOnSlab
	defines if the extension should be rendered on all slab slices More...

SoSFBool	createNewMode
	flag if extension is in createNewMode More...

SoSFTrigger	createNewModeRequest

SoSFBool	clipToSlice
	Flag to clip drawing to slice. More...

SoSFEnum	cursorShape
	Set cursor shape if the mouse mask fits and mouseEvents are effectively sent to evalEvent for editing. More...

SoSFBool	fixZOn
	DEPRECATED flag that indicates that the extension should fix the z value, only used in SoView2DRectangle. More...

Public Attributes inherited from SoInteractionProviderNode
SoSFString	instanceName
	Defines interface field to store the instance name. More...

SoSFString	interactionProviderID
	This field overrides the instanceName as providerID if specified. More...

Protected Member Functions
	~SoView2DOverlay () override
	Destructor. More...

virtual int	getTimePoint (View2DSliceList *slicelist, int slice)
	Returns the current timepoint which is either the actual shown timepoint or the timepoint overwritten by the field overwriteTimePoint; The slice parameter is not used in the standard implementation but can be necessary in derived classes. More...

Protected Member Functions inherited from SoView2DExtension
virtual void	editingOnChanged (SoField *)
	called when editingOn field is touched: More...

virtual void	buttonMaskChanged (SoField *)
	called when one of the button/modifier fields is touched: More...

virtual void	createNewModeRequestTriggered (SoField *)
	called when createNewModeRequest field ist touched: More...

	~SoView2DExtension () override
	destructor More...

void	GLRender (SoGLRenderAction *action) override
	Inventor actions. More...

void	callback (SoCallbackAction *action) override

void	handleEvent (SoHandleEventAction *action) override

void	getMatrix (SoGetMatrixAction *action) override

void	getBoundingBox (SoGetBoundingBoxAction *action) override

void	pick (SoPickAction *action) override

void	doAction (SoAction *action) override

Protected Member Functions inherited from SoInteractionOwner
virtual void	pointerPosition (const SoPointerPosition &)
	Override this if you always need to be informed of the current mouse cursor position. More...

virtual void	pointerLeftWindow ()
	This is called when the mouse cursor leaves the window. More...

bool	hasInteractions () const
	Returns whether there are any actions defined by this owner. More...

template<class T >
bool	hasInteractionsOfType () const
	Same as above, but asking for a specific type of interaction. More...

void	addPointingAction (SoPointingAction *)

void	addCommandAction (SoCommandAction *)

void	addOffsetAction (SoOffsetAction *)

Protected Attributes
View2DLut *	_lutData
	the lut data that is rendered More...

ml::LUTFunction *	_lutFunction
	the lut from the scene, stored by GLRender More...

bool	_reloadData
	flag if data needs to be reloaded More...

int	_id
	id for texture caching More...

int	_oldTimePoint
	previous timepoint More...

bool	_oldUseWorldCoords
	previous world coord flag More...

unsigned int	_imageSerial
	serial number of last input image More...

SoView2DShaderOverlayInfo	_overlayInfo
	for usage by shaders More...

Protected Attributes inherited from SoView2DExtension
SoNodeSensor *	_nodeSensor
	node sensor that is used to notice field changes More...

float	_rgbColor [4]
	Color of the object, update on each field change by _nodeSensor. More...

bool	_wantsMouseOverUpdateEvents
	set this flag to receive mouse over events while the extension is active More...

Additional Inherited Members
Public Types inherited from SoView2DExtension
enum	Sign { ZERO , NEGATIVE , POSITIVE }
	defines the sign of a number, with zero as an extra value More...

Public Types inherited from SoInteractionProvider
typedef SoInteractionProvider (	GetProviderFunc) (SoNode *)

Detailed Description

Draws an overlay image on the SoView2D.

SoView2DOverlay is derived from SoView2DCallback to allow others to register with the callback

Definition at line 39 of file SoView2DOverlay.h.

Constructor & Destructor Documentation

◆ SoView2DOverlay()

SoView2DOverlay::SoView2DOverlay ( )

Constructor.

◆ ~SoView2DOverlay()

SoView2DOverlay::~SoView2DOverlay ( )

overrideprotected

Destructor.

Member Function Documentation

◆ draw()

void SoView2DOverlay::draw	(	View2DSliceList *	dsl,
		View2DSlice *	dslice,
		int	slice
	)

overridevirtual

reimplemented from SoView2DExtension

Reimplemented from SoView2DExtension.

◆ endDrawing()

void SoView2DOverlay::endDrawing ( View2DSliceList * slicelist )

overridevirtual

reimplemented from SoView2DExtension

Reimplemented from SoView2DExtension.

◆ evalEvent()

bool SoView2DOverlay::evalEvent	(	SoView2D *	view2d,
		View2DSliceList *	slicelist,
		View2DEvent *	ec,
		View2DEventPhase	phase
	)

overridevirtual

reimplemented from SoView2DExtension

Reimplemented from SoView2DExtension.

◆ getTimePoint()

virtual int SoView2DOverlay::getTimePoint	(	View2DSliceList *	slicelist,
		int	slice
	)

protectedvirtual

Returns the current timepoint which is either the actual shown timepoint or the timepoint overwritten by the field overwriteTimePoint; The slice parameter is not used in the standard implementation but can be necessary in derived classes.

◆ GLRender()

void SoView2DOverlay::GLRender ( SoGLRenderAction * action )

override

reimplemented from SoNode, stores the LUT for later rendering

◆ initClass()

static void SoView2DOverlay::initClass ( )

static

inventor runtime type system

◆ startDrawing()

void SoView2DOverlay::startDrawing ( View2DSliceList * slicelist )

overridevirtual

reimplemented from SoView2DExtension

Reimplemented from SoView2DExtension.

Member Data Documentation

◆ _id

int SoView2DOverlay::_id

protected

id for texture caching

Definition at line 122 of file SoView2DOverlay.h.

◆ _imageSerial

unsigned int SoView2DOverlay::_imageSerial

protected

serial number of last input image

Definition at line 128 of file SoView2DOverlay.h.

◆ _lutData

View2DLut* SoView2DOverlay::_lutData

protected

the lut data that is rendered

Definition at line 114 of file SoView2DOverlay.h.

◆ _lutFunction

ml::LUTFunction* SoView2DOverlay::_lutFunction

protected

the lut from the scene, stored by GLRender

Definition at line 117 of file SoView2DOverlay.h.

◆ _oldTimePoint

int SoView2DOverlay::_oldTimePoint

protected

previous timepoint

Definition at line 124 of file SoView2DOverlay.h.

◆ _oldUseWorldCoords

bool SoView2DOverlay::_oldUseWorldCoords

protected

previous world coord flag

Definition at line 126 of file SoView2DOverlay.h.

◆ _overlayInfo

SoView2DShaderOverlayInfo SoView2DOverlay::_overlayInfo

protected

for usage by shaders

Definition at line 131 of file SoView2DOverlay.h.

◆ _reloadData

bool SoView2DOverlay::_reloadData

protected

flag if data needs to be reloaded

Definition at line 120 of file SoView2DOverlay.h.

◆ alphaFactor

SoSFFloat SoView2DOverlay::alphaFactor

set the alpha factor for drawing

Definition at line 57 of file SoView2DOverlay.h.

◆ applyLut

SoSFBool SoView2DOverlay::applyLut

if this flag is enabled, the overlay uses the lut that is present in the scene graph, default is true

Definition at line 74 of file SoView2DOverlay.h.

◆ areCheckerTilesInverted

SoSFBool SoView2DOverlay::areCheckerTilesInverted

Invert the checkerboard with this flag.

Definition at line 83 of file SoView2DOverlay.h.

◆ baseColor

SoSFColor SoView2DOverlay::baseColor

set the base color which is multiplied with the overlay

Definition at line 59 of file SoView2DOverlay.h.

◆ blendMode

SoSFEnum SoView2DOverlay::blendMode

select the blend mode of the overlay

Definition at line 51 of file SoView2DOverlay.h.

◆ cacheTextures

SoSFBool SoView2DOverlay::cacheTextures

flag if textures should be cached

Definition at line 49 of file SoView2DOverlay.h.

◆ checkerTileSize

SoSFInt32 SoView2DOverlay::checkerTileSize

The size of the checkerboard tiles.

Definition at line 80 of file SoView2DOverlay.h.

◆ filterMode

SoSFEnum SoView2DOverlay::filterMode

filter mode for rendering

Definition at line 55 of file SoView2DOverlay.h.

◆ image

SoSFMLImage SoView2DOverlay::image

Fields.

input image

Definition at line 47 of file SoView2DOverlay.h.

◆ inheritFilterMode

SoSFBool SoView2DOverlay::inheritFilterMode

inherit filter mode

Definition at line 53 of file SoView2DOverlay.h.

◆ isCheckerTiling

SoSFBool SoView2DOverlay::isCheckerTiling

If enabled, draws a checkerboard tile each.

Definition at line 77 of file SoView2DOverlay.h.

◆ lutPrecision

SoSFEnum SoView2DOverlay::lutPrecision

defines the precision of the LUT

Definition at line 67 of file SoView2DOverlay.h.

◆ maxTimePoint

SoSFInt32 SoView2DOverlay::maxTimePoint

maximum timepoint value available (maximum of timePoint field)

Definition at line 65 of file SoView2DOverlay.h.

◆ overlayName

SoSFString SoView2DOverlay::overlayName

Sets the name of the overlay for usage in a SoView2DShaderOverlay.

Definition at line 86 of file SoView2DOverlay.h.

◆ overwriteCurrentTimePoint

SoSFBool SoView2DOverlay::overwriteCurrentTimePoint

Should the current time point be overwritten?

Definition at line 61 of file SoView2DOverlay.h.

◆ timePoint

SoSFInt32 SoView2DOverlay::timePoint

select the timepoint of the input image to render

Definition at line 63 of file SoView2DOverlay.h.

◆ useWorldCoords

SoSFBool SoView2DOverlay::useWorldCoords

if this flag is on, the overlay can also render correct subimage overlays if the image is parallel to the image rendered on SoView2D

Definition at line 71 of file SoView2DOverlay.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoView2D/extensions/SoView2DOverlay.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoView2DOverlay()

◆ ~SoView2DOverlay()

Member Function Documentation

◆ draw()

◆ endDrawing()

◆ evalEvent()

◆ getTimePoint()

◆ GLRender()

◆ initClass()

◆ startDrawing()

Member Data Documentation

◆ _id

◆ _imageSerial

◆ _lutData

◆ _lutFunction

◆ _oldTimePoint

◆ _oldUseWorldCoords

◆ _overlayInfo

◆ _reloadData

◆ alphaFactor

◆ applyLut

◆ areCheckerTilesInverted

◆ baseColor

◆ blendMode

◆ cacheTextures

◆ checkerTileSize

◆ filterMode

◆ image

◆ inheritFilterMode

◆ isCheckerTiling

◆ lutPrecision

◆ maxTimePoint

◆ overlayName

◆ overwriteCurrentTimePoint

◆ timePoint

◆ useWorldCoords
