Common base class for lookup tables. More...

#include <mlLUTFunction.h>

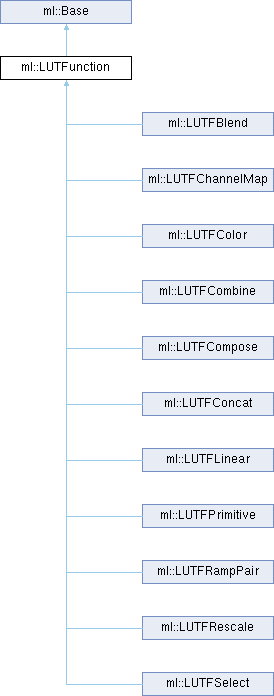

Inheritance diagram for ml::LUTFunction:

Public Member Functions
	LUTFunction (LUTVisualType vt, bool relative)
	Constructor.

void	changed (void)
	Assign a new LUT ID.

void	overwriteUniqueId (unsigned int newId)
	Overwrites the unique id. NOTE: use this only if you really know what you are doing!

LUT properties
virtual bool	isValid (void) const
	Return true if the LUT function is valid. An invalid LUT function can not be rendered.

virtual LUTVisualType	getVisualType (void) const
	Get LUT visual type.

virtual bool	isRelative (void) const
	Is LUT relative?

virtual void	setRelative (bool relative)
	Set/reset relative flag.

virtual LUTDimensionality	getDimensionality (void) const
	Get dimensionality (1, 2, or 3), usually depending on height and depth.

virtual double	getNativeMinIndex (void) const
	Get native minimum index.

virtual double	getNativeMaxIndex (void) const
	Get native maximum index.

virtual int	getHeight (void) const
	Get native LUT height (= number of rows, numbering starts at 0)

virtual int	getDepth (void) const
	Get native LUT depth (= number of layers, numbering starts at 0)

virtual double	getNativeMinValue (void) const
	Get native minimum LUT value.

virtual double	getNativeMaxValue (void) const
	Get native maximum LUT value.

unsigned int	getId (void) const
	Get current LUT ID.

LUT rendering
These methods are called by LUT users to obtain a rendering of the LUT function.
virtual bool	render (LUTDataBase *lutData) const
	Render LUT in (previously initialized) LUTData object.

virtual bool	renderRescaled (LUTDataBase *lutData, double minIndex, double maxIndex) const
	Render rescaled LUT in (previously initialized) LUTData object.

Public Member Functions inherited from ml::Base
	Base ()
	Constructor.

virtual	~Base ()
	Destructor.

virtual Base *	deepCopy () const
	Set addStateToTree version number that can be accessed via getAddStateVersion()

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Check if this object's type is equal to or derived from one of the types given in the argument.

virtual bool	isRefCountedBase () const
	Returns if the instance is derived from RefCountedBase.

virtual std::string	detailString () const
	Return a string describing this object.

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class.

virtual std::string	persistentState () const
	Returns a string describing the object's internal state.

virtual void	setPersistentState (const std::string &state)
	Restores the object's internal state from a string that had been previously generated using `persistentState()`.

virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node.

virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node.

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Write the objects state to the data stream object.

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Read the objects state from the data stream object.

Static Public Member Functions
static unsigned int	generateUniqueId (void)
	Generate a unique id (unique for all mlLUTFunctions), this can also be called to get a unique id for a LUTData object manually.

Protected Member Functions
template<typename T >
bool	renderT (LUTData< T > *lutData, bool rescaled, double minIndex, double maxIndex) const
	Perform type-specific, native or rescaled (rescaled = true, rescale to range minIndex ... maxIndex) LUT rendering by.

template<typename T >
bool	interpolateLUT (LUTData< T > lutData, LUTIterator< T > lutIterator, double minIndex, double maxIndex) const
	Perform type-specific rescaled LUT rendering by.

	ML_ABSTRACT_CLASS_HEADER (LUTFunction)

LUT implementation
These methods are overloaded to define the LUT function
virtual LUTVisualType	getRenderType (LUTDataBase *) const
	Get visual type used for rendering.

virtual bool	renderLUTNative (LUTDataBase lutData, LUTIteratorBase lutIterator) const =0
	Render a single row of the lookup table into lutData using lutIterator to access and increment the LUT pointers and to identify the current row and layer.

virtual bool	renderLUTRescaled (LUTDataBase lutData, LUTIteratorBase lutIterator, double minIndex, double maxIndex) const
	Render a single row of a rescaled LUT into lutData using lutIterator to access and increment the LUT pointers and to identify the current row and layer.

Protected Attributes
LUTVisualType	_visualType
	LUT visual type.

bool	_relative
	Flag for relative LUT.

unsigned int	_id
	Unique LUT ID, changed by the changed() method whenever a property of the LUT function object is modified.

Static Protected Attributes
static unsigned int	_gNextId
	Global storage for next unused LUT ID to ensure uniqueness.

Additional Inherited Members
Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Detailed Description

Common base class for lookup tables.

A class derived from LUTFunction represents an abstract lookup table (LUT) defining the mapping of index values to LUT entry values. Despite its name, a LUTFunction is not a table, i.e. the LUT entries are not specified for a fixed set of index values. Instead, a LUTFunction defines the methods render() and renderRescaled() that generate LUT entry values for an arbitrary index range. The table data generated when a LUT is rendered is stored in a LUTData object.

In addition to the usual one-dimensional lookup tables, there are also two- and three-dimensional LUTs, consisting of several 1D-LUTs arranged in rows and layers. The index range for rows and layers always starts at 0 and is absolute. Rescaling with respect to the row or layer range is not supported.

To implement a lookup table, derive a class from LUTFunction and overload the methods renderLUTNative() and renderLUTRescaled() and use the LUTIterator object to access the LUTData. If necessary, also overload the methods defining the LUT properties and the getRenderType() methods. Make sure to call the changed() method whenever a property of the LUT changes. This will allow a user of the LUT to decide whether it is necessary to re-render the LUT.

Definition at line 54 of file mlLUTFunction.h.

Constructor & Destructor Documentation

◆ LUTFunction()

ml::LUTFunction::LUTFunction	(	LUTVisualType	vt,
		bool	relative )

inline

Constructor.

Definition at line 59 of file mlLUTFunction.h.

Member Function Documentation

◆ changed()

void ml::LUTFunction::changed ( void )

Assign a new LUT ID.

This method has to be called whenever a property of the LUT object is modified.

Referenced by ml::LUTFRampPair::setAlphaCenter(), ml::LUTFRampPair::setAlphaEnd(), ml::LUTFRampPair::setAlphaStart(), ml::LUTFRampPair::setAlphaWidth(), ml::LUTFRescale::setAutoSourceRange(), ml::LUTFPrimitive::setBaseValue(), ml::LUTFPrimitive::setCenter(), ml::LUTFPrimitive::setEdgeWidth(), ml::LUTFSelect::setLayer(), ml::LUTFPrimitive::setPeakValue(), ml::LUTFCompose::setResolution(), ml::LUTFRampPair::setRGBCenter(), ml::LUTFRampPair::setRGBWidth(), ml::LUTFSelect::setRow(), ml::LUTFPrimitive::setShape(), ml::LUTFColor::setVisualType(), and ml::LUTFPrimitive::setWidth().

◆ generateUniqueId()

static unsigned int ml::LUTFunction::generateUniqueId ( void )

static

Generate a unique id (unique for all mlLUTFunctions), this can also be called to get a unique id for a LUTData object manually.

The id 0 is never returned and can safely be used as an invalid/unknown id.

◆ getDepth()

virtual int ml::LUTFunction::getDepth ( void ) const

inlinevirtual

Get native LUT depth (= number of layers, numbering starts at 0)

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, and ml::LUTFRescale.

Definition at line 92 of file mlLUTFunction.h.

◆ getDimensionality()

virtual LUTDimensionality ml::LUTFunction::getDimensionality ( void ) const

inlinevirtual

Get dimensionality (1, 2, or 3), usually depending on height and depth.

Reimplemented in ml::LUTFBlend.

Definition at line 79 of file mlLUTFunction.h.

References ml::LUT_1D, ml::LUT_2D, and ml::LUT_3D.

◆ getHeight()

virtual int ml::LUTFunction::getHeight ( void ) const

inlinevirtual

Get native LUT height (= number of rows, numbering starts at 0)

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, and ml::LUTFRescale.

Definition at line 89 of file mlLUTFunction.h.

◆ getId()

unsigned int ml::LUTFunction::getId ( void ) const

inline

Get current LUT ID.

The ID is a unique number identifying the state of a LUT object. It is modified whenever a property of the LUT object changes. When the LUT is rendered, the current value of the LUT ID is stored in the LUTData object. This allows to check whether a rendered LUT needs to be updated.

Definition at line 105 of file mlLUTFunction.h.

◆ getNativeMaxIndex()

virtual double ml::LUTFunction::getNativeMaxIndex ( void ) const

inlinevirtual

Get native maximum index.

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, ml::LUTFLinear, ml::LUTFPrimitive, ml::LUTFRampPair, ml::LUTFRescale, and ml::LUTFSelect.

Definition at line 86 of file mlLUTFunction.h.

◆ getNativeMaxValue()

virtual double ml::LUTFunction::getNativeMaxValue ( void ) const

inlinevirtual

Get native maximum LUT value.

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, ml::LUTFRescale, and ml::LUTFSelect.

Definition at line 98 of file mlLUTFunction.h.

◆ getNativeMinIndex()

virtual double ml::LUTFunction::getNativeMinIndex ( void ) const

inlinevirtual

Get native minimum index.

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, ml::LUTFLinear, ml::LUTFPrimitive, ml::LUTFRampPair, ml::LUTFRescale, and ml::LUTFSelect.

Definition at line 83 of file mlLUTFunction.h.

◆ getNativeMinValue()

virtual double ml::LUTFunction::getNativeMinValue ( void ) const

inlinevirtual

Get native minimum LUT value.

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, ml::LUTFRescale, and ml::LUTFSelect.

Definition at line 95 of file mlLUTFunction.h.

◆ getRenderType()

virtual LUTVisualType ml::LUTFunction::getRenderType ( LUTDataBase * ) const

inlineprotectedvirtual

Get visual type used for rendering.

This method is called by render() and renderRescaled() to initialize the LUT iterator object appropriate for a pair of source/target visual types. By default, LUT's visual type is returned, independent of the target visual type of the LUTData object. A derived class may overload this method in case it supports rendering into several visual types by itself.

Reimplemented in ml::LUTFBlend, and ml::LUTFCompose.

Definition at line 156 of file mlLUTFunction.h.

◆ getVisualType()

virtual LUTVisualType ml::LUTFunction::getVisualType ( void ) const

inlinevirtual

Get LUT visual type.

Reimplemented in ml::LUTFRescale.

Definition at line 70 of file mlLUTFunction.h.

◆ interpolateLUT()

template<typename T >

bool ml::LUTFunction::interpolateLUT	(	LUTData< T > *	lutData,
		LUTIterator< T > *	lutIterator,
		double	minIndex,
		double	maxIndex ) const

protected

Perform type-specific rescaled LUT rendering by.

creating a second LUTData for the range minIndex .. maxIndex
calling renderT() to render the LUT
interpolating the second LUT for the range specified in lutData.

◆ isRelative()

virtual bool ml::LUTFunction::isRelative ( void ) const

inlinevirtual

Is LUT relative?

Definition at line 73 of file mlLUTFunction.h.

◆ isValid()

virtual bool ml::LUTFunction::isValid ( void ) const

inlinevirtual

Return true if the LUT function is valid. An invalid LUT function can not be rendered.

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFConcat, ml::LUTFLinear, ml::LUTFRescale, and ml::LUTFSelect.

Definition at line 67 of file mlLUTFunction.h.

◆ ML_ABSTRACT_CLASS_HEADER()

ml::LUTFunction::ML_ABSTRACT_CLASS_HEADER ( LUTFunction )

protected

◆ overwriteUniqueId()

void ml::LUTFunction::overwriteUniqueId ( unsigned int newId )

Overwrites the unique id. NOTE: use this only if you really know what you are doing!

◆ render()

virtual bool ml::LUTFunction::render ( LUTDataBase * lutData ) const

virtual

Render LUT in (previously initialized) LUTData object.

Return true if successful.

To define a LUT in a derived class, overload the renderLUTNative() method.

Reimplemented in ml::LUTFBlend, ml::LUTFCompose, and ml::LUTFConcat.

◆ renderLUTNative()

virtual bool ml::LUTFunction::renderLUTNative	(	LUTDataBase *	lutData,
		LUTIteratorBase *	lutIterator ) const

protectedpure virtual

Render a single row of the lookup table into lutData using lutIterator to access and increment the LUT pointers and to identify the current row and layer.

When rendering a 2/3D-LUT, lutData represents only the row currently rendered. Both lutData and lutIterator should be type-cast to a derived, type specific class pointer, according to lutData->getDataType(). Return true if successful. This method is overloaded by a derived class to actually define the LUT.

Implemented in ml::LUTFConcat, ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFLinear, ml::LUTFPrimitive, ml::LUTFRampPair, ml::LUTFRescale, and ml::LUTFSelect.

◆ renderLUTRescaled()

virtual bool ml::LUTFunction::renderLUTRescaled	(	LUTDataBase *	lutData,
		LUTIteratorBase *	lutIterator,
		double	minIndex,
		double	maxIndex ) const

protectedvirtual

Render a single row of a rescaled LUT into lutData using lutIterator to access and increment the LUT pointers and to identify the current row and layer.

When rendering a 2/3D-LUT, lutData represents only the row currently rendered. Both lutData and lutIterator should be type-cast to a derived, type specific class pointer, according to lutData->getDataType(). The LUT is rendered for range minIndex .. maxIndex, but resampled to the index range specified in lutData. Return true if successful.

The default implementation renders the original LUT for the given range and rescales by interpolation. A derived LUT function may overload this method for higher efficiency/precision.

Reimplemented in ml::LUTFBlend, ml::LUTFChannelMap, ml::LUTFColor, ml::LUTFCombine, ml::LUTFCompose, ml::LUTFLinear, ml::LUTFPrimitive, ml::LUTFRampPair, ml::LUTFRescale, and ml::LUTFSelect.

◆ renderRescaled()

virtual bool ml::LUTFunction::renderRescaled	(	LUTDataBase *	lutData,
		double	minIndex,
		double	maxIndex ) const

virtual

Render rescaled LUT in (previously initialized) LUTData object.

LUT is rendered for range minIndex .. maxIndex, but resampled to the index range specified in lutData. Return true if successful

The default implementation renders the original LUT for the given range and rescales by interpolation. A derived LUT function may overload this method for higher efficiency/precision.

Reimplemented in ml::LUTFBlend, ml::LUTFCompose, and ml::LUTFConcat.

◆ renderT()

template<typename T >

bool ml::LUTFunction::renderT	(	LUTData< T > *	lutData,
		bool	rescaled,
		double	minIndex,
		double	maxIndex ) const

protected

Perform type-specific, native or rescaled (rescaled = true, rescale to range minIndex ... maxIndex) LUT rendering by.

initializing an appropriate LUTIterator
initializing the LUTData's alpha channel (if necessary)
calling renderLUTNative() or renderLUTRescaled()

◆ setRelative()

virtual void ml::LUTFunction::setRelative ( bool relative )

inlinevirtual

Set/reset relative flag.

Reimplemented in ml::LUTFRampPair, and ml::LUTFRescale.

Definition at line 76 of file mlLUTFunction.h.

References mlrange_cast().

Member Data Documentation

◆ _gNextId

unsigned int ml::LUTFunction::_gNextId

staticprotected

Global storage for next unused LUT ID to ensure uniqueness.

Definition at line 215 of file mlLUTFunction.h.

◆ _id

unsigned int ml::LUTFunction::_id

protected

Unique LUT ID, changed by the changed() method whenever a property of the LUT function object is modified.

Definition at line 211 of file mlLUTFunction.h.

◆ _relative

bool ml::LUTFunction::_relative

protected

Flag for relative LUT.

Definition at line 207 of file mlLUTFunction.h.

◆ _visualType

LUTVisualType ml::LUTFunction::_visualType

protected

LUT visual type.

Definition at line 204 of file mlLUTFunction.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Shared/MLLUT/mlLUTFunction.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LUTFunction()

Member Function Documentation

◆ changed()

◆ generateUniqueId()

◆ getDepth()

◆ getDimensionality()

◆ getHeight()

◆ getId()

◆ getNativeMaxIndex()

◆ getNativeMaxValue()

◆ getNativeMinIndex()

◆ getNativeMinValue()

◆ getRenderType()

◆ getVisualType()

◆ interpolateLUT()

◆ isRelative()

◆ isValid()

◆ ML_ABSTRACT_CLASS_HEADER()

◆ overwriteUniqueId()

◆ render()

◆ renderLUTNative()

◆ renderLUTRescaled()

◆ renderRescaled()

◆ renderT()

◆ setRelative()

Member Data Documentation

◆ _gNextId

◆ _id

◆ _relative

◆ _visualType
