Base class for an editor extension for the SoView2DCSOExtensibleEditor. More...

#include <SoCSOEditorExtension.h>

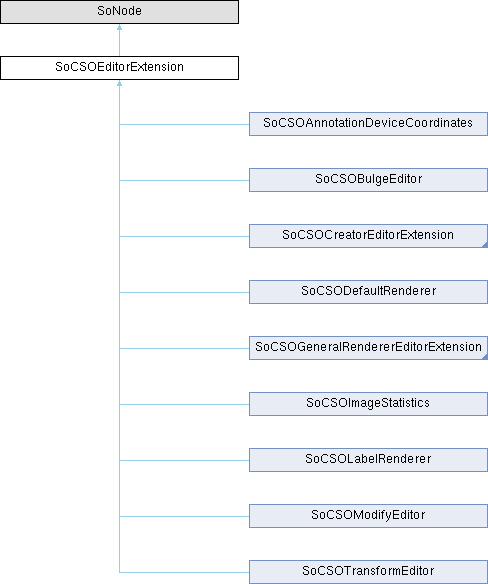

Inheritance diagram for SoCSOEditorExtension:

Public Member Functions
void	setExtensibleEditor (SoView2DCSOExtensibleEditor *extensibleEditor)
	Sets the pointer to the calling extensible editor. More...

virtual void	activate (SoView2DCSOExtensibleEditor *extensibleEditor)
	Is called when an extension is activated by the SoView2DExtensibleEditor. More...

virtual void	deactivate ()
	Is called when an extension is deactivated by the SoView2DExtensibleEditor. More...

virtual void	buttonMaskChanged ()
	Is called when the button mask of the SoView2DExtensibleEditor has changed. More...

virtual void	editingOnChanged ()
	Is called when the editingOn field of the SoView2DExtensibleEditor has changed. More...

virtual void	startDrawing (View2DSliceList *)
	Is called before drawing. More...

virtual void	drawingDone ()
	Is called when all drawing is done. More...

virtual void	setVisibleCSOs (const std::vector< CSODrawCSOInfos > &drawCSOInformation, const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor *editor)
	Sets visible CSOs that have been determined in the extensible editor. More...

virtual void	draw (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Main routine for drawing a CSO. More...

virtual void	drawSecondPass (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Drawing routine that comes between 'main' and 'overlay'. More...

virtual void	drawOverlay (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Routine for drawing after the main routine has drawn. More...

virtual void	drawAdditionalGeometry (const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor *editor)
	Routine for drawing additional geometry of the extension. More...

virtual void	createStartPressAt (const SoPointerPosition &pos)=0

virtual void	createDragMoveTo (const SoPointerPosition &pos)=0

virtual bool	createEndPress (int clickCount)=0

virtual void	pointerPositionIfAllowedAt (const SoPointerPosition &pos)=0
	Sets seed points while moving the mouse – but not while dragging. More...

virtual void	selectAndMoveStartPressAt (const SoPointerPosition &pos)=0

virtual void	selectAndMoveDragMoveTo (const SoPointerPosition &pos)=0

virtual SoPointingAction *	selectAndMoveEndPress (int clickCount)=0

virtual void	insertSeedPointStartPressAt (const SoPointerPosition &)

virtual void	insertSeedPointDragMoveTo (const SoPointerPosition &)

virtual SoPointingAction *	insertSeedPointEndPress (int)

virtual void	bulgeStartPressAt (const SoPointerPosition &)

virtual void	bulgeDragMoveTo (const SoPointerPosition &)

virtual SoPointingAction *	bulgeEndPress (int)

virtual void	pointerPosition (const SoPointerPosition &)
	Is called when the mouse moves over a viewer. More...

virtual void	pointerLeftWindow ()
	Is called when mouse pointer leaves the window. More...

virtual bool	isCreationAllowed () const
	Returns whether the editor is allowed to create a new CSO. More...

virtual bool	isCreationAllowedAt (const SoPointerPosition &) const
	Returns whether the editor is allowed to create a new CSO at the given position, by default calls the previous method. More...

virtual bool	isModificationAllowed () const
	Returns whether the editor is allowed to modify an existing CSO. More...

virtual bool	shouldRenderCSOs () const
	Returns whether the editor should render. More...

virtual bool	canCreateCSOs () const
	Returns whether the editor can create a CSO. More...

virtual ml::CSO *	getActiveCSO () const
	Returns the currently active CSO. More...

virtual bool	expectsToCreateCSO ()
	Returns whether an editor is awaiting to create a new CSO, depending on the requireMousemovement flag. More...

SbString	getCreatorExtensionId () const

void	setActiveCSOList (ml::CSOList *hitCSOList)

void	setSelectAndMoveInformation (ml::CSOList hitCSOList, ml::CSO hitCSO, ml::CSOSeedPoint hitSeedPoint, ml::CSOPathPoints hitPathPoints, float hitDistance)

void	setCSOUnderMouse (ml::CSO *cso)

ml::CSO *	getCSOUnderMouse () const

bool	hasSelectedSeedPoint () const

bool	hasSelectedCSO () const

virtual SbString	getSubType () const
	Returns the sub type string of the derived class. More...

virtual bool	shouldRenderSpecific (ml::CSO *cso) const
	Returns whether a given CSO should be rendered by this specific extension. More...

virtual bool	shouldRenderGeneral (ml::CSO *) const
	Returns whether a given CSO should be rendered by this general extension. More...

virtual bool	isDefaultRenderer () const
	Returns whether the editor is the default editor. More...

virtual bool	isModificationEditor () const
	Returns whether the editor is a modification editor. More...

virtual void	resetCache ()
	Resets internal module caches, if there are any. More...

virtual void	cancel ()
	Cancels an action like generating a CSO. Depends on concrete editor. More...

virtual int	cursorShape () const
	Returns the cursor shape that indicates the next creation. More...

virtual bool	deleteSeedPoint (ml::CSO cso, ml::CSOSeedPoint )
	Removes the given seed point from the given CSO and returns whether that was successful. More...

ml::CSOSeedPoint *	getPreviousSeedPoint (ml::CSOSeedPoint *seedPoint) const
	Returns the previous seed point of the given seed point for setting it as the next selected seed point. More...

virtual void	mouseWheelEventReceived (SoMouseWheelEvent::Orientation, int, View2DEvent *)
	Method is called when the extensible editor received a mouse wheel event. More...

virtual bool	evaluateHitPoint (const ml::Vector3 &worldPosition, View2DSliceList slicelist, ml::CSOList csoList, const ml::CSOBoundingBox &slabBB, SoView2DCSOExtensibleEditor editor, ml::CSO &localHitCSO, ml::CSOSeedPoint &localHitSeedPoint, ml::CSOPathPoints &localHitPathPoints, float &distance)
	Returns whether the given world position is within the selection distance set in the editor and fills the selection distance. More...

void	reset ()

ml::CSOVisualizationSettings *	getVisualizationSettings ()
	Returns a pointer to the visual settings that are either the default ones or the ones set to the extensible editor (if present). More...

bool	shouldShowCSOForCurrentTimePoint (const CSODrawView2DInfos &view2DInfos, ml::CSO *cso)
	Returns whether the given CSO should be rendered for the current time point. More...

void	sendCSOEventsOnCancel (ml::CSO *cso)
	Sends CSO events for completing a creation or interaction when canceling it. More...

virtual void	sendCSOEventsOnCancel (ml::CSOList *csoList)

Static Public Member Functions
static void	initClass ()
	init class in inventor runtime More...

Public Attributes
SoSFString	extensionId
	ID for a editor, needs to be unique per editor extension instance. More...

SoSFBool	allowCreation
	Shall the editor allow creation? More...

SoSFBool	allowModification
	Shall the editor allow modification of CSOs of its type? More...

SoSFBool	allowSeedPointInteraction
	Should the interaction with seed points be allowed? More...

SoSFBool	shouldRender
	Shall the editor render its CSOs? More...

SoSFMLBase	inVisualizationSettings
	Optionally attached visualization settings, overrides the vis. More...

SoSFEnum	selectionCursor

SoSFEnum	interactionForbiddenCursor

SoSFInt32	csoIdUnderMouseCursor
	The id of the CSO currently under the mouse (or -1 if no CSO is under the mouse). More...

Protected Member Functions
	SoCSOEditorExtension ()
	Hidden constructor. More...

	~SoCSOEditorExtension () override
	Hidden destructor. More...

virtual void	initMembers ()

void	sendCSONotificationRepaint ()
	Sends a CSO notification to repaint the CSOList. More...

void	sendCSONotificationMove ()
	Sends a CSO notification on moving a CSO or seed point. More...

void	sendCSONotificationFinishInteraction ()
	Sends a CSO notification on finishing an interaction with a CSO. More...

void	sendCSONotificationResetInteractionState ()
	Sends a CSO notification on having the interaction state being reset. More...

void	sendCSONotificationInsertSeedPoint ()
	Sends a CSO notification on inserting a seed point. More...

void	sendCSONotificationNewCSOStarted ()
	Sends a CSO notification on having started to create a new CSO. More...

void	setExtensionIdAsSubType ()
	Sets the subtype member to the value of the extension id string. More...

virtual void	setCreationData (const SoPointerPosition &pos, ml::CSO *newCSO)
	Sets creation data to a newly created CSO. More...

void	extensionIdCB (SoField *)

SoCSOEditorTools::LineRenderSettings	getLineRenderSettingsOnSlice ()
	Creates a LineRenderSettings struct from the editors visualization settings "onSlice" section. More...

SoCSOEditorTools::LineRenderSettings	getLineRenderSettingsForCSO (ml::CSO *cso)
	Creates a LineRenderSettings struct from the visualization attributes of the given CSO. More...

void	drawPathPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, const SbVec2f &shadowOffsetDevice, SoView2DCSOExtensibleEditor *editor)
	Draws the CSO by drawing lines between the path points. Renders different types of CSOs. More...

void	renderPathPoints (const CSOPathPointsRenderSettings &renderSettings, const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const std::vector< CSOSliceCrossing > &pathPointsLists, GLint lineMode, const SbVec2f &shadowOffsetDevice)
	Draws path points with given render settings. More...

void	drawPathAndCrossingPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const SbVec2f &shadowOffsetDevice, const std::vector< CSOSliceCrossing > &pathAndCrossingPoints, GLint lineMode)
	Draws the path and crossing points. More...

void	drawShape (int style, SoView2DCSOExtensibleEditor editor, ml::CSOVisualizationSettings visualizationSettings, float deviceX, float deviceY, float size, float lineWidth=1.f)
	Draws the shape with the given style with the given center and size. More...

void	drawSeedPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, SoView2DCSOExtensibleEditor *editor)
	Draws the seed points of the CSO. More...

void	drawFixedSizeCircleAt (float deviceX, float deviceY)
	Renders a fixed size circle at the given position. More...

bool	isCSOVisible (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, SoView2DCSOExtensibleEditor *editor)
	Returns whether the CSO is visible on the current slice. More...

ml::Vector3	getTransformedPosition (const CSODrawView2DInfos &view2DInfos, const ml::Vector3 &position)
	If a SoCSOTransform exists, this method returns the transformed position. More...

void	mapWorldToDevice (const SoPointerPosition &pos, const ml::Vector3 &worldPosition, float &deviceX, float &deviceY)
	Returns device coordinates for a given world position. More...

void	mapWorldToDevice (View2DSliceList *slicelist, const ml::Vector3 &worldPosition, float &deviceX, float &deviceY)
	Returns device coordinates for a given world position. More...

ml::Vector3	mapDeviceToWorld (const SoPointerPosition &pos, float deviceX, float deviceY)
	Returns world coordinates for given device position. More...

ml::Vector3	mapWorldToVoxel (const SoPointerPosition &pos, const ml::Vector3 &worldPosition)
	Returns a voxel position for a given world position. More...

ml::Vector3	mapWorldToVoxel (const SoPointerPosition &pos, const SbVec3f &worldPosition)
	Returns a voxel position for a given world position. More...

ml::Vector3	mapVoxelToWorld (const SoPointerPosition &pos, const ml::Vector3 &voxelPosition)
	Returns a world position for a given voxel position. More...

SbVec2f	nonShadowOffset () const
	Returns the default offset for non-shadows in pixels. More...

SbVec2f	shadowOffset () const
	Returns the default offset for shadows in pixels. More...

GLint	getLineMode (ml::CSO *cso)
	Returns the correct line mode for open and for closed CSOs. More...

void	setupGLForCSO (const CSODrawCSOInfos &csoInfos)
	Sets up GL state for color, line width, and point size. More...

void	setupGLShadow (float generalAlpha=1.0f)
	Sets up the GL state for shadow rendering (color and line width). More...

void	glSetAlpha (float alpha)
	Sets an alpha value but retains the set color. More...

float	getDepthAlpha (int maxSliceDistance, int currentSliceDistance) const
	Returns an alpha factor based on the max distance and the current distance. More...

bool	doesCSOTimePointMatchCurrentTimePoint (const CSODrawView2DInfos &view2DInfos, ml::CSO *cso)
	Returns true if the CSO's time point matches the (overwritten) current time point. More...

Protected Attributes
SoView2DCSOExtensibleEditor *	_editor

ml::CSOListPtr	_hitCSOList
	Pointer to internal/interactive states. More...

ml::CSO *	_hitCSO

ml::CSOSeedPoint *	_hitSeedPoint

ml::CSOPathPoints *	_hitPathPoints

float	_hitDistance

ml::CSO *	_csoUnderMouse

ml::CSOVisualizationSettings	_visualizationSettings
	Default visual settings. Access them via the method getVisualSettings(). More...

SbString	_subType
	Member for subtype of generated CSOs. More...

Detailed Description

Base class for an editor extension for the SoView2DCSOExtensibleEditor.

An editor extension can render and generate/modify only specific types of CSOs.

Definition at line 38 of file SoCSOEditorExtension.h.

Constructor & Destructor Documentation

◆ SoCSOEditorExtension()

SoCSOEditorExtension::SoCSOEditorExtension ( )

protected

Hidden constructor.

◆ ~SoCSOEditorExtension()

SoCSOEditorExtension::~SoCSOEditorExtension ( )

overrideprotected

Hidden destructor.

Member Function Documentation

◆ activate()

virtual void SoCSOEditorExtension::activate ( SoView2DCSOExtensibleEditor * extensibleEditor )

inlinevirtual

Is called when an extension is activated by the SoView2DExtensibleEditor.

Can be overwritten to register private actions or change triggers. Must call superclass method!

Definition at line 55 of file SoCSOEditorExtension.h.

◆ bulgeDragMoveTo()

virtual void SoCSOEditorExtension::bulgeDragMoveTo ( const SoPointerPosition & )

inlinevirtual

Reimplemented in SoCSOBulgeEditor.

Definition at line 106 of file SoCSOEditorExtension.h.

◆ bulgeEndPress()

virtual SoPointingAction* SoCSOEditorExtension::bulgeEndPress ( int )

inlinevirtual

Reimplemented in SoCSOBulgeEditor.

Definition at line 107 of file SoCSOEditorExtension.h.

◆ bulgeStartPressAt()

virtual void SoCSOEditorExtension::bulgeStartPressAt ( const SoPointerPosition & )

inlinevirtual

Reimplemented in SoCSOBulgeEditor.

Definition at line 105 of file SoCSOEditorExtension.h.

◆ buttonMaskChanged()

virtual void SoCSOEditorExtension::buttonMaskChanged ( )

inlinevirtual

Is called when the button mask of the SoView2DExtensibleEditor has changed.

Can be overwritten to change triggers of private actions.

Definition at line 61 of file SoCSOEditorExtension.h.

◆ cancel()

virtual void SoCSOEditorExtension::cancel ( )

inlinevirtual

Cancels an action like generating a CSO. Depends on concrete editor.

Reimplemented in SoCSOTransformEditor, SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOModifyEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, SoCSOBulgeEditor, and SoCSOAngleEditor.

Definition at line 156 of file SoCSOEditorExtension.h.

◆ canCreateCSOs()

virtual bool SoCSOEditorExtension::canCreateCSOs ( ) const

inlinevirtual

Returns whether the editor can create a CSO.

Reimplemented in SoCSOCreatorEditorExtension, and SoCSOModifyEditor.

Definition at line 123 of file SoCSOEditorExtension.h.

◆ createDragMoveTo()

virtual void SoCSOEditorExtension::createDragMoveTo ( const SoPointerPosition & pos )

pure virtual

Implemented in SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOModifyEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, SoCSOAngleEditor, SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ createEndPress()

virtual bool SoCSOEditorExtension::createEndPress ( int clickCount )

pure virtual

Implemented in SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, SoCSOAnnotationDeviceCoordinates, SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOModifyEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, and SoCSOAngleEditor.

◆ createStartPressAt()

virtual void SoCSOEditorExtension::createStartPressAt ( const SoPointerPosition & pos )

pure virtual

Implemented in SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOModifyEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, SoCSOAngleEditor, SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ cursorShape()

virtual int SoCSOEditorExtension::cursorShape ( ) const

inlinevirtual

Returns the cursor shape that indicates the next creation.

Reimplemented in SoCSOCreatorEditorExtension, SoCSOTransformEditor, SoCSOSplineEditor, SoCSOModifyEditor, SoCSOLiveWireEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSOFillingRenderer, SoCSODefaultRenderer, and SoCSOCrossSectionRenderer.

Definition at line 158 of file SoCSOEditorExtension.h.

References SoViewerProxy::CROSS_CURSOR.

◆ deactivate()

virtual void SoCSOEditorExtension::deactivate ( )

inlinevirtual

Is called when an extension is deactivated by the SoView2DExtensibleEditor.

Can be overwritten to unregister private actions or restore triggers.

Definition at line 58 of file SoCSOEditorExtension.h.

◆ deleteSeedPoint()

virtual bool SoCSOEditorExtension::deleteSeedPoint	(	ml::CSO *	cso,
		ml::CSOSeedPoint *
	)

virtual

Removes the given seed point from the given CSO and returns whether that was successful.

Reimplemented in SoCSOSplineEditor, SoCSOPolygonEditor, SoCSOLiveWireEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, and SoCSOAngleEditor.

◆ doesCSOTimePointMatchCurrentTimePoint()

bool SoCSOEditorExtension::doesCSOTimePointMatchCurrentTimePoint	(	const CSODrawView2DInfos &	view2DInfos,
		ml::CSO *	cso
	)

protected

Returns true if the CSO's time point matches the (overwritten) current time point.

◆ draw()

virtual void SoCSOEditorExtension::draw	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const CSODrawSliceInformation &	sliceInfo,
		SoView2DCSOExtensibleEditor *	editor
	)

virtual

Main routine for drawing a CSO.

Reimplemented in SoCSOTransformEditor, SoCSOPointEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODistanceLineEditor, SoCSODefaultRenderer, SoCSOBulgeEditor, SoCSOAnnotationDeviceCoordinates, SoCSOAngleEditor, SoCSOFillingRenderer, and SoCSOCrossSectionRenderer.

◆ drawAdditionalGeometry()

virtual void SoCSOEditorExtension::drawAdditionalGeometry	(	const CSODrawView2DInfos &	view2DInfos,
		SoView2DCSOExtensibleEditor *	editor
	)

virtual

Routine for drawing additional geometry of the extension.

Reimplemented in SoCSOModifyEditor.

◆ drawFixedSizeCircleAt()

void SoCSOEditorExtension::drawFixedSizeCircleAt	(	float	deviceX,
		float	deviceY
	)

protected

Renders a fixed size circle at the given position.

◆ drawingDone()

virtual void SoCSOEditorExtension::drawingDone ( )

inlinevirtual

Is called when all drawing is done.

Reimplemented in SoCSOAnnotationDeviceCoordinates.

Definition at line 69 of file SoCSOEditorExtension.h.

◆ drawOverlay()

virtual void SoCSOEditorExtension::drawOverlay	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const CSODrawSliceInformation &	sliceInfo,
		SoView2DCSOExtensibleEditor *	editor
	)

virtual

Routine for drawing after the main routine has drawn.

Use this for geometry depending on the CSO that needs to be drawn over what 'draw' has rendered.

Reimplemented in SoCSOLabelRenderer.

◆ drawPathAndCrossingPoints()

void SoCSOEditorExtension::drawPathAndCrossingPoints	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const SbVec2f &	shadowOffsetDevice,
		const std::vector< CSOSliceCrossing > &	pathAndCrossingPoints,
		GLint	lineMode
	)

protected

Draws the path and crossing points.

◆ drawPathPoints()

void SoCSOEditorExtension::drawPathPoints	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const CSODrawSliceInformation &	drawSliceInfo,
		const SbVec2f &	shadowOffsetDevice,
		SoView2DCSOExtensibleEditor *	editor
	)

protected

Draws the CSO by drawing lines between the path points. Renders different types of CSOs.

◆ drawSecondPass()

virtual void SoCSOEditorExtension::drawSecondPass	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const CSODrawSliceInformation &	sliceInfo,
		SoView2DCSOExtensibleEditor *	editor
	)

virtual

Drawing routine that comes between 'main' and 'overlay'.

Reimplemented in SoCSOLabelRenderer.

◆ drawSeedPoints()

void SoCSOEditorExtension::drawSeedPoints	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const CSODrawSliceInformation &	drawSliceInfo,
		SoView2DCSOExtensibleEditor *	editor
	)

protected

Draws the seed points of the CSO.

◆ drawShape()

void SoCSOEditorExtension::drawShape	(	int	style,
		SoView2DCSOExtensibleEditor *	editor,
		ml::CSOVisualizationSettings *	visualizationSettings,
		float	deviceX,
		float	deviceY,
		float	size,
		float	lineWidth = `1.f`
	)

protected

Draws the shape with the given style with the given center and size.

◆ editingOnChanged()

virtual void SoCSOEditorExtension::editingOnChanged ( )

inlinevirtual

Is called when the editingOn field of the SoView2DExtensibleEditor has changed.

Can be overwritten to enable or disable triggers of private actions.

Definition at line 64 of file SoCSOEditorExtension.h.

◆ evaluateHitPoint()

virtual bool SoCSOEditorExtension::evaluateHitPoint	(	const ml::Vector3 &	worldPosition,
		View2DSliceList *	slicelist,
		ml::CSOList *	csoList,
		const ml::CSOBoundingBox &	slabBB,
		SoView2DCSOExtensibleEditor *	editor,
		ml::CSO *&	localHitCSO,
		ml::CSOSeedPoint *&	localHitSeedPoint,
		ml::CSOPathPoints *&	localHitPathPoints,
		float &	distance
	)

virtual

Returns whether the given world position is within the selection distance set in the editor and fills the selection distance.

Reimplemented in SoCSOTransformEditor, and SoCSOModifyEditor.

◆ expectsToCreateCSO()

virtual bool SoCSOEditorExtension::expectsToCreateCSO ( )

inlinevirtual

Returns whether an editor is awaiting to create a new CSO, depending on the requireMousemovement flag.

Reimplemented in SoCSOLineCreatorEditorExtension.

Definition at line 129 of file SoCSOEditorExtension.h.

◆ extensionIdCB()

void SoCSOEditorExtension::extensionIdCB ( SoField * )

protected

◆ getActiveCSO()

virtual ml::CSO* SoCSOEditorExtension::getActiveCSO ( ) const

inlinevirtual

Returns the currently active CSO.

Reimplemented in SoCSOCreatorEditorExtension.

Definition at line 125 of file SoCSOEditorExtension.h.

◆ getCreatorExtensionId()

SbString SoCSOEditorExtension::getCreatorExtensionId ( ) const

inline

Definition at line 131 of file SoCSOEditorExtension.h.

◆ getCSOUnderMouse()

ml::CSO* SoCSOEditorExtension::getCSOUnderMouse ( ) const

inline

Definition at line 136 of file SoCSOEditorExtension.h.

◆ getDepthAlpha()

float SoCSOEditorExtension::getDepthAlpha	(	int	maxSliceDistance,
		int	currentSliceDistance
	)		const

protected

Returns an alpha factor based on the max distance and the current distance.

◆ getLineMode()

GLint SoCSOEditorExtension::getLineMode ( ml::CSO * cso )

protected

Returns the correct line mode for open and for closed CSOs.

◆ getLineRenderSettingsForCSO()

SoCSOEditorTools::LineRenderSettings SoCSOEditorExtension::getLineRenderSettingsForCSO ( ml::CSO * cso )

protected

Creates a LineRenderSettings struct from the visualization attributes of the given CSO.

◆ getLineRenderSettingsOnSlice()

SoCSOEditorTools::LineRenderSettings SoCSOEditorExtension::getLineRenderSettingsOnSlice ( )

protected

Creates a LineRenderSettings struct from the editors visualization settings "onSlice" section.

◆ getPreviousSeedPoint()

ml::CSOSeedPoint* SoCSOEditorExtension::getPreviousSeedPoint ( ml::CSOSeedPoint * seedPoint ) const

Returns the previous seed point of the given seed point for setting it as the next selected seed point.

◆ getSubType()

virtual SbString SoCSOEditorExtension::getSubType ( ) const

inlinevirtual

Returns the sub type string of the derived class.

Definition at line 142 of file SoCSOEditorExtension.h.

◆ getTransformedPosition()

ml::Vector3 SoCSOEditorExtension::getTransformedPosition	(	const CSODrawView2DInfos &	view2DInfos,
		const ml::Vector3 &	position
	)

protected

If a SoCSOTransform exists, this method returns the transformed position.

Returns the identity of the position otherwise.

◆ getVisualizationSettings()

ml::CSOVisualizationSettings* SoCSOEditorExtension::getVisualizationSettings ( )

Returns a pointer to the visual settings that are either the default ones or the ones set to the extensible editor (if present).

◆ glSetAlpha()

void SoCSOEditorExtension::glSetAlpha ( float alpha )

protected

Sets an alpha value but retains the set color.

◆ hasSelectedCSO()

bool SoCSOEditorExtension::hasSelectedCSO ( ) const

inline

Definition at line 139 of file SoCSOEditorExtension.h.

◆ hasSelectedSeedPoint()

bool SoCSOEditorExtension::hasSelectedSeedPoint ( ) const

inline

Definition at line 138 of file SoCSOEditorExtension.h.

◆ initClass()

static void SoCSOEditorExtension::initClass ( )

static

init class in inventor runtime

◆ initMembers()

virtual void SoCSOEditorExtension::initMembers ( )

protectedvirtual

Reimplemented in SoCSOLineCreatorEditorExtension, SoCSOCreatorEditorExtension, SoCSOTransformEditor, SoCSOModifyEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOBulgeEditor, and SoCSOAngleEditor.

◆ insertSeedPointDragMoveTo()

virtual void SoCSOEditorExtension::insertSeedPointDragMoveTo ( const SoPointerPosition & )

inlinevirtual

Reimplemented in SoCSOSplineEditor, SoCSOPolygonEditor, SoCSOLiveWireEditor, SoCSODistancePolylineEditor, and SoCSOAngleEditor.

Definition at line 102 of file SoCSOEditorExtension.h.

◆ insertSeedPointEndPress()

virtual SoPointingAction* SoCSOEditorExtension::insertSeedPointEndPress ( int )

inlinevirtual

Reimplemented in SoCSOSplineEditor, SoCSOPolygonEditor, SoCSOLiveWireEditor, SoCSODistancePolylineEditor, and SoCSOAngleEditor.

Definition at line 103 of file SoCSOEditorExtension.h.

◆ insertSeedPointStartPressAt()

virtual void SoCSOEditorExtension::insertSeedPointStartPressAt ( const SoPointerPosition & )

inlinevirtual

Reimplemented in SoCSOSplineEditor, SoCSOPolygonEditor, SoCSOLiveWireEditor, SoCSODistancePolylineEditor, and SoCSOAngleEditor.

Definition at line 101 of file SoCSOEditorExtension.h.

◆ isCreationAllowed()

virtual bool SoCSOEditorExtension::isCreationAllowed ( ) const

inlinevirtual

Returns whether the editor is allowed to create a new CSO.

Reimplemented in SoCSOModifyEditor.

Definition at line 115 of file SoCSOEditorExtension.h.

◆ isCreationAllowedAt()

virtual bool SoCSOEditorExtension::isCreationAllowedAt ( const SoPointerPosition & ) const

inlinevirtual

Returns whether the editor is allowed to create a new CSO at the given position, by default calls the previous method.

Reimplemented in SoCSOPointEditor.

Definition at line 117 of file SoCSOEditorExtension.h.

◆ isCSOVisible()

bool SoCSOEditorExtension::isCSOVisible	(	const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const CSODrawSliceInformation &	drawSliceInfo,
		SoView2DCSOExtensibleEditor *	editor
	)

protected

Returns whether the CSO is visible on the current slice.

◆ isDefaultRenderer()

virtual bool SoCSOEditorExtension::isDefaultRenderer ( ) const

inlinevirtual

Returns whether the editor is the default editor.

Reimplemented in SoCSODefaultRenderer.

Definition at line 149 of file SoCSOEditorExtension.h.

◆ isModificationAllowed()

virtual bool SoCSOEditorExtension::isModificationAllowed ( ) const

inlinevirtual

Returns whether the editor is allowed to modify an existing CSO.

Definition at line 119 of file SoCSOEditorExtension.h.

◆ isModificationEditor()

virtual bool SoCSOEditorExtension::isModificationEditor ( ) const

inlinevirtual

Returns whether the editor is a modification editor.

Reimplemented in SoCSOTransformEditor, SoCSOModifyEditor, SoCSOLabelRenderer, and SoCSOBulgeEditor.

Definition at line 151 of file SoCSOEditorExtension.h.

◆ mapDeviceToWorld()

ml::Vector3 SoCSOEditorExtension::mapDeviceToWorld	(	const SoPointerPosition &	pos,
		float	deviceX,
		float	deviceY
	)

protected

Returns world coordinates for given device position.

◆ mapVoxelToWorld()

ml::Vector3 SoCSOEditorExtension::mapVoxelToWorld	(	const SoPointerPosition &	pos,
		const ml::Vector3 &	voxelPosition
	)

protected

Returns a world position for a given voxel position.

◆ mapWorldToDevice() [1/2]

void SoCSOEditorExtension::mapWorldToDevice	(	const SoPointerPosition &	pos,
		const ml::Vector3 &	worldPosition,
		float &	deviceX,
		float &	deviceY
	)

protected

Returns device coordinates for a given world position.

◆ mapWorldToDevice() [2/2]

void SoCSOEditorExtension::mapWorldToDevice	(	View2DSliceList *	slicelist,
		const ml::Vector3 &	worldPosition,
		float &	deviceX,
		float &	deviceY
	)

protected

Returns device coordinates for a given world position.

◆ mapWorldToVoxel() [1/2]

ml::Vector3 SoCSOEditorExtension::mapWorldToVoxel	(	const SoPointerPosition &	pos,
		const ml::Vector3 &	worldPosition
	)

protected

Returns a voxel position for a given world position.

◆ mapWorldToVoxel() [2/2]

ml::Vector3 SoCSOEditorExtension::mapWorldToVoxel	(	const SoPointerPosition &	pos,
		const SbVec3f &	worldPosition
	)

protected

Returns a voxel position for a given world position.

◆ mouseWheelEventReceived()

virtual void SoCSOEditorExtension::mouseWheelEventReceived	(	SoMouseWheelEvent::Orientation	,
		int	,
		View2DEvent *
	)

inlinevirtual

Method is called when the extensible editor received a mouse wheel event.

The orientation can be VERTICAL or HORIZONTAL, the turn encodes how much the wheel has been turned and by its sign, in which direction, and the View2DEvent contains the modifier keys that were pressed while interacting.

Definition at line 189 of file SoCSOEditorExtension.h.

◆ nonShadowOffset()

SbVec2f SoCSOEditorExtension::nonShadowOffset ( ) const

inlineprotected

Returns the default offset for non-shadows in pixels.

Definition at line 308 of file SoCSOEditorExtension.h.

◆ pointerLeftWindow()

virtual void SoCSOEditorExtension::pointerLeftWindow ( )

inlinevirtual

Is called when mouse pointer leaves the window.

Reimplemented in SoCSOLabelRenderer.

Definition at line 112 of file SoCSOEditorExtension.h.

◆ pointerPosition()

virtual void SoCSOEditorExtension::pointerPosition ( const SoPointerPosition & )

inlinevirtual

Is called when the mouse moves over a viewer.

Reimplemented in SoCSOLabelRenderer, SoCSOLiveWireEditor, and SoCSOBulgeEditor.

Definition at line 110 of file SoCSOEditorExtension.h.

◆ pointerPositionIfAllowedAt()

virtual void SoCSOEditorExtension::pointerPositionIfAllowedAt ( const SoPointerPosition & pos )

pure virtual

Sets seed points while moving the mouse – but not while dragging.

Is called in isSensitiveAt only while interacting on the same slice where the interaction has started.

Implemented in SoCSOSplineEditor, SoCSOPolygonEditor, SoCSOLiveWireEditor, SoCSODistancePolylineEditor, SoCSOAngleEditor, SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSORectangleEditor, SoCSOPointEditor, SoCSOModifyEditor, SoCSOLabelRenderer, SoCSOIsoEditor, SoCSOImageStatistics, SoCSOEllipseEditor, SoCSODistanceLineEditor, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ renderPathPoints()

void SoCSOEditorExtension::renderPathPoints	(	const CSOPathPointsRenderSettings &	renderSettings,
		const CSODrawCSOInfos &	csoInfos,
		const CSODrawView2DInfos &	view2DInfos,
		const std::vector< CSOSliceCrossing > &	pathPointsLists,
		GLint	lineMode,
		const SbVec2f &	shadowOffsetDevice
	)

protected

Draws path points with given render settings.

◆ reset()

void SoCSOEditorExtension::reset ( void )

inline

Definition at line 198 of file SoCSOEditorExtension.h.

◆ resetCache()

virtual void SoCSOEditorExtension::resetCache ( )

inlinevirtual

Resets internal module caches, if there are any.

Reimplemented in SoCSOLabelRenderer.

Definition at line 153 of file SoCSOEditorExtension.h.

◆ selectAndMoveDragMoveTo()

virtual void SoCSOEditorExtension::selectAndMoveDragMoveTo ( const SoPointerPosition & pos )

pure virtual

Implemented in SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, SoCSOAngleEditor, SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSOModifyEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ selectAndMoveEndPress()

virtual SoPointingAction* SoCSOEditorExtension::selectAndMoveEndPress ( int clickCount )

pure virtual

Implemented in SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSOModifyEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, SoCSOAnnotationDeviceCoordinates, SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, and SoCSOAngleEditor.

◆ selectAndMoveStartPressAt()

virtual void SoCSOEditorExtension::selectAndMoveStartPressAt ( const SoPointerPosition & pos )

pure virtual

Implemented in SoCSOSplineEditor, SoCSORectangleEditor, SoCSOPolygonEditor, SoCSOPointEditor, SoCSOLiveWireEditor, SoCSOIsoEditor, SoCSOEllipseEditor, SoCSODistancePolylineEditor, SoCSODistanceLineEditor, SoCSOAngleEditor, SoCSOGeneralRendererEditorExtension, SoCSOTransformEditor, SoCSOModifyEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSODefaultRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ sendCSOEventsOnCancel() [1/2]

void SoCSOEditorExtension::sendCSOEventsOnCancel ( ml::CSO * cso )

Sends CSO events for completing a creation or interaction when canceling it.

◆ sendCSOEventsOnCancel() [2/2]

virtual void SoCSOEditorExtension::sendCSOEventsOnCancel ( ml::CSOList * csoList )

virtual

◆ sendCSONotificationFinishInteraction()

void SoCSOEditorExtension::sendCSONotificationFinishInteraction ( )

protected

Sends a CSO notification on finishing an interaction with a CSO.

◆ sendCSONotificationInsertSeedPoint()

void SoCSOEditorExtension::sendCSONotificationInsertSeedPoint ( )

protected

Sends a CSO notification on inserting a seed point.

◆ sendCSONotificationMove()

void SoCSOEditorExtension::sendCSONotificationMove ( )

protected

Sends a CSO notification on moving a CSO or seed point.

◆ sendCSONotificationNewCSOStarted()

void SoCSOEditorExtension::sendCSONotificationNewCSOStarted ( )

protected

Sends a CSO notification on having started to create a new CSO.

◆ sendCSONotificationRepaint()

void SoCSOEditorExtension::sendCSONotificationRepaint ( )

protected

Sends a CSO notification to repaint the CSOList.

◆ sendCSONotificationResetInteractionState()

void SoCSOEditorExtension::sendCSONotificationResetInteractionState ( )

protected

Sends a CSO notification on having the interaction state being reset.

◆ setActiveCSOList()

void SoCSOEditorExtension::setActiveCSOList ( ml::CSOList * hitCSOList )

◆ setCreationData()

virtual void SoCSOEditorExtension::setCreationData	(	const SoPointerPosition &	pos,
		ml::CSO *	newCSO
	)

protectedvirtual

Sets creation data to a newly created CSO.

Reimplemented in SoCSOCreatorEditorExtension.

◆ setCSOUnderMouse()

void SoCSOEditorExtension::setCSOUnderMouse ( ml::CSO * cso )

◆ setExtensibleEditor()

void SoCSOEditorExtension::setExtensibleEditor ( SoView2DCSOExtensibleEditor * extensibleEditor )

inline

Sets the pointer to the calling extensible editor.

Definition at line 51 of file SoCSOEditorExtension.h.

◆ setExtensionIdAsSubType()

void SoCSOEditorExtension::setExtensionIdAsSubType ( )

inlineprotected

Sets the subtype member to the value of the extension id string.

The subtype member is stored in a created CSO and is used to identify the editor for a given CSO.

Definition at line 243 of file SoCSOEditorExtension.h.

◆ setSelectAndMoveInformation()

void SoCSOEditorExtension::setSelectAndMoveInformation	(	ml::CSOList *	hitCSOList,
		ml::CSO *	hitCSO,
		ml::CSOSeedPoint *	hitSeedPoint,
		ml::CSOPathPoints *	hitPathPoints,
		float	hitDistance
	)

◆ setupGLForCSO()

void SoCSOEditorExtension::setupGLForCSO ( const CSODrawCSOInfos & csoInfos )

protected

Sets up GL state for color, line width, and point size.

◆ setupGLShadow()

void SoCSOEditorExtension::setupGLShadow ( float generalAlpha = 1.0f )

protected

Sets up the GL state for shadow rendering (color and line width).

◆ setVisibleCSOs()

virtual void SoCSOEditorExtension::setVisibleCSOs	(	const std::vector< CSODrawCSOInfos > &	drawCSOInformation,
		const CSODrawView2DInfos &	view2DInfos,
		SoView2DCSOExtensibleEditor *	editor
	)

virtual

Sets visible CSOs that have been determined in the extensible editor.

Reimplemented in SoCSOLabelRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ shadowOffset()

SbVec2f SoCSOEditorExtension::shadowOffset ( ) const

inlineprotected

Returns the default offset for shadows in pixels.

Definition at line 310 of file SoCSOEditorExtension.h.

◆ shouldRenderCSOs()

virtual bool SoCSOEditorExtension::shouldRenderCSOs ( ) const

inlinevirtual

Returns whether the editor should render.

Definition at line 121 of file SoCSOEditorExtension.h.

◆ shouldRenderGeneral()

virtual bool SoCSOEditorExtension::shouldRenderGeneral ( ml::CSO * ) const

inlinevirtual

Returns whether a given CSO should be rendered by this general extension.

Overwrite this in general renderers.

Reimplemented in SoCSOTransformEditor, SoCSOModifyEditor, SoCSOLabelRenderer, SoCSOImageStatistics, SoCSOFillingRenderer, SoCSOCrossSectionRenderer, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

Definition at line 147 of file SoCSOEditorExtension.h.

◆ shouldRenderSpecific()

virtual bool SoCSOEditorExtension::shouldRenderSpecific ( ml::CSO * cso ) const

virtual

Returns whether a given CSO should be rendered by this specific extension.

Reimplemented in SoCSOTransformEditor, SoCSOModifyEditor, SoCSOBulgeEditor, and SoCSOAnnotationDeviceCoordinates.

◆ shouldShowCSOForCurrentTimePoint()

bool SoCSOEditorExtension::shouldShowCSOForCurrentTimePoint	(	const CSODrawView2DInfos &	view2DInfos,
		ml::CSO *	cso
	)

Returns whether the given CSO should be rendered for the current time point.

The decision depends on the visualization settings.

◆ startDrawing()

virtual void SoCSOEditorExtension::startDrawing ( View2DSliceList * )

inlinevirtual

Is called before drawing.

Reimplemented in SoCSOLabelRenderer, and SoCSOAnnotationDeviceCoordinates.

Definition at line 67 of file SoCSOEditorExtension.h.

Member Data Documentation

◆ _csoUnderMouse

ml::CSO* SoCSOEditorExtension::_csoUnderMouse

protected

Definition at line 225 of file SoCSOEditorExtension.h.

◆ _editor

SoView2DCSOExtensibleEditor* SoCSOEditorExtension::_editor

protected

Definition at line 217 of file SoCSOEditorExtension.h.

◆ _hitCSO

ml::CSO* SoCSOEditorExtension::_hitCSO

protected

Definition at line 221 of file SoCSOEditorExtension.h.

Referenced by SoCSOCreatorEditorExtension::getActiveCSO().

◆ _hitCSOList

ml::CSOListPtr SoCSOEditorExtension::_hitCSOList

protected

Pointer to internal/interactive states.

Definition at line 220 of file SoCSOEditorExtension.h.

◆ _hitDistance

float SoCSOEditorExtension::_hitDistance

protected

Definition at line 224 of file SoCSOEditorExtension.h.

◆ _hitPathPoints

ml::CSOPathPoints* SoCSOEditorExtension::_hitPathPoints

protected

Definition at line 223 of file SoCSOEditorExtension.h.

◆ _hitSeedPoint

ml::CSOSeedPoint* SoCSOEditorExtension::_hitSeedPoint

protected

Definition at line 222 of file SoCSOEditorExtension.h.

◆ _subType

SbString SoCSOEditorExtension::_subType

protected

Member for subtype of generated CSOs.

This subtype is set to a created CSO and is also used to decide whether an editor should handle the interaction with a CSO. If an editor should handle the interaction for all subtypes of CSOs, set the subtype of an editor to an empty string.

Definition at line 257 of file SoCSOEditorExtension.h.

◆ _visualizationSettings

ml::CSOVisualizationSettings SoCSOEditorExtension::_visualizationSettings

protected

Default visual settings. Access them via the method getVisualSettings().

Definition at line 251 of file SoCSOEditorExtension.h.

◆ allowCreation

SoSFBool SoCSOEditorExtension::allowCreation

Shall the editor allow creation?

Definition at line 168 of file SoCSOEditorExtension.h.

◆ allowModification

SoSFBool SoCSOEditorExtension::allowModification

Shall the editor allow modification of CSOs of its type?

Definition at line 170 of file SoCSOEditorExtension.h.

◆ allowSeedPointInteraction

SoSFBool SoCSOEditorExtension::allowSeedPointInteraction

Should the interaction with seed points be allowed?

Definition at line 172 of file SoCSOEditorExtension.h.

◆ csoIdUnderMouseCursor

SoSFInt32 SoCSOEditorExtension::csoIdUnderMouseCursor

The id of the CSO currently under the mouse (or -1 if no CSO is under the mouse).

Definition at line 183 of file SoCSOEditorExtension.h.

◆ extensionId

SoSFString SoCSOEditorExtension::extensionId

ID for a editor, needs to be unique per editor extension instance.

Definition at line 166 of file SoCSOEditorExtension.h.

◆ interactionForbiddenCursor

SoSFEnum SoCSOEditorExtension::interactionForbiddenCursor

Definition at line 180 of file SoCSOEditorExtension.h.

◆ inVisualizationSettings

SoSFMLBase SoCSOEditorExtension::inVisualizationSettings

Optionally attached visualization settings, overrides the vis.

settings from the extensible editor.

Definition at line 177 of file SoCSOEditorExtension.h.

◆ selectionCursor

SoSFEnum SoCSOEditorExtension::selectionCursor

Definition at line 179 of file SoCSOEditorExtension.h.

◆ shouldRender

SoSFBool SoCSOEditorExtension::shouldRender

Shall the editor render its CSOs?

Definition at line 174 of file SoCSOEditorExtension.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoCSO/SoView2DCSOEditor/SoView2DCSOExtensibleEditor/SoCSOEditorExtension.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SoCSOEditorExtension()

◆ ~SoCSOEditorExtension()

Member Function Documentation

◆ activate()

◆ bulgeDragMoveTo()

◆ bulgeEndPress()

◆ bulgeStartPressAt()

◆ buttonMaskChanged()

◆ cancel()

◆ canCreateCSOs()

◆ createDragMoveTo()

◆ createEndPress()

◆ createStartPressAt()

◆ cursorShape()

◆ deactivate()

◆ deleteSeedPoint()

◆ doesCSOTimePointMatchCurrentTimePoint()

◆ draw()

◆ drawAdditionalGeometry()

◆ drawFixedSizeCircleAt()

◆ drawingDone()

◆ drawOverlay()

◆ drawPathAndCrossingPoints()

◆ drawPathPoints()

◆ drawSecondPass()

◆ drawSeedPoints()

◆ drawShape()

◆ editingOnChanged()

◆ evaluateHitPoint()

◆ expectsToCreateCSO()

◆ extensionIdCB()

◆ getActiveCSO()

◆ getCreatorExtensionId()

◆ getCSOUnderMouse()

◆ getDepthAlpha()

◆ getLineMode()

◆ getLineRenderSettingsForCSO()

◆ getLineRenderSettingsOnSlice()

◆ getPreviousSeedPoint()

◆ getSubType()

◆ getTransformedPosition()

◆ getVisualizationSettings()

◆ glSetAlpha()

◆ hasSelectedCSO()

◆ hasSelectedSeedPoint()

◆ initClass()

◆ initMembers()

◆ insertSeedPointDragMoveTo()

◆ insertSeedPointEndPress()

◆ insertSeedPointStartPressAt()

◆ isCreationAllowed()

◆ isCreationAllowedAt()

◆ isCSOVisible()

◆ isDefaultRenderer()

◆ isModificationAllowed()

◆ isModificationEditor()

◆ mapDeviceToWorld()

◆ mapVoxelToWorld()

◆ mapWorldToDevice() [1/2]

◆ mapWorldToDevice() [2/2]

◆ mapWorldToVoxel() [1/2]

◆ mapWorldToVoxel() [2/2]

◆ mouseWheelEventReceived()

◆ nonShadowOffset()

◆ pointerLeftWindow()

◆ pointerPosition()

◆ pointerPositionIfAllowedAt()

◆ renderPathPoints()

◆ reset()

◆ resetCache()

◆ selectAndMoveDragMoveTo()

◆ selectAndMoveEndPress()

◆ selectAndMoveStartPressAt()
