Base class for extensions that render all CSOs of a CSOList. More...

#include <SoCSOGeneralRendererEditorExtension.h>

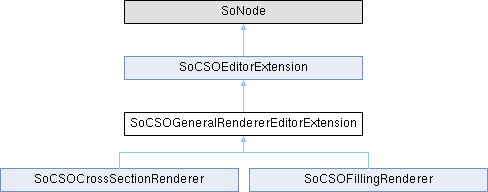

Inheritance diagram for SoCSOGeneralRendererEditorExtension:

Public Member Functions
virtual void	draw (const CSODrawCSOInfos &, const CSODrawView2DInfos &, const std::vector< CSODrawSliceInformation > &, SoView2DCSOExtensibleEditor *)=0

void	createStartPressAt (const SoPointerPosition &) override

void	createDragMoveTo (const SoPointerPosition &) override

bool	createEndPress (int) override

void	pointerPositionIfAllowedAt (const SoPointerPosition &) override
	Sets seed points while moving the mouse – but not while dragging.

void	selectAndMoveStartPressAt (const SoPointerPosition &) override

void	selectAndMoveDragMoveTo (const SoPointerPosition &) override

SoPointingAction *	selectAndMoveEndPress (int) override

Public Member Functions inherited from SoCSOEditorExtension
void	setExtensibleEditor (SoView2DCSOExtensibleEditor *extensibleEditor)
	Sets the pointer to the calling extensible editor.

virtual void	activate (SoView2DCSOExtensibleEditor *extensibleEditor)
	Is called when an extension is activated by the SoView2DExtensibleEditor.

virtual void	deactivate ()
	Is called when an extension is deactivated by the SoView2DExtensibleEditor.

virtual void	buttonMaskChanged ()
	Is called when the button mask of the SoView2DExtensibleEditor has changed.

virtual void	editingOnChanged ()
	Is called when the editingOn field of the SoView2DExtensibleEditor has changed.

virtual void	startDrawing (View2DSliceList *)
	Is called before drawing.

virtual void	drawingDone ()
	Is called when all drawing is done.

virtual void	setVisibleCSOs (const std::vector< CSODrawCSOInfos > &drawCSOInformation, const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor *editor)
	Sets visible CSOs that have been determined in the extensible editor.

virtual void	draw (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Main routine for drawing a CSO.

virtual void	drawSecondPass (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Drawing routine that comes between 'main' and 'overlay'.

virtual void	drawOverlay (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Routine for drawing after the main routine has drawn.

virtual void	drawAdditionalGeometry (const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor *editor)
	Routine for drawing additional geometry of the extension.

virtual void	insertSeedPointStartPressAt (const SoPointerPosition &)

virtual void	insertSeedPointDragMoveTo (const SoPointerPosition &)

virtual SoPointingAction *	insertSeedPointEndPress (int)

virtual void	bulgeStartPressAt (const SoPointerPosition &)

virtual void	bulgeDragMoveTo (const SoPointerPosition &)

virtual SoPointingAction *	bulgeEndPress (int)

virtual void	pointerPosition (const SoPointerPosition &)
	Is called when the mouse moves over a viewer.

virtual void	pointerLeftWindow ()
	Is called when mouse pointer leaves the window.

virtual bool	isCreationAllowed () const
	Returns whether the editor is allowed to create a new CSO.

virtual bool	isCreationAllowedAt (const SoPointerPosition &) const
	Returns whether the editor is allowed to create a new CSO at the given position, by default calls the previous method.

virtual bool	isModificationAllowed () const
	Returns whether the editor is allowed to modify an existing CSO.

virtual bool	shouldRenderCSOs () const
	Returns whether the editor should render.

virtual bool	canCreateCSOs () const
	Returns whether the editor can create a CSO.

virtual ml::CSO *	getActiveCSO () const
	Returns the currently active CSO.

virtual bool	expectsToCreateCSO ()
	Returns whether an editor is awaiting to create a new CSO, depending on the requireMousemovement flag.

SbString	getCreatorExtensionId () const

void	setActiveCSOList (ml::CSOList *hitCSOList)

void	setSelectAndMoveInformation (ml::CSOList hitCSOList, ml::CSO hitCSO, ml::CSOSeedPoint hitSeedPoint, ml::CSOPathPoints hitPathPoints, float hitDistance)

void	setCSOUnderMouse (ml::CSO *cso)

ml::CSO *	getCSOUnderMouse () const

bool	hasSelectedSeedPoint () const

bool	hasSelectedCSO () const

virtual SbString	getSubType () const
	Returns the sub type string of the derived class.

virtual bool	shouldRenderSpecific (ml::CSO *cso) const
	Returns whether a given CSO should be rendered by this specific extension.

virtual bool	shouldRenderGeneral (ml::CSO *) const
	Returns whether a given CSO should be rendered by this general extension.

virtual bool	isDefaultRenderer () const
	Returns whether the editor is the default editor.

virtual bool	isModificationEditor () const
	Returns whether the editor is a modification editor.

virtual void	resetCache ()
	Resets internal module caches, if there are any.

virtual void	cancel ()
	Cancels an action like generating a CSO. Depends on concrete editor.

virtual int	cursorShape () const
	Returns the cursor shape that indicates the next creation.

virtual bool	deleteSeedPoint (ml::CSO cso, ml::CSOSeedPoint )
	Removes the given seed point from the given CSO and returns whether that was successful.

ml::CSOSeedPoint *	getPreviousSeedPoint (ml::CSOSeedPoint *seedPoint) const
	Returns the previous seed point of the given seed point for setting it as the next selected seed point.

virtual void	mouseWheelEventReceived (SoMouseWheelEvent::Orientation, int, View2DEvent *)
	Method is called when the extensible editor received a mouse wheel event.

virtual bool	evaluateHitPoint (const ml::Vector3 &worldPosition, View2DSliceList slicelist, ml::CSOList csoList, const ml::CSOBoundingBox &slabBB, SoView2DCSOExtensibleEditor editor, ml::CSO &localHitCSO, ml::CSOSeedPoint &localHitSeedPoint, ml::CSOPathPoints &localHitPathPoints, float &distance)
	Returns whether the given world position is within the selection distance set in the editor and fills the selection distance.

void	reset ()

ml::CSOVisualizationSettings *	getVisualizationSettings ()
	Returns a pointer to the visual settings that are either the default ones or the ones set to the extensible editor (if present).

bool	shouldShowCSOForCurrentTimePoint (const CSODrawView2DInfos &view2DInfos, ml::CSO *cso)
	Returns whether the given CSO should be rendered for the current time point.

void	sendCSOEventsOnCancel (ml::CSO *cso)
	Sends CSO events for completing a creation or interaction when canceling it.

virtual void	sendCSOEventsOnCancel (ml::CSOList *csoList)

Static Public Member Functions
static void	initClass ()
	init class in inventor runtime

Static Public Member Functions inherited from SoCSOEditorExtension
static void	initClass ()
	init class in inventor runtime

Public Attributes
SoSFEnum	colorMode

SoSFColor	generalColor

SoSFFloat	generalAlpha

Public Attributes inherited from SoCSOEditorExtension
SoSFString	extensionId
	ID for a editor, needs to be unique per editor extension instance.

SoSFBool	allowCreation
	Shall the editor allow creation?

SoSFBool	allowModification
	Shall the editor allow modification of CSOs of its type?

SoSFBool	allowSeedPointInteraction
	Should the interaction with seed points be allowed?

SoSFBool	shouldRender
	Shall the editor render its CSOs?

SoSFMLBase	inVisualizationSettings
	Optionally attached visualization settings, overrides the vis.

SoSFEnum	selectionCursor

SoSFEnum	interactionForbiddenCursor

SoSFInt32	csoIdUnderMouseCursor
	The id of the CSO currently under the mouse (or -1 if no CSO is under the mouse).

Protected Member Functions
	SoCSOGeneralRendererEditorExtension ()
	Hidden constructor.

bool	shouldShowCSO (ml::CSO cso, const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor editor)

void	glSetColor (ml::CSO *cso)

Protected Member Functions inherited from SoCSOEditorExtension
	SoCSOEditorExtension ()
	Hidden constructor.

	~SoCSOEditorExtension () override
	Hidden destructor.

virtual void	initMembers ()

void	sendCSONotificationRepaint ()
	Sends a CSO notification to repaint the CSOList.

void	sendCSONotificationMove ()
	Sends a CSO notification on moving a CSO or seed point.

void	sendCSONotificationFinishInteraction ()
	Sends a CSO notification on finishing an interaction with a CSO.

void	sendCSONotificationResetInteractionState ()
	Sends a CSO notification on having the interaction state being reset.

void	sendCSONotificationInsertSeedPoint ()
	Sends a CSO notification on inserting a seed point.

void	sendCSONotificationNewCSOStarted ()
	Sends a CSO notification on having started to create a new CSO.

void	setExtensionIdAsSubType ()
	Sets the subtype member to the value of the extension id string.

virtual void	setCreationData (const SoPointerPosition &pos, ml::CSO *newCSO)
	Sets creation data to a newly created CSO.

void	extensionIdCB (SoField *)

SoCSOEditorTools::LineRenderSettings	getLineRenderSettingsOnSlice ()
	Creates a LineRenderSettings struct from the editors visualization settings "onSlice" section.

SoCSOEditorTools::LineRenderSettings	getLineRenderSettingsForCSO (ml::CSO *cso)
	Creates a LineRenderSettings struct from the visualization attributes of the given CSO.

void	drawPathPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, const SbVec2f &shadowOffsetDevice, SoView2DCSOExtensibleEditor *editor)
	Draws the CSO by drawing lines between the path points. Renders different types of CSOs.

void	renderPathPoints (const CSOPathPointsRenderSettings &renderSettings, const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const std::vector< CSOSliceCrossing > &pathPointsLists, GLint lineMode, const SbVec2f &shadowOffsetDevice)
	Draws path points with given render settings.

void	drawPathAndCrossingPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const SbVec2f &shadowOffsetDevice, const std::vector< CSOSliceCrossing > &pathAndCrossingPoints, GLint lineMode)
	Draws the path and crossing points.

void	drawShape (int style, SoView2DCSOExtensibleEditor editor, ml::CSOVisualizationSettings visualizationSettings, float deviceX, float deviceY, float size, float lineWidth=1.f)
	Draws the shape with the given style with the given center and size.

void	drawSeedPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, SoView2DCSOExtensibleEditor *editor)
	Draws the seed points of the CSO.

void	drawFixedSizeCircleAt (float deviceX, float deviceY)
	Renders a fixed size circle at the given position.

bool	isCSOVisible (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, SoView2DCSOExtensibleEditor *editor)
	Returns whether the CSO is visible on the current slice.

ml::Vector3	getTransformedPosition (const CSODrawView2DInfos &view2DInfos, const ml::Vector3 &position)
	If a SoCSOTransform exists, this method returns the transformed position.

void	mapWorldToDevice (const SoPointerPosition &pos, const ml::Vector3 &worldPosition, float &deviceX, float &deviceY)
	Returns device coordinates for a given world position.

void	mapWorldToDevice (View2DSliceList *slicelist, const ml::Vector3 &worldPosition, float &deviceX, float &deviceY)
	Returns device coordinates for a given world position.

ml::Vector3	mapDeviceToWorld (const SoPointerPosition &pos, float deviceX, float deviceY)
	Returns world coordinates for given device position.

ml::Vector3	mapWorldToVoxel (const SoPointerPosition &pos, const ml::Vector3 &worldPosition)
	Returns a voxel position for a given world position.

ml::Vector3	mapWorldToVoxel (const SoPointerPosition &pos, const SbVec3f &worldPosition)
	Returns a voxel position for a given world position.

ml::Vector3	mapVoxelToWorld (const SoPointerPosition &pos, const ml::Vector3 &voxelPosition)
	Returns a world position for a given voxel position.

SbVec2f	nonShadowOffset () const
	Returns the default offset for non-shadows in pixels.

SbVec2f	shadowOffset () const
	Returns the default offset for shadows in pixels.

GLint	getLineMode (ml::CSO *cso)
	Returns the correct line mode for open and for closed CSOs.

void	setupGLForCSO (const CSODrawCSOInfos &csoInfos)
	Sets up GL state for color, line width, and point size.

void	setupGLShadow (float generalAlpha=1.0f)
	Sets up the GL state for shadow rendering (color and line width).

void	glSetAlpha (float alpha)
	Sets an alpha value but retains the set color.

float	getDepthAlpha (int maxSliceDistance, int currentSliceDistance) const
	Returns an alpha factor based on the max distance and the current distance.

bool	doesCSOTimePointMatchCurrentTimePoint (const CSODrawView2DInfos &view2DInfos, ml::CSO *cso)
	Returns true if the CSO's time point matches the (overwritten) current time point.

Additional Inherited Members
Protected Attributes inherited from SoCSOEditorExtension
SoView2DCSOExtensibleEditor *	_editor

ml::CSOListPtr	_hitCSOList
	Pointer to internal/interactive states.

ml::CSO *	_hitCSO

ml::CSOSeedPoint *	_hitSeedPoint

ml::CSOPathPoints *	_hitPathPoints

float	_hitDistance

ml::CSO *	_csoUnderMouse

ml::CSOVisualizationSettings	_visualizationSettings
	Default visual settings. Access them via the method getVisualSettings().

SbString	_subType
	Member for subtype of generated CSOs.

Detailed Description

Base class for extensions that render all CSOs of a CSOList.

Definition at line 34 of file SoCSOGeneralRendererEditorExtension.h.

Constructor & Destructor Documentation

◆ SoCSOGeneralRendererEditorExtension()

SoCSOGeneralRendererEditorExtension::SoCSOGeneralRendererEditorExtension ( )

protected

Hidden constructor.

Member Function Documentation

◆ createDragMoveTo()

void SoCSOGeneralRendererEditorExtension::createDragMoveTo ( const SoPointerPosition & )

inlineoverridevirtual

Implements SoCSOEditorExtension.

Definition at line 46 of file SoCSOGeneralRendererEditorExtension.h.

◆ createEndPress()

bool SoCSOGeneralRendererEditorExtension::createEndPress ( int )

inlineoverridevirtual

Implements SoCSOEditorExtension.

Definition at line 48 of file SoCSOGeneralRendererEditorExtension.h.

◆ createStartPressAt()

void SoCSOGeneralRendererEditorExtension::createStartPressAt ( const SoPointerPosition & )

inlineoverridevirtual

Implements SoCSOEditorExtension.

Definition at line 45 of file SoCSOGeneralRendererEditorExtension.h.

◆ draw()

virtual void SoCSOGeneralRendererEditorExtension::draw	(	const CSODrawCSOInfos &	,
		const CSODrawView2DInfos &	,
		const std::vector< CSODrawSliceInformation > &	,
		SoView2DCSOExtensibleEditor *	)

pure virtual

Implemented in SoCSOFillingRenderer, and SoCSOCrossSectionRenderer.

◆ glSetColor()

void SoCSOGeneralRendererEditorExtension::glSetColor ( ml::CSO * cso )

protected

◆ initClass()

static void SoCSOGeneralRendererEditorExtension::initClass ( )

static

init class in inventor runtime

◆ pointerPositionIfAllowedAt()

void SoCSOGeneralRendererEditorExtension::pointerPositionIfAllowedAt ( const SoPointerPosition & pos )

inlineoverridevirtual

Sets seed points while moving the mouse – but not while dragging.

Is called in isSensitiveAt only while interacting on the same slice where the interaction has started.

Implements SoCSOEditorExtension.

Definition at line 49 of file SoCSOGeneralRendererEditorExtension.h.

◆ selectAndMoveDragMoveTo()

void SoCSOGeneralRendererEditorExtension::selectAndMoveDragMoveTo ( const SoPointerPosition & )

inlineoverridevirtual

Implements SoCSOEditorExtension.

Definition at line 52 of file SoCSOGeneralRendererEditorExtension.h.

◆ selectAndMoveEndPress()

SoPointingAction * SoCSOGeneralRendererEditorExtension::selectAndMoveEndPress ( int )

inlineoverridevirtual

Implements SoCSOEditorExtension.

Definition at line 53 of file SoCSOGeneralRendererEditorExtension.h.

◆ selectAndMoveStartPressAt()

void SoCSOGeneralRendererEditorExtension::selectAndMoveStartPressAt ( const SoPointerPosition & )

inlineoverridevirtual

Implements SoCSOEditorExtension.

Definition at line 51 of file SoCSOGeneralRendererEditorExtension.h.

◆ shouldShowCSO()

bool SoCSOGeneralRendererEditorExtension::shouldShowCSO	(	ml::CSO *	cso,
		const CSODrawView2DInfos &	view2DInfos,
		SoView2DCSOExtensibleEditor *	editor )

protected

Member Data Documentation

◆ colorMode

SoSFEnum SoCSOGeneralRendererEditorExtension::colorMode

Definition at line 55 of file SoCSOGeneralRendererEditorExtension.h.

◆ generalAlpha

SoSFFloat SoCSOGeneralRendererEditorExtension::generalAlpha

Definition at line 57 of file SoCSOGeneralRendererEditorExtension.h.

◆ generalColor

SoSFColor SoCSOGeneralRendererEditorExtension::generalColor

Definition at line 56 of file SoCSOGeneralRendererEditorExtension.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoCSO/SoView2DCSOEditor/SoView2DCSOExtensibleEditor/SoCSOGeneralRendererEditorExtension.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoCSOGeneralRendererEditorExtension()

Member Function Documentation

◆ createDragMoveTo()

◆ createEndPress()

◆ createStartPressAt()

◆ draw()

◆ glSetColor()

◆ initClass()

◆ pointerPositionIfAllowedAt()

◆ selectAndMoveDragMoveTo()

◆ selectAndMoveEndPress()

◆ selectAndMoveStartPressAt()

◆ shouldShowCSO()

Member Data Documentation

◆ colorMode

◆ generalAlpha

◆ generalColor
