Base class for extensions that extend the editor with interaction and rendering for specific CSO types and that can create new CSOs. More...

#include <SoCSOCreatorEditorExtension.h>

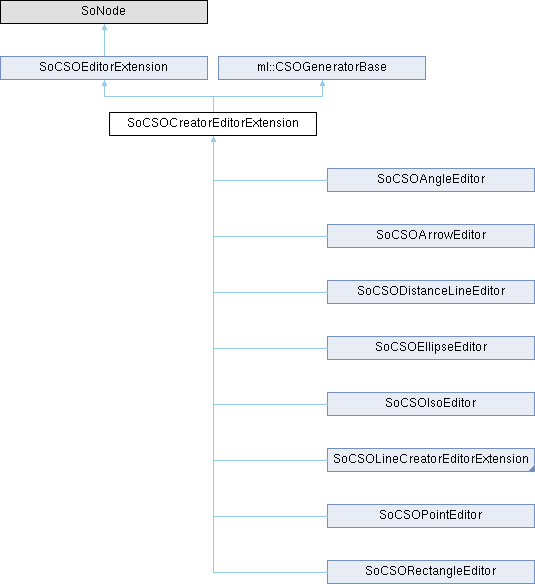

Inheritance diagram for SoCSOCreatorEditorExtension:

Public Member Functions
bool	canCreateCSOs () const override
	Returns whether the editor can create a CSO.

int	cursorShape () const override
	Returns the cursor shape that indicates the next creation.

Public Member Functions inherited from SoCSOEditorExtension
void	setExtensibleEditor (SoView2DCSOExtensibleEditor *extensibleEditor)
	Sets the pointer to the calling extensible editor.

virtual void	activate (SoView2DCSOExtensibleEditor *extensibleEditor)
	Is called when an extension is activated by the SoView2DExtensibleEditor.

virtual void	deactivate ()
	Is called when an extension is deactivated by the SoView2DExtensibleEditor.

virtual void	buttonMaskChanged ()
	Is called when the button mask of the SoView2DExtensibleEditor has changed.

virtual void	editingOnChanged ()
	Is called when the editingOn field of the SoView2DExtensibleEditor has changed.

virtual void	startDrawing (View2DSliceList *)
	Is called before drawing.

virtual void	drawingDone ()
	Is called when all drawing is done.

virtual void	setVisibleCSOs (const std::vector< CSODrawCSOInfos > &drawCSOInformation, const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor *editor)
	Sets visible CSOs that have been determined in the extensible editor.

virtual void	draw (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Main routine for drawing a CSO.

virtual void	drawSecondPass (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Drawing routine that comes between 'main' and 'overlay'.

virtual void	drawOverlay (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &sliceInfo, SoView2DCSOExtensibleEditor *editor)
	Routine for drawing after the main routine has drawn.

virtual void	drawAdditionalGeometry (const CSODrawView2DInfos &view2DInfos, SoView2DCSOExtensibleEditor *editor)
	Routine for drawing additional geometry of the extension.

virtual void	createStartPressAt (const SoPointerPosition &pos)=0

virtual void	createDragMoveTo (const SoPointerPosition &pos)=0

virtual bool	createEndPress (int clickCount)=0

virtual void	pointerPositionIfAllowedAt (const SoPointerPosition &pos)=0
	Sets seed points while moving the mouse – but not while dragging.

virtual void	selectAndMoveStartPressAt (const SoPointerPosition &pos)=0

virtual void	selectAndMoveDragMoveTo (const SoPointerPosition &pos)=0

virtual SoPointingAction *	selectAndMoveEndPress (int clickCount)=0

virtual void	insertSeedPointStartPressAt (const SoPointerPosition &)

virtual void	insertSeedPointDragMoveTo (const SoPointerPosition &)

virtual SoPointingAction *	insertSeedPointEndPress (int)

virtual void	bulgeStartPressAt (const SoPointerPosition &)

virtual void	bulgeDragMoveTo (const SoPointerPosition &)

virtual SoPointingAction *	bulgeEndPress (int)

virtual void	pointerPosition (const SoPointerPosition &)
	Is called when the mouse moves over a viewer.

virtual void	pointerLeftWindow ()
	Is called when mouse pointer leaves the window.

virtual bool	isCreationAllowed () const
	Returns whether the editor is allowed to create a new CSO.

virtual bool	isCreationAllowedAt (const SoPointerPosition &) const
	Returns whether the editor is allowed to create a new CSO at the given position, by default calls the previous method.

virtual bool	isModificationAllowed () const
	Returns whether the editor is allowed to modify an existing CSO.

virtual bool	shouldRenderCSOs () const
	Returns whether the editor should render.

virtual bool	expectsToCreateCSO ()
	Returns whether an editor is awaiting to create a new CSO, depending on the requireMousemovement flag.

SbString	getCreatorExtensionId () const

void	setActiveCSOList (ml::CSOList *hitCSOList)

void	setSelectAndMoveInformation (ml::CSOList hitCSOList, ml::CSO hitCSO, ml::CSOSeedPoint hitSeedPoint, ml::CSOPathPoints hitPathPoints, float hitDistance)

void	setCSOUnderMouse (ml::CSO *cso)

ml::CSO *	getCSOUnderMouse () const

bool	hasSelectedSeedPoint () const

bool	hasSelectedCSO () const

virtual SbString	getSubType () const
	Returns the sub type string of the derived class.

virtual bool	shouldRenderSpecific (ml::CSO *cso) const
	Returns whether a given CSO should be rendered by this specific extension.

virtual bool	shouldRenderGeneral (ml::CSO *) const
	Returns whether a given CSO should be rendered by this general extension.

virtual bool	isDefaultRenderer () const
	Returns whether the editor is the default editor.

virtual bool	isModificationEditor () const
	Returns whether the editor is a modification editor.

virtual void	resetCache ()
	Resets internal module caches, if there are any.

virtual void	cancel ()
	Cancels an action like generating a CSO. Depends on concrete editor.

virtual bool	deleteSeedPoint (ml::CSO cso, ml::CSOSeedPoint )
	Removes the given seed point from the given CSO and returns whether that was successful.

ml::CSOSeedPoint *	getPreviousSeedPoint (ml::CSOSeedPoint *seedPoint) const
	Returns the previous seed point of the given seed point for setting it as the next selected seed point.

virtual void	mouseWheelEventReceived (SoMouseWheelEvent::Orientation, int, View2DEvent *)
	Method is called when the extensible editor received a mouse wheel event.

virtual bool	evaluateHitPoint (const ml::Vector3 &worldPosition, View2DSliceList slicelist, ml::CSOList csoList, const ml::CSOBoundingBox &slabBB, SoView2DCSOExtensibleEditor editor, ml::CSO &localHitCSO, ml::CSOSeedPoint &localHitSeedPoint, ml::CSOPathPoints &localHitPathPoints, float &distance)
	Returns whether the given world position is within the selection distance set in the editor and fills the selection distance.

void	reset ()

ml::CSOVisualizationSettings *	getVisualizationSettings ()
	Returns a pointer to the visual settings that are either the default ones or the ones set to the extensible editor (if present).

bool	shouldShowCSOForCurrentTimePoint (const CSODrawView2DInfos &view2DInfos, ml::CSO *cso)
	Returns whether the given CSO should be rendered for the current time point.

void	sendCSOEventsOnCancel (ml::CSO *cso)
	Sends CSO events for completing a creation or interaction when canceling it.

virtual void	sendCSOEventsOnCancel (ml::CSOList *csoList)

Public Member Functions inherited from ml::CSOGeneratorBase
	CSOGeneratorBase ()
	Default constructor.

virtual	~CSOGeneratorBase ()=default

CSO *	generatorAddCSO (CSOList *csoList, bool useUndoRedo=true)
	Adds a new CSO to the CSOList.

CSO *	generatorAddCSONoEvent (CSOList *csoList, bool useUndoRedo=true, bool sendEvent=false)
	See generatorAddCSO, but no group scope event is emitted. (So this method is faster!)

CSOGroup *	generatorGetParentGroup (CSOList *csoList, bool useUndoRedo=false, bool generate=false)
	Returns the parent group according to current group settings.

void	generatorEmptyGroupOnDemand (CSOList *csoList)
	Empties a group on demand of the given CSOList with the set label.

Static Public Member Functions
static void	initClass ()
	init class in inventor runtime

Static Public Member Functions inherited from SoCSOEditorExtension
static void	initClass ()
	init class in inventor runtime

Public Attributes
SoSFInt32	moduleCreatorId
	Sets the module's creator id.

SoSFString	moduleCreatorString
	Sets the module's type string.

SoSFString	labelPrefixString
	Sets a label prefix string.

SoSFBool	requirePointerPositionMovementToCreateCSO
	Should the mouse have to be moved a bit before creating a CSO?

SoSFInt32	pointerPositionEpsilonForCreatingCSO
	The pointer position movement epsilon distance in pixel to trigger CSO creation.

SoSFBool	shouldEmptyGroupBeforeGenerating
	Should the CSO group be emptied before generating new CSOs into it?

SoSFEnum	addCSOToGroupMode
	Sets whether the group's label or its id should be used for cso-into-group generation.

SoSFString	addCSOToGroupLabel
	Sets the group's label for CSO generation.

SoSFInt32	addCSOToGroupId
	Sets the group's id for CSO generation.

SoSFEnum	defaultPathPointStyle
	Sets the default path point style.

SoSFFloat	defaultPathPointWidth
	Sets the default path point width.

SoSFColor	defaultPathPointColor
	Sets the default path point color.

SoSFFloat	defaultPathPointAlpha
	Sets the default path point alpha.

SoSFEnum	defaultSeedPointStyle
	Sets the default seed point style.

SoSFFloat	defaultSeedPointSize
	Sets the default seed point size.

SoSFColor	defaultSeedPointColor
	Sets the default seed point color.

SoSFFloat	defaultSeedPointAlpha
	Sets the default seed point alpha.

SoSFEnum	defaultVoxelWriteMode
	Sets the default voxel write mode.

SoSFFloat	defaultVoxelWriteValue
	Sets the default voxel write value.


SoSFEnum	createCursor
	Cursor shapes.

SoSFEnum	moveAllCursor

SoSFEnum	moveSeedCursor

Public Attributes inherited from SoCSOEditorExtension
SoSFString	extensionId
	ID for a editor, needs to be unique per editor extension instance.

SoSFBool	allowCreation
	Shall the editor allow creation?

SoSFBool	allowModification
	Shall the editor allow modification of CSOs of its type?

SoSFBool	allowSeedPointInteraction
	Should the interaction with seed points be allowed?

SoSFBool	shouldRender
	Shall the editor render its CSOs?

SoSFMLBase	inVisualizationSettings
	Optionally attached visualization settings, overrides the vis.

SoSFEnum	selectionCursor

SoSFEnum	interactionForbiddenCursor

SoSFInt32	csoIdUnderMouseCursor
	The id of the CSO currently under the mouse (or -1 if no CSO is under the mouse).

Protected Member Functions
	SoCSOCreatorEditorExtension ()
	Hidden constructor.

void	initMembers () override

int	getModuleCreatorId () const override
	Returns the module's creator id.

std::string	getModuleType () const override
	Returns the module's type string.

void	setCreationData (const SoPointerPosition &pos, ml::CSO *newCSO) override
	Sets creation data to a newly created CSO.

int	getMaxAvailableId ()
	Returns the current id for CSOs created by this editor. It is the maximum available id.

bool	getShouldEmptyBeforeGeneration () const override
	Returns whether the module should empty a group before generating CSOs into it.

int	getAddCSOToGroupMode () const override
	Returns the group generation mode.

std::string	getAddCSOToGroupLabel () const override
	Returns the label string of a target group.

int	getAddCSOToGroupId () const override
	Returns the id of a target group.

int	getDefaultPathPointStyle () const override
	Returns the set default path point style for a new CSO.

float	getDefaultPathPointWidth () const override
	Returns the set default path point width for a new CSO.

ml::Vector3	getDefaultPathPointColor () const override
	Returns the set default path point color for a new CSO.

float	getDefaultPathPointAlpha () const override
	Returns the set default path point alpha for a new CSO.

int	getDefaultSeedPointStyle () const override
	Returns the set default seed point style for a new CSO.

float	getDefaultSeedPointSize () const override
	Returns the set default seed point size for a new CSO.

ml::Vector3	getDefaultSeedPointColor () const override
	Returns the set default seed point color for a new CSO.

float	getDefaultSeedPointAlpha () const override
	Returns the set default seed point alpha for a new CSO.

int	getDefaultVoxelWriteMode () const override
	Returns the set default voxel write mode for a new CSO.

float	getDefaultVoxelWriteValue () const override
	Returns the set default voxel write value for a new CSO.

ml::CSO *	getActiveCSO () const override
	Returns the currently active CSO.

bool	isFartherThanEpsilon (const SoPointerPosition &pos) const
	Returns whether the given position is farther away from the start position than the epsilon in pixel.

Protected Member Functions inherited from SoCSOEditorExtension
	SoCSOEditorExtension ()
	Hidden constructor.

	~SoCSOEditorExtension () override
	Hidden destructor.

void	sendCSONotificationRepaint ()
	Sends a CSO notification to repaint the CSOList.

void	sendCSONotificationMove ()
	Sends a CSO notification on moving a CSO or seed point.

void	sendCSONotificationFinishInteraction ()
	Sends a CSO notification on finishing an interaction with a CSO.

void	sendCSONotificationResetInteractionState ()
	Sends a CSO notification on having the interaction state being reset.

void	sendCSONotificationInsertSeedPoint ()
	Sends a CSO notification on inserting a seed point.

void	sendCSONotificationNewCSOStarted ()
	Sends a CSO notification on having started to create a new CSO.

void	setExtensionIdAsSubType ()
	Sets the subtype member to the value of the extension id string.

void	extensionIdCB (SoField *)

SoCSOEditorTools::LineRenderSettings	getLineRenderSettingsOnSlice ()
	Creates a LineRenderSettings struct from the editors visualization settings "onSlice" section.

SoCSOEditorTools::LineRenderSettings	getLineRenderSettingsForCSO (ml::CSO *cso)
	Creates a LineRenderSettings struct from the visualization attributes of the given CSO.

void	drawPathPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, const SbVec2f &shadowOffsetDevice, SoView2DCSOExtensibleEditor *editor)
	Draws the CSO by drawing lines between the path points. Renders different types of CSOs.

void	renderPathPoints (const CSOPathPointsRenderSettings &renderSettings, const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const std::vector< CSOSliceCrossing > &pathPointsLists, GLint lineMode, const SbVec2f &shadowOffsetDevice)
	Draws path points with given render settings.

void	drawPathAndCrossingPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const SbVec2f &shadowOffsetDevice, const std::vector< CSOSliceCrossing > &pathAndCrossingPoints, GLint lineMode)
	Draws the path and crossing points.

void	drawShape (int style, SoView2DCSOExtensibleEditor editor, ml::CSOVisualizationSettings visualizationSettings, float deviceX, float deviceY, float size, float lineWidth=1.f)
	Draws the shape with the given style with the given center and size.

void	drawSeedPoints (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, SoView2DCSOExtensibleEditor *editor)
	Draws the seed points of the CSO.

void	drawFixedSizeCircleAt (float deviceX, float deviceY)
	Renders a fixed size circle at the given position.

bool	isCSOVisible (const CSODrawCSOInfos &csoInfos, const CSODrawView2DInfos &view2DInfos, const CSODrawSliceInformation &drawSliceInfo, SoView2DCSOExtensibleEditor *editor)
	Returns whether the CSO is visible on the current slice.

ml::Vector3	getTransformedPosition (const CSODrawView2DInfos &view2DInfos, const ml::Vector3 &position)
	If a SoCSOTransform exists, this method returns the transformed position.

void	mapWorldToDevice (const SoPointerPosition &pos, const ml::Vector3 &worldPosition, float &deviceX, float &deviceY)
	Returns device coordinates for a given world position.

void	mapWorldToDevice (View2DSliceList *slicelist, const ml::Vector3 &worldPosition, float &deviceX, float &deviceY)
	Returns device coordinates for a given world position.

ml::Vector3	mapDeviceToWorld (const SoPointerPosition &pos, float deviceX, float deviceY)
	Returns world coordinates for given device position.

ml::Vector3	mapWorldToVoxel (const SoPointerPosition &pos, const ml::Vector3 &worldPosition)
	Returns a voxel position for a given world position.

ml::Vector3	mapWorldToVoxel (const SoPointerPosition &pos, const SbVec3f &worldPosition)
	Returns a voxel position for a given world position.

ml::Vector3	mapVoxelToWorld (const SoPointerPosition &pos, const ml::Vector3 &voxelPosition)
	Returns a world position for a given voxel position.

SbVec2f	nonShadowOffset () const
	Returns the default offset for non-shadows in pixels.

SbVec2f	shadowOffset () const
	Returns the default offset for shadows in pixels.

GLint	getLineMode (ml::CSO *cso)
	Returns the correct line mode for open and for closed CSOs.

void	setupGLForCSO (const CSODrawCSOInfos &csoInfos)
	Sets up GL state for color, line width, and point size.

void	setupGLShadow (float generalAlpha=1.0f)
	Sets up the GL state for shadow rendering (color and line width).

void	glSetAlpha (float alpha)
	Sets an alpha value but retains the set color.

float	getDepthAlpha (int maxSliceDistance, int currentSliceDistance) const
	Returns an alpha factor based on the max distance and the current distance.

bool	doesCSOTimePointMatchCurrentTimePoint (const CSODrawView2DInfos &view2DInfos, ml::CSO *cso)
	Returns true if the CSO's time point matches the (overwritten) current time point.

Protected Attributes
SbVec2f	_startDevicePointerPosition
	The device position of the pointer at creation start.

ml::CSO *	_newCSO
	Created CSO.

Protected Attributes inherited from SoCSOEditorExtension
SoView2DCSOExtensibleEditor *	_editor

ml::CSOListPtr	_hitCSOList
	Pointer to internal/interactive states.

ml::CSO *	_hitCSO

ml::CSOSeedPoint *	_hitSeedPoint

ml::CSOPathPoints *	_hitPathPoints

float	_hitDistance

ml::CSO *	_csoUnderMouse

ml::CSOVisualizationSettings	_visualizationSettings
	Default visual settings. Access them via the method getVisualSettings().

SbString	_subType
	Member for subtype of generated CSOs.

Detailed Description

Base class for extensions that extend the editor with interaction and rendering for specific CSO types and that can create new CSOs.

Definition at line 28 of file SoCSOCreatorEditorExtension.h.

Constructor & Destructor Documentation

◆ SoCSOCreatorEditorExtension()

SoCSOCreatorEditorExtension::SoCSOCreatorEditorExtension ( )

protected

Hidden constructor.

Member Function Documentation

◆ canCreateCSOs()

bool SoCSOCreatorEditorExtension::canCreateCSOs ( ) const

inlineoverridevirtual

Returns whether the editor can create a CSO.

Reimplemented from SoCSOEditorExtension.

Definition at line 38 of file SoCSOCreatorEditorExtension.h.

◆ cursorShape()

int SoCSOCreatorEditorExtension::cursorShape ( ) const

inlineoverridevirtual

Returns the cursor shape that indicates the next creation.

Reimplemented from SoCSOEditorExtension.

Reimplemented in SoCSOLiveWireEditor, and SoCSOSplineEditor.

Definition at line 41 of file SoCSOCreatorEditorExtension.h.

◆ getActiveCSO()

ml::CSO * SoCSOCreatorEditorExtension::getActiveCSO ( ) const

inlineoverrideprotectedvirtual

Returns the currently active CSO.

Reimplemented from SoCSOEditorExtension.

Definition at line 152 of file SoCSOCreatorEditorExtension.h.

References SoCSOEditorExtension::_hitCSO.

◆ getAddCSOToGroupId()

int SoCSOCreatorEditorExtension::getAddCSOToGroupId ( ) const

inlineoverrideprotectedvirtual

Returns the id of a target group.

Implements ml::CSOGeneratorBase.

Definition at line 118 of file SoCSOCreatorEditorExtension.h.

◆ getAddCSOToGroupLabel()

std::string SoCSOCreatorEditorExtension::getAddCSOToGroupLabel ( ) const

inlineoverrideprotectedvirtual

Returns the label string of a target group.

Implements ml::CSOGeneratorBase.

Definition at line 116 of file SoCSOCreatorEditorExtension.h.

◆ getAddCSOToGroupMode()

int SoCSOCreatorEditorExtension::getAddCSOToGroupMode ( ) const

inlineoverrideprotectedvirtual

Returns the group generation mode.

Implements ml::CSOGeneratorBase.

Definition at line 114 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultPathPointAlpha()

float SoCSOCreatorEditorExtension::getDefaultPathPointAlpha ( ) const

inlineoverrideprotectedvirtual

Returns the set default path point alpha for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 131 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultPathPointColor()

ml::Vector3 SoCSOCreatorEditorExtension::getDefaultPathPointColor ( ) const

inlineoverrideprotectedvirtual

Returns the set default path point color for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 125 of file SoCSOCreatorEditorExtension.h.

References mlrange_cast().

◆ getDefaultPathPointStyle()

int SoCSOCreatorEditorExtension::getDefaultPathPointStyle ( ) const

inlineoverrideprotectedvirtual

Returns the set default path point style for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 121 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultPathPointWidth()

float SoCSOCreatorEditorExtension::getDefaultPathPointWidth ( ) const

inlineoverrideprotectedvirtual

Returns the set default path point width for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 123 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultSeedPointAlpha()

float SoCSOCreatorEditorExtension::getDefaultSeedPointAlpha ( ) const

inlineoverrideprotectedvirtual

Returns the set default seed point alpha for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 144 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultSeedPointColor()

ml::Vector3 SoCSOCreatorEditorExtension::getDefaultSeedPointColor ( ) const

inlineoverrideprotectedvirtual

Returns the set default seed point color for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 138 of file SoCSOCreatorEditorExtension.h.

References mlrange_cast().

◆ getDefaultSeedPointSize()

float SoCSOCreatorEditorExtension::getDefaultSeedPointSize ( ) const

inlineoverrideprotectedvirtual

Returns the set default seed point size for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 136 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultSeedPointStyle()

int SoCSOCreatorEditorExtension::getDefaultSeedPointStyle ( ) const

inlineoverrideprotectedvirtual

Returns the set default seed point style for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 134 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultVoxelWriteMode()

int SoCSOCreatorEditorExtension::getDefaultVoxelWriteMode ( ) const

inlineoverrideprotectedvirtual

Returns the set default voxel write mode for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 147 of file SoCSOCreatorEditorExtension.h.

◆ getDefaultVoxelWriteValue()

float SoCSOCreatorEditorExtension::getDefaultVoxelWriteValue ( ) const

inlineoverrideprotectedvirtual

Returns the set default voxel write value for a new CSO.

Implements ml::CSOGeneratorBase.

Definition at line 149 of file SoCSOCreatorEditorExtension.h.

◆ getMaxAvailableId()

int SoCSOCreatorEditorExtension::getMaxAvailableId ( )

protected

Returns the current id for CSOs created by this editor. It is the maximum available id.

◆ getModuleCreatorId()

int SoCSOCreatorEditorExtension::getModuleCreatorId ( ) const

inlineoverrideprotectedvirtual

Returns the module's creator id.

Implements ml::CSOGeneratorBase.

Definition at line 100 of file SoCSOCreatorEditorExtension.h.

◆ getModuleType()

std::string SoCSOCreatorEditorExtension::getModuleType ( ) const

inlineoverrideprotectedvirtual

Returns the module's type string.

Implements ml::CSOGeneratorBase.

Definition at line 102 of file SoCSOCreatorEditorExtension.h.

◆ getShouldEmptyBeforeGeneration()

bool SoCSOCreatorEditorExtension::getShouldEmptyBeforeGeneration ( ) const

inlineoverrideprotectedvirtual

Returns whether the module should empty a group before generating CSOs into it.

Implements ml::CSOGeneratorBase.

Definition at line 112 of file SoCSOCreatorEditorExtension.h.

◆ initClass()

static void SoCSOCreatorEditorExtension::initClass ( )

static

init class in inventor runtime

◆ initMembers()

void SoCSOCreatorEditorExtension::initMembers ( )

overrideprotectedvirtual

Reimplemented from SoCSOEditorExtension.

Reimplemented in SoCSOIsoEditor, SoCSOLiveWireEditor, and SoCSOLineCreatorEditorExtension.

◆ isFartherThanEpsilon()

bool SoCSOCreatorEditorExtension::isFartherThanEpsilon ( const SoPointerPosition & pos ) const

protected

Returns whether the given position is farther away from the start position than the epsilon in pixel.

◆ setCreationData()

void SoCSOCreatorEditorExtension::setCreationData	(	const SoPointerPosition &	pos,
		ml::CSO *	newCSO )

overrideprotectedvirtual

Sets creation data to a newly created CSO.

Reimplemented from SoCSOEditorExtension.

Member Data Documentation

◆ _newCSO

ml::CSO* SoCSOCreatorEditorExtension::_newCSO

protected

Created CSO.

Definition at line 162 of file SoCSOCreatorEditorExtension.h.

Referenced by SoCSOLineCreatorEditorExtension::expectsToCreateCSO().

◆ _startDevicePointerPosition

SbVec2f SoCSOCreatorEditorExtension::_startDevicePointerPosition

protected

The device position of the pointer at creation start.

Definition at line 159 of file SoCSOCreatorEditorExtension.h.

◆ addCSOToGroupId

SoSFInt32 SoCSOCreatorEditorExtension::addCSOToGroupId

Sets the group's id for CSO generation.

Definition at line 70 of file SoCSOCreatorEditorExtension.h.

◆ addCSOToGroupLabel

SoSFString SoCSOCreatorEditorExtension::addCSOToGroupLabel

Sets the group's label for CSO generation.

Definition at line 68 of file SoCSOCreatorEditorExtension.h.

◆ addCSOToGroupMode

SoSFEnum SoCSOCreatorEditorExtension::addCSOToGroupMode

Sets whether the group's label or its id should be used for cso-into-group generation.

Definition at line 66 of file SoCSOCreatorEditorExtension.h.

◆ createCursor

SoSFEnum SoCSOCreatorEditorExtension::createCursor

Cursor shapes.

Definition at line 58 of file SoCSOCreatorEditorExtension.h.

◆ defaultPathPointAlpha

SoSFFloat SoCSOCreatorEditorExtension::defaultPathPointAlpha

Sets the default path point alpha.

Definition at line 78 of file SoCSOCreatorEditorExtension.h.

◆ defaultPathPointColor

SoSFColor SoCSOCreatorEditorExtension::defaultPathPointColor

Sets the default path point color.

Definition at line 76 of file SoCSOCreatorEditorExtension.h.

◆ defaultPathPointStyle

SoSFEnum SoCSOCreatorEditorExtension::defaultPathPointStyle

Sets the default path point style.

Definition at line 72 of file SoCSOCreatorEditorExtension.h.

◆ defaultPathPointWidth

SoSFFloat SoCSOCreatorEditorExtension::defaultPathPointWidth

Sets the default path point width.

Definition at line 74 of file SoCSOCreatorEditorExtension.h.

◆ defaultSeedPointAlpha

SoSFFloat SoCSOCreatorEditorExtension::defaultSeedPointAlpha

Sets the default seed point alpha.

Definition at line 86 of file SoCSOCreatorEditorExtension.h.

◆ defaultSeedPointColor

SoSFColor SoCSOCreatorEditorExtension::defaultSeedPointColor

Sets the default seed point color.

Definition at line 84 of file SoCSOCreatorEditorExtension.h.

◆ defaultSeedPointSize

SoSFFloat SoCSOCreatorEditorExtension::defaultSeedPointSize

Sets the default seed point size.

Definition at line 82 of file SoCSOCreatorEditorExtension.h.

◆ defaultSeedPointStyle

SoSFEnum SoCSOCreatorEditorExtension::defaultSeedPointStyle

Sets the default seed point style.

Definition at line 80 of file SoCSOCreatorEditorExtension.h.

◆ defaultVoxelWriteMode

SoSFEnum SoCSOCreatorEditorExtension::defaultVoxelWriteMode

Sets the default voxel write mode.

Definition at line 88 of file SoCSOCreatorEditorExtension.h.

◆ defaultVoxelWriteValue

SoSFFloat SoCSOCreatorEditorExtension::defaultVoxelWriteValue

Sets the default voxel write value.

Definition at line 90 of file SoCSOCreatorEditorExtension.h.

◆ labelPrefixString

SoSFString SoCSOCreatorEditorExtension::labelPrefixString

Sets a label prefix string.

Definition at line 50 of file SoCSOCreatorEditorExtension.h.

◆ moduleCreatorId

SoSFInt32 SoCSOCreatorEditorExtension::moduleCreatorId

Sets the module's creator id.

Definition at line 46 of file SoCSOCreatorEditorExtension.h.

◆ moduleCreatorString

SoSFString SoCSOCreatorEditorExtension::moduleCreatorString

Sets the module's type string.

Definition at line 48 of file SoCSOCreatorEditorExtension.h.

◆ moveAllCursor

SoSFEnum SoCSOCreatorEditorExtension::moveAllCursor

Definition at line 59 of file SoCSOCreatorEditorExtension.h.

◆ moveSeedCursor

SoSFEnum SoCSOCreatorEditorExtension::moveSeedCursor

Definition at line 60 of file SoCSOCreatorEditorExtension.h.

◆ pointerPositionEpsilonForCreatingCSO

SoSFInt32 SoCSOCreatorEditorExtension::pointerPositionEpsilonForCreatingCSO

The pointer position movement epsilon distance in pixel to trigger CSO creation.

Definition at line 55 of file SoCSOCreatorEditorExtension.h.

◆ requirePointerPositionMovementToCreateCSO

SoSFBool SoCSOCreatorEditorExtension::requirePointerPositionMovementToCreateCSO

Should the mouse have to be moved a bit before creating a CSO?

Definition at line 53 of file SoCSOCreatorEditorExtension.h.

◆ shouldEmptyGroupBeforeGenerating

SoSFBool SoCSOCreatorEditorExtension::shouldEmptyGroupBeforeGenerating

Should the CSO group be emptied before generating new CSOs into it?

Definition at line 64 of file SoCSOCreatorEditorExtension.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoCSO/SoView2DCSOEditor/SoView2DCSOExtensibleEditor/SoCSOCreatorEditorExtension.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SoCSOCreatorEditorExtension()

Member Function Documentation

◆ canCreateCSOs()

◆ cursorShape()

◆ getActiveCSO()

◆ getAddCSOToGroupId()

◆ getAddCSOToGroupLabel()

◆ getAddCSOToGroupMode()

◆ getDefaultPathPointAlpha()

◆ getDefaultPathPointColor()

◆ getDefaultPathPointStyle()

◆ getDefaultPathPointWidth()

◆ getDefaultSeedPointAlpha()

◆ getDefaultSeedPointColor()

◆ getDefaultSeedPointSize()

◆ getDefaultSeedPointStyle()

◆ getDefaultVoxelWriteMode()

◆ getDefaultVoxelWriteValue()

◆ getMaxAvailableId()

◆ getModuleCreatorId()

◆ getModuleType()

◆ getShouldEmptyBeforeGeneration()

◆ initClass()

◆ initMembers()

◆ isFartherThanEpsilon()

◆ setCreationData()

Member Data Documentation

◆ _newCSO

◆ _startDevicePointerPosition

◆ addCSOToGroupId

◆ addCSOToGroupLabel

◆ addCSOToGroupMode

◆ createCursor

◆ defaultPathPointAlpha

◆ defaultPathPointColor

◆ defaultPathPointStyle

◆ defaultPathPointWidth

◆ defaultSeedPointAlpha

◆ defaultSeedPointColor

◆ defaultSeedPointSize

◆ defaultSeedPointStyle

◆ defaultVoxelWriteMode

◆ defaultVoxelWriteValue

◆ labelPrefixString

◆ moduleCreatorId

◆ moduleCreatorString

◆ moveAllCursor

◆ moveSeedCursor

◆ pointerPositionEpsilonForCreatingCSO

◆ requirePointerPositionMovementToCreateCSO

◆ shouldEmptyGroupBeforeGenerating
