Forward declarations to resolve header file dependencies. More...

#include <mlVector4.h>

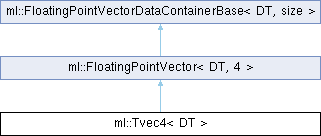

Inheritance diagram for ml::Tvec4< DT >:

Public Types
typedef FloatingPointVector< DT, 4 >	Superclass
	A typedef as a shorthand for the base class. More...

typedef DT	ComponentType
	A typedef to "export" the type of components. More...

Public Types inherited from ml::FloatingPointVector< DT, 4 >
enum
	This enum grants access to the size during compile time, e.g. More...

typedef DT	ComponentType
	A typedef to "export" the type of components. More...

Public Member Functions
Constructors
	Tvec4 (const DT value=0)
	Default and value constructor. Sets all entries to a user given value. More...

	Tvec4 (const Superclass &v)
	Copy constructor from FloatingPointVector. More...

	Tvec4 (const DT x, const DT y, const DT z, const DT w)
	Builds the vector from the scalars x, y, z and w to the components 0 to 3, respectively. More...

	Tvec4 (const Tvec2< DT > &v, const DT z, const DT w)
	Casts Vector2 to Tvec4. Sets last two entries are given by z and w. More...

	Tvec4 (const Tvec3< DT > &v, const DT w)
	Casts Vector3 to Tvec4. Sets last entry to the passed value w. More...

void	assign (const DT x, const DT y, const DT z, const DT c)
	Sets all components to the passed values. More...

Tvec4< DT >	divideByLastComp () const
	Divides all vector components by its last component and returns it as Tvec4 which then has a 1 as last component. More...

Public Member Functions inherited from ml::FloatingPointVector< DT, 4 >
	FloatingPointVector (DT value=DT(0))
	Default and value constructor. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator= (DT value)
	Assignment of scalar value to all components. More...

bool	operator== (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer) const
	Returns whether *this and buffer are component wise equal. More...

bool	operator!= (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer) const
	Returns whether any components of *this and buffer are not equal. More...

bool	operator< (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer) const
	Defines an artificial order for use in sort algorithms (lexicographical order). More...

const DT &	operator[] (const size_t i) const
	Constant indexing operators. More...

DT &	operator[] (const size_t i)
	Indexing operators. More...

size_t	getSize () const
	Returns the number of elements of value buffer. More...

DT	norm2 () const
	Returns the Euclidean norm (the vector length), i.e., square root of sum of squares of all components. More...

DT	norm2 (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &weight) const
	Returns the weighted Euclidean norm, i.e., square root of sum of squares of all components multiplied with corresponding squared component of weight. More...

DT	dot (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer) const
	Returns the dot product, i.e., sum of all components multiplied with corresponding components of buffer. More...

DT	normalize ()
	Normalizes the buffer and returns the Euclidean length of vector before normalization, i.e., norm2. More...

DT	length () const
	Returns the length of the vector, i.e. norm2(). More...

DT	distance (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer) const
	Returns the distance of this vector to a given one. More...

DT	distanceSquared (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer) const
	Returns the squared distance of this vector to a given one. More...

DT	lengthSquared () const
	Returns the squared length of the vector. More...

DT	compSum () const
	Returns the sum of all components. More...

DT	compMul () const
	Returns the product of all vector components. More...

DT	compMaxAbs () const
	Returns the maximum of absolute component values. More...

void	compMin (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > buffer)
	Sets the component wise minimum of this and buffer in this. More...

void	compMax (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > buffer)
	Sets the component wise maximum of this and buffer in this. More...

void	compAbs ()
	Kills negative signs from all components. More...

void	compDiv (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &d)
	Divides each vector component by the corresponding one of d. More...

void	compSqr ()
	Calculates and sets the square of all components. More...

void	compSqrt ()
	Calculates and sets square root of all components. More...

void	clampMin (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &lower)
	Calculates and sets all components clamped to lower, i.e., if any component is smaller than the corresponding one in lower then it is set to the one from lower. More...

void	clampMax (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &upper)
	Calculates and sets all components clamped to upper, i.e., if any component is greater than the corresponding one in upper then it is set to the one from upper. More...

void	clamp (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &lower, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &upper)
	Calculates and sets all components of *this so that they are between minimum min and maximum max. More...

void	compRound ()
	Rounds all components of this vector using floor(component + 0.5). More...

void	compFloor ()
	Rounds all components of this vector using floor(component). More...

void	compCeil ()
	Rounds all components of this vector to integer using ceil(component). More...

FloatingPointVector< DT, 3, FloatingPointVectorDataContainerBase< DT, size > >	cross (const FloatingPointVector< DT, 3, FloatingPointVectorDataContainerBase< DT, size > > &b) const
	Returns the cross product for elements, i.e., return vector vertical to *this and b. More...

void	apply (ML_LA_FROM_DOUBLE_TO_DOUBLE f)
	Applies the function f to each component starting from index 0 to index size-1. More...

std::ostream &	writeOut (std::ostream &os) const
	Writes all components to ostream os starting from index 0 to size-1. More...

std::istream &	readIn (std::istream &is)
	Reads all components from istream is starting starting from index 0 to size-1. More...

Additional Inherited Members
Protected Attributes inherited from ml::FloatingPointVectorDataContainerBase< DT, size >
DT	_buffer [size]

Related Functions inherited from ml::FloatingPointVector< DT, 4 >
DT	compMul (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &vec)
	Returns the product of all components. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	compMin (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > buffer1, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer2)
	Component wise minimum of buffer1 and buffer2. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	compMax (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > buffer1, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer2)
	Component wise maximum of buffer1 and buffer2. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	compAbs (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec)
	Returns a vector with all components from vec without negative sign. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	compDiv (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &d)
	Component wise division of vec / d. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	compSqr (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec)
	Returns a vector with all components from vec squared. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	compSqrt (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec)
	Returns a vector with all components from vec square-rooted. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	clampMin (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &m)
	Returns a new vector with all components from vec clamped to minimum m. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	clampMax (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &m)
	Returns a new vector with all components from vec clamped to maximum m. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	clamp (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > vec, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &lower, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &upper)
	Returns a new vector with all components from vec clamped to range [lower, upper]. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator+= (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op1, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer)
	Arithmetic assignment: Component wise addition. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator-= (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op1, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer)
	Arithmetic assignment: Component wise subtraction of buffer from *this. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator*= (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op1, MLdouble value)
	Arithmetic assignment: Component wise multiplication *this with specialized MLdouble scalar value. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator*= (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op1, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op2)
	Arithmetic assignment: Component wise multiplication *this with a vector of the same size. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator/= (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op1, MLdouble value)
	Arithmetic assignment: Component wise division of *this by scalar value. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &	operator/= (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op1, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &op2)
	Arithmetic assignment: Component wise division of *this by the values of a vector of the same size. More...

bool	operator! (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &a)
	Returns whether all components are 0. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator+ (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > lhs, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &rhs)
	Return value is the component wise addition of lhs and rhs. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator+ (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer)
	Unary plus, for completeness and for those who really want to use that... More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator- (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > lhs, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &rhs)
	Return value is the component wise subtraction of rhs from lhs. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator- (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &buffer)
	Unary minus, all components of the vector are multiplied with -1. More...

DT	operator* (const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &a, const FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > &b)
	Dot product, returns a.dot(b). More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator* (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > lhs, MLdouble rhs)
	Component wise multiplication of lhs with rhs. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator* (MLdouble lhs, FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > rhs)
	Component wise multiplication of rhs with lhs. More...

FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > >	operator/ (FloatingPointVector< DT, size, FloatingPointVectorDataContainerBase< DT, size > > lhs, MLdouble rhs)
	Component wise division of lhs by specialized rhs of type MLdouble. More...

Detailed Description

template<class DT>
class ml::Tvec4< DT >

Forward declarations to resolve header file dependencies.

A four dimensional vector class for floating point types.

Definition at line 49 of file mlVector4.h.

Member Typedef Documentation

◆ ComponentType

template<class DT >

typedef DT ml::Tvec4< DT >::ComponentType

A typedef to "export" the type of components.

Definition at line 57 of file mlVector4.h.

◆ Superclass

template<class DT >

typedef FloatingPointVector<DT,4> ml::Tvec4< DT >::Superclass

A typedef as a shorthand for the base class.

Definition at line 54 of file mlVector4.h.

Constructor & Destructor Documentation

◆ Tvec4() [1/5]

template<class DT >

ml::Tvec4< DT >::Tvec4 ( const DT value = 0 )

inlineexplicit

Default and value constructor. Sets all entries to a user given value.

Definition at line 64 of file mlVector4.h.

◆ Tvec4() [2/5]

template<class DT >

ml::Tvec4< DT >::Tvec4 ( const Superclass & v )

inline

Copy constructor from FloatingPointVector.

This allows the usage of SclarVectorTemplate objects of the same DT in operators using the Tvec4, because the FloatingPointVector objects can implicitly be cast.

Definition at line 71 of file mlVector4.h.

◆ Tvec4() [3/5]

template<class DT >

ml::Tvec4< DT >::Tvec4	(	const DT	x,
		const DT	y,
		const DT	z,
		const DT	w
	)

inline

Builds the vector from the scalars x, y, z and w to the components 0 to 3, respectively.

Definition at line 77 of file mlVector4.h.

◆ Tvec4() [4/5]

template<class DT >

ml::Tvec4< DT >::Tvec4	(	const Tvec2< DT > &	v,
		const DT	z,
		const DT	w
	)

inline

Casts Vector2 to Tvec4. Sets last two entries are given by z and w.

Definition at line 86 of file mlVector4.h.

◆ Tvec4() [5/5]

template<class DT >

ml::Tvec4< DT >::Tvec4	(	const Tvec3< DT > &	v,
		const DT	w
	)

inline

Casts Vector3 to Tvec4. Sets last entry to the passed value w.

Definition at line 95 of file mlVector4.h.

Member Function Documentation

◆ assign()

template<class DT >

void ml::Tvec4< DT >::assign	(	const DT	x,
		const DT	y,
		const DT	z,
		const DT	c
	)

inline

Sets all components to the passed values.

Definition at line 104 of file mlVector4.h.

◆ divideByLastComp()

template<class DT >

Tvec4<DT> ml::Tvec4< DT >::divideByLastComp ( ) const

inline

Divides all vector components by its last component and returns it as Tvec4 which then has a 1 as last component.

It is useful to scale the vector from homogeneous space to normal space. It's up to the caller to avoid a division by zero if last component is 0.

Definition at line 116 of file mlVector4.h.

References DCMTree::DT, and ML_CHECK_FLOAT_THROW.

The documentation for this class was generated from the following files:

MeVis/Foundation/Sources/ML/include/mlTypeTraits.h
MeVis/Foundation/Sources/MLLinearAlgebra/mlVector4.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<class DT> class ml::Tvec4< DT >

Member Typedef Documentation

◆ ComponentType

◆ Superclass

Constructor & Destructor Documentation

◆ Tvec4() [1/5]

◆ Tvec4() [2/5]

◆ Tvec4() [3/5]

◆ Tvec4() [4/5]

◆ Tvec4() [5/5]

Member Function Documentation

◆ assign()

◆ divideByLastComp()

template<class DT>
class ml::Tvec4< DT >
