Forward declarations to resolve header file dependencies. More...

#include <mlVector3.h>

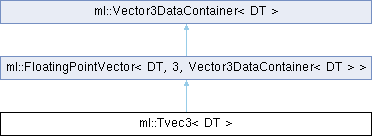

Inheritance diagram for ml::Tvec3< DT >:

Public Types
typedef FloatingPointVector< DT, 3, Vector3DataContainer< DT > >	Superclass
	A typedef as a shorthand for the base class. More...

typedef DT	ComponentType
	A typedef to 'export' the type of components. More...

Public Types inherited from ml::FloatingPointVector< DT, 3, Vector3DataContainer< DT > >
enum
	This enum grants access to the size during compile time, e.g., it can be used as a template argument. More...

typedef DT	ComponentType
	A typedef to 'export' the type of components. More...

Public Member Functions
void	assign (const DT px, const DT py, const DT pz)
	Sets all components to the passed values. More...

Tvec3< DT >	divideByLastComp () const
	Divides all vector components by its last component and returns it as Tvec3, which then has a 1 as last component. More...

Tvec4< DT >	affineVec () const
	Builds a homogeneous Tvec4 vector from *this and returns it, i.e., leaves all components unchanged and sets the fourth component to 0. More...

Tvec4< DT >	affinePoint () const
	Builds a homogeneous Tvec4 point from *this and returns it, i.e., leaves all components unchanged and sets the fourth component to 1. More...

Constructors
	Tvec3 (const DT value=0)
	Default and value constructor. More...

	Tvec3 (const Superclass &v)
	Copy constructor from FloatingPointVector. More...

	Tvec3 (const DT px, const DT py, const DT pz)
	Constructor building the vector `px`, `py`, and `pz`. More...

	Tvec3 (const Tvec2< DT > &v, const DT pz)
	Builds a Tvec3 from a Tvec2 and a scalar. Sets the third entry to user given value `pz`. More...

	Tvec3 (const Tvec4< DT > &v, const bool normalizeV)
	Casts a Tvec4 v to Tvec3. More...

	Tvec3 (const Tvec4< DT > &v, const int axis)
	Casts a Tvec4 v to Tvec3. More...

Public Member Functions inherited from ml::FloatingPointVector< DT, 3, Vector3DataContainer< DT > >
	FloatingPointVector (DT value=DT(0))
	Default and value constructor. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator= (DT value)
	Assignment of scalar value to all components. More...

bool	operator== (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer) const
	Returns whether *this and buffer are component-wise equal. More...

bool	operator!= (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer) const
	Returns whether any components of *this and buffer are not equal. More...

bool	operator< (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer) const
	Defines an artificial order for use in sort algorithms (lexicographical order). More...

const DT &	operator[] (const size_t i) const
	Constant indexing operators. More...

DT &	operator[] (const size_t i)
	Indexing operators. More...

size_t	getSize () const
	Returns the number of elements of value buffer. More...

DT	norm2 () const
	Returns the Euclidean norm (the vector length), i.e., square root of sum of squares of all components. More...

DT	norm2 (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &weight) const
	Returns the weighted Euclidean norm, i.e., square root of sum of squares of all components multiplied with corresponding squared component of weight. More...

DT	dot (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer) const
	Returns the dot product, i.e., sum of all components multiplied with corresponding components of buffer. More...

DT	normalize ()
	Normalizes the buffer and returns the Euclidean length of vector before normalization, i.e., norm2. More...

DT	length () const
	Returns the length of the vector, i.e., norm2(). More...

DT	distance (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer) const
	Returns the distance of this vector to a given one. More...

DT	distanceSquared (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer) const
	Returns the squared distance of this vector to a given one. More...

DT	lengthSquared () const
	Returns the squared length of the vector. More...

DT	compSum () const
	Returns the sum of all components. More...

DT	compMul () const
	Returns the product of all vector components. More...

DT	compMaxAbs () const
	Returns the maximum of absolute component values. More...

void	compMin (FloatingPointVector< DT, size, Vector3DataContainer< DT > > buffer)
	Sets the component-wise minimum of this and buffer in this. More...

void	compMax (FloatingPointVector< DT, size, Vector3DataContainer< DT > > buffer)
	Sets the component-wise maximum of this and buffer in this. More...

void	compAbs ()
	Kills negative signs from all components. More...

void	compDiv (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &d)
	Divides each vector component by the corresponding one of `d`. More...

void	compSqr ()
	Calculates and sets the square of all components. More...

void	compSqrt ()
	Calculates and sets square root of all components. More...

void	clampMin (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &lower)
	Calculates and sets all components clamped to lower, i.e., if any component is smaller than the corresponding one in lower, then it is set to the one from lower. More...

void	clampMax (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &upper)
	Calculates and sets all components clamped to upper, i.e., if any component is greater than the corresponding one in upper, then it is set to the one from upper. More...

void	clamp (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &lower, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &upper)
	Calculates and sets all components of *this so that they are between minimum `lower` and maximum `upper`. More...

void	compRound ()
	Rounds all components of this vector using floor(component + 0.5). More...

void	compFloor ()
	Rounds all components of this vector using floor(component). More...

void	compCeil ()
	Rounds all components of this vector to integer using ceil(component). More...

FloatingPointVector< DT, 3, Vector3DataContainer< DT > >	cross (const FloatingPointVector< DT, 3, Vector3DataContainer< DT > > &b) const
	Returns the cross product for elements, i.e., the returned vector is orthogonal to *this and b. More...

void	apply (ML_LA_FROM_DOUBLE_TO_DOUBLE f)
	Applies the function `f` to each component starting from index 0 to index size-1. More...

std::ostream &	writeOut (std::ostream &os) const
	Writes all components to ostream `os` starting from index 0 to size-1. More...

std::istream &	readIn (std::istream &is)
	Reads all components from istream `is` starting starting from index 0 to size-1. More...

Additional Inherited Members
Public Attributes inherited from ml::Vector3DataContainer< DT >
union {
struct {
DT x
	X-component of the vector, same as _buffer[0]. More...

DT y
	Y-component of the vector, same as _buffer[1]. More...

DT z
	Z-component of the vector, same as _buffer[2]. More...

}

DT _buffer [3]
	Data members as vector to provide array access, same as x, y, and z members. More...

};

Related Functions inherited from ml::FloatingPointVector< DT, 3, Vector3DataContainer< DT > >
DT	compMul (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &vec)
	Returns the product of all components. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	compMin (FloatingPointVector< DT, size, Vector3DataContainer< DT > > buffer1, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer2)
	Component-wise minimum of `buffer1` and `buffer2`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	compMax (FloatingPointVector< DT, size, Vector3DataContainer< DT > > buffer1, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer2)
	Component-wise maximum of `buffer1` and `buffer2`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	compAbs (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec)
	Returns a vector with all components from `vec` without negative sign. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	compDiv (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &d)
	Component-wise division of `vec` / `d`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	compSqr (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec)
	Returns a vector with all components from `vec` squared. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	compSqrt (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec)
	Returns a vector with all components from `vec` square-rooted. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	clampMin (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &m)
	Returns a new vector with all components from `vec` clamped to minimum `m`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	clampMax (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &m)
	Returns a new vector with all components from `vec` clamped to maximum `m`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	clamp (FloatingPointVector< DT, size, Vector3DataContainer< DT > > vec, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &lower, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &upper)
	Returns a new vector with all components from `vec` clamped to range [lower, upper]. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator+= (FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op1, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer)
	Arithmetic assignment: Component-wise addition. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator-= (FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op1, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer)
	Arithmetic assignment: Component-wise subtraction of buffer from *this. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator*= (FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op1, MLdouble value)
	Arithmetic assignment: Component-wise multiplication *this with specialized MLdouble scalar value. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator*= (FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op1, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op2)
	Arithmetic assignment: Component-wise multiplication *this with a vector of the same size. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator/= (FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op1, MLdouble value)
	Arithmetic assignment: Component-wise division of *this by scalar value. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > > &	operator/= (FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op1, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &op2)
	Arithmetic assignment: Component-wise division of *this by the values of a vector of the same size. More...

bool	operator! (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &a)
	Returns whether all components are 0. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator+ (FloatingPointVector< DT, size, Vector3DataContainer< DT > > lhs, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &rhs)
	Return value is the component-wise addition of `lhs` and `rhs`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator+ (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer)
	Unary plus, for completeness and for those who really want to use that. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator- (FloatingPointVector< DT, size, Vector3DataContainer< DT > > lhs, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &rhs)
	Return value is the component-wise subtraction of `rhs` from `lhs`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator- (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &buffer)
	Unary minus, all components of the vector are multiplied with -1. More...

DT	operator* (const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &a, const FloatingPointVector< DT, size, Vector3DataContainer< DT > > &b)
	Dot product, returns a.dot(b). More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator* (FloatingPointVector< DT, size, Vector3DataContainer< DT > > lhs, MLdouble rhs)
	Component-wise multiplication of `lhs` with `rhs`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator* (MLdouble lhs, FloatingPointVector< DT, size, Vector3DataContainer< DT > > rhs)
	Component-wise multiplication of `rhs` with `lhs`. More...

FloatingPointVector< DT, size, Vector3DataContainer< DT > >	operator/ (FloatingPointVector< DT, size, Vector3DataContainer< DT > > lhs, MLdouble rhs)
	Component-wise division of `lhs` by specialized `rhs` of type MLdouble. More...

Detailed Description

template<class DT>
class ml::Tvec3< DT >

Forward declarations to resolve header file dependencies.

A three dimensional vector class for floating point types.

Definition at line 65 of file mlVector3.h.

Member Typedef Documentation

◆ ComponentType

template<class DT >

typedef DT ml::Tvec3< DT >::ComponentType

A typedef to 'export' the type of components.

Definition at line 74 of file mlVector3.h.

◆ Superclass

template<class DT >

typedef FloatingPointVector<DT, 3, Vector3DataContainer<DT> > ml::Tvec3< DT >::Superclass

A typedef as a shorthand for the base class.

Definition at line 71 of file mlVector3.h.

Constructor & Destructor Documentation

◆ Tvec3() [1/6]

template<class DT >

ml::Tvec3< DT >::Tvec3 ( const DT value = 0 )

inlineexplicit

Default and value constructor.

Sets all entries to a user given value. value is the init value for all entries. 0 is the default value.

Definition at line 82 of file mlVector3.h.

◆ Tvec3() [2/6]

template<class DT >

ml::Tvec3< DT >::Tvec3 ( const Superclass & v )

inline

Copy constructor from FloatingPointVector.

This allows the usage of SclarVectorTemplate objects of the same DT in operators using the Tvec3, because the FloatingPointVector objects can implicitly be cast.

Definition at line 89 of file mlVector3.h.

◆ Tvec3() [3/6]

template<class DT >

ml::Tvec3< DT >::Tvec3	(	const DT	px,
		const DT	py,
		const DT	pz
	)

inline

Constructor building the vector px, py, and pz.

Definition at line 94 of file mlVector3.h.

◆ Tvec3() [4/6]

template<class DT >

ml::Tvec3< DT >::Tvec3	(	const Tvec2< DT > &	v,
		const DT	pz
	)

inline

Builds a Tvec3 from a Tvec2 and a scalar. Sets the third entry to user given value pz.

Definition at line 102 of file mlVector3.h.

◆ Tvec3() [5/6]

template<class DT >

ml::Tvec3< DT >::Tvec3	(	const Tvec4< DT > &	v,
		const bool	normalizeV
	)

inline

Casts a Tvec4 v to Tvec3.

If normalize is true, then the first three components are divided by the last one to implement a homogeneous cast. In that case, it is up to the caller to avoid a division by zero. If normalize is false, then the first three components are taken unchanged.

Definition at line 114 of file mlVector3.h.

References DCMTree::DT, ML_BAD_PARAMETER, MLValuesDifferWOM(), and ml::printTemplateError().

◆ Tvec3() [6/6]

template<class DT >

ml::Tvec3< DT >::Tvec3	(	const Tvec4< DT > &	v,
		const int	axis
	)

inline

Casts a Tvec4 v to Tvec3.

axis specifies component to be thrown away. All other components are copied sequentially. If axis is not within [0,3], then the last component is thrown away.

Definition at line 143 of file mlVector3.h.

Member Function Documentation

◆ affinePoint()

template<class DT >

Tvec4<DT> ml::Tvec3< DT >::affinePoint ( ) const

inline

Builds a homogeneous Tvec4 point from *this and returns it, i.e., leaves all components unchanged and sets the fourth component to 1.

Definition at line 203 of file mlVector3.h.

Referenced by ml::operator*(), and ml::Tmat4< DT >::transformPoint().

◆ affineVec()

template<class DT >

Tvec4<DT> ml::Tvec3< DT >::affineVec ( ) const

inline

Builds a homogeneous Tvec4 vector from *this and returns it, i.e., leaves all components unchanged and sets the fourth component to 0.

Definition at line 196 of file mlVector3.h.

◆ assign()

template<class DT >

void ml::Tvec3< DT >::assign	(	const DT	px,
		const DT	py,
		const DT	pz
	)

inline

Sets all components to the passed values.

Definition at line 171 of file mlVector3.h.

Referenced by ml::PCLSupportTools::getBoxForPointCloud(), and ml::PCLMLTools::transformTo().

◆ divideByLastComp()

template<class DT >

Tvec3<DT> ml::Tvec3< DT >::divideByLastComp ( ) const

inline

Divides all vector components by its last component and returns it as Tvec3, which then has a 1 as last component.

It is useful to scale the vector from homogeneous space to normal space. It is up to the caller to avoid a division by zero if last component is 0.

Definition at line 182 of file mlVector3.h.

References DCMTree::DT, and ML_CHECK_FLOAT.

The documentation for this class was generated from the following files:

MeVis/Foundation/Sources/ML/include/mlTypeTraits.h
MeVis/Foundation/Sources/MLLinearAlgebra/mlVector3.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<class DT> class ml::Tvec3< DT >

Member Typedef Documentation

◆ ComponentType

◆ Superclass

Constructor & Destructor Documentation

◆ Tvec3() [1/6]

◆ Tvec3() [2/6]

◆ Tvec3() [3/6]

◆ Tvec3() [4/6]

◆ Tvec3() [5/6]

◆ Tvec3() [6/6]

Member Function Documentation

◆ affinePoint()

◆ affineVec()

◆ assign()

◆ divideByLastComp()

template<class DT>
class ml::Tvec3< DT >
