Base class for single and multithreaded processor. More...

#include <mlPageRequestProcessorBase.h>

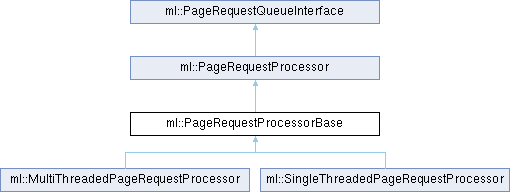

Inheritance diagram for ml::PageRequestProcessorBase:

Classes
struct	PerThreadStorage
	Data that is available on a per-thread basis to cache items that are reused across PageRequest calls, e.g., the UserThreadData. More...

struct	ScopeStackEntry
	Each processing scope has its own GUI work queue and flags/counters for errors and tiles to wait for. More...

Public Member Functions
	PageRequestProcessorBase (Host *host)

	~PageRequestProcessorBase () override

virtual bool	supportsMultiThreading ()=0
	Returns whether multithreading is supported. More...

void	removeCancelledRequests () override
	Removes all requests that are canceled and no longer needed. More...

ProcessingTimeLine &	getProcessingTimeLine ()
	Returns access to the processing timeline. More...

ProcessingTimeLine::TimeLine *	getOverviewTimeLine ()
	Returns access to the overview timeline (only if timeline profiling is on). More...

void	enableTimeLineProfiling (bool flag)
	Enables/disables timeline profiling. More...

bool	isTimeLineProfilingEnabled () const
	Returns whether timeline profiling is enabled. More...

int	getProcessingScope () const
	Returns the current processing scope. More...

void	enterProcessingScope () override
	Enters a recursive processing scope. This is always called from main thread! More...

void	leaveProcessingScope () override
	Leaves a recursive processing scope. This is always called from main thread! More...

Public Member Functions inherited from ml::PageRequestProcessor
	~PageRequestProcessor () override
	Virtual destructor. More...

virtual void	addRootTileRequest (TileRequest *tileRequest)=0
	Adds the root `tileRequest` that should be processed; the ownership stays with the caller. More...

virtual void	processAll ()=0
	Processes all requests until the cursors have traversed the whole tree and the queue is empty. More...

virtual void	process (double timeBudget)=0
	Processes the requests for the given `timeBudget` given in seconds. More...

virtual bool	needsProcessing ()=0
	Returns whether the tile request needs some more processing. More...

virtual void	setNumWorkerThreads (std::size_t)=0
	Sets number of worker threads (available here even if subclasses may not support it). More...

virtual bool	processingWasSingleThreaded () const =0
	Returns whether the last request was processed single or multithreaded. More...

Public Member Functions inherited from ml::PageRequestQueueInterface
virtual	~PageRequestQueueInterface ()
	Virtual destructor to get rid of warning. More...

virtual void	append (PageRequest *request)=0
	Appends PageRequest `request` that is ready for processing to the work queue. More...

Protected Member Functions
bool	createMoreWork (bool sleepWhenBlocked, bool allBlocked=nullptr, MLint pageRequestLimit=100000, MLint resultPageRequestCount=nullptr)
	Creates more work items, returns `true` if new work was created. More...

void	setupCurrentProcessingScope ()
	Helper. More...

virtual void	handleErrorsInGUIThread ()
	Handles all errors that have been accumulated. More...

void	terminateAllRequestsInGUIThread ()
	Terminates all requests. More...

void	addNewCursor (PageRequestCursor *cursor)
	Adds the new cursor. More...

virtual void	getAllPageRequestQueues (std::vector< std::deque< PageRequest * > * > &queues)
	Returns all page request queues (to be derived when there are more than the GUI queues). More...

UserThreadData *	getUserThreadData (PageRequest *request, PerThreadStorage &perThreadStorage)
	Returns or allocates the UserThreadData for the given request as part of the perThreadStorage. More...

Protected Attributes
Host *	_host
	Optional pointer to the host. More...

bool	_terminated
	Flag whether the calculation was terminated. More...

int	_rootTileRequests
	The number of root tile requests; if this gets down to 0, we are done. More...

std::vector< std::vector< PageRequestCursor * > >	_cursors
	The cursors that are handled by the producer thread, one list for each processing scope. More...

int	_processingScope
	The current processing scope (0 = BG tasks, 1 = normal get tile, >1 = recursive get tile). More...

int	_producerProcessingScope
	The current cursor scope of the producer. More...

int	_producerCursorCounter
	How many cursors the producer contains in all lists. More...

int	_guiThreadRecursionCounter
	The recursion of the GUI thread (0 = outer entry). More...

ScopeStackEntry *	_currentScope
	The current scope pointer. More...

std::vector< ScopeStackEntry >	_scopeStack
	Stack of processing scopes. More...

TimeCounter	_progressUpdateTimer
	Timer used for progress update from GUI thread. More...

PerThreadStorage	_guiPerThreadStorage
	The per-thread storage for the GUI thread. More...

Profiling
bool	_useTimeLineProfiling

ProcessingTimeLine	_profile

ProcessingTimeLine::TimeLine *	_guiThreadTimeLine

ProcessingTimeLine::TimeLine *	_overviewTimeLine

Additional Inherited Members
Static Public Member Functions inherited from ml::PageRequestProcessor
static void	enableTileRequestAllocationFailure (int count=1)
	Enables failing on every `count` allocation. More...

static void	disableTileRequestAllocationFailure ()
	Disables allocation failure. This is the default! More...

Detailed Description

Base class for single and multithreaded processor.

Definition at line 35 of file mlPageRequestProcessorBase.h.

Constructor & Destructor Documentation

◆ PageRequestProcessorBase()

ml::PageRequestProcessorBase::PageRequestProcessorBase ( Host * host )

◆ ~PageRequestProcessorBase()

ml::PageRequestProcessorBase::~PageRequestProcessorBase ( )

override

Member Function Documentation

◆ addNewCursor()

void ml::PageRequestProcessorBase::addNewCursor ( PageRequestCursor * cursor )

protected

Adds the new cursor.

◆ createMoreWork()

bool ml::PageRequestProcessorBase::createMoreWork	(	bool	sleepWhenBlocked,
		bool *	allBlocked = `nullptr`,
		MLint	pageRequestLimit = `100000`,
		MLint *	resultPageRequestCount = `nullptr`
	)

protected

Creates more work items, returns true if new work was created.

◆ enableTimeLineProfiling()

void ml::PageRequestProcessorBase::enableTimeLineProfiling ( bool flag )

Enables/disables timeline profiling.

◆ enterProcessingScope()

void ml::PageRequestProcessorBase::enterProcessingScope ( )

overridevirtual

Enters a recursive processing scope. This is always called from main thread!

Implements ml::PageRequestProcessor.

◆ getAllPageRequestQueues()

virtual void ml::PageRequestProcessorBase::getAllPageRequestQueues ( std::vector< std::deque< PageRequest * > * > & queues )

protectedvirtual

Returns all page request queues (to be derived when there are more than the GUI queues).

◆ getOverviewTimeLine()

ProcessingTimeLine::TimeLine* ml::PageRequestProcessorBase::getOverviewTimeLine ( )

inline

Returns access to the overview timeline (only if timeline profiling is on).

Definition at line 53 of file mlPageRequestProcessorBase.h.

◆ getProcessingScope()

int ml::PageRequestProcessorBase::getProcessingScope ( ) const

inline

Returns the current processing scope.

Definition at line 62 of file mlPageRequestProcessorBase.h.

◆ getProcessingTimeLine()

ProcessingTimeLine& ml::PageRequestProcessorBase::getProcessingTimeLine ( )

inline

Returns access to the processing timeline.

Definition at line 50 of file mlPageRequestProcessorBase.h.

◆ getUserThreadData()

UserThreadData* ml::PageRequestProcessorBase::getUserThreadData	(	PageRequest *	request,
		PerThreadStorage &	perThreadStorage
	)

protected

Returns or allocates the UserThreadData for the given request as part of the perThreadStorage.

◆ handleErrorsInGUIThread()

virtual void ml::PageRequestProcessorBase::handleErrorsInGUIThread ( )

protectedvirtual

Handles all errors that have been accumulated.

◆ isTimeLineProfilingEnabled()

bool ml::PageRequestProcessorBase::isTimeLineProfilingEnabled ( ) const

inline

Returns whether timeline profiling is enabled.

Definition at line 59 of file mlPageRequestProcessorBase.h.

◆ leaveProcessingScope()

void ml::PageRequestProcessorBase::leaveProcessingScope ( )

overridevirtual

Leaves a recursive processing scope. This is always called from main thread!

Implements ml::PageRequestProcessor.

◆ removeCancelledRequests()

void ml::PageRequestProcessorBase::removeCancelledRequests ( )

overridevirtual

Removes all requests that are canceled and no longer needed.

Make sure to only call this from the GUI thread AND when you know that processing by other threads is not allowed at that point in time.

Implements ml::PageRequestProcessor.

◆ setupCurrentProcessingScope()

void ml::PageRequestProcessorBase::setupCurrentProcessingScope ( )

protected

Helper.

◆ supportsMultiThreading()

virtual bool ml::PageRequestProcessorBase::supportsMultiThreading ( )

pure virtual

Returns whether multithreading is supported.

Implemented in ml::SingleThreadedPageRequestProcessor, and ml::MultiThreadedPageRequestProcessor.

◆ terminateAllRequestsInGUIThread()

void ml::PageRequestProcessorBase::terminateAllRequestsInGUIThread ( )

protected

Terminates all requests.

Member Data Documentation

◆ _currentScope

ScopeStackEntry* ml::PageRequestProcessorBase::_currentScope

protected

The current scope pointer.

Definition at line 141 of file mlPageRequestProcessorBase.h.

◆ _cursors

std::vector< std::vector<PageRequestCursor*> > ml::PageRequestProcessorBase::_cursors

protected

The cursors that are handled by the producer thread, one list for each processing scope.

Definition at line 100 of file mlPageRequestProcessorBase.h.

◆ _guiPerThreadStorage

PerThreadStorage ml::PageRequestProcessorBase::_guiPerThreadStorage

protected

The per-thread storage for the GUI thread.

Definition at line 165 of file mlPageRequestProcessorBase.h.

◆ _guiThreadRecursionCounter

int ml::PageRequestProcessorBase::_guiThreadRecursionCounter

protected

The recursion of the GUI thread (0 = outer entry).

Definition at line 117 of file mlPageRequestProcessorBase.h.

◆ _guiThreadTimeLine

ProcessingTimeLine::TimeLine* ml::PageRequestProcessorBase::_guiThreadTimeLine

protected

Definition at line 106 of file mlPageRequestProcessorBase.h.

◆ _host

Host* ml::PageRequestProcessorBase::_host

protected

Optional pointer to the host.

Definition at line 90 of file mlPageRequestProcessorBase.h.

◆ _overviewTimeLine

ProcessingTimeLine::TimeLine* ml::PageRequestProcessorBase::_overviewTimeLine

protected

Definition at line 107 of file mlPageRequestProcessorBase.h.

◆ _processingScope

int ml::PageRequestProcessorBase::_processingScope

protected

The current processing scope (0 = BG tasks, 1 = normal get tile, >1 = recursive get tile).

Definition at line 111 of file mlPageRequestProcessorBase.h.

◆ _producerCursorCounter

int ml::PageRequestProcessorBase::_producerCursorCounter

protected

How many cursors the producer contains in all lists.

Definition at line 115 of file mlPageRequestProcessorBase.h.

◆ _producerProcessingScope

int ml::PageRequestProcessorBase::_producerProcessingScope

protected

The current cursor scope of the producer.

Definition at line 113 of file mlPageRequestProcessorBase.h.

◆ _profile

ProcessingTimeLine ml::PageRequestProcessorBase::_profile

protected

Definition at line 105 of file mlPageRequestProcessorBase.h.

◆ _progressUpdateTimer

TimeCounter ml::PageRequestProcessorBase::_progressUpdateTimer

protected

Timer used for progress update from GUI thread.

Definition at line 148 of file mlPageRequestProcessorBase.h.

◆ _rootTileRequests

int ml::PageRequestProcessorBase::_rootTileRequests

protected

The number of root tile requests; if this gets down to 0, we are done.

Definition at line 96 of file mlPageRequestProcessorBase.h.

◆ _scopeStack

std::vector<ScopeStackEntry> ml::PageRequestProcessorBase::_scopeStack

protected

Stack of processing scopes.

For performance reasons, we only grow this stack; we never shrink it.

Definition at line 145 of file mlPageRequestProcessorBase.h.

◆ _terminated

bool ml::PageRequestProcessorBase::_terminated

protected

Flag whether the calculation was terminated.

Definition at line 93 of file mlPageRequestProcessorBase.h.

◆ _useTimeLineProfiling

bool ml::PageRequestProcessorBase::_useTimeLineProfiling

protected

Definition at line 104 of file mlPageRequestProcessorBase.h.

The documentation for this class was generated from the following file:

MeVis/Foundation/Sources/ML/include/host/mlPageRequestProcessorBase.h

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PageRequestProcessorBase()

◆ ~PageRequestProcessorBase()

Member Function Documentation

◆ addNewCursor()

◆ createMoreWork()

◆ enableTimeLineProfiling()

◆ enterProcessingScope()

◆ getAllPageRequestQueues()

◆ getOverviewTimeLine()

◆ getProcessingScope()

◆ getProcessingTimeLine()

◆ getUserThreadData()

◆ handleErrorsInGUIThread()

◆ isTimeLineProfilingEnabled()

◆ leaveProcessingScope()

◆ removeCancelledRequests()

◆ setupCurrentProcessingScope()

◆ supportsMultiThreading()

◆ terminateAllRequestsInGUIThread()

Member Data Documentation

◆ _currentScope

◆ _cursors

◆ _guiPerThreadStorage

◆ _guiThreadRecursionCounter

◆ _guiThreadTimeLine

◆ _host

◆ _overviewTimeLine

◆ _processingScope

◆ _producerCursorCounter

◆ _producerProcessingScope

◆ _profile

◆ _progressUpdateTimer

◆ _rootTileRequests

◆ _scopeStack

◆ _terminated

◆ _useTimeLineProfiling
