SoInteractionNode is the base class for normal interaction nodes in OpenInventor that handle their interactions directly. More...

#include <SoInteractionNode.h>

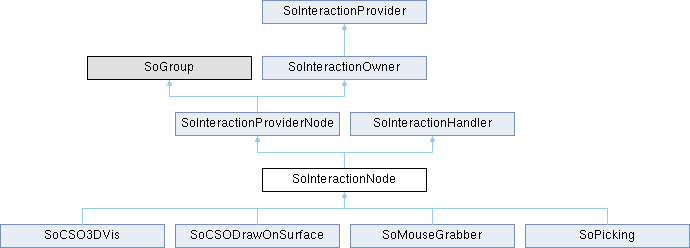

Inheritance diagram for SoInteractionNode:

Public Member Functions
	SoInteractionNode ()
	Constructor. More...

	~SoInteractionNode () override

void	handleEvent (SoHandleEventAction *action) override
	Handles the mouse and keyboard events. More...

Public Member Functions inherited from SoInteractionProviderNode
	SoInteractionProviderNode ()
	Default constructor. More...

	~SoInteractionProviderNode () override
	Destructor. More...

std::string	getID () const override
	Returns the ID string for identifying the provider and its actions. More...

void	objRef () override
	Memory management by reference counting; must be implemented in derived classes. More...

void	objUnref () override

Public Member Functions inherited from SoInteractionOwner
	SoInteractionOwner ()
	Default constructor. More...

	~SoInteractionOwner () override
	The destructor will destroy all interactions created with this object as owner. More...

std::list< SoInteraction * >	getInteractions (SoState *state) override
	Returns the list of all interactions of this provider. More...

void	pointerPosition (SoState *state, const SoPointerPosition &pos) override
	Same as below, with additional SoState argument. By default, simply calls the below version. More...

void	pointerLeftWindow (SoState *state) override
	Same as below, with additional SoState argument. By defaults, simply calls the below version. More...

void	addListener (SoInteractionOwnerListenerInterface *listener)
	Adds a listener object that is notified of changes in the interaction list. More...

void	removeListener (SoInteractionOwnerListenerInterface *listener)
	Removes a listener object that was notified of changes in the interaction list. More...

Public Member Functions inherited from SoInteractionProvider
	SoInteractionProvider ()
	Default constructor. More...

virtual	~SoInteractionProvider ()

template<class T >
std::list< T * >	getInteractionsOfType (SoState *state)
	Returns list of interactions of a specific type. More...

virtual std::list< SoCommandAction * >	getCommandActions (SoState *state)

virtual std::list< SoPointingAction * >	getPointingActions (SoState *state)

virtual std::list< SoOffsetAction * >	getOffsetActions (SoState *state)

Public Member Functions inherited from SoInteractionHandler
	SoInteractionHandler (SoInteractionProvider *provider)

virtual	~SoInteractionHandler ()

virtual void	handleEventForInteraction (SoHandleEventAction *action)
	Handles the mouse and keyboard events and send them to interaction nodes. More...

Static Public Member Functions
static void	initClass ()
	Initializes this class. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)

Static Public Member Functions inherited from SoInteractionProviderNode
static void	initClass ()
	Initializes this class. More...

Static Public Member Functions inherited from SoInteractionProvider
static void	registerInteractionProviderNode (SoType type, GetProviderFunc func)
	Registers a function to obtain a SoInteractionProvider from a SoNode. More...

static SoInteractionProvider *	getInteractionProvider (SoNode *node)
	Returns a SoInteractionProvider from a SoNode if registered, else NULL. More...

Additional Inherited Members
Public Types inherited from SoInteractionProvider
typedef SoInteractionProvider (	GetProviderFunc) (SoNode *)

Public Attributes inherited from SoInteractionProviderNode
SoSFString	instanceName
	Defines interface field to store the instance name. More...

SoSFString	interactionProviderID
	This field overrides the instanceName as providerID if specified. More...

Protected Member Functions inherited from SoInteractionOwner
virtual void	pointerPosition (const SoPointerPosition &)
	Override this if you always need to be informed of the current mouse cursor position. More...

virtual void	pointerLeftWindow ()
	This is called when the mouse cursor leaves the window. More...

bool	hasInteractions () const
	Returns whether there are any actions defined by this owner. More...

template<class T >
bool	hasInteractionsOfType () const
	Same as above, but asking for a specific type of interaction. More...

void	addPointingAction (SoPointingAction *)

void	addCommandAction (SoCommandAction *)

void	addOffsetAction (SoOffsetAction *)

Protected Member Functions inherited from SoInteractionHandler
bool	handleKeyPress (SoState *state, const SoPointerPosition &location, int modifiers, SoKeyboardEvent::Key nKey, bool positionValid)
	Handles a key press by checking for commands actions with matching key shortcuts and executing (one of) them. More...

virtual bool	augmentLocation (SoPointerPosition &, bool)
	This method can be overridden to provide further position information to SoPointingActions,e.g., slice information for SoView2DExtensions. More...

void	buttonMaskChanged (SoState *state, const SoPointerPosition &location, int buttonMask)
	Called if the button mask changed since the last input event. More...

void	modifierMaskChanged (SoState *state, const SoPointerPosition &location, int modifierMask)
	Called if the modifier mask changed since the last input event. More...

void	locationChanged (SoState *state, const SoPointerPosition &location, bool force=false, bool renderRefresh=false)
	Called if the pointer location changed since the last input event. More...

bool	wheelRotated (SoState *state, const SoPointerPosition &location, int modifierMask, SoMouseWheelEvent::Orientation orientation, short rotation)
	Called when the mouse wheel is rotated. More...

void	handlePointerLeftWindow (SoState *state)
	Called if the pointer left the scene widget. More...

SoInteractionCoordinator *	getCoordinator ()
	Access method, returns the interaction coordinator during event handling. More...

SoPointingAction *	getLocalCurrentPointingAction ()

virtual bool	isEnabled (SoPointingAction *action, int currentMask)
	This method returns whether the pointing action should be enabled for the given modifier/button mask. More...

virtual bool	isValidStartingLocation (const SoPointerPosition &location)
	This method returns whether the current location is valid for starting a pointing action. More...

bool	canSelectPointingAction ()

void	selectTargetPointingAction (SoState *state, const SoPointerPosition &location, int mask)

bool	trySwitchGlobalPointingAction (SoState *state, const SoPointerPosition &location, int buttonMask, int modifierMask)
	Attemps to switch from one global pointing action to another during a drag. More...

int	getCurrentButtonMask ()

int	getCurrentModifierMask ()
	Returns the currently active button modifier. More...

SoPointerPosition	getCurrentPointerLocation ()
	Returns the current position of the mouse cursor. More...

bool	isCurrentPointerLocationValid ()
	Returns whether the current mouse cursor position is valid. More...

Detailed Description

SoInteractionNode is the base class for normal interaction nodes in OpenInventor that handle their interactions directly.

Definition at line 24 of file SoInteractionNode.h.

Constructor & Destructor Documentation

◆ SoInteractionNode()

SoInteractionNode::SoInteractionNode ( )

Constructor.

◆ ~SoInteractionNode()

SoInteractionNode::~SoInteractionNode ( )

override

Member Function Documentation

◆ getInteractionProvider()

static SoInteractionProvider* SoInteractionNode::getInteractionProvider ( SoNode * node )

static

◆ handleEvent()

void SoInteractionNode::handleEvent ( SoHandleEventAction * action )

override

Handles the mouse and keyboard events.

◆ initClass()

static void SoInteractionNode::initClass ( )

static

Initializes this class.

The documentation for this class was generated from the following file:

MeVis/Foundation/Sources/SoManagedInteraction/SoInteractionNode.h
