SoAccumulatedElement Class Reference

This is the abstract base class for each state element whose value may be accumulated when it is set. More...

#include <Inventor/elements/SoAccumulatedElement.h>

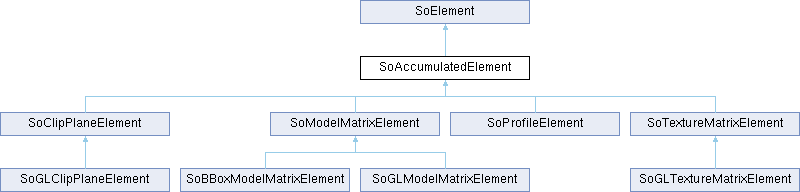

Inheritance diagram for SoAccumulatedElement:

Public Member Functions
virtual bool	matches (const SoElement *elt) const
	Returns TRUE if the element matches another element, based on node-id's.
virtual void	print (FILE *fp) const
	Prints element (for debugging)
Public Member Functions inherited from SoElement
virtual void	init (SoState *state)
	Initializes element.
virtual void	push (SoState *state)
	Pushes/pops element.
virtual void	pop (SoState *state, const SoElement *prevTopElement)
virtual void	print (FILE *fp) const
	Prints element (for debugging)
virtual bool	matches (const SoElement *elt) const =0
	Returns TRUE if the element matches another element (of the same class, presumably) with respect to cache validity.
virtual SoElement *	copyMatchInfo () const =0
	Create a copy that we can put in a cache used list and call matches() on later.
SoType	getTypeId () const
	Returns type identifier for element instance.
int	getStackIndex () const
	Returns the stack index for an element instance.
void	setDepth (int dpth)
	Sets stuff in an element instance.
void	setNext (SoElement *nxt)
void	setNextInStack (SoElement *nxt)
void	setNextFree (SoElement *nxt)
int	getDepth () const
	Returns stuff from element instance.
SoElement *	getNext () const
virtual	~SoElement ()
	Destructor.

Static Public Member Functions
static void	initClass ()
	Initializes the SoAccumulatedElement class.
Static Public Member Functions inherited from SoElement
static SoType	getClassTypeId ()
	Returns type identifier for SoElement class.
static void	initElements ()
	Initialize ALL Inventor element classes.
static void	initClass ()
	Initializes the SoElement class.
static int	getNumStackIndices ()
	Returns the number of stack indices allocated.
static SoType	getIdFromStackIndex (int stackIndex)
	Returns the id for the element with the given stack index.

Protected Member Functions
void	clearNodeIds ()
	Clears out the list of node id's.
void	addNodeId (const SoNode *node)
	Adds the id of the given node to the current list.
void	setNodeId (const SoNode *node)
	Sets the node id list to JUST the id of the given node.
virtual SoElement *	copyMatchInfo () const
	Create and return a copy of this element; this will copy the nodeId list properly.
virtual void	captureThis (SoState *state) const
	Override normal capture method to capture elements at other depths that we are accumulating with.
virtual	~SoAccumulatedElement ()
	Destructor.
Protected Member Functions inherited from SoElement
	SoElement ()
	Constructor; use typeId.createInstance to create elements.
void	capture (SoState *state) const
	Does whatever is necessary in state to capture this element for caching purposes.
virtual void	captureThis (SoState *state) const
	Really captures this element, once it has been determined that a cache is open to capture it.
void	setTypeId (SoType id)
	Sets typeId in instance.
void	setStackIndex (int index)
	Sets stackIndex in instance.
SoElement *	getNextInStack () const
	Returns next instance in specific element stack.
SoElement *	getNextFree () const
	Returns next free element in a specific element stack.

Protected Attributes
SbPList	nodeIds
	This stores the list of node id's as pointers, since they should be the same length as int32_ts.

Additional Inherited Members
Static Protected Member Functions inherited from SoElement
static SoElement *	getElement (SoState *state, int stackIndex)
	Returns an instance of an element from the stack with the given index in the given state.
static const SoElement *	getConstElement (SoState *state, int stackIndex)
	Returns a read-only pointer to the top instance in the given element stack.
static int	createStackIndex (SoType id)
	Creates and returns a new stack index.
Static Protected Attributes inherited from SoElement
static int	classStackIndex
	Stack index for SoElement class.

Detailed Description

(This is rare.) Examples are transformations and profiles.

Subclasses may need to override the push() method to copy values from the next instance in the stack (using getNextInStack() ), if the new one has to accumulate values on top of the old ones.

This class defines the matches() method to compare lists of node-id's. The node-id's represent the states of all nodes that changed the value of the element. SoAccumulatedElement provides methods that maintain lists of node-id's of all nodes that affect an instance. Subclasses must call these methods to make sure the id's are up to date, if they plan to use the standard matches() method. Otherwise, they can define matches() differently, if they wish.

Definition at line 88 of file SoAccumulatedElement.h.

Constructor & Destructor Documentation

~SoAccumulatedElement()

virtual SoAccumulatedElement::~SoAccumulatedElement ( )

protectedvirtual

Member Function Documentation

addNodeId()

void SoAccumulatedElement::addNodeId ( const SoNode *  node )

protected

captureThis()

virtual void SoAccumulatedElement::captureThis ( SoState *  state ) const

protectedvirtual

Reimplemented from SoElement.

clearNodeIds()

void SoAccumulatedElement::clearNodeIds ( )

protected

copyMatchInfo()

virtual SoElement * SoAccumulatedElement::copyMatchInfo ( ) const

protectedvirtual

Implements SoElement.

initClass()

static void SoAccumulatedElement::initClass ( )

static

matches()

virtual bool SoAccumulatedElement::matches ( const SoElement *  elt ) const

virtual

Implements SoElement.

Reimplemented in SoModelMatrixElement.

print()

virtual void SoAccumulatedElement::print ( FILE *  fp ) const

virtual

Reimplemented from SoElement.

Reimplemented in SoClipPlaneElement, SoModelMatrixElement, SoProfileElement, and SoTextureMatrixElement.

setNodeId()

void SoAccumulatedElement::setNodeId ( const SoNode *  node )

protected

Member Data Documentation

nodeIds

SbPList SoAccumulatedElement::nodeIds

protected

The id's are sorted by increasing value, to make comparisons easier.

Definition at line 127 of file SoAccumulatedElement.h.

---

The documentation for this class was generated from the following file:

• C:/jh/mevislab/4.0.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/elements/SoAccumulatedElement.h
