Element that stores the current model matrix - the cumulative transformation applied to subsequent shapes. More...

#include <Inventor/elements/SoModelMatrixElement.h>

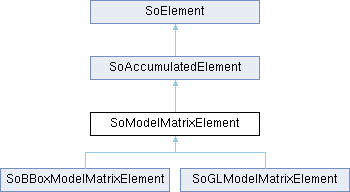

Inheritance diagram for SoModelMatrixElement:

Public Member Functions
virtual void	init (SoState *state)
	Initializes element.

virtual bool	matches (const SoElement *elt) const
	Override standard matches to invalidate on cull-test.

virtual void	push (SoState *state)
	Overrides push() method to copy values from next instance in the stack.

virtual void	print (FILE *fp) const
	Prints element (for debugging)

virtual bool	matches (const SoElement *elt) const
	Returns TRUE if the element matches another element, based on node-id's.

virtual void	print (FILE *fp) const
	Prints element (for debugging)

Public Member Functions inherited from SoElement
virtual void	init (SoState *state)
	Initializes element.

virtual void	push (SoState *state)
	Pushes/pops element.

virtual void	pop (SoState state, const SoElement prevTopElement)

virtual void	print (FILE *fp) const
	Prints element (for debugging)

virtual bool	matches (const SoElement *elt) const =0
	Returns TRUE if the element matches another element (of the same class, presumably) with respect to cache validity.

virtual SoElement *	copyMatchInfo () const =0
	Create a copy that we can put in a cache used list and call matches() on later.

SoType	getTypeId () const
	Returns type identifier for element instance.

int	getStackIndex () const
	Returns the stack index for an element instance.

void	setDepth (int dpth)
	Sets stuff in an element instance.

void	setNext (SoElement *nxt)

void	setNextInStack (SoElement *nxt)

void	setNextFree (SoElement *nxt)

int	getDepth () const
	Returns stuff from element instance.

SoElement *	getNext () const

virtual	~SoElement ()
	Destructor.

Static Public Member Functions
static void	makeIdentity (SoState state, SoNode node)
	Sets the model matrix to the identity matrix.

static void	set (SoState state, SoNode node, const SbMatrix &matrix)
	Sets the model matrix to the given matrix.

static void	mult (SoState state, SoNode node, const SbMatrix &matrix)
	Multiplies the given matrix into the model matrix.

static void	translateBy (SoState state, SoNode node, const SbVec3f &translation)
	Each of these multiplies a matrix that performs the specified transformation into the model matrix.

static void	rotateBy (SoState state, SoNode node, const SbRotation &rotation)

static void	scaleBy (SoState state, SoNode node, const SbVec3f &scaleFactor)

static SbMatrix	pushMatrix (SoState *state)
	These methods are used by the TransformSeparator node.

static void	popMatrix (SoState *state, const SbMatrix &m)

static void	setCullMatrix (SoState state, SoNode node, const SbMatrix &matrix)
	Sets the transformation that defines the volume that view-volume culling should be tested against.

static const SbMatrix &	getCombinedCullMatrix (SoState *state)
	This method gets the model*cullMatrix combined matrix (which is cached by this element).

static const SbMatrix &	get (SoState *state)
	Returns current model matrix from the state.

static const SbMatrix &	get (SoState *state, bool &isIdent)
	Returns current model matrix from the state, sets given flag to TRUE if matrix is known to be identity.

static void	initClass ()
	Initializes the SoModelMatrixElement class.

Static Public Member Functions inherited from SoAccumulatedElement
static void	initClass ()
	Initializes the SoAccumulatedElement class.

Static Public Member Functions inherited from SoElement
static SoType	getClassTypeId ()
	Returns type identifier for SoElement class.

static void	initElements ()
	Initialize ALL Inventor element classes.

static void	initClass ()
	Initializes the SoElement class.

static int	getNumStackIndices ()
	Returns the number of stack indices allocated.

static SoType	getIdFromStackIndex (int stackIndex)
	Returns the id for the element with the given stack index.

Protected Member Functions
virtual void	makeEltIdentity ()
	Sets the matrix in an instance to identity.

virtual void	setElt (const SbMatrix &matrix)
	Sets the matrix in an instance to given matrix.

virtual void	multElt (const SbMatrix &matrix)
	Multiplies into the matrix in an instance.

virtual void	translateEltBy (const SbVec3f &translation)
	Each of these performs the appropriate operation on the matrix in an instance.

virtual void	rotateEltBy (const SbRotation &translation)

virtual void	scaleEltBy (const SbVec3f &scaleFactor)

virtual SbMatrix	pushMatrixElt ()
	virtual methods for push/pop so GL element can Do The Right Thing:

virtual void	popMatrixElt (const SbMatrix &m)

virtual	~SoModelMatrixElement ()

Protected Member Functions inherited from SoAccumulatedElement
void	clearNodeIds ()
	Clears out the list of node id's.

void	addNodeId (const SoNode *node)
	Adds the id of the given node to the current list.

void	setNodeId (const SoNode *node)
	Sets the node id list to JUST the id of the given node.

virtual SoElement *	copyMatchInfo () const
	Create and return a copy of this element; this will copy the nodeId list properly.

virtual void	captureThis (SoState *state) const
	Override normal capture method to capture elements at other depths that we are accumulating with.

virtual	~SoAccumulatedElement ()
	Destructor.

Protected Member Functions inherited from SoElement
	SoElement ()
	Constructor; use typeId.createInstance to create elements.

void	capture (SoState *state) const
	Does whatever is necessary in state to capture this element for caching purposes.

virtual void	captureThis (SoState *state) const
	Really captures this element, once it has been determined that a cache is open to capture it.

void	setTypeId (SoType id)
	Sets typeId in instance.

void	setStackIndex (int index)
	Sets stackIndex in instance.

SoElement *	getNextInStack () const
	Returns next instance in specific element stack.

SoElement *	getNextFree () const
	Returns next free element in a specific element stack.

Friends
class	SoLocalBBoxMatrixElement

Additional Inherited Members
Static Protected Member Functions inherited from SoElement
static SoElement *	getElement (SoState *state, int stackIndex)
	Returns an instance of an element from the stack with the given index in the given state.

static const SoElement *	getConstElement (SoState *state, int stackIndex)
	Returns a read-only pointer to the top instance in the given element stack.

static int	createStackIndex (SoType id)
	Creates and returns a new stack index.

Protected Attributes inherited from SoAccumulatedElement
SbPList	nodeIds
	This stores the list of node id's as pointers, since they should be the same length as int32_ts.

Static Protected Attributes inherited from SoElement
static int	classStackIndex
	Stack index for SoElement class.

Detailed Description

Because the matrix is cumulative, this class is derived from SoAccumulatedElement. The set() method replaces the current matrix, while all the others (mult(), translateBy(), etc.) multiply into it. Node id's of the nodes that affect the element are accumulated properly.

This element also stores the current view-volume culling transformation, which is normally the view*projection matrices (set by cameras), but which may be modified by sophisticated culling schemes.

Definition at line 80 of file SoModelMatrixElement.h.

Constructor & Destructor Documentation

◆ ~SoModelMatrixElement()

virtual SoModelMatrixElement::~SoModelMatrixElement ( )

protectedvirtual

Member Function Documentation

◆ get() [1/2]

static const SbMatrix & SoModelMatrixElement::get ( SoState * state )

static

◆ get() [2/2]

static const SbMatrix & SoModelMatrixElement::get	(	SoState *	state,
		bool &	isIdent
	)

static

◆ getCombinedCullMatrix()

static const SbMatrix & SoModelMatrixElement::getCombinedCullMatrix ( SoState * state )

static

◆ init()

virtual void SoModelMatrixElement::init ( SoState * state )

virtual

Reimplemented from SoElement.

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ initClass()

static void SoModelMatrixElement::initClass ( )

static

◆ makeEltIdentity()

virtual void SoModelMatrixElement::makeEltIdentity ( )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ makeIdentity()

static void SoModelMatrixElement::makeIdentity	(	SoState *	state,
		SoNode *	node
	)

static

◆ matches()

virtual bool SoModelMatrixElement::matches ( const SoElement * elt ) const

virtual

Reimplemented from SoAccumulatedElement.

◆ mult()

static void SoModelMatrixElement::mult	(	SoState *	state,
		SoNode *	node,
		const SbMatrix &	matrix
	)

static

◆ multElt()

virtual void SoModelMatrixElement::multElt ( const SbMatrix & matrix )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ popMatrix()

static void SoModelMatrixElement::popMatrix	(	SoState *	state,
		const SbMatrix &	m
	)

static

◆ popMatrixElt()

virtual void SoModelMatrixElement::popMatrixElt ( const SbMatrix & m )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ print()

virtual void SoModelMatrixElement::print ( FILE * fp ) const

virtual

Reimplemented from SoAccumulatedElement.

◆ push()

virtual void SoModelMatrixElement::push ( SoState * state )

virtual

Reimplemented from SoElement.

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ pushMatrix()

static SbMatrix SoModelMatrixElement::pushMatrix ( SoState * state )

static

WARNING! For proper caching behavior, the matrix returned by pushMatrix() must be used ONLY as a later argument to popMatrix(), and you must NOT modify the matrix between the push and the pop. If you need the matrix for any other reason, you MUST use the get() routine.

◆ pushMatrixElt()

virtual SbMatrix SoModelMatrixElement::pushMatrixElt ( )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ rotateBy()

static void SoModelMatrixElement::rotateBy	(	SoState *	state,
		SoNode *	node,
		const SbRotation &	rotation
	)

static

◆ rotateEltBy()

virtual void SoModelMatrixElement::rotateEltBy ( const SbRotation & translation )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ scaleBy()

static void SoModelMatrixElement::scaleBy	(	SoState *	state,
		SoNode *	node,
		const SbVec3f &	scaleFactor
	)

static

◆ scaleEltBy()

virtual void SoModelMatrixElement::scaleEltBy ( const SbVec3f & scaleFactor )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ set()

static void SoModelMatrixElement::set	(	SoState *	state,
		SoNode *	node,
		const SbMatrix &	matrix
	)

static

◆ setCullMatrix()

static void SoModelMatrixElement::setCullMatrix	(	SoState *	state,
		SoNode *	node,
		const SbMatrix &	matrix
	)

static

◆ setElt()

virtual void SoModelMatrixElement::setElt ( const SbMatrix & matrix )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

◆ translateBy()

static void SoModelMatrixElement::translateBy	(	SoState *	state,
		SoNode *	node,
		const SbVec3f &	translation
	)

static

◆ translateEltBy()

virtual void SoModelMatrixElement::translateEltBy ( const SbVec3f & translation )

protectedvirtual

Reimplemented in SoBBoxModelMatrixElement, and SoGLModelMatrixElement.

Friends And Related Symbol Documentation

◆ SoLocalBBoxMatrixElement

friend class SoLocalBBoxMatrixElement

friend

Definition at line 179 of file SoModelMatrixElement.h.

Member Data Documentation

◆ haveCullMatrix

unsigned int SoModelMatrixElement::haveCullMatrix

Definition at line 175 of file SoModelMatrixElement.h.

◆ haveModelCull

unsigned int SoModelMatrixElement::haveModelCull

Definition at line 176 of file SoModelMatrixElement.h.

◆ isModelIdentity

unsigned int SoModelMatrixElement::isModelIdentity

Definition at line 174 of file SoModelMatrixElement.h.

The documentation for this class was generated from the following file:

C:/jh/mevislab/4.0.2_1/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/elements/SoModelMatrixElement.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~SoModelMatrixElement()

Member Function Documentation

◆ get() [1/2]

◆ get() [2/2]

◆ getCombinedCullMatrix()

◆ init()

◆ initClass()

◆ makeEltIdentity()

◆ makeIdentity()

◆ matches()

◆ mult()

◆ multElt()

◆ popMatrix()

◆ popMatrixElt()

◆ print()

◆ push()

◆ pushMatrix()

◆ pushMatrixElt()

◆ rotateBy()

◆ rotateEltBy()

◆ scaleBy()

◆ scaleEltBy()

◆ set()

◆ setCullMatrix()

◆ setElt()

◆ translateBy()

◆ translateEltBy()

Friends And Related Symbol Documentation

◆ SoLocalBBoxMatrixElement

Member Data Documentation

◆ haveCullMatrix

◆ haveModelCull

◆ isModelIdentity
