CSOManager¶

MLModule¶

genre	`CSOModule`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLCSO`
definition	MLCSO.def
see also	`SoView2DCSOExtensibleEditor`, `CSOFilter`
keywords	`contour`, `segmentation`, `attributes`, `default`, `notification`, `selection`, `grouping`

Purpose¶

The module CSOManager allows for setting parameters and default parameters for CSOs and CSOGroups, as well as for the maintaining the cohesion of CSOs and CSOGroups in a CSOList.

In general, there will be one CSOManager module per network, and this manager module holds a single CSOList object.

Usage¶

In a network, the CSOManager holds the CSOList object and all other modules are attached to its outCSOList output field.

However, a CSOLoad module may be attached to the manager’s inCSOList input field, or even another CSOManager may be attached to the module’s input; in the latter case, it is most likely that the module’s Work directly on input CSOList field is checked so that the original CSOList is held in the CSOManager below, while the according manager is only used as a scripting interface for adding CSOGroups or adjusting parameters for existing items. Have a look at the example network for more details.

Details¶

The module’s interface features two list views, one for all CSOs (and their associated CSOGroups), the other for all CSOGroups (and their associated CSOs). Beside these list views, the parameters for the currently selected CSOs and CSOGroups can be viewed an altered. Additionally, the default parameters for CSOs and CSOGroups can be adjusted and the notification and the selection behavior can be fine-tuned.

Although CSOGroups have no visual counterpart, visual parameters can be set for them. Their use is optional, and if they are used, they overwrite the visual parameters of all contained CSOs. Since a CSO can be in multiple CSOGroups, the parameters of the first CSOGroup that is set are taken.

The module offers the performing of undo and redo operations as well as a limiting of the depth of the undo/redo stack. If the stack depth is changed to a smaller size while it is filled, the first excessive commands are removed.

Windows¶

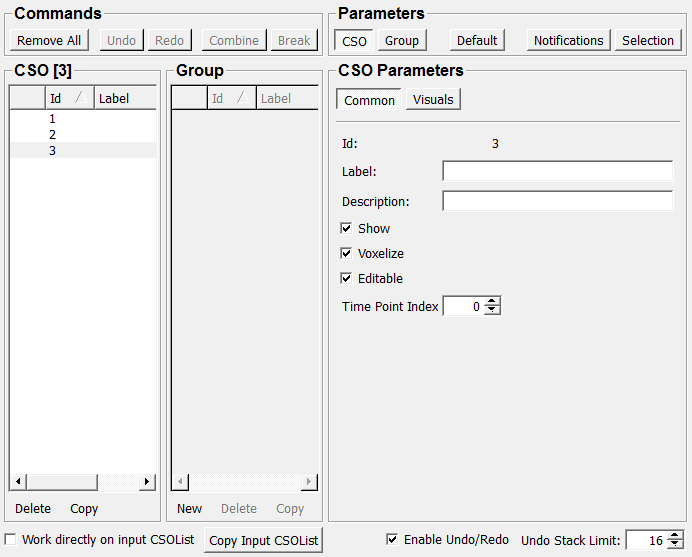

CSOManager¶

Input Fields¶

inCSOList¶

name: inCSOList, type: CSOList(MLBase)¶: The input CSOList that is either copied or being worked directly on, depending on Work directly on input CSOList.

For accessing this object via scripting, see the Scripting Reference: MLCSOListWrapper.

inUndoContext¶

name: inUndoContext, type: UndoContext(MLBase)¶: Connect here the output of an UndoManager module to use an external undo context that can also record non-CSO operations.

Note

It is not recommended to connect an UndoManager if Work directly on input CSOList is set and inCSOList might be connected to another CSOManager which might also have an UndoManager connected: This would be ambiguous even if the UndoManagers are the same and might lead to undo not working correctly.

For accessing this object via scripting, see the Scripting Reference: MLUndoContextWrapper.

Output Fields¶

outCSOList¶

name: outCSOList, type: CSOList(MLBase)¶: The output CSOList.

For accessing this object via scripting, see the Scripting Reference: MLCSOListWrapper.

Parameter Fields¶

Field Index¶

`Add unique Id always (csoDefaultLabelAddUniqueIdAlways)`: `Bool`	`groupCopySelected`: `Trigger`	`Size (groupSingleSeedPointSize)`: `Float`
`Add unique Id always (groupDefaultLabelAddUniqueIdAlways)`: `Bool`	`groupDefaultDeleteGroupCSOHandling`: `Enum`	`Size (groupDefaultSeedPointSize)`: `Float`
`Add unique Id to Label (csoDefaultLabelAddUniqueId)`: `Bool`	`groupDefaultTimePointIndex`: `Integer`	`Start New CSO`: `Trigger`
`Add unique Id to Label (groupDefaultLabelAddUniqueId)`: `Bool`	`groupDefaultUseTimePointIndex`: `Bool`	`Style (csoSinglePathPointStyle)`: `Enum`
`addCSOtoGroup`: `Trigger`	`groupDisplayTree`: `String`	`Style (csoSingleSeedPointStyle)`: `Enum`
`Alpha (groupSinglePathPointAlpha)`: `Float`	`groupPaste`: `Trigger`	`Style (groupSinglePathPointStyle)`: `Enum`
`Alpha (groupSingleSeedPointAlpha)`: `Float`	`groupSelectedCSOItems`: `String`	`Style (groupSingleSeedPointStyle)`: `Enum`
`Alpha (groupDefaultPathPointAlpha)`: `Float`	`groupSelectedItems`: `String`	`Style (groupDefaultPathPointStyle)`: `Enum`
`Alpha (groupDefaultSeedPointAlpha)`: `Float`	`groupSingleApply`: `Trigger`	`Style (groupDefaultSeedPointStyle)`: `Enum`
`Alpha: (csoSinglePathPointAlpha)`: `Float`	`groupTreeView`: `String`	`Time Point Index (csoSingleTimePointIndex)`: `Integer`
`Alpha: (csoSingleSeedPointAlpha)`: `Float`	`Id (csoSingleId)`: `Integer`	`Time Point Index (groupSingleTimePointIndex)`: `Integer`
`breakCSOFromGroup`: `Trigger`	`Id (groupSingleId)`: `Integer`	`Trigger finished notification`: `Trigger`
`Brighten`: `Float`	`Id String Format (csoDefaultLabelUniqueIdFormat)`: `String`	`Trigger moved notification`: `Trigger`
`Brighten:`: `Float`	`Id String Format (groupDefaultLabelUniqueIdFormat)`: `String`	`Trigger repaint notification`: `Trigger`
`Color (groupSinglePathPointColor)`: `Color`	`ignoreCSOListViewSelectionChanged`: `Bool`	`Trigger selection notification`: `Trigger`
`Color (groupSingleSeedPointColor)`: `Color`	`ignoreCSOSelectionChanged`: `Bool`	`Undo`: `Trigger`
`Color (groupDefaultPathPointColor)`: `Color`	`ignoreGroupListViewSelectionChanged`: `Bool`	`Undo Stack Limit`: `Integer`
`Color (groupDefaultSeedPointColor)`: `Color`	`ignoreGroupSelectionChanged`: `Bool`	`updateCsoDisplayTree`: `Bool`
`Color: (csoSinglePathPointColor)`: `Color`	`Interaction Init`: `Trigger`	`updateGroupDisplayTree`: `Bool`
`Color: (csoSingleSeedPointColor)`: `Color`	`Label (csoSingleLabel)`: `String`	`Use (groupSingleUseTimePointIndex)`: `Bool`
`Copy Input CSOList`: `Trigger`	`Label (csoDefaultLabel)`: `String`	`Use (groupSingleUseShowState)`: `Bool`
`csoCopySelected`: `Trigger`	`Label (groupSingleLabel)`: `String`	`Use (groupSingleUseVoxelizeState)`: `Bool`
`csoDisplayTree`: `String`	`Label (groupDefaultLabel)`: `String`	`Use (groupSingleUseEditableState)`: `Bool`
`csoPaste`: `Trigger`	`listDefaultRemoveEmptyGroupHandling`: `Enum`	`Use (groupSingleUsePathPointStyle)`: `Bool`
`csoSelectedGroupItems`: `String`	`listSingleRemoveEmptyGroupHandling`: `Enum`	`Use (groupSingleUsePathPointWidth)`: `Bool`
`csoSelectedItems`: `String`	`Maximum CSOs (groupSingleNumMaximumCSOs)`: `Integer`	`Use (groupSingleUsePathPointColor)`: `Bool`
`csoSingleApply`: `Trigger`	`Maximum CSOs (groupDefaultNumMaximumCSOs)`: `Integer`	`Use (groupSingleUsePathPointAlpha)`: `Bool`
`csoTreeView`: `String`	`Mode (selectionLineWidthMode)`: `Enum`	`Use (groupSingleUseSeedPointStyle)`: `Bool`
`Delete (csoRemoveSelected)`: `Trigger`	`Mode (selectedSeedPointColoringMode)`: `Enum`	`Use (groupSingleUseSeedPointSize)`: `Bool`
`Delete (groupRemoveSelected)`: `Trigger`	`Mode (selectedSeedPointSizeMode)`: `Enum`	`Use (groupSingleUseSeedPointColor)`: `Bool`
`Delete Group CSO Handling`: `Enum`	`Mode (csoSingleVoxelWriteMode)`: `Enum`	`Use (groupSingleUseSeedPointAlpha)`: `Bool`
`Desc. (csoDefaultDescription)`: `String`	`Mode (groupDefaultVoxelWriteMode)`: `Enum`	`Use (groupSingleUseVoxelWriteMode)`: `Bool`
`Desc. (groupSingleDescription)`: `String`	`Mode: (selectionColoringMode)`: `Enum`	`Use (groupSingleUseVoxelWriteValue)`: `Bool`
`Desc. (groupDefaultDescription)`: `String`	`Mode: (groupSingleVoxelWriteMode)`: `Enum`	`Use (groupDefaultUseShowState)`: `Bool`
`Description`: `String`	`Moved`: `Trigger`	`Use (groupDefaultUseVoxelizeState)`: `Bool`
`Editable (csoSingleEditableState)`: `Bool`	`New`: `Trigger`	`Use (groupDefaultUseEditableState)`: `Bool`
`Editable (csoDefaultEditableState)`: `Bool`	`numCSOs`: `Integer`	`Use (groupDefaultUsePathPointStyle)`: `Bool`
`Editable (groupSingleEditableState)`: `Bool`	`numGroups`: `Integer`	`Use (groupDefaultUsePathPointWidth)`: `Bool`
`Editable (groupDefaultEditableState)`: `Bool`	`numRedos`: `Integer`	`Use (groupDefaultUsePathPointColor)`: `Bool`
`Enable (useSelectionCSONotification)`: `Bool`	`numSelectedCSOs`: `Integer`	`Use (groupDefaultUsePathPointAlpha)`: `Bool`
`Enable (useSelectionGroupNotification)`: `Bool`	`numSelectedGroups`: `Integer`	`Use (groupDefaultUseSeedPointStyle)`: `Bool`
`Enable (useFinishedCSONotification)`: `Bool`	`numUndos`: `Integer`	`Use (groupDefaultUseSeedPointSize)`: `Bool`
`Enable (useFinishedGroupNotification)`: `Bool`	`outputApplicationEventsDebug`: `Bool`	`Use (groupDefaultUseSeedPointColor)`: `Bool`
`Enable (useCSOMovedNotification)`: `Bool`	`Overflow Handling (groupSingleOverflowHandling)`: `Enum`	`Use (groupDefaultUseSeedPointAlpha)`: `Bool`
`Enable (useRepaintNotification)`: `Bool`	`Overflow Handling (groupDefaultOverflowHandling)`: `Enum`	`Use (groupDefaultUseVoxelWriteMode)`: `Bool`
`Enable (useInteractionInitNotification)`: `Bool`	`Redo`: `Trigger`	`Use (groupDefaultUseVoxelWriteValue)`: `Bool`
`Enable (useStartNewCSONotification)`: `Bool`	`Remove All`: `Trigger`	`Value (csoSingleVoxelWriteValue)`: `Float`
`Enable finished notifications`: `Bool`	`Remove CSO Handling (groupSingleRemoveFromGroupHandling)`: `Enum`	`Value (groupDefaultVoxelWriteValue)`: `Float`
`Enable moved notifications`: `Bool`	`Remove CSO Handling (groupDefaultRemoveFromGroupHandling)`: `Enum`	`Value:`: `Float`
`Enable repaint notifications`: `Bool`	`Repaint`: `Trigger`	`Voxelize (csoSingleVoxelizeState)`: `Bool`
`Enable selection notifications`: `Bool`	`selectedCSOsGroupIds`: `String`	`Voxelize (csoDefaultVoxelizeState)`: `Bool`
`Enable Undo/Redo`: `Bool`	`Selection (notifyOnSelectionCSO)`: `Trigger`	`Voxelize (groupSingleVoxelizeState)`: `Bool`
`Enlarge`: `Float`	`Selection (notifyOnSelectionGroup)`: `Trigger`	`Voxelize (groupDefaultVoxelizeState)`: `Bool`
`Finished (notifyOnFinishedCSO)`: `Trigger`	`selectLastCreatedGroup`: `Bool`	`Widen:`: `Float`
`Finished (notifyOnFinishedGroup)`: `Trigger`	`Show (csoSingleShowState)`: `Bool`	`Width (csoSinglePathPointWidth)`: `Float`
`Fixed (selectedSeedPointFixedColor)`: `Color`	`Show (csoDefaultShowState)`: `Bool`	`Width (groupSinglePathPointWidth)`: `Float`
`Fixed (selectedSeedPointSize)`: `Float`	`Show (groupSingleShowState)`: `Bool`	`Width (groupDefaultPathPointWidth)`: `Float`
`Fixed: (selectionFixedColor)`: `Color`	`Show (groupDefaultShowState)`: `Bool`	`Work directly on input CSOList`: `Bool`
`Fixed: (selectionFixedLineWidth)`: `Float`	`Size (csoSingleSeedPointSize)`: `Float`

Visible Fields¶

Work directly on input CSOList¶

name: workDirectlyOnInputCSOList, type: Bool, default: FALSE¶: If checked, the module creates no internal CSOList object, but works on a pointer to a CSOList that is provided by the module’s input.

Copy Input CSOList¶

name: copyInputCSOList, type: Trigger¶

When pressed, the input CSOList is copied to this CSOManager.

This is only available if the CSOManager is not working directly on the input CSOList.

Remove All¶

name: removeAllCSOsAndGroups, type: Trigger¶: When pressed, all CSOs and CSOGroups (without selecting any) are removed.

Delete (csoRemoveSelected)¶

name: csoRemoveSelected, type: Trigger¶: When pressed, the currently selected CSOs are deleted.

New¶

name: groupCreateNew, type: Trigger¶: When pressed, a new CSOGroup is created.

Delete (groupRemoveSelected)¶

name: groupRemoveSelected, type: Trigger¶: When pressed, the currently selected CSOGroups are deleted.

Mode: (selectionColoringMode)¶

name: selectionColoringMode, type: Enum, default: SelectionColorModeFixed¶: Defines how the selected CSOs should be colored.

Values:

Title	Name	Description
Brighten	SelectionColorModeBrighten	Selected CSOs are brightened by the `Brighten:`, but maintain their general color.
Fixed	SelectionColorModeFixed	Selected CSOs are rendered in the color set by `Fixed:`.

Mode (selectionLineWidthMode)¶

name: selectionLineWidthMode, type: Enum, default: SelectionLineWidthWiden¶: Defines how the line width of selected CSOs is changed.

Values:

Title	Name	Description
Widen	SelectionLineWidthWiden	Selected CSOs are rendered in a relative line width to their original width, altered by `Widen:`.
Fixed	SelectionLineWidthFixed	Selected CSOs are rendered with an absolute line width, set by `Fixed:`.

Brighten:¶

name: selectionBrightenColor, type: Float, default: 0.2¶: Sets an offset to the brightness of the color of selected CSOs.

Fixed: (selectionFixedColor)¶

name: selectionFixedColor, type: Color, default: 1 1 0.600000023841858¶: Sets an absolute color of selected CSOs.

Widen:¶

name: selectionWidenLineWidth, type: Float, default: 1¶: Sets an offset line width for selected CSOs.

Fixed: (selectionFixedLineWidth)¶

name: selectionFixedLineWidth, type: Float, default: 2¶: Sets an absolute line width of selected CSOs.

Mode (selectedSeedPointColoringMode)¶

name: selectedSeedPointColoringMode, type: Enum, default: SelectedSeedPointColorModeFixed¶: Defines how the selected seed point should be colored.

Values:

Title	Name
Brighten	SelectedSeedPointColorModeBrighten
Fixed	SelectedSeedPointColorModeFixed

Mode (selectedSeedPointSizeMode)¶

name: selectedSeedPointSizeMode, type: Enum, default: SelectedSeedPointSizeModeEnlarge¶: Defines how the size of selected seed points is changed.

Values:

Title	Name
Enlarge	SelectedSeedPointSizeModeEnlarge
Fixed	SelectedSeedPointSizeModeFixed

Brighten¶

name: selectedSeedPointBrightenColor, type: Float, default: 0.5¶: Sets an offset to the brightness of the color of the selected seed point.

Fixed (selectedSeedPointFixedColor)¶

name: selectedSeedPointFixedColor, type: Color, default: 0 1 0¶: Sets an absolute color of the selected seed point.

Enlarge¶

name: selectedSeedPointEnlargeSize, type: Float, default: 1¶: Sets an enlargement size for the selected seed point.

Fixed (selectedSeedPointSize)¶

name: selectedSeedPointSize, type: Float, default: 1¶: Sets an absolute size for the selected seed point.

Id (csoSingleId)¶

name: csoSingleId, type: Integer, persistent: no¶: Shows the unique ID of the (first) selected CSO. This cannot be modified.

Label (csoSingleLabel)¶

name: csoSingleLabel, type: String, persistent: no¶: Shows and sets the label of the (first) selected CSO.

Description¶

name: csoSingleDescription, type: String, persistent: no¶: Shows and sets the description of the (first) selected CSO.

Time Point Index (csoSingleTimePointIndex)¶

name: csoSingleTimePointIndex, type: Integer, persistent: no¶: Shows the time point index of the (first) selected CSO.

Show (csoSingleShowState)¶

name: csoSingleShowState, type: Bool, persistent: no¶: If checked, the (first) selected CSO is shown by SoCSO3DVis and SoView2DCSOExtensibleEditor.

Voxelize (csoSingleVoxelizeState)¶

name: csoSingleVoxelizeState, type: Bool, persistent: no¶: If checked, the (first) selected CSO is voxelized by CSOVoxelizeContours or CSOGenerateSmoothSurfaceFromSparseContours.

Editable (csoSingleEditableState)¶

name: csoSingleEditableState, type: Bool, persistent: no¶: If checked, the (first) selected CSO can be edited by an editor attached to the SoView2DCSOExtensibleEditor or the editor itself.

Width (csoSinglePathPointWidth)¶

name: csoSinglePathPointWidth, type: Float, minimum: 1, maximum: 16, persistent: no, deprecated name: csoSingleLineWidth¶: Sets the line width of the (first) selected CSO.

Style (csoSinglePathPointStyle)¶

name: csoSinglePathPointStyle, type: Enum, persistent: no, deprecated name: csoSingleLineStyle¶: Defines the line style of the (first) selected CSO.

Values:

Title	Name	Description
None	LineStyleNone	The CSO’s path points are not rendered.
Solid	LineStyleSolid	The CSO is rendered as a solid line.
Dashed	LineStyleDashed	The CSO is rendered as a dashed line.
Dotted	LineStyleDotted	The CSO is rendered as a dotted line.
Short Dashed	LineStyleShortDashed	The CSO is rendered as a short dashed line (this is somewhat between dashed and dotted).

Color: (csoSinglePathPointColor)¶

name: csoSinglePathPointColor, type: Color, persistent: no, deprecated name: csoSingleColor¶: Sets the color of the (first) selected CSO.

Alpha: (csoSinglePathPointAlpha)¶

name: csoSinglePathPointAlpha, type: Float, minimum: 0, maximum: 1, persistent: no, deprecated name: csoSingleAlpha¶: Sets the alpha value of the (first) selected CSO.

Style (csoSingleSeedPointStyle)¶

name: csoSingleSeedPointStyle, type: Enum, persistent: no, deprecated name: csoSingleMarkerMode¶: Defines the style of the seed points.

Values:

Title	Name	Description
None	MarkerModeNone	No marker is shown at a seed point location.
Rect	MarkerModeRect	Rectangular markers are shown at the seed point locations.
Circle	MarkerModeCircle	Circular markers are shown at the seed point locations.
Fixed Circle	MarkerModeFixedCircle
Triangle	MarkerModeTriangle
Filled Rect	MarkerModeFilledRect
Filled Circle	MarkerModeFilledCircle
Filled Triangle	MarkerModeFilledTriangle
Dashed Rectangle	MarkerModeDashedRectangle

Color: (csoSingleSeedPointColor)¶

name: csoSingleSeedPointColor, type: Color, persistent: no, deprecated name: csoSingleMarkerColor¶: Sets the color of the markers representing a CSO’s seed points.

Alpha: (csoSingleSeedPointAlpha)¶

name: csoSingleSeedPointAlpha, type: Float, minimum: 0, maximum: 1, persistent: no, deprecated name: csoSingleMarkerAlpha¶: Sets the alpha of the markers representing a CSO’s seed points.

Size (csoSingleSeedPointSize)¶

name: csoSingleSeedPointSize, type: Float, persistent: no, deprecated name: csoSingleMarkerSize¶: Sets the size of the markers representing a CSO’s seed points.

Mode (csoSingleVoxelWriteMode)¶

name: csoSingleVoxelWriteMode, type: Enum, persistent: no¶

Defines the voxel write mode of the (first) selected CSO.

This mode sets how the voxel value is determined when converting the CSO into a voxel mask by either CSOVoxelizeContours or CSOGenerateSmoothSurfaceFromSparseContours.

Values:

Title	Name	Description
Id	VoxelWriteModeId	The target voxels have the ID of the CSO as a value.
Const	VoxelWriteModeConst	The target voxels have a constant set by `Value` as a value.
Const Plus Id	VoxelWriteModeConstPlusId	The target voxels have their ID added to the `Value` as a value.
Module	VoxelWriteModeModule	The converting module sets the target voxels’ values.

Value (csoSingleVoxelWriteValue)¶

name: csoSingleVoxelWriteValue, type: Float, persistent: no¶: Sets the voxel value of target voxels.

Label (csoDefaultLabel)¶

name: csoDefaultLabel, type: String¶: Sets the default label for newly generated CSOs.

Add unique Id to Label (csoDefaultLabelAddUniqueId)¶

name: csoDefaultLabelAddUniqueId, type: Bool, default: FALSE¶

If checked, a unique ID is added to the next generated CSO’s label.

The unique ID can be formatted by Id String Format.

Id String Format (csoDefaultLabelUniqueIdFormat)¶

name: csoDefaultLabelUniqueIdFormat, type: String, default: (%i)¶: Sets the format of the appended unique ID.

Add unique Id always (csoDefaultLabelAddUniqueIdAlways)¶

name: csoDefaultLabelAddUniqueIdAlways, type: Bool, default: FALSE¶: If checked, a unique ID is added even to the first label.

Desc. (csoDefaultDescription)¶

name: csoDefaultDescription, type: String¶: Sets the description string for newly generated CSOs.

Show (csoDefaultShowState)¶

name: csoDefaultShowState, type: Bool, default: TRUE¶: Sets the show state for newly generated CSOs.

Voxelize (csoDefaultVoxelizeState)¶

name: csoDefaultVoxelizeState, type: Bool, default: TRUE¶: Sets the voxelization state of newly generated CSOs.

Editable (csoDefaultEditableState)¶

name: csoDefaultEditableState, type: Bool, default: TRUE¶: Sets the edit state of newly generated CSOs.

Id (groupSingleId)¶

name: groupSingleId, type: Integer, persistent: no¶: Shows the ID of the (first) selected CSOGroup.

Label (groupSingleLabel)¶

name: groupSingleLabel, type: String, persistent: no¶: Shows and sets the label of the (first) selected CSOGroup.

Desc. (groupSingleDescription)¶

name: groupSingleDescription, type: String, persistent: no¶: Shows and sets the description string of the (first) selected CSOGroup.

Use (groupSingleUseTimePointIndex)¶

name: groupSingleUseTimePointIndex, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the time point index of all contained CSOs.

Time Point Index (groupSingleTimePointIndex)¶

name: groupSingleTimePointIndex, type: Integer, persistent: no¶: Sets the time point index of the (first) selected CSOGroups.

Use (groupSingleUseShowState)¶

name: groupSingleUseShowState, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the show state of all contained CSOs.

Show (groupSingleShowState)¶

name: groupSingleShowState, type: Bool, persistent: no¶: Sets the show state of the (first) selected CSOGroups.

Voxelize (groupSingleVoxelizeState)¶

name: groupSingleVoxelizeState, type: Bool, persistent: no¶: Sets the voxelization state of the (first) selected CSOGroup.

Use (groupSingleUseVoxelizeState)¶

name: groupSingleUseVoxelizeState, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the voxelize state of all contained CSOs.

Use (groupSingleUseEditableState)¶

name: groupSingleUseEditableState, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the editable state of all contained CSOs.

Editable (groupSingleEditableState)¶

name: groupSingleEditableState, type: Bool, persistent: no¶: Sets the editable state of the (first) selected CSOGroup.

Use (groupSingleUsePathPointStyle)¶

name: groupSingleUsePathPointStyle, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the path point style of all contained CSOs.

Style (groupSinglePathPointStyle)¶

name: groupSinglePathPointStyle, type: Enum, persistent: no, deprecated name: groupSingleLineStyle¶: Defines the line style of the (first) selected CSOGroup.

Values:

Title	Name	Description
None	LineStyleNone	The CSO’s path points are not rendered.
Solid	LineStyleSolid	The CSOs are rendered as solid lines.
Dashed	LineStyleDashed	The CSOs are rendered as dashed lines.
Dotted	LineStyleDotted	The CSOs are rendered as dotted lines.
Short Dashed	LineStyleShortDashed	The CSOs are rendered as short dashed lines (this is somewhat between dashed and dotted).

Use (groupSingleUsePathPointWidth)¶

name: groupSingleUsePathPointWidth, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the line width of all contained CSOs.

Width (groupSinglePathPointWidth)¶

name: groupSinglePathPointWidth, type: Float, minimum: 1, maximum: 16, persistent: no, deprecated name: groupSingleLineWidth¶: Sets the line width of the (first) selected CSOGroups.

Use (groupSingleUsePathPointColor)¶

name: groupSingleUsePathPointColor, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the line color of all contained CSOs.

Color (groupSinglePathPointColor)¶

name: groupSinglePathPointColor, type: Color, persistent: no, deprecated name: groupSingleColor¶: Sets the color of the (first) selected CSOGroups.

Use (groupSingleUsePathPointAlpha)¶

name: groupSingleUsePathPointAlpha, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the line alpha value of all contained CSOs.

Alpha (groupSinglePathPointAlpha)¶

name: groupSinglePathPointAlpha, type: Float, minimum: 0, maximum: 1, persistent: no, deprecated name: groupSingleAlpha¶: Sets the alpha value of the (first) selected CSOGroups.

Use (groupSingleUseSeedPointStyle)¶

name: groupSingleUseSeedPointStyle, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the seed point style of all contained CSOs.

Style (groupSingleSeedPointStyle)¶

name: groupSingleSeedPointStyle, type: Enum, persistent: no, deprecated name: groupSingleMarkerMode¶: Defines the seed point style of all contained CSOs.

Values:

Title	Name
None	MarkerModeNone
Rect	MarkerModeRect
Circle	MarkerModeCircle
Fixed Circle	MarkerModeFixedCircle
Triangle	MarkerModeTriangle
Filled Rect	MarkerModeFilledRect
Filled Circle	MarkerModeFilledCircle
Filled Triangle	MarkerModeFilledTriangle
Dashed Rectangle	MarkerModeDashedRectangle

Use (groupSingleUseSeedPointSize)¶

name: groupSingleUseSeedPointSize, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the seed point size of all contained CSOs.

Size (groupSingleSeedPointSize)¶

name: groupSingleSeedPointSize, type: Float, persistent: no, deprecated name: groupSingleMarkerSize¶: Sets the size of the markers representing the seed points of the (first) selected CSOGroup.

Use (groupSingleUseSeedPointColor)¶

name: groupSingleUseSeedPointColor, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the seed point color of all contained CSOs.

Color (groupSingleSeedPointColor)¶

name: groupSingleSeedPointColor, type: Color, persistent: no, deprecated name: groupSingleMarkerColor¶: Sets the color of the markers representing the seed points of the (first) selected CSOGroup.

Use (groupSingleUseSeedPointAlpha)¶

name: groupSingleUseSeedPointAlpha, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the seed point alpha of all contained CSOs.

Alpha (groupSingleSeedPointAlpha)¶

name: groupSingleSeedPointAlpha, type: Float, minimum: 0, maximum: 1, persistent: no, deprecated name: groupSingleMarkerAlpha¶: Sets the alpha value of the markers representing the seed points of the (first) selected CSOGroup.

Use (groupSingleUseVoxelWriteMode)¶

name: groupSingleUseVoxelWriteMode, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the voxel write mode of all contained CSOs.

Mode: (groupSingleVoxelWriteMode)¶

name: groupSingleVoxelWriteMode, type: Enum, persistent: no¶: Defines the voxelization mode of the (first) selected CSOGroup.

Values:

Title	Name
Id	VoxelWriteModeId
Const	VoxelWriteModeConst
Const Plus Id	VoxelWriteModeConstPlusId
Module	VoxelWriteModeModule

Use (groupSingleUseVoxelWriteValue)¶

name: groupSingleUseVoxelWriteValue, type: Bool, persistent: no¶: If checked, the CSOGroup overwrites the voxel write value of all contained CSOs.

Value:¶

name: groupSingleVoxelWriteValue, type: Float, persistent: no¶: Sets the voxel write value of the (first) selected CSOGroup.

Maximum CSOs (groupSingleNumMaximumCSOs)¶

name: groupSingleNumMaximumCSOs, type: Integer, persistent: no¶

Sets the maximum number of CSOs that can be in a group before the Overflow Handling is applied.

A value of 0 means no limit in the number of CSOs.

Overflow Handling (groupSingleOverflowHandling)¶

name: groupSingleOverflowHandling, type: Enum, persistent: no¶: Defines how the CSOGroup should handle the situation when a CSO is added so that the Maximum CSOs is reached.

Values:

Title	Name	Description
Remove First	RemoveFirst	Remove the first CSO.
Remove Last	RemoveLast	Remove the last CSO.
Remove All	RemoveAll	Remove all previous CSOs.
Ignore New	IgnoreNew	Ignore the new CSO and do not add it to the group.

Remove CSO Handling (groupSingleRemoveFromGroupHandling)¶

name: groupSingleRemoveFromGroupHandling, type: Enum, persistent: no¶: Defines how a CSO is handled if removed from a CSOGroup.

Values:

Title	Name	Description
Always	RemoveAlways	A CSO is being removed from the CSOList if it is removed from a CSOGroup.
Never	RemoveNever	A CSO is left in the CSOList if removed from a CSOGroup.
If In No Group	RemoveIfInNoGroup	A CSO is removed from the CSOList if it is no CSOGroup after being removed from a CSOGroup.

Delete Group CSO Handling¶

name: groupSingleDeleteGroupCSOHandling, type: Enum, default: RemoveIfInNoGroup¶: Defines the handling mode for CSOs when this group is deleted, i.e., should they also be removed from the list.

Values:

Title	Name	Description
Always	RemoveAlways	The CSOGroup is removed whenever a CSO is being removed from the CSOGroup.
Never	RemoveNever	The CSOGroup is left in the CSOList even if a CSO has been removed from it.
If In No Group	RemoveIfInNoGroup	The CSOGroup is removed from the CSOList if no CSOs are left in it.

Label (groupDefaultLabel)¶

name: groupDefaultLabel, type: String¶: Sets the default label for newly generated CSOGroups.

Add unique Id to Label (groupDefaultLabelAddUniqueId)¶

name: groupDefaultLabelAddUniqueId, type: Bool, default: FALSE¶

If checked, a unique ID is added to the next generated CSOGroup’s label.

The unique ID can be formatted by Id String Format.

Id String Format (groupDefaultLabelUniqueIdFormat)¶

name: groupDefaultLabelUniqueIdFormat, type: String, default: (%i)¶: Sets the format of the appended unique ID.

Add unique Id always (groupDefaultLabelAddUniqueIdAlways)¶

name: groupDefaultLabelAddUniqueIdAlways, type: Bool, default: FALSE¶: If checked, a unique ID is added even to the first label.

Desc. (groupDefaultDescription)¶

name: groupDefaultDescription, type: String¶: Sets the default description string of newly generated CSOGroups.

Use (groupDefaultUseShowState)¶

name: groupDefaultUseShowState, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the show state of contained CSOs.

Show (groupDefaultShowState)¶

name: groupDefaultShowState, type: Bool, default: TRUE¶: Sets the default show state for newly generated CSOGroups.

Use (groupDefaultUseVoxelizeState)¶

name: groupDefaultUseVoxelizeState, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the voxelize state of contained CSOs.

Voxelize (groupDefaultVoxelizeState)¶

name: groupDefaultVoxelizeState, type: Bool, default: TRUE¶: Sets the default voxelize state for newly generated CSOGroups.

Use (groupDefaultUseEditableState)¶

name: groupDefaultUseEditableState, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the editable state of contained CSOs.

Editable (groupDefaultEditableState)¶

name: groupDefaultEditableState, type: Bool, default: TRUE¶: Sets the default editable state for newly generated CSOGroups.

Use (groupDefaultUsePathPointStyle)¶

name: groupDefaultUsePathPointStyle, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the path point style of contained CSOs.

Style (groupDefaultPathPointStyle)¶

name: groupDefaultPathPointStyle, type: Enum, default: LineStyleSolid, deprecated name: groupDefaultLineStyle¶: Defines the default line style of newly generated CSOGroups.

Values:

Title	Name
None	LineStyleNone
Solid	LineStyleSolid
Dashed	LineStyleDashed
Dotted	LineStyleDotted
Short Dashed	LineStyleShortDashed

Use (groupDefaultUsePathPointWidth)¶

name: groupDefaultUsePathPointWidth, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the path point width of contained CSOs.

Width (groupDefaultPathPointWidth)¶

name: groupDefaultPathPointWidth, type: Float, default: 1, minimum: 1, maximum: 16, deprecated name: groupDefaultLineWidth¶: Sets the default line width for newly generated CSOGroups.

Use (groupDefaultUsePathPointColor)¶

name: groupDefaultUsePathPointColor, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the path point color of contained CSOs.

Color (groupDefaultPathPointColor)¶

name: groupDefaultPathPointColor, type: Color, default: 1 1 1, deprecated name: groupDefaultColor¶: Sets the default color for newly generated CSOGroups.

Use (groupDefaultUsePathPointAlpha)¶

name: groupDefaultUsePathPointAlpha, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the path point alpha of contained CSOs.

Alpha (groupDefaultPathPointAlpha)¶

name: groupDefaultPathPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1, deprecated name: groupDefaultAlpha¶: Sets the default alpha value for newly generated CSOGroups.

Use (groupDefaultUseSeedPointStyle)¶

name: groupDefaultUseSeedPointStyle, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the seed point style of contained CSOs.

Style (groupDefaultSeedPointStyle)¶

name: groupDefaultSeedPointStyle, type: Enum, default: MarkerModeRect, deprecated name: groupDefaultMarkerMode¶: Defines the seed point style of all new created, contained CSO.

Values:

Title	Name
None	MarkerModeNone
Rect	MarkerModeRect
Circle	MarkerModeCircle
Fixed Circle	MarkerModeFixedCircle
Triangle	MarkerModeTriangle
Filled Rect	MarkerModeFilledRect
Filled Circle	MarkerModeFilledCircle
Filled Triangle	MarkerModeFilledTriangle
Dashed Rectangle	MarkerModeDashedRectangle

Use (groupDefaultUseSeedPointSize)¶

name: groupDefaultUseSeedPointSize, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the seed point size of contained CSOs.

Size (groupDefaultSeedPointSize)¶

name: groupDefaultSeedPointSize, type: Float, default: 3, deprecated name: groupDefaultMarkerSize¶: Sets the default seed point size of newly generated CSOGroups.

Use (groupDefaultUseSeedPointColor)¶

name: groupDefaultUseSeedPointColor, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the seed point color of contained CSOs.

Color (groupDefaultSeedPointColor)¶

name: groupDefaultSeedPointColor, type: Color, default: 0 1 0, deprecated name: groupDefaultMarkerColor¶: Sets the default seed point color of newly generated CSOGroups.

Use (groupDefaultUseSeedPointAlpha)¶

name: groupDefaultUseSeedPointAlpha, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the seed point alpha of contained CSOs.

Alpha (groupDefaultSeedPointAlpha)¶

name: groupDefaultSeedPointAlpha, type: Float, default: 1, minimum: 0, maximum: 1, deprecated name: groupDefaultMarkerAlpha¶: Sets the default seed point alpha of newly generated CSOGroups.

Use (groupDefaultUseVoxelWriteMode)¶

name: groupDefaultUseVoxelWriteMode, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the voxel write mode of contained CSOs.

Mode (groupDefaultVoxelWriteMode)¶

name: groupDefaultVoxelWriteMode, type: Enum, default: VoxelWriteModeModule¶: Defines the voxel write mode of newly generated CSOGroups.

Values:

Title	Name
Id	VoxelWriteModeId
Const	VoxelWriteModeConst
Const Plus Id	VoxelWriteModeConstPlusId
Module	VoxelWriteModeModule

Use (groupDefaultUseVoxelWriteValue)¶

name: groupDefaultUseVoxelWriteValue, type: Bool, default: FALSE¶: If checked, newly generated CSOGroups will overwrite the voxel write value of contained CSOs.

Value (groupDefaultVoxelWriteValue)¶

name: groupDefaultVoxelWriteValue, type: Float, default: 1024¶: Sets the voxel write value of contained CSOs.

Maximum CSOs (groupDefaultNumMaximumCSOs)¶

name: groupDefaultNumMaximumCSOs, type: Integer, default: 0¶: Sets the default maximum number of CSOs for newly generated CSOGroups.

Overflow Handling (groupDefaultOverflowHandling)¶

name: groupDefaultOverflowHandling, type: Enum, default: RemoveFirst¶: Defines the default overflow handling of newly generated CSOGroups.

Values:

Title	Name
Remove First	RemoveFirst
Remove Last	RemoveLast
Remove All	RemoveAll
Ignore New	IgnoreNew

Remove CSO Handling (groupDefaultRemoveFromGroupHandling)¶

name: groupDefaultRemoveFromGroupHandling, type: Enum, default: RemoveNever¶: Defines the default removal handling of newly generated CSOGroups.

Values:

Title	Name
Always	RemoveAlways
Never	RemoveNever
If In No Group	RemoveIfInNoGroup

Enable Undo/Redo¶

name: enableUndoRedo, type: Bool, default: TRUE¶

If checked, undo/redo functionality is enabled for the CSOList.

Undo/Redo is implemented for adding, removing and modifying CSOs, as well as for combining and breaking CSOs with CSOGroups.

Attribute changes cannot be undone by the undo manager.

Undo¶

name: undo, type: Trigger¶: When pressed, the last undoable action is undone.

Redo¶

name: redo, type: Trigger¶: When pressed, the last undo is redone.

Undo Stack Limit¶

name: undoStackLimit, type: Integer, default: 16, minimum: -1, maximum: 64¶

Sets the limit of the undo/redo stack.

If the undo/redo stack is full and the stack size decreased, the first actions are removed from the stack.

Enable (useSelectionCSONotification)¶

name: useSelectionCSONotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to selections of CSOs.

Enable (useSelectionGroupNotification)¶

name: useSelectionGroupNotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to selections of CSOGroups.

Enable (useFinishedCSONotification)¶

name: useFinishedCSONotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to finishing of CSOs (e.g., adding or removing a CSO).

Enable (useFinishedGroupNotification)¶

name: useFinishedGroupNotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to finishing of CSOGroups (e.g., adding or removing a CSOGroup).

Enable (useCSOMovedNotification)¶

name: useCSOMovedNotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to finished moving of CSOs.

Enable (useRepaintNotification)¶

name: useRepaintNotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to repaint notifications (e.g., finishing operations and modifications).

Enable (useInteractionInitNotification)¶

name: useInteractionInitNotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to interaction intialization notifications (e.g., deleting of a CSO or a single seed point).

Enable (useStartNewCSONotification)¶

name: useStartNewCSONotification, type: Bool, default: FALSE¶: If checked, the CSOList is able to fire and react to starting notifications (e.g., start drawing of a new CSO).

Selection (notifyOnSelectionCSO)¶

name: notifyOnSelectionCSO, type: Trigger¶: If checked, the CSOList is able to fire and react to selections of CSOs.

Selection (notifyOnSelectionGroup)¶

name: notifyOnSelectionGroup, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a selection notification.

Finished (notifyOnFinishedCSO)¶

name: notifyOnFinishedCSO, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a selection notification.

Finished (notifyOnFinishedGroup)¶

name: notifyOnFinishedGroup, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a finished notification.

Moved¶

name: notifyOnCSOMoved, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a moved notification.

Repaint¶

name: notifyOnRepaint, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a repaint notification.

Interaction Init¶

name: notifyOnInteractionInit, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a interaction initialization notification.

Start New CSO¶

name: notifyOnStartNewCSO, type: Trigger¶: This field is triggered from inside the module whenever the CSOList receives a start new CSO notification.

Enable selection notifications¶

name: enableSelectionNotification, type: Bool, default: TRUE¶: If checked, the selection notifications are enabled for the CSOList.

Enable finished notifications¶

name: enableFinishedNotification, type: Bool, default: TRUE¶: If checked, the finished notifications are enabled for the CSOList.

Enable moved notifications¶

name: enableCSOMovedNotification, type: Bool, default: TRUE¶: If checked, the moved notifications are enabled for the CSOList.

Enable repaint notifications¶

name: enableRepaintNotification, type: Bool, default: TRUE¶: If checked, the repaint notifications are enabled for the CSOList.

Trigger selection notification¶

name: triggerSelectionNotification, type: Trigger¶: When pressed, a selection notification is sent to the CSOList.

Trigger finished notification¶

name: triggerFinishedNotification, type: Trigger¶: When pressed, a finished notification is sent to the CSOList.

Trigger moved notification¶

name: triggerCSOMovedNotification, type: Trigger¶: When pressed, a moved notification is sent to the CSOList.

Trigger repaint notification¶

name: triggerRepaintNotification, type: Trigger¶: When pressed, a repaint notification is sent to the CSOList.

Hidden Fields¶

csoDisplayTree¶

name: csoDisplayTree, type: String, persistent: no¶

groupDisplayTree¶

name: groupDisplayTree, type: String, persistent: no¶

updateCsoDisplayTree¶

name: updateCsoDisplayTree, type: Bool, default: TRUE¶

updateGroupDisplayTree¶

name: updateGroupDisplayTree, type: Bool, default: TRUE¶

csoSelectedItems¶

name: csoSelectedItems, type: String, persistent: no¶: Sets and shows a space-separated string of all CSO IDs that are selected. This string can be set from extern (i.e., scripting) to set the CSOs with the given IDs as being selected.

groupSelectedItems¶

name: groupSelectedItems, type: String, persistent: no¶: Sets and shows a space-separated string of all CSOGroup IDs that are selected. This string can be set from extern (i.e., scripting) to set the CSOGroups with the given IDs as being selected.

groupSelectedCSOItems¶

name: groupSelectedCSOItems, type: String, persistent: no¶

csoSelectedGroupItems¶

name: csoSelectedGroupItems, type: String, persistent: no¶

addCSOtoGroup¶

name: addCSOtoGroup, type: Trigger¶: When pressed, the selected CSOs are being combines with the selected CSOGroups.

breakCSOFromGroup¶

name: breakCSOFromGroup, type: Trigger¶: When pressed, the selected CSOs are being removed from the selected CSOGroups.

csoCopySelected¶

name: csoCopySelected, type: Trigger¶: When pressed, the selected CSOs are being copied. See csoPaste.

csoPaste¶

name: csoPaste, type: Trigger¶: When pressed, the copied CSOs are being pasted into the CSOList. See csoCopySelected.

selectLastCreatedGroup¶

name: selectLastCreatedGroup, type: Bool, default: TRUE¶

groupCopySelected¶

name: groupCopySelected, type: Trigger¶: When pressed, the selected CSOGroups are being copied. See groupPaste.

groupPaste¶

name: groupPaste, type: Trigger¶: When pressed, the copied CSOGroups are being pasted into the CSOList. See groupCopySelected.

csoSingleApply¶

name: csoSingleApply, type: Trigger¶

groupDefaultUseTimePointIndex¶

name: groupDefaultUseTimePointIndex, type: Bool, default: FALSE¶

groupDefaultTimePointIndex¶

name: groupDefaultTimePointIndex, type: Integer, default: 0¶

groupDefaultDeleteGroupCSOHandling¶

name: groupDefaultDeleteGroupCSOHandling, type: Enum, default: RemoveIfInNoGroup¶

Values:

Title	Name
Always	RemoveAlways
Never	RemoveNever
If In No Group	RemoveIfInNoGroup

groupSingleApply¶

name: groupSingleApply, type: Trigger¶

listSingleRemoveEmptyGroupHandling¶

name: listSingleRemoveEmptyGroupHandling, type: Enum, default: RemoveAlways¶

Values:

Title	Name
Always	RemoveAlways
Never	RemoveNever

listDefaultRemoveEmptyGroupHandling¶

name: listDefaultRemoveEmptyGroupHandling, type: Enum, default: RemoveAlways¶

Values:

Title	Name
Always	RemoveAlways
Never	RemoveNever

numUndos¶

name: numUndos, type: Integer, default: 0¶

numRedos¶

name: numRedos, type: Integer, default: 0¶

outputApplicationEventsDebug¶

name: outputApplicationEventsDebug, type: Bool, default: FALSE¶

csoTreeView¶

name: csoTreeView, type: String¶

groupTreeView¶

name: groupTreeView, type: String¶

ignoreCSOSelectionChanged¶

name: ignoreCSOSelectionChanged, type: Bool, persistent: no¶

ignoreCSOListViewSelectionChanged¶

name: ignoreCSOListViewSelectionChanged, type: Bool, persistent: no¶

ignoreGroupSelectionChanged¶

name: ignoreGroupSelectionChanged, type: Bool, persistent: no¶

ignoreGroupListViewSelectionChanged¶

name: ignoreGroupListViewSelectionChanged, type: Bool, persistent: no¶

numCSOs¶

name: numCSOs, type: Integer, persistent: no¶: Shows the number of CSO in the CSOList.

numGroups¶

name: numGroups, type: Integer, persistent: no¶: Shows the number of CSOGroups in the CSOList.

numSelectedCSOs¶

name: numSelectedCSOs, type: Integer, default: 0¶: Shows the number of currently selected CSOs in the CSOList.

numSelectedGroups¶

name: numSelectedGroups, type: Integer, default: 0¶: Shows the number of currently selected CSOGroups in the CSOList.

selectedCSOsGroupIds¶

name: selectedCSOsGroupIds, type: String¶
