Defines the mesh component: face. More...

#include <WEMFace.h>

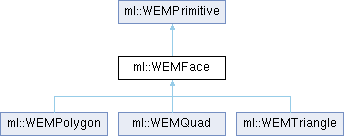

Inheritance diagram for ml::WEMFace:

Public Member Functions
	WEMFace ()
	Standard constructor. More...

	WEMFace (const WEMFace &f)
	Standard copy constructor. More...

	WEMFace (WEMFace &&f) noexcept

WEMFace &	operator= (WEMFace &&f) noexcept

	~WEMFace () override
	Standard destructor. More...

void	reset ()
	Resets the object to default constructed state. More...

void	clone (WEMFace *face)
	Clones given face. More...

Vector3	getNormal () const
	Returns the normal. More...

void	setNormal (const Vector3 &normal)
	Sets the normal. More...

virtual void	computeNormal ()=0
	Computes the normal. More...

virtual unsigned int	getNumNodes () const =0
	Returns the number of nodes. More...

virtual int	getIndex (WEMNode *node) const =0
	Returns the index of the given node. More...

virtual WEMNode *	getNodeAt (unsigned int index)=0
	Returns the node at the given index in face. More...

virtual const WEMNode *	getNodeAt (unsigned int index) const =0
	Returns the node at the given index in face. More...

virtual void	setNode (unsigned int, WEMNode *)
	Sets the given node to the given index in face. More...

virtual void	replace (WEMNode orig, WEMNode replace)=0
	Replaces the given orig node by the given replace node. More...

virtual bool	contains (WEMNode *node) const =0
	Returns whether this face contains the given node. More...

virtual Vector3	getNodePositionAt (unsigned int index) const =0
	Returns a position of a node at a given index. More...

virtual int	getIndex (WEMEdge *edge) const =0
	Returns the index of the given edge. More...

virtual WEMEdge *	getEdgeAt (unsigned int)
	Returns the edge at the given index in face. More...

virtual const WEMEdge *	getEdgeAt (unsigned int) const
	Returns the edge at the given index in face. More...

virtual void	setEdge (unsigned int, WEMEdge *)
	Sets the given edge to the given index in face. More...

virtual void	replace (WEMEdge orig, WEMEdge replace)=0
	Replaces the given orig node by the given replace edge. More...

virtual bool	contains (WEMEdge *edge) const =0
	Returns whether this face contains the given edge. More...

virtual void	removeEdges ()=0
	Removes all edge pointers of this face. More...

virtual Vector3	getCentroid () const =0
	Returns the geometric centroid of a face. More...

virtual void	getCentroid (Vector3 &centroid) const =0

virtual double	getPerimeter () const =0
	Calculates the perimeter of face. More...

virtual double	getArea () const =0
	Calculates the area of face. More...

virtual WEMBoundingBox	getBoundingBox ()
	Calculates the bounding box of face. More...

bool	isBoundingBoxValid () const

void	invalidateBoundingBox ()

virtual WEMNode *	getOther (WEMNode n1, WEMNode n2)=0
	Returns the node incident to this face that is not given as a parameter. More...

virtual const WEMNode *	getOther (WEMNode n1, WEMNode n2) const =0
	Returns the node incident to this face that is not given as a parameter. More...

virtual WEMEdge *	getOther (WEMEdge e1, WEMEdge e2)=0
	Returns the edge incident to this face that is not given as a parameter. More...

virtual const WEMEdge *	getOther (WEMEdge e1, WEMEdge e2) const =0
	Returns the edge incident to this face that is not given as a parameter. More...

virtual WEMEdge *	getEdgeNotContaining (WEMNode *n)=0
	Returns the edge not containing given node. More...

virtual const WEMEdge *	getEdgeNotContaining (WEMNode *n) const =0
	Returns the edge not containing given node. More...

virtual double	getQuality () const =0
	Calculates the quality of the face. More...

virtual int	isConcave () const =0
	Checks whether this face is concave. More...

virtual void	mirror ()=0
	Mirrors the face. More...

Public Member Functions inherited from ml::WEMPrimitive
	WEMPrimitive ()

	WEMPrimitive (const WEMPrimitive &)=default

	WEMPrimitive (WEMPrimitive &&p) noexcept

WEMPrimitive &	operator= (const WEMPrimitive &)=default

WEMPrimitive &	operator= (WEMPrimitive &&p) noexcept

virtual	~WEMPrimitive ()=default
	Standard destructor. More...

void	resetPrimitive ()
	Resets the object to its default constructed state. More...

int	getEntryNumber () const
	Returns the entry number. More...

void	setEntryNumber (int e)
	Sets the entry number. More...

bool	isSet (unsigned int bit) const
	Returns whether the bit-flag is set. More...

void	setFlag (unsigned int bit)
	Sets the given bit-flag. More...

void	unsetFlag (unsigned int bit)
	Unsets the given bit-flag. More...

void	clearFlag ()
	Clears the bit-flag. More...

bool	isTraversed () const
	Returns whether this primitive has been traversed. More...

void	setTraversed (bool traversed)
	Sets the traversed flag. More...

int	getHeapPosition () const
	Returns the heap position. More...

bool	inHeap () const
	Returns whether this primitive is in the heap. More...

void	setHeapPosition (int heapPosition)
	Sets the heap position. More...

double	getHeapValue () const
	Returns the heap value. More...

void	setHeapValue (double heapValue)
	Sets the heap value. More...

Protected Attributes
Vector3	_normal
	Normal. More...

WEMBoundingBox	_boundingBox
	Bounding Box. More...

bool	_isBoundingBoxValid
	Is the bounding box valid? More...

Protected Attributes inherited from ml::WEMPrimitive
unsigned int	_bitFlag
	Bit-wise flag for custom use. More...

int	_entryNumber
	Entry number in index vector, for easy deletion and reference. More...

int	_heapPosition
	Heap position, same like entryNumber but for heaps. More...

double	_heapValue
	Element value, used for heap sorting. More...

Detailed Description

Defines the mesh component: face.

Definition at line 29 of file WEMFace.h.

Constructor & Destructor Documentation

◆ WEMFace() [1/3]

ml::WEMFace::WEMFace ( )

Standard constructor.

◆ WEMFace() [2/3]

ml::WEMFace::WEMFace ( const WEMFace & f )

Standard copy constructor.

◆ WEMFace() [3/3]

ml::WEMFace::WEMFace ( WEMFace && f )

noexcept

◆ ~WEMFace()

ml::WEMFace::~WEMFace ( )

override

Standard destructor.

Member Function Documentation

◆ clone()

void ml::WEMFace::clone ( WEMFace * face )

Clones given face.

◆ computeNormal()

virtual void ml::WEMFace::computeNormal ( )

pure virtual

Computes the normal.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ contains() [1/2]

virtual bool ml::WEMFace::contains ( WEMEdge * edge ) const

pure virtual

Returns whether this face contains the given edge.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ contains() [2/2]

virtual bool ml::WEMFace::contains ( WEMNode * node ) const

pure virtual

Returns whether this face contains the given node.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getArea()

virtual double ml::WEMFace::getArea ( ) const

pure virtual

Calculates the area of face.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getBoundingBox()

virtual WEMBoundingBox ml::WEMFace::getBoundingBox ( )

virtual

Calculates the bounding box of face.

◆ getCentroid() [1/2]

virtual Vector3 ml::WEMFace::getCentroid ( ) const

pure virtual

Returns the geometric centroid of a face.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getCentroid() [2/2]

virtual void ml::WEMFace::getCentroid ( Vector3 & centroid ) const

pure virtual

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getEdgeAt() [1/2]

virtual WEMEdge* ml::WEMFace::getEdgeAt ( unsigned int )

inlinevirtual

Returns the edge at the given index in face.

Reimplemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

Definition at line 76 of file WEMFace.h.

◆ getEdgeAt() [2/2]

virtual const WEMEdge* ml::WEMFace::getEdgeAt ( unsigned int ) const

inlinevirtual

Returns the edge at the given index in face.

Reimplemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

Definition at line 78 of file WEMFace.h.

◆ getEdgeNotContaining() [1/2]

virtual const WEMEdge* ml::WEMFace::getEdgeNotContaining ( WEMNode * n ) const

pure virtual

Returns the edge not containing given node.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getEdgeNotContaining() [2/2]

virtual WEMEdge* ml::WEMFace::getEdgeNotContaining ( WEMNode * n )

pure virtual

Returns the edge not containing given node.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getIndex() [1/2]

virtual int ml::WEMFace::getIndex ( WEMEdge * edge ) const

pure virtual

Returns the index of the given edge.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getIndex() [2/2]

virtual int ml::WEMFace::getIndex ( WEMNode * node ) const

pure virtual

Returns the index of the given node.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getNodeAt() [1/2]

virtual const WEMNode* ml::WEMFace::getNodeAt ( unsigned int index ) const

pure virtual

Returns the node at the given index in face.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getNodeAt() [2/2]

virtual WEMNode* ml::WEMFace::getNodeAt ( unsigned int index )

pure virtual

Returns the node at the given index in face.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getNodePositionAt()

virtual Vector3 ml::WEMFace::getNodePositionAt ( unsigned int index ) const

pure virtual

Returns a position of a node at a given index.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getNormal()

Vector3 ml::WEMFace::getNormal ( ) const

inline

Returns the normal.

Definition at line 50 of file WEMFace.h.

◆ getNumNodes()

virtual unsigned int ml::WEMFace::getNumNodes ( ) const

pure virtual

Returns the number of nodes.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getOther() [1/4]

virtual const WEMEdge* ml::WEMFace::getOther	(	WEMEdge *	e1,
		WEMEdge *	e2
	)		const

pure virtual

Returns the edge incident to this face that is not given as a parameter.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getOther() [2/4]

virtual WEMEdge* ml::WEMFace::getOther	(	WEMEdge *	e1,
		WEMEdge *	e2
	)

pure virtual

Returns the edge incident to this face that is not given as a parameter.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getOther() [3/4]

virtual const WEMNode* ml::WEMFace::getOther	(	WEMNode *	n1,
		WEMNode *	n2
	)		const

pure virtual

Returns the node incident to this face that is not given as a parameter.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getOther() [4/4]

virtual WEMNode* ml::WEMFace::getOther	(	WEMNode *	n1,
		WEMNode *	n2
	)

pure virtual

Returns the node incident to this face that is not given as a parameter.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getPerimeter()

virtual double ml::WEMFace::getPerimeter ( ) const

pure virtual

Calculates the perimeter of face.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ getQuality()

virtual double ml::WEMFace::getQuality ( ) const

pure virtual

Calculates the quality of the face.

The quality of a triangle is defined as the ratio of the square root of its surface area to its perimeter relative to this same ratio for an equilateral triangle with the same area. The quality is then one for an equilateral triangle and tends to zero for a very stretched triangle.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ invalidateBoundingBox()

void ml::WEMFace::invalidateBoundingBox ( )

inline

Definition at line 98 of file WEMFace.h.

Referenced by ml::WEMPolygon::addNode(), ml::WEMTriangle::setEdge(), ml::WEMTriangle::setEdges(), ml::WEMQuad::setEdges(), ml::WEMPolygon::setNode(), ml::WEMQuad::setNode(), ml::WEMTriangle::setNode(), ml::WEMTriangle::setNodes(), and ml::WEMQuad::setNodes().

◆ isBoundingBoxValid()

bool ml::WEMFace::isBoundingBoxValid ( ) const

inline

Definition at line 97 of file WEMFace.h.

◆ isConcave()

virtual int ml::WEMFace::isConcave ( ) const

pure virtual

Checks whether this face is concave.

Returns the number of concavities.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ mirror()

virtual void ml::WEMFace::mirror ( )

pure virtual

Mirrors the face.

NOTE that the edge information gets corrupted! Use WEM::buildEdgeConnectivity afterwards!

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ operator=()

WEMFace& ml::WEMFace::operator= ( WEMFace && f )

noexcept

◆ removeEdges()

virtual void ml::WEMFace::removeEdges ( )

pure virtual

Removes all edge pointers of this face.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ replace() [1/2]

virtual void ml::WEMFace::replace	(	WEMEdge *	orig,
		WEMEdge *	replace
	)

pure virtual

Replaces the given orig node by the given replace edge.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ replace() [2/2]

virtual void ml::WEMFace::replace	(	WEMNode *	orig,
		WEMNode *	replace
	)

pure virtual

Replaces the given orig node by the given replace node.

Implemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

◆ reset()

void ml::WEMFace::reset ( )

Resets the object to default constructed state.

◆ setEdge()

virtual void ml::WEMFace::setEdge	(	unsigned int	,
		WEMEdge *
	)

inlinevirtual

Sets the given edge to the given index in face.

Reimplemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

Definition at line 80 of file WEMFace.h.

◆ setNode()

virtual void ml::WEMFace::setNode	(	unsigned int	,
		WEMNode *
	)

inlinevirtual

Sets the given node to the given index in face.

Reimplemented in ml::WEMTriangle, ml::WEMQuad, and ml::WEMPolygon.

Definition at line 65 of file WEMFace.h.

◆ setNormal()

void ml::WEMFace::setNormal ( const Vector3 & normal )

inline

Sets the normal.

Definition at line 52 of file WEMFace.h.

Member Data Documentation

◆ _boundingBox

WEMBoundingBox ml::WEMFace::_boundingBox

protected

Bounding Box.

Definition at line 132 of file WEMFace.h.

◆ _isBoundingBoxValid

bool ml::WEMFace::_isBoundingBoxValid

protected

Is the bounding box valid?

Definition at line 135 of file WEMFace.h.

◆ _normal

Vector3 ml::WEMFace::_normal

protected

Normal.

Definition at line 129 of file WEMFace.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/ML/MLWEM/WEMBase/WEMFace.h

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ WEMFace() [1/3]

◆ WEMFace() [2/3]

◆ WEMFace() [3/3]

◆ ~WEMFace()

Member Function Documentation

◆ clone()

◆ computeNormal()

◆ contains() [1/2]

◆ contains() [2/2]

◆ getArea()

◆ getBoundingBox()

◆ getCentroid() [1/2]

◆ getCentroid() [2/2]

◆ getEdgeAt() [1/2]

◆ getEdgeAt() [2/2]

◆ getEdgeNotContaining() [1/2]

◆ getEdgeNotContaining() [2/2]

◆ getIndex() [1/2]

◆ getIndex() [2/2]

◆ getNodeAt() [1/2]

◆ getNodeAt() [2/2]

◆ getNodePositionAt()

◆ getNormal()

◆ getNumNodes()

◆ getOther() [1/4]

◆ getOther() [2/4]

◆ getOther() [3/4]

◆ getOther() [4/4]

◆ getPerimeter()

◆ getQuality()

◆ invalidateBoundingBox()

◆ isBoundingBoxValid()

◆ isConcave()

◆ mirror()

◆ operator=()

◆ removeEdges()

◆ replace() [1/2]

◆ replace() [2/2]

◆ reset()

◆ setEdge()

◆ setNode()

◆ setNormal()

Member Data Documentation

◆ _boundingBox

◆ _isBoundingBoxValid

◆ _normal
