SoView2DMarkerEditor¶

InventorModule¶

genre	`Interaction`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoView2DMarkerEditor`
definition	SoView2DMarkerEditor.def
see also	`SoView2D`, `StylePalette`, `SoView2DArrowHeadSettings`
inherits from	`SoView2DExtension`
keywords	`draw`, `markerlist`, `vector`, `seed`, `point`, `pixel`, `extension`, `xmarker`, `sphere`, `box`

Purpose¶

The module SoView2DMarkerEditor allows for an interactive placement, editing and showing of markers on a 2D viewer.

Details¶

If the module is used alone, it also contains the marker list; otherwise, if there are more marker editors or marker list container modules present, and they are connected, they all share one marker list.

Tips¶

If a StylePalette is attached to set the marker type with it, make sure to check the field Use icon file.

A standard icon file comes with the SoView2DMarkerEditor, but if custom markers should be used, an own icon file can be provided via Icon File. The icon file needs to be in TIF format and contain all the icons in 32x32 pixel format. Multiple icons needs to be arranged horizontally; so an icon file containing 10 markers has the size 320x32.

Windows¶

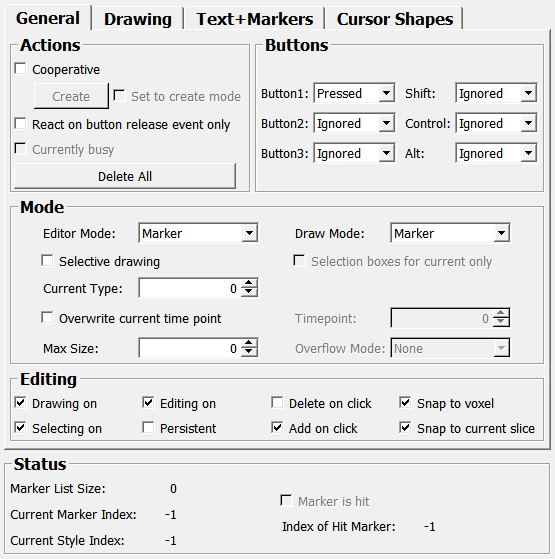

Default Panel¶

../../../Modules/Inventor/SoView2DMarkerEditor/mhelp/Images/Screenshots/SoView2DMarkerEditor._default.png

Input Fields¶

stylePalette¶

name: stylePalette, type: StylePalette(MLBase)¶: Optional input of a style palette.

inXMarkerList¶

name: inXMarkerList, type: ListBase(MLBase), deprecated name: inputXMarkerList¶: Optional input of a marker list.

inArrowHeadSettings¶

name: inArrowHeadSettings, type: ArrowHeadSettings(MLBase)¶: Optional input to attach a SoView2DArrowHeadSettings module.

Output Fields¶

self¶

name: self, type: SoNode¶

outXMarkerList¶

name: outXMarkerList, type: XMarkerList(MLBase), deprecated name: outputXMarkerList¶: For accessing this object via scripting, see the Scripting Reference: MLXMarkerListWrapper.

outputMLModule (hidden)¶

name: outputMLModule, type: MLBase¶

Parameter Fields¶

Field Index¶

`actionClass`: `String`	`Draw Marker Shapes With Lines`: `Bool`	`posT`: `Float`
`actionId`: `Integer`	`Draw Mode`: `Enum`	`posU`: `Float`
`actionIndex`: `Integer`	`Drawing on`: `Bool`	`posXYZ`: `Vector3`
`add`: `Trigger`	`Editing on`: `Bool`	`React on button release event only`: `Bool`
`Add on click`: `Bool`	`Editor Mode`: `Enum`	`renderOnSlab`: `Bool`
`Adding`: `Enum`	`fixZOn`: `Bool`	`Request Create`: `Trigger`
`Alpha Factor`: `Float`	`Highlight Selection`: `Bool`	`Selecting on`: `Bool`
`alwaysPerformHitTest`: `Bool`	`Icon File`: `String`	`Selection boxes for current only`: `Bool`
`applySelect`: `Bool`	`Icon Index`: `Integer`	`Selective Drawing`: `Bool`
`autoCopyAndTakeOwnership`: `Bool`	`id`: `Integer`	`setEventHandled`: `Bool`
`clear`: `Trigger`	`ignoreHandledEvents`: `Bool`	`Show text only for selected marker`: `Bool`
`clipToSlice`: `Bool`	`index`: `Integer`	`singleClicked`: `Trigger`
`Color`: `Color`	`Index of Hit Marker`: `Integer`	`Size`: `Float`
`Color Mode`: `Enum`	`insert`: `Trigger`	`Snap to current slice`: `Bool`
`Cooperative`: `Bool`	`interactionProviderID`: `String`	`Snap to voxel`: `Bool`
`copyAndTakeOwnership`: `Trigger`	`listString`: `String`	`Text Color`: `Color`
`copyItemToTemplate`: `Trigger`	`listStringEnable`: `Bool`	`Text Color Mode`: `Enum`
`copyTemplateToItem`: `Trigger`	`Marker is hit`: `Bool`	`Text Font Size`: `Integer`
`Create mode`: `Bool`	`Marker List Size`: `Integer`	`Text Mode`: `Enum`
`Current Marker Index`: `Integer`	`maskValid`: `Bool`	`Text Position`: `Enum`
`Current Style Index`: `Integer`	`Max Size`: `Integer`	`Text shadow`: `Bool`
`Current Type`: `Integer`	`Max. Num. of Lines`: `Integer`	`Timepoint`: `Integer`
`Currently busy`: `Bool`	`Minimum Alpha`: `Float`	`type`: `Integer`
`Cut text`: `Bool`	`name`: `String`	`update`: `Trigger`
`Delete (cursorShapeDelete)`: `Enum`	`needsValidVoxel`: `Bool`	`upToDate`: `Bool`
`delete (delete)`: `Trigger`	`newName`: `String`	`Use anti-aliasing`: `Bool`
`Delete All`: `Trigger`	`newPosC`: `Float`	`Use icon file`: `Bool`
`Delete on click`: `Bool`	`newPosT`: `Float`	`Use Vector Length As Marker Size`: `Bool`
`Depth Visibility`: `Float`	`newPosU`: `Float`	`useInsertTemplate`: `Bool`
`Depth Visibility Mode`: `Enum`	`newPosXYZ`: `Vector3`	`vecLength`: `Float`
`Depth Visualization Mode`: `Enum`	`newType`: `Integer`	`Vector Draw Mode`: `Enum`
`doubleClicked`: `Trigger`	`newVecXYZ`: `Vector3`	`Vector Line Width`: `Integer`
`Drag End Point`: `Enum`	`Overflow Mode`: `Enum`	`vecXYZ`: `Vector3`
`Drag Move`: `Enum`	`Overwrite Current Time Point`: `Bool`	`wantsAllEvents`: `Bool`
`Drag Offset`: `Enum`	`ownsList`: `Bool`	`wantsKeyEvents`: `Bool`
`Drag Resize`: `Enum`	`Persistent`: `Bool`	`wantsMouseWheelEvents`: `Bool`
`Drag Start Point`: `Enum`	`posC`: `Float`

Visible Fields¶

Drawing on¶

name: drawingOn, type: Bool, default: TRUE¶: If checked, markers are rendered onto a viewer.

Editing on¶

name: editingOn, type: Bool, default: TRUE¶: If checked, markers can be interactively edited.

Color¶

name: color, type: Color, default: 1 1 1¶: Sets a general marker color if not overwritten by an attached StylePalette.

Size¶

name: selectionTolerance, type: Float, default: 4, minimum: 2, maximum: 40, deprecated name: selectDistance¶: Sets a general marker size if not overwritten by an attached StylePalette.

Create mode¶

name: createNewMode, type: Bool, default: FALSE¶

see SoView2DExtension.createNewMode

Request Create¶

name: createNewModeRequest, type: Trigger¶

When pressed, the module creates a new marker at the current mouse position once the button mask condition is fulfilled.

Note that this button must be pressed if multiple SoView2DMarkerEditor modules are present, or if a SoView2DPosition or SoView2DRectangle is also used in the same 2D viewer, to determine which module receives the event when clicking on empty space.

Adding¶

name: cursorShape, type: Enum, default: CROSS_PLUS_CURSOR¶

Defines the cursor shape when adding a new marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Depth Visibility¶

name: depthVisibility, type: Float, default: 1, minimum: 0¶

Sets the depth visibility (in slices or in millimeters).

Markers (and vectors) not on the currently visible slice are rendered with an alpha attenuation. The depth visibility also controls in which depth the user can still interact with markers: if a marker is visible, one can interact with it. A value of 0.0 means that the marker is only visible on the slice it has been drawn on.

Snap to voxel¶

name: snapToVoxel, type: Bool, default: TRUE¶: If checked, all created or moved markers are placed into the middle of the next fitting voxel.

Snap to current slice¶

name: snapToSlice, type: Bool, default: TRUE¶

If checked, this is the same as Snap to voxel, only that is works for the z-dimension and not only for the x- and y-dimensions.

Otherwise, it is possible to edit a marker in the depth without altering its z-coordinate.

Current Type¶

name: currentType, type: Integer, default: 0¶

Sets the current marker type.

This information is stored in each created marker and can be used in conjunction with the StylePalette.

Delete on click¶

name: deleteOnClick, type: Bool, default: FALSE¶: If checked, a click on an existing marker deletes it.

Add on click¶

name: addOnClick, type: Bool, default: TRUE¶

If checked, the module adds a new marker if clicked somewhere outside existing markers.

Otherwise and if Delete on click is not checked, the existing marker is selected.

Alpha Factor¶

name: alphaFactor, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets a global alpha factor.

Minimum Alpha¶

name: minimumAlpha, type: Float, default: 0.1, minimum: 0, maximum: :field:`alphaFactor`¶: Sets a minimum alpha value for markers.

Icon File¶

name: iconFile, type: String, default: $(MLAB_MeVisLab_Standard)/Modules/Resources/Images/markerIcons.tif¶: Sets a path to an icon file.

Use icon file¶

name: useIconFile, type: Bool, default: FALSE¶

If checked, the icons specified in Icon File are used to render the markers.

The icons are chosen on base of the marker’s type.

Note that you have to use a StylePalette in order to make use of the icon files.

Icon Index¶

name: iconIdx, type: Integer, default: 0¶

Sets an offset value for using the icons read from a file.

Default is 0, meaning that all markers from index 0 on are visualized with the loaded icons.

Draw Marker Shapes With Lines¶

name: drawMarkerShapesWithLines, type: Bool, default: FALSE¶

If checked, the marker shapes defined in an attached style palette are rendered with OpenGL lines.

Otherwise, the textures of the loaded icon file are used.

Selecting on¶

name: selectingOn, type: Bool, default: TRUE¶: If checked, existing markers can be selected.

React on button release event only¶

name: actOnReleaseOnly, type: Bool, default: FALSE¶

If checked, the module only reacts on button releases and not on button presses.

This can be used to reduce the number of notifications in a network or to let other modules only compute anew if the interaction with a marker is finished.

Editor Mode¶

name: editorMode, type: Enum, default: EDIT_MARKER¶: Defines the editor mode.

Values:

Title	Name
Marker	EDIT_MARKER
Vector	EDIT_VECTOR
Object	EDIT_OBJECT

Color Mode¶

name: colorMode, type: Enum, default: COLOR_BY_TYPE¶: Defines the color mode.

Values:

Title	Name
Index	COLOR_BY_INDEX
Type	COLOR_BY_TYPE
Id	COLOR_BY_ID

Text Color Mode¶

name: textColorMode, type: Enum, default: COLOR_TEXT¶: Defines the text color mode.

Values:

Title	Name
Like Marker	COLOR_LIKE_MARKER
Text	COLOR_TEXT

Text Mode¶

name: textMode, type: Enum, default: TEXT_OFF¶: Defines the text mode.

Values:

Title	Name
Off	TEXT_OFF
Styleindex	TEXT_STYLEINDEX
Stylename	TEXT_STYLENAME
Itemname	TEXT_ITEMNAME
Itemid	TEXT_ITEMID
Voxelpos	TEXT_VOXELPOS
Worldpos	TEXT_WORLDPOS
Length	TEXT_LENGTH
Markertype	TEXT_MARKERTYPE
Markerlistindex	TEXT_MARKERLISTINDEX

Text Position¶

name: textPosition, type: Enum, default: TEXT_POSITION_RIGHT_BELOW¶: Defines the text position if text is displayed.

Values:

Title	Name
Center	TEXT_POSITION_CENTER
Above	TEXT_POSITION_ABOVE
Right Above	TEXT_POSITION_RIGHT_ABOVE
Right	TEXT_POSITION_RIGHT
Right Below	TEXT_POSITION_RIGHT_BELOW
Below	TEXT_POSITION_BELOW
Left Below	TEXT_POSITION_LEFT_BELOW
Left	TEXT_POSITION_LEFT
Left Above	TEXT_POSITION_LEFT_ABOVE

Text Color¶

name: textColor, type: Color, default: 1 1 1¶: Sets a color for text, depending on Text Color Mode.

Text shadow¶

name: textShadow, type: Bool, default: TRUE¶: If checked, a shadow is rendered behind the text.

Text Font Size¶

name: textFontSize, type: Integer, default: 12¶: Sets the size of the text.

Show text only for selected marker¶

name: showTextOnlyForSelectedMarker, type: Bool, default: FALSE¶: If checked, a text is only displayed for the selected marker.

Cut text¶

name: cutText, type: Bool, default: FALSE¶: If checked, the text may have only that many lines before being cut as the field Max. Num. of Lines allows.

Max. Num. of Lines¶

name: maxNumberOfLines, type: Integer, default: 1¶: Sets the maximum number of lines for the text.

Vector Draw Mode¶

name: vectorArrow, type: Enum, default: VECTOR_END_ARROW¶

Defines the vector draw mode.

Only affects vector markers.

Values:

Title	Name
Vector No Arrows	VECTOR_NO_ARROWS
Vector End Arrow	VECTOR_END_ARROW
Vector Start Arrow	VECTOR_START_ARROW
Vector Both Arrows	VECTOR_BOTH_ARROWS
Vector Plus Minus	VECTOR_PLUS_MINUS
Vector Pm With Arr	VECTOR_PM_WITH_ARR
Box Start To End	BOX_START_TO_END
Box Plus Minus	BOX_PLUS_MINUS

Vector Line Width¶

name: vectorLineWidth, type: Integer, default: 1, minimum: 1, maximum: 8¶: Sets the line width for vectors in the range [1..8].

Use anti-aliasing¶

name: useAntiAlias, type: Bool, default: TRUE¶: If checked, all markers and vectors are rendered using anti-aliasing.

Use Vector Length As Marker Size¶

name: useVectorLengthAsMarkerSize, type: Bool, default: FALSE¶

If checked, and markers with vectors are rendered as markers; the size of the markers will be half the length of the vector.

Otherwise, the marker will just have the set marker’s size.

Current Style Index¶

name: currentStyleIndex, type: Integer, persistent: no¶: Shows the style index of the currently selected marker or a -1 if no marker is selected.

Index of Hit Marker¶

name: markerIndex, type: Integer, persistent: no¶: Shows the index of the marker under the mouse cursor (or -1 if no marker is under the mouse cursor). This is updated on mouse click, and also on mouse move if the SoView2D is in Managed Interaction mode (SoView2D.useManagedInteraction is true).

Marker is hit¶

name: markerIsCurrentlyHit, type: Bool, persistent: no¶: If checked, the mouse is currently over a marker.

Depth Visualization Mode¶

name: depthVectorDrawMode, type: Enum, default: DRAW_HIGHLIGHT_SLICE_SEGMENT¶: Defines how vectors are rendered if crossed by the current slice.

Values:

Title

Name

Deprecated Name

Description

None

DRAW_NONE

Vectors not lying in the current slice (crossing the current slice) are not rendered at all.

Highlight Slice Segment

DRAW_HIGHLIGHT_SLICE_SEGMENT

DRAW_BOLD,DRAW_DEPTH_INDICATOR

Vectors crossed by the current slice are rendered as:

normal below the current slice
bold on the current slice
stippled above the current slice

Draw Mode¶

name: drawMode, type: Enum, default: DRAW_MARKER¶: Defines the draw mode for markers and vectors.

Values:

Title	Name
Vector	DRAW_VECTOR
Marker	DRAW_MARKER
Disc	DRAW_DISC
Sphere	DRAW_SPHERE
Vector And Disc	DRAW_VECTOR_AND_DISC

Highlight Selection¶

name: highlightSelection, type: Bool, default: TRUE¶: If checked, the selected marker will be rendered highlighted.

Selective Drawing¶

name: selectiveDrawing, type: Bool, default: FALSE¶

If checked, only the selected marker is rendered as a vector.

All other markers, even if they are vectors, are rendered as just markers.

Selection boxes for current only¶

name: selectionBoxesForCurrentOnly, type: Bool, default: FALSE¶

If checked, only the selected marker vector is rendered with selection boxes at the start and the end.

All other vectors are rendered just as vectors.

Cooperative¶

name: cooperative, type: Bool, default: FALSE¶: If checked, the module does not evaluate events marked by other modules as being handled.

Currently busy¶

name: busy, type: Bool, persistent: no¶: Shows whether the module is currently busy.

Overwrite Current Time Point¶

name: overwriteCurrentTimePoint, type: Bool, default: FALSE¶: If checked, the currently shown time point in the viewer is being overwritten by the time point given in Timepoint.

Timepoint¶

name: newCurrentTimePoint, type: Integer, default: 0¶: Sets the new current time point for the viewer.

Depth Visibility Mode¶

name: depthVisibilityMode, type: Enum, default: DEPTH_IN_SLICES¶: Defines the unit used in depth visibility of markers and vectors.

Values:

Title	Name
Slices	DEPTH_IN_SLICES
Mm	DEPTH_IN_MM

Drag Start Point¶

name: cursorShapeDragStartPoint, type: Enum, default: CROSS_MOVE_CURSOR¶

Defines the cursor shape when starting a drag.

Used when moving the starting point of a vector/disc marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Drag End Point¶

name: cursorShapeDragEndPoint, type: Enum, default: CROSS_MOVE_CURSOR¶

Defines a cursor shape when dragging ends.

Used when moving the end point of a vector/disc marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Drag Resize¶

name: cursorShapeDragResize, type: Enum, default: CROSS_MOVE_CURSOR¶

Defines the cursor shape when resizing.

Used when resizing a sphere/disc marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Drag Offset¶

name: cursorShapeDragOffset, type: Enum, default: MOVE_ALL_CURSOR¶

Defines the cursor shape when moving a point marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Drag Move¶

name: cursorShapeDragMove, type: Enum, default: MOVE_ALL_CURSOR¶

Defines the cursor shape when moving a sphere/disc marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Delete¶

name: cursorShapeDelete, type: Enum, default: CROSS_MINUS_CURSOR¶

Defines the cursor shape when deleting a marker.

This cursor shape is only displayed when utilizing Managed Interaction mode through SoView2D.useManagedInteraction.

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Blank Cursor	BLANK_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69

Marker List Size¶

name: numItems, type: Integer, persistent: no¶: Shows the number of markers in the marker list.

Persistent¶

name: persistent, type: Bool, default: FALSE¶: If checked, the internal marker list is saved with saving the network where the SoView2DMarkerEditor is in.

Current Marker Index¶

name: currentIndex, type: Integer, persistent: no¶: Shows the index of the currently selected marker or -1 if no marker is selected.

Overflow Mode¶

name: overflowMode, type: Enum, default: None¶: Defines the overflow mode that handles how an additional marker is handled if the maximum size of the marker list is reached.

Values:

Title	Name
None	None
Remove First	RemoveFirst
Remove Last	RemoveLast
Remove All	RemoveAll
Remove New	RemoveNew

Max Size¶

name: maxSize, type: Integer, default: 0, minimum: 0¶

Sets the maximum size of the marker list. Size 0 means unlimited markers.

Delete All¶

name: deleteAll, type: Trigger¶: When pressed, all markers are deleted.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoView2DExtension.interactionProviderID

maskValid¶

name: maskValid, type: Bool, persistent: no¶

fixZOn¶

name: fixZOn, type: Bool, default: TRUE¶

needsValidVoxel¶

name: needsValidVoxel, type: Bool, default: TRUE¶

see SoView2DExtension.needsValidVoxel

wantsAllEvents¶

name: wantsAllEvents, type: Bool, default: FALSE¶

wantsKeyEvents¶

name: wantsKeyEvents, type: Bool, default: TRUE¶

wantsMouseWheelEvents¶

name: wantsMouseWheelEvents, type: Bool, default: FALSE¶

setEventHandled¶

name: setEventHandled, type: Bool, default: FALSE¶

see SoView2DExtension.setEventHandled

ignoreHandledEvents¶

name: ignoreHandledEvents, type: Bool, default: FALSE¶

see SoView2DExtension.ignoreHandledEvents

renderOnSlab¶

name: renderOnSlab, type: Bool, default: FALSE¶

clipToSlice¶

name: clipToSlice, type: Bool, default: FALSE¶

singleClicked¶

name: singleClicked, type: Trigger, persistent: no¶

doubleClicked¶

name: doubleClicked, type: Trigger, persistent: no¶

alwaysPerformHitTest¶

name: alwaysPerformHitTest, type: Bool, default: FALSE¶

If checked, the hit test will always be performed even if the fields Editing on and Selecting on are disabled.

If a marker is hit at the current mouse position, the field Marker is hit is checked.

listString¶

name: listString, type: String¶

index¶

name: index, type: Integer, default: 0¶

listStringEnable¶

name: listStringEnable, type: Bool, default: FALSE¶

ownsList¶

name: ownsList, type: Bool, persistent: no¶

applySelect¶

name: applySelect, type: Bool, default: FALSE¶

id¶

name: id, type: Integer, persistent: no¶

name¶

name: name, type: String¶

newName¶

name: newName, type: String¶

actionClass¶

name: actionClass, type: String, persistent: no¶

actionIndex¶

name: actionIndex, type: Integer, persistent: no¶

actionId¶

name: actionId, type: Integer, persistent: no¶

delete¶

name: delete, type: Trigger¶

insert¶

name: insert, type: Trigger¶

add¶

name: add, type: Trigger¶

update¶

name: update, type: Trigger¶

useInsertTemplate¶

name: useInsertTemplate, type: Bool, default: FALSE¶

copyItemToTemplate¶

name: copyItemToTemplate, type: Trigger¶

copyTemplateToItem¶

name: copyTemplateToItem, type: Trigger¶

clear¶

name: clear, type: Trigger¶

upToDate¶

name: upToDate, type: Bool, persistent: no¶

autoCopyAndTakeOwnership¶

name: autoCopyAndTakeOwnership, type: Bool, default: FALSE¶

copyAndTakeOwnership¶

name: copyAndTakeOwnership, type: Trigger¶

posXYZ¶

name: posXYZ, type: Vector3, default: 0 0 0¶

posC¶

name: posC, type: Float, default: 0¶

posT¶

name: posT, type: Float, default: 0¶

posU¶

name: posU, type: Float, default: 0¶

vecXYZ¶

name: vecXYZ, type: Vector3, default: 0 0 0¶

vecLength¶

name: vecLength, type: Float, persistent: no¶

type¶

name: type, type: Integer, default: 0¶

newPosXYZ¶

name: newPosXYZ, type: Vector3, default: 0 0 0¶

newPosC¶

name: newPosC, type: Float, default: 0¶

newPosT¶

name: newPosT, type: Float, default: 0¶

newPosU¶

name: newPosU, type: Float, default: 0¶

newVecXYZ¶

name: newVecXYZ, type: Vector3, default: 0 0 0¶

newType¶

name: newType, type: Integer, default: 0¶
