SoView2D¶

InventorModule¶

genre	`View2D`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoView2D`
definition	view2d.def
see also	`View2DExtensions`, `SoView2DAnnotation`, `SoView2DMarkerEditor`, `View2D`, `SoRenderArea`
keywords	`viewer`, `slice`, `drawing`, `render`

Purpose¶

The module SoView2D displays a slice or a slab of a volume image in a 2D viewer.

Details¶

The SoView2D has the following standard key binding:

Key	Function
1-9	Switch the number of shown slices.
NUM 5	Reset zooming.
NUM *	Step through interpolation modes.
NUM 0	Step through LUT modes.
NUM 4,6,8,2	Scroll inside a slice.
NUM +, -	Zoom in/out slice center.
PAGE UP/DOWN	Next/previous slice.
CURSOR UP/DOWN	Next/previous slice.
CURSOR RIGHT/LEFT	Next/previous time point.
CTRL+CURSOR RIGHT/LEFT	Next/previous user index.

Windows¶

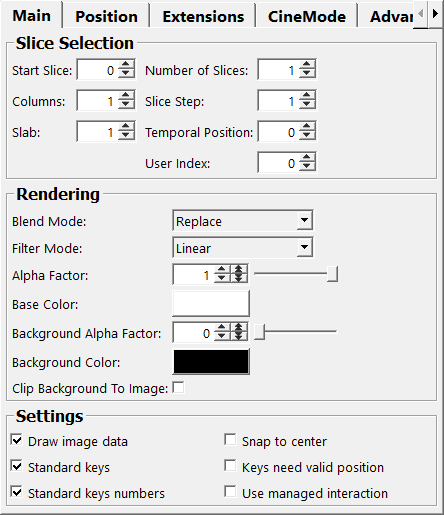

Default Panel¶

Input Fields¶

image¶

name: image, type: Image¶

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Alpha Factor`: `Float`	`Handle 2D events`: `Bool`	`Slice Origin`: `Vector2`
`Always reset before starting`: `Bool`	`Handle 3D events`: `Bool`	`Slice Step`: `Integer`
`applyLut`: `Bool`	`interactionProviderID`: `String`	`Slice Zoom`: `Float`
`Background Alpha Factor`: `Float`	`Interval (cineIntervalT)`: `Integer`	`sliceZoom`: `Float`
`Background Color`: `Color`	`Interval (cineIntervalZ)`: `Integer`	`Snap To Center`: `Bool`
`Base Color`: `Color`	`invertKeyPanningDirections`: `Bool`	`Spacing`: `Vector2`
`Blend Mode`: `Enum`	`invertKeySlicingDirection`: `Bool`	`Speed`: `Float`
`Cache Mode`: `Enum`	`keepSlicesInView`: `Bool`	`Standard Keys`: `Bool`
`Center (cineCenterT)`: `Integer`	`Keys need valid position`: `Bool`	`Standard Keys Numbers`: `Bool`
`Center (cineCenterZ)`: `Integer`	`Lower Left`: `Vector2`	`Start Cine`: `Trigger`
`Central Viewing Position`: `Vector3`	`Lut Precision`: `Enum`	`Start Slice`: `Integer`
`Cine mode is active`: `Bool`	`Margin`: `Vector2`	`Status`: `String`
`Clip Background To Image`: `Bool`	`maxSlice`: `Integer`	`Stop Cine`: `Trigger`
`Columns`: `Integer`	`maxTimePoint`: `Integer`	`Temporal Position`: `Integer`
`Delete Selected`: `Trigger`	`maxUserIndex`: `Integer`	`Unzoom`: `Trigger`
`Device Pixel Size`: `Float`	`minSliceZoomKeyboard`: `Float`	`Unzoom on image change`: `Bool`
`Direction`: `Enum`	`Mode`: `Enum`	`Upper Right`: `Vector2`
`Draw Image Data`: `Bool`	`Number of Slices`: `Integer`	`Use Managed Interaction`: `Bool`
`Edit Objects`: `Trigger`	`Override Aspect Ratio`: `Bool`	`User Index`: `Integer`
`Enable`: `Bool`	`Pass handled-flag to Inventor`: `Bool`	`userInfo`: `String`
`Enable deleting`: `Bool`	`renderingDone`: `Trigger`	`useShaders`: `Bool`
`enableZBuffer`: `Bool`	`Repeat`: `Enum`	`viewerId`: `String`
`enableZWrite`: `Bool`	`Reverse Extension Drawing Order`: `Bool`	`Voxel Aspect Ratio (vy/vx)`: `Float`
`Filter Mode`: `Enum`	`seriesInstanceUID`: `String`	`wrapAroundTimePointScrolling`: `Bool`
`forceImageUpdate`: `Trigger`	`Slab`: `Integer`	`Zoom Center`: `Vector2`
`frameOfReferenceUID`: `String`	`Slice Align X`: `Enum`	`Zoom Mode`: `Enum`
`Full Range in Time Dimension`: `Bool`	`Slice Align Y`: `Enum`	`Zoom Mode Parameter`: `Float`
`Full range in z-dimension`: `Bool`	`Slice as plane`: `Plane`

Visible Fields¶

Start Slice¶

name: startSlice, type: Integer, default: 0, minimum: 0, maximum: :field:`maxSlice`¶: Sets the shown start slice.

Slice Step¶

name: sliceStep, type: Integer, default: 1¶: Sets the ‘distance’ between shown slices if multiple slices are shown at once.

Number of Slices¶

name: numSlices, type: Integer, default: 1, minimum: 1¶: Sets the number of slices that are shown at once.

Columns¶

name: numXSlices, type: Integer, default: 1, minimum: 1¶: Sets the number of columns in that multiple slices are shown.

Slab¶

name: slab, type: Integer, default: 1, minimum: 0¶

Sets the slab depth.

Use it with Blend Mode Maximum or Blend.

Lower Left¶

name: lowerLeft, type: Vector2, default: 0 0, deprecated name: lowerLeftAdjustArea¶

Sets the lower left corner of the viewport relative to the viewer’s size.

Values range in 0..1 where 0 is the lower left corner and 1 the upper right corner.

Upper Right¶

name: upperRight, type: Vector2, default: 1 1, deprecated name: upperRightAdjustArea¶

Sets the upper right corner of the viewport relative to the viewer’s size.

Values range in 0..1 where 0 is the lower left corner and 1 the upper right corner.

Margin¶

name: margin, type: Vector2, default: 2 2¶: Sets a margin in pixels between the rendered image(s) and the viewport’s border.

Spacing¶

name: spacing, type: Vector2, default: 4 4¶: Sets a spacing in pixels between rendered slices if multiple slices are rendered.

Slice as plane¶

name: plane, type: Plane, persistent: no¶

Shows the current slice as plane parameters in world coordinates.

If multiple slices are shown (using Number of Slices), this is the plane of the central slice.:

centerSlice = startSlice.getValue() + floor(0.5 * (numSlices.getValue()-1) * sliceStep.getValue())

Slice Zoom¶

name: sliceZoomSynchronized, type: Float, default: 1¶: Sets the inner zoom of the shown slices.

Zoom Center¶

name: zoomCenter, type: Vector2, default: 0.5 0.5¶: Sets the center of zoom/scale operation in normalized coordinates.

Slice Origin¶

name: sliceOrigin, type: Vector2, default: 0 0¶: Sets the inner translation of the shown slices.

Central Viewing Position¶

name: viewingCenter, type: Vector3, default: 0 0 0¶: Sets the world coordinates of the central point for the current viewer. If multiple slices are shown (using Number of Slices), this is the position of the central slice.

Enable¶

name: enableViewingCenter, type: Bool, default: FALSE¶

If checked, the Central Viewing Position is activated.

Only available if both Slice Align X and Slice Align Y are set to CENTER.

Unzoom¶

name: unzoom, type: Trigger, deprecated name: sliceUnzoom¶: When pressed, the currently shown slice is unzoomed.

Unzoom on image change¶

name: unzoomOnImageChange, type: Bool, default: FALSE¶: If checked, the currently shown slice is unzoomed on any change of the input image.

Draw Image Data¶

name: drawImageData, type: Bool, default: TRUE¶: If checked, the image data is drawn.

Temporal Position¶

name: timePoint, type: Integer, default: 0, minimum: 0, maximum: :field:`maxTimePoint`¶: Sets and shows the time point of the currently shown slice.

User Index¶

name: userIndex, type: Integer, default: 0, minimum: 0, maximum: :field:`maxUserIndex`¶: Sets and shows the user index of the currently shown slice.

Snap To Center¶

name: snapToCenter, type: Bool, default: FALSE¶: If checked, the module shows the middle slice if a new image is attached.

Standard Keys¶

name: standardKeys, type: Bool, default: TRUE¶: If checked, the standard key binding is active, else no built-in key binding is used.

Standard Keys Numbers¶

name: standardKeysNumbers, type: Bool, default: TRUE¶: If checked, the keys 1-9 activate certain matrix-like slice patterns; otherwise, nothing happens.

Keys need valid position¶

name: standardKeysNeedValidPosition, type: Bool, default: FALSE¶: If checked, actions like toggling the displayed slices as a matrix with the number keys demand for the mouse cursor to be over the image (not over the border or just in the viewer) to work.

Pass handled-flag to Inventor¶

name: passHandledFlagToInventor, type: Bool, default: FALSE, deprecated name: updateInventorEvent¶: If checked, subsequent Open Inventor nodes do not react to events that have been already handled by a SoView2DExtension.

Reverse Extension Drawing Order¶

name: reverseExtensionDrawingOrder, type: Bool, default: FALSE¶: If checked, the right-most extension will be drawn first.

Blend Mode¶

name: blendMode, type: Enum, default: BLEND_REPLACE¶: Defines the blend mode of the rendered views before the background.

Values:

Title	Name	Description
Replace	BLEND_REPLACE
Add	BLEND_ADD
Blend	BLEND_BLEND
Maximum	BLEND_MAXIMUM
Minimum	BLEND_MINIMUM	For this blend mode you might want to set the `Background Color` to white and enable `Clip Background To Image`.
Reverse Subtract	BLEND_REVERSE_SUBTRACT
Subtract	BLEND_SUBTRACT
Premultiplied Blend	BLEND_PREMULTIPLIED_BLEND
Screen	BLEND_SCREEN

Filter Mode¶

name: filterMode, type: Enum, default: FILTER_LINEAR¶: Defines how the volume image’s voxels are mapped onto the screen (inter-/ extrapolation).

Values:

Title	Name	Description
Nearest	FILTER_NEAREST	Nearest neighbor sampling is used, no interpolation is performed.
Linear	FILTER_LINEAR	Bilinear interpolation is performed. The 4 neighboring gray values are read and classified via the LUT (PRE CLASSIFICATION). Afterwards the 4 RGBA values are linearly interpolated. Since the interpolation is done after the classification, this mode supports coloring labels without artifacts between label borders.
Linear Postclass	FILTER_LINEAR_POSTCLASS	Bilinear interpolation is performed on the 4 neighboring gray values. The resulting gray value is classified using the LUT (POST CLASSIFICATION). This mode supports high frequency LUTs and is not suitable to render colored labels because of the interpolation of the label values. This mode is only supported if shaders are enabled and the image is a gray image.
Cubic Postclass	FILTER_CUBIC_POSTCLASS	This mode implements bicubic B-spline filtering. (Details: Fast Third-Order Texture Filtering, Markus Hadwiger). Since the filter kernel is bigger than for linear interpolation, the resulting image looks much smoother. This comes at the cost of detail, the filter does not preserve the exact voxel value at the center of each voxel. This mode is only supported if shaders are enabled and the image is a gray image.

Cache Mode¶

name: cacheMode, type: Enum, default: SLICE_CACHING_OFF¶: Defines the caching mode.

Values:

Title	Name
Off	SLICE_CACHING_OFF
Partial	SLICE_CACHING_PARTIAL
Complete	SLICE_CACHING_COMPLETE

Slice Align X¶

name: sliceAlignX, type: Enum, default: SLICE_ALIGNX_CENTER¶: Defines the slices’ horizontal alignment in the viewport.

Values:

Title	Name
Center	SLICE_ALIGNX_CENTER
Left	SLICE_ALIGNX_LEFT
Right	SLICE_ALIGNX_RIGHT

Slice Align Y¶

name: sliceAlignY, type: Enum, default: SLICE_ALIGNY_CENTER¶: Defines the slices’ vertical alignment in the viewport.

Values:

Title	Name
Center	SLICE_ALIGNY_CENTER
Top	SLICE_ALIGNY_TOP
Bottom	SLICE_ALIGNY_BOTTOM

Lut Precision¶

name: lutPrecision, type: Enum, default: VIEW2D_LUT_AUTO¶: Defines the precision of the LUT.

Values:

Title	Name	Description
Auto	VIEW2D_LUT_AUTO	The LUT precision is calculated using the input dataset’s min and max values. The maximum supported LUT precision is 16-bits. If the input dataset is a floating-point type, the LUT uses 12-bit.
8bit	VIEW2D_LUT_8BIT	The LUT precision is 8-bit, regardless of the input data type.
12bit	VIEW2D_LUT_12BIT	The LUT precision is 12-bit, regardless of the input data type.
16bit	VIEW2D_LUT_16BIT	The LUT precision is 16-bit, regardless of the input data type.

Zoom Mode¶

name: zoomMode, type: Enum, default: VIEW2D_AUTO_ZOOM¶: Defines the zoom mode.

Values:

Title	Name
Auto Zoom	VIEW2D_AUTO_ZOOM
Auto Zoom X	VIEW2D_AUTO_ZOOM_X
Auto Zoom Y	VIEW2D_AUTO_ZOOM_Y
Fixed Pixels Per Voxel X	VIEW2D_FIXED_PIXELS_PER_VOXEL_X
Fixed Pixels Per Voxel Y	VIEW2D_FIXED_PIXELS_PER_VOXEL_Y
Fixed Pixels Per Mm	VIEW2D_FIXED_PIXELS_PER_MM
Fixed Mm Per Viewer Width	VIEW2D_FIXED_MM_PER_VIEWER_WIDTH
Fixed Mm Per Viewer Height	VIEW2D_FIXED_MM_PER_VIEWER_HEIGHT
Scale To Viewer Ignore Ratio	VIEW2D_SCALE_TO_VIEWER_IGNORE_RATIO
Fixed Pixels Per Voxel X Scaled For Hidpi	VIEW2D_FIXED_PIXELS_PER_VOXEL_X_SCALED_FOR_HIDPI
Fixed Pixels Per Voxel Y Scaled For Hidpi	VIEW2D_FIXED_PIXELS_PER_VOXEL_Y_SCALED_FOR_HIDPI
Fixed Pixels Per Mm Scaled For Hidpi	VIEW2D_FIXED_PIXELS_PER_MM_SCALED_FOR_HIDPI

Zoom Mode Parameter¶

name: zoomModeParameter, type: Float, default: 1¶: Sets the parameter needed for some modes in Zoom Mode.

Override Aspect Ratio¶

name: overrideAspectRatio, type: Bool, default: FALSE¶: If checked, the aspect ratio of the displayed voxels is overwritten with Voxel Aspect Ratio (vy/vx).

Voxel Aspect Ratio (vy/vx)¶

name: overrideAspectRatioValue, type: Float, default: 1¶: Sets a new voxel aspect ratio.

Alpha Factor¶

name: alphaFactor, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the alpha factor for rendered slices.

Base Color¶

name: baseColor, type: Color, default: 1 1 1¶: Sets the base color for rendered slices.

Background Alpha Factor¶

name: backgroundAlphaFactor, type: Float, default: 0, minimum: 0, maximum: 1¶: Sets the alpha factor for the background.

Background Color¶

name: backgroundColor, type: Color, default: 0 0 0¶: Sets the color for the background.

Clip Background To Image¶

name: clipBackgroundToImage, type: Bool, default: FALSE¶

If checked, the rendering of the background is clipped to the image area.

You would typically use this with an Blend Mode like Minimum and a white Background Color.

Start Cine¶

name: startCine, type: Trigger¶

When pressed, the cinematic function (automatically slicing through the image in determined range) is started.

Note: to record a movie of the slicing, attach a SoExaminerViewer or a SoRenderArea and use the movie recording of those modules.

Stop Cine¶

name: stopCine, type: Trigger¶: When pressed, the cinematic function is stopped.

Center (cineCenterT)¶

name: cineCenterT, type: Integer, default: 0, minimum: 0, maximum: :field:`maxTimePoint`¶

Sets a center slice for slicing in the t-dimension for the cinematic function.

Available if not the full range should be recorded, see Full Range in Time Dimension.

Interval (cineIntervalT)¶

name: cineIntervalT, type: Integer, default: 0, minimum: 0, maximum: :field:`maxTimePoint`¶

Sets a slice interval for slicing in the t-dimension for the cinematic function.

Available if not the full range should be recorded, see Full Range in Time Dimension.

Center (cineCenterZ)¶

name: cineCenterZ, type: Integer, default: 0, minimum: 0, maximum: :field:`maxSlice`¶

Sets a center slice for slicing in the z-dimension for the cinematic function.

Available if not the full range should be recorded, see Full range in z-dimension.

Interval (cineIntervalZ)¶

name: cineIntervalZ, type: Integer, default: 0, minimum: 0, maximum: :field:`maxSlice`¶

Sets a slice interval for slicing in the z-dimension for the cinematic function.

Available if not the full range should be recorded, see Full range in z-dimension.

Mode¶

name: cineMode, type: Enum, default: CINE_Z¶: Defines through which dimension the cinematic should slice.

Values:

Title	Name	Description
Z	CINE_Z	Go through slices.
T	CINE_T	Go through time points.
ZT	CINE_ZT	Go through slices, then time points. This mode only allows for moving forward.
TZ	CINE_TZ	Go through time points, then slices. This mode only allows for moving forward.

Direction¶

name: cineDirection, type: Enum, default: CINE_PINGPONG¶: Defines the cinematic function.

Values:

Title	Name	Description
Forward	CINE_FORWARD	Go forward through slices/time points. If `Repeat` is set to CINE_REPEAT, start from beginning when at the end.
Pingpong	CINE_PINGPONG	Go forward, then backwards through slices or time points.

Repeat¶

name: cineRepeat, type: Enum, default: CINE_ONCE¶: Defines how the cinematic function should be repeated.

Values:

Title	Name	Description
Once	CINE_ONCE	Only go through slices/time points once (or twice, if `Direction` is set to CINE_PINGPONG)
Repeat	CINE_REPEAT	Go through slices/time points until the user stops the cine mode (with `Stop Cine`).

Speed¶

name: cineSpeed, type: Float, default: 0.1, minimum: 0.0001¶: Sets the speed of the cinematic function by setting the waiting time in seconds between showing consecutive slices.

Full range in z-dimension¶

name: cineFullRangeZ, type: Bool, default: TRUE¶

If checked, the cinematic function will slice through all slices in z-dimension.

Otherwise, the range can be specified with Center and Interval.

Full Range in Time Dimension¶

name: cineFullRangeT, type: Bool, default: TRUE¶

If checked, the cinematic function will slice through all slices in t-dimension.

Otherwise, the range can be specified with Center and Interval.

Always reset before starting¶

name: cineAlwaysReset, type: Bool, default: TRUE¶: If checked, the module starts with the first slice in cine mode, no matter what slice is actually shown at that time.

Cine mode is active¶

name: cineModeActive, type: Bool, persistent: no¶: Shows the status of the cine mode.

Delete Selected¶

name: deleteSelected, type: Trigger, deprecated name: deleteSelectedObject¶: When pressed, a delete-notification is sent to all attached extensions that implement the according callback.

Edit Objects¶

name: edit, type: Trigger, deprecated name: editObjects¶: When pressed, attached extensions are set to edit mode.

Status¶

name: status, type: String, persistent: no¶: Shows some status information about this module.

Enable deleting¶

name: deletingEnabled, type: Bool, default: TRUE¶: If checked, the delete notification can actually be sent through the network.

Handle 2D events¶

name: handle2DEvents, type: Bool, default: TRUE¶: If checked, the module receives and evaluates 2D events.

Handle 3D events¶

name: handle3DEvents, type: Bool, default: TRUE¶: If checked, the module receives and evaluates 3D events.

Use Managed Interaction¶

name: useManagedInteraction, type: Bool, default: FALSE¶: If checked, the module sends outs managed interaction events.

Device Pixel Size¶

name: devicePixelSize, type: Float, default: 1¶: Sets a factor for scaling the 3D voxel size.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

viewerId¶

name: viewerId, type: String, default: viewer¶

Sets a viewer ID.

Use this to identify viewers from extensions, e.g., if it is important to know on which viewer something was drawn. Note that you must set different identifiers for this to work.

userInfo¶

name: userInfo, type: String¶: A user defined string, to be displayed with SoView2DAnnotation.

maxSlice¶

name: maxSlice, type: Integer, default: 0, minimum: 0¶

keepSlicesInView¶

name: keepSlicesInView, type: Bool, default: FALSE¶

sliceZoom¶

name: sliceZoom, type: Float, default: 1¶

minSliceZoomKeyboard¶

name: minSliceZoomKeyboard, type: Float, default: 1¶

maxTimePoint¶

name: maxTimePoint, type: Integer, default: 0, minimum: 0¶

maxUserIndex¶

name: maxUserIndex, type: Integer, default: 0, minimum: 0¶

useShaders¶

name: useShaders, type: Bool, default: TRUE¶

applyLut¶

name: applyLut, type: Bool, default: TRUE¶

invertKeyPanningDirections¶

name: invertKeyPanningDirections, type: Bool, default: FALSE¶

invertKeySlicingDirection¶

name: invertKeySlicingDirection, type: Bool, default: FALSE¶

wrapAroundTimePointScrolling¶

name: wrapAroundTimePointScrolling, type: Bool, default: FALSE¶

seriesInstanceUID¶

name: seriesInstanceUID, type: String, persistent: no¶: This value can be used by extensions to identify the image currently displayed.

frameOfReferenceUID¶

name: frameOfReferenceUID, type: String, persistent: no¶

enableZBuffer¶

name: enableZBuffer, type: Bool, default: TRUE¶

enableZWrite¶

name: enableZWrite, type: Bool, default: TRUE¶

forceImageUpdate¶

name: forceImageUpdate, type: Trigger¶

renderingDone¶

name: renderingDone, type: Trigger, persistent: no¶
