SoView2DPosition

InventorModule

genre	Interaction
author	MeVis Medical Solutions AG
package	MeVisLab/Standard
dll	SoView2D
definition	view2d.def
see also	SoView2D
inherits from	SoView2DExtension
keywords	cursor, mouse, draw, extension

Purpose

The module SoView2DPosition shows the last clicked position in a 2D viewer.

The position is shown as a cursor for which different models are available.

Windows

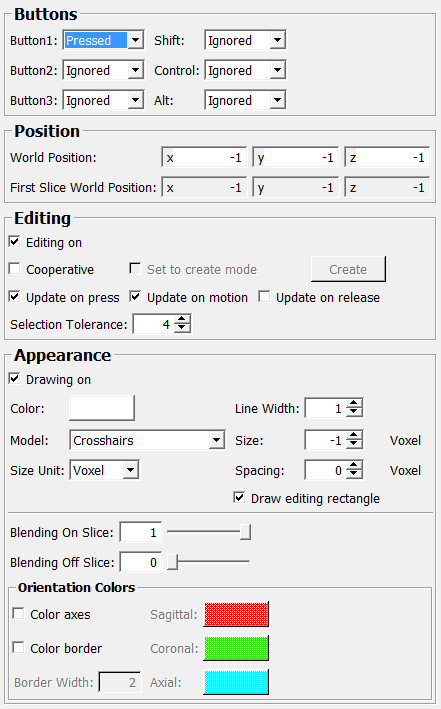

Default Panel

Output Fields

self

name: self, type: SoNode

Parameter Fields

Field Index

Alt: Enum	cursorShape: Enum	Sagittal: Color
Axial: Color	doubleClicked: Trigger	Selection Tolerance: Float
Blending Off Slice: Float	Draw editing rectangle: Bool	setEventHandled: Bool
Blending On Slice: Float	Drawing On: Bool	Shift: Enum
Border Width: Float	Editing On: Bool	singleClicked: Trigger
Button1: Enum	First Slice World Position: Vector3	Size: Float
Button2: Enum	fixZOn: Bool	Size Unit: Enum
Button3: Enum	ignoreHandledEvents: Bool	Spacing: Float
clipToSlice: Bool	interactionProviderID: String	Update On Motion: Bool
Color: Color	Line Width: Float	Update On Press: Bool
Color Axes: Bool	linePattern: Integer	Update On Release: Bool
Color Border: Bool	maskValid: Bool	wantsAllEvents: Bool
Control: Enum	Model: Enum	wantsKeyEvents: Bool
Cooperative: Bool	needsValidVoxel: Bool	wantsMouseWheelEvents: Bool
Coronal: Color	renderOnSlab: Bool	World Position: Vector3
Create mode: Bool	Request Create: Trigger

Visible Fields

Drawing On

name: drawingOn, type: Bool, default: TRUE

If checked, the module draws a position cursor.

see also SoView2DExtension.drawingOn

Editing On

name: editingOn, type: Bool, default: TRUE

If checked, the cursor can be interactively set.

see also SoView2DExtension.editingOn

Color

name: color, type: Color, default: 1 1 1

Sets the color of the cursor.

see also SoView2DExtension.color

Selection Tolerance

name: selectionTolerance, type: Float, default: 4, minimum: 2, maximum: 40, deprecated name: selectDistance

Sets a selection tolerance in pixels.

The selection tolerance determines how far away the mouse cursor needs to be from the position marker to update the position field.

Button1

name: button1, type: Enum, default: PRESSED

see SoView2DExtension.button1

Button2

name: button2, type: Enum, default: IGNORED

see SoView2DExtension.button2

Button3

name: button3, type: Enum, default: IGNORED

see SoView2DExtension.button3

Shift

name: shift, type: Enum, default: IGNORED

see SoView2DExtension.shift

Control

name: control, type: Enum, default: IGNORED

see SoView2DExtension.control

Alt

name: alt, type: Enum, default: IGNORED

see SoView2DExtension.alt

Create mode

name: createNewMode, type: Bool, default: FALSE

see SoView2DExtension.createNewMode

Request Create

name: createNewModeRequest, type: Trigger

When pressed, the module sets a new World Position at the current mouse position once the button mask condition is fulfilled.

Note that this button must be pressed if multiple SoView2DPosition modules are present, or if a SoView2DRectangle or SoView2DMarkerEditor is also used in the same 2D viewer, to determine which module receives the event when clicking on empty space.

see also SoView2DExtension.createNewModeRequest

World Position

name: worldPosition, type: Vector3, default: -1 -1 -1, deprecated name: currentWorldPos

Sets and shows the cursor position in world coordinates.

First Slice World Position

name: firstSliceWorldPosition, type: Vector3, persistent: no

Shows a position that is computed by converting the world position to voxel coordinates and converting this voxel position back to world coordinates relative to the first slice of the image.

Model

name: drawingModel, type: Enum, default: DRAWINGMODEL_CROSSHAIRS

Defines the rendered model of the cursor.

Values:

Title	Name
​Crosshairs	​DRAWINGMODEL_CROSSHAIRS
​Circle	​DRAWINGMODEL_CIRCLE
​Voxel Rect	​DRAWINGMODEL_VOXEL_RECT
​Ellipse	​DRAWINGMODEL_ELLIPSE
​Crosshairs With Circle	​DRAWINGMODEL_CROSSHAIRS_WITH_CIRCLE

Size Unit

name: drawingModelSizeUnit, type: Enum, default: SIZEUNIT_VOXEL

Defines the unit in which Size and Spacing is measured.

Values:

Title	Name
​Voxel	​SIZEUNIT_VOXEL
​World	​SIZEUNIT_WORLD
​Screen	​SIZEUNIT_SCREEN

Size

name: drawingModelSize, type: Float, default: -1, minimum: -1

Sets the size of the cursor in voxel.

If the cursor is a crosshair cursor and the size is set to -1, the cursor spans the entire slice.

Spacing

name: crossHairSpacing, type: Float, default: 0, minimum: 0

Sets the spacing of the crosshair cursor from the middle point.

Draw editing rectangle

name: drawEditingRect, type: Bool, default: TRUE

If checked, an editing rectangle is drawn in at the cursor position if in crosshair mode.

Blending On Slice

name: blendOnto, type: Float, default: 1, minimum: 0, maximum: 1

Sets the transparency for position cursors that lie directly on the visible slice.

Blending Off Slice

name: blendOutside, type: Float, default: 0, minimum: 0, maximum: 1

Sets the transparency for position cursors that do not lie directly on the visible slice.

Line Width

name: lineWidth, type: Float, default: 1, minimum: 1

Sets the line width.

Color Axes

name: colorAxes, type: Bool, default: FALSE

If checked, the axes of the crosshair cursor can be colored separately.

Sagittal

name: sagittalColor, type: Color, default: 1 0 0

Sets the color for the sagittal axis.

Coronal

name: coronalColor, type: Color, default: 0.172549024224281 0.886274516582489 0.0117647061124444

Sets the color for the coronal axis.

Axial

name: axialColor, type: Color, default: 0.00784313771873713 0.952941179275513 0.968627452850342

Sets the color for the axial axis.

Update On Press

name: updateOnPress, type: Bool, default: TRUE

If checked, the module updates the cursor position on pressing the defined mouse button.

Update On Motion

name: updateOnMotion, type: Bool, default: TRUE

If checked, the module updates the cursor position on moving the mouse with the defined mouse button held down.

Update On Release

name: updateOnRelease, type: Bool, default: FALSE

If checked, the module updates the cursor position on releasing the defined mouse button.

Cooperative

name: cooperative, type: Bool, default: FALSE

If checked, the module does not evaluate events marked by other modules as being handled.

Color Border

name: colorBorder, type: Bool, default: FALSE

If checked, a border in the color according to the viewing direction is drawn around the viewer.

Border Width

name: colorBorderWidth, type: Float, default: 2, minimum: 1

Sets the width of the border.

Hidden Fields

interactionProviderID

name: interactionProviderID, type: String

see SoView2DExtension.interactionProviderID

maskValid

name: maskValid, type: Bool, persistent: no

fixZOn

name: fixZOn, type: Bool, default: TRUE

needsValidVoxel

name: needsValidVoxel, type: Bool, default: TRUE

see SoView2DExtension.needsValidVoxel

wantsAllEvents

name: wantsAllEvents, type: Bool, default: FALSE

wantsKeyEvents

name: wantsKeyEvents, type: Bool, default: FALSE

wantsMouseWheelEvents

name: wantsMouseWheelEvents, type: Bool, default: FALSE

setEventHandled

name: setEventHandled, type: Bool, default: FALSE

see SoView2DExtension.setEventHandled

ignoreHandledEvents

name: ignoreHandledEvents, type: Bool, default: FALSE

see SoView2DExtension.ignoreHandledEvents

renderOnSlab

name: renderOnSlab, type: Bool, default: FALSE

clipToSlice

name: clipToSlice, type: Bool, default: FALSE

cursorShape

name: cursorShape, type: Enum, default: UNDEFINED_CURSOR

see SoView2DExtension.cursorShape

singleClicked

name: singleClicked, type: Trigger, persistent: no

doubleClicked

name: doubleClicked, type: Trigger, persistent: no

linePattern

name: linePattern, type: Integer, default: 65535
