StylePalette¶

MLModule¶

genre	`Visualization`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`MLBase`
definition	MLBase.def
see also	`SoDiagram2D`, `SoView2DMarkerEditor`, `DynamicStylePalette`
keywords	`Curve`, `color`, `line`, `marker`, `markerlist`, `type`, `user`, `defined`, `index`

Purpose¶

The module StylePalette defines of a number of appearance settings to be used in the display of curves in a diagram or related objects.

The StylePalette defines twelve styles, numbered 1 to 12, each consisting of a color, a line style and width, a marker type and size, an anti-aliasing flag, and a name. A module making use of the style palette definitions can obtain these definitions referenced by their indices. This is especially useful for cases where a number of similar objects have to be displayed (e.g., a number of curves in a diagram) and where their color or style should be chosen automatically from a selection of possible styles.

Usage¶

To let a module make use of a certain StylePalette, its style palette input has to be connected to the the output of the StylePalette module. Several modules can be connected to the same StylePalette module, thus using the same style definitions.

Only modules with a style palette input field (e.g., SoDiagram2D, SoView2DMarkerEditor) can make use of the StylePalette module.

Details¶

Note that the marker type ‘Module default’ uses the rendering module’s marker type and does not provide its own type.

Windows¶

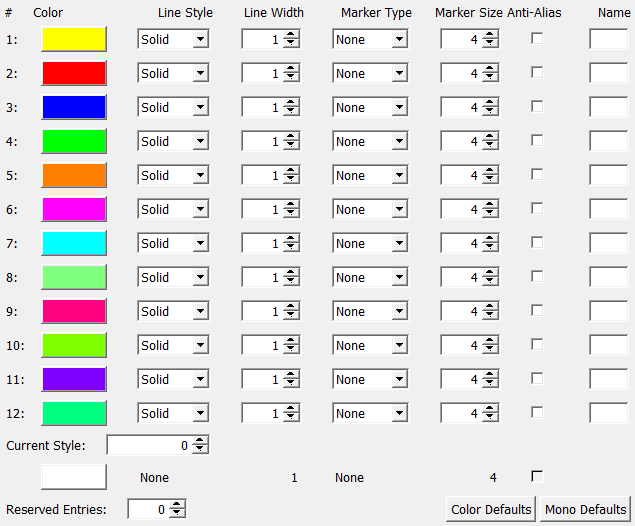

Default Panel¶

../../../Modules/ML/MLBase/mhelp/Images/Screenshots/StylePalette._default.png

Input Fields¶

If a second StylePalette module is connected this field, its style definitions (including the number of reserved entries) are copied to this module. This is useful if a second Current Style display is needed for a single set of defined styles.

inStylePalette¶

name: inStylePalette, type: StylePalette(MLBase)¶

Output Fields¶

This field gives access to the style palette defined by this module.

outStylePalette¶

name: outStylePalette, type: StylePalette(MLBase), deprecated name: outputStylePalette¶

Parameter Fields¶

Field Index¶

`antiAlias1`: `Bool`	`dump`: `Trigger`	`markerSize5`: `Integer`
`antiAlias10`: `Bool`	`lineStyle1`: `Enum`	`markerSize6`: `Integer`
`antiAlias11`: `Bool`	`lineStyle10`: `Enum`	`markerSize7`: `Integer`
`antiAlias12`: `Bool`	`lineStyle11`: `Enum`	`markerSize8`: `Integer`
`antiAlias2`: `Bool`	`lineStyle12`: `Enum`	`markerSize9`: `Integer`
`antiAlias3`: `Bool`	`lineStyle2`: `Enum`	`markerType1`: `Enum`
`antiAlias4`: `Bool`	`lineStyle3`: `Enum`	`markerType10`: `Enum`
`antiAlias5`: `Bool`	`lineStyle4`: `Enum`	`markerType11`: `Enum`
`antiAlias6`: `Bool`	`lineStyle5`: `Enum`	`markerType12`: `Enum`
`antiAlias7`: `Bool`	`lineStyle6`: `Enum`	`markerType2`: `Enum`
`antiAlias8`: `Bool`	`lineStyle7`: `Enum`	`markerType3`: `Enum`
`antiAlias9`: `Bool`	`lineStyle8`: `Enum`	`markerType4`: `Enum`
`color1`: `Color`	`lineStyle9`: `Enum`	`markerType5`: `Enum`
`color10`: `Color`	`lineWidth1`: `Integer`	`markerType6`: `Enum`
`color11`: `Color`	`lineWidth10`: `Integer`	`markerType7`: `Enum`
`color12`: `Color`	`lineWidth11`: `Integer`	`markerType8`: `Enum`
`color2`: `Color`	`lineWidth12`: `Integer`	`markerType9`: `Enum`
`color3`: `Color`	`lineWidth2`: `Integer`	`name1`: `String`
`color4`: `Color`	`lineWidth3`: `Integer`	`name10`: `String`
`color5`: `Color`	`lineWidth4`: `Integer`	`name11`: `String`
`color6`: `Color`	`lineWidth5`: `Integer`	`name12`: `String`
`color7`: `Color`	`lineWidth6`: `Integer`	`name2`: `String`
`color8`: `Color`	`lineWidth7`: `Integer`	`name3`: `String`
`color9`: `Color`	`lineWidth8`: `Integer`	`name4`: `String`
`Current Style`: `Integer`	`lineWidth9`: `Integer`	`name5`: `String`
`currentAntiAlias`: `Bool`	`markerSize1`: `Integer`	`name6`: `String`
`currentColor`: `Color`	`markerSize10`: `Integer`	`name7`: `String`
`currentLineStyle`: `Enum`	`markerSize11`: `Integer`	`name8`: `String`
`currentLineWidth`: `Integer`	`markerSize12`: `Integer`	`name9`: `String`
`currentMarkerSize`: `Integer`	`markerSize2`: `Integer`	`Reserved Entries`: `Integer`
`currentMarkerType`: `Enum`	`markerSize3`: `Integer`	`Reset Defaults`: `Trigger`
`currentName`: `String`	`markerSize4`: `Integer`

Visible Fields¶

Current Style¶

name: currentStyle, type: Integer, default: 0, minimum: 0, maximum: 12, deprecated name: CurrentStyleIndex¶: Sets the entry number of an item whose properties are shown in the fields currentAntiAlias, currentColor, currentLineStyle, currentLineWidth, currentMarkerSize, currentMarkerType, currentName, and Current Style.

Reserved Entries¶

name: reservedEntries, type: Integer, default: 0, minimum: 0, maximum: 12, deprecated name: Reserved¶

Sets a number of reserved style entries.

Modules displaying a series of objects typically use automatic style assignment, i.e., the styles are assigned to these objects one by one.

In addition to this automatic assignment, it is sometimes desired to display an object in some fixed style. For these cases, a number of entries from the upper end of the palette can be reserved for non-automatic style assignment by setting the Reserved Entries field to a number greater than 1. Reserved styles are not used for automatic assignment.

Reset Defaults¶

name: resetDefaults, type: Trigger, deprecated name: colorDefaults¶: When pressed, all styles are reset to their defaults.

Hidden Fields¶

color1¶

name: color1, type: Color, default: 1 1 0¶

color2¶

name: color2, type: Color, default: 1 0 0¶

color3¶

name: color3, type: Color, default: 0 0 1¶

color4¶

name: color4, type: Color, default: 0 1 0¶

color5¶

name: color5, type: Color, default: 1 0.5 0¶

color6¶

name: color6, type: Color, default: 1 0 1¶

color7¶

name: color7, type: Color, default: 0 1 1¶

color8¶

name: color8, type: Color, default: 0.5 1 0.5¶

color9¶

name: color9, type: Color, default: 1 0 0.5¶

color10¶

name: color10, type: Color, default: 0.5 1 0¶

color11¶

name: color11, type: Color, default: 0.5 0 1¶

color12¶

name: color12, type: Color, default: 0 1 0.5¶

lineStyle1¶

name: lineStyle1, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle2¶

name: lineStyle2, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle3¶

name: lineStyle3, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle4¶

name: lineStyle4, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle5¶

name: lineStyle5, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle6¶

name: lineStyle6, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle7¶

name: lineStyle7, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle8¶

name: lineStyle8, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle9¶

name: lineStyle9, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle10¶

name: lineStyle10, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle11¶

name: lineStyle11, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineStyle12¶

name: lineStyle12, type: Enum, default: Solid¶

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

lineWidth1¶

name: lineWidth1, type: Integer, default: 1¶

lineWidth2¶

name: lineWidth2, type: Integer, default: 1¶

lineWidth3¶

name: lineWidth3, type: Integer, default: 1¶

lineWidth4¶

name: lineWidth4, type: Integer, default: 1¶

lineWidth5¶

name: lineWidth5, type: Integer, default: 1¶

lineWidth6¶

name: lineWidth6, type: Integer, default: 1¶

lineWidth7¶

name: lineWidth7, type: Integer, default: 1¶

lineWidth8¶

name: lineWidth8, type: Integer, default: 1¶

lineWidth9¶

name: lineWidth9, type: Integer, default: 1¶

lineWidth10¶

name: lineWidth10, type: Integer, default: 1¶

lineWidth11¶

name: lineWidth11, type: Integer, default: 1¶

lineWidth12¶

name: lineWidth12, type: Integer, default: 1¶

markerType1¶

name: markerType1, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType2¶

name: markerType2, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType3¶

name: markerType3, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType4¶

name: markerType4, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType5¶

name: markerType5, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType6¶

name: markerType6, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType7¶

name: markerType7, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType8¶

name: markerType8, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType9¶

name: markerType9, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType10¶

name: markerType10, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType11¶

name: markerType11, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerType12¶

name: markerType12, type: Enum, default: None¶

Values:

Title	Name
Module default	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

markerSize1¶

name: markerSize1, type: Integer, default: 4¶

markerSize2¶

name: markerSize2, type: Integer, default: 4¶

markerSize3¶

name: markerSize3, type: Integer, default: 4¶

markerSize4¶

name: markerSize4, type: Integer, default: 4¶

markerSize5¶

name: markerSize5, type: Integer, default: 4¶

markerSize6¶

name: markerSize6, type: Integer, default: 4¶

markerSize7¶

name: markerSize7, type: Integer, default: 4¶

markerSize8¶

name: markerSize8, type: Integer, default: 4¶

markerSize9¶

name: markerSize9, type: Integer, default: 4¶

markerSize10¶

name: markerSize10, type: Integer, default: 4¶

markerSize11¶

name: markerSize11, type: Integer, default: 4¶

markerSize12¶

name: markerSize12, type: Integer, default: 4¶

antiAlias1¶

name: antiAlias1, type: Bool, default: FALSE¶

antiAlias2¶

name: antiAlias2, type: Bool, default: FALSE¶

antiAlias3¶

name: antiAlias3, type: Bool, default: FALSE¶

antiAlias4¶

name: antiAlias4, type: Bool, default: FALSE¶

antiAlias5¶

name: antiAlias5, type: Bool, default: FALSE¶

antiAlias6¶

name: antiAlias6, type: Bool, default: FALSE¶

antiAlias7¶

name: antiAlias7, type: Bool, default: FALSE¶

antiAlias8¶

name: antiAlias8, type: Bool, default: FALSE¶

antiAlias9¶

name: antiAlias9, type: Bool, default: FALSE¶

antiAlias10¶

name: antiAlias10, type: Bool, default: FALSE¶

antiAlias11¶

name: antiAlias11, type: Bool, default: FALSE¶

antiAlias12¶

name: antiAlias12, type: Bool, default: FALSE¶

name1¶

name: name1, type: String¶

name2¶

name: name2, type: String¶

name3¶

name: name3, type: String¶

name4¶

name: name4, type: String¶

name5¶

name: name5, type: String¶

name6¶

name: name6, type: String¶

name7¶

name: name7, type: String¶

name8¶

name: name8, type: String¶

name9¶

name: name9, type: String¶

name10¶

name: name10, type: String¶

name11¶

name: name11, type: String¶

name12¶

name: name12, type: String¶

currentColor¶

name: currentColor, type: Color, default: 1 1 1¶: Shows the color of the current item.

currentLineStyle¶

name: currentLineStyle, type: Enum, default: None¶: Shows the line style of the current item.

Values:

Title	Name
None	None
Solid	Solid
Dashed	Dashed
Dotted	Dotted

currentLineWidth¶

name: currentLineWidth, type: Integer, default: 1¶: Shows the line width of the current item.

currentMarkerType¶

name: currentMarkerType, type: Enum, default: None¶: Shows the marker type of the current item.

Values:

Title	Name
None	None
Dot	Dot
Asterisk	Asterisk
Circle	Circle
Square	Square
Triangle	Triangle
Plus	Plus
Cross	Cross

currentMarkerSize¶

name: currentMarkerSize, type: Integer, default: 4¶: Shows the marker size of the current item.

currentAntiAlias¶

name: currentAntiAlias, type: Bool, default: FALSE¶: Shows whether the current item is diplayed with anti-aliasing.

currentName¶

name: currentName, type: String¶: Shows the name of the current item.

dump¶

name: dump, type: Trigger¶
