SoDiagram2D¶

InventorModule¶

genre	`Diagram`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoDiagram2D`
definition	SoDiagram2D.def
see also	`StylePalette`, `ConcatenateCurves`
keywords	`Draw`, `curve`, `display`, `line`, `area`, `error`, `bar`, `extensions`

Purpose¶

The module SoDiagram2D draws curves as a diagram.

Also, this appearance of the diagram, like the style and the labeling of the axes can be adjusted by this module.

The module can furthermore render a legend and can restrict the zooming of a diagram.

Usage¶

Just attach this module to a SoRenderArea or any other viewer.

There is a number of extension modules for the SoDiagram2D module to add interaction (zooming, measuring, etc.) or different types of background.

Add the extensions in front of this module.

Windows¶

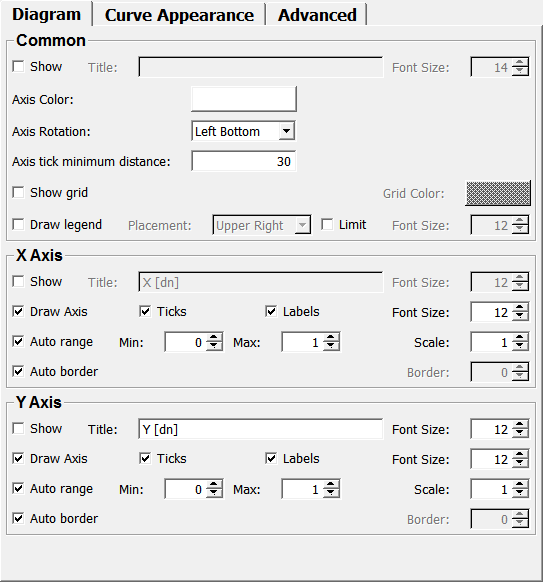

Default Panel¶

../../../Modules/Inventor/SoDiagram2D/mhelp/Images/Screenshots/SoDiagram2D._default.png

Input Fields¶

inStylePalette¶

name: inStylePalette, type: StylePalette(MLBase)¶

inCurveList¶

name: inCurveList, type: CurveDataBaseList/CurveList/CurveData(MLBase)¶: For accessing this object via scripting see the Scripting Reference: MLCurveListWrapper.

Output Fields¶

self¶

name: self, type: SoNode, deprecated name: outNode¶

Parameter Fields¶

Field Index¶

`Anti Alias`: `Bool`	`Curve Line Style Highlighted`: `Integer`	`Marker Type`: `Enum`
`Area Opacity`: `Float`	`Curve Line Style Not Highlighted`: `Integer`	`Max (maxX)`: `Double`
`Auto border (autoBorderH)`: `Bool`	`Curve Line Width Highlighted`: `Float`	`Max (maxY)`: `Double`
`Auto border (autoBorderV)`: `Bool`	`Curve Line Width Not Highlighted`: `Float`	`Max. Zoom Factor`: `Double`
`Auto range (autoRangeX)`: `Bool`	`Curves to be Highlighted`: `String`	`Min (minX)`: `Double`
`Auto range (autoRangeY)`: `Bool`	`Draw Axis (drawAxisX)`: `Bool`	`Min (minY)`: `Double`
`Axis Color`: `Color`	`Draw Axis (drawAxisY)`: `Bool`	`Min. Zoom Factor`: `Double`
`Axis Rotation`: `Enum`	`Draw Children Extensions`: `Bool`	`Placement`: `Enum`
`Axis tick minimum distance`: `Integer`	`Draw Legend`: `Bool`	`Scale (scaleX)`: `Double`
`Border (borderH)`: `Integer`	`Font Size (titleFontHeight)`: `Integer`	`Scale (scaleY)`: `Double`
`Border (borderV)`: `Integer`	`Font Size (legendFontHeight)`: `Integer`	`Should draw highlighted curves on top`: `Bool`
`Change area opacity (changeAreaOpacityForHighlightedCurves)`: `Bool`	`Font Size (axisTitleFontHeightX)`: `Integer`	`Show (drawDiagramTitle)`: `Bool`
`Change area opacity (changeAreaOpacityForNotHighlightedCurves)`: `Bool`	`Font Size (axisTitleFontHeightY)`: `Integer`	`Show (drawAxisTitleX)`: `Bool`
`Change line width (changeLineWidthForHighlightedCurves)`: `Bool`	`Font Size (axisLabelFontHeightX)`: `Integer`	`Show (drawAxisTitleY)`: `Bool`
`Change line width (changeLineWidthForNotHighlightedCurves)`: `Bool`	`Font Size (axisLabelFontHeightY)`: `Integer`	`Show grid`: `Bool`
`Change opacity (changeLineOpacityForHighlightedCurves)`: `Bool`	`Forward Events To Children Extensions`: `Bool`	`stylePaletteMode`: `Enum`
`Change opacity (changeLineOpacityForNotHighlightedCurves)`: `Bool`	`Grid Color`: `Color`	`Ticks (drawTicksX)`: `Bool`
`Change style index (changeLineStyleForHighlightedCurves)`: `Bool`	`Labels (drawLabelsX)`: `Bool`	`Ticks (drawTicksY)`: `Bool`
`Change style index (changeLineStyleForNotHighlightedCurves)`: `Bool`	`Labels (drawLabelsY)`: `Bool`	`Title (diagramTitleString)`: `String`
`Curve Area Opacity Highlighted`: `Float`	`Limit`: `Bool`	`Title (axisTitleStringX)`: `String`
`Curve Area Opacity Not Highlighted`: `Float`	`Line Opacity`: `Float`	`Title (axisTitleStringY)`: `String`
`Curve Color`: `Color`	`Line Style`: `Enum`	`Use Zoom Restrictions`: `Bool`
`Curve Line Opacity Highlighted`: `Float`	`Line Width`: `Integer`	`zoomAnimationEase`: `Float`
`Curve Line Opacity Not Highlighted`: `Float`	`Marker Size`: `Integer`	`zoomAnimationEpsilon`: `Float`

Visible Fields¶

Min (minX)¶

name: minX, type: Double, default: 0¶

Sets the minimum range in x-direction.

Is set automatically if Auto range is checked.

Max (maxX)¶

name: maxX, type: Double, default: 1¶

Sets the maximum range in x-direction.

Is set automatically if Auto range is checked.

Min (minY)¶

name: minY, type: Double, default: 0¶

Sets the minimum range in y-direction.

Is set automatically if Auto range is checked.

Max (maxY)¶

name: maxY, type: Double, default: 1¶

Sets the maximum range in y-direction.

Is set automatically if Auto range is checked.

Scale (scaleX)¶

name: scaleX, type: Double, default: 1¶: Sets a scale factor for the x-axis.

Scale (scaleY)¶

name: scaleY, type: Double, default: 1¶: Sets a scale factor for the y-axis.

Auto range (autoRangeX)¶

name: autoRangeX, type: Bool, default: TRUE¶: If checked, the range for the x-axis is computed and set automatically.

Auto range (autoRangeY)¶

name: autoRangeY, type: Bool, default: TRUE¶: If checked, the range for the y-axis is computed and set automatically.

Axis Color¶

name: axisColor, type: Color, default: 1 1 1¶: Sets the color of the axes.

Axis Rotation¶

name: axisRotation, type: Enum, default: AXIS_ROTATION_LEFT_BOTTOM¶: Defines how the axes are rotated.

Values:

Title	Name	Deprecated Name
Left Bottom	AXIS_ROTATION_LEFT_BOTTOM	LeftBottom
Right Bottom	AXIS_ROTATION_RIGHT_BOTTOM	RightBottom
Left Top	AXIS_ROTATION_LEFT_TOP	LeftTop
Right Top	AXIS_ROTATION_RIGHT_TOP	RightTop
Bottom Left	AXIS_ROTATION_BOTTOM_LEFT	BottomLeft
Bottom Right	AXIS_ROTATION_BOTTOM_RIGHT	BottomRight
Top Left	AXIS_ROTATION_TOP_LEFT	TopLeft
Top Right	AXIS_ROTATION_TOP_RIGHT	TopRight

Font Size (titleFontHeight)¶

name: titleFontHeight, type: Integer, default: 14¶: Sets the font height of the title string.

Show (drawDiagramTitle)¶

name: drawDiagramTitle, type: Bool, default: FALSE¶: If checked, a title string is rendered above the diagram.

Title (diagramTitleString)¶

name: diagramTitleString, type: String¶

Sets a string to be rendered above the diagram.

Is only rendered if Show is checked.

Show grid¶

name: drawGrid, type: Bool, default: FALSE¶: If checked, a grid is rendered in the background of the diagram.

Grid Color¶

name: gridColor, type: Color, default: 0.349999994039536 0.349999994039536 0.349999994039536¶: Sets the color of the grid that can be rendered in the background of the diagram.

Draw Legend¶

name: drawLegend, type: Bool, default: FALSE¶: If checked, a legend is rendered.

Placement¶

name: legendPlacement, type: Enum, default: LEGEND_UPPER_RIGHT¶: Defines the placement of the optional legend.

Values:

Title	Name
Upper Right	LEGEND_UPPER_RIGHT
Lower Right	LEGEND_LOWER_RIGHT
Lower Left	LEGEND_LOWER_LEFT
Upper Left	LEGEND_UPPER_LEFT

Font Size (legendFontHeight)¶

name: legendFontHeight, type: Integer, default: 12¶: Sets the font size of the optional legend.

Limit¶

name: autoLimitLegendFontHeight, type: Bool, default: FALSE¶: If checked, the height of the legend cannot exceed the height of the diagram by limiting the font size. The font size cannot be smaller that 4 pixels, though.

Use Zoom Restrictions¶

name: useZoomRestrictions, type: Bool, default: FALSE¶

If checked, the module restricts interactive zooming.

The diagram can be zoomed by using the extensions SoDiagram2DAxisZoom and/or SoDiagram2DZoom.

Min. Zoom Factor¶

name: minZoomFactor, type: Double, default: 0.1¶: Sets the minimum zoom factor.

Max. Zoom Factor¶

name: maxZoomFactor, type: Double, default: 10¶: Sets the maximum zoom factor.

Draw Children Extensions¶

name: drawChildrenExtensions, type: Bool, default: TRUE¶: If checked, extension modules are regarded while rendering the diagram.

Forward Events To Children Extensions¶

name: forwardEventsToChildrenExtensions, type: Bool, default: TRUE¶: If checked, events are forwarded to extensions in the scene.

Change opacity (changeLineOpacityForHighlightedCurves)¶

name: changeLineOpacityForHighlightedCurves, type: Bool, default: FALSE¶: If checked, the opacity of highlighted curves is changed.

Curve Line Opacity Highlighted¶

name: curveLineOpacityHighlighted, type: Float, default: 1¶: Sets the opacity of highlighted curves.

Change area opacity (changeAreaOpacityForHighlightedCurves)¶

name: changeAreaOpacityForHighlightedCurves, type: Bool, default: FALSE¶: Set if area opacity of highlighted curves should be changed.

Curve Area Opacity Highlighted¶

name: curveAreaOpacityHighlighted, type: Float, default: 1¶: Sets area opacity of highlighted curves.

Change opacity (changeLineOpacityForNotHighlightedCurves)¶

name: changeLineOpacityForNotHighlightedCurves, type: Bool, default: FALSE¶: If checked, the opacity of non-highlighted curves is changed.

Curve Line Opacity Not Highlighted¶

name: curveLineOpacityNotHighlighted, type: Float, default: 0.30000001¶: Sets the opacity of non-highlighted curves.

Change area opacity (changeAreaOpacityForNotHighlightedCurves)¶

name: changeAreaOpacityForNotHighlightedCurves, type: Bool, default: FALSE¶: Set if area opacity of not highlighted curves should be changed.

Curve Area Opacity Not Highlighted¶

name: curveAreaOpacityNotHighlighted, type: Float, default: 0.30000001¶: Sets area opacity of not highlighted curves.

Change style index (changeLineStyleForHighlightedCurves)¶

name: changeLineStyleForHighlightedCurves, type: Bool, default: FALSE¶: If checked, the line style is changed of highlighted curves.

Curve Line Style Highlighted¶

name: curveLineStyleHighlighted, type: Integer, default: 1¶: Sets the line style of highlighted curves.

Change style index (changeLineStyleForNotHighlightedCurves)¶

name: changeLineStyleForNotHighlightedCurves, type: Bool, default: FALSE¶: If checked, the line style of non-highlighted curves is changed.

Curve Line Style Not Highlighted¶

name: curveLineStyleNotHighlighted, type: Integer, default: 1¶: Sets the line style of non-highlighted curves.

Change line width (changeLineWidthForHighlightedCurves)¶

name: changeLineWidthForHighlightedCurves, type: Bool, default: FALSE¶: If checked, the line width of highlighted curves is changed.

Curve Line Width Highlighted¶

name: curveLineWidthHighlighted, type: Float, default: 1¶: Sets the line width of highlighted curves.

Change line width (changeLineWidthForNotHighlightedCurves)¶

name: changeLineWidthForNotHighlightedCurves, type: Bool, default: FALSE¶: If checked, the line width of non-highlighted curves is changed.

Curve Line Width Not Highlighted¶

name: curveLineWidthNotHighlighted, type: Float, default: 1¶: Sets the line width of non-highlighted curves.

Curves to be Highlighted¶

name: curveIndexHighlighted, type: String¶: Sets the ids of the curves to be set as highlighted.

Should draw highlighted curves on top¶

name: reorderHighlightedCurves, type: Bool, default: FALSE¶: If checked, highlighted curves are drawn after non-highlighted curves.

Border (borderH)¶

name: borderH, type: Integer, default: 0¶: Sets a horizontal border in pixel.

Border (borderV)¶

name: borderV, type: Integer, default: 0¶: Sets a vertical border in pixel.

Auto border (autoBorderH)¶

name: autoBorderH, type: Bool, default: TRUE¶: If checked, the horizontal border size is computed and set automatically.

Auto border (autoBorderV)¶

name: autoBorderV, type: Bool, default: TRUE¶: If checked, the vertical border size is computed and set automatically.

Draw Axis (drawAxisX)¶

name: drawAxisX, type: Bool, default: TRUE¶: If checked, the x-axis is rendered.

Draw Axis (drawAxisY)¶

name: drawAxisY, type: Bool, default: TRUE¶: If checked, the y-axis is rendered.

Ticks (drawTicksX)¶

name: drawTicksX, type: Bool, default: TRUE¶: If checked, ticks are rendered along the x-axis.

Ticks (drawTicksY)¶

name: drawTicksY, type: Bool, default: TRUE¶: If checked, ticks are rendered along the y-axis.

Labels (drawLabelsX)¶

name: drawLabelsX, type: Bool, default: TRUE¶: If checked, labels are rendered along the x-axis.

Labels (drawLabelsY)¶

name: drawLabelsY, type: Bool, default: TRUE¶: If checked, labels are rendered along the y-axis.

Show (drawAxisTitleX)¶

name: drawAxisTitleX, type: Bool, default: FALSE¶: If checked, a title string is rendered for the x-axis.

Show (drawAxisTitleY)¶

name: drawAxisTitleY, type: Bool, default: FALSE¶: If checked, a title string is rendered for the y-axis.

Title (axisTitleStringX)¶

name: axisTitleStringX, type: String, default: X [dn]¶: Sets a title string for the x-axis.

Title (axisTitleStringY)¶

name: axisTitleStringY, type: String, default: Y [dn]¶: Sets a title string for the y-axis.

Font Size (axisTitleFontHeightX)¶

name: axisTitleFontHeightX, type: Integer, default: 12¶: Sets the font size of the title for the x-axis.

Font Size (axisTitleFontHeightY)¶

name: axisTitleFontHeightY, type: Integer, default: 12¶: Sets the font size of the title for the y-axis.

Font Size (axisLabelFontHeightX)¶

name: axisLabelFontHeightX, type: Integer, default: 12¶: Sets the font size for the labels for the x-axis.

Font Size (axisLabelFontHeightY)¶

name: axisLabelFontHeightY, type: Integer, default: 12¶: Sets the font size for the labels for the y-axis.

Axis tick minimum distance¶

name: tickMinDistance, type: Integer, default: 30, minimum: 10¶: Use this to force a minimum distance between axis ticks.

Curve Color¶

name: curveColor, type: Color, default: 1 1 1¶

Sets the color of the rendered curves.

The colors set in the optionally attached StylePalette overwrite this color.

Line Style¶

name: lineStyle, type: Enum, default: LINE_STYLE_SOLID¶

Sets the line style for the rendered curves.

The line styles set in the optionally attached StylePalette overwrite this line style.

Values:

Title	Name	Deprecated Name
None	LINE_STYLE_NONE	None
Solid	LINE_STYLE_SOLID	Solid
Dashed	LINE_STYLE_DASHED	Dashed
Dotted	LINE_STYLE_DOTTED	Dotted

Marker Type¶

name: markerType, type: Enum, default: MARKER_TYPE_NONE¶

Sets the marker type for the rendered curves.

The marker types set in the optionally attached StylePalette overwrite this marker type.

Values:

Title	Name	Deprecated Name
None	MARKER_TYPE_NONE	None
Dot	MARKER_TYPE_DOT	Dot
Asterisk	MARKER_TYPE_ASTERISK	Asterisk
Circle	MARKER_TYPE_CIRCLE	Circle
Square	MARKER_TYPE_SQUARE	Square
Triangle	MARKER_TYPE_TRIANGLE	Triangle
Plus	MARKER_TYPE_PLUS	Plus
Cross	MARKER_TYPE_CROSS	Cross

Marker Size¶

name: markerSize, type: Integer, default: 10¶

Sets the marker size of the rendered curves.

The marker sizes set in the optionally attached StylePalette overwrite this marker size.

Line Width¶

name: lineWidth, type: Integer, default: 1¶

Sets the line width of the rendered curves.

The line widths set in the optionally attached StylePalette overwrite this line width.

Anti Alias¶

name: antiAlias, type: Bool, default: TRUE¶

If checked, the curves are rendered using anti-aliasing.

The anti-alias settings set in the optionally attached StylePalette overwrite this anti-alias setting.

Area Opacity¶

name: areaOpacity, type: Float, default: 0.5, minimum: 0, maximum: 1¶: Sets the opacity for areas rendered below the curves.

Line Opacity¶

name: lineOpacity, type: Float, default: 1, minimum: 0, maximum: 1¶: Sets the line opacity of the rendered curves.

Hidden Fields¶

zoomAnimationEase¶

name: zoomAnimationEase, type: Float, default: 0.5¶

zoomAnimationEpsilon¶

name: zoomAnimationEpsilon, type: Float, default: 0.0099999998¶

stylePaletteMode¶

name: stylePaletteMode, type: Enum, default: STYLE_PALETTE_INDEX¶: Sets mode of how styles from a StylePalette are assigned to curves.

Values:

Title	Name	Description
Index	STYLE_PALETTE_INDEX	Match curve style value to style index.
Name	STYLE_PALETTE_NAME	Match curve title value to a style name. Take the first style that matches.
