SoDiagram2DZoom¶

InventorModule¶

genre	`Diagram`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoDiagram2D`
definition	SoDiagram2D.def
see also	`SoDiagram2D`, `SoDiagram2DAxisZoom`
inherits from	`SoDiagram2DInteractionExtension`
keywords	`rectangle`, `magnify`, `factor`

Purpose¶

The module SoDiagram2DZoom zooms a diagram interactively.

The module offers two zoom modes: zooming by drawing a rubber band selection and zooming by turning the mouse wheel.

Usage¶

The module only works with the left mouse button (in conjunction with an adjustable modified key) and with the mouse wheel.

Details¶

The zoom factor can be restricted on the panel of the module SoDiagram2D.

Windows¶

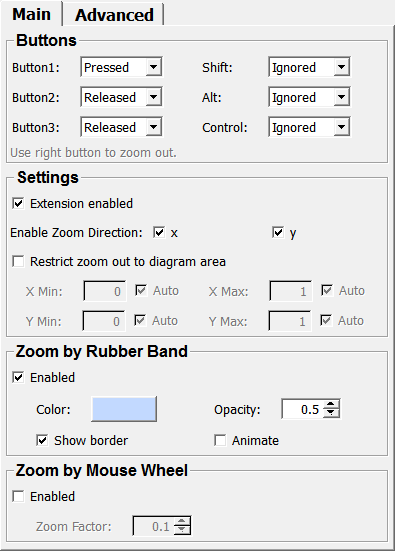

Default Panel¶

../../../Modules/Inventor/SoDiagram2D/mhelp/Images/Screenshots/SoDiagram2DZoom._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

Parameter Fields¶

Field Index¶

`Alt`: `Enum`	`cursorShape`: `Enum`	`Stop Epsilon`: `Float`
`Animate`: `Bool`	`Ease Factor`: `Float`	`x`: `Bool`
`animateScrollingZoom`: `Bool`	`Enabled (isSelectionZoomEnabled)`: `Bool`	`X Max`: `Double`
`Auto (restrictAutoXMin)`: `Bool`	`Enabled (isScrollingZoomEnabled)`: `Bool`	`X Min`: `Double`
`Auto (restrictAutoXMax)`: `Bool`	`Extension enabled`: `Bool`	`y`: `Bool`
`Auto (restrictAutoYMin)`: `Bool`	`interactionProviderID`: `String`	`Y Max`: `Double`
`Auto (restrictAutoYMax)`: `Bool`	`isEditingEnabled`: `Bool`	`Y Min`: `Double`
`Button1`: `Enum`	`Opacity`: `Float`	`Zoom Factor`: `Double`
`Button2`: `Enum`	`Reset Zoom`: `Trigger`	`Zoom In`: `Trigger`
`Button3`: `Enum`	`Restrict Zoom Out To Diagram Area`: `Bool`	`Zoom Out`: `Trigger`
`Color`: `Color`	`Shift`: `Enum`	`zoomInOutValue`: `Double`
`Control`: `Enum`	`Show border`: `Bool`	`zoomOutCursorShape`: `Enum`

Visible Fields¶

Extension enabled¶

name: isEnabled, type: Bool, default: TRUE¶

see SoDiagram2DExtension.isEnabled

Button1¶

name: button1, type: Enum, default: PRESSED¶

see SoDiagram2DInteractionExtension.button1

Button2¶

name: button2, type: Enum, default: RELEASED¶

see SoDiagram2DInteractionExtension.button2

Button3¶

name: button3, type: Enum, default: RELEASED¶

see SoDiagram2DInteractionExtension.button3

Shift¶

name: shift, type: Enum, default: IGNORED¶

see SoDiagram2DInteractionExtension.shift

Control¶

name: control, type: Enum, default: IGNORED¶

see SoDiagram2DInteractionExtension.control

Alt¶

name: alt, type: Enum, default: IGNORED¶

see SoDiagram2DInteractionExtension.alt

x¶

name: xZoomEnabled, type: Bool, default: TRUE¶: If checked, the module allows for zooming along the x-axis direction.

y¶

name: yZoomEnabled, type: Bool, default: TRUE¶: If checked, the module allows for zooming along the y-axis direction.

Enabled (isSelectionZoomEnabled)¶

name: isSelectionZoomEnabled, type: Bool, default: TRUE¶

If checked, the module allows for drawing a rubber band rectangle onto the diagram. The selected portion of the diagram is zoomed on releasing the mouse button.

In this mode, pressing the right mouse button unzooms the diagram.

Color¶

name: color, type: Color, default: 0.759999990463257 0.850000023841858 1¶: Sets the color of the selection rectangle in rubber band mode.

Opacity¶

name: opacity, type: Float, default: 0.5, minimum: 0, maximum: 1¶: Sets the opacity of the selection rectangle in rubber band mode.

Show border¶

name: border, type: Bool, default: TRUE¶: If checked, a border is rendered around the rubber band selection.

Animate¶

name: animateSelectionZoom, type: Bool, default: FALSE¶: If checked, the zooming is animated instead of being immediate.

Enabled (isScrollingZoomEnabled)¶

name: isScrollingZoomEnabled, type: Bool, default: FALSE¶: If checked, the zooming with the mouse wheel is enabled.

Zoom Factor¶

name: scrollZoomFactor, type: Double, default: 0.100000001490116¶: Sets the zoom factor for one tick of the mouse wheel.

Ease Factor¶

name: animationEaseFactor, type: Float, default: 0.60000002, minimum: 0.1, maximum: 1¶: Sets the ease factor for the zoom animation. This can be considered being a speed factor with 0.1 as the slowest and 1 as the fastest zoom animation speed.

Stop Epsilon¶

name: animationEpsilon, type: Float, default: 0.001¶

Sets an epsilon factor for the zoom animation.

This factor also influences the animation speed.

Restrict Zoom Out To Diagram Area¶

name: restrictZoomOutToDiagramArea, type: Bool, default: FALSE¶: If checked, the module restricts the zooming out of a diagram.

Zoom In¶

name: zoomIn, type: Trigger¶: When pressed, the module zooms into the diagram.

Zoom Out¶

name: zoomOut, type: Trigger¶: When pressed, the module zooms out of the diagram.

Reset Zoom¶

name: resetZoom, type: Trigger¶: When pressed, all zoom is reset.

Auto (restrictAutoXMin)¶

name: restrictAutoXMin, type: Bool, default: TRUE¶: If checked, the module computes the restricting minimum value for the x-axis.

Auto (restrictAutoXMax)¶

name: restrictAutoXMax, type: Bool, default: TRUE¶: If checked, the module computes the restricting maximum value for the x-axis.

Auto (restrictAutoYMin)¶

name: restrictAutoYMin, type: Bool, default: TRUE¶: If checked, the module computes the restricting minimum value for the y-axis.

Auto (restrictAutoYMax)¶

name: restrictAutoYMax, type: Bool, default: TRUE¶: If checked, the module computes the restricting maximum value for the y-axis.

X Min¶

name: restrictXMin, type: Double, default: 0¶: Sets the minimum value for the x-axis range as a zoom restriction.

X Max¶

name: restrictXMax, type: Double, default: 1¶: Sets the maximum value for the x-axis range as a zoom restriction.

Y Min¶

name: restrictYMin, type: Double, default: 0¶: Sets the minimum value for the y-axis range as a zoom restriction.

Y Max¶

name: restrictYMax, type: Double, default: 1¶: Sets the maximum value for the y-axis range as a zoom restriction.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoDiagram2DExtension.interactionProviderID

isEditingEnabled¶

name: isEditingEnabled, type: Bool, default: TRUE¶

see SoDiagram2DExtension.isEditingEnabled

cursorShape¶

name: cursorShape, type: Enum, default: CROSS_RECT_CURSOR¶

see SoDiagram2DInteractionExtension.cursorShape

animateScrollingZoom¶

name: animateScrollingZoom, type: Bool, default: FALSE¶

zoomInOutValue¶

name: zoomInOutValue, type: Double, default: 0.2¶

zoomOutCursorShape¶

name: zoomOutCursorShape, type: Enum, default: ZOOM_OUT_CURSOR¶
