SoPopupMenu¶

InventorModule¶

genre	`Interaction`
author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoMenu`
definition	SoMenu.def
see also	`SoBorderMenu`, `SoFixedMenu`, `SoMenuItem`, `SoInteractionMapping`, `SoView2DMenuItem`, `SoView2DMenu`
inherits from	`SoRectangularMenuBase`
keywords	`node`, `button`, `selection`, `popup`, `radiobox`, `openinventor`, `managed`, `interaction`

Purpose¶

This node shows a menu of vertically arranged SoMenuItem items when the user pressed the configured mouse button.

Usage¶

See SoRectangularMenuBase.

Interaction¶

The default mouse button is the right mouse button. This can be overridden with SoInteractionMapping.

Windows¶

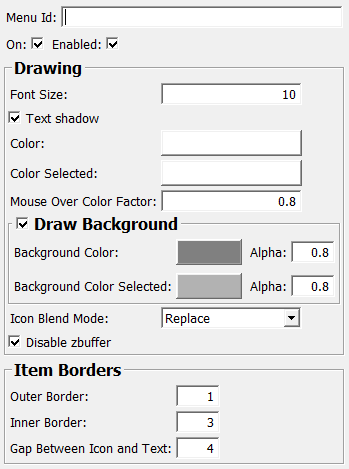

Default Panel¶

../../../Modules/Inventor/SoMenu/mhelp/Images/Screenshots/SoPopupMenu._default.png

Output Fields¶

self¶

name: self, type: SoNode¶

see SoRectangularMenuBase.self

Parameter Fields¶

Field Index¶

`Alpha (backgroundAlpha)`: `Float`	`Enabled`: `Bool`	`Menu Id`: `String`
`Alpha (backgroundAlphaSelected)`: `Float`	`Font Size`: `Integer`	`Mouse Over Color Factor`: `Float`
`Background Color`: `Color`	`Gap Between Icon and Text`: `Integer`	`On`: `Bool`
`Background Color Selected`: `Color`	`hoverItemID`: `String`	`Outer Border`: `Float`
`Color`: `Color`	`Icon Blend Mode`: `Enum`	`popupDelay`: `Float`
`Color Selected`: `Color`	`Inner Border`: `Float`	`Text Shadow`: `Bool`
`Disable ZBuffer`: `Bool`	`interactionProviderID`: `String`
`drawBackground`: `Bool`	`lastClickedItemId`: `String`

Visible Fields¶

On¶

name: on, type: Bool, default: TRUE¶

see SoRectangularMenuBase.on

Enabled¶

name: enabled, type: Bool, default: TRUE¶

see SoRectangularMenuBase.enabled

Icon Blend Mode¶

name: iconBlendMode, type: Enum, default: IconReplace¶

see SoRectangularMenuBase.iconBlendMode

Color¶

name: color, type: Color, default: 1 1 1¶

see SoRectangularMenuBase.color

Color Selected¶

name: colorSelected, type: Color, default: 1 1 1¶

see SoRectangularMenuBase.colorSelected

Background Color¶

name: backgroundColor, type: Color, default: 0.5 0.5 0.5¶

see SoRectangularMenuBase.backgroundColor

Alpha (backgroundAlpha)¶

name: backgroundAlpha, type: Float, default: 0.80000001, minimum: 0, maximum: 1¶

see SoRectangularMenuBase.backgroundAlpha

Background Color Selected¶

name: backgroundColorSelected, type: Color, default: 0.699999988079071 0.699999988079071 0.699999988079071¶

see SoRectangularMenuBase.backgroundColorSelected

Alpha (backgroundAlphaSelected)¶

name: backgroundAlphaSelected, type: Float, default: 0.80000001, minimum: 0, maximum: 1¶

see SoRectangularMenuBase.backgroundAlphaSelected

Mouse Over Color Factor¶

name: mouseOverColorFactor, type: Float, default: 0.80000001, minimum: 0, maximum: 1¶

see SoRectangularMenuBase.mouseOverColorFactor

Disable ZBuffer¶

name: disableZBuffer, type: Bool, default: TRUE¶

see SoRectangularMenuBase.disableZBuffer

Font Size¶

name: fontSize, type: Integer, default: 10, minimum: 0¶

see SoRectangularMenuBase.fontSize

Text Shadow¶

name: textShadow, type: Bool, default: TRUE¶

see SoRectangularMenuBase.textShadow

Outer Border¶

name: itemOuterBorder, type: Float, default: 1, minimum: 0¶

see SoRectangularMenuBase.itemOuterBorder

Inner Border¶

name: itemInnerBorder, type: Float, default: 3, minimum: 0¶

see SoRectangularMenuBase.itemInnerBorder

Gap Between Icon and Text¶

name: textIconGap, type: Integer, default: 4, minimum: 0¶

see SoRectangularMenuBase.textIconGap

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

see SoRectangularMenuBase.interactionProviderID

drawBackground¶

name: drawBackground, type: Bool, default: TRUE¶

see SoRectangularMenuBase.drawBackground

lastClickedItemId¶

name: lastClickedItemId, type: String, persistent: no¶

see SoRectangularMenuBase.lastClickedItemId

hoverItemID¶

name: hoverItemID, type: String¶

see SoRectangularMenuBase.hoverItemID

popupDelay¶

name: popupDelay, type: Float, default: 250, minimum: 0, maximum: 2000¶

see SoRectangularMenuBase.popupDelay
