MeVisLab Toolbox Reference
ml::WEMProcessor Class Reference

The WEMProcessor is the base class for all modules that process WEMs, be it automatically or interactive. More...

#include <WEMProcessor.h>

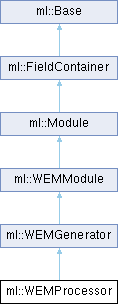

Inheritance diagram for ml::WEMProcessor:
ml::WEMGenerator ml::WEMModule ml::Module ml::FieldContainer ml::Base

Public Member Functions

 WEMProcessor (std::string type="WEMProcessor", bool useInput=true, int numInImages=0, int numOutImages=0, std::string inWEMFieldName="inWEM")
 Standard constructor. More...

- Public Member Functions inherited from ml::WEMGenerator
 WEMGenerator (std::string type="WEMGenerator", int numInImages=0, int numOutImages=0, bool shouldGenerateApplyField=true)
 Standard constructor. More...

- Public Member Functions inherited from ml::WEMModule
 WEMModule (std::string type="WEMModule", int numInImages=0, int numOutImages=0)
 Standard constructor. More...

std::string getType ()
 Returns the type of the WEMGenerator. More...

- Public Member Functions inherited from ml::Module
MLMetaProfilePtrgetMetaProfile () const
 Returns the meta profile for the base operator. More...

const char * getTypeNameFast () const
 Macro to declare methods for the ML runtime type system (see mlRuntimeSubClass.h). More...

 Module (int numInputImages, int numOutputImages)
 Constructor: Initializes numInputImages input images and numOutputImages output images of the module. More...

 ~Module () override
 Destructor: Destroys this module. More...

InputConnectorFieldgetInputImageField (MLint i) const
 Returns the field representing input image i. i must be a valid index. More...

OutputConnectorFieldgetOutputImageField (MLint i=0) const
 Returns field representing output image i. i must be a valid index. More...

MLint getNumInputImages () const
 Returns number of input images of this module. More...

MLint getNumOutputImages () const
 Returns number of output images of this module. More...

PagedImagegetOutputImage (MLint outputIndex=0) const
 Returns output image outputIndex. The index needs to be in the range [0, getNumOutputImages()-1]. More...

InputConnectorFieldaddInputImage (const char *name=nullptr)
 Adds a new input image with name to the module. More...

OutputConnectorFieldaddOutputImage (const char *name=nullptr)
 Adds a new output image with name to the module. More...

PagedImagegetInputImage (MLint inputIndex, bool getReal=false) const
 Returns the output image of the module connected to input inputIndex. More...

PagedImagegetUpdatedInputImage (MLint inputIndex, bool getReal=false) const
 Convenience method for safe access to the input image at index inputIndex. More...

MLErrorCode processAllPages (int outputIndex=-1, SubImageBox region=SubImageBox(), MLRequestProgressCB *progressCallback=nullptr, void *progressCallbackUserData=nullptr)
 Processes all pages of a module for easy implementation of page-based image processing of complete images. More...

MLErrorCode processAllPages (ProcessAllPagesHandler &handler, SubImageBox region=SubImageBox(), MLRequestProgressCB *progressCallback=nullptr, void *progressCallbackUserData=nullptr)
 Process input images with a ProcessAllPagesHandler handler on a temporary output image (which allocates no data) For details, see processAllPages(-1) above. More...

MLErrorCode processMissingPages (int outputIndex=0, SubImageBox region=SubImageBox(), MLRequestProgressCB *progressCallback=nullptr, void *progressCallbackUserData=nullptr)
 Processes all missing pages on the given output image. More...

void clearOutputImage (MLint i=0)
 Clear cached output image pages of output image i. More...

InputConnectorFieldaddInputConnector (const char *name, Module *module, MLint i) override

OutputConnectorFieldaddOutputConnector (const char *name, Module *module, MLint i) override

MLint getOutputImageInplace (MLint outputIndex=0) const
 Return optimization flag: Return index of input image whose input tile is used also as output page for output outputIndex in calculateOutputSubImage() (instead of allocating its own memory). More...

MLint getBypass (MLint outputIndex=0) const
 Returns the currently bypass index or -1 if bypassing is disabled (default). More...

THREAD_SUPPORT getThreadSupport () const
 Returns the multithreading mode supported by this module, default is NO_THREAD_SUPPORT. More...

bool areRecursiveHandleNotificationsPermitted () const
 Returns if recursive entries in handleNotification are permitted. More...

MLint getHandleNotificationEntryCounter () const
 A counter returning the current number of (recursive re)entries in handleNotification. More...

PERMITTED_TYPES getVoxelDataTypeSupport () const
 Returns the current state of supported voxel data types. More...

bool isSupportedVoxelDataType (MLDataType dt) const
 Check if a given data type is supported on the module as configured with setVoxelDataTypeSupport. More...

virtual INPUT_HANDLE handleInput (int, INPUT_STATE) const
 This method may be reimplemented to enable support for invalid input images on the module. More...

INPUT_STATE getInputState (MLint index)
 Returns the current state of the input connection. More...

INPUT_STATE getUpdatedInputState (MLint index)
 Returns the updated state of the input image by calling updateImageProperties(index) and returning getInputState(index) afterwards. More...

bool isInputImageField (Field *field) const
 Returns if the given field is an input image field. This can be used in handleNotification(), to check if one of the input images has changed. More...

void touchOutputImageFields () const
 Touch all output image fields to indicate that the images have changed. More...

FieldContainergetFieldContainer ()
 Returns a pointer to the container of all the module's fields. More...

const FieldContainergetFieldContainer () const
 Returns a constant pointer to the container of all the module's fields. More...

virtual void beginSaveFields ()
 Called before all fields data contents of this modules are saved. More...

virtual void endSaveFields ()
 Called after saving all field contents of this module. More...

- Public Member Functions inherited from ml::FieldContainer
 FieldContainer ()
 Constructor. More...

 ~FieldContainer () override
 Destructor: Deletes all added fields. More...

std::string whoAmI (bool withInstanceName=true) const
 Returns type and instance name of format "ClassTypeName(instanceName)" if the instance name is not empty and withInstanceName is true. More...

FieldaddField (const char *name, const char *type, const char *value)
 Adds a new field with name name, type type and value value (coded as string) to the container. More...

FieldaddField (Field *field)
 Adds a field, the ownership of the field is passed to the FieldContainer. More...

BoolFieldaddBool (const char *name)
 Creates a BoolField with name and adds it to the container. Default value is false. More...

BoolFieldaddBool (const char *name, bool value)
 Creates a BoolField with name and adds it to the container. More...

IntFieldaddInt (const char *name)
 Creates an IntField with name and adds it to the container. Default value is 0. More...

IntFieldaddInt (const char *name, MLint value)
 Creates an IntField with name and adds it to the container. More...

EnumFieldaddEnum (const char *name, const char *const *enumerationItemNames, MLint numEnumerationItems)
 Creates an EnumField field with name and adds it to the container. More...

EnumFieldaddEnum (const char *name, const std::vector< std::string > &enumerationItemNames)
 Creates an EnumField field with name and adds it to the container. More...

template<typename EnumType >
TypedEnumField< EnumType > * addEnum (const char *name, const EnumValues< EnumType > &values, EnumType initialValue)
 Creates a TypedEnumField field with name and adds it to the container. More...

FloatFieldaddFloat (const char *name)
 Creates a FloatField with name and adds it to the container. Default value is 0.f. More...

FloatFieldaddFloat (const char *name, float value)
 Creates a FloatField with name and adds it to the container. More...

ProgressFieldaddProgress (const char *name)
 Creates a float ProgressField with name and adds it to the container. Default value is 0.f. More...

ProgressFieldaddProgress (const char *name, float value)
 Creates a float ProgressField with name and adds it to the container. More...

DoubleFieldaddDouble (const char *name)
 Creates a DoubleField with name and adds it to the container. Default value is 0. More...

DoubleFieldaddDouble (const char *name, double value)
 Creates a DoubleField with name and adds it to the container. More...

StringFieldaddString (const char *name)
 Creates a StringField with name and adds it to the container. Default value is empty string. More...

StringFieldaddString (const char *name, const std::string &value)
 Creates a StringField with name and adds it to the container. More...

NotifyFieldaddNotify (const char *name)
 Creates a NotifyField field with name and adds it to the container. More...

TriggerFieldaddTrigger (const char *name)
 Creates a TriggerField field with name and adds it to the container. More...

BaseFieldaddBase (const char *name)
 Creates a Base field with name and adds it to the container. Default value is NULL. More...

BaseFieldaddBase (const char *name, Base *value)
 Creates a Base field with name and adds it to the container. More...

BaseFieldaddBase (const char *name, const RefCountedBasePtr &value)
 Creates a Base field with name and adds it to the container. Sets the value from intrusive pointer. More...

template<typename T >
BaseFieldaddBaseWithAllowedType (const char *name, T *value=nullptr)
 As above, but also sets the allowed type of the field. More...

template<typename T >
BaseFieldaddBaseWithAllowedType (const char *name, const ::boost::intrusive_ptr< T > &value)
 As above, but also sets the allowed type of the field. More...

template<typename T >
TypedBaseField< T > * addTypedBase (const char *name)
 Creates a TypedBaseField with name and adds it to the container. Default value is NULL. More...

template<typename T >
TypedBaseField< T > * addTypedBase (const char *name, T *value)
 Creates a TypedBaseField with name and adds it to the container. More...

template<typename T >
TypedBaseField< T > * addTypedBase (const char *name, const ::boost::intrusive_ptr< T > &value)
 Creates a TypedBaseField with name and adds it to the container. Sets the value from intrusive pointer. More...

SoNodeFieldaddSoNode (const char *name)
 Creates a SoNodeField with name and adds it to the container. Default value is NULL. More...

SoNodeFieldaddSoNode (const char *name, SoNode *value)
 Creates a SoNodeField with name and adds it to the container. More...

PointerFieldaddPointer (const char *name)
 Creates a PointerField with name and adds it to the container. More...

Vector2FieldaddVector2 (const char *name)
 Creates a Vector2Field with name and adds it to the container. More...

Vector2FieldaddVector2 (const char *name, const Vector2 &value)
 Creates a Vector2Field with name and adds it to the container. More...

Vector2FieldaddVector2 (const char *name, double x, double y)
 Creates a Vector2Field with name and adds it to the container. More...

Vector3FieldaddVector3 (const char *name)
 Creates a Vector3Field with name and adds it to the container. More...

Vector3FieldaddVector3 (const char *name, const Vector3 &value)
 Creates a Vector3Field with name and adds it to the container. More...

Vector3FieldaddVector3 (const char *name, double x, double y, double z)
 Creates a Vector3Field with name and adds it to the container. More...

Vector4FieldaddVector4 (const char *name)
 Creates a Vector4Field with name and adds it to the container. More...

Vector4FieldaddVector4 (const char *name, const Vector4 &value)
 Creates a Vector4Field with name and adds it to the container. More...

Vector4FieldaddVector4 (const char *name, double x, double y, double z, double w)
 Creates a Vector4Field with name and adds it to the container. More...

Vector5FieldaddVector5 (const char *name)
 Creates a Vector5Field with name and adds it to the container. More...

Vector5FieldaddVector5 (const char *name, const Vector5 &value)
 Creates a Vector5Field with name and adds it to the container. More...

Vector6FieldaddVector6 (const char *name)
 Creates a Vector6Field with name and adds it to the container. More...

Vector6FieldaddVector6 (const char *name, const Vector6 &value)
 Creates a Vector6Field with name and adds it to the container. More...

Vector10FieldaddVector10 (const char *name)
 Creates a Vector10Field with name and adds it to the container. More...

Vector10FieldaddVector10 (const char *name, const Vector10 &value)
 Creates a Vector10Field with name and adds it to the container. More...

ImageVectorFieldaddImageVector (const char *name)
 Creates a ImageVectorField with name and adds it to the container. More...

ImageVectorFieldaddImageVector (const char *name, const ImageVector &value)
 Creates a ImageVectorField with name and adds it to the container. More...

ImageVectorFieldaddImageVector (const char *name, MLint x, MLint y, MLint z, MLint c, MLint t, MLint u)
 Creates a ImageVectorField with name and adds it to the container. More...

SubImageBoxFieldaddSubImageBox (const char *name)
 Creates a SubImageBoxField with name and adds it to the container. More...

SubImageBoxFieldaddSubImageBox (const char *name, const SubImageBox &value)
 Creates a SubImageBoxField with name and adds it to the container. More...

SubImageBoxdFieldaddSubImageBoxd (const char *name)
 Creates a SubImageBoxd field with name and adds it to the container. More...

SubImageBoxdFieldaddSubImageBoxd (const char *name, const SubImageBoxd &value)
 Creates a SubImageBoxd field with name and adds it to the container. More...

ColorFieldaddColor (const char *name)
 Creates a ColorField with name and adds it to the container. More...

ColorFieldaddColor (const char *name, float r, float g, float b)
 Creates a ColorField with name and adds it to the container. More...

ColorFieldaddColor (const char *name, const Vector3 &value)
 Creates a ColorField with name and adds it to the container. More...

PlaneFieldaddPlane (const char *name)
 Creates a PlaneField with name and adds it to the container. More...

PlaneFieldaddPlane (const char *name, double f0, double f1, double f2, double f3)
 Creates a PlaneField with name and adds it to the container. More...

PlaneFieldaddPlane (const char *name, const Plane &value)
 Creates a PlaneField with name and adds it to the container. More...

RotationFieldaddRotation (const char *name)
 Creates a RotationField with name and adds it to the container. More...

RotationFieldaddRotation (const char *name, const Rotation &value)
 Creates a RotationField with name and adds it to the container. More...

Matrix2FieldaddMatrix2 (const char *name)
 Creates a Matrix2Field with name and adds it to the container. More...

Matrix2FieldaddMatrix2 (const char *name, const Matrix2 &value)
 Creates a Matrix2Field with name and adds it to the container. More...

Matrix3FieldaddMatrix3 (const char *name)
 Creates a Matrix3Field with name and adds it to the container. More...

Matrix3FieldaddMatrix3 (const char *name, const Matrix3 &value)
 Creates a Matrix3Field with name and adds it to the container. More...

Matrix4FieldaddMatrix4 (const char *name)
 Creates a Matrix4Field with name and adds it to the container. More...

Matrix4FieldaddMatrix4 (const char *name, const Matrix4 &value)
 Creates a Matrix4Field with name and adds it to the container. More...

Matrix5FieldaddMatrix5 (const char *name)
 Creates a Matrix5Field with name and adds it to the container. More...

Matrix5FieldaddMatrix5 (const char *name, const Matrix5 &value)
 Creates a Matrix5Field with name and adds it to the container. More...

Matrix6FieldaddMatrix6 (const char *name)
 Creates a Matrix6Field with name and adds it to the container. More...

Matrix6FieldaddMatrix6 (const char *name, const Matrix6 &value)
 Creates a Matrix6Field with name and adds it to the container. More...

MatrixFieldaddMatrix (const char *name)
 Creates a MatrixField with name and adds it to the container. More...

MatrixFieldaddMatrix (const char *name, const Matrix4 &value)
 Creates a MatrixField with name and adds it to the container. More...

MLDataTypeFieldaddMLDataType (const char *name)
 Creates a MTDataTypeField with name and adds it to the container. More...

MLDataTypeFieldaddMLDataType (const char *name, MLDataType value)
 Creates a MTDataTypeField with name and adds it to the container. More...

UniversalTypeFieldaddUniversalType (const char *name)
 Creates an UniversalTypeField field with name and adds it to the container. More...

IntListFieldaddIntList (const char *name)
 Creates an IntListField field with name and empty list value and adds it to the container. More...

IntListFieldaddIntList (const char *name, const std::vector< MLint > &value)
 Creates an IntListField field with name and given list value and adds it to the container. More...

DoubleListFieldaddDoubleList (const char *name)
 Creates an DoubleListField field with name and empty list value and adds it to the container. More...

DoubleListFieldaddDoubleList (const char *name, const std::vector< double > &value)
 Creates an DoubleListField field with name and given list value and adds it to the container. More...

Vector2ListFieldaddVector2List (const char *name)
 Creates an Vector2ListField field with name and empty list value and adds it to the container. More...

Vector2ListFieldaddVector2List (const char *name, const std::vector< Vector2 > &value)
 Creates an Vector2ListField field with name and given list value and adds it to the container. More...

Vector3ListFieldaddVector3List (const char *name)
 Creates an Vector3ListField field with name and empty list value and adds it to the container. More...

Vector3ListFieldaddVector3List (const char *name, const std::vector< Vector3 > &value)
 Creates an Vector3ListField field with name and given list value and adds it to the container. More...

Vector4ListFieldaddVector4List (const char *name)
 Creates an Vector4ListField field with name and empty list value and adds it to the container. More...

Vector4ListFieldaddVector4List (const char *name, const std::vector< Vector4 > &value)
 Creates an Vector4ListField field with name and given list value and adds it to the container. More...

size_t getNumFields () const
 Returns the number of added fields. More...

bool hasField (const std::string &name) const
 Returns true if the field with name name exists; otherwise false is returned. More...

FieldgetField (const std::string &name) const
 Returns the pointer to the field with name name. More...

FieldgetField (MLint index) const
 Returns pointer of field at index if it exists. If not, -1 is returned. More...

MLint getFieldIndex (Field *field) const
 Returns index of field if it exists. If not, -1 is returned. More...

void setFieldStringValue (const std::string &name, const std::string &value)
 Sets the value of the field with name if it exists. More...

std::string getFieldStringValue (const std::string &name) const
 Returns the string value of the field with name if it is found. More...

virtual void deactivateAttachments ()
 Disables notification handling, i.e., all fields of this module will not send notifications to attached sensors and fields any more if their values are set or changed. More...

- Public Member Functions inherited from ml::Base
 Base ()
 Constructor. More...

virtual ~Base ()
 Destructor. More...

virtual BasedeepCopy () const
 Set addStateToTree version number that can be accessed via getAddStateVersion() More...

bool isOfAllowedType (const std::vector< const RuntimeType * > &types) const
 Check if this object's type is equal to or derived from one of the types given in the argument. More...

virtual bool isRefCountedBase () const
 Returns if the instance is derived from RefCountedBase. More...

virtual std::string detailString () const
 Return a string describing this object. More...

virtual bool implementsPersistence (PersistenceInterface) const
 Override this method to declare which persistence interfaces are implemented by your derived class. More...

virtual std::string persistentState () const
 Returns a string describing the object's internal state. More...

virtual void setPersistentState (const std::string &state)
 Restores the object's internal state from a string that had been previously generated using persistentState(). More...

virtual void addStateToTree (TreeNode *) const
 Attaches the object state as children of the given parent node. More...

virtual void readStateFromTree (TreeNode *)
 Reads the object state from the children of the given parent node. More...

virtual void writeTo (AbstractPersistenceOutputStream *) const
 Write the objects state to the data stream object. More...

virtual void readFrom (AbstractPersistenceInputStream *, int)
 Read the objects state from the data stream object. More...


Protected Member Functions

 ~WEMProcessor () override
 Standard destructor. More...

WEMRequirementsgetRequirements ()
 Get requirements. More...

bool areEdgesRequired ()
 Are edges required? More...

bool isSinglePatchRequired ()
 Is a single patch required? More...

bool isPatchTypeRequired (PatchTypes patchType)
 Is patch type required? More...

bool isOrientationTypeRequired (OrientationTypes orientationType)
 Is orientation type required? More...

void requireEdges (bool requireEdgesFlag=true)
 Require edges. More...

void requireSinglePatch (bool requireSinglePatchFlag=true)
 Require single patch. More...

void requirePatchType (PatchTypes patchType)
 Require patch type. More...

void requireOrientationType (OrientationTypes orientationType)
 Require orientation type. More...

void handleNotification (Field *field) override
 Called when input changes. More...

void activateAttachments () override
 Initialize module after loading. More...

void _process () override
 Triggers the computation of the preprocessing. More...

virtual void _addWEMPatch (WEMPatch *wemPatch, bool mergeAllPatches=false)
 Adds a new WEMPatch to the output list and optionally applies the default attributes. More...

void _notifyObservers () override
 Notify observers with FINISHED | SELECTION | REPAINT message. More...

WEMPatch_makeCompatible (WEMPatch *wemPatch)
 Make given WEMPatch compatible with module requirements. More...

void _copyWEMPatch (WEMPatch *wemPatch)
 Copy given WEM. More...

- Protected Member Functions inherited from ml::WEMGenerator
 ~WEMGenerator () override
 Standard destructor. More...

virtual void _finish (WEMPatch *wemPatch)
 Finish generation of given WEMPatch. More...

void _applyFields (WEMPatch *wemPatch)
 Applies the default parameters to the given WEMPatch. More...

void _applyMetaFields (WEMPatch *wemPatch)
 Applies meta information parameters to the given WEMPatch. More...

void _finishProcessing () override
 Finishing processing: measuring time and optionally apply meta field values. More...

- Protected Member Functions inherited from ml::WEMModule
 ~WEMModule () override
 Standard destructor. More...

void _startProcessing ()
 Start processing timer. More...

- Protected Member Functions inherited from ml::Module
void handleNotificationInternal (Field *field, FieldSensor::Strength strength) override
 Called from FieldContainer whenever a field changes. More...

virtual void provideCustomPage (int, const SubImageBox &, MLMemoryBlockHandle &)
 This method allows a Module to provide its own pages to the Host for the outputIndex output image. More...

void handleNotificationOff ()
 Decreases lock counter for handleNotification calls. More...

void handleNotificationOn ()
 Increases lock counter for handleNotification calls. More...

bool isHandleNotificationOn ()
 Returns true if handleNotification calls are permitted, otherwise false. More...

void setOutputImageInplace (MLint outputIndex=0, MLint inputIndex=0)
 Set optimization flag: If calculating a page in calculateOutputSubImage(), the output image page of output outputIndex shall use the same memory as the input page of input inputIndex. More...

void unsetOutputImageInplace (MLint outputIndex=0)
 Clear optimization flag: output page of output at outputIndex and input tile shall use different memory buffers in calculateOutputSubImage(). More...

void setBypass (MLint outputIndex=0, MLint inputIndex=0)
 Sets the input image whose pages can also be used instead of output pages for the output image at outputIndex to avoid recalculations. More...

void setClampPagesToImageExtent (bool flag=true)
 Enables/disables page clamping on all output images. More...

void setThreadSupport (THREAD_SUPPORT supportMode)
 Pass any THREAD_SUPPORT supportMode to decide whether and what type of multithreading is supported by this module. More...

void permitRecursiveHandleNotifications (bool enable)
 If this flag is set to enable =true, recursive entries in handleNotification are permitted. More...

void setVoxelDataTypeSupport (PERMITTED_TYPES permTypes)
 Specifies which types this module supports. More...

virtual CalculateOutputImageHandlercreateCalculateOutputImageHandler (PagedImage *outputImage)
 Creates the CalculateOutputImageHandler for the given output image outputImage. More...

virtual void calculateOutputImageProperties (int outputIndex, PagedImage *)
 Set properties of output image outputImage with output index outputIndex. More...

virtual SubImageBox calculateInputSubImageBox (int, const SubImageBox &outputSubImageBox, int)
 Called by the Host to determine which input image region (tile) of input inputIndex is required to calculate a certain output image region (page) of output outputIndex. More...

virtual void calculateOutputSubImage (SubImage *outputSubImage, int outputIndex, SubImage *inputSubImages)
 Calculate page outputSubImage of output image with index outputIndex given the input image tiles in array inputSubImages. More...

- Protected Member Functions inherited from ml::Base
virtual char * getPersistentState () const
 Returns a C string describing the object's internal state. More...

virtual void setPersistentState (const char *)
 Restores the object's internal state from a string that had been previously generated using getPersistentState(). More...

virtual void clearPersistentState (char *) const
 Disposes a string previously allocated by getPersistentState(). More...


Static Protected Member Functions

static void _wemInputNotificationCB (void *userData, std::vector< WEMEventContainer > ecList)
 Callback method that gets triggered on notifications sent to the input WEM. More...


Protected Attributes

BoolField_workDirectlyOnInputWEMsFld

ProgressField_progressFld
 Progress field. More...

TypedEnumField< TriangulationModes > * _triangulationModeFld
 Triangulation mode (used to get compatible patch on requireTriangulation). More...

WEM_inWEM
 Pointer to inWEM. More...

bool _isInNotificationCB
 Is this module currently in the notification callback? More...

bool _isNotifyingMyself
 Is this module notifying itself? More...

bool _forceCompatible
 Make compatible during creation of _outWEM? If new patches are created, _copyInputWEMs is set to true. More...

BaseField_inputWEMFld
 Input WEM list field. More...

- Protected Attributes inherited from ml::WEMGenerator
BoolField_autoApplyFld
 Auto apply field. More...

TypedEnumField< WEMUpdateMode > * _updateModeFld
 Update mode: defines how the module reacts on any input change. More...

BoolField_overwriteLabelDescriptionFld
 Shall the label and the description be overwritten? More...

StringField_labelFld
 Field for changing the 'label' attribute of a WEM. More...

StringField_descriptionFld
 Field for changing the 'description' attribute of a WEM. More...

BoolField_shouldComputeNormalsFld
 Should the normals be computed anew on finishing a process? More...

BaseField_outputWEMFld
 WEM output field. More...

WEMPtr _outWEM
 A pointer to the output WEM. More...

NotifyField_applyFld
 Apply field, click to start generation. More...

NotifyField_clearFld
 Clear field, click to clear a module's WEM output (WEM is empty). More...

- Protected Attributes inherited from ml::WEMModule
BoolField_isProcessingFld
 Is the module currently processing? More...

FloatField_elapsedTimeFld
 Elapsed time. More...

std::string _type
 The module type as a string. More...


Additional Inherited Members

- Public Types inherited from ml::Module
enum  PERMITTED_TYPES {
  ONLY_SCALAR_TYPES , ONLY_DEFAULT_TYPES , ALL_REGISTERED_TYPES , ONLY_STANDARD_TYPES = ONLY_SCALAR_TYPES ,
  FULLY_OPERATIONAL = ONLY_DEFAULT_TYPES , MINIMUM_OPERATIONAL = ALL_REGISTERED_TYPES
}
 See documentation of setVoxelDataTypeSupport. More...

enum  INPUT_STATE { DISCONNECTED = 0 , CONNECTED_BUT_INVALID = 1 , CONNECTED_AND_VALID = 2 , CONNECTED_BUT_NEEDS_UPDATE = 3 }
 See documentation of handleInput. More...

enum  INPUT_HANDLE { INVALIDATE = 0 , ALLOW_INVALID_INPUT = 2 }
 See documentation of handleInput. More...

- Public Types inherited from ml::Base
enum  PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
 This enum describes the different persistence interfaces available. More...

- Static Public Member Functions inherited from ml::Module
static MLErrorCode getTile (PagedImage *image, SubImageBox loc, MLDataType datatype, void **data, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB *progressCallback=nullptr, void *progressCallbackUserData=nullptr)
 For documentation see Host::getTile() function with same signature. More...

static MLErrorCode getTile (PagedImage *image, SubImage &subimg, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB *progressCallback=nullptr, void *progressCallbackUserData=nullptr)
 For documentation see Host::getTile() function with same signature and Module passed as reference. More...

static MLErrorCode updateImageProperties (PagedImage *image)
 For documentation see Host::updateImageProperties() function with same signature. More...

static void freeTile (void *data)
 For documentation see Host::freeTile(). More...

static void updateProgress (const char *info1, const char *info2)
 For documentation see Host::updateProgress(). More...

static bool shouldTerminate ()
 For documentation see Host::shouldTerminate(). More...

static FieldgetPressedNotifyField ()
 For documentation see Host::getPressedNotifyField(). More...

static void adaptPageExtent (ImageVector &pageExtent, MLDataType imageType, const ImageVector &newImgExtent, const ImageVector &oldImgExtent, const ImageVector &pageUnit=ImageVector(0), const ImageVector &minPageExtent=ImageVector(0), const ImageVector &maxPageExtent=ImageVector(0))
 Adapt page size. More...

static std::string getVoxelValueAsString (PagedImage *image, const ImageVector &position, MLErrorCode *errorCode=nullptr, const std::string &errorResult="")
 Returns the voxel value at position position of the image image. More...

static size_t getNumModules ()
 Returns number of instantiated modules. More...

static ModulegetModule (size_t index)
 Returns pointer to instantiated module index. More...

static MLint findModuleIndex (Module &module)
 Returns index of Module module. If not found -1 is returned. More...

static void destroyModule ()
 Destroys static allocated tables to avoid memory leaks. More...

- Protected Types inherited from ml::Module
enum  THREAD_SUPPORT {
  NO_THREAD_SUPPORT = PagedImage::NO_THREAD_SUPPORT , MULTITHREADED = PagedImage::MULTITHREADED , IO_THREAD = PagedImage::IO_THREAD , ML_CALCULATEOUTPUTSUBIMAGE_ON_STD_TYPES = PagedImage::MULTITHREADED ,
  ML_CALCULATEOUTPUTSUBIMAGE_ON_ALL_TYPES = PagedImage::MULTITHREADED
}
 Enumerator deciding whether and which type of multithreading is supported by this module. More...


Detailed Description

The WEMProcessor is the base class for all modules that process WEMs, be it automatically or interactive.

Basically it determines the type of the WEM and an id that can be used to associate WEMs with their processor. Modules with a WEM input and a WEM output derive from this module.

Definition at line 29 of file WEMProcessor.h.

Constructor & Destructor Documentation

◆ WEMProcessor()

ml::WEMProcessor::WEMProcessor ( std::string  type = "WEMProcessor",
bool  useInput = true,
int  numInImages = 0,
int  numOutImages = 0,
std::string  inWEMFieldName = "inWEM"
)

Standard constructor.

◆ ~WEMProcessor()

ml::WEMProcessor::~WEMProcessor ( )
overrideprotected

Standard destructor.

Member Function Documentation

◆ _addWEMPatch()

virtual void ml::WEMProcessor::_addWEMPatch ( WEMPatch wemPatch,
bool  mergeAllPatches = false
)
protectedvirtual

Adds a new WEMPatch to the output list and optionally applies the default attributes.

If mergeAllPatches is true, all incoming patches are merged to the same patch, otherwise all incoming patches are just added in parallel to the WEM.

◆ _copyWEMPatch()

void ml::WEMProcessor::_copyWEMPatch ( WEMPatch wemPatch)
protected

Copy given WEM.

◆ _makeCompatible()

WEMPatch* ml::WEMProcessor::_makeCompatible ( WEMPatch wemPatch)
protected

Make given WEMPatch compatible with module requirements.

◆ _notifyObservers()

void ml::WEMProcessor::_notifyObservers ( )
overrideprotectedvirtual

Notify observers with FINISHED | SELECTION | REPAINT message.

Reimplemented from ml::WEMGenerator.

◆ _process()

void ml::WEMProcessor::_process ( )
overrideprotectedvirtual

Triggers the computation of the preprocessing.

Reimplemented from ml::WEMGenerator.

◆ _wemInputNotificationCB()

static void ml::WEMProcessor::_wemInputNotificationCB ( void *  userData,
std::vector< WEMEventContainer ecList
)
staticprotected

Callback method that gets triggered on notifications sent to the input WEM.

◆ activateAttachments()

void ml::WEMProcessor::activateAttachments ( )
overrideprotectedvirtual

Initialize module after loading.

Reimplemented from ml::WEMGenerator.

◆ areEdgesRequired()

bool ml::WEMProcessor::areEdgesRequired ( )
inlineprotected

Are edges required?

Definition at line 66 of file WEMProcessor.h.

◆ getRequirements()

WEMRequirements* ml::WEMProcessor::getRequirements ( )
inlineprotected

Get requirements.

Definition at line 63 of file WEMProcessor.h.

◆ handleNotification()

void ml::WEMProcessor::handleNotification ( Field field)
overrideprotectedvirtual

Called when input changes.

Reimplemented from ml::WEMGenerator.

◆ isOrientationTypeRequired()

bool ml::WEMProcessor::isOrientationTypeRequired ( OrientationTypes  orientationType)
inlineprotected

Is orientation type required?

Definition at line 72 of file WEMProcessor.h.

◆ isPatchTypeRequired()

bool ml::WEMProcessor::isPatchTypeRequired ( PatchTypes  patchType)
inlineprotected

Is patch type required?

Definition at line 70 of file WEMProcessor.h.

◆ isSinglePatchRequired()

bool ml::WEMProcessor::isSinglePatchRequired ( )
inlineprotected

Is a single patch required?

Definition at line 68 of file WEMProcessor.h.

◆ requireEdges()

void ml::WEMProcessor::requireEdges ( bool  requireEdgesFlag = true)
inlineprotected

Require edges.

Definition at line 75 of file WEMProcessor.h.

◆ requireOrientationType()

void ml::WEMProcessor::requireOrientationType ( OrientationTypes  orientationType)
inlineprotected

Require orientation type.

Definition at line 81 of file WEMProcessor.h.

◆ requirePatchType()

void ml::WEMProcessor::requirePatchType ( PatchTypes  patchType)
inlineprotected

Require patch type.

Definition at line 79 of file WEMProcessor.h.

◆ requireSinglePatch()

void ml::WEMProcessor::requireSinglePatch ( bool  requireSinglePatchFlag = true)
inlineprotected

Require single patch.

Definition at line 77 of file WEMProcessor.h.

Member Data Documentation

◆ _forceCompatible

bool ml::WEMProcessor::_forceCompatible
protected

Make compatible during creation of _outWEM? If new patches are created, _copyInputWEMs is set to true.

Definition at line 85 of file WEMProcessor.h.

◆ _inputWEMFld

BaseField* ml::WEMProcessor::_inputWEMFld
protected

Input WEM list field.

Definition at line 113 of file WEMProcessor.h.

◆ _inWEM

WEM* ml::WEMProcessor::_inWEM
protected

Pointer to inWEM.

Definition at line 55 of file WEMProcessor.h.

◆ _isInNotificationCB

bool ml::WEMProcessor::_isInNotificationCB
protected

Is this module currently in the notification callback?

Definition at line 57 of file WEMProcessor.h.

◆ _isNotifyingMyself

bool ml::WEMProcessor::_isNotifyingMyself
protected

Is this module notifying itself?

Definition at line 60 of file WEMProcessor.h.

◆ _progressFld

ProgressField* ml::WEMProcessor::_progressFld
protected

Progress field.

Definition at line 46 of file WEMProcessor.h.

◆ _triangulationModeFld

TypedEnumField<TriangulationModes>* ml::WEMProcessor::_triangulationModeFld
protected

Triangulation mode (used to get compatible patch on requireTriangulation).

Definition at line 49 of file WEMProcessor.h.

◆ _workDirectlyOnInputWEMsFld

BoolField* ml::WEMProcessor::_workDirectlyOnInputWEMsFld
protected

Definition at line 44 of file WEMProcessor.h.


The documentation for this class was generated from the following file:
