The ML module base class MultiFileVolumeListBaseOutput used to implement further output modules for the MultiFileVolumeList class. More...

#include <mlMultiFileVolumeListBaseOutput.h>

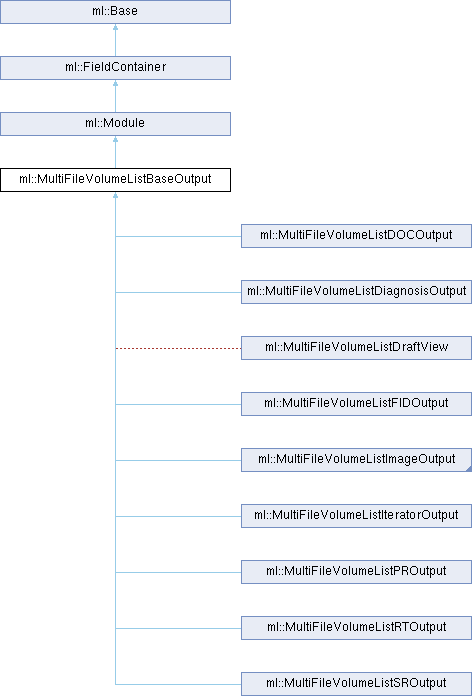

Inheritance diagram for ml::MultiFileVolumeListBaseOutput:

Public Member Functions
	MultiFileVolumeListBaseOutput (int numInputs=0, int numOutputs=0, bool autoInstallTagDumpFieldAddOn=true, bool installInputAccessConnector=true, bool installInputMessageFilterPlugin=true, bool installOutputAccessConnector=true)
	Constructor.

	~MultiFileVolumeListBaseOutput () override
	Destructor.

virtual void	updateToVolume (MultiFileVolume *outVolToUse)
	Update image output and internal pointer to the passed MultiFileVolume.

MultiFileVolume *	getCurrentlySetVolume ()
	Returns the currently set volume or nullptr if none is set.

MultiFileVolumeList *	getCurrentVolumeList ()
	Returns the pointer to the currently used volume list if there is one or nullptr otherwise.

MultiFileVolumeListRefCountedPtr	getCurrentVolumeListRefCounted ()
	Returns the refcounted base pointer to the currently used volume list if there is one or nullptr otherwise.

void	installDicomTagDumpFieldAddOn ()
	If called then a DicomTagDumpFieldAddOn is created and managed additionally to all other fields; should be called only once directly after class construction.

DicomTagDumpFieldAddOn *	getDicomTagDumpFieldAddOn () const
	Returns the DicomTagDumpFieldAddOn if installed or nullptr otherwise.

void	installRelatedDicomVolumeFieldAddOn ()
	If called then a RelatedDicomVolumFieldAddOn is created and managed additionally to all other fields; should be called only once directly after class construction.

RelatedDicomVolumeFieldAddOn *	getRelatedDicomVolumeFieldAddOn () const
	Returns the RelatedDicomVolumeFieldAddOn if installed or nullptr otherwise.


BoolField &	getUseBaseInputFld () const
	Access methods to fields; see field members for documentation.

NotifyField &	getLoadResultCacheFld () const

BoolField &	getAutoLoadResultCacheFld () const

StringField &	getCacheFilePathFld () const

IntField &	getOutVolIdxFld () const

const IntField &	getNumVolumesFld () const

const StringField &	getIssuesFld () const

const StringField &	getVolumeInfoDumpFld () const


BaseField *	getInputAccessConnectorFld () const
	Access methods to optional fields which return nullptr if fields are not requested during constructor; see field members for documentation.

BaseField *	getInputMessageFilterPluginFld () const

BaseField *	getOutputAccessConnectorFld () const

Public Member Functions inherited from ml::Module
MLMetaProfilePtr &	getMetaProfile () const
	Returns the meta profile for the base operator.

const char *	getTypeNameFast () const
	Macro to declare methods for the ML runtime type system (see mlRuntimeSubClass.h).

	Module (int numInputImages, int numOutputImages)
	Constructor: Initializes `numInputImages` input images and `numOutputImages` output images of the module.

	~Module () override
	Destructor: Destroys this module.

InputConnectorField *	getInputImageField (MLint i) const
	Returns the field representing input image `i`. `i` must be a valid index.

OutputConnectorField *	getOutputImageField (MLint i=0) const
	Returns field representing output image `i`. `i` must be a valid index.

MLint	getNumInputImages () const
	Returns number of input images of this module.

MLint	getNumOutputImages () const
	Returns number of output images of this module.

PagedImage *	getOutputImage (MLint outputIndex=0) const
	Returns output image `outputIndex`. The index needs to be in the range [0, getNumOutputImages()-1].

InputConnectorField *	addInputImage (const char *name=nullptr)
	Adds a new input image with `name` to the module.

OutputConnectorField *	addOutputImage (const char *name=nullptr)
	Adds a new output image with `name` to the module.

PagedImage *	getInputImage (MLint inputIndex, bool getReal=false) const
	Returns the output image of the module connected to input `inputIndex`.

PagedImage *	getUpdatedInputImage (MLint inputIndex, bool getReal=false) const
	Convenience method for safe access to the input image at index `inputIndex`.

MLErrorCode	processAllPages (int outputIndex=-1, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
	Processes all pages of a module for easy implementation of page-based image processing of complete images.

MLErrorCode	processAllPages (ProcessAllPagesHandler &handler, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
	Process input images with a ProcessAllPagesHandler `handler` on a temporary output image (which allocates no data) For details, see processAllPages(-1) above.

MLErrorCode	processMissingPages (int outputIndex=0, SubImageBox region=SubImageBox(), MLRequestProgressCB progressCallback=nullptr, void progressCallbackUserData=nullptr)
	Processes all missing pages on the given output image.

void	clearOutputImage (MLint i=0)
	Clear cached output image pages of output image `i`.

MLint	getOutputImageInplace (MLint outputIndex=0) const
	Return optimization flag: Return index of input image whose input tile is used also as output page for output `outputIndex` in calculateOutputSubImage() (instead of allocating its own memory).

MLint	getBypass (MLint outputIndex=0) const
	Returns the currently bypass index or -1 if bypassing is disabled (default).

THREAD_SUPPORT	getThreadSupport () const
	Returns the multithreading mode supported by this module, default is NO_THREAD_SUPPORT.

bool	areRecursiveHandleNotificationsPermitted () const
	Returns if recursive entries in handleNotification are permitted.

MLint	getHandleNotificationEntryCounter () const
	A counter returning the current number of (recursive re)entries in handleNotification.

PERMITTED_TYPES	getVoxelDataTypeSupport () const
	Returns the current state of supported voxel data types.

bool	isSupportedVoxelDataType (MLDataType dt) const
	Check if a given data type is supported on the module as configured with setVoxelDataTypeSupport.

virtual INPUT_HANDLE	handleInput (int, INPUT_STATE) const
	This method may be reimplemented to enable support for invalid input images on the module.

INPUT_STATE	getInputState (MLint index)
	Returns the current state of the input connection.

INPUT_STATE	getUpdatedInputState (MLint index)
	Returns the updated state of the input image by calling updateImageProperties(index) and returning getInputState(index) afterwards.

bool	isInputImageField (Field *field) const
	Returns if the given field is an input image field. This can be used in handleNotification(), to check if one of the input images has changed.

void	touchOutputImageFields () const
	Touch all output image fields to indicate that the images have changed.

virtual void	beginSaveFields ()
	Called before all fields data contents of this modules are saved.

virtual void	endSaveFields ()
	Called after saving all field contents of this module.

Public Member Functions inherited from ml::FieldContainer
	FieldContainer ()
	Constructor.

	~FieldContainer () override
	Destructor: Deletes all added fields.

std::string	whoAmI (bool withInstanceName=true) const
	Returns type and instance name of format "ClassTypeName(instanceName)" if the instance name is not empty and `withInstanceName` is true.

Field *	addField (const char name, const char type, const char *value)
	Adds a new field with name `name`, type `type` and value `value` (coded as string) to the container.

Field *	addField (Field *field)
	Adds a `field`, the ownership of the field is passed to the FieldContainer.

BoolField *	addBool (const char *name)
	Creates a BoolField with `name` and adds it to the container. Default value is false.

BoolField *	addBool (const char *name, bool value)
	Creates a BoolField with `name` and adds it to the container.

IntField *	addInt (const char *name)
	Creates an IntField with `name` and adds it to the container. Default value is 0.

IntField *	addInt (const char *name, MLint value)
	Creates an IntField with `name` and adds it to the container.

EnumField *	addEnum (const char name, const char const *enumerationItemNames, MLint numEnumerationItems)
	Creates an EnumField field with `name` and adds it to the container.

EnumField *	addEnum (const char *name, const std::vector< std::string > &enumerationItemNames)
	Creates an EnumField field with `name` and adds it to the container.

template<typename EnumType >
TypedEnumField< EnumType > *	addEnum (const char *name, const EnumValues< EnumType > &values, EnumType initialValue)
	Creates a TypedEnumField field with `name` and adds it to the container.

FloatField *	addFloat (const char *name)
	Creates a FloatField with `name` and adds it to the container. Default value is 0.f.

FloatField *	addFloat (const char *name, float value)
	Creates a FloatField with `name` and adds it to the container.

ProgressField *	addProgress (const char *name)
	Creates a float ProgressField with `name` and adds it to the container. Default value is 0.f.

ProgressField *	addProgress (const char *name, float value)
	Creates a float ProgressField with `name` and adds it to the container.

DoubleField *	addDouble (const char *name)
	Creates a DoubleField with `name` and adds it to the container. Default value is 0.

DoubleField *	addDouble (const char *name, double value)
	Creates a DoubleField with `name` and adds it to the container.

StringField *	addString (const char *name)
	Creates a StringField with `name` and adds it to the container. Default value is empty string.

StringField *	addString (const char *name, const std::string &value)
	Creates a StringField with `name` and adds it to the container.

NotifyField *	addNotify (const char *name)
	Creates a NotifyField field with `name` and adds it to the container.

TriggerField *	addTrigger (const char *name)
	Creates a TriggerField field with `name` and adds it to the container.

BaseField *	addBase (const char *name)
	Creates a Base field with `name` and adds it to the container. Default value is NULL.

BaseField *	addBase (const char name, Base value)
	Creates a Base field with `name` and adds it to the container.

BaseField *	addBase (const char *name, const RefCountedBasePtr &value)
	Creates a Base field with `name` and adds it to the container. Sets the value from intrusive pointer.

template<typename T >
BaseField *	addBaseWithAllowedType (const char name, T value=nullptr)
	As above, but also sets the allowed type of the field.

template<typename T >
BaseField *	addBaseWithAllowedType (const char *name, const ::boost::intrusive_ptr< T > &value)
	As above, but also sets the allowed type of the field.

template<typename T >
TypedBaseField< T > *	addTypedBase (const char *name)
	Creates a TypedBaseField with `name` and adds it to the container. Default value is NULL.

template<typename T >
TypedBaseField< T > *	addTypedBase (const char name, T value)
	Creates a TypedBaseField with `name` and adds it to the container.

template<typename T >
TypedBaseField< T > *	addTypedBase (const char *name, const ::boost::intrusive_ptr< T > &value)
	Creates a TypedBaseField with `name` and adds it to the container. Sets the value from intrusive pointer.

SoNodeField *	addSoNode (const char *name)
	Creates a SoNodeField with `name` and adds it to the container. Default value is NULL.

SoNodeField *	addSoNode (const char name, SoNode value)
	Creates a SoNodeField with `name` and adds it to the container.

PointerField *	addPointer (const char *name)
	Creates a PointerField with `name` and adds it to the container.

Vector2Field *	addVector2 (const char *name)
	Creates a Vector2Field with `name` and adds it to the container.

Vector2Field *	addVector2 (const char *name, const Vector2 &value)
	Creates a Vector2Field with `name` and adds it to the container.

Vector2Field *	addVector2 (const char *name, double x, double y)
	Creates a Vector2Field with `name` and adds it to the container.

Vector3Field *	addVector3 (const char *name)
	Creates a Vector3Field with `name` and adds it to the container.

Vector3Field *	addVector3 (const char *name, const Vector3 &value)
	Creates a Vector3Field with `name` and adds it to the container.

Vector3Field *	addVector3 (const char *name, double x, double y, double z)
	Creates a Vector3Field with `name` and adds it to the container.

Vector4Field *	addVector4 (const char *name)
	Creates a Vector4Field with `name` and adds it to the container.

Vector4Field *	addVector4 (const char *name, const Vector4 &value)
	Creates a Vector4Field with `name` and adds it to the container.

Vector4Field *	addVector4 (const char *name, double x, double y, double z, double w)
	Creates a Vector4Field with `name` and adds it to the container.

Vector5Field *	addVector5 (const char *name)
	Creates a Vector5Field with `name` and adds it to the container.

Vector5Field *	addVector5 (const char *name, const Vector5 &value)
	Creates a Vector5Field with `name` and adds it to the container.

Vector6Field *	addVector6 (const char *name)
	Creates a Vector6Field with `name` and adds it to the container.

Vector6Field *	addVector6 (const char *name, const Vector6 &value)
	Creates a Vector6Field with `name` and adds it to the container.

Vector10Field *	addVector10 (const char *name)
	Creates a Vector10Field with `name` and adds it to the container.

Vector10Field *	addVector10 (const char *name, const Vector10 &value)
	Creates a Vector10Field with `name` and adds it to the container.

ImageVectorField *	addImageVector (const char *name)
	Creates a ImageVectorField with `name` and adds it to the container.

ImageVectorField *	addImageVector (const char *name, const ImageVector &value)
	Creates a ImageVectorField with `name` and adds it to the container.

ImageVectorField *	addImageVector (const char *name, MLint x, MLint y, MLint z, MLint c, MLint t, MLint u)
	Creates a ImageVectorField with `name` and adds it to the container.

SubImageBoxField *	addSubImageBox (const char *name)
	Creates a SubImageBoxField with `name` and adds it to the container.

SubImageBoxField *	addSubImageBox (const char *name, const SubImageBox &value)
	Creates a SubImageBoxField with `name` and adds it to the container.

SubImageBoxdField *	addSubImageBoxd (const char *name)
	Creates a SubImageBoxd field with `name` and adds it to the container.

SubImageBoxdField *	addSubImageBoxd (const char *name, const SubImageBoxd &value)
	Creates a SubImageBoxd field with `name` and adds it to the container.

ColorField *	addColor (const char *name)
	Creates a ColorField with `name` and adds it to the container.

ColorField *	addColor (const char *name, float r, float g, float b)
	Creates a ColorField with `name` and adds it to the container.

ColorField *	addColor (const char *name, const Vector3 &value)
	Creates a ColorField with `name` and adds it to the container.

PlaneField *	addPlane (const char *name)
	Creates a PlaneField with `name` and adds it to the container.

PlaneField *	addPlane (const char *name, double f0, double f1, double f2, double f3)
	Creates a PlaneField with `name` and adds it to the container.

PlaneField *	addPlane (const char *name, const Plane &value)
	Creates a PlaneField with `name` and adds it to the container.

RotationField *	addRotation (const char *name)
	Creates a RotationField with `name` and adds it to the container.

RotationField *	addRotation (const char *name, const Rotation &value)
	Creates a RotationField with `name` and adds it to the container.

Matrix2Field *	addMatrix2 (const char *name)
	Creates a Matrix2Field with `name` and adds it to the container.

Matrix2Field *	addMatrix2 (const char *name, const Matrix2 &value)
	Creates a Matrix2Field with `name` and adds it to the container.

Matrix3Field *	addMatrix3 (const char *name)
	Creates a Matrix3Field with `name` and adds it to the container.

Matrix3Field *	addMatrix3 (const char *name, const Matrix3 &value)
	Creates a Matrix3Field with `name` and adds it to the container.

Matrix4Field *	addMatrix4 (const char *name)
	Creates a Matrix4Field with `name` and adds it to the container.

Matrix4Field *	addMatrix4 (const char *name, const Matrix4 &value)
	Creates a Matrix4Field with `name` and adds it to the container.

Matrix5Field *	addMatrix5 (const char *name)
	Creates a Matrix5Field with `name` and adds it to the container.

Matrix5Field *	addMatrix5 (const char *name, const Matrix5 &value)
	Creates a Matrix5Field with `name` and adds it to the container.

Matrix6Field *	addMatrix6 (const char *name)
	Creates a Matrix6Field with `name` and adds it to the container.

Matrix6Field *	addMatrix6 (const char *name, const Matrix6 &value)
	Creates a Matrix6Field with `name` and adds it to the container.

MatrixField *	addMatrix (const char *name)
	Creates a MatrixField with `name` and adds it to the container.

MatrixField *	addMatrix (const char *name, const Matrix4 &value)
	Creates a MatrixField with `name` and adds it to the container.

MLDataTypeField *	addMLDataType (const char *name)
	Creates a MTDataTypeField with `name` and adds it to the container.

MLDataTypeField *	addMLDataType (const char *name, MLDataType value)
	Creates a MTDataTypeField with `name` and adds it to the container.

UniversalTypeField *	addUniversalType (const char *name)
	Creates an UniversalTypeField field with `name` and adds it to the container.

IntListField *	addIntList (const char *name)
	Creates an IntListField field with `name` and empty list value and adds it to the container.

IntListField *	addIntList (const char *name, const std::vector< MLint > &value)
	Creates an IntListField field with `name` and given list value and adds it to the container.

DoubleListField *	addDoubleList (const char *name)
	Creates an DoubleListField field with `name` and empty list value and adds it to the container.

DoubleListField *	addDoubleList (const char *name, const std::vector< double > &value)
	Creates an DoubleListField field with `name` and given list value and adds it to the container.

Vector2ListField *	addVector2List (const char *name)
	Creates an Vector2ListField field with `name` and empty list value and adds it to the container.

Vector2ListField *	addVector2List (const char *name, const std::vector< Vector2 > &value)
	Creates an Vector2ListField field with `name` and given list value and adds it to the container.

Vector3ListField *	addVector3List (const char *name)
	Creates an Vector3ListField field with `name` and empty list value and adds it to the container.

Vector3ListField *	addVector3List (const char *name, const std::vector< Vector3 > &value)
	Creates an Vector3ListField field with `name` and given list value and adds it to the container.

Vector4ListField *	addVector4List (const char *name)
	Creates an Vector4ListField field with `name` and empty list value and adds it to the container.

Vector4ListField *	addVector4List (const char *name, const std::vector< Vector4 > &value)
	Creates an Vector4ListField field with `name` and given list value and adds it to the container.

size_t	getNumFields () const
	Returns the number of added fields.

bool	hasField (const std::string &name) const
	Returns true if the field with name `name` exists; otherwise false is returned.

Field *	getField (const std::string &name) const
	Returns the pointer to the field with name `name`.

Field *	getField (MLint index) const
	Returns pointer of field at `index` if it exists. If not, -1 is returned.

MLint	getFieldIndex (Field *field) const
	Returns index of `field` if it exists. If not, -1 is returned.

void	setFieldStringValue (const std::string &name, const std::string &value)
	Sets the `value` of the field with `name` if it exists.

std::string	getFieldStringValue (const std::string &name) const
	Returns the string value of the field with `name` if it is found.

virtual void	deactivateAttachments ()
	Disables notification handling, i.e., all fields of this module will not send notifications to attached sensors and fields any more if their values are set or changed.

Public Member Functions inherited from ml::Base
	Base ()
	Constructor.

virtual	~Base ()
	Destructor.

virtual Base *	deepCopy () const
	Set addStateToTree version number that can be accessed via getAddStateVersion()

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Check if this object's type is equal to or derived from one of the types given in the argument.

virtual bool	isRefCountedBase () const
	Returns if the instance is derived from RefCountedBase.

virtual std::string	detailString () const
	Return a string describing this object.

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class.

virtual std::string	persistentState () const
	Returns a string describing the object's internal state.

virtual void	setPersistentState (const std::string &state)
	Restores the object's internal state from a string that had been previously generated using `persistentState()`.

virtual void	addStateToTree (TreeNode *) const
	Attaches the object state as children of the given parent node.

virtual void	readStateFromTree (TreeNode *)
	Reads the object state from the children of the given parent node.

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Write the objects state to the data stream object.

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Read the objects state from the data stream object.

Protected Member Functions
void	activateAttachments () override
	Update internal module state after load or clone and enable notification handling again.

void	handleNotification (Field *field) override
	Handle field changes of the field field.

virtual void	_updateVolumeInformation (MultiFileVolume *currVol)
	This is called to notify derived classes about volume changes.

virtual DicomConfigurableMessageFilterBaseRefCountedPtr	_getMessageCollector ()
	Convenience routine to returns a new instance of a message collector to be used for message handling; either by getting one from _inputDicomMessageFilterPluginFld if possible or by creating a new default instance otherwise.

Protected Member Functions inherited from ml::Module
void	handleNotificationInternal (Field *field, FieldSensor::Strength strength) override
	Called from FieldContainer whenever a field changes.

virtual void	provideCustomPage (int, const SubImageBox &, MLMemoryBlockHandle &)
	This method allows a Module to provide its own pages to the Host for the `outputIndex` output image.

void	handleNotificationOff ()
	Decreases lock counter for handleNotification calls.

void	handleNotificationOn ()
	Increases lock counter for handleNotification calls.

bool	isHandleNotificationOn ()
	Returns true if handleNotification calls are permitted, otherwise false.

void	setOutputImageInplace (MLint outputIndex=0, MLint inputIndex=0)
	Set optimization flag: If calculating a page in calculateOutputSubImage(), the output image page of output `outputIndex` shall use the same memory as the input page of input `inputIndex`.

void	unsetOutputImageInplace (MLint outputIndex=0)
	Clear optimization flag: output page of output at `outputIndex` and input tile shall use different memory buffers in calculateOutputSubImage().

void	setBypass (MLint outputIndex=0, MLint inputIndex=0)
	Sets the input image whose pages can also be used instead of output pages for the output image at `outputIndex` to avoid recalculations.

void	setClampPagesToImageExtent (bool flag=true)
	Enables/disables page clamping on all output images.

void	setThreadSupport (THREAD_SUPPORT supportMode)
	Pass any THREAD_SUPPORT `supportMode` to decide whether and what type of multithreading is supported by this module.

void	permitRecursiveHandleNotifications (bool enable)
	If this flag is set to `enable` =true, recursive entries in handleNotification are permitted.

void	setVoxelDataTypeSupport (PERMITTED_TYPES permTypes)
	Specifies which types this module supports.

virtual CalculateOutputImageHandler *	createCalculateOutputImageHandler (PagedImage *outputImage)
	Creates the CalculateOutputImageHandler for the given output image `outputImage`.

virtual void	calculateOutputImageProperties (int outputIndex, PagedImage *outputImage)
	Set properties of output image `outputImage` with output index `outputIndex`.

virtual SubImageBox	calculateInputSubImageBox (int, const SubImageBox &outputSubImageBox, int)
	Called by the Host to determine which input image region (tile) of input `inputIndex` is required to calculate a certain output image region (page) of output `outputIndex`.

virtual void	calculateOutputSubImage (SubImage outputSubImage, int outputIndex, SubImage inputSubImages)
	Calculate page `outputSubImage` of output image with index `outputIndex` given the input image tiles in array `inputSubImages`.

Static Protected Member Functions
static std::string	extractValueAndAppend (DCMTree::Const_TreePtr dcmTree, DCMTree::TagId tagId, const std::string prefixStr, std::string &resultStr, const std::string &lineBreakStr="\n")
	Retrieves the tag value of tag with id tagId from dcmTree and adds it after prefixStr as string to resultStr; the retrieved value is returned; may throw DCMTree::Exceptions.

static int	extractIntValueAndAppend (DCMTree::Const_TreePtr dcmTree, DCMTree::TagId tagId, const std::string prefixStr, std::string &resultStr)
	Same as _extractValueAndAppend with the difference that it is tried to additionally convert the tag value to an int and to return it.

static DCMTree::Const_TagPtr	extractSequenceAndAppend (DCMTree::Const_TreePtr dcmTree, DCMTree::TagId seqTagId, const std::string seqNameStr, std::string &resultStr, const std::string &sep=".")
	Retrieves the sequence tag with id tagId from dcmTree and adds information about it to resultStr; the retrieved sequence value is returned (or a nullptr pointer if not found); may throw DCMTree::Exceptions.

Additional Inherited Members
Public Types inherited from ml::Module
enum	PERMITTED_TYPES { ONLY_SCALAR_TYPES , ONLY_DEFAULT_TYPES , ALL_REGISTERED_TYPES }
	See documentation of setVoxelDataTypeSupport. More...

enum	INPUT_STATE { DISCONNECTED = 0 , CONNECTED_BUT_INVALID = 1 , CONNECTED_AND_VALID = 2 , CONNECTED_BUT_NEEDS_UPDATE = 3 }
	See documentation of handleInput. More...

enum	INPUT_HANDLE { INVALIDATE = 0 , ALLOW_INVALID_INPUT = 2 }
	See documentation of handleInput. More...

Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Static Public Member Functions inherited from ml::Module
static MLErrorCode	getTile (PagedImage image, SubImageBox loc, MLDataType datatype, void data, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
	For documentation see Host::getTile() function with same signature.

static MLErrorCode	getTile (PagedImage image, SubImage &subimg, const ScaleShiftData &scaleShiftData=ScaleShiftData(), MLRequestProgressCB progressCallback=nullptr, void *progressCallbackUserData=nullptr)
	For documentation see Host::getTile() function with same signature and Module passed as reference.

static MLErrorCode	updateImageProperties (PagedImage *image)
	For documentation see Host::updateImageProperties() function with same signature.

static void	freeTile (void *data)
	For documentation see Host::freeTile().

static void	updateProgress (const char info1, const char info2)
	For documentation see Host::updateProgress().

static bool	shouldTerminate ()
	For documentation see Host::shouldTerminate().

static Field *	getPressedNotifyField ()
	For documentation see Host::getPressedNotifyField().

static void	adaptPageExtent (ImageVector &pageExtent, MLDataType imageType, const ImageVector &newImgExtent, const ImageVector &oldImgExtent, const ImageVector &pageUnit=ImageVector(0), const ImageVector &minPageExtent=ImageVector(0), const ImageVector &maxPageExtent=ImageVector(0))
	Adapt page size.

static std::string	getVoxelValueAsString (PagedImage image, const ImageVector &position, MLErrorCode errorCode=nullptr, const std::string &errorResult="")
	Returns the voxel value at position `position` of the image `image`.

static size_t	getNumModules ()
	Returns number of instantiated modules.

static Module *	getModule (size_t index)
	Returns pointer to instantiated module `index`.

static MLint	findModuleIndex (Module &module)
	Returns index of Module `module`. If not found -1 is returned.

static void	destroyModule ()
	Destroys static allocated tables to avoid memory leaks.

Protected Types inherited from ml::Module
enum	THREAD_SUPPORT { NO_THREAD_SUPPORT = PagedImage::NO_THREAD_SUPPORT , MULTITHREADED = PagedImage::MULTITHREADED , IO_THREAD = PagedImage::IO_THREAD }
	Enumerator deciding whether and which type of multithreading is supported by this module. More...

Detailed Description

The ML module base class MultiFileVolumeListBaseOutput used to implement further output modules for the MultiFileVolumeList class.

Definition at line 44 of file mlMultiFileVolumeListBaseOutput.h.

Constructor & Destructor Documentation

◆ MultiFileVolumeListBaseOutput()

ml::MultiFileVolumeListBaseOutput::MultiFileVolumeListBaseOutput	(	int	numInputs = 0,
		int	numOutputs = 0,
		bool	autoInstallTagDumpFieldAddOn = true,
		bool	installInputAccessConnector = true,
		bool	installInputMessageFilterPlugin = true,
		bool	installOutputAccessConnector = true )

Constructor.

Parameters

numInputs	The number of PagedImage input connectors to create.
numOutputs	The number of PagedImage output connectors to create.
autoInstallTagDumpFieldAddOn	If true then the instance automatically create a FieldAddOn to manage a tag dumps.
installInputAccessConnector	If true it makes the module have an inputAccessConnector base field for MultiFileVolumeLists, if false then no such connector is generated.
installInputMessageFilterPlugin	If true it makes the module have an inputMessageFilterPlugin base field for message filter modules, if false then no such connector is generated.
installOutputAccessConnector	If true it makes the module have an outputAccessConnector base field to the internal MultiFileVolumeList, if false then no such connector is generated.

◆ ~MultiFileVolumeListBaseOutput()

ml::MultiFileVolumeListBaseOutput::~MultiFileVolumeListBaseOutput ( )

override

Destructor.

Member Function Documentation

◆ _getMessageCollector()

virtual DicomConfigurableMessageFilterBaseRefCountedPtr ml::MultiFileVolumeListBaseOutput::_getMessageCollector ( )

protectedvirtual

Convenience routine to returns a new instance of a message collector to be used for message handling; either by getting one from _inputDicomMessageFilterPluginFld if possible or by creating a new default instance otherwise.

◆ _updateVolumeInformation()

virtual void ml::MultiFileVolumeListBaseOutput::_updateVolumeInformation ( MultiFileVolume * currVol )

protectedvirtual

This is called to notify derived classes about volume changes.

currVol is the currently selected volume or nullptr if volume is not valid.

Reimplemented in ml::MultiFileVolumeListDiagnosisOutput, ml::MultiFileVolumeListDOCOutput, ml::MultiFileVolumeListFIDOutput, ml::MultiFileVolumeListImageOutput, ml::MultiFileVolumeListREGOutput, ml::MultiFileVolumeListSEGOutput, ml::MultiFileVolumeListSMImageOutput, ml::MultiFileVolumeListPROutput, ml::MultiFileVolumeListSROutput, and ml::MultiFileVolumeListRTOutput.

◆ activateAttachments()

void ml::MultiFileVolumeListBaseOutput::activateAttachments ( )

overrideprotectedvirtual

Update internal module state after load or clone and enable notification handling again.

Reimplemented from ml::FieldContainer.

Reimplemented in ml::MultiFileVolumeListDiagnosisOutput, ml::MultiFileVolumeListDOCOutput, ml::MultiFileVolumeListFIDOutput, ml::MultiFileVolumeListIteratorOutput, ml::MultiFileVolumeListREGOutput, ml::MultiFileVolumeListSEGOutput, and ml::MultiFileVolumeListDraftView.

◆ extractIntValueAndAppend()

static int ml::MultiFileVolumeListBaseOutput::extractIntValueAndAppend	(	DCMTree::Const_TreePtr	dcmTree,
		DCMTree::TagId	tagId,
		const std::string	prefixStr,
		std::string &	resultStr )

staticprotected

Same as _extractValueAndAppend with the difference that it is tried to additionally convert the tag value to an int and to return it.

If available and possible then the value is returned, otherwise -1 is returned (also in case of nullptr dcmTree); may throw DCMTree::Exceptions.

◆ extractSequenceAndAppend()

static DCMTree::Const_TagPtr ml::MultiFileVolumeListBaseOutput::extractSequenceAndAppend	(	DCMTree::Const_TreePtr	dcmTree,
		DCMTree::TagId	seqTagId,
		const std::string	seqNameStr,
		std::string &	resultStr,
		const std::string &	sep = "." )

staticprotected

Retrieves the sequence tag with id tagId from dcmTree and adds information about it to resultStr; the retrieved sequence value is returned (or a nullptr pointer if not found); may throw DCMTree::Exceptions.

Parameters

dcmTree	The DICOM tree from which the sequence tag is to be read.
seqTagId	The Id of the sequence tag to be retrieved.
seqNameStr	The name string to be appended to describe the sequence.
resultStr	The string to which the description is to be appended.
sep	The string to be added before the newline, typically a "." or a "," or space.

Returns: The retrieved sequence tag or nullptr if not found or if dcmTree is nullptr.

◆ extractValueAndAppend()

static std::string ml::MultiFileVolumeListBaseOutput::extractValueAndAppend	(	DCMTree::Const_TreePtr	dcmTree,
		DCMTree::TagId	tagId,
		const std::string	prefixStr,
		std::string &	resultStr,
		const std::string &	lineBreakStr = "\n" )

staticprotected

Retrieves the tag value of tag with id tagId from dcmTree and adds it after prefixStr as string to resultStr; the retrieved value is returned; may throw DCMTree::Exceptions.

Parameters

dcmTree	The DICOM tree from which the tag is to be read.
tagId	The Id of the tag to be retrieved.
prefixStr	The string to be appended to resultStr before the tag value.
resultStr	The string to which prefixStr and tag value are to be appended.
lineBreakStr	The default line break code to use, defaults to .

Returns: The string value of the tag or an empty string on nullptr, if not found, or not convertible.

◆ getAutoLoadResultCacheFld()

BoolField & ml::MultiFileVolumeListBaseOutput::getAutoLoadResultCacheFld ( ) const

inline

Definition at line 91 of file mlMultiFileVolumeListBaseOutput.h.

◆ getCacheFilePathFld()

StringField & ml::MultiFileVolumeListBaseOutput::getCacheFilePathFld ( ) const

inline

Definition at line 92 of file mlMultiFileVolumeListBaseOutput.h.

◆ getCurrentlySetVolume()

MultiFileVolume * ml::MultiFileVolumeListBaseOutput::getCurrentlySetVolume ( )

Returns the currently set volume or nullptr if none is set.

◆ getCurrentVolumeList()

MultiFileVolumeList * ml::MultiFileVolumeListBaseOutput::getCurrentVolumeList ( )

Returns the pointer to the currently used volume list if there is one or nullptr otherwise.

◆ getCurrentVolumeListRefCounted()

MultiFileVolumeListRefCountedPtr ml::MultiFileVolumeListBaseOutput::getCurrentVolumeListRefCounted ( )

Returns the refcounted base pointer to the currently used volume list if there is one or nullptr otherwise.

◆ getDicomTagDumpFieldAddOn()

DicomTagDumpFieldAddOn * ml::MultiFileVolumeListBaseOutput::getDicomTagDumpFieldAddOn ( ) const

Returns the DicomTagDumpFieldAddOn if installed or nullptr otherwise.

◆ getInputAccessConnectorFld()

BaseField * ml::MultiFileVolumeListBaseOutput::getInputAccessConnectorFld ( ) const

inline

Access methods to optional fields which return nullptr if fields are not requested during constructor; see field members for documentation.

Definition at line 100 of file mlMultiFileVolumeListBaseOutput.h.

◆ getInputMessageFilterPluginFld()

BaseField * ml::MultiFileVolumeListBaseOutput::getInputMessageFilterPluginFld ( ) const

inline

Definition at line 101 of file mlMultiFileVolumeListBaseOutput.h.

◆ getIssuesFld()

const StringField & ml::MultiFileVolumeListBaseOutput::getIssuesFld ( ) const

inline

Definition at line 95 of file mlMultiFileVolumeListBaseOutput.h.

◆ getLoadResultCacheFld()

NotifyField & ml::MultiFileVolumeListBaseOutput::getLoadResultCacheFld ( ) const

inline

Definition at line 90 of file mlMultiFileVolumeListBaseOutput.h.

◆ getNumVolumesFld()

const IntField & ml::MultiFileVolumeListBaseOutput::getNumVolumesFld ( ) const

inline

Definition at line 94 of file mlMultiFileVolumeListBaseOutput.h.

◆ getOutputAccessConnectorFld()

BaseField * ml::MultiFileVolumeListBaseOutput::getOutputAccessConnectorFld ( ) const

inline

Definition at line 102 of file mlMultiFileVolumeListBaseOutput.h.

◆ getOutVolIdxFld()

IntField & ml::MultiFileVolumeListBaseOutput::getOutVolIdxFld ( ) const

inline

Definition at line 93 of file mlMultiFileVolumeListBaseOutput.h.

◆ getRelatedDicomVolumeFieldAddOn()

RelatedDicomVolumeFieldAddOn * ml::MultiFileVolumeListBaseOutput::getRelatedDicomVolumeFieldAddOn ( ) const

Returns the RelatedDicomVolumeFieldAddOn if installed or nullptr otherwise.

◆ getUseBaseInputFld()

BoolField & ml::MultiFileVolumeListBaseOutput::getUseBaseInputFld ( ) const

inline

Access methods to fields; see field members for documentation.

Definition at line 89 of file mlMultiFileVolumeListBaseOutput.h.

◆ getVolumeInfoDumpFld()

const StringField & ml::MultiFileVolumeListBaseOutput::getVolumeInfoDumpFld ( ) const

inline

Definition at line 96 of file mlMultiFileVolumeListBaseOutput.h.

◆ handleNotification()

void ml::MultiFileVolumeListBaseOutput::handleNotification ( Field * field )

overrideprotectedvirtual

Handle field changes of the field field.

Reimplemented from ml::Module.

Reimplemented in ml::MultiFileVolumeListDiagnosisOutput, ml::MultiFileVolumeListDOCOutput, ml::MultiFileVolumeListFIDOutput, ml::MultiFileVolumeListIteratorOutput, ml::MultiFileVolumeListREGOutput, ml::MultiFileVolumeListSEGOutput, ml::MultiFileVolumeListSROutput, ml::MultiFileVolumeListDraftView, and ml::MultiFileVolumeListRTOutput.

◆ installDicomTagDumpFieldAddOn()

void ml::MultiFileVolumeListBaseOutput::installDicomTagDumpFieldAddOn ( )

If called then a DicomTagDumpFieldAddOn is created and managed additionally to all other fields; should be called only once directly after class construction.

◆ installRelatedDicomVolumeFieldAddOn()

void ml::MultiFileVolumeListBaseOutput::installRelatedDicomVolumeFieldAddOn ( )

If called then a RelatedDicomVolumFieldAddOn is created and managed additionally to all other fields; should be called only once directly after class construction.

◆ updateToVolume()

virtual void ml::MultiFileVolumeListBaseOutput::updateToVolume ( MultiFileVolume * outVolToUse )

virtual

Update image output and internal pointer to the passed MultiFileVolume.

This also can be used by external callers to set a MultiFileVolume to get ML image access to a MultiFileVolume.

Reimplemented in ml::MultiFileVolumeListImageOutput, and ml::MultiFileVolumeListSMImageOutput.

The documentation for this class was generated from the following file:

FMEstable/ReleaseMeVis/Projects/MultiFileVolume/MLMultiFileVolumeListOutputs/Sources/mlMultiFileVolumeListBaseOutput.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MultiFileVolumeListBaseOutput()

◆ ~MultiFileVolumeListBaseOutput()

Member Function Documentation

◆ _getMessageCollector()

◆ _updateVolumeInformation()

◆ activateAttachments()

◆ extractIntValueAndAppend()

◆ extractSequenceAndAppend()

◆ extractValueAndAppend()

◆ getAutoLoadResultCacheFld()

◆ getCacheFilePathFld()

◆ getCurrentlySetVolume()

◆ getCurrentVolumeList()

◆ getCurrentVolumeListRefCounted()

◆ getDicomTagDumpFieldAddOn()

◆ getInputAccessConnectorFld()

◆ getInputMessageFilterPluginFld()

◆ getIssuesFld()

◆ getLoadResultCacheFld()

◆ getNumVolumesFld()

◆ getOutputAccessConnectorFld()

◆ getOutVolIdxFld()

◆ getRelatedDicomVolumeFieldAddOn()

◆ getUseBaseInputFld()

◆ getVolumeInfoDumpFld()

◆ handleNotification()

◆ installDicomTagDumpFieldAddOn()

◆ installRelatedDicomVolumeFieldAddOn()

◆ updateToVolume()
