Base class for describing detail information about a shape node. More...

#include <Inventor/details/SoDetail.h>

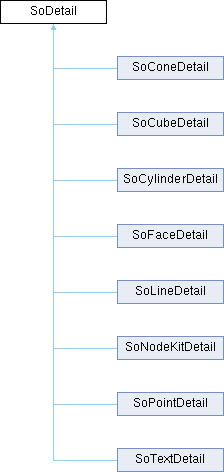

Inheritance diagram for SoDetail:

Public Member Functions
virtual	~SoDetail ()
	Destructor.

virtual SoType	getTypeId () const =0
	Returns the type identifier for a specific instance.

bool	isOfType (SoType type) const
	Returns TRUE if this object is of the type specified in `type` or is derived from that type.

virtual SoDetail *	copy () const =0
	Returns an instance that is a copy of this instance.

Static Public Member Functions
static SoType	getClassTypeId ()
	Returns type identifier for this class.

static void	initClass ()

static void	initClasses ()
	Initialize ALL Inventor detail classes.

Protected Member Functions
	SoDetail ()
	Constructor is protected since this is an abstract class.

Detailed Description

SoDetail is the abstract base class for all detail classes. A detail contains shape-specific information about a particular shape during picking and primitive generation. Subclasses store information based on the particular type of shape.

See Also

: SoConeDetail, SoCubeDetail, SoCylinderDetail, SoDetailList, SoFaceDetail, SoLineDetail, SoNodeKitDetail, SoPickedPoint, SoPointDetail, SoPrimitiveVertex, SoTextDetail

Definition at line 78 of file SoDetail.h.

Constructor & Destructor Documentation

◆ ~SoDetail()

virtual SoDetail::~SoDetail ( )

virtual

◆ SoDetail()

SoDetail::SoDetail ( )

protected

Referenced by SoConeDetail::copy(), SoCubeDetail::copy(), SoCylinderDetail::copy(), copy(), SoFaceDetail::copy(), SoLineDetail::copy(), SoNodeKitDetail::copy(), SoPointDetail::copy(), and SoTextDetail::copy().

Member Function Documentation

◆ copy()

virtual SoDetail * SoDetail::copy ( ) const

pure virtual

The caller is responsible for deleting the copy when done.

Implemented in SoConeDetail, SoCubeDetail, SoCylinderDetail, SoFaceDetail, SoLineDetail, SoNodeKitDetail, SoPointDetail, and SoTextDetail.

References SoDetail(), and SoINTERNAL.

◆ getClassTypeId()

static SoType SoDetail::getClassTypeId ( )

inlinestatic

Definition at line 84 of file SoDetail.h.

◆ getTypeId()

virtual SoType SoDetail::getTypeId ( ) const

pure virtual

◆ initClass()

static void SoDetail::initClass ( )

static

◆ initClasses()

static void SoDetail::initClasses ( )

static

◆ isOfType()

bool SoDetail::isOfType ( SoType type ) const

Otherwise, it returns FALSE.

The documentation for this class was generated from the following file:

C:/jh/mevislab/4.1.3_0/build/MeVis/ThirdParty/Sources/Inventor/include/Inventor/details/SoDetail.h
