Purpose
The module SoCameraWidget
shows a simple widget on an Open Inventor viewer that can be used to rotate, pan, or zoom the scene.
Usage
Place this node into an Open Inventor scene and select if you need rotation, panning, or zooming. The scene must contain a camera node and probably also should have a headlight for the lighting.
Details
This node uses Managed Interaction, so you can use SoInteractionMapping
to change the default mouse bindings of this module. The Main Interaction
field just determines which of the two interactions has a default mouse binding, so with SoInteractionMapping
you could bind all three interactions of the widget at the same time.
Interaction
The interactions are the same as for SoCameraInteraction
, just confined to a small area of the viewer.
Drag operations started at the borders will be confined to vertical or horizontal movement (for pan and rotate).
You can also click at the borders of the widget to do a step-wise movement.
A double-click on the center is also registered and redirected to the doubleClicked
trigger field (available on the automatic panel of the module).
Tips
For the rotation interaction, you could also leave the Overlay Image
empty and instead use a SoOrientationInset
and SoOrientationModel
module for the visualization of the rotation.
For zooming, there is an alternative widget image in the same directory as the default widget image that is better suited as a zooming slider.
Add field listeners to Is Interactive
or Is Mouse Over
field of the module to change the visualization while rotating/panning or while the mouse is over the sensitive area of the widget.
The cursor shapes for various interactions can be changed from the automatic panel of this module.
Windows

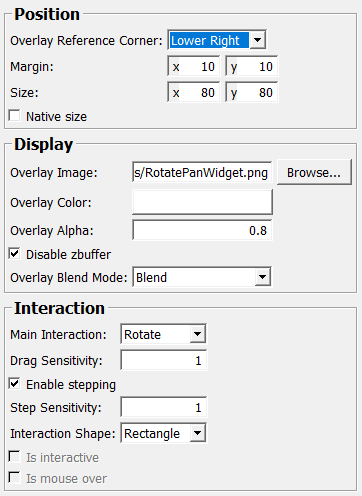

Default Panel
Output Fields
self
-
name:
self
, type:
SoNode
Connect this to the Open Inventor scene.
Parameter Fields
Visible Fields
Overlay Reference Corner
-
name:
overlayReferenceCorner
, type:
Enum
, default:
LOWER_RIGHT
Defines the corner of the viewer the widget is positioned relative to.
Values:
Title |
Name |
Upper Left |
UPPER_LEFT |
Lower Left |
LOWER_LEFT |
Upper Right |
UPPER_RIGHT |
Lower Right |
LOWER_RIGHT |
Margin
-
name:
margin
, type:
IntVector2
, default:
10 10
Sets the margin (in pixels) to leave relative to the reference corner.
Size
-
name:
size
, type:
IntVector2
, default:
80 80
Sets the size to use for the displayed overlay image and the sensitive area.
Native Size
-
name:
nativeSize
, type:
Bool
, default:
FALSE
If checked, the true size of the Overlay Image
is used instead of Size
.
Disable ZBuffer
-
name:
disableZBuffer
, type:
Bool
, default:
TRUE
If checked, the OpenGL z-buffer is disabled while drawing the overlay image.
Overlay Image
-
name:
overlayImage
, type:
String
, default:
$(LOCAL)/images/RotatePanWidget.png
Sets the file path to the overlay image to draw.
Overlay Color
-
name:
overlayColor
, type:
Color
, default:
1 1 1
Sets the color of the overlay image.
This is multiplied with the colors of the overlay image, so usually white will be the preferred color.
Overlay Alpha
-
name:
overlayAlpha
, type:
Float
, default:
0.80000001
Stes the alpha value of the overlay image.
This is multiplied with the alpha values of the overlay image.
Overlay Blend Mode
-
name:
overlayBlendMode
, type:
Enum
, default:
OverlayBlend
Defines which blend mode to use when drawing the overlay image on the screen.
Values:
Title |
Name |
Replace |
OverlayReplace |
Blend |
OverlayBlend |
Premultiplied Blend |
OverlayPremultipliedBlend |
Is Interactive
-
name:
isInteractive
, type:
Bool
, persistent:
no
Shows whether the interaction is performed.
Is Mouse Over
-
name:
isMouseOver
, type:
Bool
, persistent:
no
Shows whether the mouse hovers over the sensitive area of the widget and the keyboard modifier keys have the correct configuration for the configured mouse binding or while interacting.
Interaction Shape
-
name:
interactionShape
, type:
Enum
, default:
RECTANGLE
Defines the shape of the sensitive area of the widget.
This should probably be selected depending on the overall shape of the overlay image.
Values:
Title |
Name |
Rectangle |
RECTANGLE |
Round |
ROUND |
Enable Stepping
-
name:
enableStepping
, type:
Bool
, default:
TRUE
If checked, the user can click on the borders of the widget to perform a step operation.
How large the step is depends on Step Sensitivity
.
Main Interaction
-
name:
mainInteraction
, type:
Enum
, default:
ROTATE
Defines the type of interaction: rotating or panning.
Values:
Title |
Name |
Rotate |
ROTATE |
Pan |
PAN |
Zoom |
ZOOM |
Drag Sensitivity
-
name:
dragSensitivity
, type:
Float
, default:
1
Sets the sensitivity of the dragging.
For the zoom action, a negative value means that the zoom direction is reversed; for other operations, this value should be greater than zero.
Step Sensitivity
-
name:
stepSensitivity
, type:
Float
, default:
1
Sets the sensitivity of the operation performed when clicking on the border of the widget (if Enable Stepping
is true).
For the zoom action, a negative value means that the zoom direction is reversed; for other operations, this value should be greater than zero.
Hidden Fields
interactionProviderID
-
name:
interactionProviderID
, type:
String
doubleClicked
-
name:
doubleClicked
, type:
Trigger
, persistent:
no
This field is touched when a user double-clicks on the center of the widget.
In the example network this is connected to the viewAll field of SoCameraInteraction
to place the scene into the view volume again.
