SoSlideWidget¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCameraInteraction`
definition	SoSlideWidget.def
see also	`SoMouseGrabber`, `SoCameraWidget`
keywords	`overlay`, `3D`

Purpose¶

The module SoSlideWidget shows a simple widget on an Open Inventor viewer that can be used to change one or two numeric values (e.g., the window/level values of an image, or the slice number, as seen in the module example).

Usage¶

Place this node into an Open Inventor scene and configure if you want to change a value in vertical or horizontal direction or both. Select minimum and maximum values, and a starting value for the configured directions.

Details¶

This node uses Managed Interaction, so you can use SoInteractionMapping to change the default mouse bindings of this module.

Interaction¶

Drag the mouse from the middle of the widget to change horizontal and vertical values at the same time (if configured).

Drag operations started at the (outer third) borders will be confined to vertical or horizontal movement and clicking on the border of the widget allows for performing step-wise changes, but both only if Enable Stepping is on.

Tips¶

Add field listeners to Is Interactive or Is Mouse Over field of the module to change the visualization while rotating/panning or while the mouse is over the sensitive area of the widget.

The cursor shapes for various interactions can be changed from the automatic panel of this module.

Windows¶

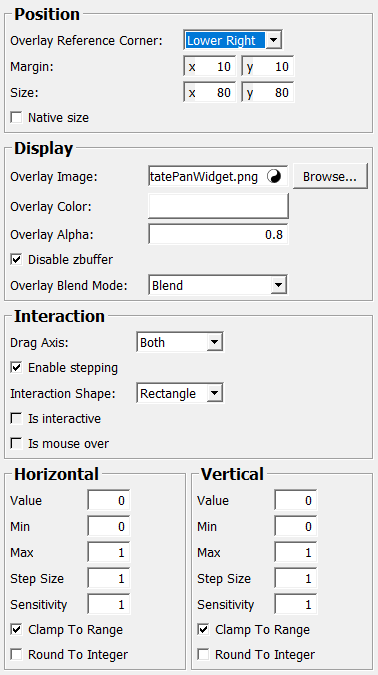

Default Panel¶

../../../Modules/Inventor/SoCameraInteraction/mhelp/Images/Screenshots/SoSlideWidget._default.png

Output Fields¶

self¶

name: self, type: SoNode¶: Connect this to the Open Inventor scene.

Parameter Fields¶

Field Index¶

`Clamp to range (xClamp)`: `Bool`	`interactionProviderID`: `String`	`Overlay Image`: `String`
`Clamp to range (yClamp)`: `Bool`	`Is Interactive`: `Bool`	`Overlay Reference Corner`: `Enum`
`cursorShapeDecHorizontal`: `Enum`	`Is Mouse Over`: `Bool`	`Round to integer (xRoundToInt)`: `Bool`
`cursorShapeDecVertical`: `Enum`	`Margin`: `IntVector2`	`Round to integer (yRoundToInt)`: `Bool`
`cursorShapeDefault`: `Enum`	`Max (xMax)`: `Double`	`Sensitivity (xSensitivity)`: `Double`
`cursorShapeIncHorizontal`: `Enum`	`Max (yMax)`: `Double`	`Sensitivity (ySensitivity)`: `Double`
`cursorShapeIncVertical`: `Enum`	`Min (xMin)`: `Double`	`Size`: `IntVector2`
`Disable Z buffer`: `Bool`	`Min (yMin)`: `Double`	`Step Size (xStep)`: `Double`
`doubleClicked`: `Trigger`	`Native Size`: `Bool`	`Step Size (yStep)`: `Double`
`Drag Axis`: `Enum`	`Overlay Alpha`: `Float`	`Value (xValue)`: `Double`
`Enable Stepping`: `Bool`	`Overlay Blend Mode`: `Enum`	`Value (yValue)`: `Double`
`Interaction Shape`: `Enum`	`Overlay Color`: `Color`

Visible Fields¶

Overlay Reference Corner¶

name: overlayReferenceCorner, type: Enum, default: LOWER_RIGHT¶: Defines the corner of the viewer the widget is positioned relative to.

Values:

Title	Name
Upper Left	UPPER_LEFT
Lower Left	LOWER_LEFT
Upper Right	UPPER_RIGHT
Lower Right	LOWER_RIGHT

Margin¶

name: margin, type: IntVector2, default: 10 10¶: Sets the margin (in pixels) to leave relative to the reference corner.

Size¶

name: size, type: IntVector2, default: 80 80¶: Sets the size to use for the displayed overlay image and the sensitive area.

Native Size¶

name: nativeSize, type: Bool, default: FALSE¶: If checked, use the true size of the Overlay Image instead of Size.

Disable Z buffer¶

name: disableZBuffer, type: Bool, default: TRUE¶: If checked, the OpenGL z-buffer is disabled while drawing the overlay image.

Overlay Image¶

name: overlayImage, type: String, default: $(LOCAL)/images/RotatePanWidget.png¶: Sets the file path to the overlay image to draw.

Overlay Color¶

name: overlayColor, type: Color, default: 1 1 1¶

Sets the color of the overlay image.

This is multiplied with the colors of the overlay image, so usually white will be the preferred color.

Overlay Alpha¶

name: overlayAlpha, type: Float, default: 0.80000001¶

Sets the alpha value of the overlay image.

This is multiplied with the alpha values of the overlay image.

Overlay Blend Mode¶

name: overlayBlendMode, type: Enum, default: OverlayBlend¶: Defines which blend mode to use when drawing the overlay image on the screen.

Values:

Title	Name
Replace	OverlayReplace
Blend	OverlayBlend
Premultiplied Blend	OverlayPremultipliedBlend

Is Interactive¶

name: isInteractive, type: Bool, persistent: no¶: Shows whether an interaction is performed.

Is Mouse Over¶

name: isMouseOver, type: Bool, persistent: no¶: Shows whether the mouse hovers over the sensitive area of the widget and the keyboard modifier keys have the correct configuration for the configured mouse binding or while interacting.

Interaction Shape¶

name: interactionShape, type: Enum, default: RECTANGLE¶

Defines the shape of the sensitive area of the widget.

This should probably be selected depending on the overall shape of the overlay image.

Values:

Title	Name
Rectangle	RECTANGLE
Round	ROUND

Enable Stepping¶

name: enableStepping, type: Bool, default: TRUE¶

If checked, the user can click on the borders of the widget to perform a step operation.

How big the step is depends on Sensitivity and Sensitivity

Min (xMin)¶

name: xMin, type: Double, default: 0¶: Sets the minimum value of the horizontal range.

Max (xMax)¶

name: xMax, type: Double, default: 1¶: Sets the maximum value of the horizontal range.

Value (xValue)¶

name: xValue, type: Double, default: 0¶: Sets the current value of the horizontal direction.

Step Size (xStep)¶

name: xStep, type: Double, default: 1¶: Sets the stepping value in the horizontal direction.

Sensitivity (xSensitivity)¶

name: xSensitivity, type: Double, default: 1¶

Sets the drag sensitivity of the horizontal direction.

Sensitivity is also governed by the value range given by Min and Max.

Clamp to range (xClamp)¶

name: xClamp, type: Bool, default: TRUE¶: If checked, Value is restricted to the range given by Min and Max while dragging or stepping (not when set from the outside). Otherwise, the range is only used to modify the sensitivity.

Round to integer (xRoundToInt)¶

name: xRoundToInt, type: Bool, default: FALSE¶: If checked, Value will only take on integer values while dragging or stepping (initial value will be left unchanged).

Min (yMin)¶

name: yMin, type: Double, default: 0¶: Sets the minimum value of the vertical range.

Max (yMax)¶

name: yMax, type: Double, default: 1¶: Sets the maximum value of the vertical range.

Value (yValue)¶

name: yValue, type: Double, default: 0¶: Sets the current value of the vertical direction.

Step Size (yStep)¶

name: yStep, type: Double, default: 1¶: Sets the stepping value in the vertical direction.

Sensitivity (ySensitivity)¶

name: ySensitivity, type: Double, default: 1¶

Sets the drag sensitivity of the vertical direction.

Sensitivity is also governed by the value range given by Min and Max.

Clamp to range (yClamp)¶

name: yClamp, type: Bool, default: TRUE¶: If checked, Value is restricted to the range given by Min and Max while dragging or stepping (not when set from the outside). Otherwise, the range is only used to modify the sensitivity.

Round to integer (yRoundToInt)¶

name: yRoundToInt, type: Bool, default: FALSE¶: If checked, Value will only take on integer values while dragging or stepping (initial value will be left unchanged).

Drag Axis¶

name: dragAxis, type: Enum, default: DRAG_BOTH¶: Defines whehther the dragging changes values in the horizontal or vertical direction, or both.

Values:

Title	Name
Both	DRAG_BOTH
Horizontal	DRAG_HORIZONTAL
Vertical	DRAG_VERTICAL

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

doubleClicked¶

name: doubleClicked, type: Trigger, persistent: no¶: This field is touched if a user double-clicks on the center of the widget.

cursorShapeDefault¶

name: cursorShapeDefault, type: Enum, default: MOVE_ALL_CURSOR¶: Defines the cursor shape to use as default (when over the center, or when stepping is disabled).

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
