SoCameraInteraction¶

InventorModule¶

author	`MeVis Medical Solutions AG`
package	`MeVisLab/Standard`
dll	`SoCameraInteraction`
definition	SoCameraInteraction.def
see also	`SoRenderArea`, `SoExaminerViewer`, `RemoteRendering`
keywords	`view`, `viewall`, `headlight`, `light`, `sagittal`, `coronal`, `axial`, `3D`

Purpose¶

The module SoCameraInteraction implements camera steering with an additional headlight, similar to that provided by a SoExaminerViewer.

Usage¶

Attach the part of the scene you want to have camera control over to the inScene input and the module itself to your Open Inventor scene. If you need to change the mouse button or key bindings from their current defaults, you need to use a SoInteractionMapping module.

Interaction¶

The default interaction for this module is:

Modifier and mouse button	Effect
Left mouse button	Rotate camera
Shift+left mouse button	Pan camera
Control+left mouse button	Zoom camera.
Middle mouse button	Pan camera
Left+middle mouse button	Zoom camera

You need a SoInteractionMapping module to change these bindings. It is also needed to connect the commands “ViewAll”, “SetHome”, “GotoHome”, and “ToggleCamera” to key bindings.

Windows¶

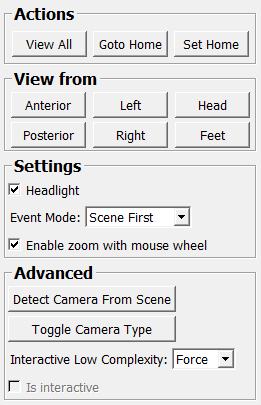

Default Panel¶

../../../Modules/Inventor/SoCameraInteraction/mhelp/Images/Screenshots/SoCameraInteraction._default.png

Input Fields¶

inScene¶

name: inScene, type: SoNode¶: Attach the part of the scene you want to have camera control over to this input (if you need to attach more than one element, you need to combine them with a SoGroup or SoSeparator).

Output Fields¶

self¶

name: self, type: SoNode¶: Connect the output, e.g., to a SoRenderArea.

Parameter Fields¶

Field Index¶

`Anterior`: `Trigger`	`Goto Home`: `Trigger`	`Right`: `Trigger`
`cursorShapePan`: `Enum`	`Head`: `Trigger`	`Set Home`: `Trigger`
`cursorShapeRotate`: `Enum`	`Headlight`: `Bool`	`Toggle Camera Type`: `Trigger`
`cursorShapeZoom`: `Enum`	`interactionProviderID`: `String`	`View All`: `Trigger`
`Detect Camera From Scene`: `Trigger`	`Interactive Low Complexity`: `Enum`	`zoomSensitivity`: `Float`
`Enable Zoom With Mouse Wheel`: `Bool`	`Is Interactive`: `Bool`
`Event Mode`: `Enum`	`Left`: `Trigger`
`Feet`: `Trigger`	`Posterior`: `Trigger`

Visible Fields¶

View All¶

name: viewAll, type: Trigger¶: When pressed, the camera settings are modified so that the bounding box of the scene completely fits into the viewer.

Set Home¶

name: setHome, type: Trigger¶: When pressed, the current camera settings are remembered as the ‘home’ position.

Goto Home¶

name: gotoHome, type: Trigger¶: Sets the camera to the ‘home’ position.

Toggle Camera Type¶

name: toggleCamera, type: Trigger¶: When pressed, camera type is toggled between perspective and orthographic.

Detect Camera From Scene¶

name: detectCamera, type: Trigger¶

When pressed, an explicit camera present in the scene is used instead of the internal camera.

This node automatically inserts/detects a camera on its own when a new scene is set, but if only part of the scene changes, it may be necessary to trigger this check.

Headlight¶

name: headlight, type: Bool, default: TRUE¶: If checked, an automatic headlight node is inserted into the scene (alongside the camera).

Event Mode¶

name: eventMode, type: Enum, default: SceneFirst¶: Defines how input events are handled.

Values:

Title	Name	Description
Camera Only	CameraOnly	Input events are only used for camera control. The connected scene does not receive events.
Scene Only	SceneOnly	Input events are not used for camera control. The connected scene receives events.
Camera First	CameraFirst	Input events are first evaluated for camera control before the connected scene receives events.
Scene First	SceneFirst	Input events are evaluated for camera control only after the connected scene received the events.

Anterior¶

name: viewFromAnterior, type: Trigger¶: When pressed, the scene will be viewed from the anterior.

Posterior¶

name: viewFromPosterior, type: Trigger¶: When pressed, the scene will be viewed from the posterior.

Left¶

name: viewFromLeft, type: Trigger¶: When pressed, the scene will be viewed from the left.

Right¶

name: viewFromRight, type: Trigger¶: When pressed, the scene will be viewed from the right.

Head¶

name: viewFromHead, type: Trigger¶: When pressed, the scene will be viewed from the head.

Feet¶

name: viewFromFeet, type: Trigger¶: When pressed, the scene will be viewed from the feet.

Interactive Low Complexity¶

name: interactiveLowComplexity, type: Enum, default: Force¶: Defines how to handle low complexity in interactive scenes.

Values:

Title	Name	Description
On	On	In interactive mode, a `SoComplexity` with complexity 0.15 is added to the scene. It can be manually overwritten using a SoComplexity node in the scene.
Off	Off	The complexity is left unchanged.
Force	Force	In interactive mode, a SoComplexity with complexity 0.15 is added to the scene. It is set as an override node, so it overrides all SoComplexity nodes in the scene and CANNOT be manually overwritten in the scene.

Is Interactive¶

name: isInteractive, type: Bool, persistent: no¶: Shows whether a camera interaction is going on. It can be used to react on interaction/non-interaction.

Enable Zoom With Mouse Wheel¶

name: enableZoomWithMouseWheel, type: Bool, default: TRUE¶

If checked, the zooming/dollying with the mouse wheel is enabled.

Note that this only sets a default wheel binding. The binding can always be overridden or removed with a SoInteractionMapping module.

Hidden Fields¶

interactionProviderID¶

name: interactionProviderID, type: String¶

zoomSensitivity¶

name: zoomSensitivity, type: Float, default: 1¶: Sets the sensitivity with which mouse gestures affect the zoom level. A negative value will reverse the zoom direction.

cursorShapeRotate¶

name: cursorShapeRotate, type: Enum, default: ROTATE_XY_CURSOR¶

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69
Blank Cursor	BLANK_CURSOR

cursorShapePan¶

name: cursorShapePan, type: Enum, default: MOVE_ALL_CURSOR¶

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69
Blank Cursor	BLANK_CURSOR

cursorShapeZoom¶

name: cursorShapeZoom, type: Enum, default: MOVE_INOUT_CURSOR¶

Values:

Title	Name
Undefined Cursor	UNDEFINED_CURSOR
Default Cursor	DEFAULT_CURSOR
Forbidden Cursor	FORBIDDEN_CURSOR
Pointing Hand Cursor	POINTING_HAND_CURSOR
Open Hand Cursor	OPEN_HAND_CURSOR
Closed Hand Cursor	CLOSED_HAND_CURSOR
Move All Cursor	MOVE_ALL_CURSOR
Move Hori Cursor	MOVE_HORI_CURSOR
Move Vert Cursor	MOVE_VERT_CURSOR
Move Fdiag Cursor	MOVE_FDIAG_CURSOR
Move Bdiag Cursor	MOVE_BDIAG_CURSOR
Move Inout Cursor	MOVE_INOUT_CURSOR
Rotate X Cursor	ROTATE_X_CURSOR
Rotate Y Cursor	ROTATE_Y_CURSOR
Rotate Z Cursor	ROTATE_Z_CURSOR
Rotate Xy Cursor	ROTATE_XY_CURSOR
Zoom Cursor	ZOOM_CURSOR
Zoom In Cursor	ZOOM_IN_CURSOR
Zoom Out Cursor	ZOOM_OUT_CURSOR
Cross Cursor	CROSS_CURSOR
Cross Plus Cursor	CROSS_PLUS_CURSOR
Cross Minus Cursor	CROSS_MINUS_CURSOR
Cross Move Cursor	CROSS_MOVE_CURSOR
Cross Rotate Cursor	CROSS_ROTATE_CURSOR
Cross Rect Cursor	CROSS_RECT_CURSOR
Cross Oval Cursor	CROSS_OVAL_CURSOR
Cross Vector Cursor	CROSS_VECTOR_CURSOR
Cross Freeform Cursor	CROSS_FREEFORM_CURSOR
Cross Point Cursor	CROSS_POINT_CURSOR
Cross Line Cursor	CROSS_LINE_CURSOR
Cross Curve Cursor	CROSS_CURVE_CURSOR
Cross Polyline Cursor	CROSS_POLYLINE_CURSOR
Cross Polygon Cursor	CROSS_POLYGON_CURSOR
Cross Fill Cursor	CROSS_FILL_CURSOR
Cross Link Cursor	CROSS_LINK_CURSOR
Cross 0 Cursor	CROSS_0_CURSOR
Cross 1 Cursor	CROSS_1_CURSOR
Cross 2 Cursor	CROSS_2_CURSOR
Cross 3 Cursor	CROSS_3_CURSOR
Cross 4 Cursor	CROSS_4_CURSOR
Cross 5 Cursor	CROSS_5_CURSOR
Cross 6 Cursor	CROSS_6_CURSOR
Cross 7 Cursor	CROSS_7_CURSOR
Cross 8 Cursor	CROSS_8_CURSOR
Cross 9 Cursor	CROSS_9_CURSOR
Lut Cursor	LUT_CURSOR
Lut 1 Cursor	LUT_1_CURSOR
Lut 2 Cursor	LUT_2_CURSOR
Lut 3 Cursor	LUT_3_CURSOR
Slicing Cursor	SLICING_CURSOR
Other Cursor 0	OTHER_CURSOR_0
Other Cursor 1	OTHER_CURSOR_1
Other Cursor 2	OTHER_CURSOR_2
Other Cursor 3	OTHER_CURSOR_3
Other Cursor 4	OTHER_CURSOR_4
Other Cursor 5	OTHER_CURSOR_5
Other Cursor 6	OTHER_CURSOR_6
Other Cursor 7	OTHER_CURSOR_7
Other Cursor 8	OTHER_CURSOR_8
Other Cursor 9	OTHER_CURSOR_9
Other Cursor 10	OTHER_CURSOR_10
Other Cursor 11	OTHER_CURSOR_11
Other Cursor 12	OTHER_CURSOR_12
Other Cursor 13	OTHER_CURSOR_13
Other Cursor 14	OTHER_CURSOR_14
Other Cursor 15	OTHER_CURSOR_15
Other Cursor 16	OTHER_CURSOR_16
Other Cursor 17	OTHER_CURSOR_17
Other Cursor 18	OTHER_CURSOR_18
Other Cursor 19	OTHER_CURSOR_19
Other Cursor 20	OTHER_CURSOR_20
Other Cursor 21	OTHER_CURSOR_21
Other Cursor 22	OTHER_CURSOR_22
Other Cursor 23	OTHER_CURSOR_23
Other Cursor 24	OTHER_CURSOR_24
Other Cursor 25	OTHER_CURSOR_25
Other Cursor 26	OTHER_CURSOR_26
Other Cursor 27	OTHER_CURSOR_27
Other Cursor 28	OTHER_CURSOR_28
Other Cursor 29	OTHER_CURSOR_29
Other Cursor 30	OTHER_CURSOR_30
Other Cursor 31	OTHER_CURSOR_31
Other Cursor 32	OTHER_CURSOR_32
Other Cursor 33	OTHER_CURSOR_33
Other Cursor 34	OTHER_CURSOR_34
Other Cursor 35	OTHER_CURSOR_35
Other Cursor 36	OTHER_CURSOR_36
Other Cursor 37	OTHER_CURSOR_37
Other Cursor 38	OTHER_CURSOR_38
Other Cursor 39	OTHER_CURSOR_39
Other Cursor 40	OTHER_CURSOR_40
Other Cursor 41	OTHER_CURSOR_41
Other Cursor 42	OTHER_CURSOR_42
Other Cursor 43	OTHER_CURSOR_43
Other Cursor 44	OTHER_CURSOR_44
Other Cursor 45	OTHER_CURSOR_45
Other Cursor 46	OTHER_CURSOR_46
Other Cursor 47	OTHER_CURSOR_47
Other Cursor 48	OTHER_CURSOR_48
Other Cursor 49	OTHER_CURSOR_49
Other Cursor 50	OTHER_CURSOR_50
Other Cursor 51	OTHER_CURSOR_51
Other Cursor 52	OTHER_CURSOR_52
Other Cursor 53	OTHER_CURSOR_53
Other Cursor 54	OTHER_CURSOR_54
Other Cursor 55	OTHER_CURSOR_55
Other Cursor 56	OTHER_CURSOR_56
Other Cursor 57	OTHER_CURSOR_57
Other Cursor 58	OTHER_CURSOR_58
Other Cursor 59	OTHER_CURSOR_59
Other Cursor 60	OTHER_CURSOR_60
Other Cursor 61	OTHER_CURSOR_61
Other Cursor 62	OTHER_CURSOR_62
Other Cursor 63	OTHER_CURSOR_63
Other Cursor 64	OTHER_CURSOR_64
Other Cursor 65	OTHER_CURSOR_65
Other Cursor 66	OTHER_CURSOR_66
Other Cursor 67	OTHER_CURSOR_67
Other Cursor 68	OTHER_CURSOR_68
Other Cursor 69	OTHER_CURSOR_69
Blank Cursor	BLANK_CURSOR

SoCameraInteraction¶

Purpose¶

Usage¶

Interaction¶

Windows¶

Default Panel¶

Input Fields¶

inScene¶

Output Fields¶

self¶

Parameter Fields¶

Field Index¶

Visible Fields¶

View All¶

Set Home¶

Goto Home¶

Toggle Camera Type¶

Detect Camera From Scene¶

Headlight¶

Event Mode¶

Anterior¶

Posterior¶

Left¶

Right¶

Head¶

Feet¶

Interactive Low Complexity¶

Is Interactive¶

Enable Zoom With Mouse Wheel¶

Hidden Fields¶

interactionProviderID¶

zoomSensitivity¶

cursorShapeRotate¶

cursorShapePan¶

cursorShapeZoom¶

Table of Contents

Quick search
