Sampler node that uses a 3D ML subimage to define a 3D sampler. More...

#include <SoMLSampler3D.h>

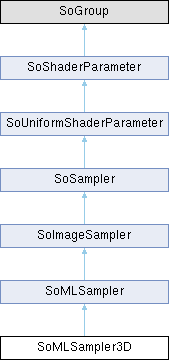

Inheritance diagram for SoMLSampler3D:

Public Member Functions
	SoMLSampler3D ()
	Constructor.

Public Member Functions inherited from SoMLSampler
void	GLRender (SoGLRenderAction *action) override
	Set ML image properties in state.

void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value.

Public Member Functions inherited from SoSampler
void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value.

Public Member Functions inherited from SoUniformShaderParameter
void	GLRender (SoGLRenderAction *action) override
	Add this node to element in state.

virtual void	updatePreparation (SoState *)
	Hook for internal preparation steps.

Public Member Functions inherited from SoShaderParameter
void	callback (SoCallbackAction *) override
	Shut down handling of these actions for children.

void	GLRender (SoGLRenderAction *) override

void	getBoundingBox (SoGetBoundingBoxAction *) override

void	getMatrix (SoGetMatrixAction *) override

void	handleEvent (SoHandleEventAction *) override

void	pick (SoPickAction *) override

Static Public Member Functions
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoMLSampler
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoImageSampler
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoSampler
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoUniformShaderParameter
static void	initClass ()
	Initialize class with runtime type system.

Static Public Member Functions inherited from SoShaderParameter
static void	initClass ()
	Initialize class with runtime type system.

Public Attributes
SoSFEnum	wrapT
	Wrapping mode. Default is REPEAT.

SoSFEnum	wrapR
	Wrapping mode. Default is REPEAT.

Public Attributes inherited from SoMLSampler
SoSFMLImage	image
	ML image connector.

SoSFUInt32	startT
	Origin of the image in T dimension. Default is 0.

SoSFUInt32	startU
	Origin of the image in U dimension. Default is 0.

Public Attributes inherited from SoSampler
SoSFEnum	wrapS
	Wrapping mode. Default is REPEAT.

SoSFBool	enableBorder
	Enable border to be part of the texture. Default is FALSE.

SoSFVec4f	borderColor
	Border color used to for border texture filtering. Only used if 'enableBorder' is FALSE. Default is (0, 0, 0, 0).

SoSFEnum	minFilter
	Minification filter mode. Default is LINEAR.

SoSFEnum	magFilter
	Magnification filter mode. Default is LINEAR.

SoSFBool	use16BitFloat
	Use 16 Bit floating point for the texture format.

SoSFBool	needsTextureCoordinates
	Enable this if the sampler needs the standard inventor texture coordinates.

Public Attributes inherited from SoUniformShaderParameter
std::set< SbString >	auxUniformParameters
	Auxiliary uniform shader parameters which are maintained by this node.

Public Attributes inherited from SoShaderParameter
SoSFString	name
	Name given to parameter in high level languages.

Protected Member Functions
	~SoMLSampler3D () override
	Destructor.

void	updateTextureWrappingParameters () override
	Sets parameters for texture wrapping in OpenGL.

void	setGLTexImage (GLenum target, const XVImageSize &textureSize, GLint internalFormat, GLint format, GLenum textureDataType, const GLvoid *textureData) override
	Set the OpenGL texture.

void	calcSubImgProps (XVImageSize &subImgPosition, XVImageSize &subImgSize) override
	Calculate position and size of used sub image by evaluation of fields.

Protected Member Functions inherited from SoMLSampler
	SoMLSampler ()
	Constructor.

	~SoMLSampler () override
	Destructor.

GLenum	MLToGLDataType (const MLDataType &dType)
	Return OpenGL data type for given ML data type. Returns GL_NONE for unknown ML data types.

MLuint8 *	loadAndReformatSubImg (const XVImageSize &pos, const XVImageSize &size)
	Load ML image and reformat memory to be suitable for OpenGL texturing.

void	texConfigChanged (SoField *field) override
	Called when texture configuration (e.g. filter mode) has changed.

void	imageChanged () override
	Called when the ML images has changed.

void	imageChangedCB (SoField *field)

virtual void	getTextureDataFromImage (const XVImageSize &pos, const XVImageSize &size)
	Extract the texture data from the input ML image and store it in the textureData buffer.

Protected Member Functions inherited from SoImageSampler
	SoImageSampler ()
	Constructor.

	~SoImageSampler () override
	Destructor.

virtual void	freeTextureBuffer ()
	Delete the texture buffer(s).

virtual void	updateTextureHandle ()
	Creates texture handle and binds it.

virtual void	updateTextureFilteringParameters ()
	Sets parameters for texture filtering.

virtual void	uploadTextureBuffer ()
	Uploads data stored in _textureBuffer using setGLTexImage.

virtual void	uploadDummyTexture (GLenum target)
	Upload a dummy texture consisting of one black voxel using setGLTexImage.

virtual void	generateMipmap ()
	Generates mipmap.

virtual void	updateTextureBuffer ()
	Calls imageChanged() if _textureBuffer is empty.

virtual void	updateSamplerInfo (SoUniformParameterBase uniformBase, SoState state)
	Set info about the purpose of the uniform parameter and add info about sampler to state.

Protected Member Functions inherited from SoSampler
	~SoSampler () override

	SoSampler ()
	Constructor.

GLint	getInternalFormat (GLenum glDataType)
	Return specialized texture format for GL data type.

const char *	getTextureFormatName (GLenum internalFormat)
	Return texture format name.

SbSamplerInfo::TextureType	getTextureTypeFromGLFormat (GLenum internalFormat)

void	postTextureFormatInfo (GLenum target, GLint format)
	Prints channel depths for given target and format.

void	postTextureSizeInfo (GLenum target)
	Prints the size of the bound texture.

virtual void	nameChanged (SoField *field)
	Called when sampler name has changed.

Protected Member Functions inherited from SoUniformShaderParameter
	SoUniformShaderParameter ()
	Constructor.

Protected Member Functions inherited from SoShaderParameter
	SoShaderParameter ()
	Constructor.

Additional Inherited Members
Public Types inherited from SoSampler
enum	TexGenMode { NORMAL_MAP = GL_NORMAL_MAP_EXT , REFLECTION_MAP = GL_REFLECTION_MAP_EXT }
	Texture gen mode. More...

enum	Wrap { REPEAT = GL_REPEAT , CLAMP = GL_CLAMP , CLAMP_TO_EDGE = GL_CLAMP_TO_EDGE , CLAMP_TO_BORDER = GL_CLAMP_TO_BORDER , MIRRORED_REPEAT = GL_MIRRORED_REPEAT }
	Texture wrap type. More...

enum	Filter { NEAREST = GL_NEAREST , LINEAR = GL_LINEAR , NEAREST_MIPMAP_NEAREST = GL_NEAREST_MIPMAP_NEAREST , NEAREST_MIPMAP_LINEAR = GL_NEAREST_MIPMAP_LINEAR , LINEAR_MIPMAP_NEAREST = GL_LINEAR_MIPMAP_NEAREST , LINEAR_MIPMAP_LINEAR = GL_LINEAR_MIPMAP_LINEAR }
	Filter methods for minification and magnification. More...

Protected Attributes inherited from SoMLSampler
SbSamplerInfo::TextureType	_internTexFormat
	Value points to internal texture format.

SbMLImageProperties	_imgProps
	ML image properties.

Protected Attributes inherited from SoImageSampler
ml::GLTexture	_textureRes

MLuint8 *	_textureBuffer
	Buffered texture that is uploaded.

SbBool	_isTextureModified
	Indicates changes in the internal texture.

SbSamplerInfo::TextureType	_internTexFormat
	Value points to internal texture format.

XVImageSize	_textureSize
	size of the internal texture

GLenum	_target
	Specifies the target to which the texture is bound.

SoUniformParameterBase::SamplerType	_samplerType
	Specifies the sampler type. Must be either SAMPLER_1D, SAMPLER_2D, SAMPLER_3D or SAMPLER_CUBEMAP.

Protected Attributes inherited from SoSampler
SbBool	_hasTextureFloat
	TRUE if GL_xxx_texture_float extension is present.

SbString	_sizeUniformName
	name of the uniform ?_size parameter

unsigned int	_textureComponents

GLenum	_textureDataType

Detailed Description

Sampler node that uses a 3D ML subimage to define a 3D sampler.

Definition at line 25 of file SoMLSampler3D.h.

Constructor & Destructor Documentation

◆ SoMLSampler3D()

SoMLSampler3D::SoMLSampler3D ( )

Constructor.

◆ ~SoMLSampler3D()

SoMLSampler3D::~SoMLSampler3D ( )

overrideprotected

Destructor.

Member Function Documentation

◆ calcSubImgProps()

void SoMLSampler3D::calcSubImgProps	(	XVImageSize &	subImgPosition,
		XVImageSize &	subImgSize )

overrideprotectedvirtual

Calculate position and size of used sub image by evaluation of fields.

Implements SoMLSampler.

◆ initClass()

static void SoMLSampler3D::initClass ( )

static

Initialize class with runtime type system.

◆ setGLTexImage()

void SoMLSampler3D::setGLTexImage	(	GLenum	target,
		const XVImageSize &	textureSize,
		GLint	internalFormat,
		GLint	format,
		GLenum	textureDataType,
		const GLvoid *	textureData )

overrideprotectedvirtual

Set the OpenGL texture.

Implements SoImageSampler.

◆ updateTextureWrappingParameters()

void SoMLSampler3D::updateTextureWrappingParameters ( )

overrideprotectedvirtual

Sets parameters for texture wrapping in OpenGL.

Reimplemented from SoImageSampler.

Member Data Documentation

◆ wrapR

SoSFEnum SoMLSampler3D::wrapR

Wrapping mode. Default is REPEAT.

Definition at line 37 of file SoMLSampler3D.h.

◆ wrapT

SoSFEnum SoMLSampler3D::wrapT

Wrapping mode. Default is REPEAT.

Definition at line 34 of file SoMLSampler3D.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoShader/Inventor/nodes/SoMLSampler3D.h
