MeVisLab Toolbox Reference
Public Types | Public Member Functions | Protected Member Functions | List of all members
SoUniformParameterBase Class Reference

Base class for uniform shader parameters. More...

#include <SoUniformParameterBase.h>

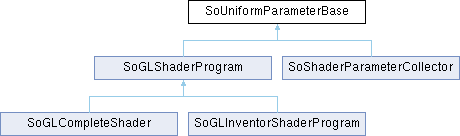

Inheritance diagram for SoUniformParameterBase:
SoGLShaderProgram SoShaderParameterCollector SoGLCompleteShader SoGLInventorShaderProgram

Public Types

enum  SamplerType { SAMPLER_1D , SAMPLER_2D , SAMPLER_3D , SAMPLER_CUBEMAP }


Public Member Functions

virtual int addTextureSampler (const SbString &)
 Adds a texture sampler with the given name and returns the assigned texture unit. More...

virtual void set1f (const SbString &, const float)

virtual void set2f (const SbString &, const float *)

virtual void set3f (const SbString &, const float *)

virtual void set4f (const SbString &, const float *)

virtual void set2f (const SbString &, const float, const float)

virtual void set3f (const SbString &, const float, const float, const float)

virtual void set4f (const SbString &, const float, const float, const float, const float)

virtual void set1fv (const SbString &, const int, const float *)

virtual void set2fv (const SbString &, const int, const float *)

virtual void set3fv (const SbString &, const int, const float *)

virtual void set4fv (const SbString &, const int, const float *)

virtual void set1i (const SbString &, const int32_t)

virtual void set2i (const SbString &, const int32_t *)

virtual void set2i (const SbString &, const SbVec2s &)

virtual void set3i (const SbString &, const int32_t *)

virtual void set3i (const SbString &, const SbVec3s &)

virtual void set4i (const SbString &, const int32_t *)

virtual void setMatrix3f (const SbString &name, const float *values, SbBool transpose=FALSE)

virtual void setMatrix4f (const SbString &name, const float *values, SbBool transpose=FALSE)

virtual void setMatrix3fv (const SbString &, int, const float *, SbBool=FALSE)

virtual void setMatrix4fv (const SbString &, int, const float *, SbBool=FALSE)

virtual void setSamplerInfo (const SbString &, SamplerType, uint32_t)


Protected Member Functions

 SoUniformParameterBase ()
 Hidden constructor. More...

virtual ~SoUniformParameterBase ()
 Hidden destructor. More...


Detailed Description

Base class for uniform shader parameters.

Base class for uniform shader parameters.

Definition at line 29 of file SoUniformParameterBase.h.

Member Enumeration Documentation

◆ SamplerType

enum SoUniformParameterBase::SamplerType
Enumerator
SAMPLER_1D
SAMPLER_2D
SAMPLER_3D
SAMPLER_CUBEMAP

Definition at line 72 of file SoUniformParameterBase.h.

Constructor & Destructor Documentation

◆ SoUniformParameterBase()

SoUniformParameterBase::SoUniformParameterBase ( )
protected

Hidden constructor.

◆ ~SoUniformParameterBase()

virtual SoUniformParameterBase::~SoUniformParameterBase ( )
protectedvirtual

Hidden destructor.

Member Function Documentation

◆ addTextureSampler()

virtual int SoUniformParameterBase::addTextureSampler ( const SbString &  )
inlinevirtual

Adds a texture sampler with the given name and returns the assigned texture unit.

Reimplemented in SoGLShaderProgram.

Definition at line 42 of file SoUniformParameterBase.h.

◆ set1f()

virtual void SoUniformParameterBase::set1f ( const SbString &  ,
const float
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 45 of file SoUniformParameterBase.h.

◆ set1fv()

virtual void SoUniformParameterBase::set1fv ( const SbString &  ,
const int  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 53 of file SoUniformParameterBase.h.

◆ set1i()

virtual void SoUniformParameterBase::set1i ( const SbString &  ,
const int32_t
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 58 of file SoUniformParameterBase.h.

◆ set2f() [1/2]

virtual void SoUniformParameterBase::set2f ( const SbString &  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 46 of file SoUniformParameterBase.h.

◆ set2f() [2/2]

virtual void SoUniformParameterBase::set2f ( const SbString &  ,
const float  ,
const float
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 49 of file SoUniformParameterBase.h.

◆ set2fv()

virtual void SoUniformParameterBase::set2fv ( const SbString &  ,
const int  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 54 of file SoUniformParameterBase.h.

◆ set2i() [1/2]

virtual void SoUniformParameterBase::set2i ( const SbString &  ,
const int32_t *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 59 of file SoUniformParameterBase.h.

◆ set2i() [2/2]

virtual void SoUniformParameterBase::set2i ( const SbString &  ,
const SbVec2s &
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 60 of file SoUniformParameterBase.h.

◆ set3f() [1/2]

virtual void SoUniformParameterBase::set3f ( const SbString &  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 47 of file SoUniformParameterBase.h.

◆ set3f() [2/2]

virtual void SoUniformParameterBase::set3f ( const SbString &  ,
const float  ,
const float  ,
const float
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 50 of file SoUniformParameterBase.h.

◆ set3fv()

virtual void SoUniformParameterBase::set3fv ( const SbString &  ,
const int  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 55 of file SoUniformParameterBase.h.

◆ set3i() [1/2]

virtual void SoUniformParameterBase::set3i ( const SbString &  ,
const int32_t *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 61 of file SoUniformParameterBase.h.

◆ set3i() [2/2]

virtual void SoUniformParameterBase::set3i ( const SbString &  ,
const SbVec3s &
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 62 of file SoUniformParameterBase.h.

◆ set4f() [1/2]

virtual void SoUniformParameterBase::set4f ( const SbString &  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 48 of file SoUniformParameterBase.h.

◆ set4f() [2/2]

virtual void SoUniformParameterBase::set4f ( const SbString &  ,
const float  ,
const float  ,
const float  ,
const float
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 51 of file SoUniformParameterBase.h.

◆ set4fv()

virtual void SoUniformParameterBase::set4fv ( const SbString &  ,
const int  ,
const float *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 56 of file SoUniformParameterBase.h.

◆ set4i()

virtual void SoUniformParameterBase::set4i ( const SbString &  ,
const int32_t *
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 63 of file SoUniformParameterBase.h.

◆ setMatrix3f()

virtual void SoUniformParameterBase::setMatrix3f ( const SbString &  name,
const float *  values,
SbBool  transpose = FALSE
)
inlinevirtual

Definition at line 65 of file SoUniformParameterBase.h.

◆ setMatrix3fv()

virtual void SoUniformParameterBase::setMatrix3fv ( const SbString &  ,
int  ,
const float *  ,
SbBool  = FALSE
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 67 of file SoUniformParameterBase.h.

◆ setMatrix4f()

virtual void SoUniformParameterBase::setMatrix4f ( const SbString &  name,
const float *  values,
SbBool  transpose = FALSE
)
inlinevirtual

Definition at line 66 of file SoUniformParameterBase.h.

◆ setMatrix4fv()

virtual void SoUniformParameterBase::setMatrix4fv ( const SbString &  ,
int  ,
const float *  ,
SbBool  = FALSE
)
inlinevirtual

Reimplemented in SoShaderParameterCollector, and SoGLShaderProgram.

Definition at line 68 of file SoUniformParameterBase.h.

◆ setSamplerInfo()

virtual void SoUniformParameterBase::setSamplerInfo ( const SbString &  ,
SamplerType  ,
uint32_t
)
inlinevirtual

Reimplemented in SoShaderParameterCollector.

Definition at line 81 of file SoUniformParameterBase.h.

The documentation for this class was generated from the following file:
