Abstract Open Inventor base class for uniform shader parameter nodes. More...

#include <SoUniformShaderParameter.h>

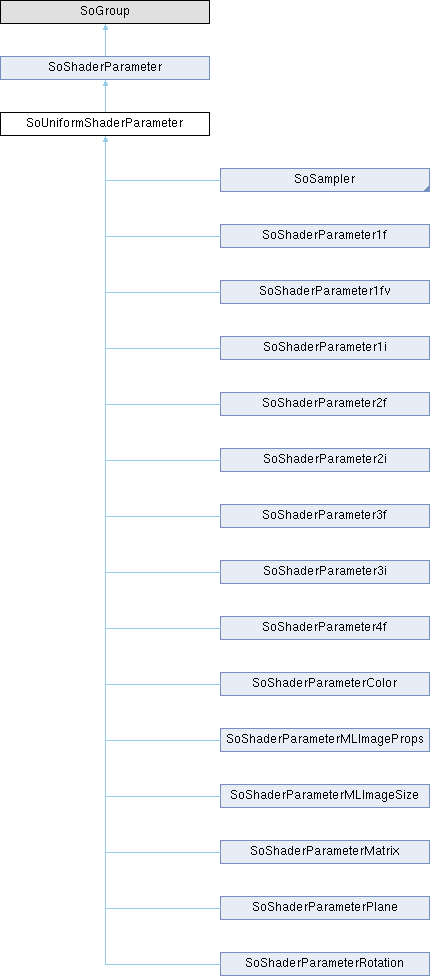

Inheritance diagram for SoUniformShaderParameter:

Public Member Functions
void	GLRender (SoGLRenderAction *action) override
	Add this node to element in state. More...

virtual void	updatePreparation (SoState *)
	Hook for internal preparation steps. More...

virtual void	updateParameter (SoUniformParameterBase uniformBase, SoState state)=0
	Assigns or updates the parameter's value. More...

Public Member Functions inherited from SoShaderParameter
void	callback (SoCallbackAction *) override
	Shut down handling of these actions for children. More...

void	GLRender (SoGLRenderAction *) override

void	getBoundingBox (SoGetBoundingBoxAction *) override

void	getMatrix (SoGetMatrixAction *) override

void	handleEvent (SoHandleEventAction *) override

void	pick (SoPickAction *) override

Static Public Member Functions
static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoShaderParameter
static void	initClass ()
	Initialize class with runtime type system. More...

Public Attributes
std::set< SbString >	auxUniformParameters
	Auxiliary uniform shader parameters which are maintained by this node. More...

Public Attributes inherited from SoShaderParameter
SoSFString	name
	Name given to parameter in high level languages. More...

Protected Member Functions
	SoUniformShaderParameter ()
	Constructor. More...

Protected Member Functions inherited from SoShaderParameter
	SoShaderParameter ()
	Constructor. More...

Detailed Description

Abstract Open Inventor base class for uniform shader parameter nodes.

Definition at line 28 of file SoUniformShaderParameter.h.

Constructor & Destructor Documentation

◆ SoUniformShaderParameter()

SoUniformShaderParameter::SoUniformShaderParameter ( )

protected

Constructor.

Member Function Documentation

◆ GLRender()

void SoUniformShaderParameter::GLRender ( SoGLRenderAction * action )

override

Add this node to element in state.

◆ initClass()

static void SoUniformShaderParameter::initClass ( )

static

Initialize class with runtime type system.

◆ updateParameter()

virtual void SoUniformShaderParameter::updateParameter	(	SoUniformParameterBase *	uniformBase,
		SoState *	state
	)

pure virtual

Assigns or updates the parameter's value.

The shader program is active.

Implemented in SoShaderParameterRotation, SoShaderParameterPlane, SoShaderParameterMLImageSize, SoShaderParameterMLImageProps, SoShaderParameterMatrix, SoShaderParameterColor, SoShaderParameter4f, SoShaderParameter3i, SoShaderParameter3f, SoShaderParameter2i, SoShaderParameter2f, SoShaderParameter1i, SoShaderParameter1fv, SoShaderParameter1f, SoSampler, SoMLSampler, SoImageSampler, SoInheritedFramebufferSampler, SoFramebufferSampler3D, and SoFramebufferSampler2D.

◆ updatePreparation()

virtual void SoUniformShaderParameter::updatePreparation ( SoState * )

inlinevirtual

Hook for internal preparation steps.

The shader program has not yet been activated.

Reimplemented in SoFramebufferSampler3D, SoFramebufferSampler2D, and SoShaderParameterPlane.

Definition at line 46 of file SoUniformShaderParameter.h.

Member Data Documentation

◆ auxUniformParameters

std::set<SbString> SoUniformShaderParameter::auxUniformParameters

Auxiliary uniform shader parameters which are maintained by this node.

Definition at line 53 of file SoUniformShaderParameter.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoShader/Inventor/nodes/SoUniformShaderParameter.h
