The abstract Inventor class SoImageSampler. More...

#include <SoImageSampler.h>

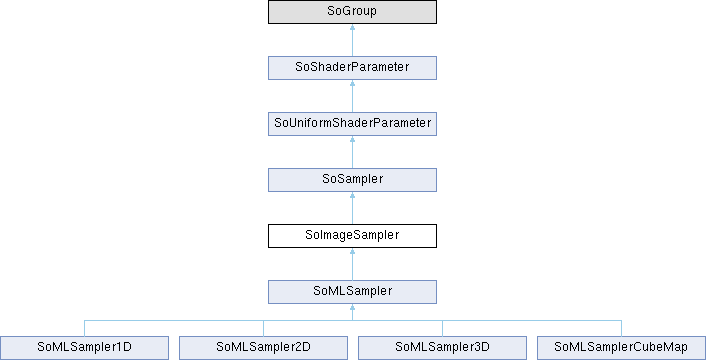

Inheritance diagram for SoImageSampler:

Public Member Functions
void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value. More...

Public Member Functions inherited from SoSampler
void	updateParameter (SoUniformParameterBase uniformBase, SoState state) override
	Assigns or updates the parameter's value. More...

Public Member Functions inherited from SoUniformShaderParameter
void	GLRender (SoGLRenderAction *action) override
	Add this node to element in state. More...

virtual void	updatePreparation (SoState *)
	Hook for internal preparation steps. More...

Public Member Functions inherited from SoShaderParameter
void	callback (SoCallbackAction *) override
	Shut down handling of these actions for children. More...

void	GLRender (SoGLRenderAction *) override

void	getBoundingBox (SoGetBoundingBoxAction *) override

void	getMatrix (SoGetMatrixAction *) override

void	handleEvent (SoHandleEventAction *) override

void	pick (SoPickAction *) override

Static Public Member Functions
static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoSampler
static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoUniformShaderParameter
static void	initClass ()
	Initialize class with runtime type system. More...

Static Public Member Functions inherited from SoShaderParameter
static void	initClass ()
	Initialize class with runtime type system. More...

Protected Member Functions
	SoImageSampler ()
	Constructor. More...

	~SoImageSampler () override
	Destructor. More...

virtual void	freeTextureBuffer ()
	Delete the texture buffer(s). More...

virtual void	updateTextureHandle ()
	Creates texture handle and binds it. More...

virtual void	updateTextureFilteringParameters ()
	Sets parameters for texture filtering. More...

virtual void	updateTextureWrappingParameters ()
	Sets parameters for texture wrapping in OpenGL. More...

virtual void	uploadTextureBuffer ()
	Uploads data stored in _textureBuffer using setGLTexImage. More...

virtual void	uploadDummyTexture (GLenum target)
	Upload a dummy texture consisting of one black voxel using setGLTexImage. More...

virtual void	generateMipmap ()
	Generates mipmap. More...

virtual void	setGLTexImage (GLenum target, const XVImageSize &textureSize, GLint internalFormat, GLint format, GLenum textureDataType, const GLvoid *textureData)=0
	Set the OpenGL texture. More...

virtual void	updateTextureBuffer ()
	Calls imageChanged() if _textureBuffer is empty. More...

virtual void	updateSamplerInfo (SoUniformParameterBase uniformBase, SoState state)
	Set info about the purpose of the uniform parameter and add info about sampler to state. More...

virtual void	imageChanged ()=0
	Called when the image has changed and is valid. More...

Protected Member Functions inherited from SoSampler
	~SoSampler () override

	SoSampler ()
	Constructor. More...

GLint	getInternalFormat (GLenum glDataType)
	Return specialized texture format for GL data type. More...

const char *	getTextureFormatName (GLenum internalFormat)
	Return texture format name. More...

SbSamplerInfo::TextureType	getTextureTypeFromGLFormat (GLenum internalFormat)

void	postTextureFormatInfo (GLenum target, GLint format)
	Prints channel depths for given target and format. More...

void	postTextureSizeInfo (GLenum target)
	Prints the size of the bound texture. More...

virtual void	nameChanged (SoField *field)
	Called when sampler name has changed. More...

virtual void	texConfigChanged (SoField *)
	Called when texture configuration (e.g. filter mode) has changed. More...

Protected Member Functions inherited from SoUniformShaderParameter
	SoUniformShaderParameter ()
	Constructor. More...

Protected Member Functions inherited from SoShaderParameter
	SoShaderParameter ()
	Constructor. More...

Protected Attributes
ml::GLTexture	_textureRes

MLuint8 *	_textureBuffer
	Buffered texture that is uploaded. More...

SbBool	_isTextureModified
	Indicates changes in the internal texture. More...

SbSamplerInfo::TextureType	_internTexFormat
	Value points to internal texture format. More...

XVImageSize	_textureSize
	size of the internal texture More...

GLenum	_target
	Specifies the target to which the texture is bound. More...

SoUniformParameterBase::SamplerType	_samplerType
	Specifies the sampler type. Must be either SAMPLER_1D, SAMPLER_2D, SAMPLER_3D or SAMPLER_CUBEMAP. More...

Protected Attributes inherited from SoSampler
SbBool	_hasTextureFloat
	TRUE if GL_xxx_texture_float extension is present. More...

SbString	_sizeUniformName
	name of the uniform ?_size parameter More...

unsigned int	_textureComponents

GLenum	_textureDataType

Additional Inherited Members
Public Types inherited from SoSampler
enum	TexGenMode { NORMAL_MAP = GL_NORMAL_MAP_EXT , REFLECTION_MAP = GL_REFLECTION_MAP_EXT }
	Texture gen mode. More...

enum	Wrap { REPEAT = GL_REPEAT , CLAMP = GL_CLAMP , CLAMP_TO_EDGE = GL_CLAMP_TO_EDGE , CLAMP_TO_BORDER = GL_CLAMP_TO_BORDER , MIRRORED_REPEAT = GL_MIRRORED_REPEAT }
	Texture wrap type. More...

enum	Filter { NEAREST = GL_NEAREST , LINEAR = GL_LINEAR , NEAREST_MIPMAP_NEAREST = GL_NEAREST_MIPMAP_NEAREST , NEAREST_MIPMAP_LINEAR = GL_NEAREST_MIPMAP_LINEAR , LINEAR_MIPMAP_NEAREST = GL_LINEAR_MIPMAP_NEAREST , LINEAR_MIPMAP_LINEAR = GL_LINEAR_MIPMAP_LINEAR }
	Filter methods for minification and magnification. More...

Public Attributes inherited from SoSampler
SoSFEnum	wrapS
	Wrapping mode. Default is REPEAT. More...

SoSFBool	enableBorder
	Enable border to be part of the texture. Default is FALSE. More...

SoSFVec4f	borderColor
	Border color used to for border texture filtering. Only used if 'enableBorder' is FALSE. Default is (0, 0, 0, 0). More...

SoSFEnum	minFilter
	Minification filter mode. Default is LINEAR. More...

SoSFEnum	magFilter
	Magnification filter mode. Default is LINEAR. More...

SoSFBool	use16BitFloat
	Use 16 Bit floating point for the texture format. More...

SoSFBool	needsTextureCoordinates
	Enable this if the sampler needs the standard inventor texture coordinates. More...

Public Attributes inherited from SoUniformShaderParameter
std::set< SbString >	auxUniformParameters
	Auxiliary uniform shader parameters which are maintained by this node. More...

Public Attributes inherited from SoShaderParameter
SoSFString	name
	Name given to parameter in high level languages. More...

Detailed Description

The abstract Inventor class SoImageSampler.

Abstract Open Inventor base class for sampler nodes that provide access to some kind of explicit input image (in contrast to frame buffer samplers) Abstract Open Inventor base class for sampler nodes.

Definition at line 29 of file SoImageSampler.h.

Constructor & Destructor Documentation

◆ SoImageSampler()

SoImageSampler::SoImageSampler ( )

protected

Constructor.

◆ ~SoImageSampler()

SoImageSampler::~SoImageSampler ( )

overrideprotected

Destructor.

Member Function Documentation

◆ freeTextureBuffer()

virtual void SoImageSampler::freeTextureBuffer ( )

protectedvirtual

Delete the texture buffer(s).

Reimplemented in SoMLSamplerCubeMap.

◆ generateMipmap()

virtual void SoImageSampler::generateMipmap ( )

protectedvirtual

Generates mipmap.

◆ imageChanged()

virtual void SoImageSampler::imageChanged ( )

protectedpure virtual

Called when the image has changed and is valid.

Implemented in SoMLSampler.

◆ initClass()

static void SoImageSampler::initClass ( )

static

Initialize class with runtime type system.

◆ setGLTexImage()

virtual void SoImageSampler::setGLTexImage	(	GLenum	target,
		const XVImageSize &	textureSize,
		GLint	internalFormat,
		GLint	format,
		GLenum	textureDataType,
		const GLvoid *	textureData
	)

protectedpure virtual

Set the OpenGL texture.

Implemented in SoMLSamplerCubeMap, SoMLSampler3D, SoMLSampler2D, and SoMLSampler1D.

◆ updateParameter()

void SoImageSampler::updateParameter	(	SoUniformParameterBase *	uniformBase,
		SoState *	state
	)

overridevirtual

Assigns or updates the parameter's value.

Implements SoUniformShaderParameter.

Reimplemented in SoMLSampler.

◆ updateSamplerInfo()

virtual void SoImageSampler::updateSamplerInfo	(	SoUniformParameterBase *	uniformBase,
		SoState *	state
	)

protectedvirtual

Set info about the purpose of the uniform parameter and add info about sampler to state.

◆ updateTextureBuffer()

virtual void SoImageSampler::updateTextureBuffer ( )

protectedvirtual

Calls imageChanged() if _textureBuffer is empty.

Reimplemented in SoMLSamplerCubeMap.

◆ updateTextureFilteringParameters()

virtual void SoImageSampler::updateTextureFilteringParameters ( )

protectedvirtual

Sets parameters for texture filtering.

◆ updateTextureHandle()

virtual void SoImageSampler::updateTextureHandle ( )

protectedvirtual

Creates texture handle and binds it.

◆ updateTextureWrappingParameters()

virtual void SoImageSampler::updateTextureWrappingParameters ( )

protectedvirtual

Sets parameters for texture wrapping in OpenGL.

Implemented for s dimension Derived classes should add wrapping for additional dimensions

Reimplemented in SoMLSampler3D, and SoMLSampler2D.

◆ uploadDummyTexture()

virtual void SoImageSampler::uploadDummyTexture ( GLenum target )

protectedvirtual

Upload a dummy texture consisting of one black voxel using setGLTexImage.

◆ uploadTextureBuffer()

virtual void SoImageSampler::uploadTextureBuffer ( )

protectedvirtual

Uploads data stored in _textureBuffer using setGLTexImage.

Reimplemented in SoMLSamplerCubeMap.

Member Data Documentation

◆ _internTexFormat

SbSamplerInfo::TextureType SoImageSampler::_internTexFormat

protected

Value points to internal texture format.

Definition at line 96 of file SoImageSampler.h.

◆ _isTextureModified

SbBool SoImageSampler::_isTextureModified

protected

Indicates changes in the internal texture.

Definition at line 93 of file SoImageSampler.h.

◆ _samplerType

SoUniformParameterBase::SamplerType SoImageSampler::_samplerType

protected

Specifies the sampler type. Must be either SAMPLER_1D, SAMPLER_2D, SAMPLER_3D or SAMPLER_CUBEMAP.

Definition at line 108 of file SoImageSampler.h.

◆ _target

GLenum SoImageSampler::_target

protected

Specifies the target to which the texture is bound.

Must be set by the derived class! Must be one of GL_TEXTURE_1D, GL_TEXTURE_2D, GL_TEXTURE_3D, GL_TEXTURE_1D_ARRAY, GL_TEXTURE_2D_ARRAY, GL_TEXTURE_RECTANGLE, GL_TEXTURE_CUBE_MAP, GL_TEXTURE_CUBE_MAP_ARRAY, GL_TEXTURE_BUFFER, GL_TEXTURE_2D_MULTISAMPLE or GL_TEXTURE_2D_MULTISAMPLE_ARRAY.

Definition at line 105 of file SoImageSampler.h.

◆ _textureBuffer

MLuint8* SoImageSampler::_textureBuffer

protected

Buffered texture that is uploaded.

Definition at line 90 of file SoImageSampler.h.

◆ _textureRes

ml::GLTexture SoImageSampler::_textureRes

protected

Definition at line 87 of file SoImageSampler.h.

◆ _textureSize

XVImageSize SoImageSampler::_textureSize

protected

size of the internal texture

Definition at line 99 of file SoImageSampler.h.

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/Inventor/SoShader/Inventor/nodes/SoImageSampler.h
